VIOMI S9 User manual

Please read this manual carefully before use and keep it properly.
This product shall be operated only in location at altitude below 2,000 meters.
Please read this manual carefully to ensure proper and safe use of the product.
Viomi Robot Vacuum S9 UV-Automatic Dirt Disposal
User Manual

Considerations
Operation Restrictions
• This product shall be used only for cleaning of ground surface in
residential house, but not for outdoors, other surface (e.g. couch) or
commercialorindustrialenvironment.
• Do not use this product in environment without guardrail, such as
duplex, open balcony, and top of furniture.
• Do not use this product in temperature higher than 40℃orlower
than 0or on ground surface with any liquid or viscous maer.
• Beforeoperating thisproduct,handleany wire/cable ongroundsurface
toavoid itbeing woundbymain machine.
•Remove anyfragile articleandsundrieson groundsurface,suchas vase
orplastic bag, to avoiditfrombeing impacted anddamagedbymain
machine.
• Do not allow any person with physical, mental or sensual disorder
(including children) to use or operate this product.
• Do not allow children to play the main machine. Keep children or pet
staying away from the main machine during operation.
• Do not place any object or sit on the main machine which is
stationary or in movement.
• Donotusethisproducttoclean anyobjectwhichisburning(e.g. burning
cigareeend).
• Do not use this product for cleaning of carpet.
• Do not use this product to suck up any hard or sharp object, such as
scrap, glass, and iron nail.
• Do not handle this product by the protective cover of laser radar as
handle.
Be sure to clean main machine and charging dock only when this
product is power-off or the power supply is disconnected.
• Do not splash any liquid into this product, except the automatic dirt
disposal, which can be cleaned.
• Do not put main machine upside down, and do not place laser radar
on the ground.
• Do not use the vacuum-mop to clean the carpet.
• Use this product by following the instructions or quick start guide.
User shall be responsible for any loss or injury resulting from improper
use.
Baery and Charging
• Do not use any third-party baery, power adapter and charging dock.
• Do not use any non-rechargeable baery.
• Do not dismantle, repair, refit the baery or charging dock.
• Do notplace chargingdockclosetoanyheatsource,forexample,
heating radiator,nor usewetclothorliquidtocleanany part ofthis
product.
•Donotthrowany waste baery randomly.Itisrecommendedtohaveany
specialistagency dispose it.
• To transport this product, be sure to power it off and use the original
packaging box to provide protection for it.
• If this product is to be idle for a long time, charge the baery to full
level and store it at dry and cool location. Recharge it at least monthly
to avoid damage to baery.
• Use a proper tool to remove the baery. First remove the screw on
the boom cover, and then remove the cover, unplug the baery
connecting terminal and take the baery out. Before disposing the
robot, you have to take the baery out of it. When removing the
baery, the robot must be powered off.
This product is in compliance with Class-1 laser safety standard
under IEC60825-1:2014, and will not generate laser radiation
hazardous to human.
01

02
Product Introduction
Smart recharging
Resetbuon:forforcible shutdown.
Poweron/off Globalsweeping
IRsensor
When the robot is power-on,
simultaneously press down and
hold and keys for 5 seconds
till a voice prompt is given, and then
release them to activate network
configuration.
When the robot is power-on,
simultaneously press down and
hold and keys for 10 seconds
till a voice prompt is given, and keep
holding the keys for 10 seconds to
finish recovery to factory seings.
NetworkConfiguration The light is constantly on in blue color,
indicatingsuccessful connection/normal
operation/standbystate．
Flicker in blue color, indicating power-on.
Flashslowlyinbluecolor,indicatingfirmware
upgrade/recoverytofactoryseing.
Flash fast in blue color, indicating network
configuration.
Flicker in red color, indicating low baery level.
Flash fast in red color, indicating fault in
operation.
The LED indicator goes out, indicating
power-off/sleep.
Short press (for less than 3 seconds) to switch off.
Short press the buon to start/cease sweeping.
Long press the buon for 3 seconds to power
on/off.
Short press the buon to start smart
recharging.
The LED indicator keeps flash slowly in yellow
color,indicatingrecharging/ low baerylevel.
Flickerin yellowcolor,indicating recharging.

03
Main machine and sensor
Laser radar
Surface cover
Buon
IR sensor
Collision sensor
Universal caster
Charging electrode
Side brush
Cliff sensor
Main brush cover
Rolling brush
Le caster
Right caster
Integrated automatic
dirt disposal/water tank
UV Light .
15
15

04
Inlet
Water Tank
Dust Compartment
Dust Compartment release buon
Dust Compartment clamp
Mop holder
Mop
Filter screen clamp
Filter screen
2-in-1 Dust Compartment with Water Tank
Top cover
Remove the top cover.
Mount/remove dust bag.
Dust bag holder
IR lens
Recharging/automatic dirt
disposal probe.
Recharging/automatic dirt
disposal sensor.
Dust collection port.
Collect trash in the
machine to the dust bag
through collecting port.
Automatic dirt disposal (Two-in-one for dust collection
and charging)

Instructions on Installation
05
1.Install the automatic dirt disposal
Dust bag (include a automatic dirt disposal).
Note: Bust bag is consumable and shall not be re-used.
Replace it regularly.
(1) Place automatic dirt disposal on flat floor near wall, and connect the
plug to a approved socket and switch power supply on.
(2) Make sure there is no obstacle within 1.2 m in front and 0.5 m at both
sides of it.
Blower filter
Dust bag handle
Dust bag
Place it near wall

Long press power buon for 3 seconds to switch machine on/off.
Power LED indicator flashes slowly for 4 seconds and then lights on
constantly in blue color, and the cleaner in standby. Upon start-up there
is a tone for prompt.
When cleaner stays still, long press the power buon for 3 seconds
to switch it off.
The power LED goes out, and a voice prompt is given.
Cleaner will sleep if being idle for more than 20 minutes. In sleep status,
shorting press any buon will wake it up.
Tips: During recharging, the robot cannot be switched off or sleep.
Operation Instructions
06
1.Switch on/off
In power-on status, short press the buon with voice prompt "start
global cleaning".
During cleaning, short press the buon to cease sweeping.
Tips: At low baery level, sweeping function cannot be started.
2.Sweeping In case of fault in the vacuum-mop, audible and visual alarms will be
given with power LED indicator flashing in red. For more details refer to
Trouble Shooting.
The vacuum-mop will sleep automatically when being idle for 10 minutes
in case of fault.
6.Fault
Upon end of sweeping, a voice prompt "cleaning finished and recharging
started" is given, and the vacuum-mop starts recharging.
In case of low baery level during sweeping, the vacuum-mop will start
recharging automatically.
3.Automatic/manual recharging
Short press buon to pause the vacuum-mop; remove mopping
module, refill the tank or clean the mop; re-mount the mopping module
and short press the buon again to resume sweeping.
4.Refilling tank or cleaning mop half-way
Download App by scanning the QR code on the machine and reset WiFi
by following the tips on APP.
You can query or update the firmware on App. During update make sure
the machine is being charged with baery level not below 60%. For more
details refer to instruction in the App.
Aer downloading, configure network by following tips on APP. Aer
connecting the machine to network, you can start sweeping or
scheduled cleaning remotely on App.
5.Network configuration and firmware update

07
(1) Place the vacuum-mop on flat floor indoors.
Remove the limit protector at both sides of bumper.
(3) Soak the mop with water and aach it to magic tape band and
tighten it.
Inject water through the inlet, and tighten the cover.
(5) Long press buon for 3 seconds to switch the vacuum-mop
on, and then short press buon to recharge it. The vacuum-mop
will be ready for operation when recharged fully.
Note:
1.The robot will return to automatic dirt disposal base aer operating for
more than 1 Minute, and start clear-up process automatically. During
dust collection a arrow flashes in green color on the screen.
2.The robot cannot be switched on in case of low baery level. In such
case, first recharge it.
3.In case of low baer level during sweeping, the robot will go to
charging dock for recharging automatically, and then return to the
interruption point to resume sweeping.
(4) Mount the 2-in-1 Dust Compartment with Water Tank into the
machine.
(2) Press the Dust Compartment release buon to remove the 2-in-1
Dust Compartment with Water Tank.
For the initial use, there may be a very lile water in the tank, which is
residual test sample and at normal condition, and you can use it at ease.
Operation Instructions
Remove
N
N
N

08
(1) Press Dust Compartment release buon and pull the tank out to
remove it.
(2) Release the Dust Compartment clamp to remove filter screen clamp.
(3) Remove the Filter screen．
2-in-1 Dust Compartment with Water Tank
How to connect to Wi-Fi Maintenance
This product works with Mi Home/Xiaomi Home app *. Control your
device, and interact it and other smart home devices with Mi
Home/Xiaomi Home app.
Scanthe QR code todownloadand installthe
app. You will be directed to the connection
setup page if the app is installed already. Or
search "Mi Home/Xiaomi Home" in the app
Store to download and install it.
Open Mi Home/Xiaomi Home app, tap "+" on the upper right, and then
follow prompts to add your device.
*The appisreferredtoasXiaomiHomeappinEurope(exceptforRussia).
The name of the app displayed on your device should be taken as the
default.
Note:
Theversionoftheappmighthavebeenupdated,pleasefollowtheinstructionsbased
on the current app version.
Reseing Wi-Fi
When your router is replaced or Wi-Fi password is changed, you have to
reset Wi-Fi seings by holding both and keys for 5 seconds till
the Wi-Fi indicator light flashes in blue color and a voice prompt is given,
indicating that the Wi-Fi seings are reset successfully.
Filter screen clamp
Filter screen

09
(4) Clean the filter screen and clamp with cleaning brush.
(5) Fill the automatic dirt disposal with water, shake it and then empty it.
Repeat this process till it is clean.
(6) Turn the tank over and remove mop for cleaning or replace it.
Tips:
Clean the mop regularly, since contaminated mop will impair sweeping
performance.
Be sure to remove the mop and clean, and then dry it by twisting. Do not
clean it with it mounted to tank, or otherwise waste water may block
the filter element.

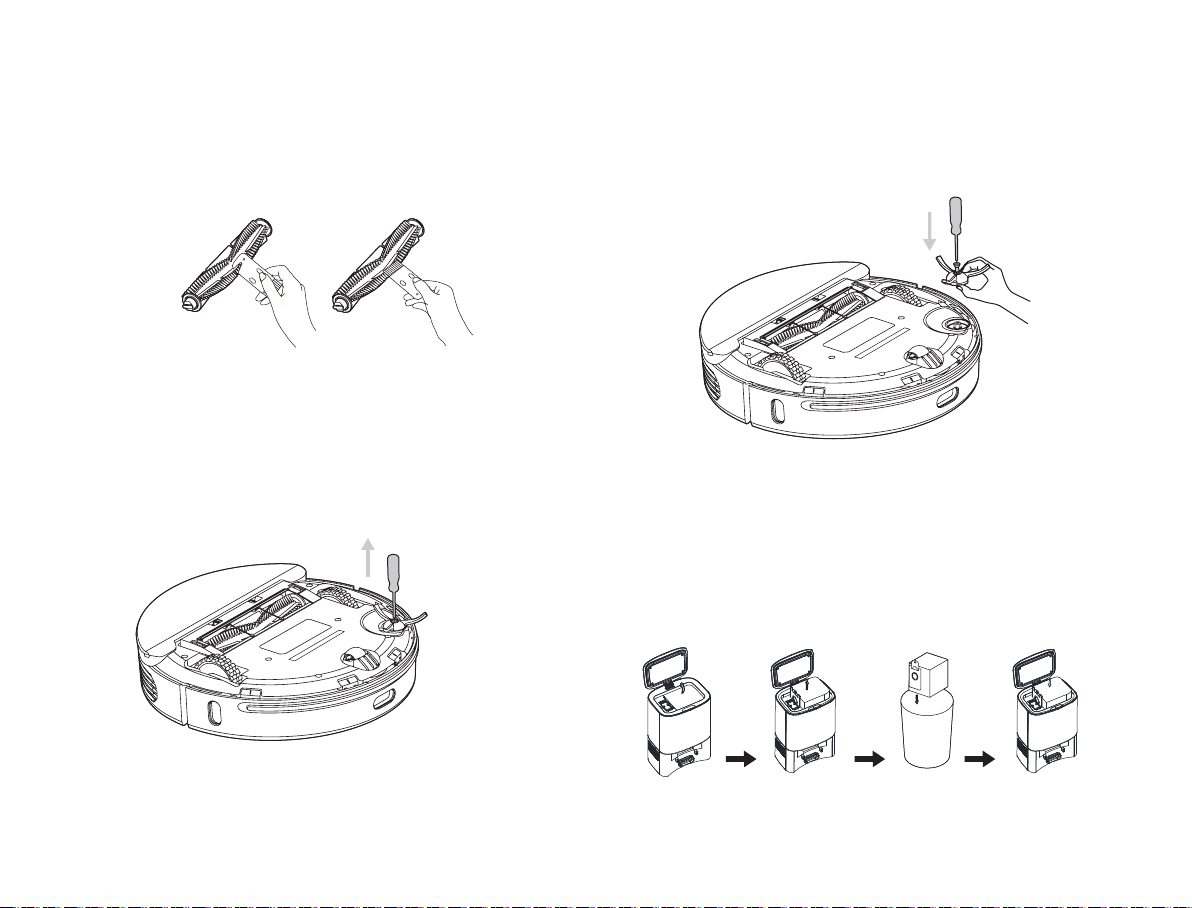

It is recommended to replace main brush every 6-12 months to ensure
proper cleaning performance.
The main brush is consumable and shall be cleaned weekly. It is
recommended to replace main brush every 6-12 months to ensure proper
cleaning performance.
(1) Turn cleaner over, remove main brush cover and the brush by pressing
the clamp on the cover.
Note: Avoid collision when turning it over to avoid damage to laser radar.
Cleaning main brush
Main brush cover
Main brush

10
(2) Cut off hairs around the brush with knife, and clean the main brush
with the other end of the knife.
(3) Mount the main brush and main brush cover and lock the clamp.
Clean/replace side brush
(1) Remove screws fixing side brush with screwdriver, and remove the
side brush.
Replace dust bag
In case that the FULL DUST BAG icon flashes in orange color on the
screen or a message is given on the App when the dust bag is full, please
replace the bag immediately. When the dust bag is in normal operation,
the icon keeps flashing in green and white colors.
(2) Mount side rush aer cleaning, or replace the side brush.
Tips: It is recommended to replace side brush every 3-6 months to
ensure proper cleaning performance.
Remove
Installation
Open the
top cover Remove dust bag by pulling the bag
handle up.
Mount a new dust
bag and mount the
cover again.
Remove the
dust bag.

11
Clean dust duct
In case that the FULL DUST BAG icon is still in orange color even aer
the bag is replaced, it is recommended to disconnect power plug, turn
the charging pile upside down to check whether dust duct is blocked by
any foreign maer.
If dust duck is blocked, remove the duct cover with screwdriver, as
shown below.
Remove any foreign maer.
Note: Do not dismantle it with excessive force.
Aer finishing clear-up, mount it again in place.
Maintenance of baery
The vacuum-mop contains an built-in high-performance rechargeable
lithium-ion baery. To maintain adequate baery performance, keep it
recharged regularly.
If the vacuum-mop is le idle for a long period, switch it off and recharge
it once every three months to avoid damage due to over-discharging.
Clean sensor
It is recommended to weekly clean each sensor with clean and so cloth
to ensure proper cleaning performance.
Robot vacuum:
Cliff sensor × 4
IR sensor × 3
Charging electrode × 2
PSD detector × 1
Transparent duct cover
Dust duct
IR sensor
Charging electrode
IR sensorPSD detector
Cliff sensor
IR sensor
Cliff sensor
Charging
electrode

Specifications
12
Automatic dirt disposal charging dock:
IR lens × 2
Automatic dirt disposal charging probe × 2
IR lens
Main machine
Name
Model number
Dimensions
Rated voltage
Rate power
Viomi Robot Vacuum S9 UV-Automatic Dirt
Disposal
φ350mm×98mm
50W
V-RVCLMD28D / V-RVCLMD28C
Baery capacity 5200mAh
Wi-Fi IEEE 802.11b/g/n 2.4GHz
Automatic dirt disposal
Rated power
Rated input
Rated output
Rated frequency
Dimensions
950W
Model number V-ADD26D / V-ADD26C
24V 1.5A
50/60Hz
356×250×193mm
220-240V~50/60Hz
This product is in compliance with Class-1 laser safety standard under
IEC60825-1:2014, and will not generate laser radiation hazardous to
human.
Automatic dirt disposal
charging probe
Wireless
Connectivity
14.4V

Trouble Shooting FAQ
13
Fault Prompt Solution
Error #2. Clean cliff sensor
and relocate the cleaner.
Error #3. A strong magnetic
field is detected. Relocate
the cleaner and try again.
Error #1. Make sure the
laser ranging sensor is not
blocked.
Error #4. Check collision
sensor and remove any
foreign object on it.
Error #5. The Vacuum-Mop
is at abnormal temperature.
Stop operating till normal
temperature is recovered.
Error #6.Charging fails.
Please clean charging
contact.
Check for or remove any foreign
maer around laser radar, or relocate
the Vacuum-Mop and restart it.
Clean the cliff sensor and try again
(for more details refer to the user
manual).
Relocate the Vacuum-Mop and try
again.
Try to press the bumper strip and
remove any foreign maer, and then
restart the Vacuum-Mop.
The Vacuum-Mop is in too high or
low temperature. Stop operating till
normal temperature is recovered.
Check the adapter, or check whether
the automatic dirt disposal is at
horizontal position. Switch off the
Vacuum-Mop and the automatic dirt
disposal, clean their metal contacts.
Problem Solution
Sweeping function fails.
Charging function fails.
Cleaner fails to start up，
The machine operates
improperly.
Cleaning operation is
noisy.
Cleaning performance
deteriorates or dust
drops.
Wi-Fi connection is
unavailable.
Breakpoint resume.
Low baery level. Keep the machine close
to charging dock and try again. Too low
(below 0℃) or high (above 50℃) ambient
temperature.
Low baery level. Keep the machine close
to charging dock and try again.
Too many barriers around charging dock.
Place charging dock in an unblocked area.
Main machine is too far from charging
dock. Place main machine near charging
dock and try again.
Power it off and than power it on again.
Main brush, side brush or le/right caster
is damaged by foreign object. Power off
themachineandremovetheforeign object.
The automatic dirt disposal is full of dust.
Please empty the collector.
Filtercomponentisblocked.Pleasecleanit.
Main brush is damaged by any foreign
object. Please clean the main brush.
Weak Wi-Fi signals. Make sure the robot is
in proper coverage of Wi-Fi signals.
Wi-Fi connection fails. Reset Wi-Fi
connection and download the latest App
and try again.
Make sure non-disturbance mode is not
activated, which will disable proceeding at
breakout point.
Proceeding at breakout point is
unavailable when the machine is being
charged.
Solution
Error #2.Blower fails, The
text is given and the icon
flash.
Error #1.Dust bag is not
mounted. The text "Full bag"
is given and the icon flash.
Mount dust bag in place.
Check whether air duct is blocked,
and contact aer-sales service for
troubleshooting.
The automatic dirt
disposal fault prompt

14
The Vacuum-Mop fails
to return to charging
dock aer fixed point
cleaning or displace-
ment.
Charging fails.
Scheduled cleaning
fails.
The Vacuum-Mop is
always offline.
The Vacuum-Mop fails
to be paired with cell
phone.
Problem
Manufactured by: Foshan VIOMI Electrical Technology Co., Ltd. (a Mi Ecosystem company)
Address: 2nd Floor, No.1 Building And 4th Floor of No.7 Building, North of Four Xinxi Street, Lunjiao, Shunde, Foshan, Guangdong, P.R. China
Solution
As the Vacuum-Mop will re-generate a
map aer fixed-point cleaning or being
displaced by a long distance, it may fail to
locate charging dock for charging. In such
case, place the machine onto charging
dock manually.
Make sure there is sufficient spaces
around charging dock, and there is no dust
or blockage on the surface of electrode of
charging dock.
Make sure the machine has been
connected to the network, as disconnec-
tion from network will fail sync and
scheduled cleaning task.
Make sure the machine is connected to
network successfully, and always within
coverage of Wi-Fi.
Make sure both charging dock and main
machine are within coverage of Wi-Fi and
good signals, and then reset Wi-Fi
connection for pairing by following the
instructions in the manual.
