VIOMI V3 User manual

Viomi Robot Vacuum Cleaner V3

Safety Information
Usage Restrictions
• Do not spray any liquid into the vacuum-mop (make sure the dust
compartment is thoroughly dry before its reinstalling).
• Do not place the vacuum-mop upside down (laser radar housing
should never touch the ground).
• Only use this product as directed in the user manual or quick start
guide. Users are responsible for any loss or damage arising from
improper use of this product.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with
the appliance.
• Cleaning and user maintenance shall not be made by children
without supervision (EU).
• Please keep the main brush cleaning tools out of reach of children.
• Keep hair, loose clothing, fingers, and all parts of body away from
openings and moving parts.
• Do not use the vacuum-mop to clean any burning substances.
• Do not pick up the vacuum-mop by its laser radar cover.
• Make sure the vacuum-mop is turned off and the charging dock is
unplugged before cleaning or performing maintenance.
• This vacuum-mop is only intended to clean floors in a home environment.
Please do not use it outdoors such as on an open balcony or on a
surface that is not a floor like a sofa, or in a commercial or industrial
seing.
• Do not use the vacuum-mop in an area suspended above ground
level, such as a lo, open balcony, or on top of furniture, unless a
protective barrier is present.
• Do not use the vacuum-mop at an ambient temperature above 40°C
or below 0°C or on a floor with liquids or sticky substances.
• Pick up any cables from the floor before using the vacuum-mop to
prevent it from dragging them while cleaning.
• Pick up any fragile or loose items from the floor, such as vases or
plastic bags, to prevent the vacuum-mop from being obstructed or
bumping into them and causing damage.
• Do not place children, pets, or any item on top of the vacuum-mop
while it is stationary or moving.
• Do not use the vacuum-mop to clean the carpet.
• Do not allow the vacuum-mop to pick up hard or sharp objects such
as building materials, glass, or nails.
01

• Do not use any third-party baery, charger, or charging dock. Use
only with <DBS036A-2001800G> supply unit.
• The appliance must be disconnected from the supply mains when
removing the baery.
• This appliance contains baeries that are only replaceable by skilled
persons.
• Do not place the charging dock near a heat source, such as a radiator.
• Do not wipe any part of the vacuum-mop with a wet cloth or other liquid.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or qualified persons in order to avoid a hazard.
• Do not improperly dispose of old baeries. Before discarding the
vacuum-mop, make sure the vacuum-mop is unplugged and the
baery must be removed and disposed of in an environmentally safe
manner.
• Make sure the vacuum-mop is turned off when being transported
and kept in its original packaging if possible.
• If the vacuum-mop will not be used for an extended period, fully
charge it, then turn it off and store it in a cool, dry place. Recharge the
vacuum-mop at least once a month to prevent baery damage.
This product's laser radar meets the IEC 60825-1:2014 Standard for
Class 1 laser product safety and does not produce laser radiation
hazardous to the human body.
Baeries and Charging
02

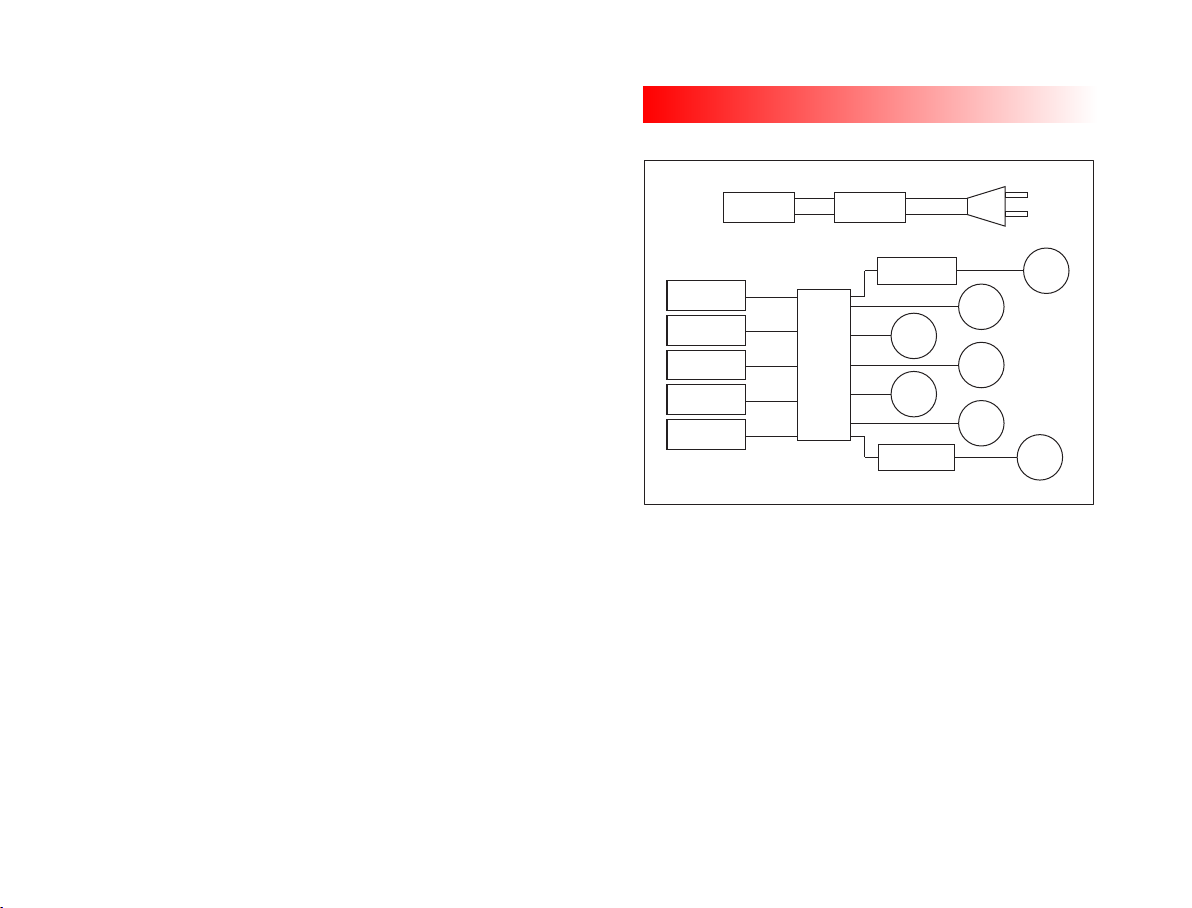

Electrical Diagram
Charging Board Power Adapter
Control Board
Baery
Charging Port
Mop Sensor
Le Wheel
Speed Sensor
Side Brush
Motor
Fan
Water Pump
Motor
Radar
Main Brush
Motor
Le Wheel
Motor
Right Wheel
Motor
Power
Plug
Dust Compartment
Sensor Board
Water Reservoir
Sensor
Right Wheel
Speed Sensor

2-in-1 Dust Compartment
with Water Reservoir
(for vacuuming and
mopping modes)
Viomi V3
Charging Dock
Dust Compartment
(for cleanup mode)
Cleaning Brush Main Brush
Power Adapter
Disposable mop(×2) Mop Holder
Side Brush (×2)
Wet Mop/Moist Mop550ml water tank

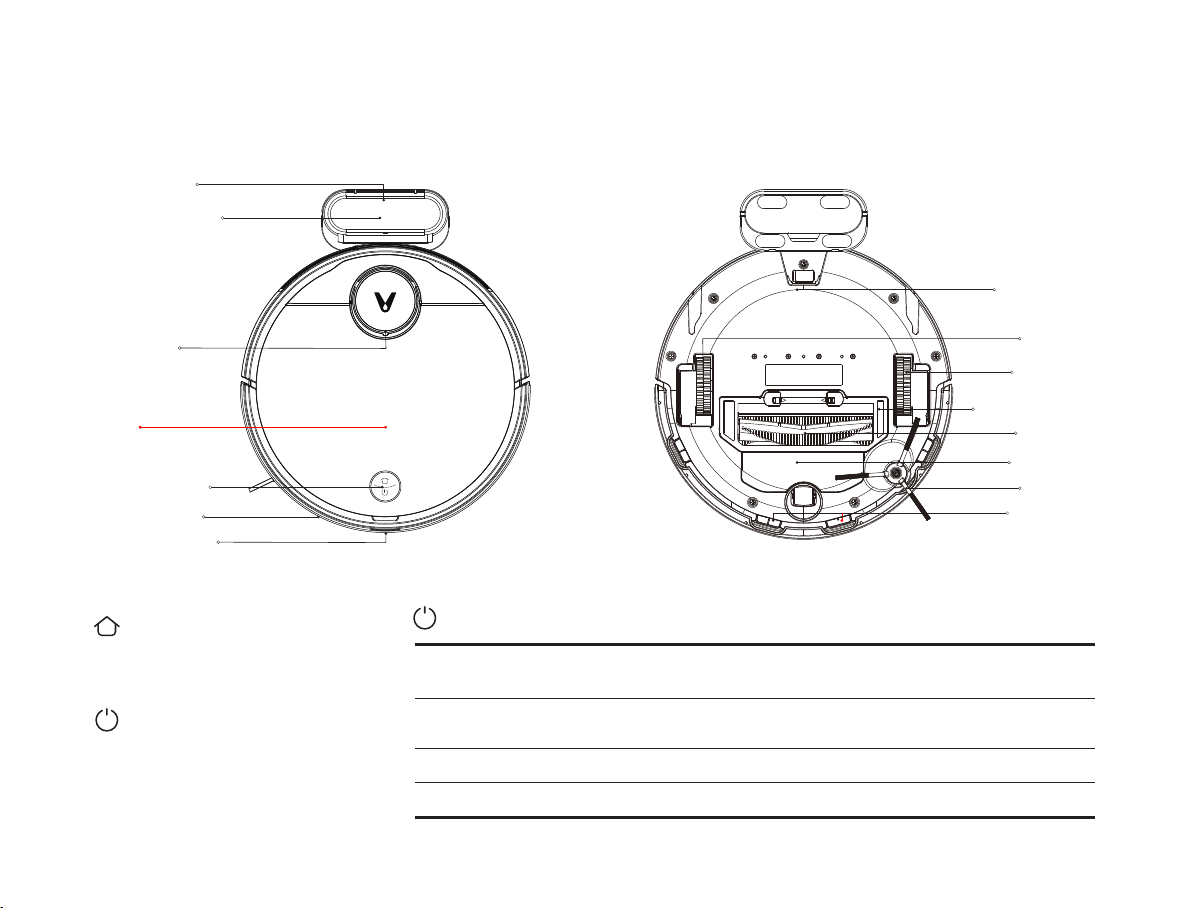

Product Overview

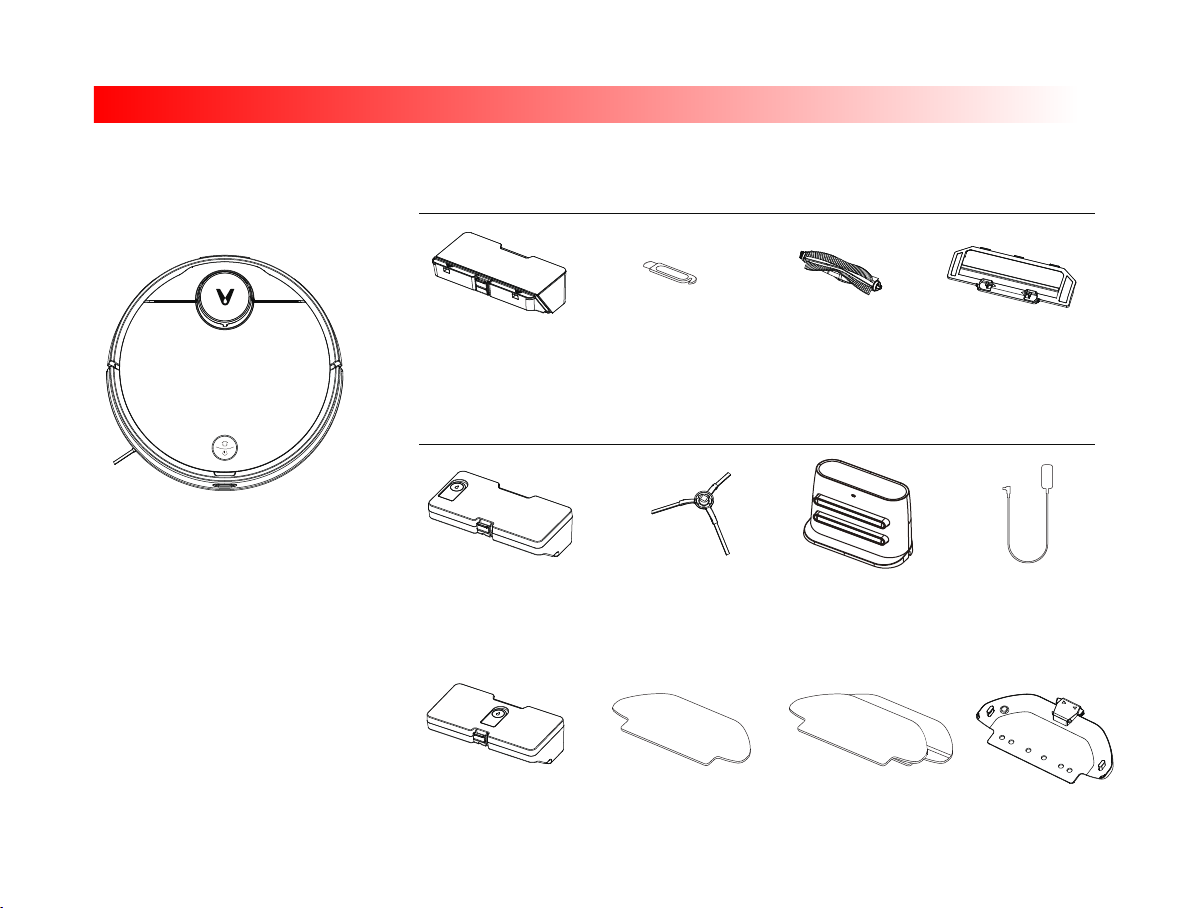

Product & Accessories List
Vacuum-Mop Accessories
Accessory Box Contents
Note: Illustrations of product, accessories,
and user interface in the user manual are
for reference purposes only. Actual
product and functions may vary due to
product enhancements.
Main Brush Guard
03

Cover
Laser Radar
Function Buons
Charging Dock
Charging Indicator
IR Receiver Sensor
Indicator Status
Slowly blinking yellow
Turned on/Working normally/Fully charged/Wi-Fi Connected
Blinking blue
Collision Sensor
Dock
Press to send vacuum-mop back to
charging dock.Power/Cleanup Buon
Press to start or pause cleaning.
Press and hold for 3 seconds to turn
the vacuum-mop on or off.
Returning to dock to
charge/Low baery
Breathing yellow Charging
Blinking red Error
Blue
Wi-Fi not connected
Waiting for the network
configuration
Turing on/Updating firmware
Slowly blinking blue
Breathing blue
Le Wheel
Baery Pack
Mop Assembly
Cliff Sensors
Right Wheel
Side Brush
Main Brush Guard
Main Brush
04

Blue: Turned on/Working normally/Fully charged/Wi-Fi Connected
Breathing yellow: Charging
Blinking red: Error
Installation

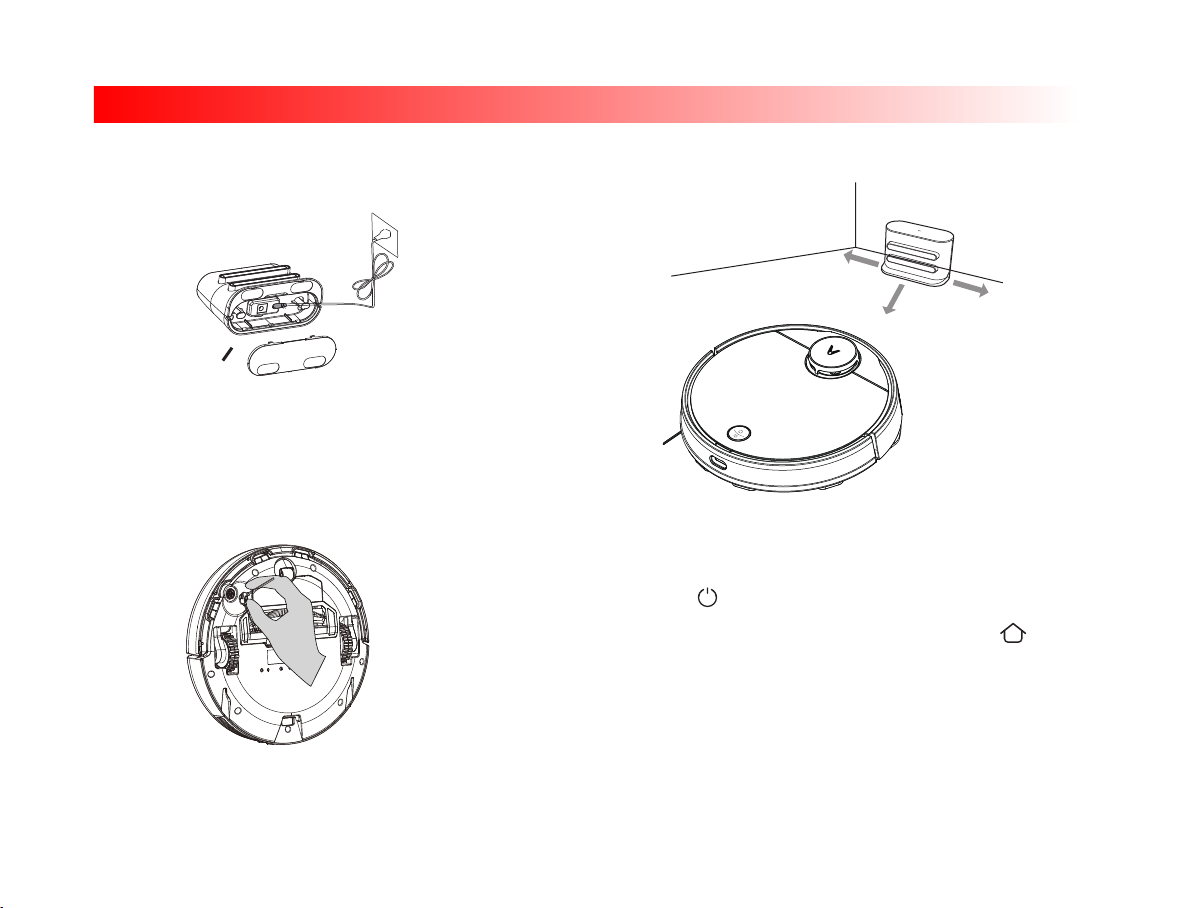

1. Connect the charging dock to the power outlet. 3. Place the charging dock on a level ground against a wall.
2. Install the side brush on the upper-le corner of the vacuum-mop, as
shown in the figure. An extra side brush in the package is provided as a
spare and does not need to be installed.
4. When using the vacuum-mop for the first time, press and hold the
buon for 3 seconds to turn on the vacuum-mop. Once the
indicator lights up, manually place the vacuum-mop onto the
charging dock to charge. Then just press the buon when the
vacuum-mop is cleaning, it will automatically go to the charging
dock to recharge.
05
0.5 meters
0.5meters
1.5meters

2. Install the 2-in-1 dust compartment
with water reservoir into the
vacuum-mop until it locks into place.
3. Aach the mop to the holder
and press the velcro strips firmly
together.
Vacuuming and mopping mode: Install 2-in-1 dust
compartment with water reservoir, mop holder, and mop.
1. Open the water reservoir lid, fill
up the reservoir, then reaach the
lid.
Cleanup mode: Install the dust compartment or 2-in-1 dust
compartment with water reservoir.
1. Open the cover of the vacuum-mop and place the dust compart-
ment or 2-in-1 dust compartment with water reservoir in the direction
shown until it locks into place.
2. Turn on the vacuum-mop. It is now ready to start cleaning.
Installing Accessories for Desired Mode
06

Precautions:
1. Do not place the charging dock in an area with direct sunlight.
2. Make sure there are 0.5 meters or more of open space on either side of the charging dock and more than 1.5 meters in front.
3. If the vacuum-mop is unable to turn on due to low baery, place it directly onto the charging dock to recharge.
4. The vacuum-mop will automatically turn on when it is on the charging dock.
5. The vacuum-mop cannot be turned off when it is on the charging dock.
6. Remove the water reservoir and mop holder when the vacuum-mop is charging or not in use.
7. Use the virtual wall or set restricted areas for carpeted areas to prevent the vacuum-mop from geing caught on the carpet.
8. Regularly clean the dust compartment to prevent excess dirt accumulation. This can avoid reducing the cleaning performance of the vacuum-mop.
9. In cleanup mode, the vacuum-mop can do the cleaning with either the dust compartment or 2-in-1 dust compartment with water reservoir installed.
4. Pinch the clips, install the mop holder horizontally into the boom of the vacuum-mop, as illustrated.
5. Turn on the vacuum-mop. It is now ready to start vacuuming and mopping.
07

How to Use
While the vacuum-mop is running, press any buon to pause it, then press the buon to resume cleaning. Pressing the buon will end the current
cleaning task and send the vacuum-mop back to the charging dock.
Pausing
When the vacuum-mop is on the charging dock, it will automatically turn on and cannot be turned off.
To manually turn on the vacuum-mop, press and hold the buon until the indicator lights up. When the vacuum-mop is in standby mode and not on the
charging dock, press and hold the buon to turn it off.
Turning On/Off
Turn the vacuum-mop on, then press the buon . Depending on the accessory installed, the vacuum-mop will automatically begin vacuuming or
mopping.
Cleaning
Turn the vacuum-mop on, then press the buon to send the vacuum-mop to the dock to recharge.
When the vacuum-mop completes the cleaning task, it will automatically return to the dock for recharging, and the indicator is blinking yellow.
If the vacuum-mop starts running low baery during a cleaning task, it will automatically return to the charging dock to recharge. Once the vacuum-mop
is fully charged, it will resume cleanup where it le off.
If the vacuum-mop automatically shuts down due to low baery, manually place it onto the charging dock, and make sure the charging terminals have a
good contact.
Recharging
If the vacuum-mop encounters an error during operation, the indicator will blink red and you will hear a voice alert. To check for a solution, please refer to
the Troubleshooting section.
If no action is taken within 5 minutes, the vacuum-mop will automatically enter sleep mode.
Fault Status
The vacuum-mop will automatically enter sleep mode aer 5 minutes of inactivity. To wake it up, press any buon or use the app.
• The vacuum-mop will not enter sleep mode while on the charging dock.
• The vacuum-mop will automatically turn off aer being in sleep mode for 12 hours.
Sleep Mode
If you need to add more water to the vacuum-mop or clean the mop during a cleaning task, press any buon to pause the vacuum-mop, then remove the
water reservoir. Aer adding water or cleaning the mop, reinstall the water reservoir and mop, then press the buon to resume the cleaning task.
Adding Water or Cleaning Mop During Cleaning
08

Four suction modes are available in the Mi Home/Xiaomi Home app: Silent, Standard, Medium, and Turbo. The default mode is Standard.
Cleaning Preferences
In the Do Not Disturb mode, the vacuum-mop will not resume cleanup, perform scheduled cleanup, or issue voice alerts.
Do Not Disturb Mode is enabled by default and can be disabled via the app.
Do Not Disturb Mode
The vacuum-mop has a feature of resuming cleanup. If the vacuum-mop starts running low baery during a cleaning task, it will automatically return to the
charging dock to recharge. Once the vacuum-mop is fully charged, it will resume cleanup where it le off. If the cleaning task is manually ended while the
vacuum-mop is charging, cleanup will not be resumed.
Resuming Cleanup
You can use the app to set up the zoned area, then the vacuum-mop will clean up within the zoned area you selected.
Zoned Area
You can set a specified area on the map via the app, then the vacuum-mop will automatically navigate to the area and clean a square-shaped area of 2 × 2
meters.
Clean There
You can schedule cleaning times in the app. The vacuum-mop will automatically start cleaning at the scheduled times, then return to the charging dock
aer the cleaning is completed.
Note: The vacuum-mop will not do the scheduled cleanup during the Do Not Disturb period if Do Not Disturb mode is enabled.
Scheduled Cleanup
You can set up virtual walls and restricted areas in the app to prevent the vacuum-mop from entering areas you wish not to clean.
Virtual Walls/Restricted Areas
You can use the app to enable smart mapping. This allows the vacuum-mop to automatically update its map aer completing a cleaning task and
recharging.
Smart Mapping
09

Connect with Mi Home/Xiaomi Home App
This product works with Mi Home/Xiaomi Home app *. Control your device, and interact it and other smart home devices with Mi Home/Xiaomi Home app.
Scan the QR code to download and install the app. You will be directed to the connection
setup page if the app is installed already. Or search "Mi Home/Xiaomi Home" in the app
Store to download and install it.
Open Mi Home/Xiaomi Home app, tap "+" on the upper right, and then follow prompts to add your device.
* The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.
Note:
The version of the app might have been updated, please follow the instructions based on the current app version.
Restoring Factory Seings
Press and hold the buon for 5 seconds. When you hear a voice saying "Factory seings will be restored", press and hold the buon again for 5 seconds
until it says "Restoring factory seings". When the seings are successfully restored, all user data will be cleared, and you will hear a voice saying "Factory seings
restored successfully".
Reseing Wi-Fi
When switching to a new router or changing your Wi-Fi password, you will need to reset the vacuum-mop's Wi-Fi connection. Turn on the
vacuum-mop, then simultaneously press and hold the buons and for 3 seconds until you hear a voice saying "Waiting for the network
configuration". Once the Wi-Fi connection is successfully reset, you can reconnect the vacuum-mop.
Note: Only 2.4 GHz Wi-Fi networks are supported.
10

1. Open the cover of vacuum-mop,
remove the 2-in-1 dust compartment
with water reservoir, then remove
the filter as shown in the figure.
2. Empty the contents of the dust
compartment. Clean the
compartment using the cleaning
brush, then align and reinstall the
filter.
2-in-1 Dust Compartment with Water Reservoir
3. Reinstall the 2-in-1 dust
compartment with water reservoir
into the vacuum-mop until it clicks
into place, then close the cover of
the vacuum-mop.
Care & Maintenance
1. Open the cover of the vacuum-mop,
remove the dust compartment, then
open the lid as shown in the figure.
2. Empty the contents of the dust
compartment.
3. Clean the dust compartment
using the included cleaning brush.
4. Reinstall the dust compartment
into the vacuum-mop until it clicks
into place, then close the cover of
the vacuum-mop.
Dust Compartment
11

1. Flip the vacuum-mop over and
pinch the clips to remove the main
brush guard.
2. Remove the main brush and the
main brush bearing.
3. Use the cleaning brush to clean
the main brush.
4. Reinstall the main brush and its
bearing, then put back and press
down the main brush guard until it
locks into place.
Note: It is recommended to replace the main brush every 6–12 months for optimal
cleaning effectiveness.
Filter
To clean the filter in the dust
compartment and 2-in-1 dust
compartment with water reservoir,
remove it as indicated in the diagram.
Main Brush
It is recommended to replace the side brush every 3–6 months for
optimal cleaning effectiveness.
• Aer rinsing the filter with water, make sure it is thoroughly dry when
reinstalling the filter into the dust compartment or 2-in-1 dust
compartment with water reservoir.
• To prevent the filter from becoming clogged, it is recommended to
regularly clean the filter using the cleaning brush.
• It is recommended to replace the filter every 3 to 6 months.
Periodically remove and clean the side brush.
Side Brush
Clean the cliff sensors every three months using a so cloth.
Cliff Sensors
Cliff Sensors
12
Clips
Main Brush Guard
Main Brush
Main Brush Bearing

FAQ
Fault Possible Causes
Moving the vacuum-mop a considerable
distance may cause it to re-map its
surroundings. If the vacuum-mop is too
far from the charging dock, it might not
be able to automatically return on its
own, in which case you will need to
manually place the vacuum-mop onto
the charging dock.
Make sure the charging dock and
vacuum-mop are in the range of Wi-Fi
and have a good signal. Follow the
instructions in the user manual to
reset the Wi-Fi connection and pair
the vacuum-mop again.
1. There are too many obstructions
around the charging dock. Place the
charging dock in a more open area.
2. The vacuum-mop is too far away
from the charging dock. Move it nearer
to the charging dock and try again.
1. The baery level is low. Recharge the
vacuum-mop, then try again.
2. The ambient temperature is too low
(below 0°C) or too high (above 40°C).
1. The dust compartment is full. Please
empty the contents.
2. The filter is blocked. Please clean it.
3. A foreign object is caught in the main
brush. Please clean it.
The baery level is low. Recharge the
vacuum-mop, then try again.
Turn off the vacuum-mop, then turn it
on again.
Make sure the vacuum-mop is
connected to the network and stays
in range of Wi-Fi at all times.
A foreign object might be caught in
the main brush, side brush, or the
le/right wheel. Turn off the
vacuum-mop and remove any debris.
Make sure there is enough open
space around the charging dock and
its charging contacts are free of dust
and other debris.
Make sure the vacuum-mop is
connected to the network, otherwise
it will be unable to sync with the app
and perform scheduled cleanups.
1. Wi-Fi signal is weak. Make sure the
vacuum-mop is in an area with good
Wi-Fi coverage.
2. There is something wrong with the
Wi-Fi connection. Reset the Wi-Fi and
download the latest version of the app,
then try reconnecting.
1. Make sure the vacuum-mop is not in
Do Not Disturb mode, which will
prevent it from resuming cleaning.
2. The vacuum-mop will not resume
cleaning if it is manually recharged or
placed onto the charging dock.
Vacuum-mop does not
turn on
Fault Possible Causes
Vacuum-mop does not
start cleaning
Vacuum-mop is
malfunctioning
Vacuum-mop makes a
strange noise
Vacuum-mop no longer
cleans efficiently, or
leaves dust behind
Vacuum-mop cannot
connect to Wi-Fi
Vacuum-mop does not
resume cleanup
Vacuum-mop does not
return to charging dock
aer being moved
Vacuum-mop does not
recharge
Vacuum-mop does not
perform scheduled
cleanup
Vacuum-mop keeps
going offline
Vacuum-mop cannot
be connected with
"viomi-vacuum-v13_
miapXXXX" in the app
Vacuum-mop does not
return to charging dock
13

Troubleshooting
Fault Solution Fault Solution
Error 1: Make sure that
the laser distance sensor
is not obstructed.
Error 2: Wipe the cliff
sensor clean, move the
vacuum-mop to a new
location, and reactivate it.
Clear any foreign objects which may
block or obstruct the laser distance
sensor, or move the vacuum-mop to a
new location and reactivate it.
Part of the vacuum-mop may be off the
ground, re-position the vacuum-mop
and reactivate it. The cliff sensor is dirty,
wipe off the dirt from the cliff sensor.
Error 3: Strong magnetic
field detected. Reactivate
the vacuum-mop away
from any virtual walls.
The vacuum-mop may be too close to
a virtual wall. Move the vacuum-mop
to a new location and reactivate it.
Error 4: Clear the collision
sensor of any foreign
objects.
The collision sensor may be stuck.
Gently tap it several times to remove
any foreign objects. If nothing falls
out, move the vacuum-mop to a
different location and reactivate it.
Error 5: Vacuum-mop is
operating at an abnormal
temperature.
The operating temperature of the
vacuum-mop is too high or too low.
Wait until the temperature
normalizes, then try again.
Wipe the charging contacts both on the
charging dock and the vacuum-mop
with a dry cloth.
Error 6: Charging error.
Try cleaning the charging
contacts.
A wheel may be off the ground.
Re-position the vacuum-mop and
reactivate it.
Error 7: Place the
vacuum-mop on level
ground and reactivate it.
The vacuum-mop is tilted at startup.
Move the vacuum-mop to a level
surface and reactivate it. You can
also reset the level of vacuum-mop in
the app, then reactivate it.
Error 9: Move the
vacuum-mop to a new
location and reactivate it.
The vacuum-mop may be caught or
stuck. Clear away any obstructions
around it.
Error 10: Clear any
obstacles around the
vacuum-mop.
Make sure the water reservoir or
2-in-1 dust compartment with water
reservoir is securely installed.
Error 11: Make sure the
water reservoir is
installed properly.
Make sure the mop holder and mop
are securely installed.
Place the vacuum-mop onto the
charging dock.
Place the vacuum-mop onto the
charging dock, then reactivate it aer
it is fully charged.
Remove the mop and holder, then
reactivate the vacuum-mop.
Error 12: Make sure the
mop is installed properly.
Error 13: Unable to return
to the charging dock.
Error 14: Low baery.
Please recharge.
Error 15: Remove the mop.
Error 8: Reinstall the dust
compartment and filter. Make sure the dust compartment and filter are installed correctly. If the
error persists, try replacing the filter.
14

Specifications
Vacuum-Mop
Dimensions φ350 × 94.5 mm
5.0 kgNet Weight
Wireless Connectivity
40 WRated Power
4900 mAhBaery Capacity
V-RVCLM26BModel
Dimensions 152 × 74.6 × 99.5 mm
Charging Dock
1.8 ARated Output Current
Rated Input Voltage 20 V
1.8 ARated Input Current
Rated Output Voltage
Model V-RVCLM26B
20 V
Model DBS036A- 2001800G
100–240 V~, 50/60 Hz, 0.6 A
Power Adapter
1.8 A
Output
Input
20 V
Wi-Fi IEEE 802.11b/g/n 2.4 GHz
14.52 VBaery Voltage
15

16
Precauzioni
Restrizioni per l'utilizzo
• Questo apparecchio non è destinato all'utilizzo da parte di persone
(inclusi bambini) con capacità fisiche, sensoriali o mentali ridoe,
oppure con mancanza di esperienza e conoscenza, a meno che non
ricevano supervisione e istruzione riguardo l'utilizzo dell'apparecchio
da parte di una persona responsabile della loro incolumità.
• Non consentire ai bambini di giocare con l'apparecchio.
• Le operazioni di pulizia e manutenzione non devono essere effeuate
da bambini, a meno che non siano sorvegliati (UE).
• Tenere gli strumenti per la pulizia della spazzola principale lontano
dalla portata dei bambini.
• Assicurarsi di tenere eventuali abiti larghi, capelli, dita e qualsiasi
altra parte del corpo lontani dalle aperture e dalle parti in movimento.
• Non usare l'aspirapolvere/lavapavimenti per pulire eventuali sostanze
infiammabili.
• Non sollevare l'aspirapolvere/lavapavimenti afferrandolo per il coperchio
del radar laser.
• Accertarsi che l'aspirapolvere/lavapavimenti sia spento e che la stazione
di ricarica sia scollegata prima di pulirlo o effeuare operazioni di
manutenzione.
• Questo aspirapolvere/lavapavimenti è inteso per la pulizia di pavimenti
in ambienti domestici. Non utilizzarlo all'aperto, per esempio su balconi,
su superfici che non sono pavimenti, quali divani, o in ambienti
commerciali o industriali.
• Non utilizzare l’aspirapolvere/lavapavimenti in ambienti sospesi sopra
il livello del suolo, quali soppalchi, balconate aperte o sopra a mobili se
non è presente una barriera di protezione.
• Non utilizzare l'aspirapolvere/lavapavimenti a una temperatura
ambiente superiore a 40 °C o inferiore a 0 °C, né su pavimenti dove
sono presenti liquidi o sostanze appiccicose.
• Togliere da terra eventuali cavi prima di utilizzare l'aspirapolvere/
lavapavimenti, per evitare che vengano trascinati durante la pulizia.
• Togliere da terra oggei fragili o non sciolti, quali vasi o sacchei di
plastica, per impedire che l'aspirapolvere/lavapavimenti sia bloccato
o colpisca tali oggei danneggiandoli.
• Non posizionare bambini, animali domestici o nessun altro oggeo
sopra l'aspirapolvere/lavapavimenti, sia quando è fermo, sia quando è
in movimento.
• Non utilizzare l'aspirapolvere/lavapavimenti per pulire tappeti.
• Non consentire all'aspirapolvere/lavapavimenti di aspirare oggei
duri o taglienti (ad esempio materiali da costruzione, vetro, chiodi)
• Non spruzzare liquidi nell'aspirapolvere/lavapavimenti (prima di
reinstallare lo scomparto raccogli polvere, controllare che sia
perfeamente asciuo).
• Non posizionare l'aspirapolvere/lavapavimenti in posizione capovolta
(l'alloggiamento del radar laser non deve mai toccare il pavimento).
• Utilizzare il prodoo solo secondo le istruzioni fornite nel manuale
utente o nella guida rapida. Gli utenti sono responsabili di eventuali
perdite o danni derivanti dall'uso improprio dell'apparecchio.

17
• Non utilizzare baerie, alimentatori o stazioni di ricarica non originali.
Utilizzare soltanto con l’unità di alimentazione <DBS036A-2001800G>.
• L'apparecchio deve essere scollegato dalla rete elerica quando si
rimuove la baeria.
• Questo apparecchio contiene baerie sostituibili solo da personale
adeguatamente formato.
• Non pulire nessuna parte dell'aspirapolvere/lavapavimenti con panni
umidi o con liquidi.
• Non utilizzare baerie, alimentatori o stazioni di ricarica non originali.
• Se il cavo di alimentazione è danneggiato, deve essere sostituito dal
produore, dal suo agente di servizio o da una persona analogamente
qualificata al fine di evitare rischi.
• Non smontare, riparare o modificare la baeria o la stazione di
ricarica per proprio conto.
• Non posizionare la stazione di ricarica vicino a fonti di calore,
quali termosifoni.
• Non smaltire in modo improprio le baerie usate. Prima di disfarsi
dell'aspirapolvere/lavapavimenti, verificare che sia scollegato. La
baeria deve essere rimossa e smaltita in modo ecologico.
• Accertarsi che l'aspirapolvere/lavapavimenti sia spento durante il
trasporto e, se possibile, conservarlo nella confezione originale.
• Se l'aspirapolvere/lavapavimenti non viene utilizzato per un lungo
periodo, ricaricarlo completamente, quindi spegnerlo e conservarlo in
un luogo fresco e asciuo. Ricaricare l'aspirapolvere/lavapavimenti
almeno una volta al mese per evitare che la baeria si danneggi.
Il radar laser del prodoo soddisfa lo standard IEC 60825-1:2014 per la
sicurezza dei prodoi laser di classe 1 e non genera radiazioni laser
pericolose per il corpo umano.
Baeries and Charging
Schema elerico
Scheda di ricarica Alimentatore
Baeria
Porta di ricarica
Ventola
Radar
Scheda sensore
scomparto raccogli
polvere
Sensore serbatoio
dell'acqua
Sensore
lavapavimenti
Scheda di
controllo
Sensore di velocità
ruota sinistra
Motore
ruota
sinistra
Spina di
alimentazione
Motore
spazzola
principale
Motore
spazzola
laterale
Motore
pompa
dell'acqua
Motore
ruota
destra
Sensore di velocità
ruota destra

18
Viomi V3
Stazione di ricarica
Scomparto raccogli polvere
(per modalità di pulizia)
Spazzola di pulizia Spazzola principale
AlimentatoreSpazzola laterale (2)
Panoramica sul prodoo
Prodoo ed elenco accessori
Accessori per Vacuum-Mop
Contenuto della scatola degli accessori
Nota: le illustrazioni del prodoo, degli accessori
e dell'interfaccia utente nel manuale utente
sono esclusivamente a scopo di riferimento. Il
prodoo effeivo e le relative funzioni possono
variare a causa dei miglioramenti apportati al
prodoo stesso.
Protezione spazzola
principale
Scomparto raccogli polvere 2
in 1 con serbatoio acqua
(per le modalità di aspirazi-
one e lavaggio)
550ml serbatoio
d'acqua
Lavapavimenti
monouso(2)
Lavapavimenti bagnato/
Lavapavimenti umido
Supporto per
lavapavimenti
