1 General
1.1 Copyright © VIPA GmbH
This document contains proprietary information of VIPA and is not to be disclosed or used
except in accordance with applicable agreements.
This material is protected by the copyright laws. It may not be reproduced, distributed, or
altered in any fashion by any entity (either internal or external to VIPA), except in accord-
ance with applicable agreements, contracts or licensing, without the express written con-
sent of VIPA and the business management owner of the material.
For permission to reproduce or distribute, please contact: VIPA, Gesellschaft für Visuali-
sierung und Prozessautomatisierung mbH Ohmstraße 4, D-91074 Herzogenaurach, Ger-
many
Tel.: [phone]
Fax.: [phone]
EMail: [email protected]
http://www.vipa.com
Every effort has been made to ensure that the information contained in
this document was complete and accurate at the time of publishing. Nev-
ertheless, the authors retain the right to modify the information.
This customer document describes all the hardware units and functions
known at the present time. Descriptions may be included for units which
are not present at the customer site. The exact scope of delivery is
described in the respective purchase contract.
Hereby, VIPA GmbH declares that the products and systems are in compliance with the
essential requirements and other relevant provisions. Conformity is indicated by the CE
marking affixed to the product.
For more information regarding CE marking and Declaration of Conformity (DoC), please
contact your local VIPA customer service organization.
VIPA, SLIO, System 100V, System 200V, System 300V, System 300S, System 400V,
System 500S and Commander Compact are registered trademarks of VIPA Gesellschaft
für Visualisierung und Prozessautomatisierung mbH.
SPEED7 is a registered trademark of profichip GmbH.
SIMATIC, STEP, SINEC, TIA Portal, S7-300 and S7-400 are registered trademarks of
Siemens AG.
Microsoft and Windows are registered trademarks of Microsoft Inc., USA.
Portable Document Format (PDF) and Postscript are registered trademarks of Adobe
Systems, Inc.
All other trademarks, logos and service or product marks specified herein are owned by
their respective companies.
Contact your local VIPA Customer Service Organization representative if you wish to
report errors or questions regarding the contents of this document. If you are unable to
locate a customer service centre, contact VIPA as follows:
All Rights Reserved
CE Conformity Declaration
Conformity Information
Trademarks
Information product sup-
port
VIPA HMI
General
Copyright © VIPA GmbH
HB160 | PPC | 67S-PNL0 | en | 18-18
4

VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telefax: [phone]
EMail: [email protected]
Contact your local VIPA Customer Service Organization representative if you encounter
problems with the product or have questions regarding the product. If you are unable to
locate a customer service centre, contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Tel.: [phone] (Hotline)
EMail: [email protected]
1.2 About this manual
This manual describes the Panel PC 67S-PNL0-... from VIPA. It contains a description of
the structure, project engineering and deployment. This manual is relevant for:
Product Order number as of state:
HW FW BS
PPC021 ES 67S-PNL0-... 01 V1.0.6 WindowsÒ Embedded Standard 7
The manual is targeted at users who have a background in automation technology.
The manual consists of chapters. Every chapter provides a self-contained description of a
specific topic.
The following guides are available in the manual:
nAn overall table of contents at the beginning of the manual
nReferences with page numbers
The manual is available in:
nprinted form, on paper
nin electronic form as PDF-file (Adobe Acrobat Reader)
Important passages in the text are highlighted by following icons and headings:
DANGER!
Immediate or likely danger. Personal injury is possible.
CAUTION!
Damages to property is likely if these warnings are not heeded.
Technical support
Objective and contents
Target audience
Structure of the manual
Guide to the document
Availability
Icons Headings
VIPA HMI General
About this manual
HB160 | PPC | 67S-PNL0 | en | 18-18 5

Supplementary information and useful tips.
1.3 Safety information
The system is constructed and produced for:
ncommunication and process control
ngeneral control and automation tasks
nindustrial applications
noperation within the environmental conditions specified in the technical data
ninstallation into a cubicle
DANGER!
This device is not certified for applications in
–in explosive environments (EX-zone)
The manual must be available to all personnel in the
nproject design department
ninstallation department
ncommissioning
noperation
CAUTION!
The following conditions must be met before using or commis-
sioning the components described in this manual:
– Hardware modifications to the process control system should only be
carried out when the system has been disconnected from power!
–Installation and hardware modifications only by properly trained per-
sonnel.
– The national rules and regulations of the respective country must be
satisfied (installation, safety, EMC ...)
National rules and regulations apply to the disposal of the unit!
Applications conforming
with specifications
Documentation
Disposal
VIPA HMI
General
Safety information
HB160 | PPC | 67S-PNL0 | en | 18-18 6

2 Hardware description
2.1 Safety information for users
VIPA modules make use of highly integrated components in MOS-Technology. These
components are extremely sensitive to over-voltages that can occur during electrostatic
discharges. The following symbol is attached to modules that can be destroyed by elec-
trostatic discharges.
The Symbol is located on the module, the module rack or on packing material and it indi-
cates the presence of electrostatic sensitive equipment. It is possible that electrostatic
sensitive equipment is destroyed by energies and voltages that are far less than the
human threshold of perception. These voltages can occur where persons do not dis-
charge themselves before handling electrostatic sensitive modules and they can damage
components thereby, causing the module to become inoperable or unusable. Modules
that have been damaged by electrostatic discharges can fail after a temperature change,
mechanical shock or changes in the electrical load. Only the consequent implementation
of protection devices and meticulous attention to the applicable rules and regulations for
handling the respective equipment can prevent failures of electrostatic sensitive modules.
Modules must be shipped in the original packing material.
When you are conducting measurements on electrostatic sensitive modules you should
take the following precautions:
nFloating instruments must be discharged before use.
nInstruments must be grounded.
Modifying electrostatic sensitive modules you should only use soldering irons with
grounded tips.
CAUTION!
Personnel and instruments should be grounded when working on electro-
static sensitive modules.
Handling of electrostatic
sensitive modules
Shipping of modules
Measurements and altera-
tions on electrostatic sen-
sitive modules
VIPA HMI Hardware description
Safety information for users
HB160 | PPC | 67S-PNL0 | en | 18-18 7

2.2 Properties
The VIPA Panel PC is a combination of industrial PC with state of the art performance
features and a touch panel with ideal display capabilities. The Panel PC is a compact and
modular embedded PC based on WindowsÒ Embedded Standard 7 - WES7. Besides the
extensive WES7 functions the Panel PC offers varied communication possibilities.
nWindowsÒ Embedded Standard 7
nMovicon 11 Win Standard 7 (67S-PNL0-JB)
n21.5" 16:9 TFT panel 16.7 M color
nPCAP, multitouch
nDisplay resolution 1920 x 1080
nIntelÒ Atom Processor D2550, Dualcore, 1.86GHz, 1M L2 Cache
nWork memory: 2x 204Pin DDR3 SO-DIMM Socket, 2GB DDR3
nUser memory: 16GB SSD
nCFast slot
n2 RS232/RS422/RS485 (switchable), 4 USB-A-, 2 Ethernet interfaces, VGA port and
Audio out
nMetal case
nPassive cooling
nEasy mounting via integrated pivoted lever
nProtection class IP65 (frontal)

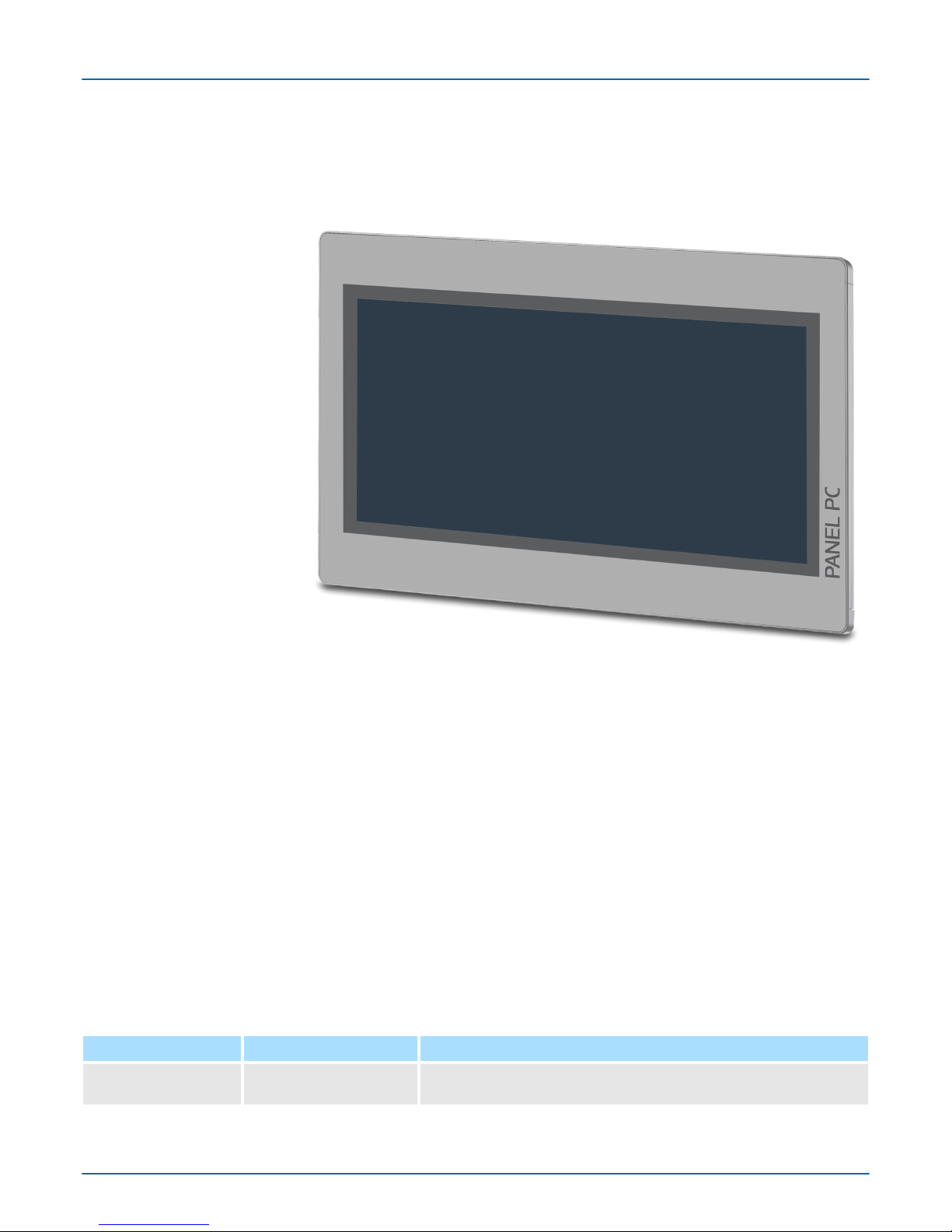

Order data
Type Order number Description
PPC021 ES 67S-PNL0-... 21.5'' TFT color, 2x RS232/RS422/RS485, 4x USB-A, 2x Ethernet
RJ45, VGA, Audio out
General
VIPA HMI
Hardware description
Properties
HB160 | PPC | 67S-PNL0 | en | 18-18 8

2.3 Structure

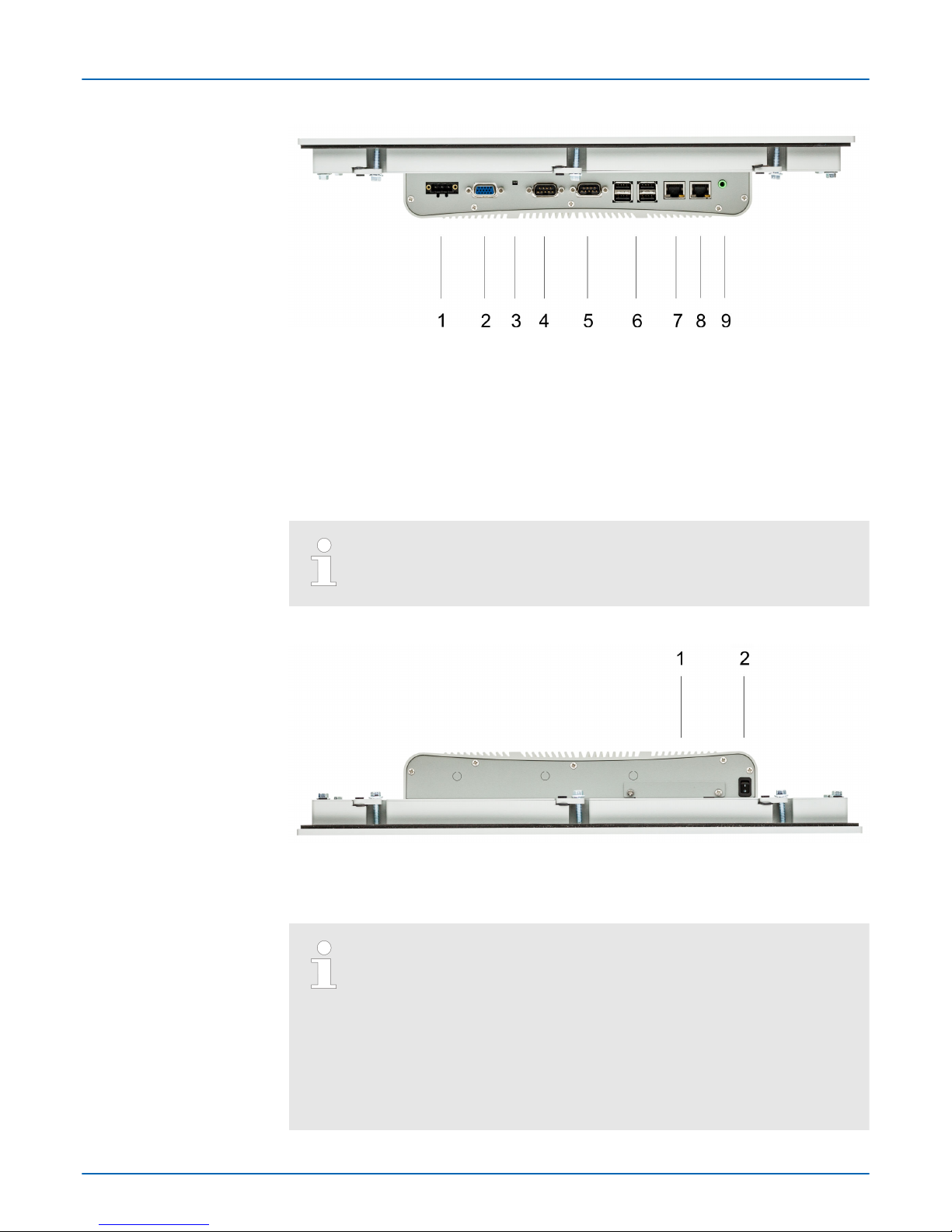

2.3.1 Overview

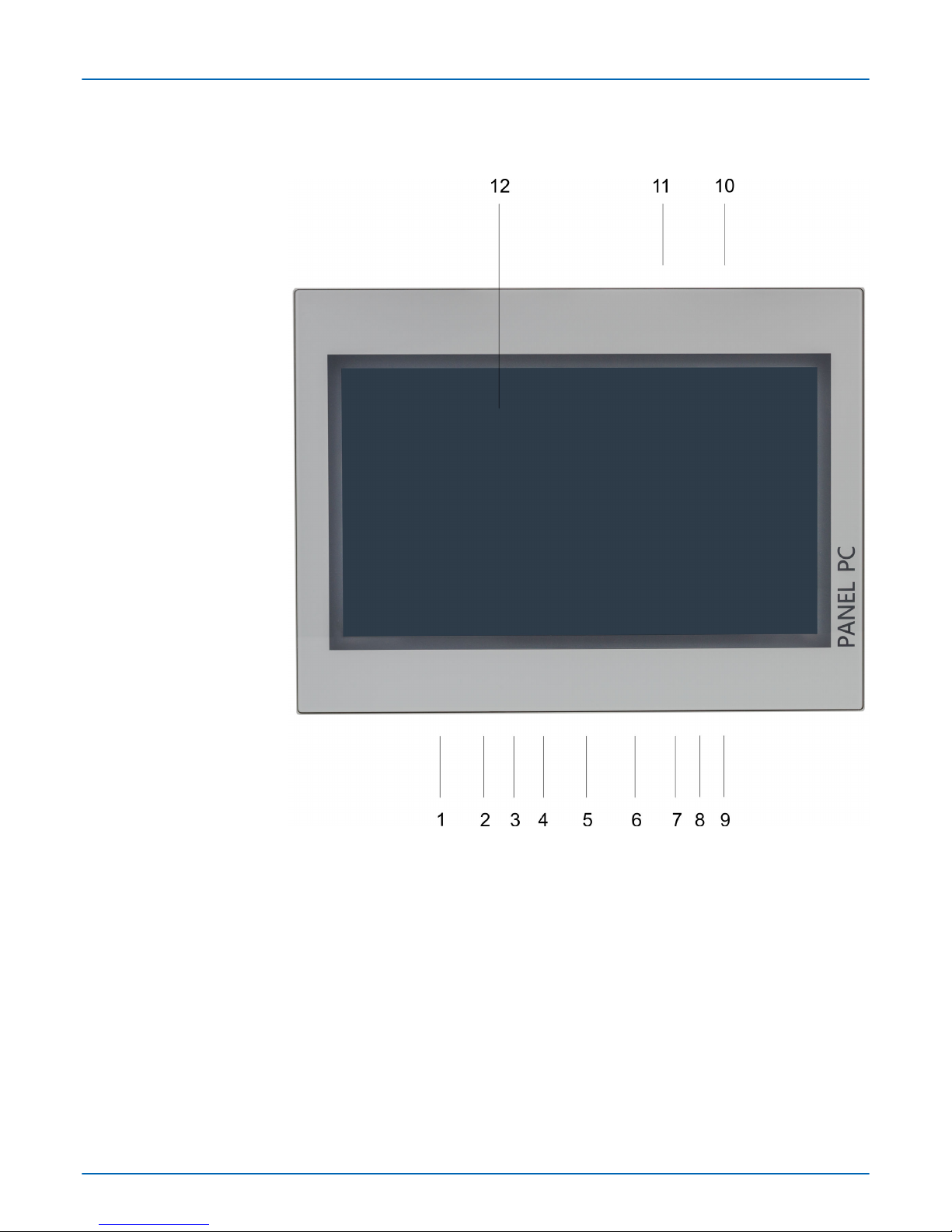

1 Slot for voltage supply (DC 12-30V)
2 VGA interface
3 Reset button
4 RS232/RS422/RS485 interface COM 2
5 RS232/RS422/RS485 interface COM 1
6 4x"Host"-USB-A interface
7 RJ45 jack for Ethernet communication LAN 2
8 RJ45 jack for Ethernet communication LAN 1
9 3.5mm Audio Line out
10 Power switch (pushbutton)
11 Slot for CFast storage media
12 Display with touch sensitive area (touch screen)
Front view
VIPA HMI Hardware description
Structure > Overview
HB160 | PPC | 67S-PNL0 | en | 18-18 9

1 Slot for voltage supply (DC 12-30V)
2 VGA interface
3 Reset button
4 RS232/RS422/RS485 interface COM 2
5 RS232/RS422/RS485 interface COM 1
6 4x"Host"-USB-A interface
7 RJ45 jack for Ethernet communication LAN 2
8 RJ45 jack for Ethernet communication LAN 1
9 3.5mm Audio Line out
Please make sure that the Panel PC always has to be supplied with
external voltage!
1 Slot for CFast storage media
2 Power switch (pushbutton)
The Panel PC starts automatically when the power supply is switched on.
But you can change the configuration in the BIOS setup so that the Panel
PC has to be switched off by the power switch.
Ä ‘Restore AC Power
Loss’ on page 46
After a Windows
Ò
‘Shut down’ the Panel PC can be switched on again
by means of the power switch at any time.
During operation the Panel PC switches to the sleep mode by briefly
pushing the power switch. By pushing the power switch again the sleep
mode is switched off.
Bottom view
Top view
VIPA HMI
Hardware description
Structure > Overview
HB160 | PPC | 67S-PNL0 | en | 18-18 10

2.3.2 Interfaces
VIPA HMI Hardware description
Structure > Interfaces
HB160 | PPC | 67S-PNL0 | en | 18-18 11

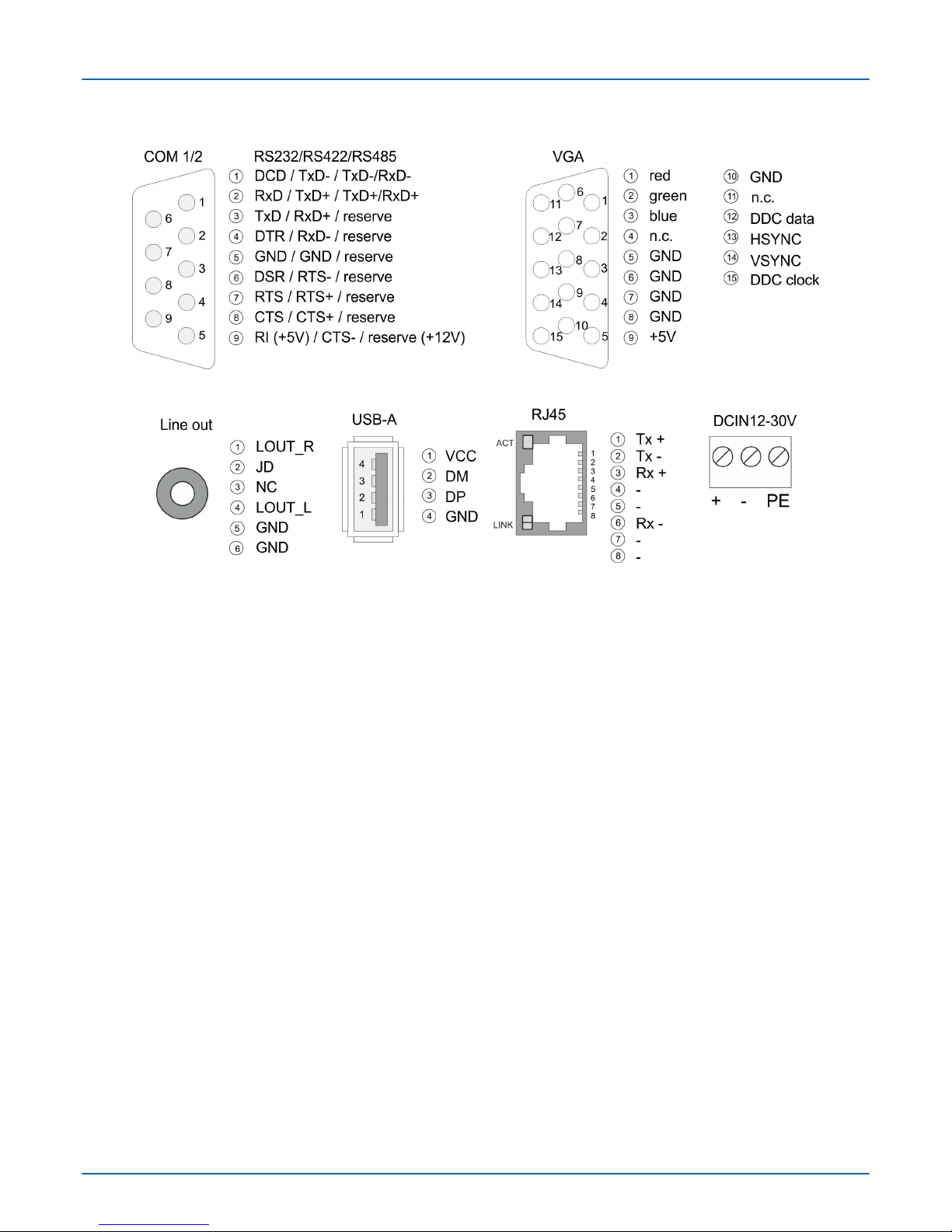

The 9-pin male SubD connector may be switched with BIOS. Here also the termination
resistor of the RS422 and RS485 interface may be activated or deactivated.
Ä ‘Submenu
"Serial Port 1 Configuration"’ on page 42

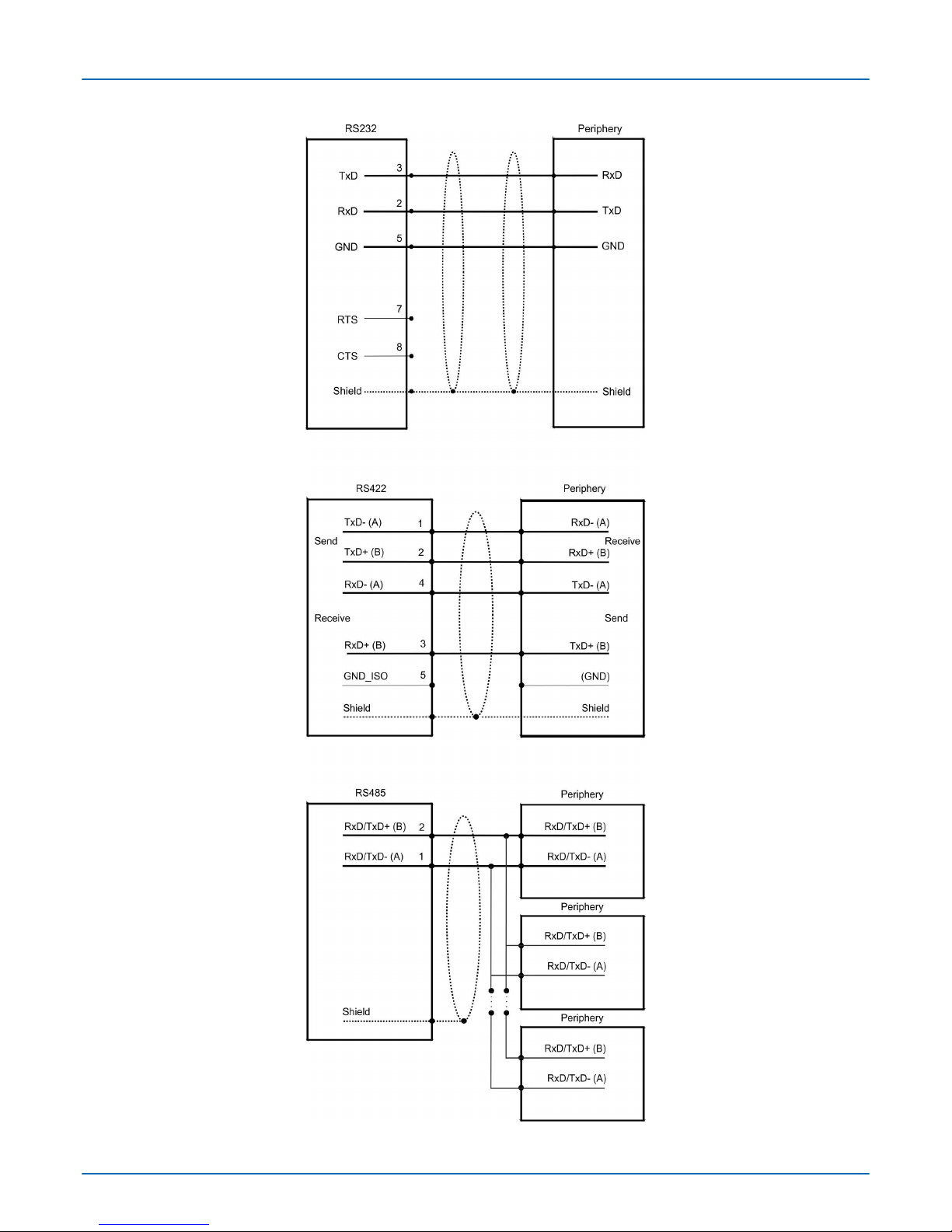

RS232 interface
nLogical conditions as voltage level
nPoint-to-point connection with serial full-duplex transfer
nData transfer up to a distance of 15m
nData transfer rate up to 115.2kbit/s
RS422 interface
nLogical conditions as voltage difference between 2 twisted lines
nSerial bus connection full-duplex four-wire operation
nLine length: 250m at 115.2kbit/s ... 1200m at 19.2kbit/s
nData transfer rate up to 115.2kbit/s
RS485 interface
nLogical conditions as voltage difference between 2 twisted lines
nSerial bus connection half-duplex two-wire operation
nLine length: 250m at 115.2kbit/s ... 1200m at 19.2kbit/s
nData transfer rate up to 115.2kbit/s
RS232/RS422/RS485 inter-
face (switchable)
VIPA HMI
Hardware description
Structure > Interfaces
HB160 | PPC | 67S-PNL0 | en | 18-18 12

VIPA HMI Hardware description
Structure > Interfaces
HB160 | PPC | 67S-PNL0 | en | 18-18 13

VGA SubD HD15 jack to connect a second display.
3.5 mm stereo jack to connect an active speaker system or an earphone.
Using the "Host"-USB-A interface USB mouse, keyboard, stick or USB hard discs can be
connected.
The two RJ45 jacks provide the interface to the twisted pair cable, required for Ethernet.
LEDs
Activity
yellow
Link
green
Link
orange
Description
blinks 1000Mbit/s link
blinks 100Mbit/s link
blinks 10Mbit/s link or no link
not active
The Panel PC has got an integrated power supply. The power supply has to be provided
with DC 12... 30V. For this you find an according DC 24V slot at the back. The power
supply is protected against inverse polarity and overcurrent.
2.3.3 Memory management
n2GB work memory
n16GB SSD user memory
nUSB storage media using "Host"-USB-A interface
nSlot for CFast memory card
The Panel PC has a work memory with a size of 2GB. The work memory is not buffered
and is deleted after shut down.
As internal permanent storage medium the Panel PC has a 16GB flash module (7GB
user data).
The Panel PC has got four USB 2.0 interfaces. The connection of USB sticks and USB
drives are supported by the Panel PC.
At the back of the Panel PC there is a card slot for a memory card. At this slot you can
plug storage modules of the type CFast 2.0 - 600 MB/s (6GBit/s) - SATA protocol - not
hot-swap compatible.
VGA interface
Line out
"Host"-USB-A
Ethernet connection
Power supply
Overview
Work memory
User memory
USB storage media
Slot for CFast
VIPA HMI
Hardware description
Structure > Memory management
HB160 | PPC | 67S-PNL0 | en | 18-18 14

Pin Assignment Pin Assignment
S1 GND PC6 n.c.
S2 SATA_TX1+ PC7 GND
S3 SATA_TX1- PC8 CFAST_LED1_C
S4 GND PC9 CFAST_LED2_C
S5 SATA_RX1+ PC10 n.c.
S6 SATA_RX1- PC11 n.c.
S7 GND PC12 n.c.
PC1 CFAST_CDI PC13 VCC3
PC2 GND PC14 VCC3
PC3 n.c. PC15 GND
PC4 n.c. PC16 GND
PC5 n.c. PC17 CFAST_CDO
Prior to removing the CFast card, make sure the unit's power is off and
disconnected from the power supply.
2.4 Dimensions
For the installation of the Panel PC in control cabinets and desks the following dimen-
sions are necessary:
Installation dimensions
VIPA HMI Hardware description
Dimensions
HB160 | PPC | 67S-PNL0 | en | 18-18 15

Front panel thickness 3 ... 12mm
Installation cutting (W x H) 547 x 367mm
Front panel (W x H x T) 562.40 x 382.40 x 6.70mm
Rear panel (W x H x D) 542 x 362 x 54.20mm
Installation depth 54.20mm
The degrees of protection are only guaranteed when the following is
observed:
–The material thickness of the installation cut-out is 3 ... 12mm
–The deviation from the plane for the panel cut-out is £ 0.5mm
–Permissible surface roughness in the area of the seal:
£ 120µm (fric-
tion coefficient 120)
21.5" - 67S-PNL0-...
VIPA HMI
Hardware description
Dimensions
HB160 | PPC | 67S-PNL0 | en | 18-18 16

2.5 General data
Conformity and approval
Conformity
CE 2014/35/EU Low-voltage directive
2014/30/EU EMC directive
Approval
UL Refer to Technical Data
others
RoHS 2011/65/EU Restriction of the use of certain hazardous substances in
electrical and electronic equipment
Protection of persons and device protection
Type of protection - IP20
Electrical isolation
to the field bus - electrically isolated
to the process level - electrically isolated
Insulation resistance -
Insulation voltage to reference earth
Inputs / outputs - AC / DC 50V, test voltage AC 500V
Protective measures - against short circuit
Environmental conditions to EN 61131-2
Climatic
Storage / transport EN 60068-2-14 -20…+75°C
Operation
Horizontal installation EN 61131-2 0…+50°C
Vertical installation EN 61131-2 0…+50°C
Air humidity EN 60068-2-30 RH1 (without condensation, rel. humidity 10…95%)
Pollution EN 61131-2 Degree of pollution 2
Mechanical
Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz
Shock EN 60068-2-27 15g, 11ms
Mounting conditions
Mounting place - In the control cabinet
Mounting position - Horizontal and vertical
VIPA HMI Hardware description
General data
HB160 | PPC | 67S-PNL0 | en | 18-18 17

EMC Standard Comment
Emitted interference EN 61000-6-4 Class A (Industrial area)
Noise immunity
zone B
EN 61000-6-2 Industrial area
EN 61000-4-2 ESD
8kV at air discharge (degree of severity 3),
4kV at contact discharge (degree of severity 2)
EN 61000-4-3 HF field immunity (casing)
80MHz … 1000MHz, 10V/m, 80% AM (1kHz)
1.4GHz ... 2.0GHz, 3V/m, 80% AM (1kHz)
2GHz ... 2.7GHz, 1V/m, 80% AM (1kHz)
EN 61000-4-6 HF conducted
150kHz … 80MHz, 10V, 80% AM (1kHz)
EN 61000-4-4 Burst, degree of severity 3
EN 61000-4-5 Surge, degree of severity 3 *
*) Due to the high-energetic single pulses with Surge an appropriate external protective circuit with lightning protection elements like conductors for lightning and overvoltage is
necessary.
2.6 Technical data
2.6.1 67S-PNL0-JB
Order no. 67S-PNL0-JB
Type VIPA Panel PC PPC021 ES
Display
Display size (diagonal) 21.5 "
Display size (width) 478 mm
Display size (height) 269 mm
Resolution 1080 x 1920 / 1920 x 1080
Aspect ratio 16:9
Type of display TFT color (16.7M colors)
MTBF Backlights (25°C) 50000 h
System properties
Processor Intel Atom Dualcore 1.86 GHz
Operating system Windows embedded Standard 7
User software Movicon 11 Win Standard
Work memory 2 GB
User memory 16 GB
Available memory (user data) 7 GB
SD/MMC Slot -
VIPA HMI
Hardware description
Technical data > 67S-PNL0-JB
HB160 | PPC | 67S-PNL0 | en | 18-18 18

Order no. 67S-PNL0-JB
CF Card Slot Typ II -
CFast Slot ü
Time
Real-time clock buffered ü
Clock buffered period (min.) 4 y
Type of buffering lithium battery
Load time for 50% buffering period -
Load time for 100% buffering period -
Accuracy (max. deviation per day) 10 s
Operating controls
Touchscreen PCAP
Touch function Dual Touch
Keyboard external via USB
Mouse external via USB
Interfaces
MPI, PROFIBUS-DP -
MPI, PROFIBUS-DP connector -
Serial, COM1 RS232 / RS422 / RS485
COM1 connector Sub-D, 9-pin, male
Serial, COM2 RS232 / RS422 / RS485
COM2 connector Sub-D, 9-pin, male
Number of USB-A interfaces 4
USB-A connector USB-A (host)
Number of USB-B interfaces -
USB-B connector -
Number of ethernet interfaces 2
Ethernet Ethernet 10/100/1000 MBit
Ethernet connector 2 x RJ45
Integrated ethernet switch -
Video connectors VGA SubD HD15
Audio connections Line out, stereo jack 3.5 mm
Technical data power supply
Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection ü
Current consumption (no-load operation) 1.2 A
VIPA HMI Hardware description
Technical data > 67S-PNL0-JB
HB160 | PPC | 67S-PNL0 | en | 18-18 19

Order no. 67S-PNL0-JB
Current consumption (rated value) 1.3 A
Inrush current 1.3 A
I²t 0.35 A²s
Power loss 32 W
Status information, alarms, diagnostics
Supply voltage display none
Mechanical data
Housing / Protection class
Material coated aluminium steel plate
Mounting via integrated pivoted lever
Protection class IP front side IP 65
Protection class IP back side IP 20
Protection class NEMA front side -
Protection class NEMA back side -
Dimensions
Front panel 562.4 mm x 382.4 mm x 6.7 mm
Rear panel 542 mm x 362 mm x 54.2 mm
Installation cut-out
Width 547 mm
Height 367 mm
Minimum 3 mm
Maximum front panel thickness 12 mm
Net weight 9.1 kg
Weight including accessories -
Gross weight -
Environmental conditions
Operating temperature 0 °C to 50 °C
Storage temperature -20 °C to 75 °C
Certifications
UL certification yes
KC certification -
VIPA HMI
Hardware description
Technical data > 67S-PNL0-JB
HB160 | PPC | 67S-PNL0 | en | 18-18 20
