VIPA PPC 67S-PNL0 User manual

PPC | 67S-PNL0 | Manual
HB160 | PPC | 67S-PNL0 | GB | 14-24
VIPA HMI Panel PC

67S-PNL0_000_PPC021ES,1,GB - © 2014
VIPA GmbH
Ohmstr. 4
91074 Herzogenaurach
Telephone: [phone]
Fax: [phone]
email: [email protected]
Internet: www.vipa.com

Table of contents
1 General...................................................................................... 4
1.1 Copyright © VIPA GmbH ................................................... 4
1.2 About this manual.............................................................. 5
1.3 Safety information.............................................................. 6
2 Hardware description.............................................................. 8
2.1 Safety information for users............................................... 8
2.2 Properties........................................................................... 9
2.3 Structure........................................................................... 10
2.3.1 Overview....................................................................... 10

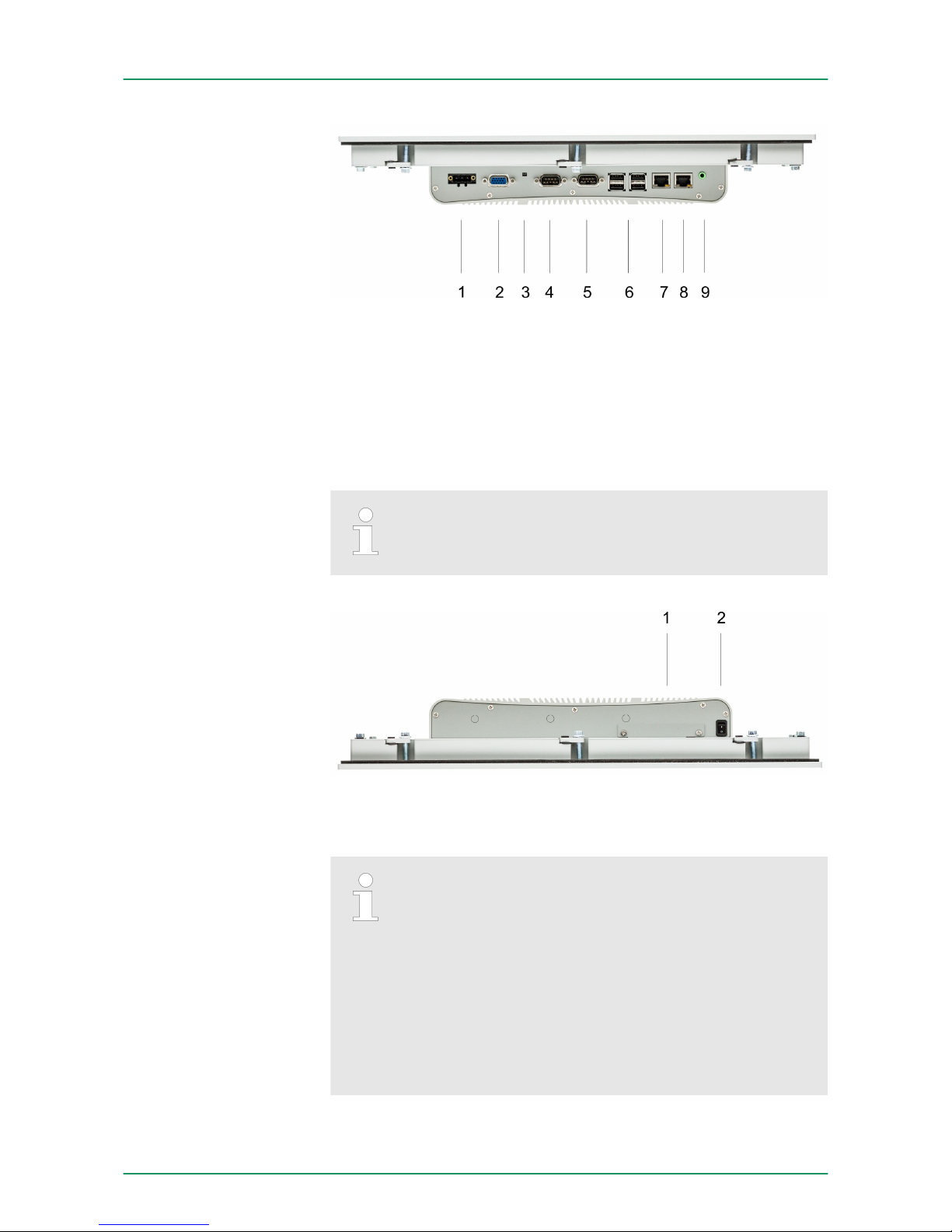

2.3.2 Interfaces...................................................................... 12
2.3.3 Memory management................................................... 14

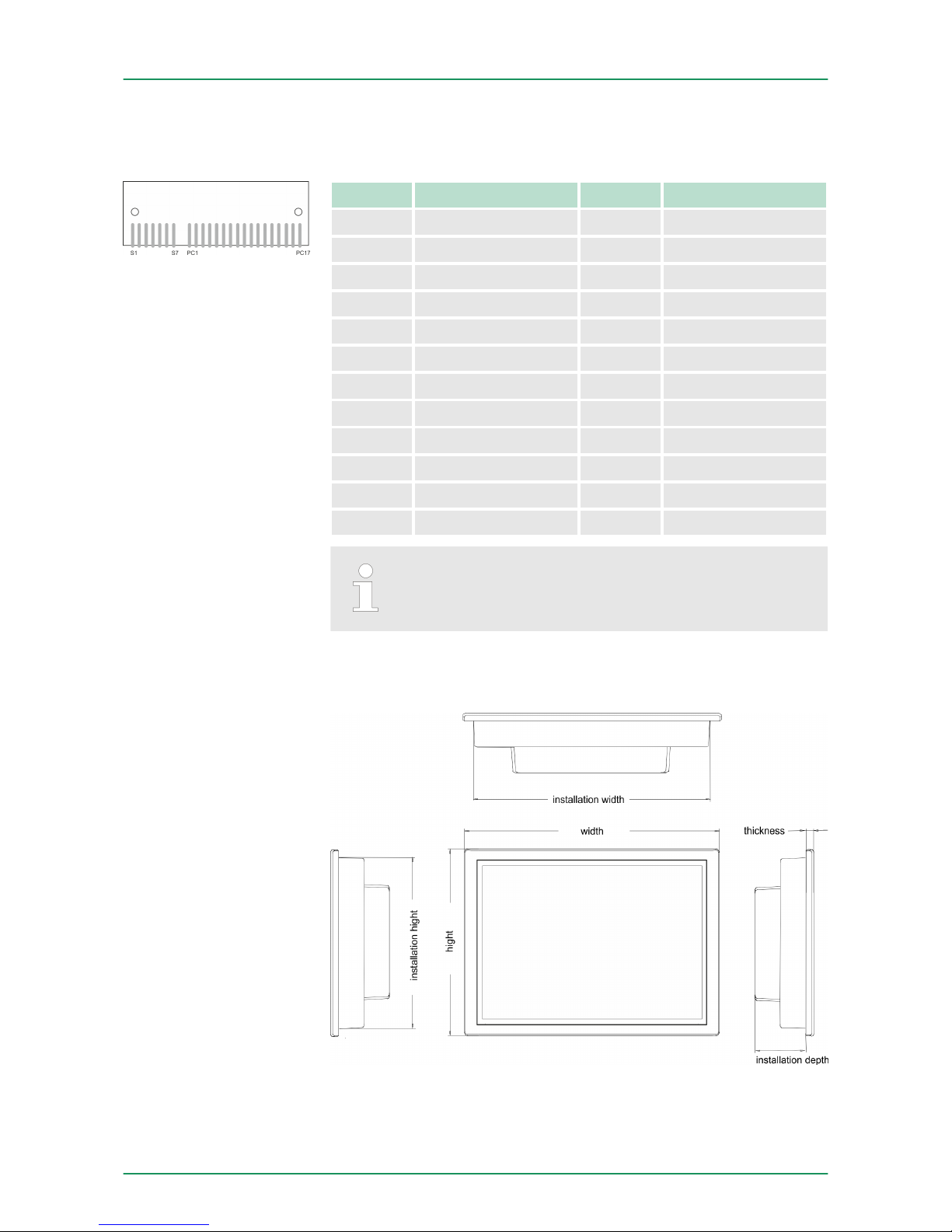

2.4 Dimensions...................................................................... 15
2.5 General data.................................................................... 17
2.6 Technical data.................................................................. 18
2.6.1 67S-PNL0-JB................................................................ 18
2.6.2 67S-PNL0-JX................................................................ 21
3 Deployment Panel PC............................................................ 24
3.1 Installation........................................................................ 24
3.2 Installation of the CFast card........................................... 25
3.3 Commissioning................................................................. 26
3.4 Connection to a PLC system............................................ 26
3.5 Operating system Windows Embedded Standard 7........ 27
3.5.1 General......................................................................... 27
3.5.2 Structure........................................................................ 28
4 BIOS setup.............................................................................. 34
4.1 Overview.......................................................................... 34
4.2 Main................................................................................. 35
4.3 Advanced......................................................................... 36
4.4 Chipset............................................................................. 41
4.5 Boot.................................................................................. 43
4.6 Security............................................................................ 44
4.7 Save and exit................................................................... 45
5 Installation guidelines........................................................... 47
5.1 Basic rules for the EMC-equitable assembly of installa-
tions.................................................................................. 47
5.2 EMC-equitable assembly................................................. 49
5.3 EMC-equitable cabling..................................................... 50
5.4 Special precautions providing high noise immunity......... 53
5.5 Checklist for the EMC-compliant installation of control-
lers................................................................................... 55
VIPA HMI Panel PC Table of contents
HB160 | PPC | 67S-PNL0 | GB | 14-24 3

1 General
1.1 Copyright © VIPA GmbH
This document contains proprietary information of VIPA and is not to
be disclosed or used except in accordance with applicable agree-
ments.
This material is protected by the copyright laws. It may not be repro-
duced, distributed, or altered in any fashion by any entity (either
internal or external to VIPA), except in accordance with applicable
agreements, contracts or licensing, without the express written con-
sent of VIPA and the business management owner of the material.
For permission to reproduce or distribute, please contact: VIPA,
Gesellschaft für Visualisierung und Prozessautomatisierung mbH
Ohmstraße 4, D-91074 Herzogenaurach, Germany
Tel.: [phone]
Fax.: [phone]
EMail: [email protected]
http://www.vipa.com
Every effort has been made to ensure that the information
contained in this document was complete and accurate at
the time of publishing. Nevertheless, the authors retain the
right to modify the information.
This customer document describes all the hardware units
and functions known at the present time. Descriptions may
be included for units which are not present at the customer
site. The exact scope of delivery is described in the
respective purchase contract.
Hereby, VIPA GmbH declares that the products and systems are in
compliance with the essential requirements and other relevant provi-
sions. Conformity is indicated by the CE marking affixed to the
product.
For more information regarding CE marking and Declaration of Con-
formity (DoC), please contact your local VIPA customer service
organization.
All Rights Reserved
CE Conformity Declara-
tion
Conformity Information
VIPA HMI Panel PCGeneral
Copyright © VIPA GmbH
HB160 | PPC | 67S-PNL0 | GB | 14-24 4

VIPA, SLIO, System 100V, System 200V, System 300V, System
300S, System 400V, System 500S and Commander Compact are
registered trademarks of VIPA Gesellschaft für Visualisierung und
Prozessautomatisierung mbH.
SPEED7 is a registered trademark of profichip GmbH.
SIMATIC, STEP, SINEC, TIA Portal, S7-300 and S7-400 are regis-
tered trademarks of Siemens AG.
Microsoft and Windows are registered trademarks of Microsoft Inc.,
USA.
Portable Document Format (PDF) and Postscript are registered trade-
marks of Adobe Systems, Inc.
All other trademarks, logos and service or product marks specified
herein are owned by their respective companies.
Contact your local VIPA Customer Service Organization representa-
tive if you wish to report errors or questions regarding the contents of
this document. If you are unable to locate a customer service centre,
contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telefax: [phone]
EMail: [email protected]
Contact your local VIPA Customer Service Organization representa-
tive if you encounter problems with the product or have questions
regarding the product. If you are unable to locate a customer service
centre, contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Tel.: [phone] (Hotline)
EMail: [email protected]
1.2 About this manual
This manual describes the Panel PC 67S-PNL0-... from VIPA. It con-
tains a description of the structure, project engineering and deploy-
ment. This manual is part of the documentation package with order
number VIPA HB160E_PPC and relevant for:
Product Order number as of state:
HW BS
PPC021 ES 67S-PNL0-... 01 WindowsÒ Embedded
Standard 7
The manual is targeted at users who have a background in automa-
tion technology.
The manual consists of chapters. Every chapter provides a self-con-
tained description of a specific topic.
Trademarks
Information product
support
Technical support
Objective and contents
Target audience
Structure of the manual
VIPA HMI Panel PC General
About this manual
HB160 | PPC | 67S-PNL0 | GB | 14-24 5

The following guides are available in the manual:
nAn overall table of contents at the beginning of the manual
nReferences with page numbers
The manual is available in:
nprinted form, on paper
nin electronic form as PDF-file (Adobe Acrobat Reader)
Important passages in the text are highlighted by following icons and
headings:
DANGER!
Immediate or likely danger. Personal injury is possible.
CAUTION!
Damages to property is likely if these warnings are not
heeded.
Supplementary information and useful tips.
1.3 Safety information
The Panel PCs are constructed and produced for:
nVIPA CPUs 01x, 11x, 21x, 31x, 51x and S7-300/400 from Sie-
mens
ncommunication and process control
nindustrial applications
noperation within the environmental conditions specified in the
technical data
ninstallation into a cubicle
DANGER!
This device is not certified for applications in
–in explosive environments (EX-zone)
The manual must be available to all personnel in the
nproject design department
ninstallation department
ncommissioning
noperation
Guide to the document
Availability
Icons Headings
Applications con-
forming with specifica-
tions
Documentation
VIPA HMI Panel PCGeneral
Safety information
HB160 | PPC | 67S-PNL0 | GB | 14-24 6

CAUTION!
The following conditions must be met before using or
commissioning the components described in this
manual:
– Hardware modifications to the process control system
should only be carried out when the system has been
disconnected from power!
–Installation and hardware modifications only by prop-
erly trained personnel.
– The national rules and regulations of the respective
country must be satisfied (installation, safety, EMC ...)
National rules and regulations apply to the disposal of the unit!Disposal
VIPA HMI Panel PC General
Safety information
HB160 | PPC | 67S-PNL0 | GB | 14-24 7

2 Hardware description
2.1 Safety information for users
VIPA modules make use of highly integrated components in MOS-
Technology. These components are extremely sensitive to over-vol-
tages that can occur during electrostatic discharges. The following
symbol is attached to modules that can be destroyed by electrostatic
discharges.
The Symbol is located on the module, the module rack or on packing
material and it indicates the presence of electrostatic sensitive equip-
ment. It is possible that electrostatic sensitive equipment is destroyed
by energies and voltages that are far less than the human threshold
of perception. These voltages can occur where persons do not dis-
charge themselves before handling electrostatic sensitive modules
and they can damage components thereby, causing the module to
become inoperable or unusable. Modules that have been damaged
by electrostatic discharges can fail after a temperature change,
mechanical shock or changes in the electrical load. Only the conse-
quent implementation of protection devices and meticulous attention
to the applicable rules and regulations for handling the respective
equipment can prevent failures of electrostatic sensitive modules.
Modules must be shipped in the original packing material.
When you are conducting measurements on electrostatic sensitive
modules you should take the following precautions:
nFloating instruments must be discharged before use.
nInstruments must be grounded.
Modifying electrostatic sensitive modules you should only use sol-
dering irons with grounded tips.
CAUTION!
Personnel and instruments should be grounded when
working on electrostatic sensitive modules.
Handling of electro-
static sensitive modules
Shipping of modules
Measurements and
alterations on electro-
static sensitive modules
VIPA HMI Panel PCHardware description
Safety information for users
HB160 | PPC | 67S-PNL0 | GB | 14-24 8

2.2 Properties
The VIPA Panel PC is a combination of industrial PC with state of the
art performance features and a touch panel with ideal display capabil-
ities. The Panel PC is a compact and modular embedded PC based
on WindowsÒ Embedded Standard 7 - WES7. Besides of the exten-
sive WES7 functions the Panel PC offers varied communication pos-
sibilities.
nWindowsÒ Embedded Standard 7
nMovicon 11 Win Standard 7 (67S-PNL0-JB)
n21.5" 16:9 TFT panel 16.7 M color
nPCAP, multitouch
nDisplay resolution 1920 x 1080
nIntelÒ Atom Processor D2550, Dualcore, 1.86GHz, 1M L2 Cache
nWork memory: 2x 204Pin DDR3 SO-DIMM Socket, 2GB DDR3
nUser memory: 8GB SSD
nCFast slot
n2 RS232/RS422/RS485 (switchable), 4 USB-A-, 2 Ethernet inter-
faces, VGA port and Audio out
nMetal case
nPassive cooling
nEasy mounting via integrated pivoted lever
nProtection class IP65 (frontal)
Order data
Type Order number Description
PPC021 ES 67S-PNL0-... 21.5'' TFT color, 2x RS232/RS422/RS485, 4x USB-A,
2x Ethernet RJ45, VGA, Audio out
General
VIPA HMI Panel PC Hardware description
Properties
HB160 | PPC | 67S-PNL0 | GB | 14-24 9

2.3 Structure
2.3.1 Overview
1 Slot for voltage supply (DC 12-30V)
2 VGA interface
3 Reset button
4 RS232/RS422/RS485 interface COM 2
5 RS232/RS422/RS485 interface COM 1
6 4x"Host"-USB-A interface
7 RJ45 jack for Ethernet communication LAN 2
8 RJ45 jack for Ethernet communication LAN 1
9 3.5mm Audio Line out
10 Power switch (pushbutton)
11 Slot for CFast storage media
12 Display with touch sensitive area (touch screen)
Front view
VIPA HMI Panel PCHardware description
Structure > Overview
HB160 | PPC | 67S-PNL0 | GB | 14-24 10

1 Slot for voltage supply (DC 12-30V)
2 VGA interface
3 Reset button
4 RS232/RS422/RS485 interface COM 2
5 RS232/RS422/RS485 interface COM 1
6 4x"Host"-USB-A interface
7 RJ45-Buchse for Ethernet communication LAN 2
8 RJ45-Buchse for Ethernet communication LAN 1
9 3.5mm Audio Line out
Please make sure that the Panel PC always has to be
supplied with external voltage!
1 Slot for CFast storage media
2 Power switch (pushbutton)
The Panel PC starts automatically when the power supply
is switched on.
But you can change the configuration in the BIOS setup so
that the Panel PC has to be swiched off by the power
switch.
Ä ‘Restore AC Power Loss’ on page 43
After a Windows
Ò
‘Shut down’ the Panel PC can be
switched on again by means of the power switch at any
time.
During operation the Panel PC switches to the sleep mode
by briefly pushing the power switch. By pushing the power
switch again the sleep mode is switched off.
Bottom view
Top view
VIPA HMI Panel PC Hardware description
Structure > Overview
HB160 | PPC | 67S-PNL0 | GB | 14-24 11

2.3.2 Interfaces
The 9-pin male SubD connector may be switched in the BIOS. Here
also the termination resistor of the RS422 and RS485 interface may
be activated or deactivated.
Ä ‘Submenu "Serial Port 1 Configura-
tion"’ on page 40
RS232 interface
nLogical conditions as voltage level
nPoint-to-point connection with serial full-duplex transfer
nData transfer up to a distance of 15m
nData transfer rate up to 115.2kbit/s
RS422 interface
nLogical conditions as voltage difference between 2 twisted lines
nSerial bus connection full-duplex four-wire operation
nLine length: 250m at 115.2kbit/s ... 1200m at 19.2kbit/s
nData transfer rate up to 115.2kbit/s
RS485 interface
nLogical conditions as voltage difference between 2 twisted lines
nSerial bus connection half-duplex two-wire operation
nLine length: 250m at 115.2kbit/s ... 1200m at 19.2kbit/s
nData transfer rate up to 115.2kbit/s
RS232/RS422/RS485
interface (switchable)
VIPA HMI Panel PCHardware description
Structure > Interfaces
HB160 | PPC | 67S-PNL0 | GB | 14-24 12

VIPA HMI Panel PC Hardware description
Structure > Interfaces
HB160 | PPC | 67S-PNL0 | GB | 14-24 13

VGA SubD HD15 jack to connect a second display.
3.5 mm stereo jack to connect an active speaker system or an ear-
phone.
Using the "Host"-USB-A interface USB mouse, keyboard, stick or
USB hard discs can be connected.
The two RJ45 jacks provide the interface to the twisted pair cable,
required for Ethernet.
LEDs
ACT Status LINK Status
blinks
yellow
communica-
tion
green 1000Mbit/s link
off not active orange 100Mbit/s link
off 10Mbit/s link or no link
The Panel PC has got an integrated power supply. The power supply
has to be provided with DC 12... 30V. For this you find an according
DC 24V slot at the back.
The power supply is protected against inverse polarity and overcur-
rent.
2.3.3 Memory management
n2GB work memory
n8GB SSD user memory
nUSB storage media using "Host"-USB-A interface
nSlot for CFast memory card
The Panel PC has a work memory with a size of 2GB. The work
memory is not buffered and is deleted after shut down.
As internal permanent storage medium the Panel PC has a 8GB flash
module (1,000Mbyte user data).
The Panel PC has got four USB 2.0 interfaces. The connection of
USB sticks and USB drives are supported by the Panel PC.
VGA interface
Line out
"Host"-USB-A
Ethernet connection
Power supply
Overview
Work memory
User memory
USB storage media
VIPA HMI Panel PCHardware description
Structure > Memory management
HB160 | PPC | 67S-PNL0 | GB | 14-24 14

At the back of the Panel PC there is a card slots for a memory card.
At this slot you may plug storage modules of the type CFast 2.0 - 600
MB/s (6GBit/s) - SATA protocol - not hot-swap compatible.
Pin Assignment Pin Assignment
S1 GND PC6 n.c.
S2 SATA_TX1+ PC7 GND
S3 SATA_TX1- PC8 CFAST_LED1_C
S4 GND PC9 CFAST_LED2_C
S5 SATA_RX1+ PC10 n.c.
S6 SATA_RX1- PC11 n.c.
S7 GND PC12 n.c.
PC1 CFAST_CDI PC13 VCC3
PC2 GND PC14 VCC3
PC3 n.c. PC15 GND
PC4 n.c. PC16 GND
PC5 n.c. PC17 CFAST_CDO
Prior to removing the CFast card, make sure the unit's
power is off and disconnected from the power supply.
2.4 Dimensions
For the installation of the Panel PC in control cabinets and desks the
following dimensions are necessary:
Slot for CFast
Installation dimensions
VIPA HMI Panel PC Hardware description
Dimensions
HB160 | PPC | 67S-PNL0 | GB | 14-24 15

Front panel thickness 3 ... 12mm
Installation cutting (W x H) 547 x 367mm
Front panel (W x H x T) 562.40 x 382.40 x 6.70mm
Rear panel (W x H x D) 542 x 362 x 54.20mm
Installation depth 54.20mm
The degrees of protection are only guaranteed when the
following is observed:
–The material thickness of the installation cut-out is 3 ...
12mm.
–The deviation from the plane for the panel cut-out is
£
0.5mm.
–Permissible surface roughness in the area of the seal:
£ 120µm (friction coefficient 120)
21.5" - 67S-PNL0-...
VIPA HMI Panel PCHardware description
Dimensions
HB160 | PPC | 67S-PNL0 | GB | 14-24 16

2.5 General data
Conformity and approval
Conformity
CE 2006/95/EG Low-voltage directive
2004/108/EG EMC directive
Approval
UL UL 508 Approval for USA and Canada
others
RoHS 2011/65/EU Product is lead-free; Restriction of the use of
certain hazardous substances in electrical and
electronic equipment
Protection of persons and device protection
Type of protection - IP20
Electrical isolation
to the field bus - electrically isolated
to the process level - electrically isolated
Insulation resistance -
Insulation voltage to reference earth
Inputs / outputs - AC / DC 50V, test voltage AC 500V
Protective measures - against short circuit
Environmental conditions to EN 61131-2
Climatic
Storage / transport EN 60068-2-14 -25…+70°C
Operation
Horizontal installation EN 61131-2 0…+60°C
Vertical installation EN 61131-2 0…+60°C
Air humidity EN 60068-2-30 RH1 (without condensation, rel. humidity 10…
95%)
Pollution EN 61131-2 Degree of pollution 2
Mechanical
Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz
Shock EN 60068-2-27 15g, 11ms
VIPA HMI Panel PC Hardware description
General data
HB160 | PPC | 67S-PNL0 | GB | 14-24 17

Mounting conditions
Mounting place - In the control cabinet
Mounting position - Horizontal and vertical
EMC Standard Comment
Emitted interfer-
ence
EN 61000-6-4 Class A (Industrial area)
Noise immunity
zone B
EN 61000-6-2 Industrial area
EN 61000-4-2 ESD
8kV at air discharge (degree of severity 3),
4kV at contact discharge (degree of severity
2)
EN 61000-4-3 HF irradiation (casing)
80MHz … 1000MHz, 10V/m, 80% AM (1kHz)
1.4GHz ... 2.0GHz, 3V/m, 80% AM (1kHz)
2GHz ... 2.7GHz, 1V/m, 80% AM (1kHz)
EN 61000-4-6 HF conducted
150kHz … 80MHz, 10V, 80% AM (1kHz)
EN 61000-4-4 Burst, degree of severity 3
EN 61000-4-5 Surge, installation class 3 *
*) Due to the high-energetic single pulses with Surge an appropriate external protective circuit with lightning protection elements like conductors
for lightning and overvoltage is necessary.
2.6 Technical data
2.6.1 67S-PNL0-JB
Order number 67S-PNL0-JB
Type Panel PC PPC021 ES
Display
Display size (diagonal) 21.5 "
Display size (width) 478 mm
Display size (height) 269 mm
Resolution 1920 x 1080
Display aspect ratio 16:9
Type of display TFT color (16.7M colors)
MTBF Backlights (25°C) 50000 h
System properties
Processor Intel Atom Dualcore 1.86 GHz
VIPA HMI Panel PCHardware description
Technical data > 67S-PNL0-JB
HB160 | PPC | 67S-PNL0 | GB | 14-24 18

Order number 67S-PNL0-JB
Operating system Windows embedded Standard 7
User software Movicon 11 Win Standard
Work memory 2 GB
User memory 8 GB
Avilable memory (user data) 1000 MB
SD/MMC Slot -
CF Card Slot Typ II -
CFAst Slot ü
Time
Real-time clock buffered ü
Clock buffered period (min.) 4 y
Type of buffering lithium battery
Load time for 50% buffering period -
Load time for 100% buffering period -
Accuracy (max. deviation per day) 10 s
Operating controls
Touchscreen PCAP
Keyboard external via USB
Mouse external via USB
Interfaces
MPI, PROFIBUS-DP -
MPI, PROFIBUS-DP connector -
Serial, COM1 RS232 / RS422 / RS485
COM1 connector Sub-D, 9-pin, male
Serial, COM2 RS232 / RS422 / RS485
COM2 connector Sub-D, 9-pin, male
Number of USB-A interfaces 4
USB-A connector USB-A (host)
Number of USB-B interfaces -
USB-B connector -
Number of ethernet interfaces 2
Ethernet Ethernet 10/100/1000 MBit
Ethernet connector 2 x RJ45
Integrated ethernet switch -
Video connectors VGA SubD HD15
Audio connectors Line out, Stereo jack 3.5 mm
VIPA HMI Panel PC Hardware description
Technical data > 67S-PNL0-JB
HB160 | PPC | 67S-PNL0 | GB | 14-24 19

Order number 67S-PNL0-JB
Technical data power supply
Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection ü
Current consumption (no-load operation) 1.2 A
Current consumption (rated value) 1.3 A
Inrush current 1.3 A
I²t 0.35 A²s
Power loss 32 W
Status information, alarms, diagnostics
Supply voltage display none
Mechanical data
Housing / Protection type
Material coated auminium steel plate
Mounting via integrated pivoted lever
Protect type front side IP 65
Protect type back side IP 20
Dimensions
Front panel 562.4 mm x 382.4 mm x 6.7 mm
Rear panel 542 mm x 362 mm x 54.2 mm
Installation cut-out
Width 547 mm
Height 367 mm
Minimum 3 mm
Maximum front panel thickness 12 mm
Weight 9.1 kg
Environmental conditions
Operating temperature 0 °C to 50 °C
Storage temperature -20 °C to 75 °C
Certifications
UL508 certification yes
VIPA HMI Panel PCHardware description
Technical data > 67S-PNL0-JB
HB160 | PPC | 67S-PNL0 | GB | 14-24 20
