VIPA TP 610LC User manual

TP-ECO | 62K-NHC0 | Manual
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27
VIPA HMI Touch Panel

62K-NHC0_000_TP610LC/+,2,GB - © 2014
VIPA GmbH
Ohmstr. 4
91074 Herzogenaurach
Telephone: +49 9132 744-0
Fax: +49 9132 744-1864
email: [email protected]
Internet: www.vipa.com

Table of contents
1 General...................................................................................... 5
1.1 Copyright © VIPA GmbH ................................................... 5
1.2 About this manual.............................................................. 6
1.3 Safety information.............................................................. 7
2 Hardware description.............................................................. 9
2.1 Safety information for users............................................... 9
2.2 Properties........................................................................... 9
2.3 Structure........................................................................... 11
2.3.1 Overview....................................................................... 11
2.3.2 Interfaces...................................................................... 13
2.3.3 Memory management................................................... 16
2.4 Dimensions...................................................................... 16
2.5 General data.................................................................... 18
2.6 Technical data.................................................................. 19
2.6.1 62K-NHC0-DH.............................................................. 19
2.6.2 62K-NHC0-CB............................................................... 21
3 Deployment under Windows CE 6.0 Core........................... 24
3.1 Installation........................................................................ 24
3.2 Installation of the optional MPI/PROFIBUS DP interface 25
3.3 Commissioning................................................................. 27
3.3.1 VIPA Startup-Manager.................................................. 27
3.4 Installation Movicon and Startup-Manager....................... 30
3.5 Connection to a PLC system............................................ 32
3.6 Operating system WindowsÒ Embedded CE 6.0 Core.... 33
3.6.1 General ........................................................................ 33
3.6.2 Structure........................................................................ 35
3.7 Integrated Server............................................................. 39
3.7.1 General......................................................................... 39
3.7.2 ftp-Server...................................................................... 40
3.7.3 VNC server.................................................................... 41
3.8 Access to the network resources..................................... 42
4 Deployment under Windows CE 6.0 Prof............................ 44
4.1 Installation........................................................................ 44
4.2 Installation of the optional MPI/PROFIBUS DP interface 45
4.3 Commissioning................................................................. 47
4.3.1 VIPA Startup-Manager.................................................. 47
4.4 Installation Movicon and Startup-Manager....................... 50
4.5 Connection to a PLC system............................................ 52
4.6 Operating system WindowsÒ Embedded CE 6.0 Prof...... 53
4.6.1 General ........................................................................ 53
4.6.2 Structure........................................................................ 55
4.7 Integrated Server............................................................. 59
4.7.1 General......................................................................... 59
4.7.2 ftp-Server...................................................................... 60
4.7.3 http server..................................................................... 61
4.7.4 Telnet server................................................................. 62
4.7.5 VNC server.................................................................... 63
VIPA HMI Touch Panel Table of contents
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 3

4.8 Access to the network resources..................................... 64
5 Installation Guidelines........................................................... 67
5.1 Basic rules for the EMC-equitable assembly of installa-
tions.................................................................................. 67
5.2 EMC-equitable assembly................................................. 69
5.3 EMC-equitable cabling..................................................... 70
5.4 Special precautions providing high noise immunity......... 73
5.5 Checklist for the EMC-compliant installation of control-
lers................................................................................... 75
VIPA HMI Touch PanelTable of contents
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 4

1 General
1.1 Copyright © VIPA GmbH
This document contains proprietary information of VIPA and is not to
be disclosed or used except in accordance with applicable agree-
ments.
This material is protected by the copyright laws. It may not be repro-
duced, distributed, or altered in any fashion by any entity (either
internal or external to VIPA), except in accordance with applicable
agreements, contracts or licensing, without the express written con-
sent of VIPA and the business management owner of the material.
For permission to reproduce or distribute, please contact: VIPA,
Gesellschaft für Visualisierung und Prozessautomatisierung mbH
Ohmstraße 4, D-91074 Herzogenaurach, Germany
Tel.: +49 9132 744 -0
Fax.: +49 9132 744-1864
EMail: [email protected]
http://www.vipa.com
Every effort has been made to ensure that the information
contained in this document was complete and accurate at
the time of publishing. Nevertheless, the authors retain the
right to modify the information.
This customer document describes all the hardware units
and functions known at the present time. Descriptions may
be included for units which are not present at the customer
site. The exact scope of delivery is described in the
respective purchase contract.
Hereby, VIPA GmbH declares that the products and systems are in
compliance with the essential requirements and other relevant provi-
sions. Conformity is indicated by the CE marking affixed to the
product.
For more information regarding CE marking and Declaration of Con-
formity (DoC), please contact your local VIPA customer service
organization.
All Rights Reserved
CE Conformity Declara-
tion
Conformity Information
VIPA HMI Touch Panel General
Copyright © VIPA GmbH
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 5

VIPA, SLIO, System 100V, System 200V, System 300V, System
300S, System 400V, System 500S and Commander Compact are
registered trademarks of VIPA Gesellschaft für Visualisierung und
Prozessautomatisierung mbH.
SPEED7 is a registered trademark of profichip GmbH.
SIMATIC, STEP, SINEC, TIA Portal, S7-300 and S7-400 are regis-
tered trademarks of Siemens AG.
Microsoft and Windows are registered trademarks of Microsoft Inc.,
USA.
Portable Document Format (PDF) and Postscript are registered trade-
marks of Adobe Systems, Inc.
All other trademarks, logos and service or product marks specified
herein are owned by their respective companies.
Contact your local VIPA Customer Service Organization representa-
tive if you wish to report errors or questions regarding the contents of
this document. If you are unable to locate a customer service centre,
contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telefax: +49 9132 744-1204
EMail: [email protected]
Contact your local VIPA Customer Service Organization representa-
tive if you encounter problems with the product or have questions
regarding the product. If you are unable to locate a customer service
centre, contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Tel.: +49 9132 744-1150 (Hotline)
EMail: [email protected]
1.2 About this manual
This manual describes the Touch Panel 62K-NHC0-... from VIPA. It
contains a description of the structure, project engineering and
deployment. This manual is part of the documentation package with
order number: VIPA HB160E_TP-ECO and relevant for:
Product Order number as of state:
HW BS
TP 610LC 62K-NHC0-DH 01 WindowsÒ CE 6.0 Core
TP 610LC+ 62K-NHC0-CB 01 WindowsÒ CE 6.0 Prof.
The manual is targeted at users who have a background in automa-
tion technology.
Trademarks
Information product
support
Technical support
Objective and contents
Target audience
VIPA HMI Touch PanelGeneral
About this manual
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 6

The manual consists of chapters. Every chapter provides a self-con-
tained description of a specific topic.
The following guides are available in the manual:
nAn overall table of contents at the beginning of the manual
nReferences with page numbers
The manual is available in:
nprinted form, on paper
nin electronic form as PDF-file (Adobe Acrobat Reader)
Important passages in the text are highlighted by following icons and
headings:
DANGER!
Immediate or likely danger. Personal injury is possible.
CAUTION!
Damages to property is likely if these warnings are not
heeded.
Supplementary information and useful tips.
1.3 Safety information
The Touch Panels are constructed and produced for:
nVIPA CPUs 01x, 11x, 21x, 31x, 51x and S7-300/400 from Sie-
mens
ncommunication and process control
nindustrial applications
noperation within the environmental conditions specified in the
technical data
ninstallation into a cubicle
DANGER!
This device is not certified for applications in
– in explosive environments (EX-zone)
The manual must be available to all personnel in the
nproject design department
ninstallation department
Structure of the manual
Guide to the document
Availability
Icons Headings
Applications con-
forming with specifica-
tions
Documentation
VIPA HMI Touch Panel General
Safety information
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 7

ncommissioning
noperation
CAUTION!
The following conditions must be met before using or
commissioning the components described in this
manual:
– Hardware modifications to the process control system
should only be carried out when the system has been
disconnected from power!
– Installation and hardware modifications only by prop-
erly trained personnel.
– The national rules and regulations of the respective
country must be satisfied (installation, safety, EMC ...)
National rules and regulations apply to the disposal of the unit!Disposal
VIPA HMI Touch PanelGeneral
Safety information
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 8

2 Hardware description
2.1 Safety information for users
VIPA modules make use of highly integrated components in MOS-
Technology. These components are extremely sensitive to over-vol-
tages that can occur during electrostatic discharges. The following
symbol is attached to modules that can be destroyed by electrostatic
discharges.
The Symbol is located on the module, the module rack or on packing
material and it indicates the presence of electrostatic sensitive equip-
ment. It is possible that electrostatic sensitive equipment is destroyed
by energies and voltages that are far less than the human threshold
of perception. These voltages can occur where persons do not dis-
charge themselves before handling electrostatic sensitive modules
and they can damage components thereby, causing the module to
become inoperable or unusable. Modules that have been damaged
by electrostatic discharges can fail after a temperature change,
mechanical shock or changes in the electrical load. Only the conse-
quent implementation of protection devices and meticulous attention
to the applicable rules and regulations for handling the respective
equipment can prevent failures of electrostatic sensitive modules.
Modules must be shipped in the original packing material.
When you are conducting measurements on electrostatic sensitive
modules you should take the following precautions:
nFloating instruments must be discharged before use.
nInstruments must be grounded.
Modifying electrostatic sensitive modules you should only use sol-
dering irons with grounded tips.
CAUTION!
Personnel and instruments should be grounded when
working on electrostatic sensitive modules.
2.2 Properties
The VIPA Touch Panel allows you to visualize and alter operating
states and recent process values of a connected PLC. The Touch
Panel is a compact and modular embedded PC based on WindowsÒ
CE. Besides the extensive WindowsÒ CE functions the Touch Panel
offers varied communication possibilities. Here the Touch Panel can
simply be configured, controlled and remoted. By including a select-
able HMI/SCADA runtime the Touch Panel is particularly suitable for
monitoring and controlling of process cycles.
Handling of electro-
static sensitive modules
Shipping of modules
Measurements and
alterations on electro-
static sensitive modules
General
VIPA HMI Touch Panel Hardware description
Properties
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 9

n62K-NHC0-DH
– WindowsÒ CE 6.0 Core
– Movicon 11 CE Basic (512 I/O bytes)
n62K-NHC0-CB
– WindowsÒ CE 6.0 Prof.
– Movicon 11 CE Standard (4096 I/O bytes)
nProzessor Cortex-A8, 1000MHz
nFlash memory 128Mbyte, SDRAM 256Mbyte
nSD card slot
nRS232, RS232/RS422/RS485, USB-A- and 2 Ethernet interfaces
nMPI/PROFIBUS DP interface (optional)
nRobust aluminium case
nDisplay resolution 1024 x 768 / 768 x 1024
nBattery backed clock
nResistive analog touch screen
nEasy mounting via 10 mounting clips
nProtection class IP65 (frontal)
Order data
Type Order number Description
TP 610LC/+ 62K-NHC0-... 10'' TFT color, RS232, RS232/RS422/RS485, USB-A,
2x Ethernet RJ45
MPI/PROFIBUS
DP interface
961-0MP0 MPI/PROFIBUS DP interface (optional)
VIPA HMI Touch PanelHardware description
Properties
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 10

2.3 Structure
2.3.1 Overview

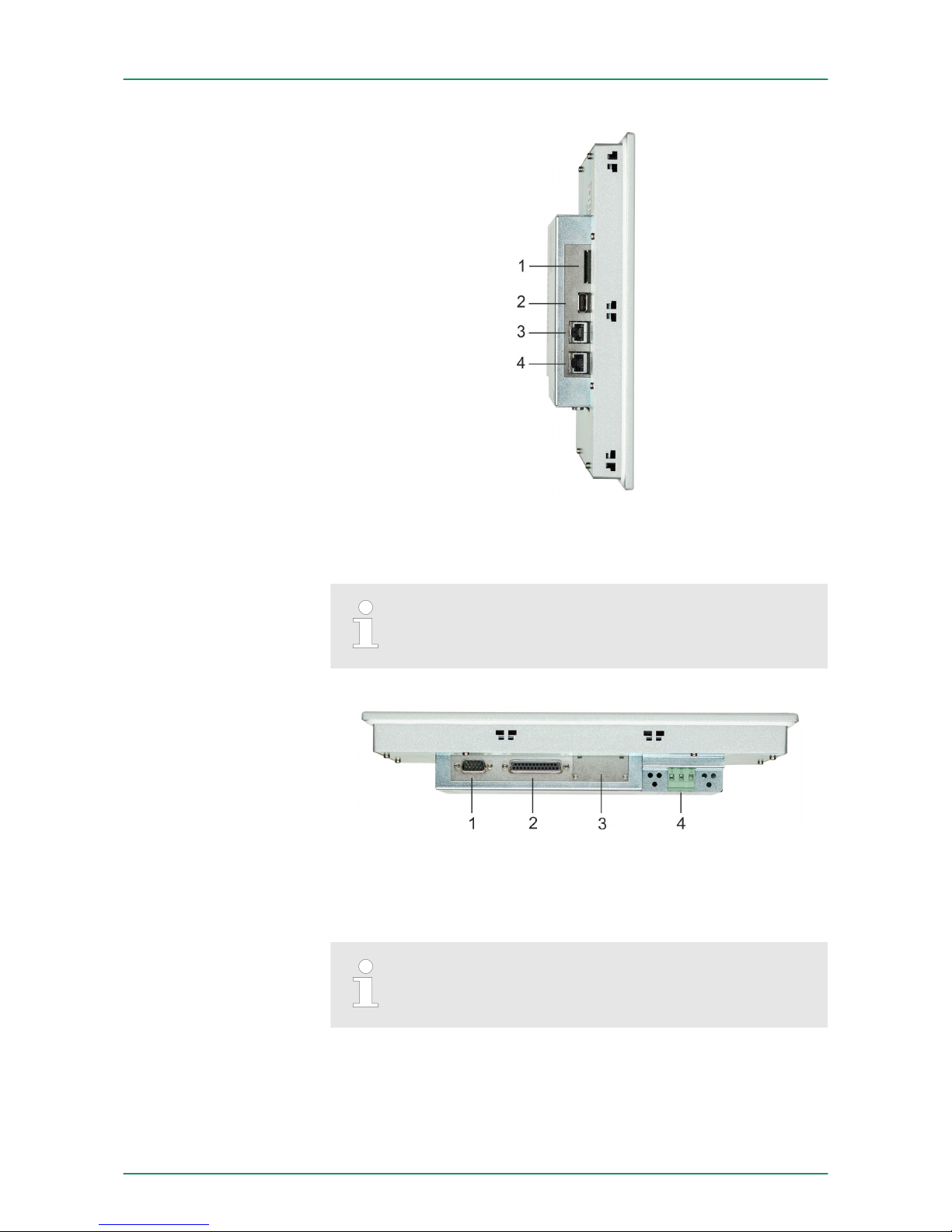

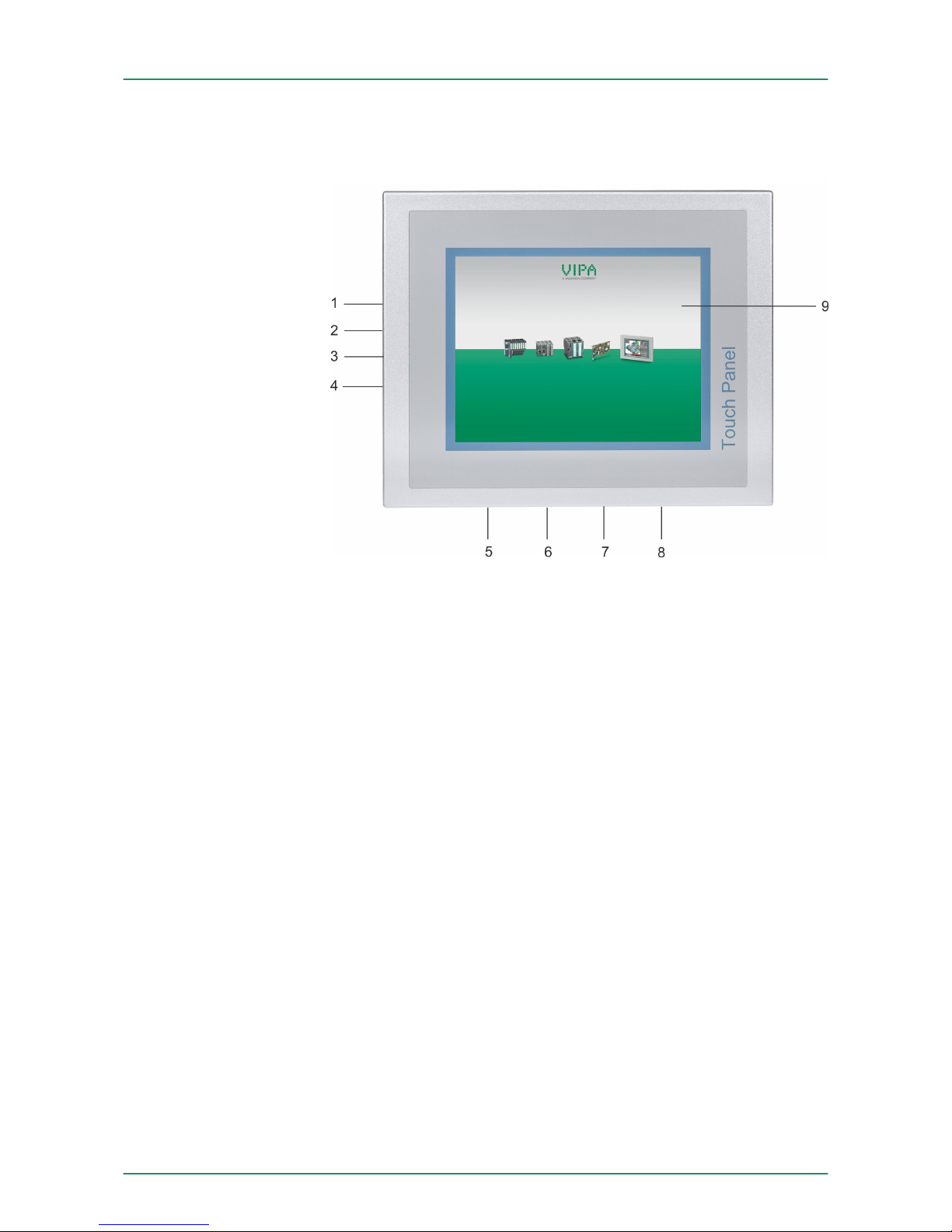

1 Slot for SD storage medium
2 "Host"-USB-A interface
3 RJ45 jack for Ethernet communication LAN 1
4 RJ45 jack for Ethernet communication LAN 2
5 RS232 interface COM 1
6 RS232/RS422/RS485 interface COM 2
7 MPI/PROFIBUS DP interface COM 3 (optional)
8 Slot for DC 24V voltage supply
9 Display with touch sensitive area (touch screen)
Front view
VIPA HMI Touch Panel Hardware description
Structure > Overview
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 11

1 Slot for SD storage medium
2 "Host"-USB-A interface
3 RJ45 jack for Ethernet communication LAN 1
4 RJ45 jack for Ethernet communication LAN 2
Please note that these two Ethernet interfaces cannot be
used as a Switch!
1 RS232 interface COM 1
2 RS232/RS422/RS485 interface COM 2
3 MPI/PROFIBUS DP interface COM 3 (optional)
4 Slot for DC 24V voltage supply
Please make sure that the Touch Panel always has to be
supplied with external voltage!
Side view
Bottom view
VIPA HMI Touch PanelHardware description
Structure > Overview
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 12

2.3.2 Interfaces
VIPA HMI Touch Panel Hardware description
Structure > Interfaces
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 13

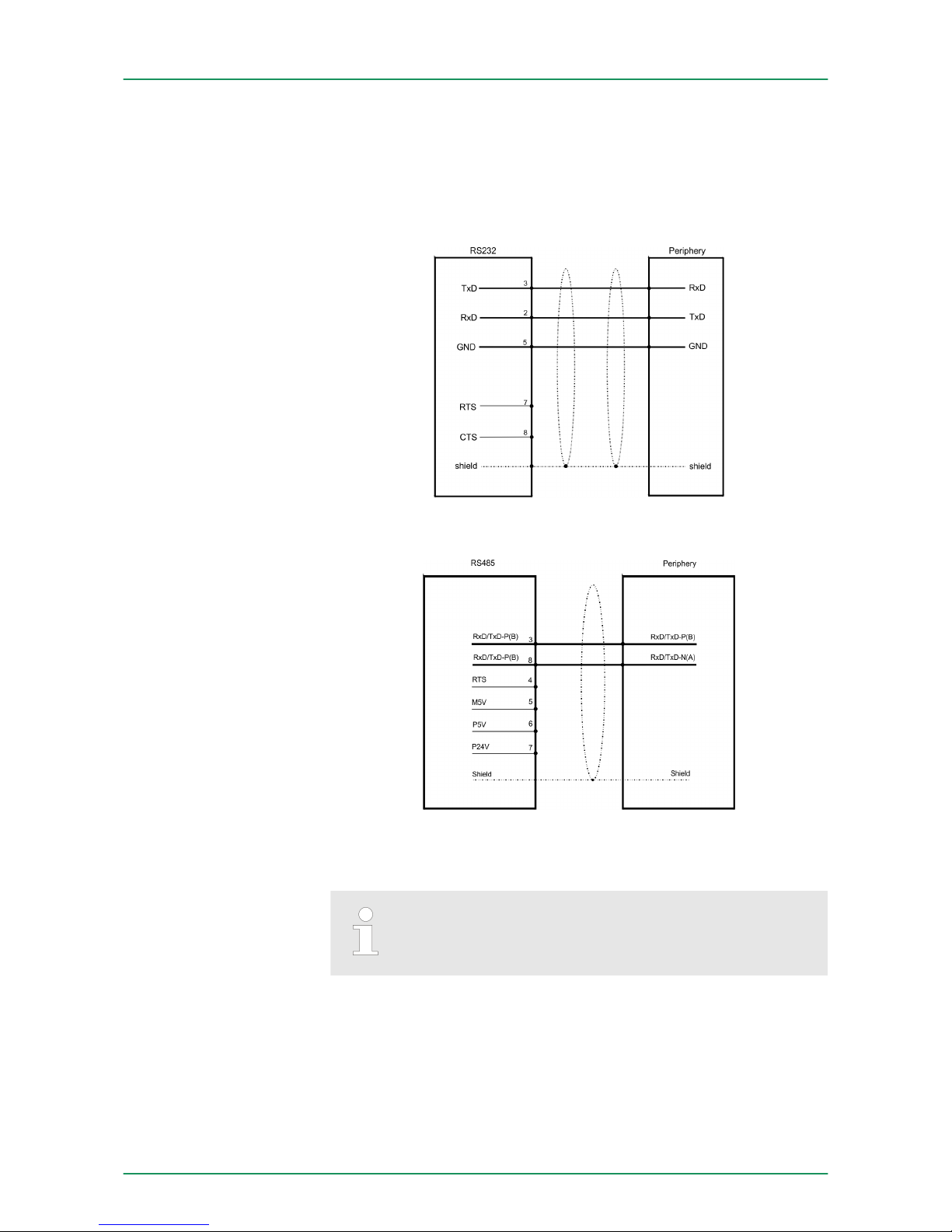

25 pin SubD femaleRS232/RS422/RS485
interface
VIPA HMI Touch PanelHardware description
Structure > Interfaces
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 14

9 pin SubD plug
nInterface is compatible to the COM interface of a PC
nLogical signals as voltage levels
nPoint-to-point links with serial full-duplex transfer in two-wire tech-
nology up to 15m distance
nData transfer rate up to 115.2kbit/s
9 pin SubD female
The two RJ45 jacks provide the interface to the twisted pair cable,
required for Ethernet.
Please note that these two Ethernet interfaces cannot be
used as a Switch!
Using the "Host"-USB-A interface USB mouse, keyboard, stick or
USB hard discs can be connected.
The Touch Panel has got an integrated power supply. The power
supply has to be provided with DC 24V (20.4 ... 28.8V). For this you
find an according DC 24V slot at the back. The power supply is pro-
tected against inverse polarity and overcurrent.
RS232 interface
MPI/PROFIBUS DP
interface (optional)
Ethernet connection
"Host"-USB-A
Power supply
VIPA HMI Touch Panel Hardware description
Structure > Interfaces
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 15

2.3.3 Memory management
The following memory systems are available for every Touch Panel:
n256Mbyte work memory
n128Mbyte Flash disk (50Mbyte for user data)
nUSB storage media using "Host"-USB-A interface
nSlot for SD
Every Touch Panel has a work memory with a size of 256Mbyte. The
work memory is not buffered and is deleted after shut down. Please
regard that also registry entries are stored in the work memory that
are set back to default settings after the next re-boot.
As internal permanent storage medium every Touch Panel has a
flash disk with a size of 128Mbyte (50Mbyte user data). After the start
of WindowsÒ CE this memory is listed as Flashdisk at My Device.
The connection of USB sticks and USB drives by use of the "Host"-
USB-A interface is supported by the Touch Panel. After connection
the storage media is listed as Hard Disk at My Device.
At the back of the Touch Panel there are the card slots for memory
cards. At this slot you may plug storage modules of the type SD. The
card may be plugged and removed during runtime and is immediately
listed as SDMMC Card at My Device.
2.4 Dimensions
For the installation of the Touch Panel in control cabinets and desks
the following dimensions are necessary:
Overview
Work memory
Flash disk
USB storage media
Slot for SD
Installation dimensions
VIPA HMI Touch PanelHardware description
Dimensions
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 16

Front panel width 2.5 ... 6mm
Installation cutting (B x H) 311 x 249mm
Front panel (B x H) 325 x 263mm
Rear panel (B x H x T) 310 x 248 x 50mm
Installation depth 50mm
The degrees of protection are only guaranteed when the
following is observed:
–Material thickness at the mounting cut-out: 2.5 ... 6mm
–The deviation from the plane for the panel cut-out is
£
0.5mm.
–Permissible surface roughness in the area of the seal:
£
120µm (friction coefficient 120)
10" - 62K-NHC0-...
VIPA HMI Touch Panel Hardware description
Dimensions
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 17

2.5 General data
Conformity and approval
Conformity
CE 2006/95/EG Low-voltage directive
2004/108/EG EMC directive
Approval
UL UL 508 Approval for USA and Canada
others
RoHS 2011/65/EU Product is lead-free; Restriction of the use of
certain hazardous substances in electrical and
electronic equipment
Protection of persons and device protection
Type of protection - IP20
Electrical isolation
to the field bus - electrically isolated
to the process level - electrically isolated
Insulation resistance -
Insulation voltage to reference earth
Inputs / outputs - AC / DC 50V, test voltage AC 500V
Protective measures - against short circuit
Environmental conditions to EN 61131-2
Climatic
Storage / transport EN 60068-2-14 -25…+70°C
Operation
Horizontal installation EN 61131-2 0…+60°C
Vertical installation EN 61131-2 0…+60°C
Air humidity EN 60068-2-30 RH1 (without condensation, rel. humidity 10…
95%)
Pollution EN 61131-2 Degree of pollution 2
Mechanical
Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz
Shock EN 60068-2-27 15g, 11ms
VIPA HMI Touch PanelHardware description
General data
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 18

Mounting conditions
Mounting place - In the control cabinet
Mounting position - Horizontal and vertical
EMC Standard Comment
Emitted interfer-
ence
EN 61000-6-4 Class A (Industrial area)
Noise immunity
zone B
EN 61000-6-2 Industrial area
EN 61000-4-2 ESD
8kV at air discharge (degree of severity 3),
4kV at contact discharge (degree of severity
2)
EN 61000-4-3 HF irradiation (casing)
80MHz … 1000MHz, 10V/m, 80% AM (1kHz)
1.4GHz ... 2.0GHz, 3V/m, 80% AM (1kHz)
2GHz ... 2.7GHz, 1V/m, 80% AM (1kHz)
EN 61000-4-6 HF conducted
150kHz … 80MHz, 10V, 80% AM (1kHz)
EN 61000-4-4 Burst, degree of severity 3
EN 61000-4-5 Surge, installation class 3 *
*) Due to the high-energetic single pulses with Surge an appropriate external protective circuit with lightning protection elements like conductors
for lightning and overvoltage is necessary.
2.6 Technical data
2.6.1 62K-NHC0-DH
Order no. 62K-NHC0-DH
Type Touch Panel TP 610LC
Display
Display size (diagonal) 10 "
Display size (width) 203 mm
Display size (height) 152 mm
Resolution 768 x 1024 / 1024 x 768
Aspect ratio 4:3
Type of display TFT color (64K colors)
MTBF Backlights (25°C) 50000 h
System properties
Processor Cortex-A8 1000 MHz
VIPA HMI Touch Panel Hardware description
Technical data > 62K-NHC0-DH
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 19

Order no. 62K-NHC0-DH
Operating system Windows CE 6.0 Core
User software Movicon 11 CE Basic
Work memory 256 MB
User memory 128 MB
Available memory (user data) 50 MB
SD/MMC Slot ü
CF Card Slot Typ II -
Time
Real-time clock buffered ü
Clock buffered period (min.) 26 w
Type of buffering Manganese Rechargeable Lithium Battery
Load time for 50% buffering period 5 h
Load time for 100% buffering period 24 h
Accuracy (max. deviation per day) 2 s
Operating controls
Touchscreen resistive
Keyboard external via USB
Mouse external via USB
Interfaces
MPI, PROFIBUS-DP optional
MPI, PROFIBUS-DP connector -
Serial, COM1 RS232
COM1 connector Sub-D, 9-pin, male
Serial, COM2 RS232 / RS422 / RS485
COM2 connector Sub-D, 25-pin, female
Number of USB-A interfaces 1
USB-A connector USB-A (host)
Number of USB-B interfaces -
USB-B connector -
Number of ethernet interfaces 2
Ethernet Ethernet 10/100 MBit
Ethernet connector RJ45
Integrated ethernet switch -
Technical data power supply
Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
VIPA HMI Touch PanelHardware description
Technical data > 62K-NHC0-DH
HB160 | TP-ECO | 62K-NHC0 | GB | 14-27 20
