Viper CEX410 User manual

Models:CEX410-EU
REV A (2018/6/28)
Form No:VV81256 Original instructions
Caution –Read the instructions before using the machine
CEX410 Carpet Extractor
Owner’s manual
www.takaritogeppartner.hu

1
TABLE OF CONTENTS
ENGLISH..................................................................................
2-14
FRANÇAIS...............................................................................
15-19
ESPAÑ OL...............................................................................
20-24
DEUTSCH...............................................................................
25-29
NEDERLANDS........................................................................
30-34
ITALIANO...............................................................................
35-39
NORSK..................................................................................
40-44
SVENSKA...............................................................................
45-49
DANSK..................................................................................
50-54
SUOMI.................................................................................
55-59
PORTUGUÊS.........................................................................
60-64
ΕΛΛΗΝΙΚΆ............................................................................
65-70
TÜ RKÇE................................................................................
71-80
SLOVENŠČINA.......................................................................
81-85
ČESKÝ....................................................................................
86-90
POLSKI..................................................................................
91-95
MAGYAR...............................................................................
96-100
ROMÂNĂ...............................................................................
101-105
БЪЛГАРСКИ..........................................................................
106-110
РУССКИЙ...............................................................................
111-115

2

3

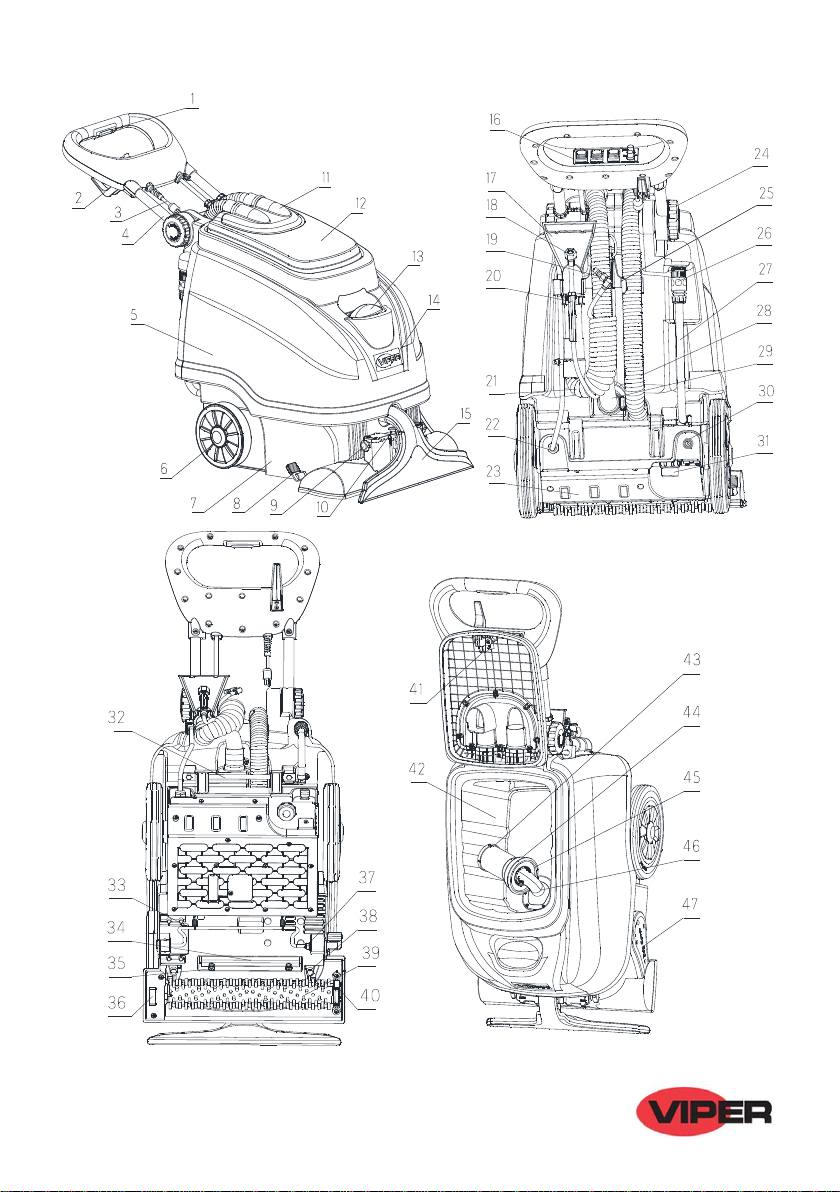

F1
F2

4

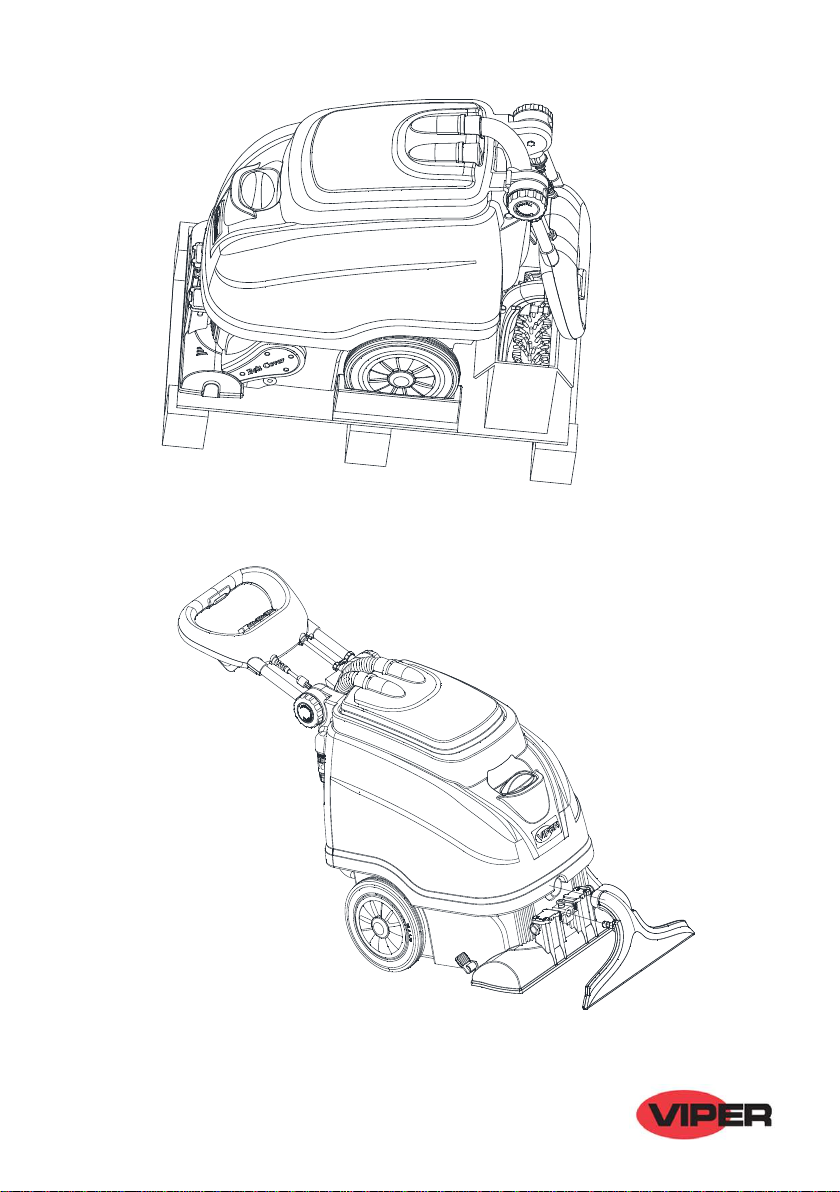

F3
1
2
3
F4 F5
2
134
5
F6

5
F7
F8 F9

6
Loose Tighten
F10 F11 F12 F13
1
2
3
1
2
3
F14
F15 F16

7
F17 F18

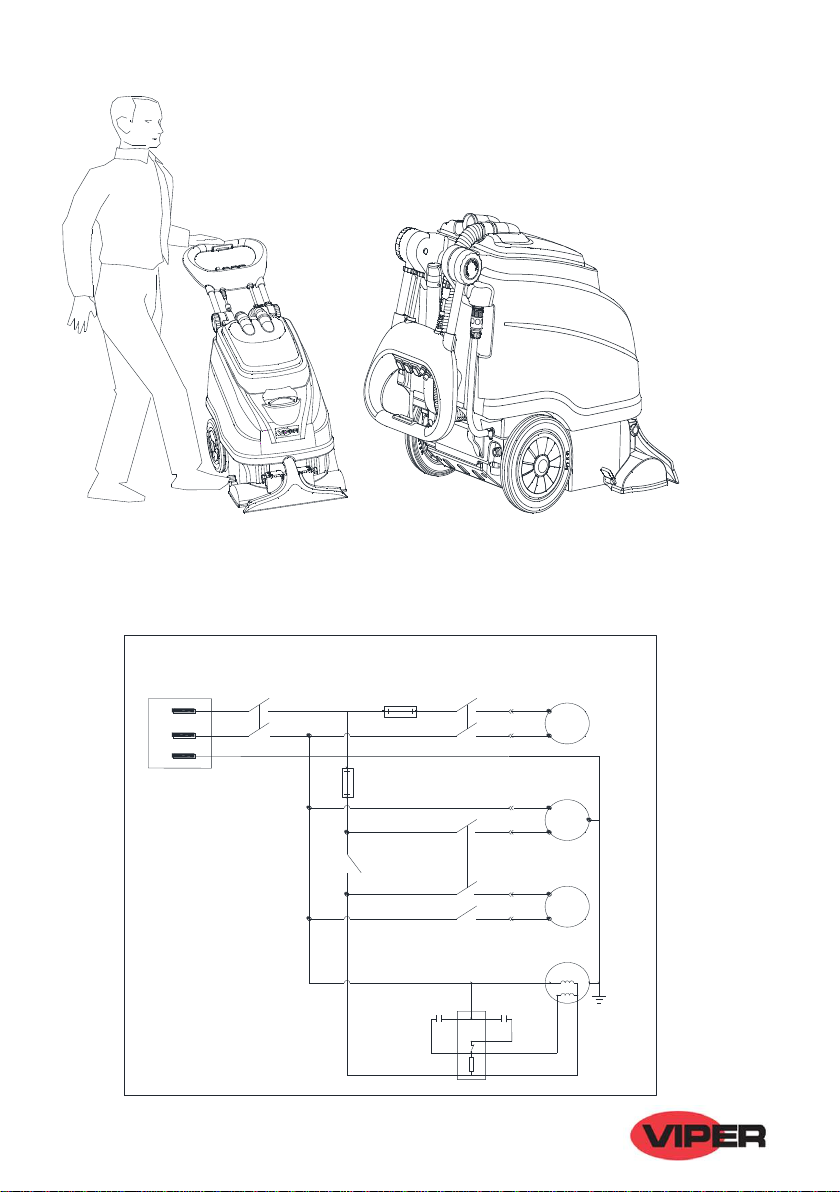

Wiring diagram（F19）
CEX410 230V Wiring Diagram
SWITCH CIRCUIT
BREAKER
VACUUM
SWITCH
VACUUM
MOTOR
L
N
POWER
220V-240VAC
YELLOW/GREEN
6A M
4A CIRCUIT
BREAKER WATER
PUMP
M
HANDLE SWITCH PUMP
SWITCH SOLENOID
VALVE
HANDLE SWITCH
BRUSH
MOTOR
BLACK
RUNING
CAPACITOR
STARTING
CAPACITOR
RUN
START
YELLOW/GREEN
RELAY
4
1
2RED
WHITE
5

8
Technical specifications （F20）
TECHNICAL SPECIFICATION
MODLE
CEX410-EU
VOLTAGE(V)
220~240
RATED POWER(W)
1850
FREQUENCY(Hz)
50/60
CORD(M/ FEET)
15M/50FEET
SOLUTION TANK (L/Gal)
35L/9Gal
RECOVERY TANK（L/Gal）
23L/6Gal
BRUSH MOTOR POWER(HP/W)
400 W
VACUUM MOTOR POWER(HP/W)
1200 W
VACUUM MOTOR STAGES AND TYPE
3-stage tangential
VACUUM MOTOR WATERLIFT (INCH/MM H2O)
3200 MMH2O
VACUUM MOTOR AIRFLOW(CFM,L/MIN)
85CFM,2407L/MIN
SOUND PRESSURE LEVEL(dBA)
70±3
PUMP CUT OFF PRESSURE(Bar/PSI)
8.3Bar/120PSI
PUMP WORKING PRESSURE 2 JETS(Bar/PSI)
5.9Bar/85PSI
PUMP WORKING PRESSURE 1 JET(Bar/PSI)
7.2Bar/105PSI
MACHINE SPRAY TIP MATERAIL
Brass
HAND TOOL SPRAY TIP MATERAIL
Stainless
SOLUTION FLOW 2 JETS (Gal/MIN ,L/MIN)
0.7Gal/MIN,2.8L/MIN
SOLUTION FLOW 1 JET (Gal/MIN ,L/MIN)
0.5Gal/MIN ,1.8L/MIN
BRUSH SPPED(RPM,Tr/Min)
1100RPM,11Tr/Min
VIBRATION
ah, w=0.74m/s²
CLEANING WIDTH (MM/INCH)
410 MM/16 INCH
NOZZLE WIDTH (MM/INCH)
460 MM/18 INCH
HAND TOOL WIDTH (MM/INCH)
121 MM/4.7 INCH
FLOOR TOOL WIDTH (MM/INCH)
254 MM/10 INCH
REAR WHEEL DIAMETER (MM/INCH)
254 MM/10 INCH
MACHINE NET WEIGHT (Lbs./KG)
121Lbs./55 KG
SHIPPING WEIGHT (Lbs./KG)
143Lbs./65 KG
MACHINE WEIGHT WITH SOLUTION WATER(Lbs./KG)
176Lbs./80 KG
MACHINE DIMENSION (L x W x H) (INCH/MM)
46 x20 x35 inches
1170 x 510 x 880 MM
SHIPPING DIMENSION (L x W x H) (INCH/MM)
35.5 x24 x36.5 inches
900 x 605 x 925 MM
HEIGHT WITHOUT HANDLE (INCH/MM)
28.5 inches/725 MM

9
SCRAPPING
Have the machine scrapped by a qualified scrapper
Before scrapping the machine,remove and separate the following materials,which must be
disposed of property according to the Law in force:
—Batteries
—Brushes
—Plastic hoses and components
—Electrical and electronic components(*)
(*) Refer to the nearest Nilfisk Center especially when scrapping electronic components.
CEX410 machine material composition and recyclability (F21)
Type
Recyclable percentage
weight percentage
Aluminium
100%
6%
Electric motors-various
35%
25%
Ferrous materials
100%
8%
Wiring harness
78%
5%
Liquids
0%
0%
Plastic-non-recyclable material
0%
2%
Plastic-recyclable material
100%
44%
Polyethylene
70%
6%
Rubber
20%
4%
