Viper CEX410-US User manual

Model: CEX410-US/CN
REV A (2018/5/30)Nilfisk
Form No: VV81312 9435 Winnetka Ave. N
Brooklyn Park, MN 55445
CEX410 Carpet Extractor
Owner’s manual

2
TABLE OF CONTENTS
ENGLISH..................................................................................
1-17
FRANÇAIS...............................................................................
18-22
ESPAÑOL...............................................................................
23-27
中文 ...............................................................................
28-32

3

4

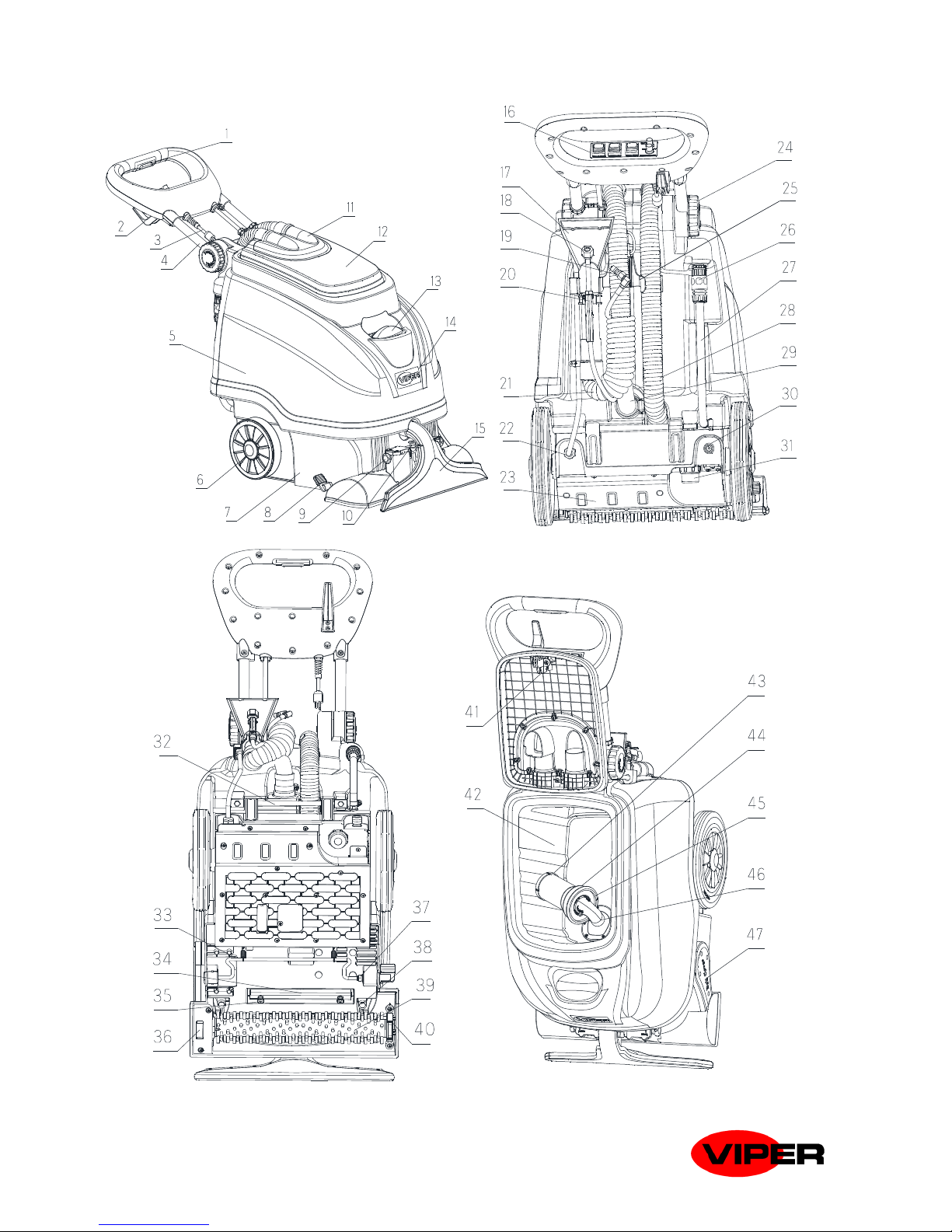

F1
F2

5
F3
1
2
3
F4 F5
2
134
5
F6

6
F7
F8 F9

7
Loose Tighten
F10 F11 F12 F13
1
2
3
1
2
3
F14

8
F15 F16
F17 F18

9
Wiring diagram（F19）
CEX410 120V Wiring Diagram
SWITCH CIRCUIT
BREAKER
VACUUM
SWITCH
VACUUM
MOTOR
M
M
M
L
N
POWER
110V-120VAC
12A
6A CIRCUIT
BREAKER WATER
PUMP
HANDLE SWITCH
PUMP
SWITCH SOLENOID
VALVE
HANDLE SWITCH
BRUSH
MOTOR
RECTIFIER
+
AC
CEX410 230V Wiring Diagram
SWITCH CIRCUIT
BREAKER
VACUUM
SWITCH
VACUUM
MOTOR
L
N
POWER
220V-240VAC
YELLOW/GREEN
6A M
4A CIRCUIT
BREAKER WATER
PUMP
M
HANDLE SWITCH PUMP
SWITCH SOLENOID
VALVE
HANDLE SWITCH
BRUSH
MOTOR
BLACK
RUNING
CAPACITOR
STARTING
CAPACITOR
RUN
START
YELLOW/GREEN
RELAY
4
1
2RED
WHITE
5

10
Technical specifications （F20）
CEX410-US Technical Specification
Performance data
Nominal voltage( V )
110 -120
Frequency( Hz )
50/60
Rated current (A)
14.6
Pump pressure(PSI)
100
Nozzle water flow
2.6 L/min. 0.6 Gal/min.
Solution tank volume
35L/9Gal
Recovery tank volume
23L/6Gal
Dimensions and weights
Machine Width
460mm/18 Inches
Machine Length
850mm/22.5 Inches
Power cord length
15M/50 Feet
Height without handle
740mm/29 Inches
Machine weight
88Kg/194 Pounds
Roller brush size
40.6 cm/16 Inches
Vacuum shoe size
46 cm/18 Inches
CEX410-CN Technical Specification
Performance data
Nominal voltage( V )
220-240
Frequency( Hz )
50/60
Rated power Max.( W )
1850
Pump pressure(PSI)
120
Nozzle water flow (L/Min)
2.6
Solution tank volume
35L/9Gal
Recovery tank volume
23L/6Gal
Dimensions and weights
Machine Width ( mm )
460
Machine Length ( mm )
850
Power cord length
15M/50 Feet
Height without handle (mm)
740
Machine weight ( kg )
88
Roller brush size
16”/40.6 cm
Vacuum shoe size
18”/46 cm
Noise
A-weighted sound pressure
LpA=70±3dB(A)
Vibration
Cutting wood
ah,w=0.74m/s²
