VIPowER Uni Skyper VPET-20 User manual

Table of Contents:
1. Indication
Light………………………………………………………………………1
Software Installation
2. Software for Skype……………………………………………..1
3. Driver for VPET-20………………………………………………7
Hardware Installation
4. Connection Scheme…………………………………………....9
Making Calls
5. Preparation for Making Calls………………………………....10
6. How to Make a Call…………………………...........................13
Features
7. How to Receive Calls…………………………………………....16
8. Forwarding Incoming Skype Calls to Your Mobile Phone or
Regular Phone…………………………………………………...16
More Information about the VPET-20
9. Trouble Shooting………………………………………………..18
10. FAQ……………………………………………………………….19
11. Cautions …………………………………………………......22

ViPowER USB-VoIP Phone (Version:2005.11.16) 1
User Manual for VPET-20
1. Indication Light
WORK: it is steadily when standby; it is flashing when in use
RCV: it is when receiving incoming calls; it is off when standby
DIAL: it is when dialing out or receiving incoming calls; it is off when standby.
2. Software for Skype
2.1 Download Skype
Visit www.skype.com/download to download the lastest Skype for your Operating
System.
Note: If the version of Skype in your PC is under 1.4, please update it promptly.
2.2 Installing Skype
Find the downloaded software and double click , then install Skype in
your PC
Select the language to use during the installation and click to enter
the “License Agreement” page.
1
www.vipower.com

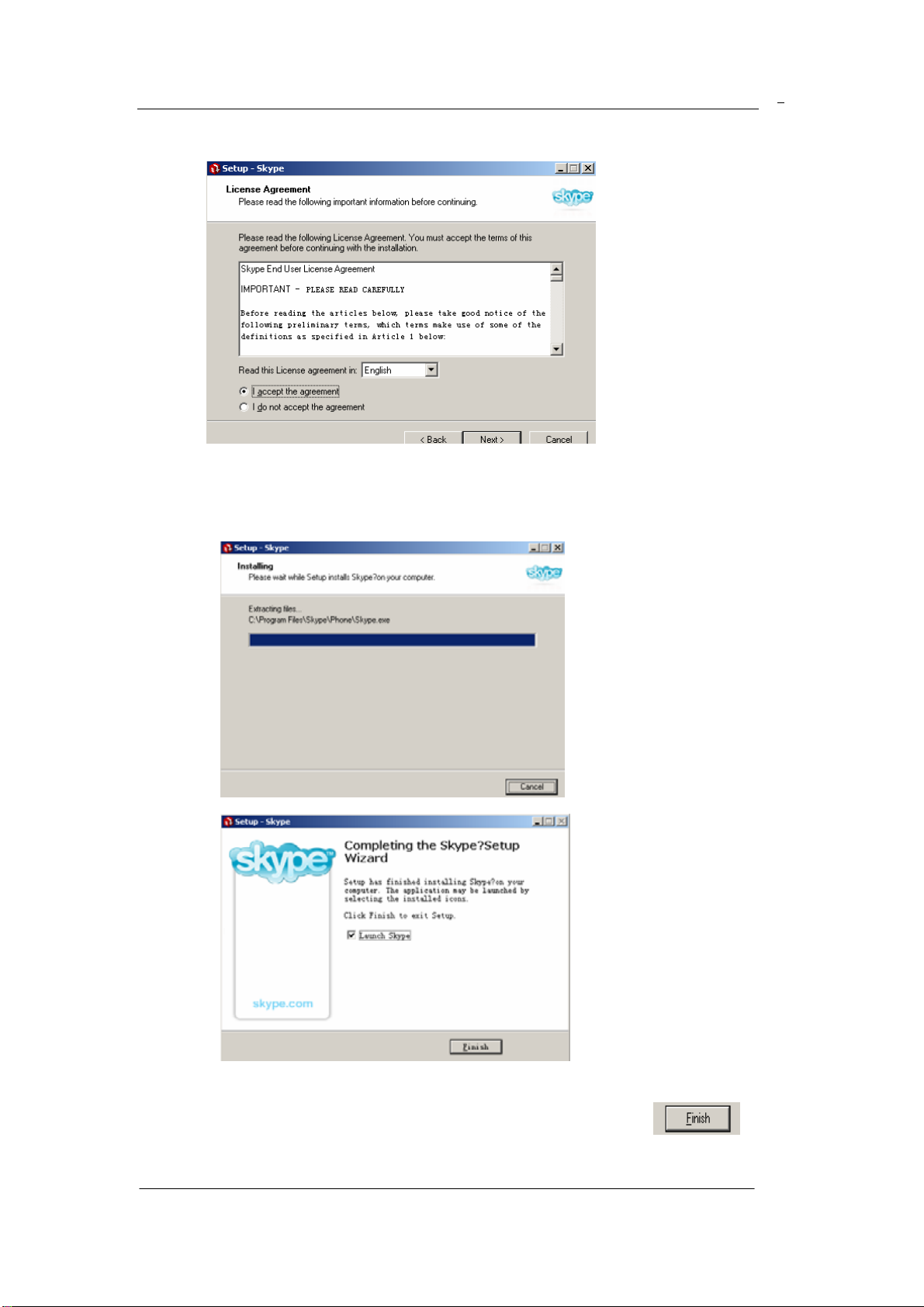

ViPowER USB-VoIP Phone (Version:2005.11.16) 2
You can continue to install Skype in your PC only after accepting the agreement. If
you do not accept the agreement, you will exit the wizard.
Now, Skype has been installed successfully inyourPC. Click to to
launch Skype.
2
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 3

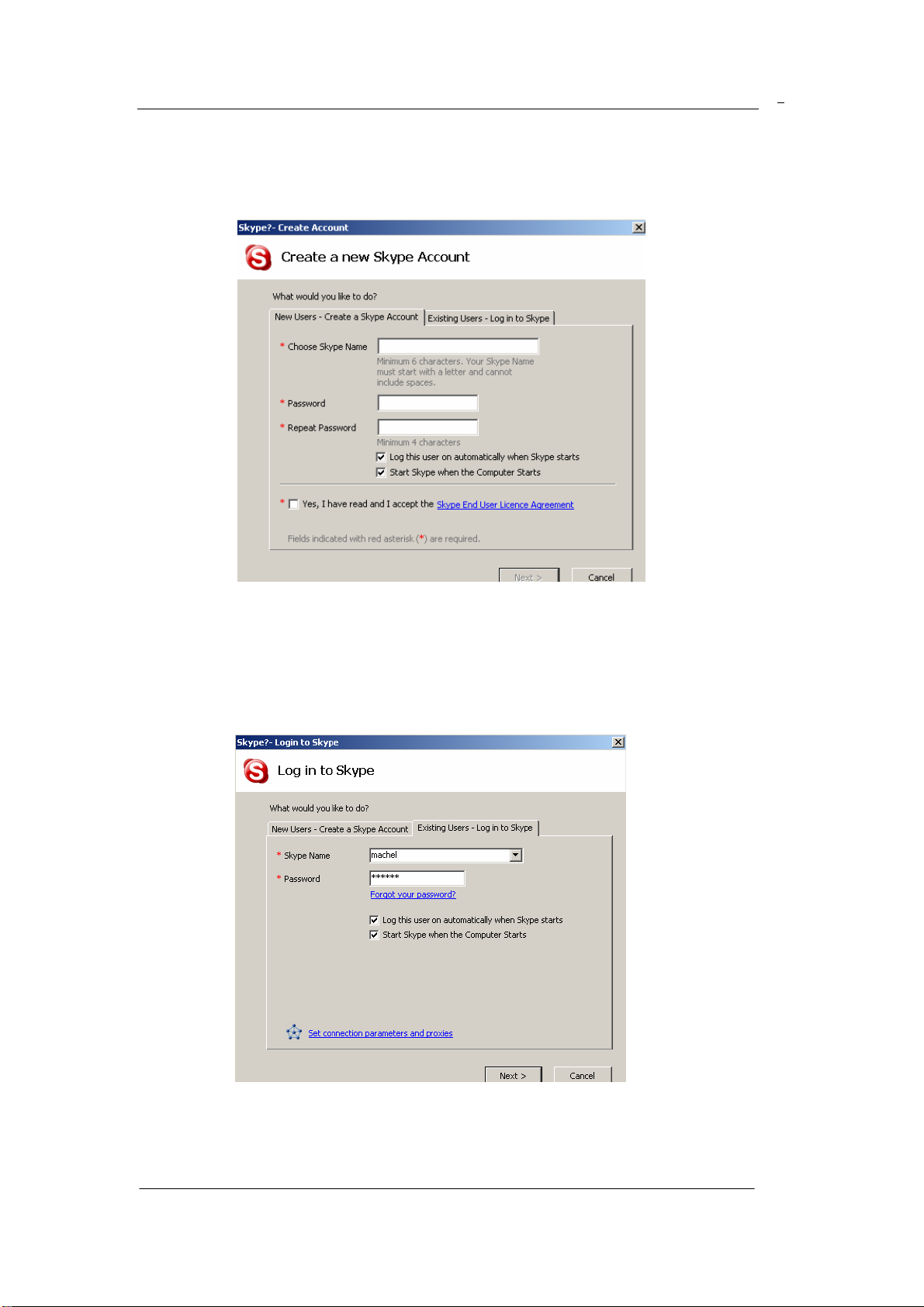

2.3 Log in to Skype:
If this is your first time to log in to Skype, a box will popup:
2.3.1. If you already have a Skype account, click “Existing User - Log in to Skype”,
and enter the “Skype Name” and “Password”:
Then, click “Next” to log in.
3
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 4
2.3.2. If you do not have a Skype account, please register as the wizard:
Ignore the coming pages. The system will log in to Skype automatically.
2.4. Add Skype Names to your contacts list
Like other IM software (MSN.QICQ.QQ), you should add your friends’ Skype Names
on your contact list before you want to start making calls.
4
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 5
2.4.1 If you know your friend’s Skype Name, please do the followings:
Left click , then a box will popup:
Enter your friend’s Skype Name, and click . . For example, add
ben. zhao (my friend’s Skype Name) to my contacts list.
Searching......
5
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 6
The result is marked with red line:
Left click the correct Skype Name and click to add this Skype
Name on your contacts list. Then you will see this Skype Name on your contacts list:
6
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 7
2.4.2 If someone sends a request to you, you can decide to accept or reject his or
her request . For example, if Wang (Skype Name) sends a request to you:
7
You can click to accept this request and add Wang on your contact list.
3. Driver for VPET-20
Note: This driver has been edited for Windows 2000/XP/ME. If there is an older
version of driver in your PC, please uninstall it first.

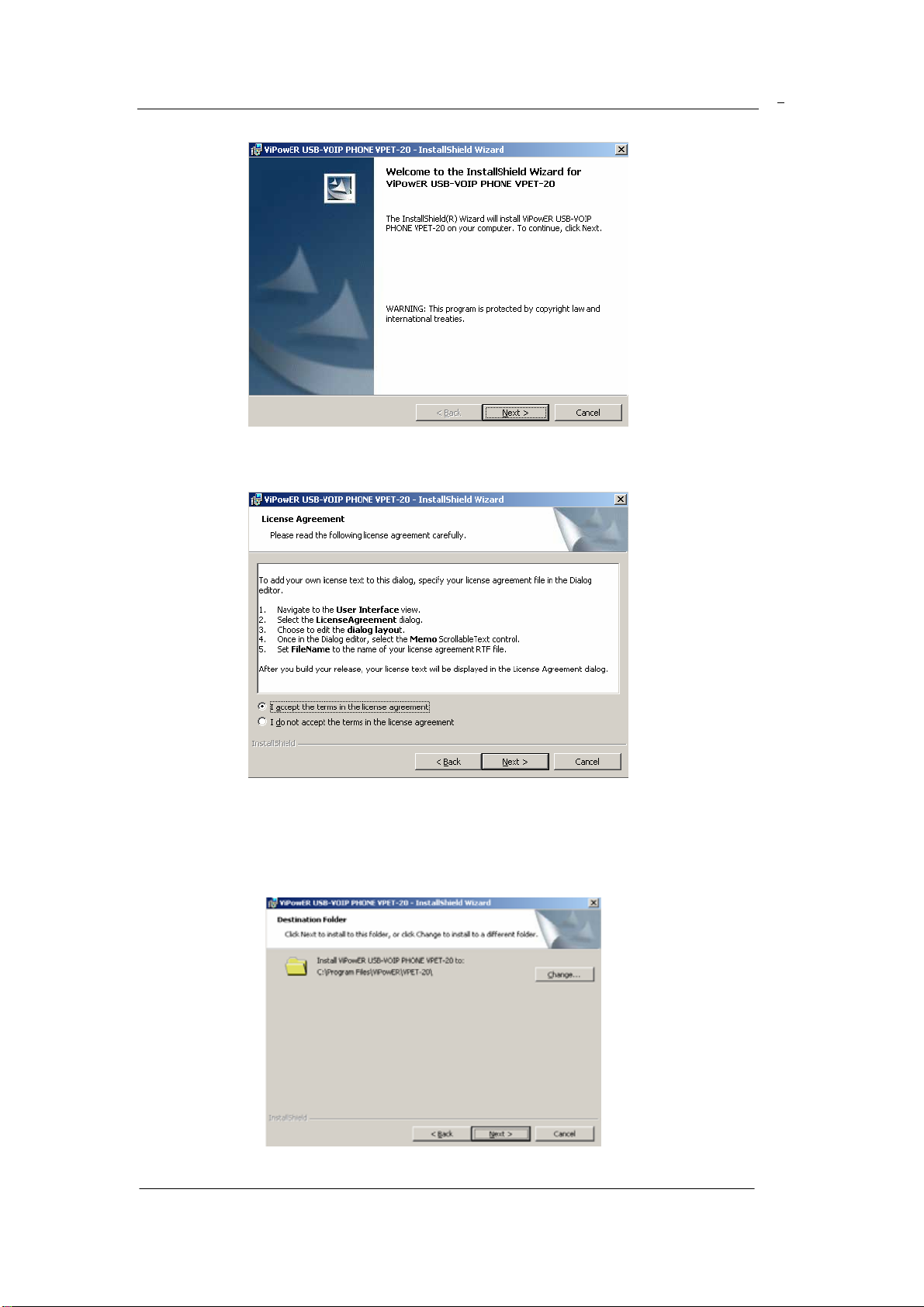

3.1 Installing driver
Run the CD placed in the package, inserting it and double click .
InstallShield Wizard is:
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 8
You can continue to install the driver for VPET-20 only after accepting the terms in the
license agreement. You will exit the wizard if you do not accept the agreement.
8
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 9
Now, the driver for VPET-20 has installed successfully in your PC. Then there is a
figure like on the desktop.
3.2 Check the version about this driver
3.2.1. Right click in the taskbar
3.2.2. Left click “ABOUT”
3.3 Uninstall the driver
Start Program VPET-20 Uninstall VPET-20
4. Connection Scheme
4.1 One RJ11 socket marked Phone is for the regular phone line, the other one
marked PSTN is for the PSTN line. Please go through the information on the label at the
bottom of VPET-20.
9
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 10
4.2 Connect VPET-20 with PC through the USB cable placed in the package.
Note: If you use your USB Hub to increase your USB port, you will need an external
power adapter when you want to use VPET-20
5. Preparation for Making Calls
5.1. Running the program for VPET-20:
Start Program VPET-20 VPET-20
And then, Skype will login automatically. Please pay attention to those icons in the
taskbar:
means that Internet connection is failing and VPET-20 is not connecting well
with PC. You can only make or receive PSTN calls through the PSTN line connected with
VPET-20 in this condition.
means that Internet connection is OK, but VPET-20 is not connecting well
with PC. You can only make or receive PSTN calls through the PSTN line connected with
VPET-20 in this condition.
means that internet connection is OK, and VPET-20 is connected with PC.
You are ready to make and receive both Skype and PSTN calls.
Note: when you run the program for VPET-20 for the first time, the system will popup
a box
10
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 11
Please select “Allow this program to use Skype”
11
5.2. Make sure there is a figure like at the bottom of Skype.
You can establish bidirectional communication with other Skype users only if that figure
appears.
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 12

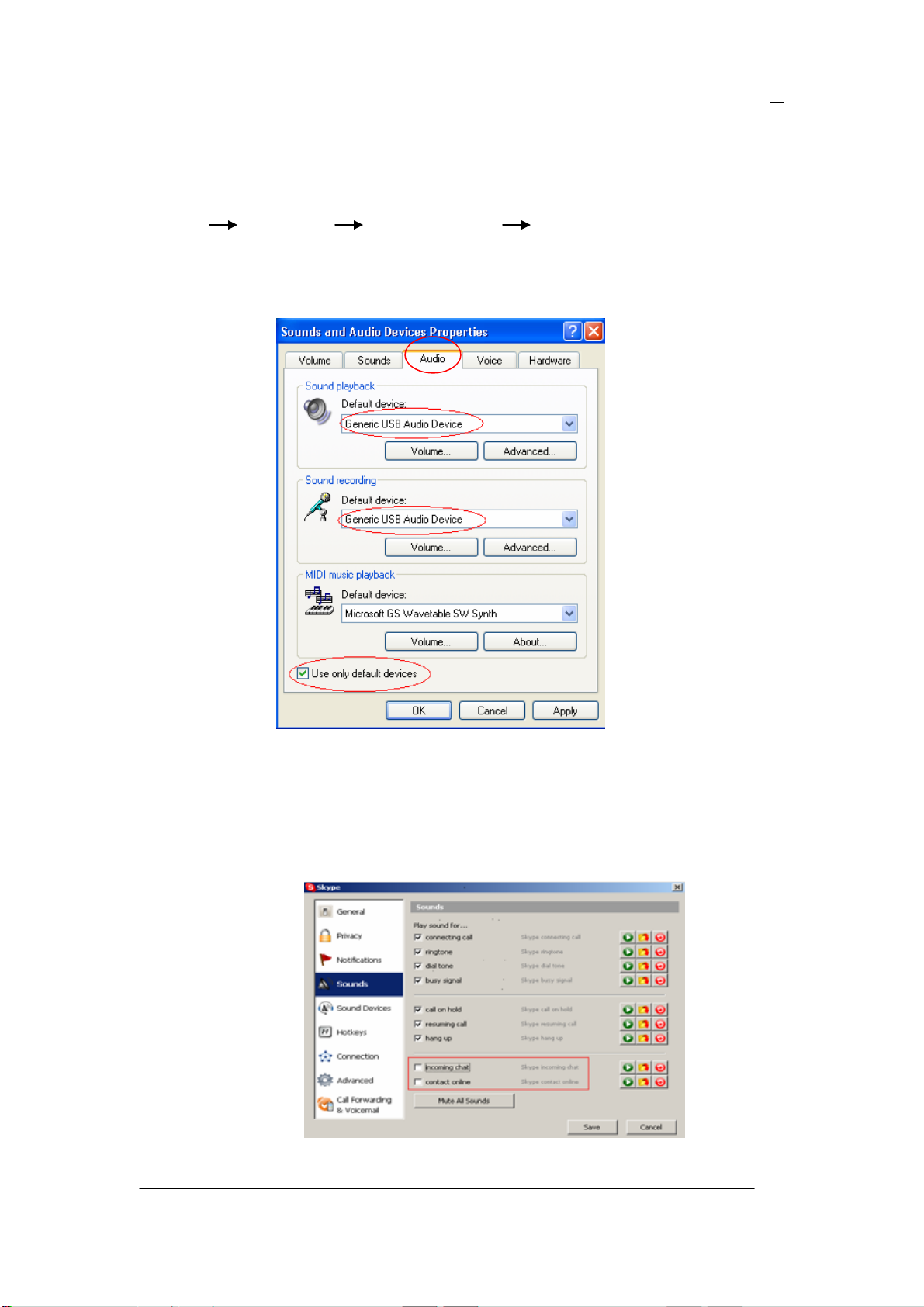

5.3. Make sure that Generic USB Audio Device is selected for the default
Audio Device.
Start Settings Control Panel Sounds and Audio Devices
It is recommended to select “Use only default devices”. This setup will always enable
you to play MP3 music while you are on Skype.
5.4. For a better sound quality please make “incoming chat” and “contact online”
inactive in Skype:
12
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 13
6. How to Make a Call
6.1. To make a Skype call
For example, if you want to make a call to John Smith (my friend’s Skype name).
You should assign a speed-dial number for John Smith first. Since the regular phone
only supports digital dialing plan, therefore they can only accept numbers from 0 to 9.
6.1.1 Assign a speed dial number for John Smith
Right click John Smith on your contacts list, and then select "Assign
Speed-Dial"
13
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 14

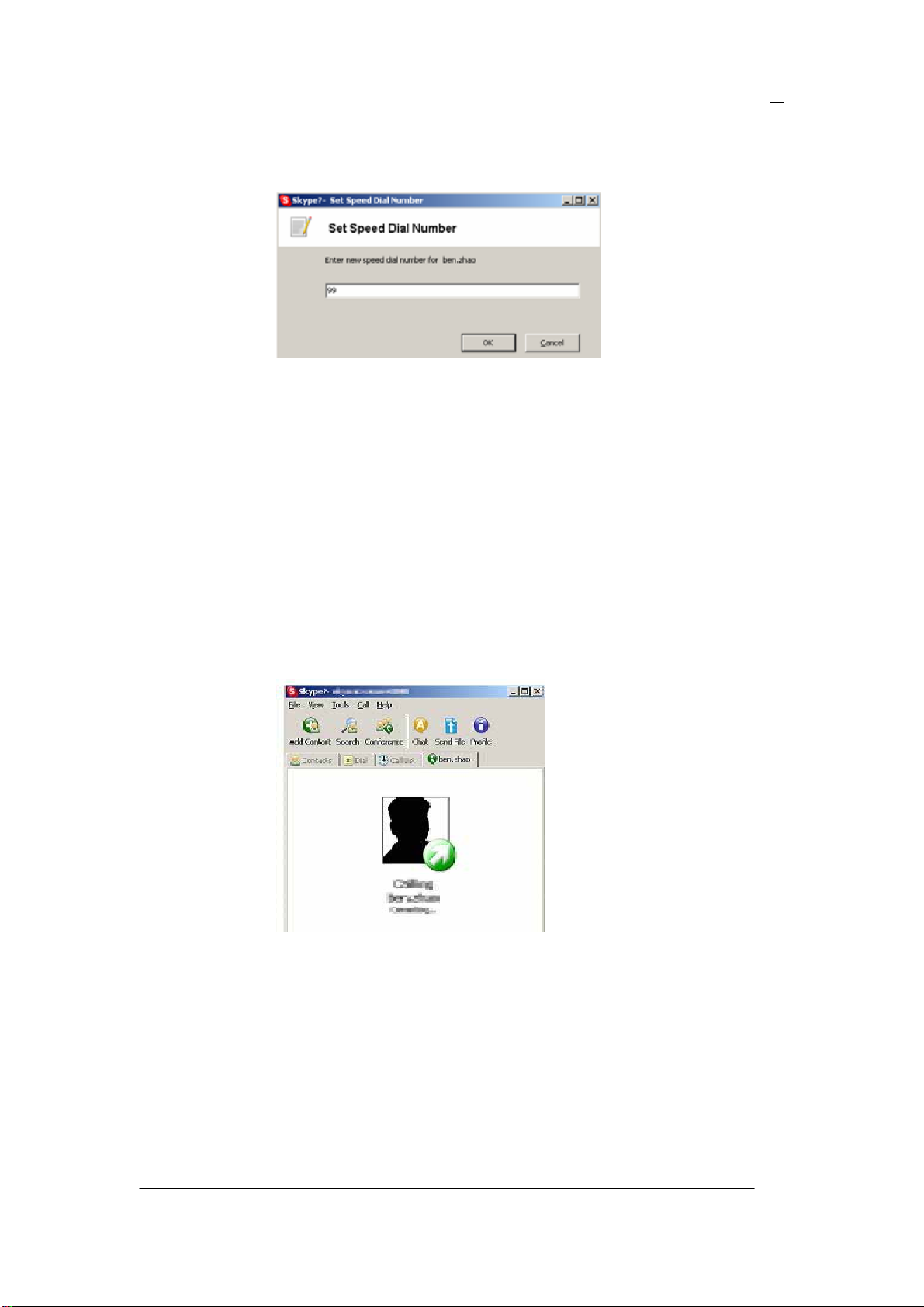

6.1.2 Choose Speed Dial Number, the range is from 00 to 99. For example, assign
99 to John Smith:
Click OK buttom to save the setting.
Note: the special service numbers in each country (such as 911 in the United States)
are prohibited to be set as the Speed Dial Number.
6.1.3 Pick up the handset of the regular phone, press *to switch to Skype channel,
then the Speed Dial Number and #, and the call will begin to connect.
Example: Dial *to Skype channel and you will hear a dial tone, and then dial 99#.
Now, calling John Smith.......
Note: If VPET-20 is linked only with a normal phone (without a PSTN line), please just
press the Speed Dial Number and #.
Example: Pick up the handset of the regular phone, and dial 99# for calling John
Smith.
14
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 15
6.2.To make a PSTN or mobile phone number
6.2.1 To make a PSTN or mobile phone number through PSTN line
Through the PSTN line connected with VPET-20, you can use any regular phone to
make a PSTN or mobile phone number. For example, if you want to dial [phone]
6.2.1.1 Pick up the handset of the regular phone
6.2.1.2 If [phone] is your local number, please just dial 11111111
If [phone] is a domestic long-distance call, please dial
075511111111 (Note: 0755 is the area code)
If [phone] is an international long-distance call, please dial
008675511111111 (Note: 0086 is the country code, 755 is the area code)
Note: If VPET-20 is connected with PBX as an extension, you should dial 0 or 9 to
catch the idle trunk line before you dial the phone number. To dial 0 or 9 is depending on
the settings of your PBX.
6.2.2 To make a PSTN or mobile phone number with SkypeOut
About SkypeOut, please visit http://www.skype.com/products/skypeout.
If you want to dial [phone] through SkypeOut, for instance, there are two
scenarios in this case: either a) the VPET-20 is connected with PSTN line, or b) the
VPET-20 is only connected with a regular phone, i.e., without a PSTN line.
6.2.2.1 VPET-20 is connected with PSTN line
Pick up the handset of the regular phone and press *, VPET-20 will then enter the
Skype channel and you will hear a dial tone. Then dial the number in accordance with
this order: Country code +Area code +Number#, like 00886289131911# (Note:
00886 is the country code, 2 is the area code, and 89131922 is the number)
6.2.2.2 VPET-20 is connected only with a regular phone (without a PSTN line)
Pick up the handset of the regular phone and press the number in accordance
with this order: Country code + Area code + Number #, like 00886289131911# (Note:
00886 is the country code, 2 is the area code, and 89131922 is the number)
15
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 16
7. How to Receive Calls
When someone calls your Skype or PSTN number, the regular phone will ring.
Pick up the handset or press the Handfree to receive it. When the call is ended,
please put down the handset or press the Handfree again.
If the regular phone supports FSK Caller ID function, then when receiving
incoming Skype calls, the caller’s speed-dial number will be displayed on the LCD.
Example: The speed-dial number for John Smith (my friend’s Skype name) is 99.
So when John Smith calls my Skype, the regular phone will ring and the number 99
(speed-dial number) will be displayed on the phone screen.
7.1 Call Waiting: When the PSTN line that connected with VPET-20 is being using, if
someone wants to call your Skype, he or she will hear a busy tone.
7.1.1 When your Skype is being using under PC to PC operation, if
someone wants to dial your PSTN number, he or she will hear a ringing tone;
meanwhile you will hear a hint tone.
At this time, press # to put Skype call on hold and receive the PSTN call.
By pressing *, you will get back to the Skype call, but the PSTN call will be cut
off.
8. Forwarding Incoming Skype Calls to Your Mobile
Phone or Regular Phone
The forwarding function provided by the VPET-20 will allow you to receive Skype calls
even when you leave your PC. When someone calls your Skype, VPET-20 will simply
forward the incoming Skype calls to your mobile phone so you will not miss any Skype
call.
Before leaving your PC, make sure that the driver for VPET-20 is running and Skype
is online, showed as
8.1 When VPET-20 is connected with a direct PSTN line.
That means, the PSTN line is not an extension and can dial out without any
16
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 17
restriction. The status of PSTN line should be idle.
For example, if you want to forward incoming Skype calls to 13811111111 (my
mobile phone number), you need to go through the following steps:

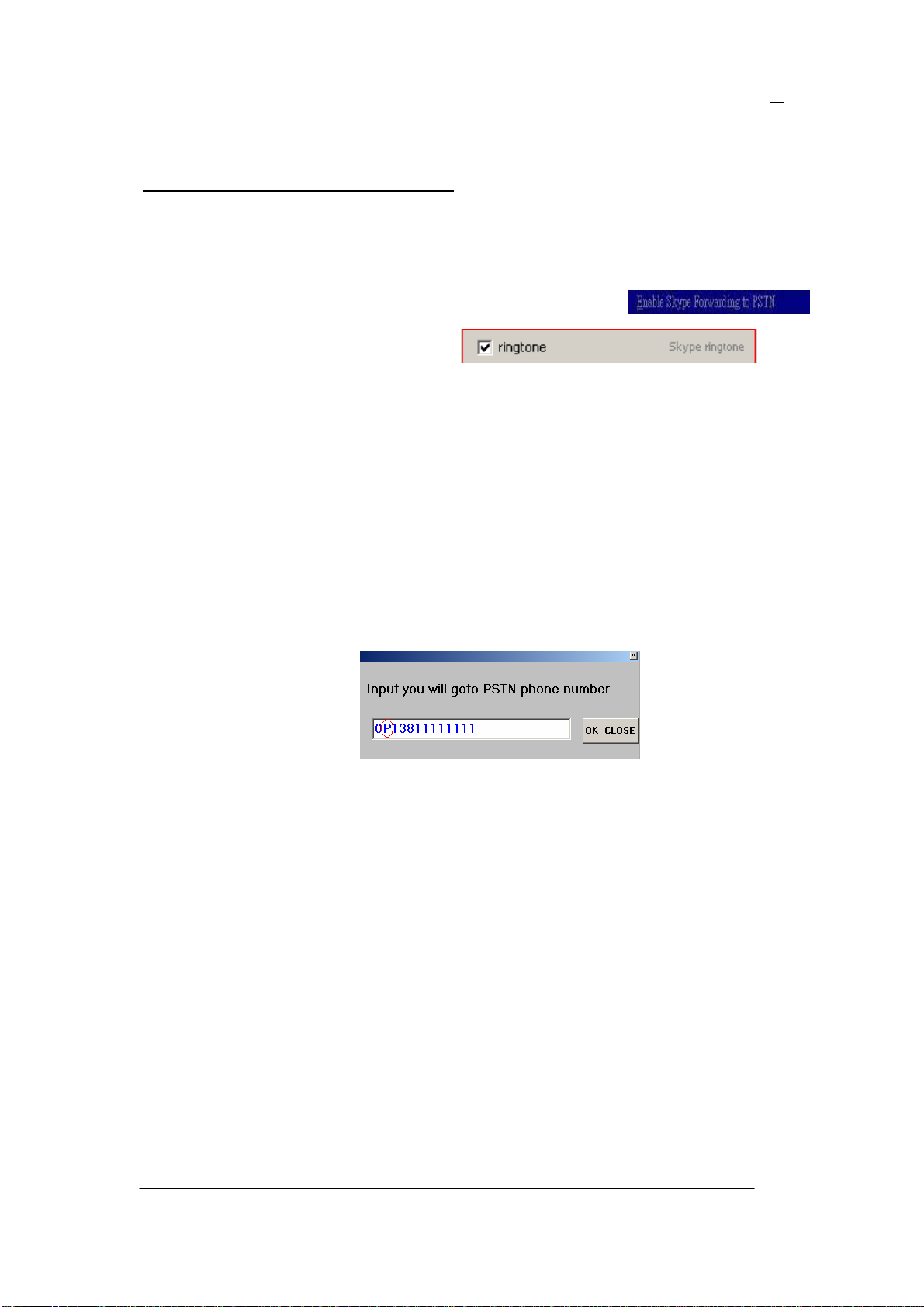

8.1.1 Setup the Parameters
8.1.1.1 Right click in the taskbar
8.1.1.2 Left click “INPUT FORWARDING-PSTN NUMBER”
8.1.1.3 Enter your mobile phone number, then click to save the settings.
8.1.1.4 Left click “CALL FORWARDING-PSTN” efficient,
8.1.1.5 Make “ringtone” inefficient, do as the followings:
When someone calls your Skype, VPET-20 will forward the incoming Skype call to
13811111111 through the PSTN line that connected with VPET-20.
17
www.vipower.com

ViPowER USB-VoIP Phone (Version:2005.11.16) 18
8.1.2 Cancel Forwarding Function
When you want to cancel forwarding function, you should go through the following
steps:
8.1.2.1. Make “CALL FORWARDING - PSTN” inefficient, like
18
8.1.2.2. Make “ringtone” efficient, like
8.2 When VPET-20 is connected with PBX as an extension
In your PBX, you need to press 0 to catch the idle trunk line, then dial the mobile
phone number, that is to say, there is an interval between 0 and the mobile phone number.
In the telecom standard, P stands for interval.
For example, if you want to forward incoming Skype calls to 13811111111 in PBX:
8.2.1. Add P between 0 and 13811111111. P is a capital letter. One P is equal to 2
seconds interval; PP is equal to 4 seconds interval, and so on. The quantity of P depends
on the settings of your PBX.
.
8.2.2. Other settings are the same as 8.1.1
9. Trouble Shooting
9.1 When I receive incoming calls, the regular phone does not ring.
a. The regular phone should be an analog phone
b. The regular phone should be connected with VPET-20
c. USB Audio Device should not be in the status of mute
d. You might forget to cancel the forwarding function, please refer to:” 8.1.2
Cancel Forwarding Function” (Page 20)
www.vipower.com
