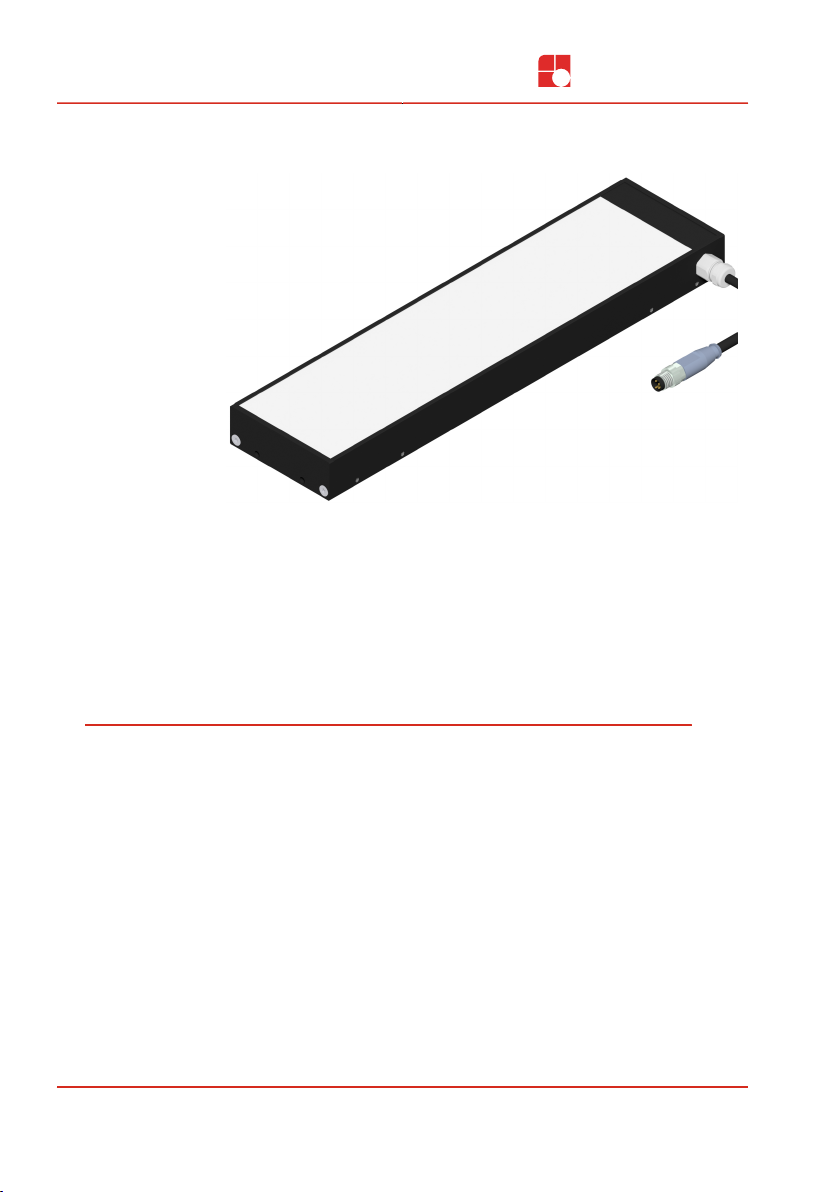

Instructions for Use
LDLF60x180-B470/24V
LED bar light, diffuse illumination,
Luminous colour: Blue - 470 nm
Instructions for Use
LDLF60x180-B470/24V
LED bar light, diffuse illumination,
Luminous colour: Blue - 470 nm
999.995.650.10-en-1.0
© Vision & Control GmbH 2019

Impress
Publisher / Manufacturer Vision & Control GmbH
Mittelbergstraße 16
98527 Suhl, Germany
Telephone: [phone]
Telefax: [phone]
www.vision-control.com
Name of the document 999.995.650.10-en-1.0
Date of first issue 2019-04-26
Date modified 2019-07-30
Copyright © Vision & Control GmbH 2019
Copyright
It is forbidden to pass this document on to third parties, reproduce and
communicate its contents in as far as this has not been expressly authorized.
Offenders will be liable for damages.
All rights are reserved with respect to patent, utility sample and design patent
registrations, as well as for rights of use within the scope of copyright.
vicotar®, vicolux®, pictor®, vicosys® and vcwin® are registered trademarks of
Vision & Control GmbH.
The products and brand names of other manufacturers or suppliers are
mentioned for information only.
2 -- © Vision & Control GmbH 2019

Validity
These instructions for use are valid for the following device:
Device Order no.
LDLF60x180-B470/24V 1-47-112
Product Identification
Designation Description
LDLF LED bar light, diffuse illumination
60x180 Dimensions light-emitting surface: 60 mm x 180 mm
B470 Wavelength: Blue - 470 nm
24V 24 V DC operating voltage,
with integrated lighting controller
© Vision & Control GmbH 2019 -- 3

LDLF60x180-B470/24V
Table of Contents
TABLE OF CONTENTS
1 Information about the Instructions of Use..................................................6
1.1 Intended Use................................................................................................ 6
1.2 Improper Use................................................................................................7
1.3 Qualified Personnel...................................................................................... 7
1.4 Warranty and Liability...................................................................................8
2 Safety.............................................................................................................. 9
2.1 Presentation of Safety Instructions.............................................................. 9
2.2 Safe Handling of the Device...................................................................... 10
3 Scope of Delivery and Accessories.......................................................... 11
3.1 Scope of Delivery....................................................................................... 11
3.2 Accessories.................................................................................................11
4 Device Description...................................................................................... 12
4.1 Device Views.............................................................................................. 12
4.2 Notices on the device.................................................................................13
5 Technical Data............................................................................................. 14
5.1 General Parameters................................................................................... 14
5.2 Electrical Parameters................................................................................. 16
5.3 Photometric Parameters.............................................................................17
5.4 Conditions for Operation, Storage and Transport...................................... 18

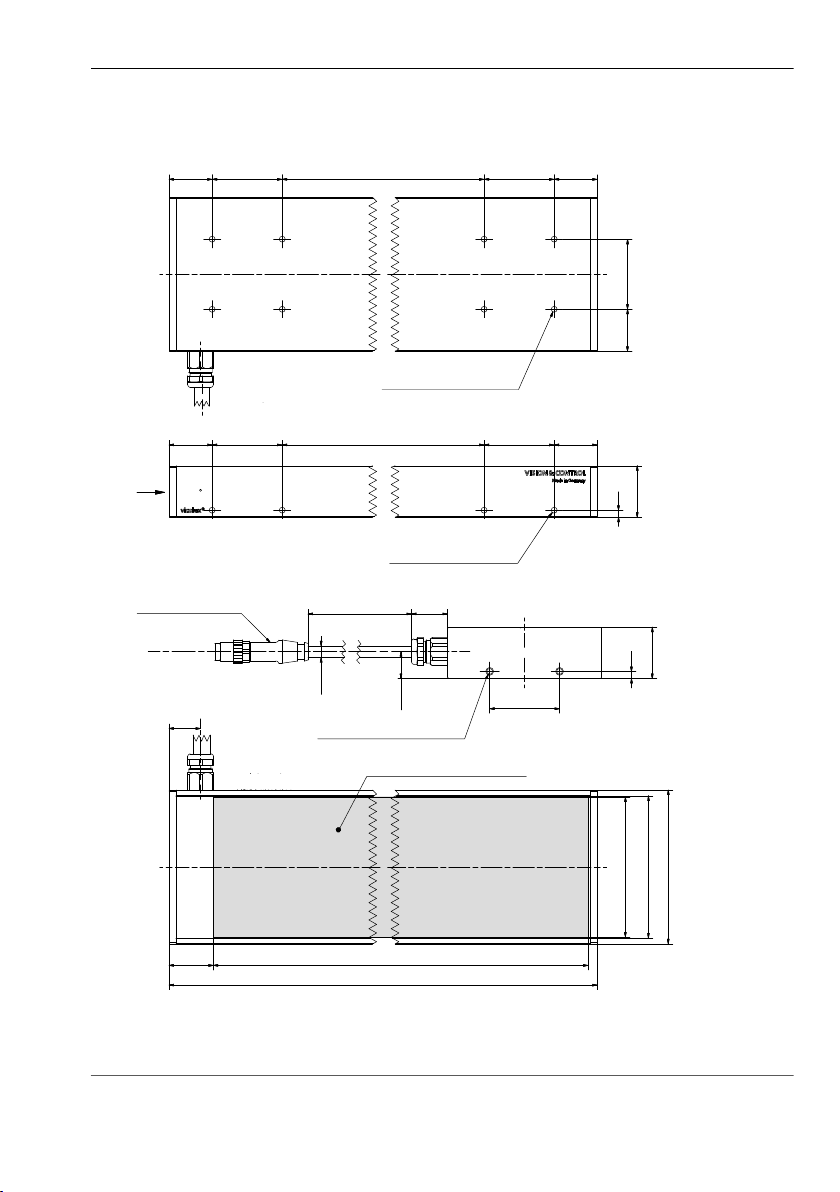

5.5 Technical Drawings.....................................................................................19
6 Commissioning............................................................................................ 20
6.1 Unpacking................................................................................................... 20
6.2 Mounting the Device...................................................................................21
6.3 Connecting..................................................................................................22
6.3.1 Pin assignment...................................................................................23
7 Operation...................................................................................................... 24
7.1 Making Operational Readiness.................................................................. 25
7.2 Operating Modes........................................................................................ 25
8 Maintenance and Service........................................................................... 27
8.1 Maintenance............................................................................................... 27
8.2 Service........................................................................................................ 28
9 Disposal........................................................................................................ 29
10 EU Declaration of Conformity.................................................................. 30
4 999.995.650.10-en-1.0 © Vision & Control GmbH 2019

LDLF60x180-B470/24V
© Vision & Control GmbH 2019 999.995.650.10-en-1.0 5

LDLF60x180-B470/24V
Information about the Instructions of Use
1 INFORMATION ABOUT THE INSTRUCTIONS OF
USE
This document contains technical information, important instructions for correct
installation, commissioning and use, as well as product information which were
up-to-date at the time of going to press.
Using this document makes it easier for you to familiarise yourself with the
device and avoid malfunctions caused by improper operation.
The instructions of use and the local regulations and rules must be followed.
To ensure a save and proper application, please read the instructions of use
carefully and keep them for future reference.
1.1 Intended Use
The device is intended exclusively for use as a lighting element for industrial
image processing in automation technology.
The device is not suitable for use in potentially explosive areas.
It is intended for use in a confined environment.
The device may only be used if it is in technically faultless condition and only
for its intended purpose, and only in accordance with the specifications in this
instructions of use by authorised operative personnel, who are aware of the
safety rules and hazards.
If the device is planned to be used for any other purpose or in a different
environment, the express authorisation of the manufacturer must be obtained
in advance. Any modifications or adaptations required may only be made by
the manufacturer.
6 999.995.650.10-en-1.0 © Vision & Control GmbH 2019

LDLF60x180-B470/24V
Information about the Instructions of Use
1.2 Improper Use
All unintended use and all device-related activities not described in these
instructions of use is to be deemed as unauthorised misuse outside the legal
limits of indemnity of the manufacturer.
Reasonably foreseeable misuse is:
•Non-compliance with the instructions for use,
•Faulty operation,
•Operating by personnel not qualified or instructed,
•Operating the device if it is not in a proper technical condition,
•Operating the device in ambient conditions differing from the corresponding
specifications in the instructions of use
•Operating the device with voltages differing from the corresponding
specifications in the instructions of use,
•Using spare parts which are not original parts from the manufacturer,
•Using incompatible accessory components,
•Improper maintenance and repair works,
•Unauthorised modifications to the device.
1.3 Qualified Personnel
The device may only be assembled, commissioned, operated, maintained,
installed, set up, cleaned, repaired and transported by qualified skilled
personnel.
A qualified person is deemed to be someone who has been trained and
instructed for his/her activities with the device, and who has proven his/her
capability to the purchaser. The operating personnel must be authorised by the
purchaser for those activities at the device.
For the installation and operation of the device, the skilled personnel must
know and comply with the applicable guidelines and standards for handling
control equipment, electrical installations and working materials.
© Vision & Control GmbH 2019 999.995.650.10-en-1.0 7

LDLF60x180-B470/24V
Information about the Instructions of Use
1.4 Warranty and Liability
The contents of this document have been checked carefully and correspond to
current legislation and best practise at the time of going to press.
However, the manufacturer shall not be liable for any damage arising from the
use of this edition of the manual, and rejects any warranty derived therefrom.
Within the bounds of the legal requirements, the manufacturer shall only
be responsible for the technical safety characteristics of the device if the
maintenance, repairs and modifications to the device are performed by himself
or by authorised skilled personnel in accordance with his instructions.
Loss of warranty
The manufacturer shall accept no liability or warranty in the event of improper
use, opening of the device or incorrect maintenance.
8 999.995.650.10-en-1.0 © Vision & Control GmbH 2019

LDLF60x180-B470/24V
Safety
2 SAFETY
2.1 Presentation of Safety Instructions
Each safety instruction is introduced by a key word and colour highlighted.
The key word indicates the degree of danger. The danger and its cause are
described, and then the measures to prevent conceivable consequences of the
danger. These measures must be taken.
DANGER
Indicates an imminent danger with high risk, resulting in severe injuries or
death if not avoided.
WARNING
Indicates a hazardous situation with medium risk, possibly resulting in severe
injuries or death if not avoided.
CAUTION
Indicates a hazardous situation with low risk, resulting in minor or medium
injuries if not avoided.
NOTICE
Indicates a situation that may result in property damage.
© Vision & Control GmbH 2019 999.995.650.10-en-1.0 9

LDLF60x180-B470/24V
Safety
2.2 Safe Handling of the Device
Read the following applicable safety instructions carefully and completely.
Follow the instructions for your own safety, the safety of other people, and to
avoid damage to the device and the connected technical equipment. Hazards
going beyond the general safety instructions are referred to separately at the
relevant points in this manual.
CAUTION
Risk of injury due to electric shock.
•Before starting work on the device, disconnect it from the
operating voltage supply.
•Follow all applicable safety regulations for the preparation
and operation of electrical devices.
10 999.995.650.10-en-1.0 © Vision & Control GmbH 2019

LDLF60x180-B470/24V
Scope of Delivery and Accessories
3 SCOPE OF DELIVERY AND ACCESSORIES
3.1 Scope of Delivery
Designation Quantity
Device LDLF60x180-B470/24V 1 x
Instructions for Use LDLF60x180-B470/24V 1 x
3.2 Accessories
Connection cable M8, 4-pin, open cable end
Designation Description Order no.
Cable with M8 socket,
4-pin, straight, 1 m
1-11-611
Cable with M8 socket,
4-pin, straight, 2 m
1-11-612
Cable with M8 socket,
4-pin, straight, 3 m
1-11-613
Cable with M8 socket,
4-pin, straight, 5 m
Connection cable with 4-pin M8 socket
and open cable end with ferrules, 4 x
0.5 PUR, IP67, straight socket
1-11-614
Extender cable M8, 4-pin
Designation Description Order no.
M8-Extender cable, 4-pin,
1.5 m, straight
1-11-094
M8-Extender cable, 4-pin,
3 m, straight
Extender cable with 4-pin M8 socket
and 4-pin M8 plug, 4 x 0.5, PUR, IP67,
socket and plug straight 1-11-095
© Vision & Control GmbH 2019 999.995.650.10-en-1.0 11

LDLF60x180-B470/24V
Device Description
4 DEVICE DESCRIPTION
4.1 Device Views
4
5
1
2
3
Image 1: Device view
1Light-emitting surface
22 x M3 mounting hole, depth 10.5 mm (on both sides)
34 x M3 mounting hole, depth 4.5 mm (on both sides)
4Casing
5Connection cable with 4-pin M8 connector
12 999.995.650.10-en-1.0 © Vision & Control GmbH 2019

LDLF60x180-B470/24V
Device Description
4.2 Notices on the device
Following instructions are provided on the device:
Type plate
Type: XXXXXXXXXXX
No.: XXXXXXXX
1
3
2
Image 2: Type plate
1Device designation
2Manufacturer information
3Serial number
© Vision & Control GmbH 2019 999.995.650.10-en-1.0 13

LDLF60x180-B470/24V
Technical Data
5 TECHNICAL DATA
5.1 General Parameters
Parameter Characteristic
Housing material Aluminium, black anodised
Optical material PMMA
Housing dimensions 66 mm x 202 mm x 22 mm
(without connector)
Dimensions light-emitting surface 60 mm x 180 mm
Weight 355 g
Degree of protection (IP) IP 50
Safety class Class III, safety extra low voltage (SELV)
Risk group (DIN EN 62471) Risk group 0 (exempt group)
14 999.995.650.10-en-1.0 © Vision & Control GmbH 2019

LDLF60x180-B470/24V
Technical Data
Connecting cable
Parameter Characteristic
Length 150 mm
Cable diameter 5.0 mm
Core cross-section 4 x 0.5 mm²
Material cable coating PUR
Drag chain suitable yes
Bending radius cable fixed at least 5 x cable diameter
Bending radius cable moved at least 10 x cable diameter
Bending cycles at least 4 million
Robot-suitable no
Connector
Parameter Characteristic
Connector 4-pin M8 connector
Mechanical operation > 100 mating cycles
Degree of protection (IP) IP 67 (if connected)
Rated current 5 A
Rated voltage 30 V
© Vision & Control GmbH 2019 999.995.650.10-en-1.0 15

LDLF60x180-B470/24V
Technical Data
5.2 Electrical Parameters
Parameter Min Nom Max
Operating voltage UO18 V 24 V 30 V
Power consumption at UO = 24 V DC 9.8 W (1)
Input voltage OFF 0 V 2.7 V
Input current OFF 0 mA 2 mA
Input voltage ON 3.7 V 30 V
Input current ON 5 mA 10 mA
Switch input
ON/OFF
Input delay tD150 µs
(1) The nominal values refer to an ambient temperature of 25 °C and free
convection.
16 999.995.650.10-en-1.0 © Vision & Control GmbH 2019

LDLF60x180-B470/24V
Technical Data
5.3 Photometric Parameters
Parameter Min Nom Max
Peak wavelength λpeak 464 nm
Dominant Wavelength λdom 463 nm 470 nm 476 nm
Spectral bandwidth Δλ 25 nm
Continuous operation, switchable
Radiance 25 W/(m²sr)
Spectral Emission
Relative spectral emission [%]
Wavelength [nm]
0
20
40
60
80
100
350 400 450 500 550
Image 3: Spectral emission
© Vision & Control GmbH 2019 999.995.650.10-en-1.0 17

LDLF60x180-B470/24V
Technical Data
5.4 Conditions for Operation, Storage and Transport
Store and transport the device in shock-proof box, if possible in the original
packaging.
For accessories, connected devices and components observe the specific
information in the associated instructions for use.
Ambient Conditions
Operation Storage / Transport
Temperature 0 °C to 45 °C - 25 °C to 60 °C
Air humidity 20 % to 80 % 20 % to 95 %
Condensation water not permissible not permissible
18 999.995.650.10-en-1.0 © Vision & Control GmbH 2019

LDLF60x180-B470/24V
Technical Data
5.5 Technical Drawings
13.5
66
60
61
202
18019
light-emitting surface
18.5 30 30 18.5
18 30
8 x M3 - depth 5.5
105
Ø 5
M8 connector
30
2 x M3 - depth 10.5
11.5
A
22
3
15.5150 (on both sides)
A
18.5 30 30 18.5
22
3
4 x M3 - depth 4.5
105
(on both sides)
Image 4: Technical drawings (dimensions in mm)
© Vision & Control GmbH 2019 999.995.650.10-en-1.0 19

LDLF60x180-B470/24V
Commissioning
6 COMMISSIONING
6.1 Unpacking
1. Lift the cardboard, together with the device, out of the carton.
2. Fold out the tucked in sides on the bottom of the cardboard.
Loosening the film and forming an insertion pocket.
3. Remove the device out of the insertion pocket.
4. Dispose the packing material.
20 999.995.650.10-en-1.0 © Vision & Control GmbH 2019
