Vision V250 A Assembly Instructions

V250A REV. 03 UN 13
Manual Control Gas Fir
INS ALLA ION & USER INS RUC IONS
INS ALLER: PLEASE LEAVE THIS GUIDE WITH THE OWNER
SUITABLE FOR USE ON NATURAL GAS (G20) AT 20mbar SUPPLY PRESSURE
Th s instructions must b l ft with th applianc for futur r f r nc
and for s rvicing information. Th custom r must b mad fully awar
of th applianc op rational proc dur b for l aving this bookl t with
th m.
Mod l Numb r:
V250 A

© Vision Fires
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for permission to reproduce any part of this publication should be made,
giving details of the proposed use, to the following address:
Percy Doughty & Co, Imperial Point, Express Trading Estate, Stone Hill Road,
Farnworth, Bolton. Bl4 9TN.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Vision Fires, Percy Doughty & Co, Imperial Point, Express Trading Estate,
Stone Hill Road, Farnworth, Bolton, BL4 9TN
www.visionfires.co.uk
Telephone: [phone]
Because our policy is one of constant development and improvement, details may vary
slightly from those given in this publication
THIS APPLIA CE IS FOR USE WITH ATURAL GAS (G20).
THIS APPLIA CE IS SUITABLE O LY FOR I STALLATIO I THE U ITED
KI GDOM (GB) A D THE REPUBLIC OF IRELA D (IE).

Safety First.
This gas fire is CE Approved and designed to meet the appropriate British Standards
and Safety Marks.
Quality and Excellence.
This fire has been manufactured to the highest standards of quality and excellence
and was manufactured under a BS EN ISO 9001 quality system accepted by the
British Standards Institute.
The Highest Standards
The manufacturer is a member of SBGI and HHIC (Heating and Hot water Industry
Council) which works to ensure high standards of safety, quality and performance.
Careful Installation
This gas fires must be installed by a competent GAS SAFE REGISTER engineer
(GAS SAFE REGISTER or CORGI engineer outside of UK) in accordance with our
installer guide and should not be fitted directly on to a carpet or floor of combustible
material.

INSTALLER GUIDE
FOR OWNER GUIDE SEE PAGES 34 TO 42
INSTALLER GUIDE
INS ALLER GUIDE

CO TE TS
Section Heading Page
I STALLER GUIDE 4 - 33
OW ER GUIDE 34 - 42
1. SAFETY A D U PACKI G 7
2. APPLIA CE DATA A D EFFICIE CY 8
3. GE ERAL I STALLATIO REQUIREME TS 9
3.1 Regulations, Standards and Law. 9
3.2 Ventilation requirements. 10
3.3 The Atmosphere sensing device (ASD). 10
3.4 Fireguard requirements. 10
3.5 Room considerations. 10
3.6 Chimney preparation. 10
3.7 Fireplace preparation. 11
3.8 The hearth. 11
3.9 Fireplace clearances. 12
3.10 Installation options. 12
3.10.1 Conventional fireplace and hearth. 12
3.10.1.1 ‘Hole-in-the-wall’ Installations. 13
3.10.2 Metal flue box and hearth. 14
3.10.3 Precast concrete or clay flue block system and hearth. 14
3.11 Flues. 15
3.12 Propane gas fires. 16
4. PACK CO TE TS 16
5. FIREPLACE CHECK 18
5.1 Soundness for appliance attachment. 18
5.2 Fireplace flue pull. 18
6. IG ITIO CHECK 19
7. GAS SUPPLY CO ECTIO 19
8. PREPARI G APPLIA CE FOR I STALLATIO 20
8.1 Appliance preparation. 20
8.2 Fitting the foam seal. 20
8.3 The flue restrictor. 21
INSTALLER GUIDE
Continued on next page
CON EN S
INS ALLER GUIDE

Section Heading Page
9. CO VECTIO BOX I STALLATIO 21
9.1 Method 1- Front fixing to fireplace surround. 21
9.2 Method 2 - Cable retention. 22
9.3 Floor sealing. 23
10. BUR ER I STALLATIO 24
10.1 Burner and supply pipe installation. 24
10.2 Preliminary burner checks. 24
10.2.1 Lighting the burner. 24
10.2.2 Operating the burner. 24
10.3 Inlet pressure check. 25
11. FITTI G THE FASCIA 25
12. FITTI G THE CERAMIC FUEL EFFECT 25
13. FULL OPERATI G CHECKS 26
13.1 Recheck the control settings. 26
13.2 Lighting the burner. 26
13.3 Operating the burner. 26
14. SPILLAGE A D FLAME SUPERVISIO CHECKS 27
15. FI AL REVIEW 29
16. SERVICI G & PARTS REPLACEME T 30
16.1 Checking the aeration setting of the burner. 31
16.2 To remove the fascia. 31
16.3 To remove the burner unit. 31
16.4 To remove the pilot unit. 31
16.5 To remove the gas valve. 32
16.6 To replace the burner. 32
16.7 To remove the main burner injector. 33
16.8 To remove the appliance from the fireplace. 33
INSTALLER GUIDE
CON EN S (CONTINUED)
INS ALLER GUIDE
6

1. SAFETY A D U PACKI G
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling.
-The approximate lifting weight (kg) of this appliance is 7.4kg.
-One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
-When lifting always keep your back straight. Bend your legs and not your back.
-Avoid twisting at the waist. It is better to reposition your feet.
-Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
-Always grip with the palm of the hand. Do not use the tips of fingers for support.
-Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
-Use gloves to provide additional grip.
-Always use assistance if required.
This product uses fuel effect pieces and burner compartment walls containing Refractory
Ceramic Fibres (RCF), which are man-made vitreous silicate fibres. Excessive exposure
to these materials may cause irritation to eyes, skin and respiratory tract. Consequently,
it is important to take care when handling these articles to ensure that the release of
dust is kept to a minimum. To ensure that the release of fibres from these RCF articles is
kept to a minimum, during installation and servicing we recommend that you use a HEPA
filtered vacuum to remove any dust and soot accumulated in and around the fire before
and after working on the fire. When replacing these articles we recommend that the
replaced items are not broken up, but are sealed within a heavy duty polythene bag,
clearly labelled as RCF waste. RCF waste is classed as a stable, non-reactive hazardous
waste and may be disposed at a landfill licensed to accept such waste. Protective
clothing is not required when handling these articles, but we recommend you follow the
normal hygiene rules of not smoking, eating or drinking in the work area and always
wash your hands before eating or drinking. This appliance does not contain any
component manufactured from asbestos or asbestos related products.
INSTALLER GUIDE
1. SAFE Y AND UNPACKING
INS ALLER GUIDE
7

2. APPLIA CE DATA A D EFFICIE CY
2.1 General information.
The appliance information label is located on a plate at the base of the fire. This can
be seen by removing the bottom front cover of the fascia.
2.2 Efficiency.
The efficiency of this appliance has been measured as specified in BS 7977 - 1 and
the result is as below:
Model Efficiency % (Gross)
V250 A 55
The gross calorific value of the fuel has been used for this efficiency calculation. The
test data from which it has been calculated has been certified by Advantica
Certification services (0087). The efficiency value may be used in the UK
Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.
The conversion of net efficiency to gross was achieved by multiplying the net
efficiency by the following conversion factor from Table E3 of SAP 2005, rounding
down to the nearest whole number.
INSTALLER GUIDE
Gas atural (G20)
Inlet Pressure 20mbar
Input - Max. (Gross) 6.0kW (20,500Btu/h)
Input - Min. (Gross) 2.3kW (7,8502Btu/h)
Inlet Test Pressure (Cold) 20.0 ± 1.0mbar
(8.0 ± 0.4in w.g.)
Gas Connection 8mm pipe
Burner Injector Cat 82 - 069
Pilot & Atmosphere Sensing Device Copreci Ref. O.D.S 21500/166
Ignition Pieze Electric. Integral with Gas Tap
Aeration Factory set
2. APPLIANCE DA A AND EFFICIENCY
INS ALLER GUIDE
8

3. GE ERAL I STALLATIO REQUIREME TS
3.1 Regulations, Standards and Law.
The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances
are installed by competent persons in accordance with the current edition of the Gas
Safety (Installation and Use) Regulations. Failure to install the appliance correctly
could lead to prosecution. GAS SAFE REGISTER and CORGI require their members
to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
All the relevant parts of local regulations.
All relevant codes of practice.
The relevant parts of the current editions of the following British Standards:-
BS EN 1856 Part 1 - Chimneys - Requirements for metal chimneys.
BS 715 - Specification for metal flue boxes for gas-fired appliances not
exceeding 20kW.
BS EN 1858 - Chimneys - Components - Concrete flue blocks.
BS EN 1806 - Chimneys - Clay / ceramic flue blocks.
BS EN 1856 Part 1 - Chimneys - Requirements for metal chimneys.
BS 5440 Part 1 - Installation of flues.
BS 5440 Part 2 - Installation and maintenance of flues and ventilation for gas
appliances of rated input not exceeding 70 kW net (1st, 2nd
and 3rd family gases).
BS 6461 Part 1 - Masonry chimney & flues - Installation
BS 1251 - Fireplace components
BS 5871 Part 2 - Installation - Inset LFE gas fires
BS 6891 - Gas pipework installation
-In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office.
-In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
-In Northern Ireland, the current edition of the Building regulations (Northern Ireland)
issued by the Department of the Environment for Northern Ireland.
INSTALLER GUIDE
Gas Conversion factor from net to gross efficiency
Natural Gas 0.901
9
3. GENERAL INS ALLA ION REQUIREMEN S
INS ALLER GUIDE

3.2 Ventilation requirements.
Normal adventitious ventilation is usually sufficient to satisfy the ventilation
requirements of this appliance. In GB reference should be made to BS 5871 Part 2
and in IE reference should be made to the current edition of IS 813 “Domestic Gas
Installations” which makes clear the conditions that must be met to demonstrate that
sufficient ventilation is available.
3.3 The Atmosphere sensing device (ASD).
The appliance is fitted with an A.S.D (Atmosphere sensing device). If the appliance
closes down after a period of operation for no apparent reason, the consumer should
be informed to stop using the appliance until the installation and appliance have been
thoroughly checked. The A.S.D will shut the appliance down if an unacceptable
amount of harmful products of combustion accumulate. Under no circumstances
should the A.S.D be altered or bypassed in any way. Only a genuine manufacturer’s
replacement part should be fitted. The individual A.S.D components are not
replaceable.
3.4 Fireguard requirements.
A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, the infirm and pet animals.
3.5 Room considerations.
3.5.1 This appliance must not be installed in any room that contains a bath or shower
or where steam is regularly present.
3.5.2 An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on
in this manual. If the fan is likely to affect the appliance, the appliance must not be
installed unless the fan is permanently disconnected.
3.5.3 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by
heat. They may scorch or become discoloured when close to a heating appliance.
Please bear this in mind when installing.
3.6 Chimney preparation.
3.6.1 If the appliance is intended to be installed to a chimney that was previously
used for solid fuel, the flue must be swept clean prior to installation. All flues should
be inspected for soundness and freedom from blockages.
3.6.2 Any chimney damper or restrictor should be removed. If removal is not possible,
they must be secured in the open position.
INSTALLER GUIDE
INS ALLER GUIDE
10

3.7 Fireplace preparation.
3.7.1 If the fireplace opening is an underfloor draught type, it must be sealed to stop
any draughts.
3.7.2 The fireplace floor should be reasonably flat to ensure that the convection box
can be installed without it rocking and so that a good seal can be made at the bottom
front of the box.
3.7.3 The front face of the fireplace should be reasonably flat over the area covered
by the convection box top and side flange seals to ensure good sealing. These faces
should be made good if necessary.
3.7.4 If the appliance is to be fitted against a
wall with combustible cladding, the cladding
must be removed from the area covered by
the fascia. The cladding must also not touch
the fascia (See figure 1). We suggest that the
actual fascia is used as a template to mark
the area for combustible cladding removal
and that this area is increased by at least
2mm all round.
3.7.5 If the fireplace opening is greater than
the acceptable dimensions given in this
guide, do not use the back of a fire surround
or marble to reduce the opening. This may
cause cracking of the surround back or
marble.
3.8 The hearth.
The appliance must be mounted behind a non-combustible hearth unless the
conditions of section 3.10.1.1 are met (N.B. conglomerate marble hearths are
considered as non-combustible). The appliance can be fitted to a purpose made
proprietary class “O”-150°C surround. The hearth material must be at least 12mm
thick. The periphery of the hearth (or fender) should be at least 50mm above floor
level to discourage the placing of carpets or rugs over it.
The appliance must not stand on combustible materials or carpets.
INSTALLER GUIDE
Figure 1. Removal of combustible
cladding (Fascia may be different from
that shown)
INS ALLER GUIDE
11

3.9 Fireplace clearances.
3.9.1 The minimum height from the base of the fireplace opening to the underside of
any shelf made from wood or other combustible materials is detailed below.
• For a shelf up to 150mm deep: Minimum height = 750mm.
• For a shelf deeper than 150mm: 750mm + 12.5mm for every 25mm depth over
150mm (See figure 2).
3.9.2 The minimum allowable distance from the outside of the fascia to a corner wall
having combustible material or any other combustible surface which projects beyond
the front of the appliance is shown in figure 3. For access purposes the
recommended clearances to non combustible surfaces are shown in figure 3.
3.10 Installation options.
In the United Kingdom, as supplied, the appliance can be installed in the following
situations: -
3.10.1 Conventional fireplace and hearth.
To a fireplace complete with hearth as shown in figure 3. Chair brick removal may not
be required providing at least 50mm clearance is available from the flue outlet to any
fireplace component.
Figure 2. Combustible shelf clearances
INSTALLER GUIDE
INS ALLER GUIDE
12

3.10.1.1 ‘Hole-in-
the-wall’ Installations.
-It is recommended that a hearth should be installed as in section 3.8 (See figure 3).
-If fitting a fascia that has a firefront designed to sit on a hearth, a reduced depth
hearth is recommended. The recommended reduced hearth depth is 100mm. this is
necessary to support the firefront. The heat engine must be installed so that distance
from from the base of the fireplace opening in the wall to the finished floor level shall
be at least 72mm. Where there is no floor covering or carpet, and the floor is of a
type that is likely to be covered in such a way, then the distance fromthe base of the
fireplace opening in the wall to the finished floor level should be increased to at least
147mm.
- If fitting a facia that does not have a separate firefront and a hearth is not fitted, the
heat engine must be installed so that distance from from the base of the fireplace
opening in the wall to the finished floor level shall be at least 72mm. Where there is
no floor covering or carpet, and the floor is of a type that is likely to be covered in
such a way, then the distance fromthe base of the fireplace opening in the wall to the
finished floor level should be increased to at least 147mm.
- To protect from the risk of burns and ignition of clothing a tactile separator shall be
used. The hearth detailed in section 3.8 meets the requirements for a tactile
separator. If this is not used then a 625mm long fender, kerb, horizontal bar, or other
barrier, being fixed not less than 50mm above floor level and positioned 300mm in
front of the fixing plane of the fire will meet the requirement.
INSTALLER GUIDE
Figure 3. Hearth and fireplace opening dimensions
INS ALLER GUIDE
13

3.10.2 Metal flue box and hearth.
The appliance can be installed to a fireplace
incorporating a metal flue box complying
with the constructional requirements of the
current edition of BS 715 and with a flue
conforming to BS EN 1856 part 1. The
dimensions of the flue box must conform to
those shown in figure 4.
The top surface of the metal flue box must
be covered with a 50mm layer of mineral
wool or equivalent insulation (See figure 4).
Important ote: Where the flue box has a
base sheet that is single wall (i.e. a single
metal sheet) the flue box must be mounted
on a non-combustible hearth. The hearth
material must be at least 12mm thick.
INSTALLER GUIDE

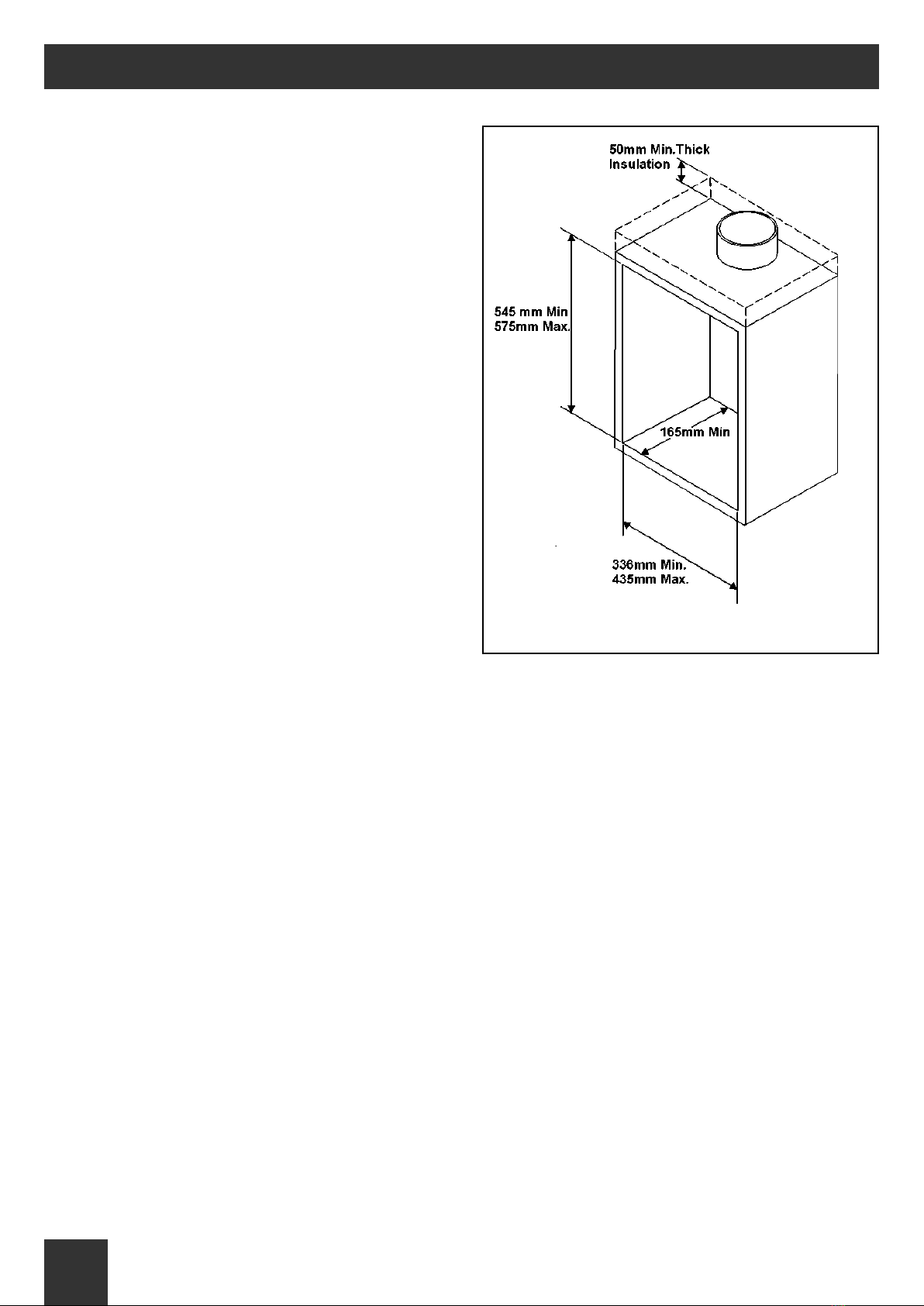

Figure 4. Metal flue box
INS ALLER GUIDE
14

3.10.3 Precast concrete or clay flue block system and hearth.
The appliance can be installed to a precast concrete or clay flue block system
conforming to BS1289 or BS EN 1858 with dimensions as in figure 6.
BS 1289 part 1 recommends there should be an air space or insulation between the
flue blocks and the plaster because heat transfer may cause cracking on directly
plastered flues. However, generally this appliance is suitable for installations under all
circumstances unless there is a
history of cracking problems.
Remember that faults such as
cracking may be caused by poorly
built and restrictive flues, e.g. mortar
extrusions, too many bends, flue
heights below three metres,
restrictive terminations etc.
The appliance is suitable for
installations conforming to older
versions of BS1289 as well as the
current edition. The flue blocks must
have a minimum width not less than
63mm and a cross-sectional area
not less than 13,000mm2. Older
editions of BS1289 required a cross-
sectional area of 13,000mm2. The
current revision of the standard
requires 16,500mm2. This appliance
is suitable in both cases. The total
depth of the opening measured from
the finished front of the fireplace
(Including plaster, surround etc.)
must be as below:
-If the width at the rear of the precast flue starter blocks is 300mm or greater the
depth of the opening is to be not less than 138mm. Under these conditions the
eyebolts will need to be located as close to the sides of the starter blocks as possible.
-If the width at the rear of the precast flue starter blocks is less than 300mm then
an additional 16mm of depth will be required to accommodate the eye bolts.
Therefore if the starter blocks are less than 300mm wide the minimum depth of the
opening will be not less than 154mm.
INSTALLER GUIDE
Figure 5. Pre-cast Fireplace
INS ALLER GUIDE
15

3.11 Flues.
1. Suitable flues and minimum flue sizes are as follows:
It should be noted that, as with many appliances, sharp bends or horizontal runs in
metal flues at the top of the system can be a cause of problems in these types of
installation.
-225mm x 225mm conventional brick flue.
-Single wall, twin wall or flexible flue liner with a minimum diameter of 125mm. The
materials to be used are stainless steel or aluminium as specified in
BS EN 1856 Part 1. The liner must be sealed to the surrounding area above the
fireplace opening and to the top of the chimney. An approved terminal must be fitted.
-175mm diameter lined brick or stone flue.
-200mm diameter factory made insulated flue manufactured to BS4543 Part 2.
-175mm diameter flue pipe. See BS6461 Part 1 for suitable materials.
-A properly constructed precast concrete or clay flue system conforming to BS1289
or BS EN 1858. This system is only suitable if the conditions stated in section 3.10.3
are met.
2. The flue must conform to BS 5440: Part 1 in design and installation.
The flue, measured from the bottom of the fireplace opening to the bottom of the
terminal, shall be not less than 3m in actual vertical height. When calculated in
accordance with BS 5440: Part 1 Annex A, the minimum equivalent height of the flue
shall be 2.0m of 125mm dia. flue pipe.
3. The flue must not be used for any other appliance or application.
4. Proprietary terminals must comply with BS 715 or BS 1289. Any terminal or
termination must be positioned in accordance with BS 5440 Part 1 to ensure that the
products of combustion can be safely dispersed into the outside atmosphere. Where
the appliance is connected to an unlined brick chimney it is generally unnecessary for
the chimney pot to be replaced or for a terminal to be fitted unless the flue has a
diameter smaller than 170mm.
5. The flue must be completely sealed so that combustion products do not come into
contact with combustible materials outside the chimney.
3.12 Propane gas fires.
Propane gas appliances must not be installed in a room, which is built entirely below
ground level (See BS 5871 Pt2).
INSTALLER GUIDE
INS ALLER GUIDE
16

4. PACK CO TE TS
The items required for this appliance are packed in sections.
1 Convection box and burner assembly
1 Loose parts pack including: -
1 Grommet for rear of convection box
1 Nut and olive for 8mm inlet pipe
1 Strip of floor sealing tape
1 Flue restrictor
4 Fibre plugs
4 Woodscrews
2 Fire retaining cables
2 Cable adjusters
2 Eyebolts
1 Length of self-adhesive foam seal
1 Inlet “T” connector including pressure test point, nut and olive for 8mm inlet pipe.
1 Burner tray trim.
1 Ceramic fuel effect pack (Not shown)
2 Fascia side plates (Not shown)
Remove all the items carefully to prevent damage. Take special care when handling
the ceramic components. Some items may be contained in the packaging fitments -
Examine the packaging carefully before discarding. Check that all the items are
present and undamaged.
INSTALLER GUIDE
Figure 6. Pack contents
4. PACK CON EN S
INS ALLER GUIDE
17

5. FIREPLACE CHECK
5.1 Soundness for appliance attachment.
Two primary methods of retaining the appliance are provided: -
1) By fixing to the fireplace front surround.
2) Using concealed fire retaining cables fixed to the rear of the fireplace opening
together with secondary fixing to the fireplace floor.
The methods are detailed in section 9 of this manual. Before selecting the retention
method, consult with the customer. Method 2 is provided for instances where drilling
holes in the front surface of the fireplace surround is unacceptable to the customer or
otherwise impractical. N.B. It is unwise to attempt to drill into marble without the
proper tools and equipment.
If method 1 is chosen, make sure that the front surround area is sound enough to
take the fibre plugs and woodscrews. If necessary, make sound with suitable cement.
If method 2 is chosen, make sure that the areas at the back is sound enough to take
the eyebolts. If these areas have deteriorated due to prolonged use, they should be
made sound with suitable cement.
5.2 Fireplace flue pull.
Close all doors and windows in the room in which the appliance is to be installed.
After confirming with a match that smoke is drawn into the flue, light a 13 gram
smoke pellet and check that there is a definite flow through the flue. Verify outside
that the smoke exits from one terminal only and that the termination is suitable.
Observe where possible, upstairs rooms and loft spaces for signs of escaping smoke
indicating a defective flue. If there is not a definite flow warm the flue for a few
minutes and repeat the smoke pellet test. If there is still no definite flow the flue may
need remedial work – Do not fit the appliance until there is a definite flow
through the flue.
INSTALLER GUIDE
5. FIREPLACE CHECK
INS ALLER GUIDE
18

6. IG ITIO CHECK
Before attempting to install, it is worth checking that the
electronic ignition system performs satisfactorily.
-Set the control knob to the ‘OFF’ position.
-Depress the control knob and rotate it anticlockwise
to the ‘pilot ignition’ position. A ‘click’ will be heard as
the integral piezo operates. A spark should be seen
between the electrode and pilot tip. If there is no spark
check the following:-
-Ensure that the electrode lead is connected to the
terminal at the base of the electrode.
-If the above is correct, check for damages to the
electrode lead.
7. GAS SUPPLY CO ECTIO
A nut and olive are provided for an 8mm pipe inlet connection to the inlet ‘T’
connector at the bottom front of the appliance. The inlet ‘T’ connector can be rotated
to allow a connection from any direction. The inlet ‘T’ connector includes a valve for
isolating the gas supply and a pressure test point.
The supply pipe must be rigid material. Flexible pipe must not be used.
Concealed supply pipe connection.
If a concealed connection from inside the fireplace is required then, before the
appliance is fitted into the fireplace it will be necessary to extend the supply line so
that it will project through the hole in the back of the convector box and run to the
inlet ‘T’ connector at the front. The pipe run from the supply line up to the rear
opening in the convector box must be kept away from the area which will be taken by
the convector box when it is installed. Note that the centre of the appliance inlet ‘T’
connector is 25mm above the fireplace floor. The inlet ‘T’ connector should be fitted to
the supply pipe at this stage.
INSTALLER GUIDE
6. IGNI ION CHECK
INS ALLER GUIDE
7. GAS SUPPLY CONNEC ION
19
Figure 7. Ignition operation

8. PREPARI G APPLIA CE FOR I STALLATIO
8.1 Appliance preparation.
1. Remove any transit tape and packing
and inspect for any evidence of
mishandling which might affect the
performance. Each unit is flame tested
before it leaves the factory and as a
result there may be slight discolouration
around the burner ports.
2. Detach the burner unit from the
convector box by removing two screws
(See figure 9). Lift the burner unit clear.
3. It is important that the grommet
supplied in the loose parts pack is
fitted to the hole in the rear of the convector box.
8.2 Fitting the foam seal.
There is a length of self adhesive
foam seal supplied with the fire.
This will need to be fitted to the
outer rear edges of the side and top
flanges of the convector box. Cut
the foam seal to the required length.
Be careful not to stretch the seal
when measuring. Remove the
protective backing from the foam
seal and fit this to the rear of the
convector box flange (See figure 9).
INSTALLER GUIDE
Figure 9. Fitting the foam seal
Figure 8. Burner attachment points
8. PREPARING APPLIANCE FOR INS ALLA ION
INS ALLER GUIDE
20
