Vision VDA100SFHD User manual

VDA100SFHD
Full HD Vandal IR Dome Camera
Power: 12VDC
Option: IR illumination
Dear Customers!
By selecting this product, you have decided to use a professional device that guarantees
highest quality and reliability. We would like to thank you very much for your confidence and
kindly ask you to read the following instructions carefully before Installation and operation in
order to take full advantage of all quality features regarding this product.
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at one’s own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
CAUTION –To prevent electric shock and risk of the fire hazards
-Do NOT use power source other than that specified.
-Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and should conform to
all local codes.
Precautions
Please read the manual carefully before installation in order to set up and use the
camera correctly with best image quality.
- Installation and services should be carried out only by authorized personnel according to
local safety regulations.
Limitation of liability
This publication is provided “AS IS” without warranty of any kind, either express or implied,
including but not limited to, the implied warranties of merchantability, fitness for any
particular purpose, or non-infringement of the third party's right. This publication could
include technical inaccuracies or typographical errors. Changes are added to the
information herein, at any time, for the improvements of this publication and/or the
corresponding product(s).
Disclaimer of warranty
In no event shall seller be liable to any party or any person, except for replacement or
reasonable maintenance of the product, for the cases, including but not limited to below;
(1) Any damage and loss, including without limitation, direct or indirect, special,
consequential or exemplary, arising out of or relating to the product.
(2) Personal injury or any damage caused by inappropriate use or negligent
operation of the user.
(3) Unauthorized disassemble, repair or modification of the product by the user’
(4) Inconvenience or any loss arising when images are not displayed, due to any
reason or cause including any failure or problem of the product.
(5) Any problem, consequential inconvenience, or loss or damage, arising out of the
system combined by the devices of third party.
(6) Any claim or action for damages, brought by any person or organization being
photogenic subject, due to violation of privacy with the result of that surveillance-
camera's picture, including saved data, for some reason, becomes public or is
used for the purpose other than surveillance.
Package
Camera (x 1), Manual (x1), Ext-Video Cable (x 1), Torx Wrench (x 1), Template (x 1),
Tapping screws and Anchors SET (x1), Junction box plate (x 1), O-Ring 3ea, Machine
Screw (M4x12I, x 4), Machine Screw(M4x5L, x4)

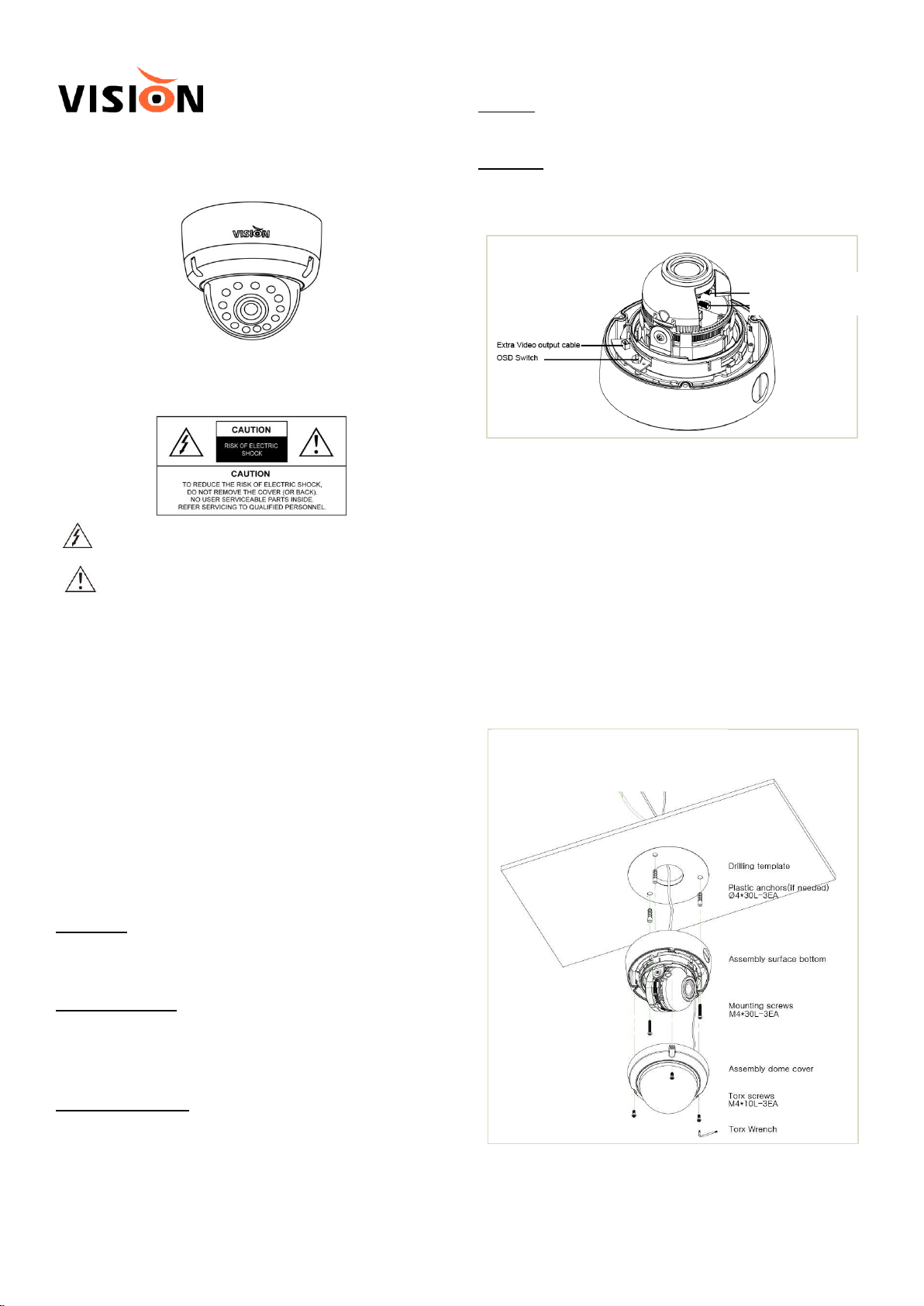

Installation
Lens (Varifocal) Adjustment and 3-Axis Adjustment
Installation example on the ceiling
①Paste a Drilling Template on the ceiling or wall and drill screw points which will be done for
installation.
②Fix a Surface Mounting Base by using Tapping Screws with Ø4 provided.
③Point a Camera 3D Gimbal to a desired direction and assemble a dome cover to the
Surface Mounting Base with Torx Screws by using Torx Wrench provided.
The lighting flash with an arrowhead symbol, within an equilateral triangle is intended to
alert the user to the presence of un-insulated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Motorized lens
By OSD Switch or RS-485

EXT-Video & Zoom & Focus
How to use
Connect an Extra video output (BNC cable) to the camera and connect its BNC connector to
the test monitor for adjustment.
How to Zooom and Focus
Push up or down the Tack SW (OSD Key) by finger for a second.
Up Zoom in
Down Zoom out
Left/Right Focus in/out
Function and operation
For use OSD menu, please connect the OSD control PCB (provide) to the connector
Press the Tack SW (OSD Key) to open OSD menu.
MAIN MENU
LENS
DC
MANUAL
EXPOSURE
SHUTTER
AGC
SENS-UP
BRIGHTNES
S
RETURN
ACCE
DEFOG
BACKLIG
HT
WHITE BAL
ATW
AWC→SET
INDOOR
OUTDOOR
MANUAL
DAY&NIGHT
AUTO
COLOR
B/W
EXT
NR
2DNR
3DNR
LEVEL
SMART NR
RETURN
SPECIAL
CAM TITLE
D-EFFECT
MOTION
PRIVACY
RETURN
LANGUAGE
DEFECT
RS485
VERSION
ADJUST
SHARPNESS
MOTION
OSD
LSC
RETURN
NTSC/PAL
RESET
FACTORY
RETURN
EXIT
Dimension(mm)
Cables:
Specification
MODEL
Full HD Vandal IR Dome Camera
Sensor Device
Sony 1/2.9” progressive scan CMOS, 2MegaPixel
Total Pixels
2000(H) x 1241(V) 2.48 Megapixel
Effective Pixels
1984(H) x 1105(V) 2.19 Megapixel
Scanning System
Progressive Scan
Horizontal
More than 1000 TVL
S/N Ratio
More than 52Db (AGC Off)
Min. Illumination
1.0 Lux with Sens-Up x 2 (F1.2, 30IRE, AGC On)
Shutter Speed
1/30s Default(Long Exposure Mode, ~1Sec)
Video Output
1920x 1080 30p
1280x 720 60p (Mode Select)
Video Output Format
1.485G/s, HD-SDI Output (SMPTE 292M)
AV Output
1V p-p Composite. 75 Ohms
Digital Output
SDI Output
Lens
3 ~ 10mm VF Auto Iris Mega Pixel
Lens Control
DC IRIS Lens
Power Source
220mA/12VDC(IR Off)
Operating Temp.
-10°C ~ 50°C
Storage Temperature
-20°C ~ 70°C
Operating Humidity
Under 90% Non-condensing
Measurement (mm)
Refer to the dimension
Weight ( Approx.)
1,200 g
OSD
2D/3DNR, Sens-UP, Shutter Speed, Language (English,
Japanese, Chinese), Privacy Mask, Motion Detection, White
Balance, BLC, DEFOG, etc.
IR Illumination
LED Spectrum
850nm
Viewable Distance
Up to 20M at Moonless Night (w/IR illumination)
Min. Illumination
0 Lux (with IR illumination)
Power Consumption
220mA/12VDC(IR Off), 460mA/12VDC (IR On) –IR
illumination
* Specifications are subject to change without prior noitce for improvement.
