Vision VN7XFHD User manual

VN7XFHD
Full HD Motorized zoom
IR Outdoor Bullet Camera
INSTRUCTION MANUAL
Power option
12VDC
VHT-HCL 1.0
Release Date 27 OCT. 2013

2
Dear Customers!
By selecting this product, you have decided to use a professional device that guarantees highest quality
and reliability. We would like to thank you very much for your confidence and kindly ask you to read the
following instructions carefully before Installation and operation in order to take full advantage of all
quality features regarding this product.
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at one’s own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority
to operate the equipment.
CAUTION –To prevent electric shock and risk of the fire hazards
-Do NOT use power source other than that specified.
-Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and should conform to all local
codes.
The lighting flash with an arrowhead symbol, within an equilateral triangle is intended
to alert the user to the presence of un-insulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

3
Table of contents
1. Precautions ------------------------------------------------------------------------------------------------------ 4
2. Limitation of liability ------------------------------------------------------------------------------------------ 4
3. Disclaimer of warranty --------------------------------------------------------------------------------------- 4
4. Package ----------------------------------------------------------------------------------------------------------- 5
5. Installation -------------------------------------------------------------------------------------------------------- 6
5-1. How to mount to Ceiling
5-2. How to install to Wall
5-3. 3-Axis adjustment
5-4. Lens external adjustment, EXT-Video
5-5. How to adjust Zoom/Focus
5-6. Waterproof processing of cable and connection
6. Function and operation ------------------------------------------------------------------------------------- 9
6-1.On Screen Menu(OSD)
6-2. Setting up the menu
6-3. VIDEO OUT
6-4. AUTO MENU
6-5. DAY/NIGHT
6-6. AWB
6-7. AE
6-8. PRIVACY
6-9. EFFECT
6-10. SYSTEM
6-11. INITIALIZE
6-12. EXIT
7. Trouble shooting guide ------------------------------------------------------------------------------------ 18
8. Dimension ------------------------------------------------------------------------------------------------------ 19
9. Specification --------------------------------------------------------------------------------------------------- 19

4
1. Precautions
Please read the manual carefully before installation in order to set up and use the camera
correctly with best image quality.
- Please keep the manual in good condition for your future reference and service application.
- Installation and services should be carried out only by authorized personnel according to local
safety regulations.
- If any liquid or solid matter gets into the housing, please disconnect the camera immediately from
power supply and have it checked by your authorized dealer before reusing.
- Avoid installing the camera at extremely hot or cold places. Use only under temperature conditions
between -10°C and +50°C. Provide good ventilation when using in high temperature condition.
- If you are not a certified person, never try to dismantle the camera. To avoid electric shock, never
remove the screws or covers. There are no parts inside that need maintenance by the user. All
maintenance should be carried out by qualified personnel.
- Avoid installing the camera at a place of high humidity.
- Avoid installing the camera at the place exposed to gas or oil.
- Avoid touching th camera lens and keep the top glass of the lens always clean in order to obtain
the best picture quality all the time. Be careful not to be stained by fingerprint.
- Don't face the camera directly toward sunlight or sunlight reflecting area. CCD may go defective
at this condition.Also, do not install camera under unstable lighting conditions. Severe lighting
changes may hinder normal camera operation.
- Please give a special attention to keep the unit from dangerous drop or external shock during the
process of transportation or handling. Physical shock to the camera may cause a product
malfunction.
- Never try to touch the camera in wet hand. It may cause an electric shock.
- Do not expose the camera to radioactivity. It causes a serious damage on the CCD.
2. Limitation of liability
This publication is provided “AS IS” without warranty of any kind, either express or implied, including
but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-
infringement of the third party's right. This publication could include technical inaccuracies or
typographical errors. Changes are added to the information herein, at any time, for the improvements
of this publication and/or the corresponding product(s).
3. Disclaimer of warranty
In no event shall seller be liable to any party or any person, except for replacement or reasonable
maintenance of the product, for the cases, including but not limited to below;

5
(1) Any damage and loss, including without limitation, direct or indirect, special, consequential or
exemplary, arising out of or relating to the product.
(2) Personal injury or any damage caused by inappropriate use or negligent operation of the user.
(3) Unauthorized disassemble, repair or modification of the product by the user’
(4) Inconvenience or any loss arising when images are not displayed, due to any reason or cause
including any failure or problem of the product.
(5) Any problem, consequential inconvenience, or loss or damage, arising out of the system
combined by the devices of third party.
(6) Any claim or action for damages, brought by any person or organization being photogenic
subject, due to violation of privacy with the result of that surveillance-camera's picture, including
saved data, for some reason, becomes public or is used for the purpose other than surveillance.

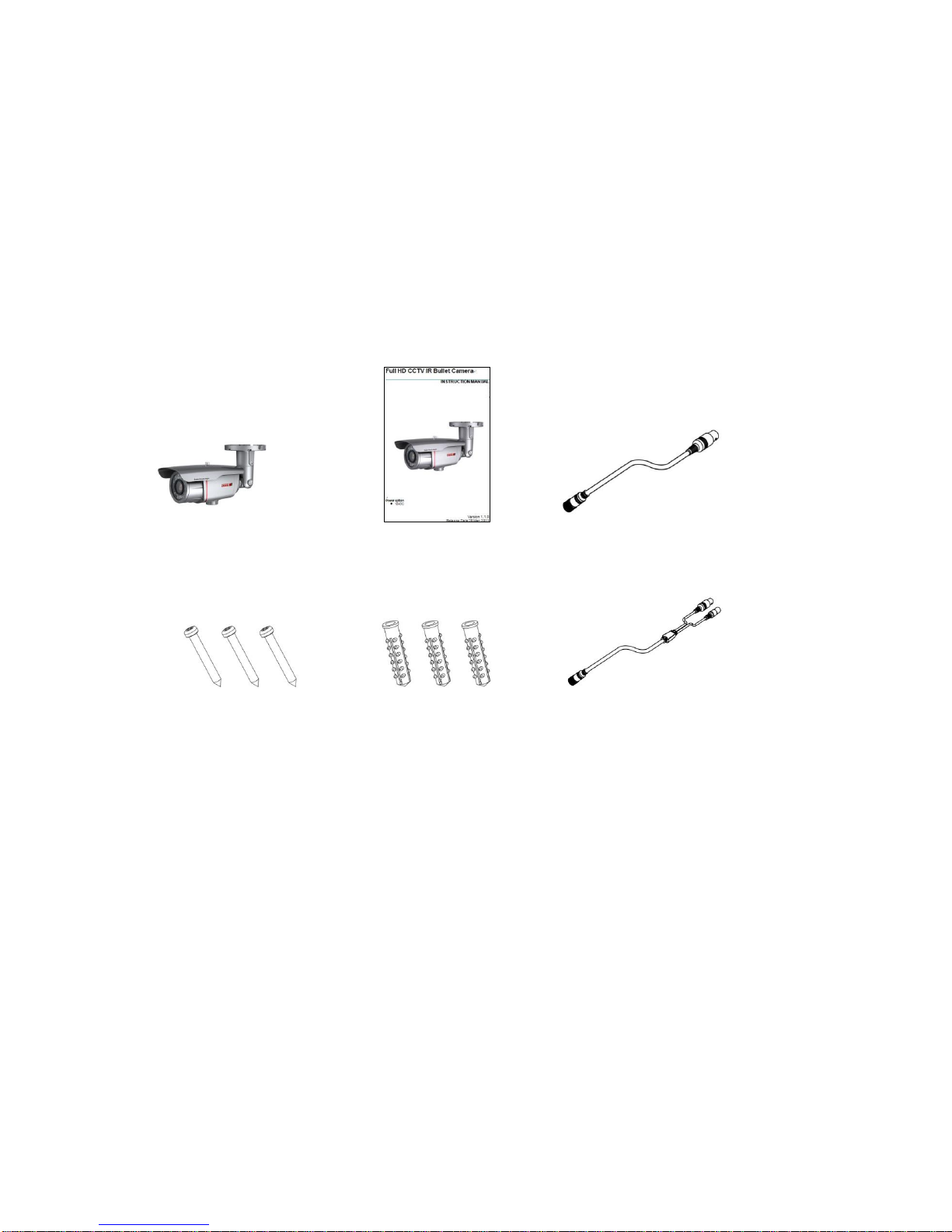

4. Package
Instruction manual x 1
OSD manual x 1
Camera x 1
Ext-Video Cable x 1
Tapping screws x3
Plastic anchor x 3
Power + Video Cable x 1

6
5. Installation

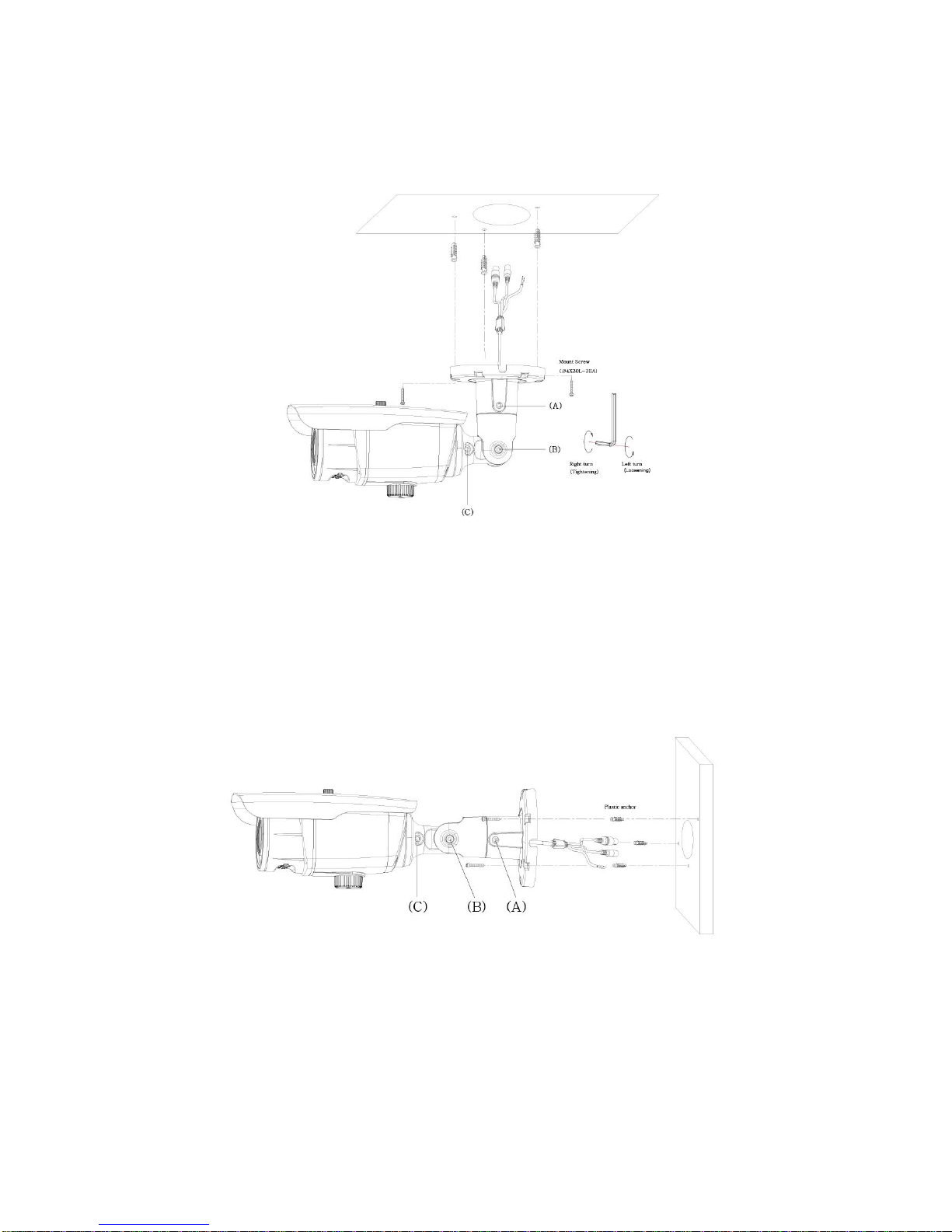

5-1. How to mount to Ceiling
①Drill three screw holes on the ceiling plate to fix three anchors (supplied) in the holes.
②Fix the plastic anchors in the holes.
③Position the mounting bracket on the screw points.
④Fix the mounting bracket by tightening the screws.
⑤Slightly loosen bolt (A) then adjust TILT (180°) and rotation (360°) of the camera using a
serration on the bracket and tighten the bolt firmly.
⑥Slightly loosen bolt (B) then adjust pan (360°) of the camera and tighten the bolt firmly
5-2. How to install to Wall
①Drill three screw holes on the wall plate to fix three plastic anchors (supplied) in the holes.
②Fix the plastic anchors in the holes.
③Position the mounting bracket on the screw points.
④Fix the mounting bracket by tightening the screws.
⑤Slightly loosen bolt (A) then adjust tilt(180˚) and rotation(360˚) of the camera using a
serration on the bracket and tighten the bolt firmly.
⑥Slightly loosen bolt (B) then adjust pan(360˚) of the camera and tighten the bolt firmly.
5-3. 3-Axis adjustment

7
①Pan 360˚
Slightly loosen Pan bolt then adjust pan of the camera using a serration on the
bracket and tighten the bolt firmly .
②Tilt 180˚
Slightly loosen Tilt bolt then adjust tilt of the camera using a serration on the bracket
and tighten the bolt firmly.
③Rotation 360˚
Slightly loosen Tilt bolt then adjust rotation of the camera using a serration on the
bracket and tighten the bolt firmly.
5-4. Lens external adjustment, EXT-Video
- How to use
Connect Extra video output (BNC cable) to LCD monitor as a picture.
5-5. How to adjust the Zoom/Focus.
ZOOM & FOCUS

8
- Push up or down the Tack SW (OSD Key) by finger for a second.
Up Zoom in
Down Zoom out
Left/Right Focus in/out

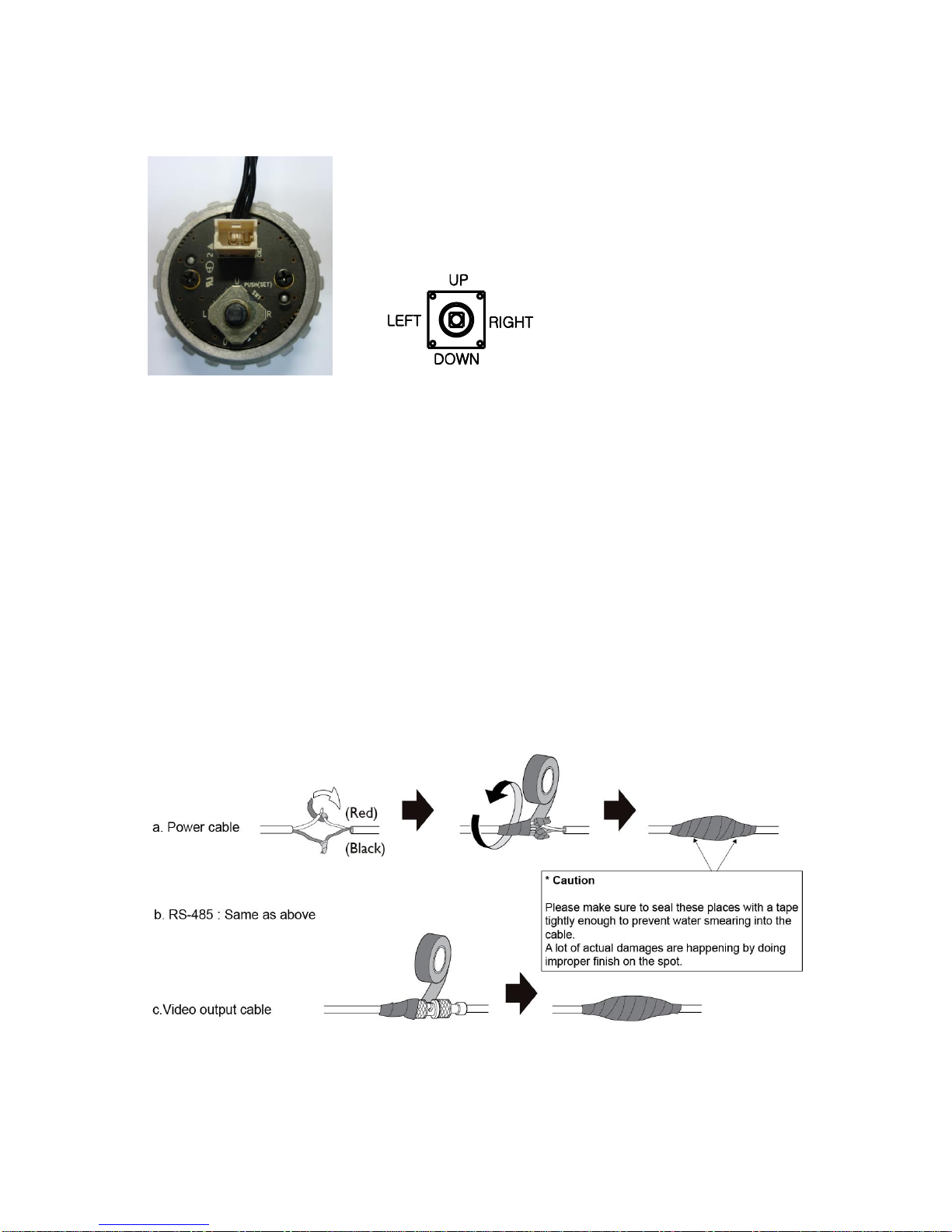

5-6. Waterproof processing of cable end connection
Make sure to use a butyl tape. (Do not use a sealing material on those parts)
①It is useful to connect the cable ends from camera to the extension cable for waterproof.
②Connect and tape the power cables (Power-Power/Ground-Ground).
③Bind the power cables together with the tape. When DC-Jack is used, tape the DC-DC joint.
④Connect and tape the RS485 cables (RS485+ㅡTRX+ /RS485- ㅡTRX-)
⑤Tape the BNC-BNC joint.
6. Function and operation

9
6-1. On Screen Display Menu
MAIN MENU
VIDEO OUT
VIDEO OUTSIZE
FRAME RATE
CVBS OUT MODE
SAVE/
RETURN
AUTO MENU
NORMAL
50HZ INDOOR
60HZ INDOOR
OUTDOOR
RETURN
DAY/NIGHT
AUTO/COLOR/IR
D TO N LEVEL
N TO D LEVEL
D TO N TIME
N TO D TIME
D/N RESET
RETURN
AWB
(ATW)/PUSH/HOLD
TRACK/USER/8000K/
6000K/4200K/3200K
RED
BLUE
AWB RESET
RETURN

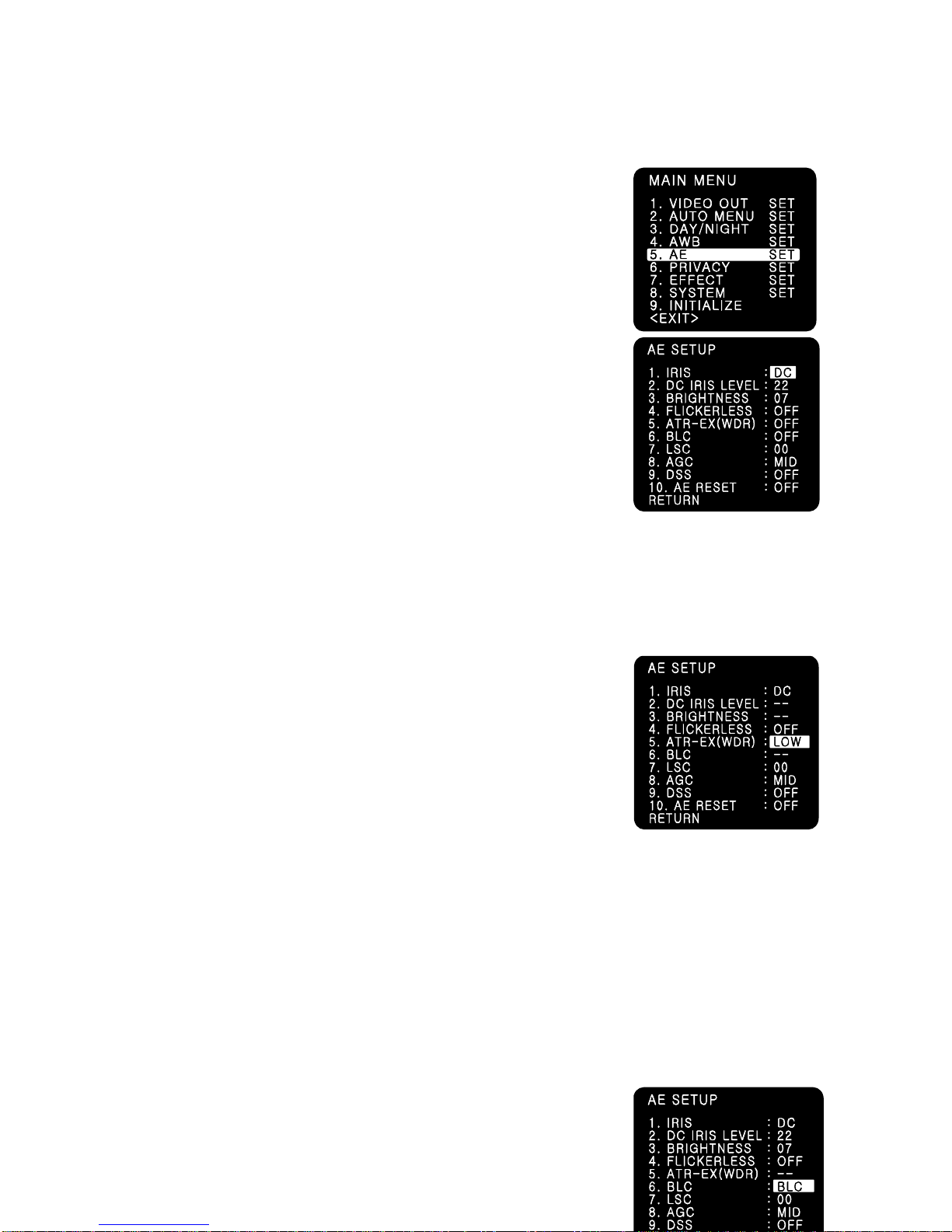

AE
IRIS
ATR-EX(WDR)
DSS
DC IRIS
BLC/FLC
BRIGHTNESS
LSC
FLICKERLESS
AGC
AE RESET
RETURN
PRIVACY
AREA NUMBER
MASK POSITION
MASK DEFINE
PRIVACY RESET
MASK PATTERN
MASK SIZE
RETURN
EFFECT
COLOR ADJUST
2DNR
SHARPNESS
3DNR
CONTRAST
EFFECT RESET
REVERSAL
RETURN

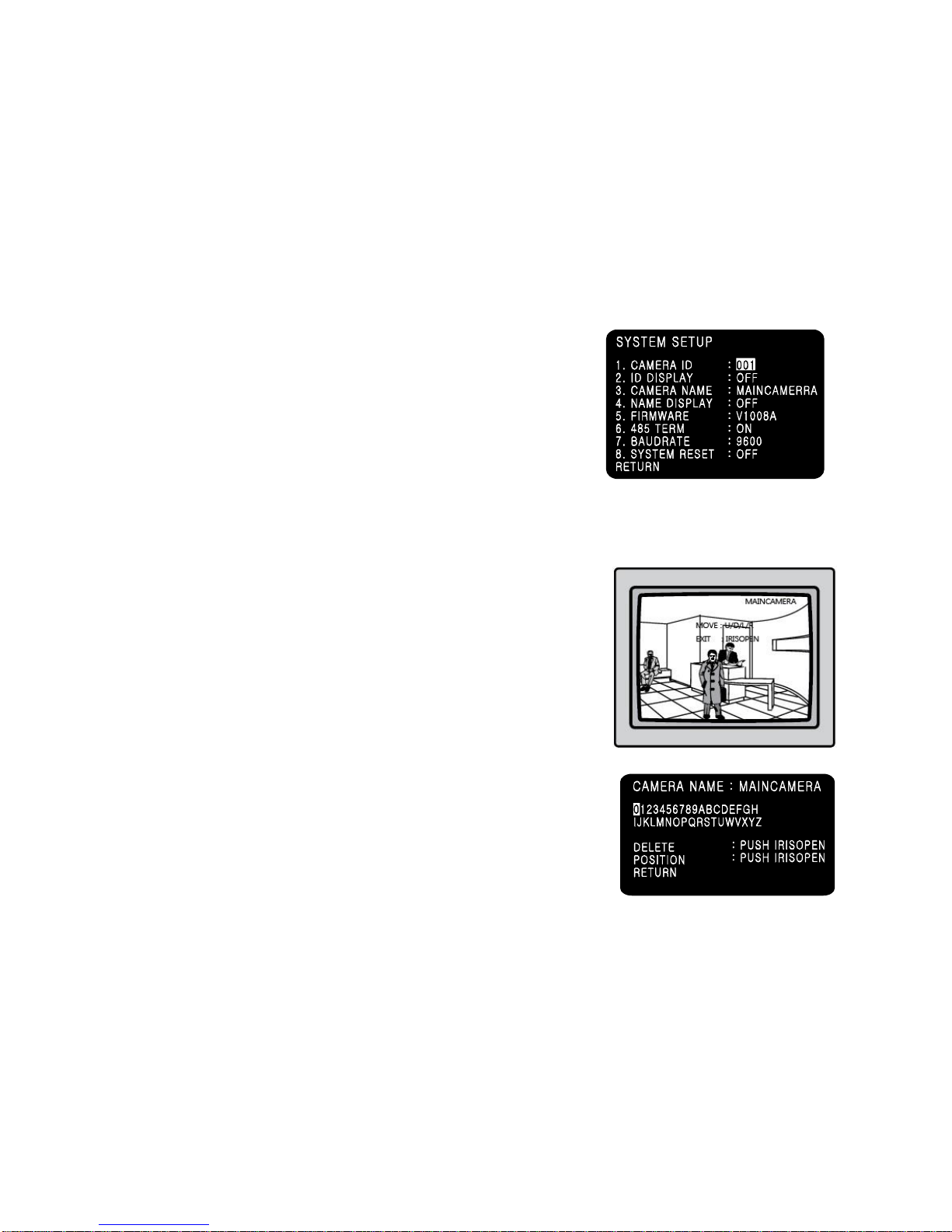

SYSTEM
CAMERA ID
FIRMWARE
ID DISPLAY
485 TERM
CAMERA NAME
BAUD RATE
NAME DISPLAY
SYSTEM RESET
RETURN

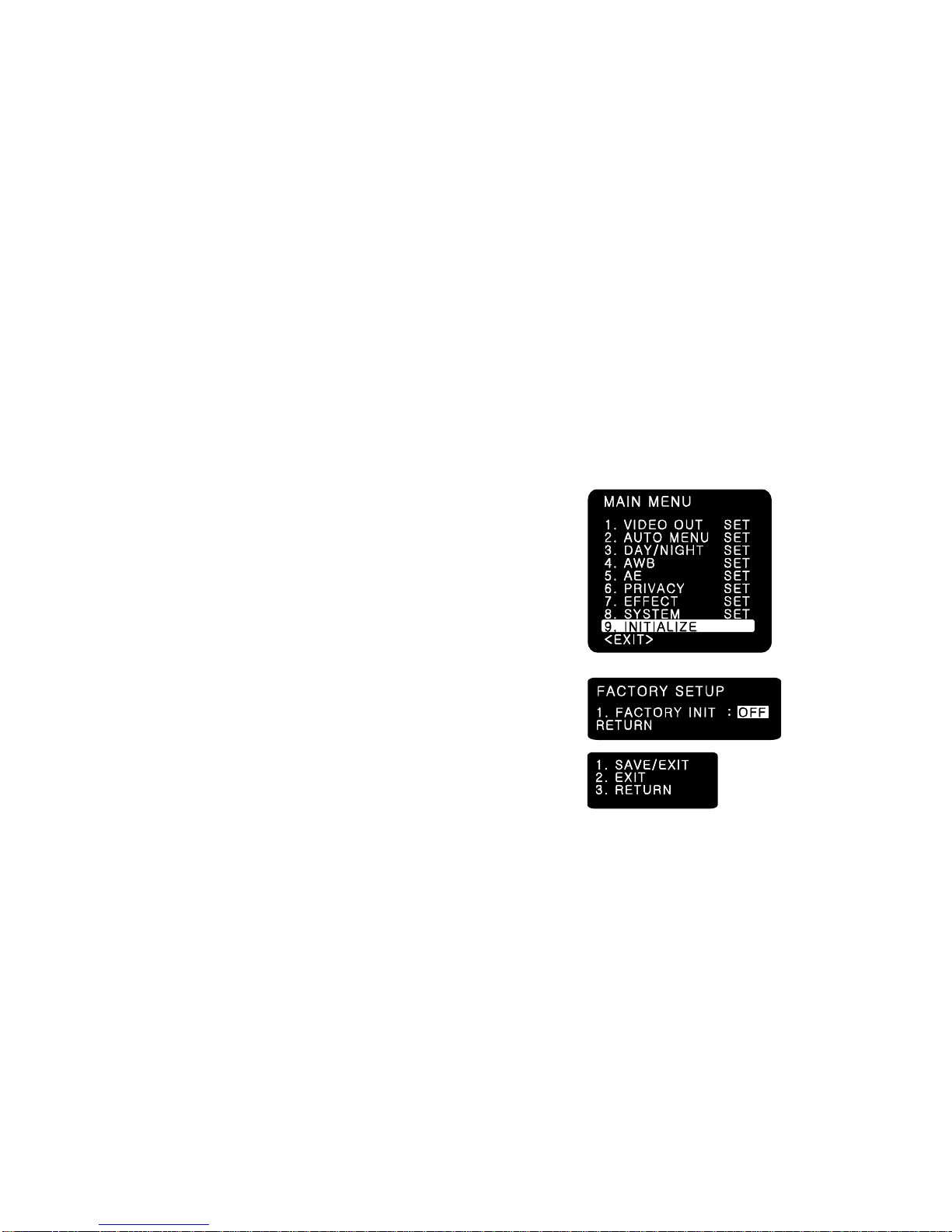

INITIALIZE
FACTORY INIT
RETURN
6-2. Setting up the menu
Settings can be made using the OSD Switch located on the back of the camera.
1. Press the button to access the SETUP mode. The SETUP menu is
displayed on the monitor.
2. Please select any function you wish to activate by using the
UP/DOWN selections. The bar can be moved up or down by using
the UP/DOWN selections. Position the bar to point to the function
you wish to operate.
* MAIN-menu : Use UP/ DOWN selections. / SUB-menu : Use LEFT/ RIGHT selection
3. Change the status of the selected feature using the LEFT/RIGHT selections.
When the LEFT or RIGHT selection is selected, available values and modes are displayed in order.

10
Please keep the selection until you get to the mode you wish to operate.
4. When completed, move the bar indicator to ‘EXIT’ and press the button to finish the setting.
6-3. VIDEO OUT
(1) VIDEO OUTSIZE
- VIDEO OUTSIZE can be set to 1080P, 1080i, 720P according
to Local Regulation.
(2) FRAME RATE
- Six modes of 60/59.94/50/30/29.97/25 can be selected.
(3) CVBS OUT MODE
- CVBS output can be set to NTSC or PAL according to
local TV standard.
☞NOTE
In case of 1080i mode, only 3 types of Frame rate are
available and they are 60/50/59.94 respectively.
When you use 1080P 60 mode, please check your DVR or
related HD devices first whether they support this mode or not. ( In this mode, cable connection
distance is less than half of 1080P 30 mode.)
6-4. AUTO MENU SET
(1) NORMAL
- Sets as initial factory default value.
(2) 50HZ INDOOR
- For indoor use in 50HZ (PAL) environment.
(In this mode, i.e. 50HZ INDOOR MODE, FLICKERLESS changes
automatically into 50HZ mode from initial OFF mode.)
(3) 60HZ INDOOR
- For indoor use in 50HZ (PAL) environment.
(In this mode, i.e. 60HZ INDOOR MODE, FLICKERLESS changes
automatically into 60HZ mode from initial OFF mode.)
(4) OUTDOOR
- For outdoor use.
(In this mode, i.e. OUTDOOR MODE, AWB changes
automatically into PUSH mode from initial ATW mode.)
(5) AUTOSET RESET
- When set as ON and press SET KEY, it turns into
AUTOSET NORMAL MODE automatically, which means

11
initial factory reset.
6-5. DAY/NIGHT
You can display pictures in Color/IR MODE/AUTO.
(1) DAY/NIGHT MODE
1. Please position the cursor on ‘DAY/NIGHT’ on the
SETUP menu by using the UP and DOWN selections.
2. Please select the mode you wish to operate by using the
LEFT and RIGHT selections.
- COLOR : The picture is always displayed in color.
- IR : The mode is switched to ‘DAY’ in a normal
environment, but switches into ‘NIGHT’ mode when
ambient illumination is low.
☞NOTE
True Day & Night cameras with CDS & ICR are to be set in this mode.
- AUTO: Automatically turns between Day and Night Mode according toAGC operation.
☞NOTE
Day & Night cameras without CDS & ICR are to be set in this mode.
(2) D TO N LEVEL
- Sets the level of illumination in which COLOR mode
is turned into B/W mode.
(This menu is not activated in case of IR MODE)
(3) N TO D LEVEL
- Sets the level of illumination in which B/W mode is turned into COLOR mode.
(This menu is not activated in case of IR MODE)
(4) D TO N TIME
- Sets the switching time from COLOR mode into B/W mode when the level of illumination has come to
D TO N LEVEL.
(Not activated in case of IR MODE)
(5) N TO D TIME
- Sets the switching time from B/W mode into COLOR mode when the level of illumination has come to
N TO D LEVEL.
(Not activated in case of IR MODE)
(6) D/N RESET
- Resets all setting of DAY/NIGHT menu into initial factory default value.
(7) RETURN
- Returns to the MAIN MENU.
6-6. AWB (Auto White Balance)

12
This is useful when the cameras are installed in different artificial
lighting conditions where a standard ‘White Balance’condition is
not suitable for all.
(1) AWB MODE
1. Please position the cursor on ‘AWB’ on the
SETUP menu by using the UP and DOWN selections.
2. Please select the mode you wish to operate by using the
LEFT or RIGHT selection.
3. Please select one of the 8 modes below.
(2) ATW (Auto Tracking White Balance)
- IN : This mode can be used within the color temperature range of 2,500˚K~7000˚K.
- OUT : This mode can be used within the color temperature range of 1,800˚K~10,500˚K.
☞NOTE : In case of indoor use, ATW(IN) mode is higly recommended.
(3) PUSH MODE : This mode can be used within the color temperature range of 1,800˚K~10,500˚K.
☞NOTE : In case of outdoor use, PUSH mode is recommended.
(4) HOLD MODE : This mode is used to fixAWB in a specific environment.
☞NOTE : When there are drastic movements of some specific colored features such as red, blue,
green or yellow cars on the express road and when environment is volatile so much, HOLD MODE
is strongly rcecommended.
(5) TRACK MODE : Sets some specific range of color temperature. ( 23 types of color temperature
can be set within 1,500˚K~15,000˚K range.)
(6) USER MODE
USER MODE is suitable for enhanced users who want to set red and/or blue value manually
according to user’s environment.
Please change to manual adjustment mode and press OSD Switch.
Set the appropriate color temperature, and then increase or decrease the red and blue color values
while monitoring the color changes on the screen.
- RED : Adjust the level between 00 ~ 50(Default 17)
- BLUE : Adjust the level between 00 ~ 50(Default 40)
(7) 8,000˚K/6,000˚K/4,200˚K/3,200˚K MODE
- 8,000˚K : Shade
- 6,000˚K : Cloudy weather
- 4,200˚K : Fluorescent light
- 3,200˚K : Electric light blub
(8) AWB RESET

13
- Resets all setting of AWB menu into initial factory reset value.
(9) RETURN
- Returns to the MAIN MENU.
6-7.AE (Auto Exposure)
(1) IRIS MODE
- DC : Selects DC drive auto iris lens.
- ESC : Selects manual iris lens
- AE HOLD : Fixes the change of the brightness.
This mode is useful when lots of motions are detected
on the monitor.
(2) DC IRIS LEVEL : Adjusts the mechanical Iris lens in 00 ~ 50(Default22)
(3) BRIGHTNESS :Adjusts the brightness in 00 ~ 30(Default 07)
(4) FLICKERLESS :
This is used only when there is a difference in frequency between the
power system (50Hz) and TV system (60Hz). In this case, flicker is
occurred on the monitor. In most countries other than Japan, FLICKERLESS mode is not necessary.
☞NOTE
When the power system (50Hz) and the TV system(60Hz) are different,
-‘Flickerless on’mode is recommended for indoor use.
-‘Flickerless off’mode is recommended for outdoor use.
(5)ATR-EX (WDR) : This mode functions like WDR.
3 modes of Off/Low/Mid/High can be selected.
Wide Dynamic Range Performance
In general, it is very hard to see objects inside the buildings, etc
in case that there comes strong light from the outside.
By using ATR-EX(WDR) mode, the difference in brightness between
the bright area and the dark area can be minimized and consequently those objects inside and
outside of the buildings or windows can be seen all together even though there is strong light or
backlight from the outside.
- HIGH : Allows automatic gain control from 0 to 42dB.
☞NOTE
- This mode is recommended for those environment with backlight or shade.
- When ATR-EX(WDR) is ON, DC IRIS LEVEL, BRIGHTNESS,
BLC menu’s are all inactivated.
(6) BLC (Back Light Compensation)

14
Enables a user to directly select a desired area from a picture,
and to view the area more clearly even under backlight environment.
- BLC : Used for backlight environment.(Indoor objects can be seen.)
- FLC : Compensates the saturation of image when camera faces
toward the same direction as sunlight.
(7) LSC (Lens Shading Correction) : Adjust the LEVEL 00 ~ 50(Default 00)
Compensates for the shading of the lens.
☞NOTE : This function will be provided soon in next version.
(8) AGC(Auto Gain Control)
The higher the gain level is, the brighter the screen becomes.
But the higher gain level causes more noise.
- LOW : Allows automatic gain control from 0 to 20dB.
- MIDDLE :Allows automatic gain control from 0 to 30dB.
- HIGH : Allows automatic gain control from 0 to 42dB.
(9) DSS(Digital Slow Shutter)
This is an electronically activated function to improve the
sensitivity for viewing low light condition in addition to the original
sensitivity from the sensor itself.
Shutter level is adjustable x2 times.
At night, DSS is set to x2 automatically.
☞NOTE: This function will be provided soon in next version.
(8) AE RESET
- Resets all settings of AE menu into the initial factory default value.
(9) RETURN
- Returns to the MAIN MENU.
6-8.PRIVACY
Masks the areas you want to hide on the screen.
(1) AREA NUMBER: You can select up to 4 PRIVACY areas.
(2) MASK DEFINE: Determines whether to use the MASK or not.
(3) MASK PATTERN: Defines the Mask Color or type.
- 6 types of BLACK/RED/GREEN/BLUE/YELLOR/MOSAIC are selectable.
(4) MASK SIZE: By moving the cursor LEFT/RIGHT, TOP/BOTTOM, the size of masking area can be
determined..
(5) MASK POSITION:Adjust vertical and horizontal position of masking area.
(6) PRIVACY RESET
- Resets all setting of PRIVACY menu.
(7) RETURN
- Returns to the MAIN MENU.
6-9.EFFECT

15
(1) COLOR ADJUST
- COLOR GAIN :Adjusts the COLOR GAIN level in 00 ~ 50(Default 25)
- COLOR HUE :Adjusts the COLOR HUE level in 00 ~ 50(Default 25)
☞NOTE
This function enables user to adjust the variation of Color Gain
on the monitor when installing camera.
(2) SHARPNESS
- Adjusts the SHARPNESS level in 00 ~ 50(Default 25)
(3)CONTRAST
-Adjusts the CONTRAST level in 00 ~ 50(Default 25)
(4) REVERSAL: Enables either normal image (NORMAL), mirrored
Image ( MIR), vertically reversed image ( VER), vertically
reversed and mirrored image( FLIP).
(5) 2DNR
- Cuts off the noise in low light condition.
4 modes of OFF/LOW/MID/HIGH are available.
☞NOTE
Higher 2DNR level reduces more low light noise but deteriorates resolution as well.
(6) 3DNR
- Cuts off the noise in low light condition.
4 modes of OFF/LOW/MID/HIGH are available.
☞NOTE
Higher 3DNR level reduces more low light noise but it can cause ghost effect as well.
☞NOTE: This function will be provided soon in the next firmware version.
(7) EFFECT RESET
Resets all setting of EFFECT menu into initial factory default.
(6) RETURN
- Returns to the MAIN MENU.
6-10.SYSTEM

16
(1) CAMERA ID : Determinds the camera ID number in 001 ~ 255
(Default 001)
(2) ID DISPLAY : Defines the location where camera ID is displayed
on the screen. 4 location of top, bottom, left and right can be
selected.
(3) CAMERA NAME
- Defines camera name. When ‘Name Display’is on, this text will
Be shown on the screen.
(4) NAME DISPLAY
If you enter a title for this, that will appear on the monitor.
1. Please position the cursor on ‘NAME DISPLAY by
moving UP or DOWN direction.
2. Then, select ‘ON’ by using the LEFT and RIGHT selection.
When you press the button to complete ‘ON’, then ‘CAMERA
NAME’will be displayed.
☞NOTE
· If ‘OFF’ is selected, the NAME DISPLAY does not appear on the monitor even if it has been input.
3. Up to 10 letters are available for the NAME DISPLAY.
①Please move the cursor to the letter to choose by
using the UP and DOWN selections.
②Set an ID from 0,1,~8,9, A,B, ~Y,Z by
using the UP, DOWN, LEFT and RIGHT selections.
③Lock in the letters by using the button.
When the letter is locked in, the cursor moves to the next space.
④Please repeat the above to input NAME DISPLAY.
4. When a name has been chosen, please select a position for the
name to display.
①Please move the cursor onto ’POSITION’ and then press the button.
②The name will appear at the top right corner.
③Please find the position you wish to display the name by using the 4 directional
selections, and then press the button to finish.
5. Camera Name Input process is finished if user selects ‘RETURN’ and presses OSD switch.
(5) FIRMWARE:

17
- Shows firmware version of this camera unit.
(6) 485 TERM
- RS485 Function ON/OFF
(7) BAUD RATE
- Selects baud rate for RS485 communication among 2400/ 4800/ 9600. (Default:9600)
(8) SYSTEM RESET
- Resets all setting of SYSTEM menu.
CAMERA ID, 485 TERM settings are not initialized.
(9) RETURN
- Returns to the MAIN MENU.
6-11.INITIALIZE
Resets the camera setting to the factory defaults.
CAMERA ID, 485 TERM settings are not initialized.
6-12.EXIT
(1) SAVE/EXIT
- Saves the current settings and exits the menu.
(2) EXIT
- Not saves the current settings and exits the menu.
(3) RETURN
- Returns to the MAIN MENU.
7. Troubleshooting

18
If there are problems in operating, please refer to the checklist below. If the problem persists, please
contact the agent where this product is purchased.
8. Dimension(mm)
Problems
Troubleshooting
Nothing appears on the screen.
Please check that the power cord and line connection
between the camera and the monitor are fixed properly.
Please check that you have properly connected VIDEO
cable to the VIDEO output jack of the camera.
The image on the screen is dim.
Is lens stained with dirt? Clean your lens with soft, clean cloth.
Set the monitor to proper condition.
If the camera is exposed to too strong light, change
the camera position.
The image on the screen is dark.
Adjust the contrast feature of the monitor.
If you have an interim device, set the 75Ω / Hi-z properly.
The camera is not working
properly, and the surface
of the camera is hot.
Please check that you have properly connected the camera
to an appropriate power source.
Color is not correct.
Please check the setting ofAWB menu .
The screen flickers continually.
Please check that direction of camera turns toward the Sun.
RS-485
communication fails.
Please check the polarity between RS-485 Control Port
and RS-485 cable.
485 Control Board Connection Port
RS-485 Control Port
(+)CONNECTION TERMINAL(TRX+)
485+
(-)CONNECTION TERMINAL(TRX-)
485-
Please check the RS-485 Communication establishment
initial value.
*RS-485 Communication establishment initial value
Item
Camera ID
BAUD RATE
UART MODE
RET PKT
Initial value
001
9600
8-NONE-1
ENABLE
We recommend that you make ground connect
between camera and controller in order to maintain
safety communication control.

19
9. Specification
MODEL
Full HD CCTV IR Bullet Camera
Sensor Device
Sony 1/2.8” progressive scan CMOS, 3MegaPixel
Total Pixels
2144(H) x 1588(V) 3.4 Megapixel
Effective Pixels
2096(H) x 1561(V) 3.27 Megapixel
Scanning System
Progressive Scan
Horizontal
More than 1100 TVL
S/N Ratio
More than 52dB
Min. Illumination
1.0 Lux with DSS x 2 (F1.2, 30IRE, AGC On),
Shutter Speed
1/30s Default(Long Exposure Mode, ~1Sec)
Video Output
1920 x 1080P 60/50/30/25/59.94/29.97, 1920x 1080i 60/50/59.94/
1280x 720P 60/50/30/25//59.94/29.97 (Mode Select)
Video Output Format
1.5G-SDI, 3G-SDI Output (SMPTE 424M,SMPTE 292M)
AV Output
1V p-p Composite. 75 Ohms
Digital Output
SDI Output
Day & Night
ICR
Serial Port
RS485
Lens
5 ~ 60mm VF Auto Iris Mega Pixel
Lens Control
DC IRIS Lens
LED Spectrum
850nm
Viewable Distance
Up to 50M at Moonless Night
Power Source
DC 12V(9~19V)
Operating Current
400mA(IR OFF)/570mA(IR ON)
Operating Temperature
-10°C ~ 50°C
Storage Temperature
-20°C ~ 70°C
Operating Humidity
Under 90% Non-condensing
Measurement (mm)
Refer to the dimension
Weight ( Approx.)
1,000 g
OSD
Video Mode / Auto Set / D&N / AWB / AE /Privacy Mask / Flickerless /
Brightness / Sharpness / Mirror & Flip / DSS/DNR, etc.
Specifications are subject to change without prior noitce for improvement.
