Vista VEFED28V12MHDAW User manual

Installation Manual
VEFED28V12MHDAW
Please read this manual thoroughly before use and keep it handy for future reference.

2

3
Before You Begin
Read these instructions before installing or operating this product.
Note: This installation should be made by a qualified service person and should conform to local codes.
This manual provides installation and operation information. To use this document, you must have the following
minimum qualifications:
• A basic knowledge of CCTV systems and components
• A basic knowledge of electrical wiring, low-voltage electrical connections.
Intended use
Only use this product for its designated purpose; refer to the product specification and user documentation.
Customer Support
For assistance in installing, operating, maintaining and troubleshooting this product refer to this document and
any other documentation provided. If you still have questions, please contact Norbain Technical Support and
Sales:
Norbain SD, 210 Wharfedale Road, Winnersh Triangle, Wokingham, Berkshire RG41 5TP, England.
UK [phone] / Vista Technical Support [phone]
Note: You should be at the equipment and ready with details before calling Technical Support.
Conventions Used in this Manual
Boldface or button icons highlight command entries. The following WARNING, CAUTION and Note statements
identify potential hazards that can occur if the equipment is not handled properly:
* WARNING:
Improper use of this equipment can cause severe bodily injury or equipment damage.
* CAUTION:
Improper use of this equipment can cause equipment damage.
Note: Notes contain important information about a product or procedure.
This apparatus is manufactured to comply with the radio interference.
A Declaration of Conformity in accordance with the following EU standards has been made. The
manufacturer declares that the product supplied with this document is compliant the provisions of
the EMC Directive 2004/108/EC, the CE Marking Directive 93/68 EEC and all associated
amendments.
All lead-free products offered by the company comply with the requirements of the European law
on the Restriction of Hazardous Substances (RoHS) directive: 2011/65/EU, which means our
manufacture processes and products are strictly “lead-free” and without the hazardous
substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must
be collected separately at the product end-of-life. This applies to your product and any
peripherals marked with this symbol. Do not dispose of these products as unsorted municipal
waste.
* This symbol indicates electrical warnings and cautions.
** This symbol indicates general warnings and cautions.
NORBAIN SD reserves the right to make changes to the product and specification of the product from time to
time without prior notice.
WARNINGS AND CAUTIONS:
To reduce the risk of fire or electric shock, do not insert any metallic objects through the ventilation grills or other
openings on the equipment.

4
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
13. CAUTION –THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.
14. Usesatisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power
source only.
CE COMPLIANCE STATEMENT
WARNING
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

5
Table of Contents
1 —Introduction ................................................................................................................6
1.1 Features...............................................................................................................................6
2 —Installation and Configuration...................................................................................7
2.1 Package Contents ...............................................................................................................7
2.2 Camera Overview ................................................................................................................7
2.3 Connections.........................................................................................................................8
2.4 Basic Installation.................................................................................................................8
2.5 OSD Menu Structure ...........................................................................................................9
3 —OSD Menu.................................................................................................................10
3.1 Lens.................................................................................................................................... 10
3.2 Exposure............................................................................................................................10
3.3 Backlight............................................................................................................................ 10
3.4 White Balance....................................................................................................................11
3.5 Day&Night..........................................................................................................................11
3.6 Image.................................................................................................................................. 11
3.7 Function............................................................................................................................. 12
3.8 System ...............................................................................................................................13
3.9 AF .......................................................................................................................................13
3.10 Exit....................................................................................................................................13
4 —Specifications...........................................................................................................14
4.1 Technical Specification..................................................................................................... 14
4.2 Line Drawing / Dimensions............................................................................................... 15
5 —Warranty....................................................................................................................15

6
1 —Introduction
1.1 Features
1/2.9” Sony 2.2MP Exmor CMOS
1080p in TVI and AHD, 1000TVL in CVBS
2.8-12mm motorized lens (controlled via coax telemetry only)
Pan 357o& Tilt 100o motorized for simple set up (controlled via coax telemetry only)
1.0Lux (colour), 0Lux (mono –IR on)
●True Day/Night operation
●28, 850nm IR LEDs
●25m IR illumination
●Smart IR
●Auto electronic shutter (1/25 to 1/50,000) and manual electronic shutter modes
●Day & Night –Auto, Colour, B&W (Monochrome)
●OSD - On Screen Display (via tact switch or coax telemetry)
●DWDR
●AGC (Auto Gain Control)
●DNR (Digital Noise Reduction)
●Auto and manual white balance modes (ATW/AWC/Manual/AWB)
● BLC (Back Light Compensation)
● HSBLC (Peak White Inversion)
● Flickerless
● Sens-Up
●4 Privacy zones
●4 motion detection zones
● Functions (Mirror, Brightness, Sharpness, Flip)
12VDC operation
Use clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.

7
2 —Installation and Configuration
2.1 Package Contents
Installation of the camera must be performed by qualified service personnel in accordance with all
local and national electrical and mechanical codes.
Carefully remove the camera and its accessories from the carton and verify that they were not
damaged in shipment.
The contents of the package includes:
1. Camera 2.This manual 3. Template sheet 4. Accessory pack

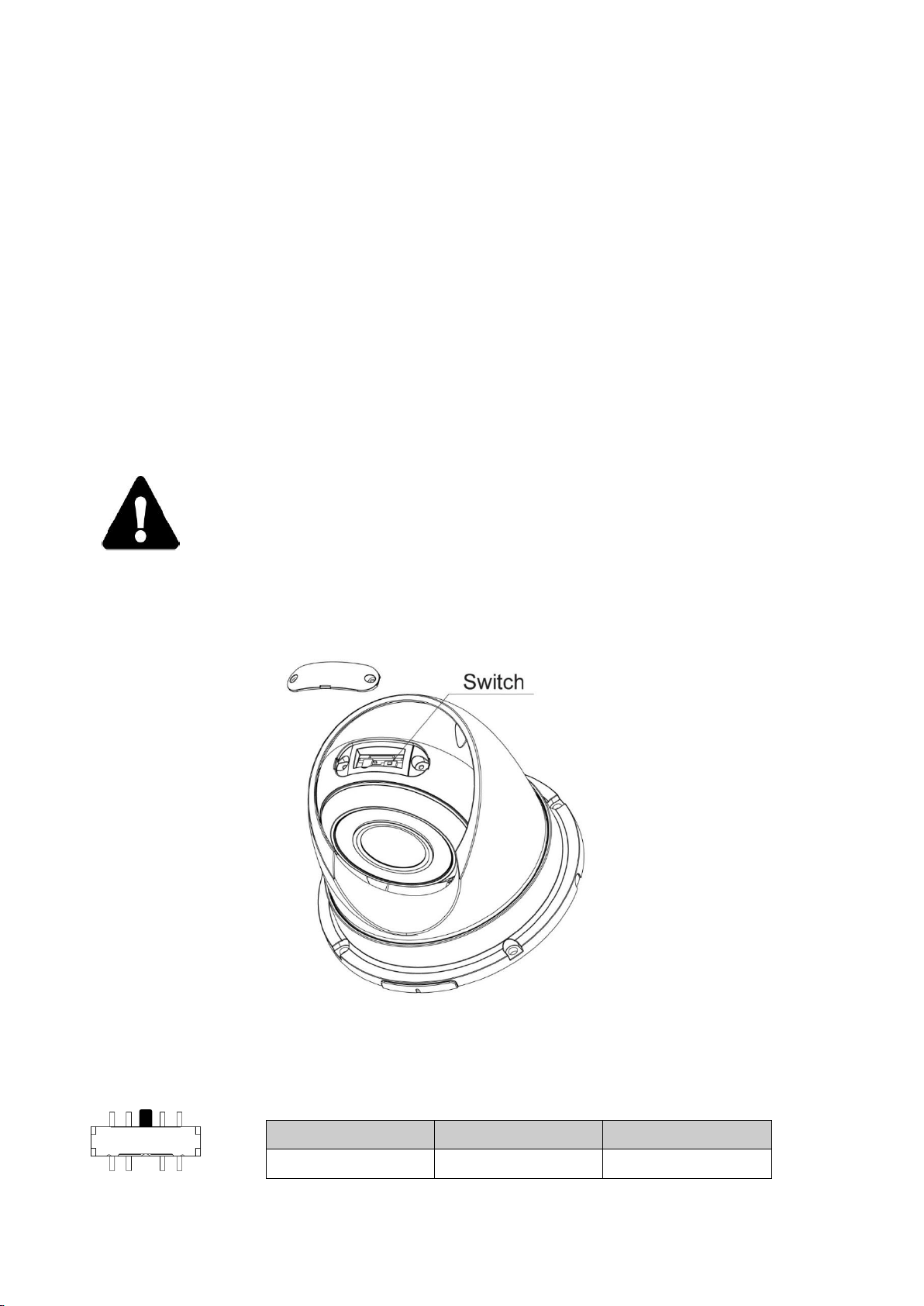

2.2 Camera Overview
THERE IS TRANSIT TAPE HOLDING THE TILT CASING, THIS MUST BE
REMOVED BEFORE POWERING UP –FAILURE TO DO SO WILL
DAMAGE THE MOTOR
DO NOT ATTEMPT TO PAN OR TILT THE CAMERA BY HAND, YOU
WILL DAMAGE THE MOTORS
The camera supports AHD, TVI and CVBS from the BNC output and is defaulted to TVI. Access to
the OSD and lens control is only via TVI and AHD, there is no CVBS coax control.
NOTE: Open the cover and change the video output setting. NOTE: THE COVER IS A PRIMARY
SEAL, FAILURE TO REPLACE WILL RESULT IN MOISTURE / PARTICLE INGRESS.
You can set video signal with S1.
S1
Left
Center
Right
AHD Output
TVI Output
CVBS Output

8

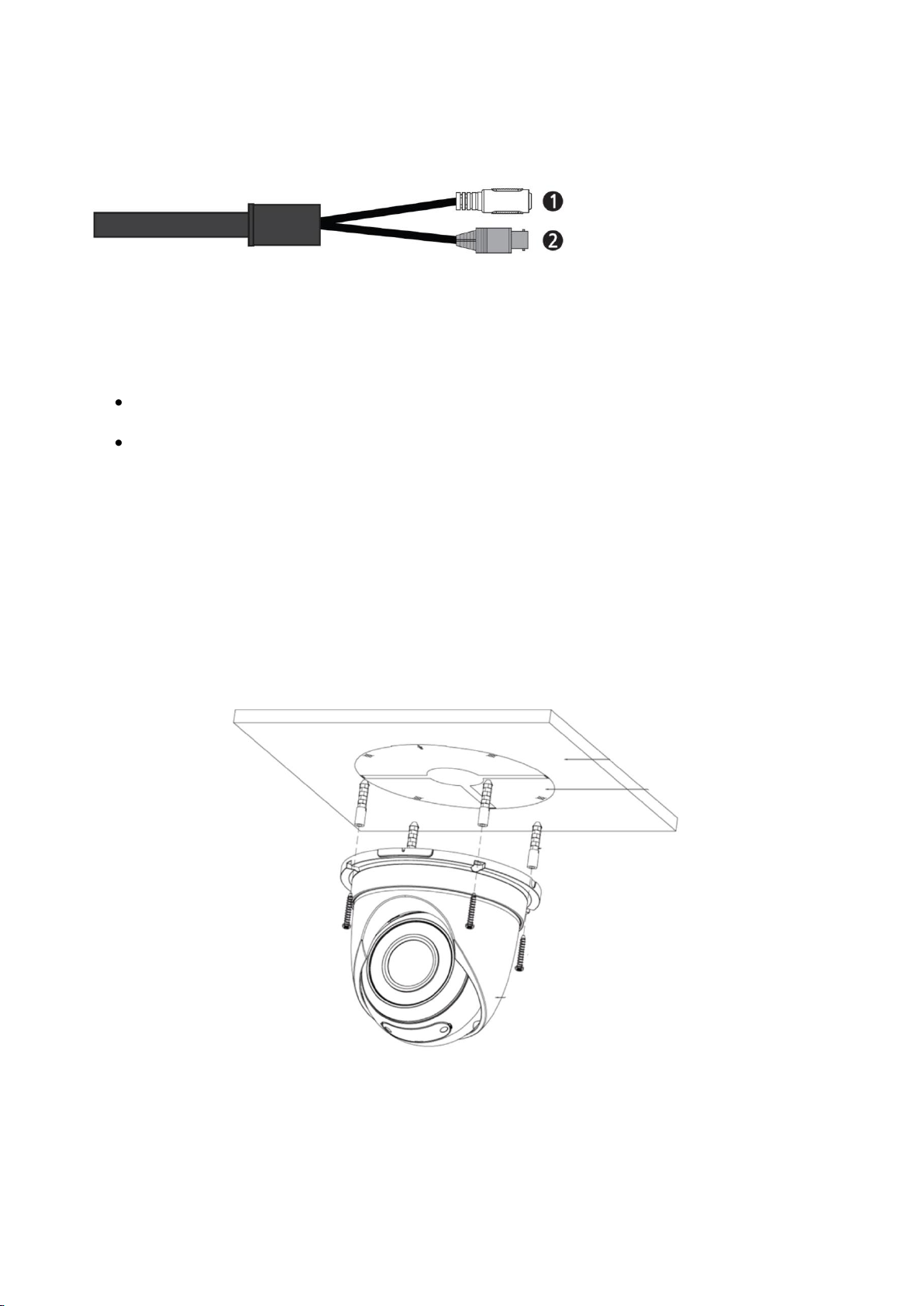

2.3 Connections
1. 2.1mm jack plug for 12VDC
2. BNC output
NOTES:
The camera is only able to output one signal at a time.
To gain access to the camera OSD and lens set up, please refer to your DVR manual
for the correct coax telemetry, for TVI select TVI / Hik-C. For AHD select Fastrax-C –
this will give menu access from the DVR (you will need to refer to the DVR manual for
the commands).
2.4 Basic Installation
The camera is for use in ceiling / soffit or pendant mounting applications (pendant and wall
mounting is via bracket –not included). The camera should be attached to a structural object, such
as hard wood, wall stud or ceiling rafter that supports the weight of the camera.
1. Make screw holes on the ceiling using the supplied mounting Template Sheet.
2. Fix the camera to the ceiling using supplied Anchors (4x) and Mounting Screws (4x), or suitable
fixings
Note: If installing externally, it is recommended that a silicon bead is applied to the base of
the housing.

9
2.5 OSD Menu Structure
SETUP MENU
LENS
EXPOSURE
BACKLIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
AF
EXIT
LENS
DC
MANUAL
BACKLIGHT
OFF
BLC
HSBLC
WHITE BAL
ATW
AWC->SET
INDOOR
OUTDOOR
MANUAL
AWB
DAY&NIGHT
AUTO
COLOUR
B&W
EXPOSURE
SHUTTER
AGC
SENS-UP
BRIGHTNESS
DWDR
DEFOG
SHARPNESS
LSC
D-EFFECT
FUNCTION
DNR
MOTION
PRIVACY
DEFECT DET
SYSTEM
CAM TITLE
MONITOR
VIDEO OUT
LANGUAGE
AF
AF MODE
ONE SHOT AF
TDN AF
LENS INIT

10
3 —OSD Menu
3.1 Lens
DC / Manual
DC:
Mode: Indoor / Outdoor
Outdoor:
Min Shutter: 1/25
Max Shutter: 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000, 1/10000,
1/50000
Iris Speed: 1 to 15
Manual: Opens up Shutter in Exposure menu
3.2 Exposure
SHUTTER (Only if lens in Manual mode): Auto, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000,
1/10000, 1/50000, x2, x4, x6, x8, x10, x15, x20, x25,
x30
AGC: 1 to 15
SENS-UP: Off / Auto
Auto:
Sens-up: x2, x4, x6, x8, x,10, x15, x20, x25, x30
BRIGHTNESS: 0 to 100
DWDR: Off / On
Level: 0 to 8
DEFOG: Off / Auto
Auto:
Pos/Size: Use up, down, left, right buttons to adjust both position and size of area
Gradation: 0 to 2Sens-up: x2, x4, x6, x8, x,10, x15, x20, x25, x30
Default: Defaults Defog area
3.3 Backlight
OFF / BLC / HSBLC
BLC:
Level: Low, Middle, High
Area: Use up, down, left, right buttons to adjust both position and size of area
Default: Defaults BLC area
HSBLC:
Select: Area1, Area2, Area3, Area4
Display: Off / On
On: Use up, down, left, right buttons to adjust both position and size of area
Black Mask: Off / On
Level: 0 to100
Mode: Night / All Day

11
Night: AGC Level: 0 to 255
Default: Defaults HSBLC settings
3.4 White Balance
AWB, ATW, AWC->SET, Indoor, Outdoor, Manual
AWC->SET: Push enter button to set the colour balance
MANUAL:
Blue: 0 to 100
Red: 0 to 100
3.5 Day&Night
AUTO, COLOUR, B/W,
AUTO:
D>N (AGC): 1 to 240
D>N (Delay): 0 to 60
N>D (AGC): 1 to 240
N>D (Delay): 0 to 60
COLOUR: Permanent colour mode
B/W:
Burst: Off / On
IR Smart: Off / On
Level: 0 to 15
Area: Use up, down, left, right buttons to adjust both position and size of area
3.6 Image
SHARPNESS: Off / Auto
Level: 0 to 10
Start AGC: 0 to 255
End AGC: 0 to 255
LSC: Off / On
D-EFFECT:
Freeze: Off / On
Mirror: Off / On
Neg.Image: Off / On

12
3.7 Function
DNR:
2DNR: Off, Low, Middle, High
3DNR: Off, Low, Middle, High
End AGC: 0 to 255
MOTION: Off / On
Select: Area1, Area2, Area3, Area4
Display: Off / On
On: Use up, down, left, right buttons to adjust both position and size of area
Sensitivity: 0 to 100
Colour: Green, Blue, White, Red
Transparency: 0.00, 0.25, 0.75, 1.00
Alarm:
View Type: Off, Block, Outline, All
OSD View: Off / On
Time: 0 to 15
Default: Defaults Motion settings
PRIVACY: Off / On
Select: Area1, Area2, Area3, Area4
Display: Off / Mosaic / Inversion / Colour:
On: Use up, down, left, right buttons to adjust both position and size of area
Colour: User, White, Black, Red, Blue, Yellow, Green, Cyan
Transparency: 0.25, 0.50, 0.75, 1.00
Alarm:
View Type: Off, Block, Outline, All
OSD View: Off / On
Time: 0 to 15
Default: Defaults privacy settings
DEFECT DET:
Live DPC: On / Off
AGC Level: 0 to 255
Level: 0 to 255
White DPC: On / Off
Pos/Size: Use up, down, left, right buttons to adjust both position and size of area
Start: Cover the lens then push enter button
DPC View: Off / On
Level: 0 to 60
AGC: 0 to 14
Sens-up: x2, x4, x6, x8, x10, x15, 20, x25, x30
Black DPC: Off / On
Pos/Size: Use up, down, left, right buttons to adjust both position and size of area
Start: Cover the lens then push enter button
DPC View: Off / On
Level: 0 to 100

13
3.8 System
CAM TITLE: 15 alpha-numeric characters
MONITOR:
LCD:
Black Level: 0 to 60
Gamma: User, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00
Blue Gain: 0 to 100
Red Gain: 0 to 100
CRT:
Black Level: 0 to 60
Blue Gain: 0 to 100
Red Gain: 0 to 100
VIDEO OUT: PAL / NTSC
LANGUAGE: ENG, CHN1, CHN2, GER, FRA, ITA, SPA, POL, RUS, POR, NED, TUR, KOR, JPN,
HEB, ARB
3.9 AF
AF MODE: Semi, Auto, Manual.
SEMI: Waits until the zoom function has finished before focusing
AUTO: Tracks closely with the zoom
MANUAL: No function
ONE SHOT AF: Focuses the camera
TDN AF: Off / On: On: Will refocus when switching between colour/B&W and B&W/colour modes
LENS INIT: Reinitializes the lens
3.10 Exit
RESET: Full factory reset
SAVE & END: Save and exit OSD menu
NOT SAVE: Exit the OSD without saving settings

14
4 —Specifications
4.1 Technical Specification
Model
VEFED28V12MHDA
General
Resolution
1080p (TVI/AHD) / 1000TVL (CVBS)
Image sensor
1/2.9″ Sony CMOS
Operation
True Day Night
Effective
pixels
1920 (H) x 1080 (V)
Scanning
Freq.
PAL: 15.625KHz(H) x 50Hz(V)
Sync. system
Internal
Video output
1.0Vp-p (75Ω, composite)
S/N Ratio
More than 50dB (AGC off)
Video frame
rate
1080p 25/30fps
Lens
2.8-12mm F1.4-360 (motorized)
Pan & Tilt
Pan: 357o / Tilt: 100o (motorized)
IR
28no 850nm LEDs / 25m
Min.
illumination
1.0Lux (colour), 0Lux (mono –IR on)
OSD Control
Via compatible DVR
Electronic
Shutter
Auto or Manual (1/50, FLK to 1/50,000 sec)
DWDR
Off, On (0 –8)
BLC
1 x adjustable area
HSBLC (PWI)
4 areas
Day & Night
Auto, Colour, B&W
White Bal.
ATW, AWC, Indoor, Outdoor, Manual, AWB
Motion Det.
4 areas
Privacy
4 areas
AGC
Off, On
2DNR/3DNR
Low, Middle, High
Mirror
Off, On
Brightness
0 - 100
Sharpness
0 - 10
DPC
Live, White, Black
Auto Focus
Mode, One shot AF, TDN AF
Title
Off, On (16 characters)
Language
EN, GER, FRA, ITA, SPA, POL, RUS, POR, NED, TUR, KOR, JPN, HEB, ARB
Connections/other
Power
12VDC (-10 to +15%)
Consumption
350mA, 4.2W @ 12VDC
Power input
2 pin terminal with 2.1mm jack adaptor
Video outputs
1 x BNC connector (HD & CVBS)
Temperatures
-10 to 50°C (operating) / -20 to 50°C (storage)
Environmental
IP66 & IK10
Humidity
0 to 90% (non-condensing)
Dims. (net)
146.8 Øx 125.1 (H) mm
Dims. (gross)
200 (H) x 195 (W) x 195 (D) mm
Weight
900g (net) / 1.2kg (gross)
Approvals
CE & RoHS2: 2011/65/EU
* Specifications are subject to change without notice *

15
4.2 Line Drawing / Dimensions
All dimensions are in mm
5 —Warranty
This camera is subject to the warranty conditions valid at the time of purchase. The exception to
this and not covered by warranty is:
Powering up the camera with the transit tape applied to the tilt mechanism –this must be removed
prior to powering the camera up otherwise damage will occur to the motors.
The camera must only be moved via coax telemetry, any attempt to move the tilt or pan function by
hand or force will damage the motors.
The switch cover on the camera is a primary seal, failure to refit / refit correctly, will expose the
camera to moisture and particle ingress.
Continuous Pan / Tilt / Zoom. The motors and the lens are designed for set up and periodic
adjustment only, not permanent usage.

Vista
210 Wharfedale Road
Winnersh Triangle
Wokingham
Berkshire.
RG41 5TP
(Subject to change without notice)
Version 1.0
