vita vPad comfort User manual

VITA vPad comfort
Operating manual
VITA – perfect match.
Date of issue: 09. 18
VITA shade determination VITA shade communication VITA shade reproduction VITA shade control

VITA vPad comfort – The control unit for all your needs
System/technology info Please note
Explanation of symbols:
Modifiable parameters
Note Process Hotline and support
Dear customer,
Congratulations and thank you for choosing a VITA vPad comfort to operate and control
your VITA VACUMAT 6000 M ceramic furnace, VITA VACUMAT 6000 MP combipress
unit or VITA ZYRCOMAT 6000 MS high-speed sintering furnace.
The VITA vPad comfort is a state-of-the-art control unit that complies with all
international safety standards.
In order to ensure that you can operate the VITA vPad comfort safely and effectively,
please read this operating manual and all the relevant notices carefully. The operating
manual must always be kept close to the device. It must be read and used by all persons
who operate, care for and maintain the system.
I wish you every success working with this VITA device.
Onur Yildirim
Product manager for VITA dental devices and accessories, VITA Zahnfabrik

ADDITIONAL
INFORMATION
SCOPE OF SUPPLY/
VITA SYSTEM SOLUTIONS TECHNICAL DATA SETTINGS FIRING WINDOW MATERIALS AND
FIRING PROGRAMS OPERATION FIRST USE THE SYSTEM
1. The system
1.1 The control unit.......................................6
2. First use
2.1 Connections on the VITA VACUMAT 6000 M. . . . . . . . . . . . . . . . 7
2.2 Connections on the VITA VACUMAT 6000 MP. . . . . . . . . . . . . . . 7
2.3 Connections on the VITA VACUMAT 6000 MS ..............8
2.4 Starting up the firing system ............................8
3. Operation
3.1 Gesture controls of the control unit .......................9
3.2 System functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3 Switching off the system ..............................11
3.4 VITA Energy Efficiency ................................11
3.5 Standby temperature .................................11
3.6 Altering the lift position ...............................12
3.7 Profiles ............................................12
3.8 Photoviewer ........................................13
3.9 Help...............................................15
4. Materials and firing programs
4.1 Working Instructions..................................17
4.2 Managing materials ..................................18
4.3 Managing firing programs .............................23
5. Firing window
5.1 Firing programs for single and two-stage curves............27
5.2 Firing program: Pressing curve ..........................33
5.3 Firing program: Sintering curve. . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.4 Changes after program startup..........................39
6. Settings
6.1 Setting up the dental furnace...........................42
6.2 Setting the pressing pressure...........................43
6.3 Setting the device data................................44
6.4 Setting the start profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.5 Setting the system protection. . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6.6 Setting the screensaver ...............................45
6.7 Language settings....................................46
6.8 Setting the date/time .................................46
6.9 Factory settings......................................47
6.10 Cancelling adjustments to the settings ..................47
7. Technical data
7.1 Specification and symbols .............................49
7.2 Notices ............................................49
7.3 Safety functions .....................................50
7.4 Cleaning the control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
8.1 Scope of supply for the VITA vPad comfort ................51
8.2 VITA System Solutions ................................51
9. Additional information
9.1 Error messages ......................................52
9.2 VITA warranty and consumer protection ..................54
9.3 Update messenger ...................................54
9.4 Spare parts .........................................54
9.5 Competitor material ..................................54
9.6 Copyright information .................................54
9.7 Hotline and support ..................................55
8. Scope of supply/VITA System Solutions

4

5
1. The system 2. First use
1. The system
VITA vPad comfort system
VITA vPad comfort
Note:
• What? A control unit for controlling a firing device.
• The VITA vPad comfort is not compatible with the VITA SWITCHBOX or the VITA MultiPump.
ADDITIONAL
INFORMATION
SCOPE OF SUPPLY/
VITA SYSTEM SOLUTIONS TECHNICAL DATA SETTINGS FIRING WINDOW MATERIALS AND
FIRING PROGRAMS OPERATION FIRST USE THE SYSTEM

6
1. The system 2. First use
1.1 The control unit
1 USB input
Port for connecting cable
Adjustable stand
10-inch TFT display

7
1. The system 2. First use
Device fuses (see VITA VACUMAT 6000 M/VITA
VACUMAT 6000 MP operating manual)
Device fuses
Connection for VITA vacuum pump
Connection for VITA vacuum pump
Mains power supply connection
Mains power supply connection
Main switch
Main switch
Connection for VITA vPad comfort/
VITA vPad excellence
Connection for VITA vPad comfort/
VITA vPad excellence
Vacuum tube connection
Vacuum tube connection
Pressure regulator 3 bar
Connection for VITA SWITCHBOX
Connection for VITA SWITCHBOX
Compressed air connection
max. 5 bar
Status display
Status display
2.2 Connections on the VITA VACUMAT 6000 MP
(see VITA VACUMAT 6000 MP operating manual)
2.1 Connections on the VITA VACUMAT 6000 M
(see VITA VACUMAT 6000 M operating manual)
2. First use
1. The system 2. First use 3. Operation
ADDITIONAL
INFORMATION
SCOPE OF SUPPLY/
VITA SYSTEM SOLUTIONS TECHNICAL DATA SETTINGS FIRING WINDOW MATERIALS AND
FIRING PROGRAMS OPERATION FIRST USE THE SYSTEM

8
2.3 Connections on the VITA ZYRCOMAT 6000 MS
(see VITA VACUMAT 6000 MS operating manual)
1. The system 2. First use 3. Operation
Device fuses
Mains power supply
connection
Main switch
Connection for VITA vPad comfort/
VITA vPad excellence
Connection for VITA SWITCHBOX
Status display
2.4 Starting up the firing system
Note:
• Please also refer to the installation and commissioning instructions in the VITA VACUMAT 6000 M/VITA VACUMAT 6000 MP
or VITA ZYRCOMAT 6000 MS operating manual.
1. Connect the supplied connecting cable to the VITA vPad comfort and the VITA VACUMAT 6000 M/VITA VACUMAT 6000 MP or
VITA ZYRCOMAT 6000 MS.
2. Connect the VITA vacuum pump (VITA VACUMAT 6000 M/VITA VACUMAT 6000 MP only).
3. Connect the vacuum hose for the VITA vacuum pump (VITA VACUMAT 6000 M/VITA VACUMAT 6000 MP only).
4. Connect the mains power cable.
5. Switch on the device at the main switch.
6. Lift path measurement: The lift moves down to the bottom position, up to the top position and down again to the bottom position.
• If you are using a VITA VACUMAT 6000 MP, please also connect the compressed air connection (max. 5 bar) to the pressure
regulator of the VITA vacuum pump. Attach the enclosed hose clamps to the compressed air hose: 1x at the outlet from the
laboratory compressed air line and 1x at the pump supply inlet.
Please note:
• Attach the VITA firing/sintering base to the lift plate.
• Commissioning the device without a firing/sintering base will lead to high heat exposure, thus damaging the device.

9
2. First use 3. Operation 4. Materials and firing programs1. The system 2. First use 3. Operation
3. Operation
3.1 Gesture controls of the control unit
Zooming
You can maximize or minimize photos or PDFs by using two fingers to enlarge or
contract the image.
Scrolling
Swipe downwards or upwards to move between pages in a PDF.
Short tap
You open the basic firing window, e.g., for a firing program, with a short tap.
Rotating
Photos can be rotated by 90°.
ADDITIONAL
INFORMATION
SCOPE OF SUPPLY/
VITA SYSTEM SOLUTIONS TECHNICAL DATA SETTINGS FIRING WINDOW MATERIALS AND
FIRING PROGRAMS OPERATION FIRST USE THE SYSTEM

10
3.2 System functions
2. First use 3. Operation 4. Materials and firing programs
Materials/firing programs
Altering the
lift position Settings Profiles Photoviewer Help
Active profile
Firing device status
Switching off the
system
VITA Energy
Efficiency
Combustion chamber
temperature
Standby temperature
Date/time

11
2. First use 3. Operation 4. Materials and firing programs2. First use 3. Operation 4. Materials and firing programs
3.3 Switching off the system
Note:
• What? This function allows you to switch off the control unit and the firing unit. You can switch the system on using
the main switch on the back of the firing unit.
• What for? A quick and convenient way of switching off the system.
3.4 VITA Energy Efficiency
Note:
• What? Tapping the VITA Energy Efficiency button warms the firing unit up to a temperature of 200°C and keeps it there.
Tap the button again to deactivate this function. Hold your finger down on the button to switch to the normal standby
temperature.
• What for? Energy saving.
3.5 Standby temperature
Note:
• What? A short tap on the button closes the firing chamber and increases the firing chamber temperature to the set
standby temperature (500°C by default). To deactivate the standby temperature, short-tap the button again. Once the
standby temperature has been reached, it should be held for 20 minutes. The firing unit will then be ready for firing
processes. Press and hold the button to switch to "VITA Energy Efficiency."
• What for? Prevents loss of time by automatically preheating the firing unit so that firing can begin quickly.
VITA AntiCon
If the firing unit is switched off for an extended period of time, then the next time the firing unit is switched on the firing
chamber is heated for 5 minutes while slightly open and the standby temperature is activated. This allows the condensed
water on the insulation to evaporate.
ADDITIONAL
INFORMATION
SCOPE OF SUPPLY/
VITA SYSTEM SOLUTIONS TECHNICAL DATA SETTINGS FIRING WINDOW MATERIALS AND
FIRING PROGRAMS OPERATION FIRST USE THE SYSTEM

12
2. First use 3. Operation 4. Materials and firing programs
Note:
• What for? For setting a custom lift position, e.g., when the standby temperature is active.
Note:
• What? The "VITA" and "Lab" profiles are located here. The firing programs in the "VITA" profile cannot be modified.
You can adjust the "Lab" profile to suit your individual needs. There is no option for adding new profiles.
• What for? The "VITA" profile allows you to use the VITA programs with their original settings. The "Lab" profile allows
you to customize the firing programs.

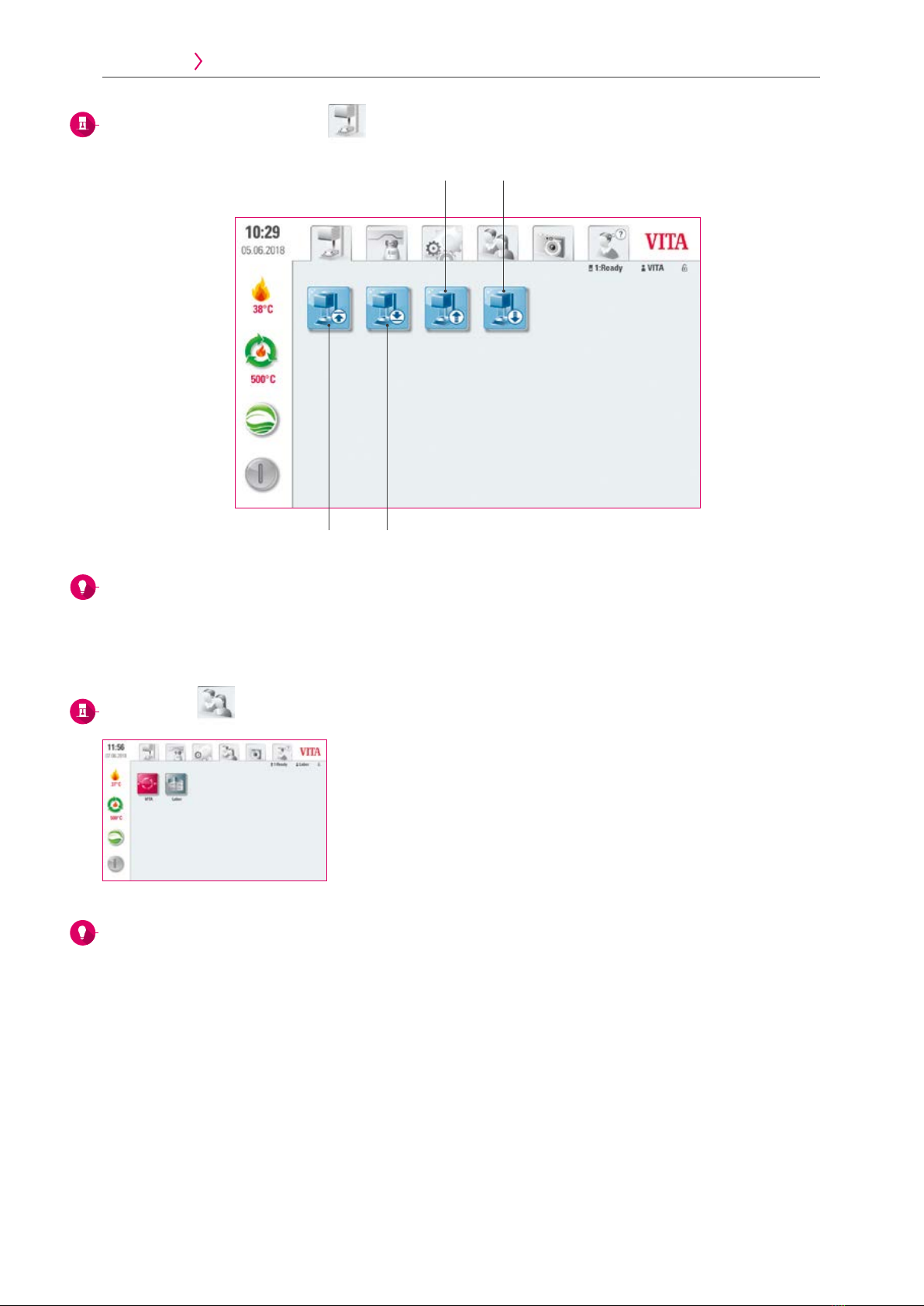

3.6 Altering the lift position
3.7 Profiles
Lift moves up/down automatically
Lift moves up/down for as long as the button remains pressed

13
2. First use 3. Operation 4. Materials and firing programs2. First use 3. Operation 4. Materials and firing programs
Note:
• What? The Photoviewer contains pre-installed images that you can use as your screensaver or wallpaper. If the screensaver
is activated (see section 6.6.), the images in the "Screensaver" folder will be loaded. The vPAD comfort has 2GB of memory.
It can open image files in JPEG and PNG formats. You cannot save any changes you make to images in the vPad comfort.
• What for? Allows you to customize your screensaver and wallpaper.
3.8 Photoviewer
Example: Importing images into the "Screensaver" folder
3
6
2
5
1
4
7
Press and hold to select the images you
want to import.
You can change the name in the
text box. Once you are finished,
click "Save."
Switch to the USB drive.
Open the "Screensaver" folder.
Select the "Screensaver" folder.
Select "Export."
Final imported image.
ADDITIONAL
INFORMATION
SCOPE OF SUPPLY/
VITA SYSTEM SOLUTIONS TECHNICAL DATA SETTINGS FIRING WINDOW MATERIALS AND
FIRING PROGRAMS OPERATION FIRST USE THE SYSTEM

14
1
1
Example: Exporting images onto a USB drive
Example: Deleting images in the Photoviewer
2. First use 3. Operation 4. Materials and firing programs
3
3
2
2
5
5
4
4
Select "Export."
Select "Delete."
Press and hold your finger down on the
first image until it is selected. Short-tap
on other images to select them as well.
Press and hold on the first image until it
is selected. Short-tap on other images
to select them as well.
The images will now be on your USB
drive.
Select the "Screensaver" folder.
Select the "Screensaver" folder.
Select "Save."
Confirm the message.

15
1
Example: Deleting images on a USB drive
2. First use 3. Operation 4. Materials and firing programs2. First use 3. Operation 4. Materials and firing programs
32
54
Select "Delete." Press and hold your finger down on the
first image until it is selected. Short-tap
on other images to select them as well.
Switch to the USB drive.
Confirm the message.
Note:
• What? Here you will find all the working instructions for the VITA veneering materials and devices integrated into
the software. Pressing the Help button in the Material overview or the Settings opens the Help function with a list
of VITA operating manuals. In the Material overview, Help shows all the working instructions for VITA materials.
Help in the "Settings" tab shows all the operating manuals for VITA devices. The last manual that you view will
remain open in the "Help" tab until the device is restarted.
• What for? Quick assistance, thanks to preinstalled operating manuals.
3.9 Help
ADDITIONAL
INFORMATION
SCOPE OF SUPPLY/
VITA SYSTEM SOLUTIONS TECHNICAL DATA SETTINGS FIRING WINDOW MATERIALS AND
FIRING PROGRAMS OPERATION FIRST USE THE SYSTEM

16
3. Operation 4. Materials and firing programs 5. Firing window

17
3. Operation 4. Materials and firing programs 5. Firing window3. Operation 4. Materials and firing programs 5. Firing window
Note:
• What? Here you will find all the pre-installed materials.
• What for? Saves time, thanks to pre-installed materials.
4. Materials and firing programs
Working
instructions
Manage materials
Note:
• What? Here you will find all the working instructions for the VITA materials integrated into the software.
• What for? Quick assistance, thanks to pre-installed working instructions.
4.1 Working Instructions
21
1
Select "Working Instructions."
Select "Materials/firing programs."
ADDITIONAL
INFORMATION
SCOPE OF SUPPLY/
VITA SYSTEM SOLUTIONS TECHNICAL DATA SETTINGS FIRING WINDOW MATERIALS AND
FIRING PROGRAMS OPERATION FIRST USE THE SYSTEM

18
3. Operation 4. Materials and firing programs 5. Firing window
Note:
• What? This function allows you to create, copy, edit, delete, import and export materials.
• It is not possible to make changes to the "VITA" profile. The "Lab" profile is a copy of the "VITA" profile, and can be
modified to suit your needs.
• What for? Allows you to design custom materials and material sequences.
4.2 Managing materials
Edit material
Delete material
Import material
Back
Copy material
Export material
Create new material
21 Select "Manage materials."

19
3. Operation 4. Materials and firing programs 5. Firing window3. Operation 4. Materials and firing programs 5. Firing window
Example: Creating a material
3
6
2
5
1
4
7
Activate the text box.
Select the firing curve type and
background color and confirm.
Select "Create material."
Confirm.
Select "Manage material."
Enter a material name.
Your final material.
Firing curve types
Pre-drying curve = e.g., drying
stained zirconium restorations
Two-stage curve = special programs,
e.g., IPS e.max CAD crystallization
Sintering curve
Pressing curve
Single-stage curve =
standard firing curve,
for most market-standard
firing programs
Single-stage curve =
standard firing curve,
for most firing programs
on the market
ADDITIONAL
INFORMATION
SCOPE OF SUPPLY/
VITA SYSTEM SOLUTIONS TECHNICAL DATA SETTINGS FIRING WINDOW MATERIALS AND
FIRING PROGRAMS OPERATION FIRST USE THE SYSTEM

20
3. Operation 4. Materials and firing programs 5. Firing window
Example: Deleting material
Example: Editing material
Example: Copying material
3
3
3
2
2
2
1
1
1
4
Confirm.
The material can be edited.
Your final copied material.
Select "Delete material."
Select the material you want to edit,
then "Edit material."
Select "Copy material."
Select the material you want to delete.
Select "Manage material."
Select the material you want to
duplicate.
Your final deleted material.
