VITRA V-Care User manual

Bathroom Appliance

CONTENTS
Quick Start 2
User Guide 8

2
V-Care Smart Panel
The V-Care Smart Panel prepares reports to support
sustainability and raise awareness of water usage. It also relays
local announcements such as water- and power shortages
or cuts, allowing you to better manage the ushing systems.
Diagnostic algorithms help predict failures in advance, and the
back-up power unit ensures use of the toilet up to ten times in
case of a power cut.
Optimised usage

3

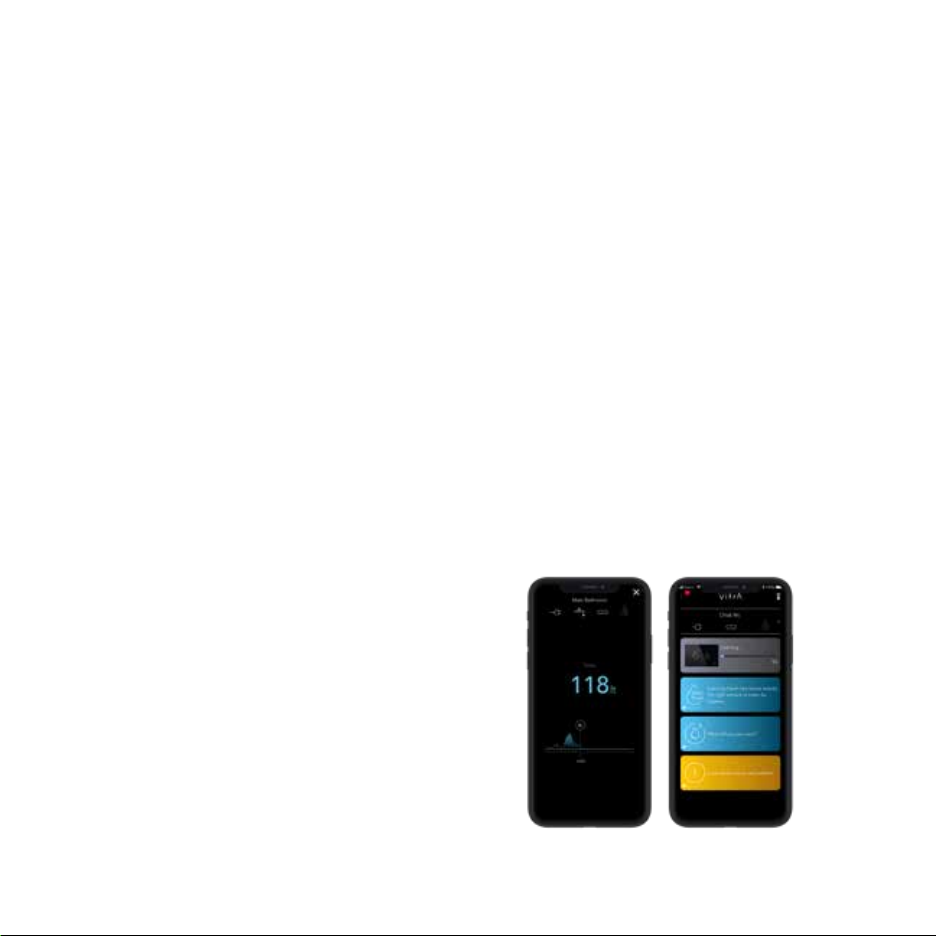

The mobile app offers additional benets such as comfort,
usage data display, remote control and updating. The status
of the WC and the ushing system can be monitored and
controlled via the mobile app anywhere with a network
connection.
The mobile app proffers the user optimum functionality and
performance.
Connectivity
Secure pairing between the control
panel and the mobile app over wi-
prevents misuse, ensuring only
one user is paired at any one time.
The V-Care Smart Panel software is
always updated through an internet
connection.
V-Care Smart Panel
Mobile App

4
V-Care Smart Panel
The network connection
for your Smart Panel is vital
for taking advantages such
as proposing weekly and
monthly reports, notifying
local announcements.
For additional benets such
as ease of use, comfort and
increased hygiene in the
toilet, please create a
VitrA user account.
The application lets you to
create your account.
Experience the V-Care
Smart Panel Mobile App
that widens the limits
of time and place with
extended control features.
a. Menü
b. Remote Control
c. Panel Status Bar
d. Informative Cards
Network setup
Create VitrA
user account
Explore your app
The V-Care Smart Panel
Mobile App is available for
IOS and Anroid platforms.
Go to your application
store to download to your
mobile phone and run the
application after download.
Download
Following creating user
account, mobile app directs
you to pair your device and
your mobile phone. Please
folow the instructions given
by mobile app.
Pair your device
a b
c
d

5
V-Care Smart Panel
Usage statistics for weekly and monthly reports
Usage statistics for weekly and monthly reports
Installation
& Pairing
Week 1 Week 2 Week 3 Week 4
Wellcome Weekly
Report
Weekly &
Weekly
Comparison
Reports
Weekly &
Weekly
Comparison
Reports
Weekly &
Monthly
Reports
Instant notications
• Number of half and full ushes, and the volume of water used
• The total volume of water used
• Number of correct ush choices to prevent excessive water usage
• Total time spent in toilet
• Average time spent per session
• Peak days of usage
• Power status
• Connectivity status
• Critical system diagnostics
• System failures

6

7
User Guide

8
Safety instructions
The connection of electricity and water system must be done in a secure and reliable way.
Please be aware of electric shock caused by power supply mains connection during
installation.
Smart Panel’s glass breaking by an outer impact may cause physical injury.
Do not remove the product from its installed position. Please, call an authorized
repairment service.
Do not use the device near explosive or ammable environments and materials.
Keep the packaging materials out of reach of children.
Installation
For installation, please check out the Installation Manual yer in the package.
Sticker
A temporary transparent sticker on V-Care Smart Panel expresses the functions of buttons
for easy to start. After a while, you can remove it.
Care instructions
How to clean the panel?
• Do not use abrasive cleaners or chemicals for cleaning glass panel
• Clean stains using a soft and dry cloth or squezzed wet wash-leather to prevent glass
panel from scratching
• Remove remaining droplets on the edge of glass with a dry cloth after cleaning process
Please use Lock button while cleaning the panel. For more information, please go to
Panel Features (pg. 11)

9
Panel features

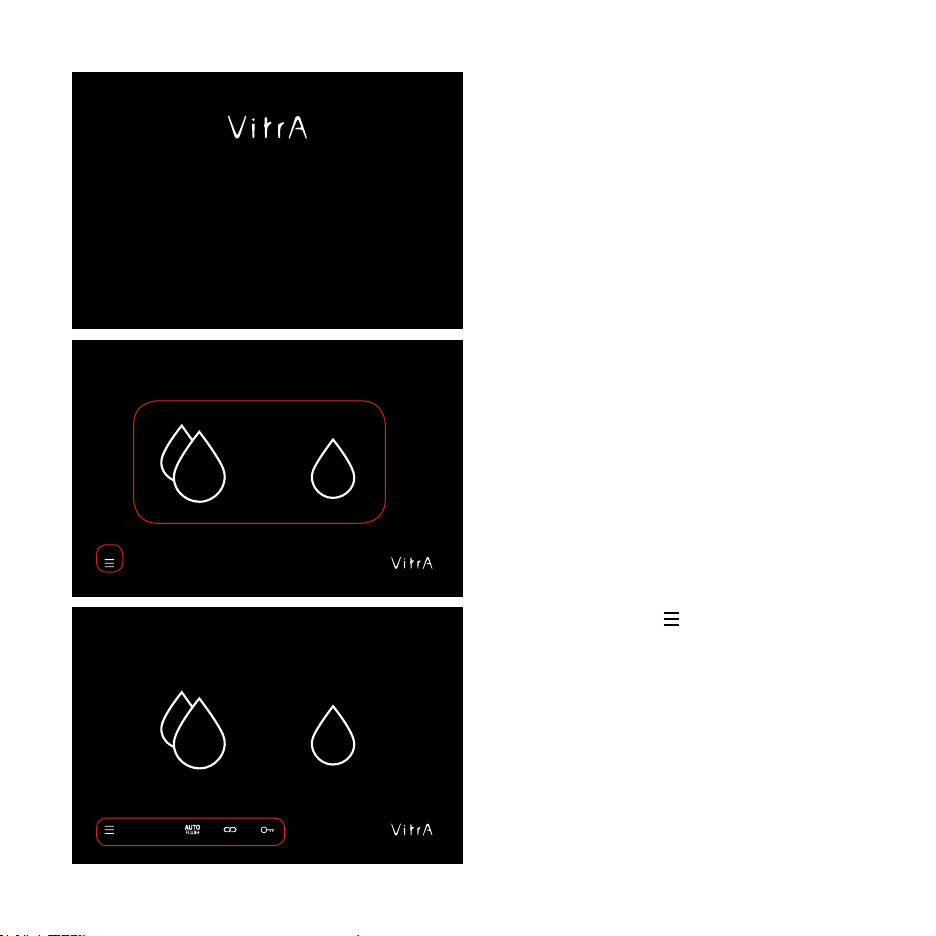

Smart Panel is at stand-by mode with VitrA
logo illumination as a night light feature in
case of not used for a while. The function
buttons are hidden as in the below image.
After user detection, Smart Panel awakes
thanks to its sensor technology and the
function buttons are visible as in the left
image.
Please touch Menu ( ) icon to view
setting options. You may then touch one
of the feature icons to activate/deactivate
through Smart Panel as in the below image.

10

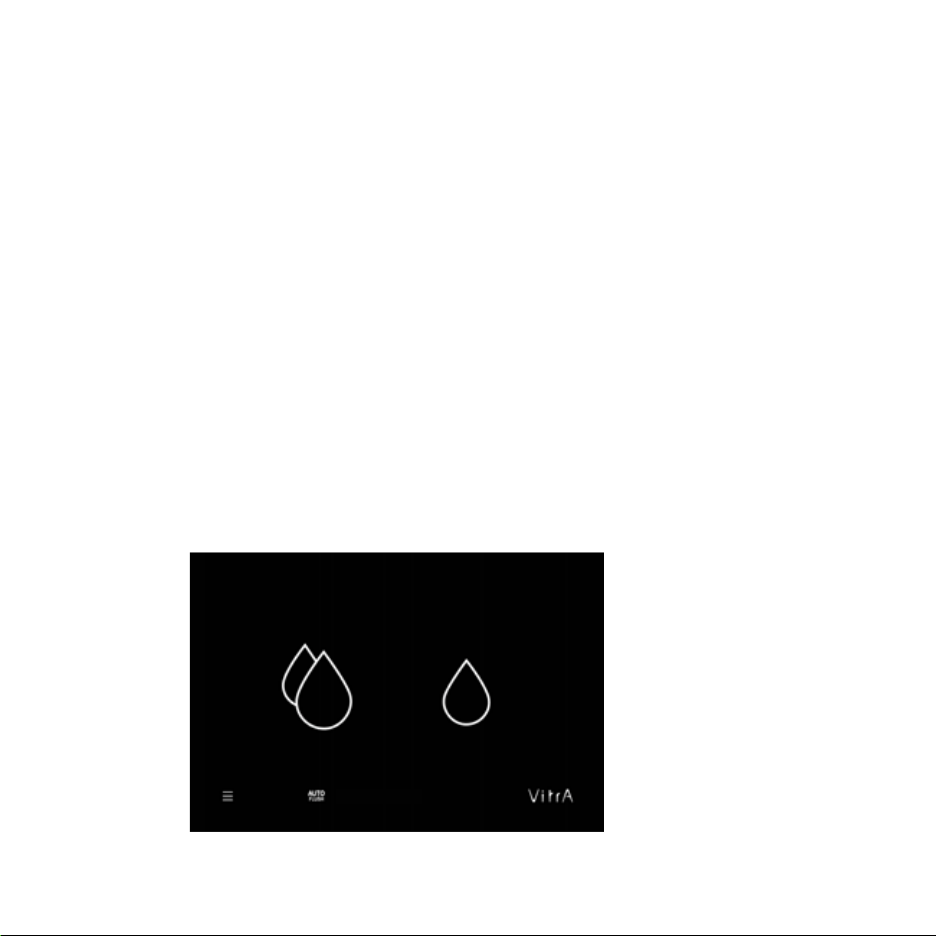

Functions of Smart Panel
Warning
Full
Flush
Menu
Auto
Flush
Lock Periodic
Flush
Connectivity
Half
Flush

11
Buttons
Full Flush: Supplies whole amount of water in the cistern (6 or 4 L)*.
Half Flush: Supplies approximately the 2/3 of water in the cistern (3 or 2,5 L)*.
Menu: Shows feature options when touched to activate/deactivate feature through
Smart Panel.
Auto Flush: The V-Care Smart Panel’s integrated sensors provide a touch-free control
option for the Auto Flush feature and supplies the optimum volume of water with each
ush.
Connectivity: Secure pairing between the control panel and the mobile app over wi-
prevents misuse, ensuring only one user is paired at any one time. The V-Care Smart Panel
software is always updated through an internet connection.
Lock: The Lock feature allows the user to deactivate the panel when required for
maintenance or security reasons. In order to prevent accidental deactivation by children,
the Lock feature is set to a ve second press of the button.
Periodic Flush: A period of inactivity could lead to bacterial proliferation, backow through
the waste pipes and build-up of minerals and other deposits. The V-Care Smart Panel’s
Periodic Flush Mode regularly washes the bowl to minimise the risk of dirt, stains, odours
and bacterial growth, thereby greeting users with a hygienically clean toilet every time.
The default setting is ON, but it can be turned OFF via the mobile app.
Warning: Shows that a warning is generated about the Smart Panel. To learn content of
warning, please check V-Care Smart Panel mobile application.
*One of the values according to the concealed cistern type.

12
Remote Access
The application is available for Android and iOS devices to access remotely to Smart Panel. Please go
to your smart phone’s application store to download V-Care Smart Panel mobile application and then
follow the directives given by mobile application to connect the panel.
By using mobile application, it is easy to explore the features for an individual usage even from afar.
Exceeding the standard usage of the ush, mobile application widens the limits of time and place
with extended control features. It also noties local announcements such as water shortage and
power shortage allowing you to better manage the ushing systems.**. Always up-to-date software
of panel.
Dashboard
The dashboard enables remote monitoring of all installed plates, statistics viewing, and function
control for commercial enterprises and institutions.
**Receives and conveys the information from the website of local administration.
Compatibility
Compatible with all VitrA concealed cisterns with electrical installation set.
Requirements
Pre-installed electrical set is required. Remote access requires a smart phone supporting
Bluetooth 4.0 and above, Wi network and a VitrA user account.

Technical specications
Product
Name
Model
Name
Package Contents
V-Care Smart Panel
748-1501
DC Working
Voltage 6.6VDC
Max.Power
Consumption 10W
Product Size 159 x 238x 45
Weight 860 gr
IP Rating IP67 (Water and dust proof)
Glass Type Tempered
Button Type Capacitive Touch
Sensor Type Optical Proximity
Connectiviy Bluetooth 4.0
Wi 802.11b/g/n
Servo Motor Group
436462 (Lever Mechanism
Group) 437244 (Servo
Motor Group – Assembled
(646wp+437185)
Input 5 ±1.5VDC
Output 5 ±1.5VDC
Product Size 82 x 118 x 66
Weight 165 gr
IP Rating IP67 (Water and dust proof)
Back-Up Power
Supply Unit
437332 (Battery
(Smart)
Input 6.6 ±0.3VDC
Output 5.3 ± 0.3VDC
Product Size 61x75x43
Weight 200 gr
IP Rating IP67 (Water and dust proof)
Capacity 6 hours / 10 ushing

14
If this is not the case, call an authorized repairment service.
Troubleshoot
Warning Type Symptom Cause Remedy
Power Device has no power
A power shortage
may occur. Back-up
power supply unit
may also run out
due to long duration
shortage.
The back-up power
supply unit will be
charged automatically
after power shortage
ends up.
Connectivity
No connection via
Wi
Network SSID or
password does not
match.
Edit network SSID and
password through
Manage Panels tab of
mobile app.
Wi signals are not
adequate.
Improve Wi signal by
using an appropriate
Wi repeater for your
local network.
No connection via
Bluetooth
Mobile application is
out-of-date.
Update mobile
application
Smart phone is not
compatible.
Inspect the
specication of smart
phone
No access to Manage
Panels tab via mobile
application
Device is already
assigned to another
user.
Call an authorized
repairment service

15
Compliance with WEEE Regulation and Disposal of The Waste Product
This product does not contain harmful and forbidden materials described in the “Directive
on the Restriction of the Use of Certain Hazardous Substances in Waste Electrical and
Electronic Equipment” (EEE) issued by the T.R. Ministry of Environment and Urbanization.
Complies with the WEEE Directive. This product has been manufactured with high quality
parts and materials which can be reused and are suitable for recycling.
Therefore do not dispose of the product with normal domestic waste at the end of its
service life. Take it to a collection point for the recycling of electrical and electronic
equipment. Please consult your local authorities to learn the nearest collection point. Help
protect the environment and natural resources by recycling used products.
Package Information
Packaging materials of the product are manufactured from recyclable materials in
accordance with our National Environment Regulations. Do not dispose of the packaging
materials together with the domestic or other wastes. Take them to the packaging material
collection points designated by the local authorities.
Certicate of Conformity
This product conforms to the European directive 2014/30/EU.
Technical and design modications reserved.
Warranty
2 years.
Privacy Policy
Company Information
Eczacibasi Building Products Division
Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with the relevant
standards. Depending on operational and environmental conditions of the product, these values may vary.
