Compact Tile Cutter
Owner’s Safety and Operating Manual
10 3402NDE

Tel: [phone]
02
Contents
Safety Instructions ..................................................3
Machine Specification & Electrical Requirements ......4
Assembly & Operating Instructions ......................5-7
Maintenance & Warranty ........................................7
Owner’s Safety and Operating Manual
Compact Tile Cutter

Fax: [phone]
Safety Instructions
To use this tool correctly, you must
observe the Safety Regulations, the
Assembly Instructions and the Operation
Instructions contained in this Manual.
All persons who use and service the
machine must be acquainted with this
Manual and must be informed about any
potential hazards.
Children and infirm people must not use
this tool. Children must be supervised at
all times if they are in the area in which
the tool is being used.
It is also imperative that you observe the
accident prevention regulations in force in
your area. The same applies for general
rules of occupational health and safety.
• Take suitable precautions to protect
your eyes, ears, lungs and hands
when operating the Wet Saw.
• Keep children and others away from
the machine whilst in use.
• Only use circular blades with
a continuous rim – DO NOT USE
segmented circular blades, saw blades
or abrasive disks.
• The machine should be used indoors
only, in a clean, dry, well lit area and
on a clutter free, flat work surface.
• Avoid wearing loose clothing, ties,
rings, bracelets or other loose items
which may become caught in the
moving parts. ong hair should also
be tied back or contained.
• Always ensure that all loose tools and
components are removed from the
immediate working area.
• Switch machine off between cuts and
disconnect from mains supply before
carrying out any maintenance,
cleaning or changing the blade.
• Do not leave the saw running
unattended or touch the blade whilst
in motion – always use the blade guard
when cutting.
• Replace damaged blades immediately
and ensure that new blades are fitted
correctly to run in the direction
indicated on the blade.
• Only recommended replacement parts
should be used with this machine
– use of improper accessories could
cause serious injury.
Thermal Overload
Protection
This machine has built-in thermal
overload protection designed to prevent
overheating.
Should the thermal overload protection
trip, ensure that mains power supply and
machine switch are turned off.
Allow the machine to cool down for 10-15
minutes before restarting.
03
Compact Tile Cutter

04
Machine Specification & Electrical Requirements
Power Supply 230v 50Hz
Motor Hi-Torque Geared Motor
RPM (No load) 4600 rpm
Maximum Depth of Cut (with new blade) 25mm
Maximum Depth of Cut at 45° (with new blade) 17mm
Mitre Cutting Angle 22.5/45 degrees
Cutting Angles 0-45 degrees
Note: If the sound intensity level exceeds 85 db (A) ear protection should be worn by the operator
• Ensure that the mains voltage
corresponds to the instruction plate
– a single phase socket with two
contacts and an earth is obligatory.
• Use of an approved RCD circuit breaker
between the machine and the electrical
power point is highly recommended.
• To reduce the risk of unintentional
starting, make sure that the switch
is in the OFF position before plugging in.
• Repair or replace damaged or worn
cable immediately after first
disconnecting from
mains supply.
• Electrical faults must only
be carried out by a
qualified electrician.
The contents of the box should include
the following (See pic below):
• Compact Tile Cutter
• Blade Assembly Set comprising of
110mm Diamond Blade, blade carrier,
blade washer, blade securing nut,
splashboard and splashboard
securing screw
• Blade guard set comprising of bolt,
wing nut, washer, guard support and
blade guard
• Rip Guide and securing nuts
• Variable Angle Mitre Guide
• Clip On Extension Table
• Owner’s Safety & Operating Manual
IMPORTANT
Your new Vitrex Torque-Master Power Compact Tile
Cutter contains a unique Hi-Torque geared motor,
which when in use produces a distinctive loud sound.
This is a characteristic of the High Performance motor
and is important in producing the torque for optimum
cutting performance.
For best results allow the blade to do the work, rather
than forcing the tile through the machine. Should the
blade stop, simply ease the tile away and then
continue cutting using slightly less pressure.
Tel: [phone]
COMPACT TileCutter
Owner’sSafety and OperatingManual
103402NDE

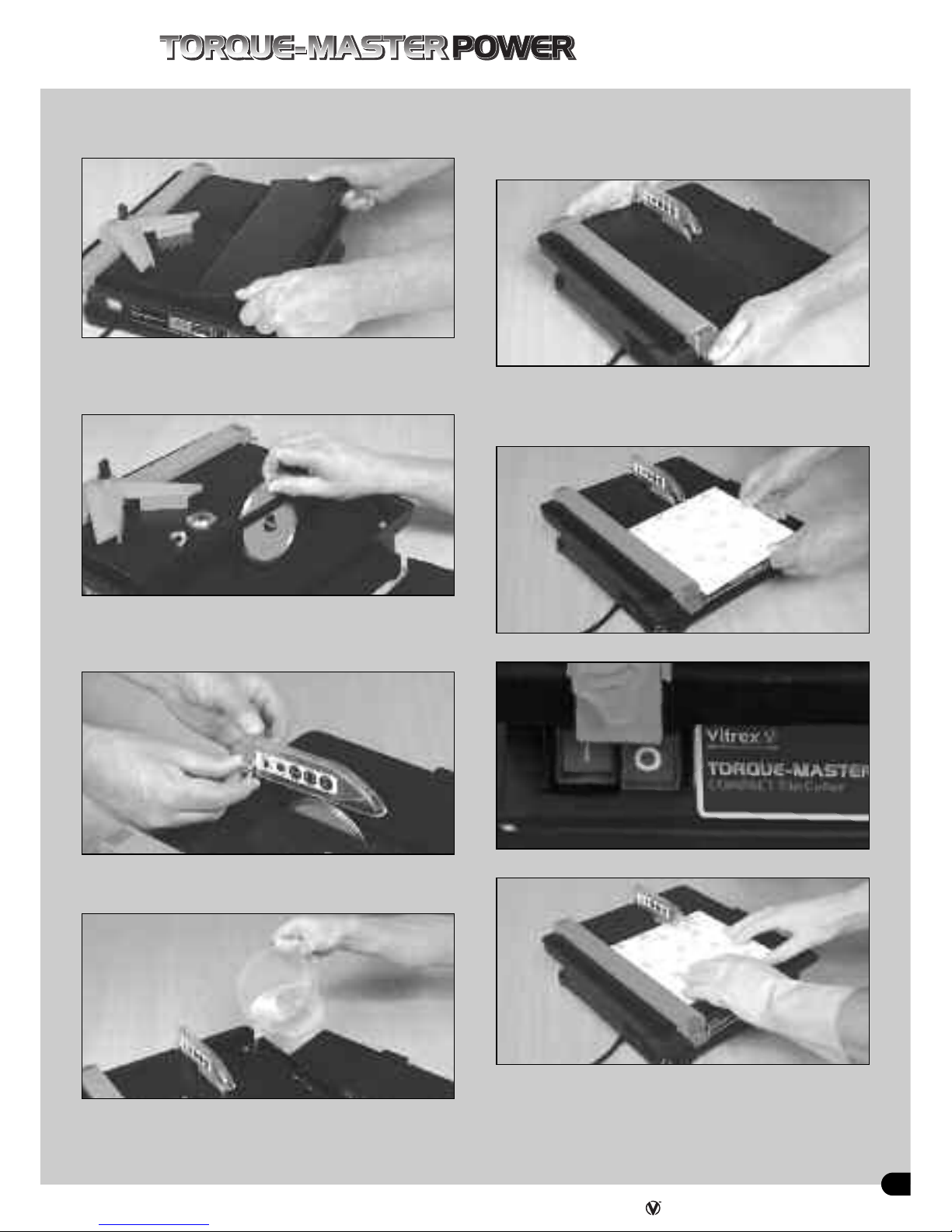

To fit the Cutting Blade, first carefully lift the hinged
section of the table top. Remove screw from
splashboard and remove the splashboard to allow
access. Remove blade securing nut and blade washer.
05
Close the table top hinged section and insert the blade
guard set behind the blade opening. Adjust the height
accordingly.
Before use, fill reservoir with water. For cleanest
results, only use enough water to cover the rim of the
blade. Check water level frequently during use.
Do Not allow the blade to run dry!
Assembly & Operation Operating Instructions
Straight Cuts
Position blade against the blade carrier with the directional
arrows on the blade facing anti-clockwise. Replace the
blade washer and blade securing nut. Then replace the
splashboard and secure with screw.
Switch on the machine.
Maintaining an even pressure, hold the tile against
the cutting guide and push steadily through the
cutting blade. When the cut is complete,
switch off the machine.
Position the tile on the table top.
Place the Rip Guide on the table top and line up with
the measurement graduations on either edge to the
required size. When correctly aligned, tighten the rip
guide securing nuts.
Fax: [phone]
Compact Tile Cutter

06
Operating Instructions
Angular Cuts
Operating Instructions
Mitre Cuts
Place the tile against the angled table top.
Switch on the machine and feed the tile through
the cutting blade. When the cut is complete,
switch off the machine.
ocate the appropriate lugs into the slots provided
on the inside edge of the reservoir.
For mitre cuts, raise the hinged section of the table to the
required angle (22.5° or 45°)
Re-tighten the knob and position the tile within the
jaws of the Mitre Guide.
Switch on the machine and while holding the tile firmly
in position, push the mitre guide steadily along the rip
guide, feeding the tile through the cutting blade.
When the cut is complete, switch off the machine.
Slacken the diamond-shaped knob and set the
required angle of cut.
Press the Mitre Guide into place on the Rip Guide.
Tel: [phone]

07
Operating Instructions
Extension Table
Operating Instructions
Slide out extension table, following arrow direction.
After use, clean and remove any tile debris before
retracting the extension table.
Maintenance
• Always check the blade before use for
cracks or signs of damage.
• Ensure that the reservoir is filled
up to the recommended level.
Do not overfill or allow it to run dry.
• Always clean the machine after use,
after first ensuring that it is disconnected
from the mains.
• Rinse out reservoir thoroughly
to remove all sludge and wipe down
outside of machine using a cloth
or sponge.
• When not in use, store the electrical
cable and plug under the machine
in the space provided.
• No other servicing is required in normal
use. No attempt should be made to repair
or replace internal components as this will
invalidate any claim whilst the product is
under guarantee.
Consumer Advice
• Do not dispose of electrical products
with your normal household waste.
• Always use recycling facilities
whenever possible.
• Additional recycling information can
be found through your local Authority
or Retailer.
• For further information or advice,
please call the Vitrex Technical
Helpline on 01253 789180.
Q.E.P. Co UK td is committed to a continuing program of
product improvement. Consequently, please be advised
that specifications, performance, appearance, and
dimensions of QEP/Vitrex products are subject to change
without notice. For more up-to-date information about our
range of products, please contact our Customer Service
Office on [phone] or your local distributor.
This electric tile cutter has been manufactured to a high quality standard. It is guaranteed against faulty materials and
workmanship for 12 months from the date of purchase. Any claim must be accompanied by a valid till receipt as proof of purchase.
A faulty machine will either be repaired or replaced free of charge. If a direct replacement is not available,
an alternative to the same or greater value/specification will be offered.
This guarantee does not cover machine defects caused by or resulting from: a) Misuse, abuse or neglect,
b) Trade, Professional or hire use, c) Repairs attempted by anyone other than our authorised repair agent,
d) Ingress of foreign objects, substances or accident
In the unlikely event of a fault occurring, contact should be made through the Vitrex Technical Helpline (01253 789180).
The above guarantee is only valid within the UK and does not affect your statutory rights.
The guarantor is Q.E.P. Co. UK td., Everest Road, ytham St. Annes, ancashire, FY8 3AZ (Registered No. 04988177 England).
Fax: [phone]
E189-5416
ocate the lugs on the extension table into the slots of
the side of the main body and ensure table is level
before use.
Compact Tile Cutter
