VIVA FITNESS T255 User manual

VIVA FITNESS
TREADMILL
OWNER’S MANUAL
ITEM NO. T255

1
WARNING
Read all instruction carefully before use this product. Retain this owner’s manual for the future’s reference:
----When using this treadmill, keep attaching the safety pull pin rope to your clothes.
----When you are running, keep your hand swinging natural, stare frontward,
never look adown at your feet.
----Add the speed step by step when running.
----When emergency happens, take away the “emergent stop button” immediately.
----Leave the treadmill after the running belt stop stably.
Caution: Read the assembly instruction carefully,follow the instruction when assemble.
ATTENTION
01- Before starting any exercise program, consult with your physician or health professional.
02- Check all the bolts locked.
03- Never put the treadmill in the wetness area, or it will cause troubles.
04- We take no responsibility for any troubles or hurts due to above reasons.
05- Dress sport clothes and shoes before running.
06- Do not do exercise in 40 minutes after meal.
07- To prevent hurts, please warm up before exercise.
08- Consult with doctor before exercise if you have high blood pressure.
09- The treadmill is only used for adults.
10- Provide the olds, children and handicapped with good care, guide and supervision.
11- Do not plug anything into any parts of this equipment, or it may damage.
12- Do not connect line to the middle of cable; do not lengthen cable or change the cable plug; do not put any heavy
thing on cable or put the cable near the heat source; forbid using socket with several holes, these may cause fire or
people may be hurt by the power.
13- Cut off the power when the equipment is not used. When the power is cut off , do not pull the power line to
keep the wire unbroken.
14. Maximum weight of user: 120KGS.
15. Pulse monitor data may not be accurate, can not be used for medicine. Over-exercise may cause injury, even
death. If you have a feeling of dizziness, sickness or other abnormal symptoms, please stop training and consult a
doctor immediately.

2
IMPORTANT SAFETY PRECAUSTION
1. Plug the power cord of the treadmill directly into a dedicated grounded circuit. This product must be grounded. If it
has breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
2. Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may interfere with
proper ventilation. Do not place the treadmill near water or outdoors.
3. Position treadmill so that the wall plug is visible and accessible.
4. Never start the treadmill while you are standing on the walking belt. After turning the power on and adjusting the
speed control, there may be a pause before the walking belt begins to move, always stand on the foot rails on the
sides of the frame until the belt is moving.
5. Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting clothing that may be
caught in the treadmill. Always wear running or aerobic shoes with rubber soles.
6. Make sure the power supply is connected and the safety lock is effective before using the treadmill. Fit one side of
the safety lock on the treadmill and clip the other side on your clothes or belt, which will enable you to pull off the
safety lock promptly in an emergency.
7.Always unplug the power cord before remove the treadmill motor cover.
8. Make sure there is no less than 2*1m space behind the treadmill.
9. Keep small children away from the treadmill during operation.
10.Always hold the handrails when initially walking or running on the treadmill, until you are comfortable with the use
of the treadmill.
11. Always attach the safety pull pin rope to your clothing when using the treadmill. If the treadmill should suddenly
increase in speed due to an electronics failure or the speed being inadvertently increased, the treadmill will come to a
sudden stop when the pull pin is disengaged from the console.
12. In case of any abnormality during the use process, please remove the safety lock immediately, grasping the
handlebar and jumping onto the two edgings, then get off the treadmill after it stops.
13. When the treadmill is not being used, the power cord should be unplugged and the safety pull pin removed.
14. Put the safety key away where can not be reached by the children. Minors must be accompanied by the adults
when using the treadmill.
15. Before starting any exercise program, consult with your physician or health professional. He or she can help
establish the exercise frequency, intensity (target heart zone) and time appropriate for your particular age and
condition. If you have any pain or tightness in your chest, an irregular heartbeat, shortness of breath, feel faint or
have any discomfort while you exercise, STOP! Consult your physician before continuing.

3
16. If you observe any damage or wear on the mains plug or on any section of the mains lead then please have these
replaced immediately by a qualified electrician –do not attempt to change or repair these yourself.
17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
18. Put your feet on the side rail before using the treadmill, and always attach the safety pull pin rope to your clothing.
Hold the handle bar before the running belt moving well (feel the running speed by your single foot before using it).
To avoid loss balance, please slow down the speed to the lowest or take off the safety. And hold the handle bar to
jump to the side rail when emergency or the safety key is not attached.
19. Make sure the treadmill has stopped before folding. Please don’t operate it after folding the treadmill.
ASSEMBLY STEPS
ASSEMBLY STEP ONE：
Open the package, take out all parts and place the main frame on the flat ground. (NOTE: please don’t cut down the
packing straps right now.)
ASSEMBLY STEP TWO:
1. Cut down the straps when the main frame was placed well. (NOTE: Don’t move it any more)
2. Lift up the upright tubes (14, 15) upwards. (Notice: When you pull up them, make sure do not press the wires
inside the upright tube. Keep holding the tube by hands to prevent it and wires from dropping down.
3. Lock the upright tubes (14, 15) to the bottom frame (1) with allen pan head bolt (13) and serrated lock washer (5).
(ATTENTION: do not lock too tight for the time being.)

4
ASSEMBLY STEP THREE:
1. Firstly, connect the computer linking wire(69) with the extension wire(12); then lock the computer bracket(66) on
the upright tubes (14,15) with allen pan head bolt(13) and serrated lock washer(5). Finally, lock all the screws
installed before tightly.
2. Fix the protective guard (17L/R) to the bottom frame (1) with cross pan head tapping screw (18).

5

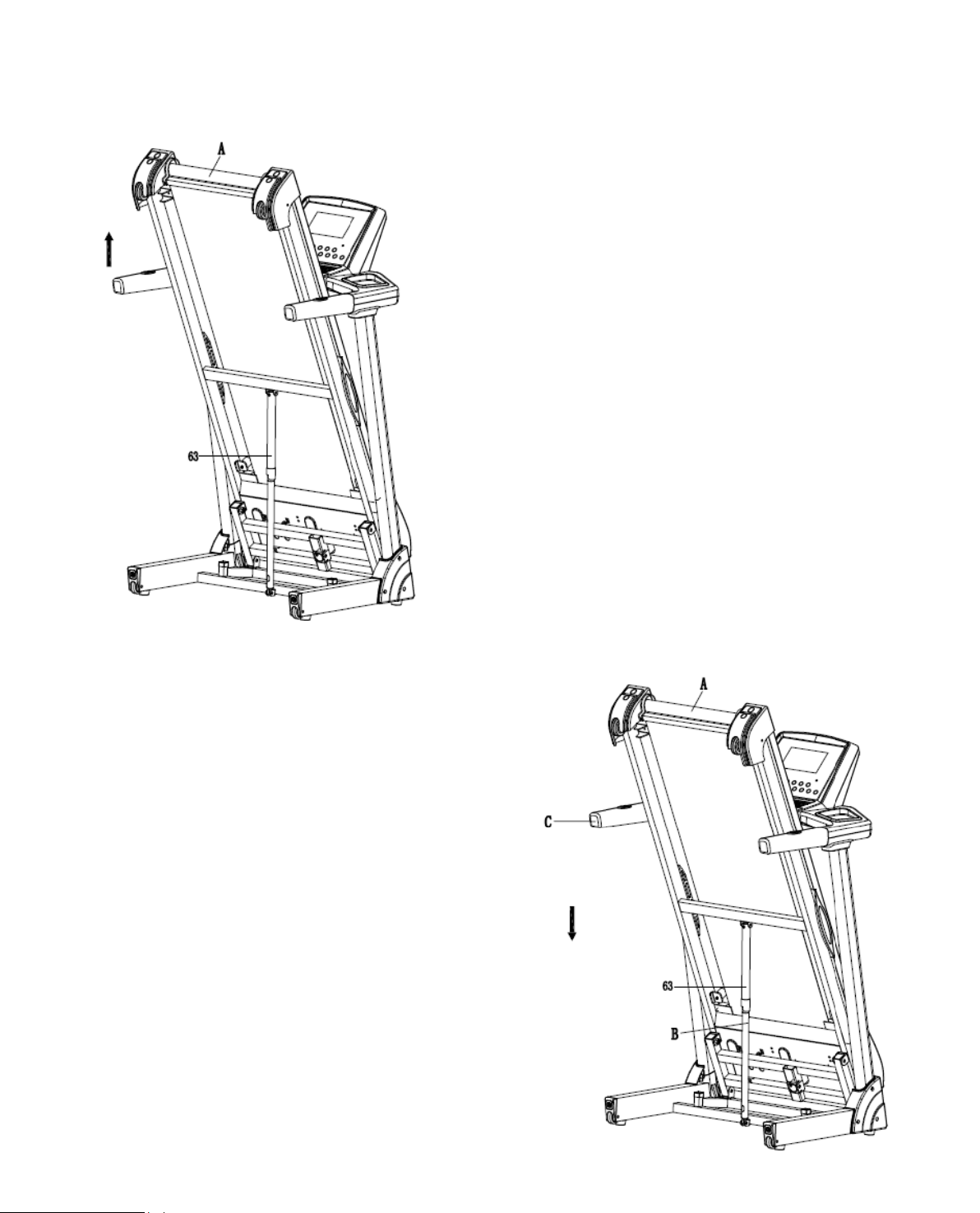

When you fold the machine:
Put your hands on placeA, lift up the machine, then push it to the
direction of the arrow, stop it when you hear the sound from the
cylinder (63).
When you unfold the machine:
Grasp the place A by your hands, knick the place B of
cylinder(63) by your right foot, push the running board to the
level of place C ,then the running board will get down
automatically.

6
GROUNDING METHODS
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
DANGER –Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the product –if it will not fit the outlet, have a
proper outlet installed by a qualified electrician. This product is for use on a nominal 220-Volt circuit and
has a grounding plug that looks like the plug illustrated in sketch A in following figure. Make that the
product is connected to an outlet having the same configuration as the plug. No adapter should be
used with this product.
TECHNICAL PARAMETER
ASSEMBLY SIZE(mm)
1860X790X1360
POWER
AS ORDER
FOLDABLE SIZE(mm)
990X810X1610
MAX OUTPUT
AS ORDER

7
POWER
RUNNING SURFACE
SIZE(mm)
460X1400
INPUT CURRENT
AS ORDER
NET WEIGHT
72KG
SPEED RANGE
1.0-18KM/H
MAX WEIGHT
120KG
INCLINE
0-15%
Operation Instructions
IDescription to windows and keys
1. LCD windows will display the following functions:
A. Speed window: display speed data.

8
B. Time/ heart rate window: display time/ heart rate data. Display heartbeat in the operation process first.
C. Distance/ calorie/ incline windows: display distance/ calorie/ incline data. Display in turn in operation process.
Press "Mode” to switch the display. Incline will be displayed first for section change; incline will be displayed first
for stop; if the incline is 0, the value displayed is the distance.
D. Function keys: START, STOP, PROGRAM, MODE, SPEED +, SPEED -, INCLINE +, INCLINE -, SPEED
SHORTCUT (2、4、6，8，10，12，16) KMH/MPH, INCLINE SHORTCUT (2、4、6，8，10，12，15)%;
2. Description to function keys:
A. Program: in the stop state, press it to select programs in turn: manual mode -P01 -P02- ...-P14 -U01 -U02 -U03，
FAT
B. MODE: in the stop state, press it to select programs in turn: manual mode (normal state) - time countdown-
distance countdown –calorie countdown.
C. START: in the stop state, press it to start up the motor.
D. STOP: when the motor is running, press it to stop the motor.
E. SPEED +: in setting sate, press it to increase the set value. When the motor is running, press it to increase the
speed.
F. SPEED -: in setting sate, press it to decrease the set value. When the motor is running, press it to decrease the
speed.
G. INCLINE +: in setting sate, press it to increase the set value. When the motor is running, press it to increase the
incline.
H. INCLINE -: in setting sate, press it to decrease the set value. When the motor is running, press it to decrease the
incline.
I. When the safety lock is removed, press PROGRAM+MODE for 3s to for metric –inch conversion.
II Instructions to fixed program/ startup
1. Program:
A. One manual mode, including normal mode, time countdown, calorie countdown and distance countdown modes.
B. 14 fixed programs: P01, P02… P14.
C. 3 customized programs: U01, U02 and U03.
2. Startup
A. Past the safety lock to the safety lock switch position on the panel.
B. Press “START” and the window will display 3—2—1; for each time of number reduction, the buzzer will sound.
Then, the motor will be started.
III Manual mode:
1. How to enter manual mode:
A. Switch on the power supply; then, directly enter normal mode under the manual mode.
B. In stop state, press MODE to select normal mode under the manual mode
2. Three setting functions under manual mode: time setting, distance setting and calorie setting.
A. When entering the manual mode, the time is displayed as 0:00;
B. In manual mode, press MODE to enter time countdown mode; the time window will display the time and flicker;
the initial time is 30:00; set countdown time by SPEED +/ SPEED - and INCLINE +/ INCLINE -. Time setting
range: 5:00-99:00.
C. In time countdown mode, press MODE to enter distance countdown mode; the initial distance will be displayed as
1.00 km/mi; set the distance by SPEED +/ SPEED - and INCLINE +/ INCLINE - in the range of 0.50-99.90
km/mi; each time of increase/ decrease will be 0.1 km/mi.
D. In distance countdown mode, press MODE to enter calorie countdown mode; the initial distance will be displayed
as 50.0kcal; set the calorie by SPEED +/ SPEED - and INCLINE +/ INCLINE - in the range of 10.0-999.0 kcal;
each time of increase/ decrease will be 1.0kcal.
3. Operation in manual mode:
A. Press START and the motor will start operating after 3s of countdown; the initial speed will be 1.0km/h for metric
system or 0.6mile/h for imperial system;
B. Press SPEED +/ SPEED - to adjust speed;
C. Press INCLINE +/ INCLINE - to adjust the incline;
D. Press speed shortcuts to quickly set up to the speed marked on the key;
E. Press incline shortcuts to quickly set up to the incline marked on the key;
F. When the motor is running, press STOP to stop the motor;
G. Remove the safety lock to urgently stop motor running; then, LCD window will display “---” and the buzzer will
make short sound of Bi-Bi-Bi.

9
H. When the set time reduces to zero or when the set calorie reduces to zero, or the set distance reduces to zero, the
buzzer will make short alarm “Bi-Bi-Bi”, the speed window will display END; 5s later, the machine will return to
the standby state and the buzzer will make long alarm “Bi-Bi”;
I. Parameters not set will increase forwards, and will be reset after reaching the upper limit of the display range; in
manual mode, the machine will stop when the time accumulates to be more than 99: 59 (100min).
IV Fixed program mode:
1. The initial time is set to be 30min; only time can be set; setting range: 5:00- 99:00. Press SPEED +/ SPEED - or
INCLINE +/ INCLINE - to adjust the set value;
2. Press START key, the motor will start running and the speed will gradually increase to the value for the first section of
auto program (see details in the table of program parameters);
3. Press SPEED +/ SPEED - to adjust speed;
4. Press INCLINE +/ INCLINE - to adjust the incline;
5. Press speed shortcuts to quickly set up to the speed marked on the key;
6. Press incline shortcut to quickly set up to the incline marked on the key;
7. Each program is divided into 20 sections; operating time for each section will be 1/20 of the set time.
8. The buzzer will sound for three times when switching from one section to another;
9. When the set time reduces to zero, the speed will gradually reduce till the stop of the machine. The buzzer will make
short alarm Bi-Bi-Bi; when the machine stops, the buzzer will make long alarm of Bi-Bi-Bi. The speed window will
display END; 5s later, the machine will return to the standby state; then, the buzzer will make long-alarm of Bi-Bi;
10. Remove the safety lock to urgently stop motor running; then, LCD window will display “---” and the buzzer will make
short sound of Bi-Bi-Bi.
VParameters in fixed program mode (metric system)
Time section
Program
Set time/ 20 =running time for each section
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P01
Speed
2
4
3
4
3
5
4
2
5
2
6
2
7
2
8
3
7
3
9
3
Incline
1
2
3
3
1
2
2
3
2
5
4
5
6
6
4
5
5
6
5
2
P02
Speed
2
5
4
6
4
6
4
2
4
3
3
6
5
7
5
7
5
3
5
2
Incline
1
2
3
3
2
2
3
4
2
3
2
3
4
4
3
3
4
5
3
2
P03
Speed
2
5
4
5
4
5
4
2
3
3
3
6
5
6
5
6
5
3
4
2
Incline
1
2
2
3
1
2
2
2
2
2
2
3
3
4
2
3
3
3
3
1
P04
Speed
2
6
7
4
4
7
4
2
4
3
3
7
8
5
5
8
5
3
5
2
Incline
4
5
6
6
9
9
1
12
6
4
5
6
7
7
10
10
2
12
7
3
P05
Speed
2
4
6
8
7
8
6
2
3
3
3
5
7
9
8
9
7
3
4
2
Incline
3
5
4
4
3
4
4
3
3
3
4
6
5
5
4
5
5
4
4
2
P06
Speed
2
4
5
5
6
5
6
3
3
3
3
5
6
6
7
6
7
4
4
2
Incline
3
5
3
4
2
3
4
2
3
3
4
6
4
5
3
4
5
3
4
2
P07
Speed
3
6
7
5
8
5
9
6
4
2
4
7
8
6
9
6
10
7
4
3
Incline
2
2
3
3
2
2
4
6
2
3
3
3
4
4
3
3
5
7
3
2
P08
Speed
3
6
7
5
8
6
7
6
4
4
4
7
8
6
9
7
8
7
5
3
Incline
1
2
4
3
2
2
4
5
2
2
2
3
5
4
3
3
5
6
3
1
P09
Speed
2
8
6
4
5
9
7
5
4
4
3
9
7
5
6
10
8
6
5
3
Incline
2
2
6
2
3
4
2
2
2
2
3
3
7
3
4
5
3
3
3
1
P10
Speed
2
3
5
3
3
5
3
6
3
4
3
4
6
4
4
6
4
7
4
3
Incline
4
4
3
6
7
8
8
6
3
4
5
5
4
7
8
9
9
7
4
3
P11
Speed
2
5
8
10
6
9
5
3
2
3
3
6
9
10
7
10
6
4
3
2
Incline
1
3
5
8
1
7
6
3
2
4
2
4
6
9
2
8
7
4
3
3
P12
Speed
2
5
5
4
4
6
4
2
3
5
3
6
6
5
5
7
5
3
4
4
Incline
3
5
6
7
12
9
11
11
6
4
4
6
7
8
12
10
11
11
7
3
P13
Speed
3
3
4
4
6
6
7
7
6
6
5
5
4
4
3
3
8
6
5
2
Incline
3
5
7
5
3
1
2
3
2
1
3
7
7
7
3
2
5
4
3
2
P14
Speed
2
4
5
6
7
8
4
3
7
8
8
6
8
6
5
3
8
6
4
2
Incline
3
7
9
5
1
3
2
3
3
4
5
7
2
3
3
0
5
6
7
3
VI Parameters in fixed program mode (imperial system)

10
Time section
Program
Set time/ 20 =running time for each section
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P01
Speed
1.2
2.5
1.9
2.5
1.9
3.1
2.5
1.2
3.1
1.2
3.7
1.2
4.3
1.2
5.0
1.9
4.3
1.9
5.6
1.9
Incline
1
2
3
3
1
2
2
3
2
5
4
5
6
6
4
5
5
6
5
2
P02
Speed
1.2
3.1
2.5
3.7
2.5
3.7
2.5
1.2
2.5
1.9
1.9
3.7
3.1
4.3
3.1
4.3
3.1
1.9
3.1
1.2
Incline
1
2
3
3
2
2
3
4
2
3
2
3
4
4
3
3
4
5
3
2
P03
Speed
1.2
3.1
2.5
3.1
2.5
3.1
2.5
1.2
1.9
1.9
1.9
3.7
3.1
3.7
3.1
3.7
3.1
1.9
2.5
1.2
Incline
1
2
2
3
1
2
2
2
2
2
2
3
3
4
2
3
3
3
3
1
P04
Speed
1.2
3.7
4.3
2.5
2.5
4.3
2.5
1.2
2.5
1.9
1.9
4.3
5.0
3.1
3.1
5.0
3.1
1.9
3.1
1.2
Incline
4
5
6
6
9
9
1
12
6
4
5
6
7
7
10
10
2
12
7
3
P05
Speed
1.2
2.5
3.7
5.0
4.3
5.0
3.7
1.2
1.9
1.9
1.9
3.1
4.3
5.6
5.0
5.6
4.3
1.9
2.5
1.2
Incline
3
5
4
4
3
4
4
3
3
3
4
6
5
5
4
5
5
4
4
2
P06
Speed
1.2
2.5
3.1
3.1
3.7
3.1
3.7
1.9
1.9
1.9
1.9
3.1
3.7
3.7
4.3
3.7
4.3
2.5
2.5
1.2
Incline
3
5
3
4
2
3
4
2
3
3
4
6
4
5
3
4
5
3
4
2
P07
Speed
1.9
3.7
4.3
3.1
5.0
3.1
5.6
3.7
2.5
1.2
2.5
4.3
5.0
3.7
5.6
3.7
6.2
4.3
2.5
1.9
Incline
2
2
3
3
2
2
4
6
2
3
3
3
4
4
3
3
5
7
3
2
P08
Speed
1.9
3.7
4.3
3.1
5.0
3.7
4.3
3.7
2.5
2.5
2.5
4.3
5.0
3.7
5.6
4.3
5.0
4.3
3.1
1.9
Incline
1
2
4
3
2
2
4
5
2
2
2
3
5
4
3
3
5
6
3
1
P09
Speed
1.2
5.0
3.7
2.5
3.1
5.6
4.3
3.1
2.5
2.5
1.9
5.6
4.3
3.1
3.7
6.2
5.0
3.7
3.1
1.9
Incline
2
2
6
2
3
4
2
2
2
2
3
3
7
3
4
5
3
3
3
1
P10
Speed
1.2
1.9
3.1
1.9
1.9
3.1
1.9
3.7
1.9
2.5
1.9
2.5
3.7
2.5
2.5
3.7
2.5
4.3
2.5
1.9
Incline
4
4
3
6
7
8
8
6
3
4
5
5
4
7
8
9
9
7
4
3
P11
Speed
1.2
3.1
5.0
6.2
3.7
5.6
3.1
1.9
1.2
1.9
1.9
3.7
5.6
6.2
4.3
6.2
3.7
2.5
1.9
1.2
Incline
1
3
5
8
1
7
6
3
2
4
2
4
6
9
2
8
7
4
3
3
P12
Speed
1.2
3.1
3.1
2.5
2.5
3.7
2.5
1.2
1.9
3.1
1.9
3.7
3.7
3.1
3.1
4.3
3.1
1.9
2.5
2.5
Incline
3
5
6
7
12
9
11
11
6
4
4
6
7
8
12
10
11
11
7
3
P13
Speed
1.9
1.9
2.5
2.5
3.7
3.7
4.3
4.3
3.7
3.7
3.1
3.1
2.5
2.5
1.9
1.9
5.0
3.7
3.1
1.2
Incline
3
5
7
5
3
1
2
3
2
1
3
7
7
7
3
2
5
4
3
2
P14
Speed
1.2
2.5
3.1
3.7
4.3
5.0
2.5
1.9
4.3
5.0
5.0
3.7
5.0
3.7
3.1
1.9
5.0
3.7
2.5
1.2
Incline
3
7
9
5
1
3
2
3
3
4
5
7
2
3
3
0
5
6
7
3
VII Customized program:
In addition to 14 built-in programs, the treadmill also has 3 customized programs to support the customized setting
based on the user’s specific situation: U01, U02 and U03.
1、Setting of customized program:
In standby state, continuous press PROGRAM to the required customized program (U01~ U03); press MODE to
confirm entering the setting; then, set up parameters in the first time section; set up speed by SPEED +/ SPEED - or speed
shortcuts and set up incline by INCLINE +/ INCLINE - or incline shortcuts; press MODE to complete the first time
section’s setting and enter the state to set up parameters for the second time section until the completion of setting for all
the 20 time sections. Set parameters will be permanently saved until the next time setting. These parameters will not be
lost due to power disconnection.
2、Start of customized program:
A. In standby state, continuous press PROGRAM to the required customized program (U01~ U03). After setting up
the operation time, press START.
B. In the customized program state and after the setting of operation time, press START to immediately start up the
machine.
3、Instructions to the setting of customized program:
Each program divides its operation time into 20 sections. Be sure to complete the setting for speed, incline and
operation time for all the 20 section before pressing START to start the treadmill.
Physique Test (FAT)
In the condition of standby, press “PROG”continued, enter into FAT, the windows show ‘FAT’. Press ‘MODE’,

11
choose the parameters which you want to set (F1-gender,F2-age,F3- height,F4-weight),press ‘SPEED+’,’SPEED-’,you
could set these parameters. t will show F5 when you finish, hold the pulse, then enter into physique test to check if the
figures are match with yours.
FAT is a measurement for connections of height and weight of people. It’s not pointed to body proportion. FAT is suit
for any man or woman, and it will provide basis for adjusting human’s weight with other figures for health. The best
figures for FAT are from 20 to 25,if it lower than 19,that means you are so thin, if it between 25 to 29,that means you are a
litter fat, if it beyond 30,that means you are so fat. The reference data is below.(This figures are just for reference, not for
medical data.)
F-1
Sex
01 MALE
02 FEMALE
F-2
Age
10------99
F-3
Height
100-------200
F-4
Weight
20-------200
F-5
FAT
≦19
Underweight
FAT
=(20—24)
Normal weight
FAT
=(25—29)
Overweight
FAT
≧30
Obesity
VIII Parameter display range:
Initial
Initial setting value
Setting range
Display range
Time (m: s)
0:00
30:00
5:00-99:00
0:00-99:59
Speed in metric system (km/h)
Speed in imperial system (mi/h)
0.0
N/A
N/A
1.0—18.0KMH
0.6-11.0MPH
Incline (%)
00
N/A
N/A
0-15
Distance (km/mi)
0.0
1.00
0.50—99.90
0.00—99.99
Calorie (kcal)
0
50.0
10.0—999.0
0.0—999.9
IX Safety lock function
1．Remove the safety lock in any modes could rapidly slow down the treadmill till stop. “---” will be immediately
displayed on the window, the buzzer buzz “Bi, Bi, Bi”sound continuously. Buttons are invalid in this condition.
2．Restore the safety lock, the window will display for 2s and then get into standby state, wait for inputting commands.
XEnergy-saving mode:
The system has energy-saving function. In standby state, if no key order input in 10m, the system will enter the
energy-saving mode with the display automatically closed. Press any key to revoke the system.
XI MP3 function (optimal):
When connecting to MP3 or other audio devices in powering on state, the electronic meter can play music. Sound
volume shall be controlled through the audio device; please properly adjust the volume to obtain better sound quality and
avoid impact to built-in audio circuit.
XII USB function (optimal):
When connecting to USB in powering on state, the electronic meter can automatically play MP3 format music. Sound
volume can be controlled through keys on the panel; please properly adjust the volume to obtain better sound quality and
avoid impact to built-in audio circuit.
XIII Shutdown:
Be sure to shut down the treadmill by switching off the power supply to avoid damage to the treadmill.

12
XIV Cautions:
1. Please check whether power supply is connected and whether safety lock is effective before using the treadmill.
2. In case of any abnormality in the use process, please remove the safety lock and the treadmill will rapidly slow down
till stop; then, restore the safety lock, the equipment will reset and wait for inputting instructions.
3. In case of any problem of the machine, please contact the dealer; equipment damage may be caused for
non-professional personnel to dismantle or repair the machine.
XV Simple troubleshooting methods:
4、After powering on, the electronic meter has no display. Potential reason: the communication wire from the electronic
meter to the controller is not well connected or the transformer is damaged; dismantle the pillar to check connection
joints on each section of the wiring from the electronic meter to the controller; ensure that each wire core is well
connected; or the reason may be the communication power cord defect (damaged or broke down); in such case,
re-connect or replace wires; or replace a transformer.
5、If the electronic meter in the operation process displays “E01”, it refers to the signal communication failure. Potential
reason: the communication between the controller and the electronic meter is blocked; check each section of
connection of the communication wires from the electronic meter to the controller and ensure that all core wires are
well connected. Check whether wirings between the electronic meter and the controller are damaged; if yes, replace
the damaged wire.
6、If the electronic meter in the operation process displays “E02”, it refers to the explosion-proof protection. Check
whether the power supply voltage is less than 50% of the normal value; please ensure correct voltage and test again;
check whether the controller emits the odor of burning; if yes, replace the controller; Check whether motor wires are
well connected; re-connect motor wires.
7、If the electronic meter in the operation process displays “E03”, it refers to no sensor signal. Potential reason: if no
speed sensor signal is detected for 5-8s, check whether the sensor connector is well plugged or whether it is damaged;
plug it well or replace the sensor; if no motor sensor signal is detected for 5-8s, check whether the motor connector is
well plugged or whether it is damaged.
8、If the electronic meter in the operation process displays “E04”, it refers to failure of lifting learning. Check whether
lifting motor’s VR wires are well connected; pull off the connector and plug in again to ensure reliable connection;
check whether lifting motor's AC wires are properly connected; lifting motor shall be correctly plugged according to
marks on its AC controller; check whether motor wiring is damaged to form open circuit; if yes, replace wires or
replace the lifting motor; after all of these inspections, press the learning key for learning again.
9、If the electronic meter in the operation process displays “E05”, it refers to Over-current protection. Potential reason:
system self-protection is triggered under excessive current caused by the excessive load more than the rated value, or
some place of the treadmill is jammed so that the motor can not rotate; thus, the system start up self-protection against
excessive current under excessive load; adjust the treadmill and restart it. Besides, check whether there is over-current
sound or burning odor when the motor is running; replace the motor; check whether the controller emits abnormal
odor; replace it if yes; check whether power supply voltage specifications is inconsistent or too low and use correct
voltage specifications for re-test.
10、If the electronic meter in the operation process displays “E08”, it refers to driver failure. The reason may be the
poor connection, reverse connection or no connection of controller 24C02 (8-pin IC). If the failure still exists after
proper connection and powering on, replace the controller.
11、If the motor does not run after pressing “START”, the reason may be the abnormality of relevant motor control
wires, the damage or falling of the controller’s fuse, the poor motor wiring, or the damage of IGBT of the controller.
Check whether motor wirings are well and properly connected; check whether the controller’s fuse is intact and well
install or replace it if not; check whether motor wirings are loose and connect them reliably. Use multimeter to check
whether IGBT of the controller is damaged; if yes, replace the IGBT or the controller.
XVI Calorie calculation method:
70.3×V(Km/h)×t(h)×(1+?%)
When the lifting is 0, the calorie consumption for each 1km of running is about 70.3cal.
XVII Meanings of error message codes
Error
Possible reasons
Test method
solutions

13
E01
Communicational failure between
the meter and the controller, and the
drive cannot receive signal from the
meter.
Check whether the connector of
the meter and the controller
has broken down.
If yes, change the
connector.
Check whether the joint has
been plugged in well.
Pull the joint and plug
in again.
E02
Explosion proof protection
Whether the supply voltage is
50% lower than the normal
voltage.
Use correct voltage
standard and retest.
Whether the electric machine has
been installed well.
Change the electric
machine.
Whether the controller has awful
smell.
Change the controller.
E03
Failure in inspecting the motor
signal for more than 15 seconds
continuously and speed sensor
for 10 seconds continuously.
Whether the distance and
location of the sensor and the
disc is correct or the sensor
is installed well.
The sensor should be
installed right in the
hole of disc.
Whether the sensor wire has
been open circuited, short
circuited or broken circuited.
Reconnect the motor
interface, and examine
the sensor wire.
Whether the sensor has been
broken down,
Change the sensor.
E04
Lifting learning or
self-inspection fails
Check whether motor wiring is
damaged to form open circuit
re-insert the signal wire
joint to ensure that it is
reliable
Check whether lifting motor's
AC wires are properly
connected
lifting motor
shall be correctly
plugged according
to marks on its AC
controller
Check whether motor wiring is
damaged to form open circuit;
if yes, replace
wires or replace
the lifting motor
Check whether the lifting
motor is damaged
If yes, change the
lifting motor

14
Lifting motor fails in learning
Press the button of
controller for 3
seconds and relearn
again.
E05
Over-current protection
Check whether the controller
match with the standard of
electric engine.
Change the electric
machine or controller
and retest.
E06
Fault of motor’s open circuit
Check whether the motor
interface of the drive is loose.
Re-plug the motor
interface properly.
Check whether the motor is
open-circuited.
Change the motor
when the motor is idling, if the
current is less than standard, it
will go wrong, please install the
machine and test.
E08
Failure of the controller EEPROM
24C02 is broken down or you forgot to install 24C02,
please change the motor control board.
E09
controller is in tilted position
machine is not placed on level
surface when it is powered on
place machine on a level
surface, then start the
machine
E10
Transient current protection
check if the torsion of controller
is normal
adjust the torsion
regulator to normal value
Check whether the motor is
short-circuited.
Change the motor
Check whether treadmill’s
transmissional part is stuck
Eliminate the
disturbance, and make
sure the treadmill go
smoothly.
E11
External AC over-voltage
Check whether the external AC voltage is higher than
270VAC, or if is unstable; if yes, stop using the product
and ask electrical engineers for help.

15
E13
Communicational failure between
the meter and the controller, and the
meter cannot receive the signal
from the drive.
Check whether the wire between
the meter and the controller is
broken down
Change the wire
Check whether the socket is
plugged in well.
Re-plug the socket and
make sure it is
reliable.
E14
External AC under-voltage
Check whether external AC voltage is lower than 160VAC
or if is unstable, if yes, stop using the product and ask
the electrical engineers for help.
EXERCISE INSTRUCTIONS
1. The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the
risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should
be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP.
2. The Exercise Phase
This is the stage where you put the effort in. After regular use , the muscles in your legs will become Stronger.
Work to your but it is very important to maintain a steady tempo throughout. The rate of work should be sufficient to

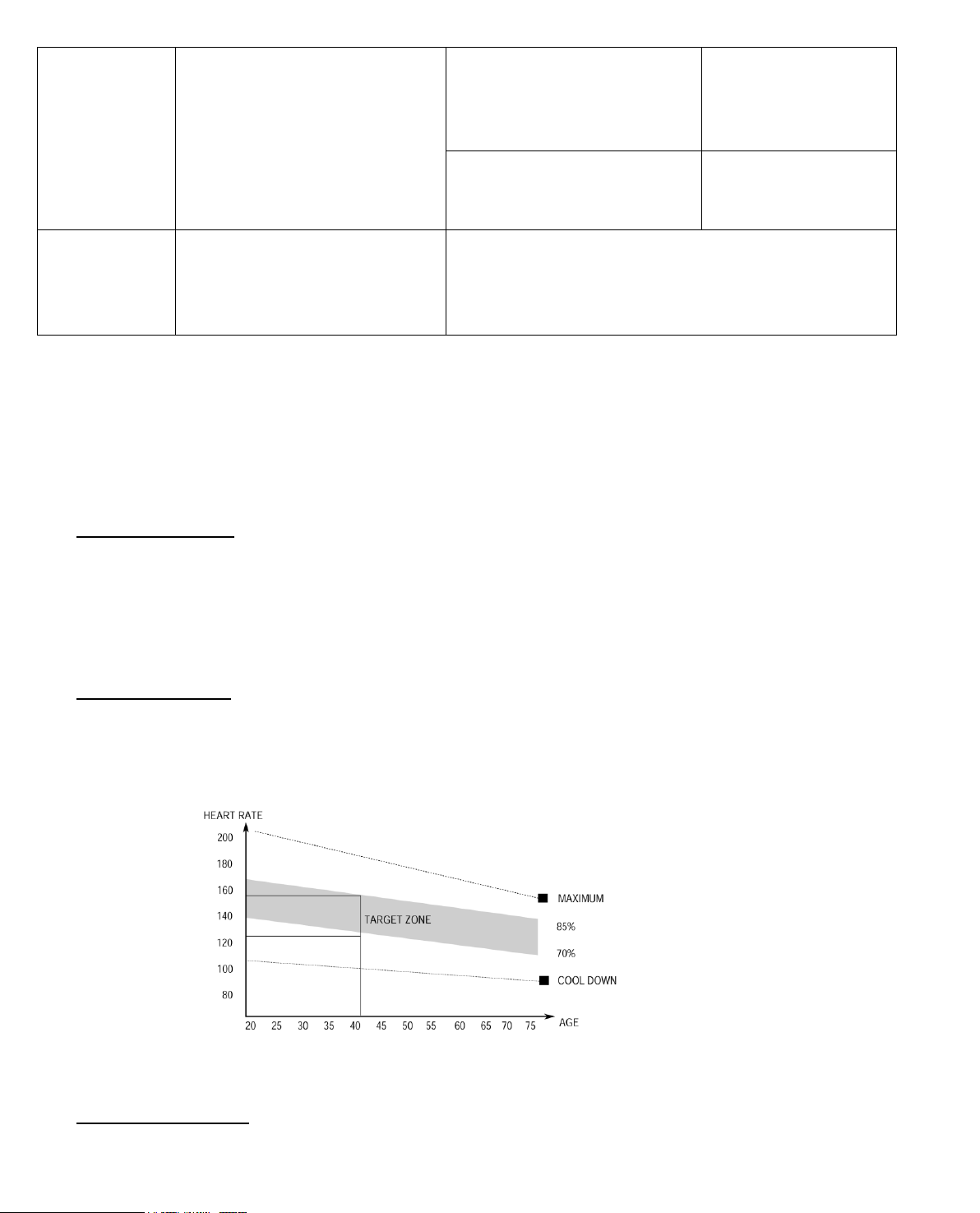

raise your heart beat into the target zone shown on the graph below.
This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes
3. The Cool Down Phase

16
This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise
e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated,
again remembering not to force or jerk your muscles into the stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least three times a week, and if
possible space your workouts evenly throughout the week.
To tone muscle while on your Treadmill you will need to have the resistance set quite high. This will put more strain
on our leg muscles and may mean you cannot train for as long as you would like. If you are also trying to improve
your fitness you need to alter your training program. You should train as normal during the warm up and cool down
phases, but towards the end of the exercise phase you should increase resistance, making your legs work harden
than normal. You may have to reduce your speed to keep your heart rate in the target zone.
The important factor here is the amount of effort you put in. The harder and longer you work the more calories you
will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal.
MAINTENANCE INSTRUCTIONS
WALKING BELT CENTERING AND TENSION ADJUSTMENT
DO NOT OVERTIGHTEN the walking belt. This may cause reduced motor performance and excessive roller wear.
TO CENTER WALKING BELT:
● Place treadmill on a level surface
● Run treadmill at approximately 3.5 mph
● If the belt has drifted to the right side, please screw the right adjusting bolt clockwise slowly, noticing the change of
the deviating distance, until center the belt. (Attention: the space between the belt and the right/left edgings is at a
distance normally. And the gap between the right and left distance should be no more than 5mm.
● If the belt has drifted to the left side, please screw the left adjusting bolt clockwise slowly, noticing the change of the
deviating distance, until center the belt. (Attention: the space between the belt and the right/left edgings is at a
distance normally. And the gap between the right and left distance should be no more than 5mm.
PIC B
PIC A

17

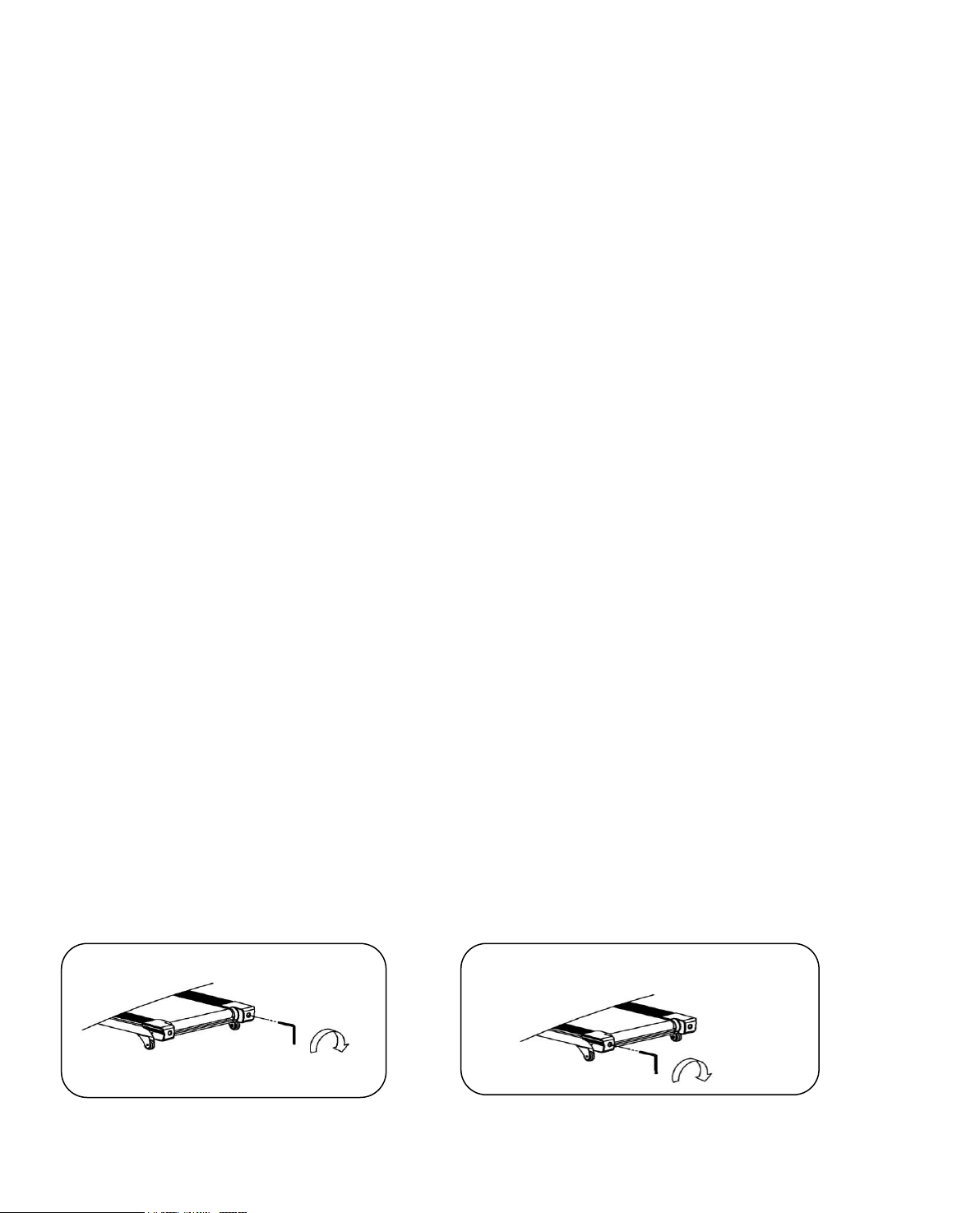

Picture A: If the belt has drifted to the RIGHT Picture B:If the belt has drifted to the LEFT
WARNING: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING OR
SERVICING THE UNIT.
CLEANING
General cleaning or the unit will greatly prolong the treadmill. Keep treadmill clean by dusting regularly. Be sure to
clean the exposed part of the deck on either side of the walking belt and also the side rails. This reduces the build up
of foreign material underneath the walking belt.
The top of the belt may be cleaned with a wet, soapy cloth. Be careful to keep liquid away from inside the motorized
treadmill frame or from underneath the belt. Warning：Always unplug the treadmill from the electrical outlet
before removing the motor cover. At least once a year remove the motor cover and vacuum under the motor
cover.
WALKING BELT AND DECK LUBRICATION
This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/ deck friction may
play a major role in the function and life of your treadmill, thus requiring periodic lubrication. We recommend a
periodic inspection of the deck.
We recommend lubrication of the deck according to the following timetable:
Light user (less than 3 hours/ week) annually
Medium user (3-5 hours/ week) every six months
Heavy user (more than 5 hours/ week) every three months

18
EXPLODED DRAWING

19
PARTS LIST
