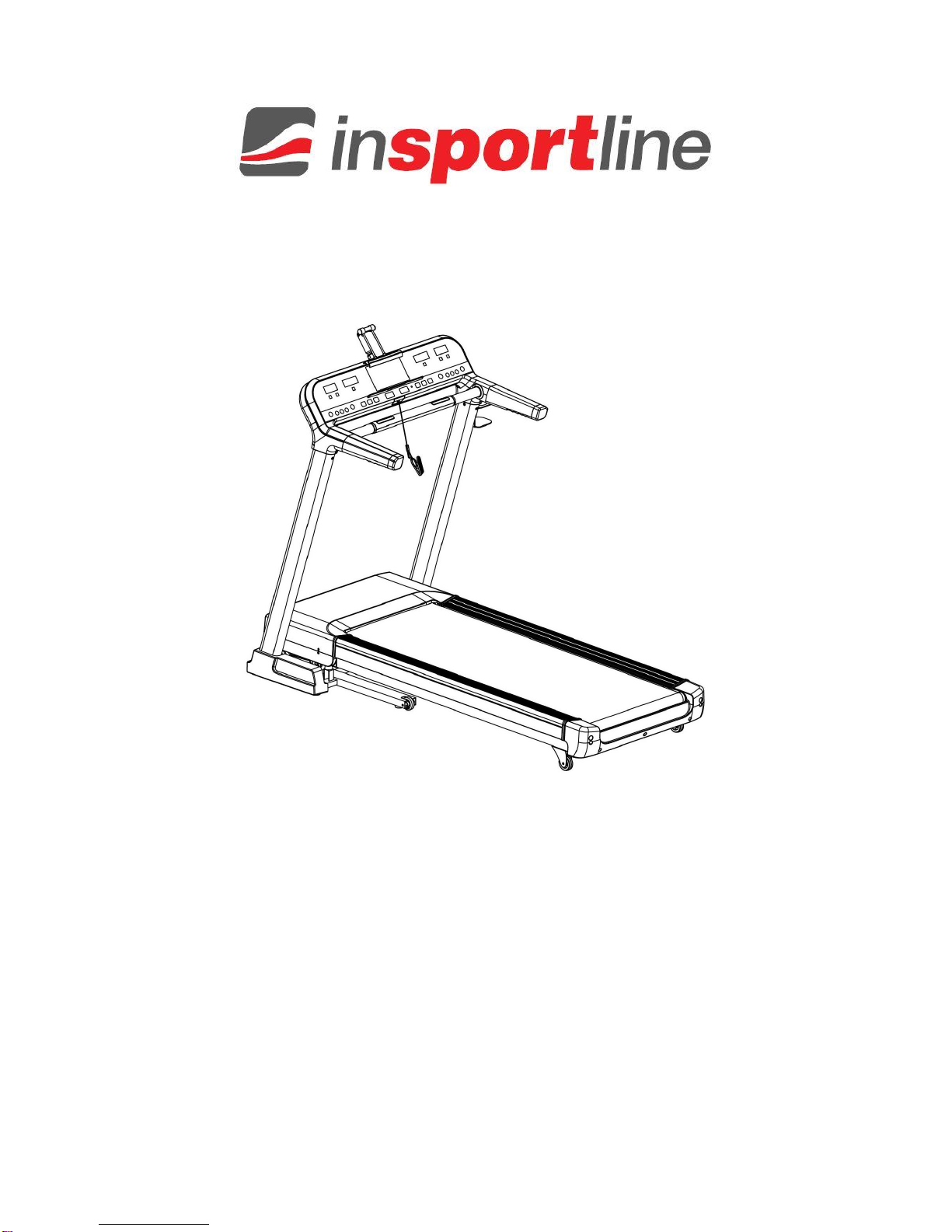

Insportline inCondi T70i II User manual

USER MANUAL –EN
IN 16529 Treadmill inSPORTline inCondi T70i II

2
CONTENTS
SAFETY PRECAUTIONS........................................................................................................................ 3
PACKAGE LIST....................................................................................................................................... 4
ASSEMBLY TOOLS................................................................................................................................ 5
ASSEMBLY STEPS ................................................................................................................................ 5
FOLDING STEPS.................................................................................................................................... 9
TRANSPORT TIPS ................................................................................................................................. 9
OPERATION INTRODUCTION............................................................................................................. 10
HOMEPAGE INTRODUCTION............................................................................................................. 11
ICON DESCRIPTION............................................................................................................................ 12
FUNCTION DESCRIPTION .................................................................................................................. 13
SIMPLE MALFUNCTION AND SOLUTION (SHOWN IN TFT SCREEN)............................................. 30
STRETCHING TIPS.............................................................................................................................. 31
MAINTENANCE .................................................................................................................................... 32
EXPLODED DRAWING......................................................................................................................... 34
PARTS LIST.......................................................................................................................................... 36
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 39

3
SAFETY PRECAUTIONS
Thank you for purchasing this product that has been designed to provide you with many years of
trouble-free using. Read this manual carefully before first using and retain it for future reference to
increase your safety.
•Observe all warnings and precautions to reduce possible risk of an injury.
•Consult your physician before starting any workout to decrease an injury risk. It is especially
important if you take some medication that can affect your heart function, blood pressure or
cholesterol level.
•Respect signals of your body. Improper using can damage your health. If you fell faintly or
have some health problems, stop immediately. Don’t exercise if you have some of following
symptoms: pain, tightness in chest, irregular heartbeat, extreme shortness of breath, filling
light-headed, dizzy or nauseous. If you have some of these complications, consult your
physician before starting any workout.
•Observe all electric precautions to reduce the risk of an electric shock.
•Check the power cable for damage or wearing prior to use. If you find some damage or
wearing, don’t use it.
•Never touch the power cable with wet hands.
•Never walk on the cable and never pinch it.
•Use only supplied power cable.
•Use it only for intended purpose and according to this manual.
•Be sure that the voltage of the electric supply is correct and same as indicated on the power
cable.
•Inform all possible users about safety and possible risks.
•Two adult people are required to remove it from the package and to assemble it.
•Unplug it from the wall socket or from the power source before assembly.
•Put in on a solid, flat and clean surface. Use a protective cover to protect your floor and
carpet. Keep a safety clearance of at least 0.6 m from other objects. Keep a free space of at
least 2x1 m behind this device.
•Protect it from moisture and dust.
•Before each using check, that all screws and nuts are well tightened.
•Regularly check it for damage or wearing to increase your safety. Damaged or worn parts
should be replaced immediately. Never use damaged or worn product.
•Braking is controlled by the belt rotation power supply.
•It is not intended for therapeutic purposes.
•This device is intended only for adults. Keep children and pets away from this device.
•Wear adequate sports clothes and shoes. Avoid too loose clothes that can be easily caught in
the machine.
•No adjustable part should protrude and obstruct user movements.
•Don’t do any improper modification.
•Keep your back straight and don’t bend it while exercising.
•If you feel faintly, stop using and cool-down.
•This pulse sensor is not a medical device and its accuracy can be negatively influenced by
many factors. Never use it for medical purpose.

4
•Pay attention while lifting or transporting it to avoid back injury. Use proper lifting techniques or
ask some other adult person for assistance.
•A safety key is supplied for personal safety. Use it while operating this treadmill for safe
stopping. In some emergency case, put both hands on the handlebars and your feet onto the
non-slip surface of the main frame. After doing it, the safety key will be disengaged from the
computer and the emergency function activated.
•Maintain all moving parts weekly. Check them regularly and retighten if necessary. Check if
they are nor broken or loose.
•This device is not intended for children and people with reduced physical, sensory or mental
capability or for people with lack of experiences. Such people should be under adult
supervision all the exercising time.
•Never let children play with this device. It is not a toy.
•This machine should be properly earthed to avoid an electric shock.
•Weight limit: 125 kg
•Category: HC (according to EN957 norm) suitable for home using
•WARNING! The heart rate frequency monitoring may not be completely accurate.
Overexertion during training can lead to a serious injury or even death. If you start to feel faint,
stop the exercise immediately.
PACKAGE LIST
NOTE: Check the package list carefully before the assembly.
No.
Description
Specification
Qty.
A
Main frame
1
B
Monitor
1
C
iPad holder
optional
1
B01
Bottle holder
1
B08
Cross solid wrench
1
B09
5# Allen wrench
5 mm
1
B15
Solid wrench
19 mm
1
C05
Left foam handlebar
1
C06
Right foam handlebar
1
D07
Safety key module
1

5
C14
Left bottom cover
1
C15
Right bottom cover
1
E13
Bolt
M8*15
10
E22
Bolt
M5*12
6
E32
Lock washer
8
10
E39
Big flat washer
Ø5* Ø13*1.0
4
ASSEMBLY TOOLS
Description
Specification
Pc
5# inner hex wrench
5 mm
1
Cross solid wrench
S=13, 14, 15
1
Solid wrench
19 mm
1
WARNING: Don’t switch on before finishing the assembly.
ASSEMBLY STEPS
STEP 1

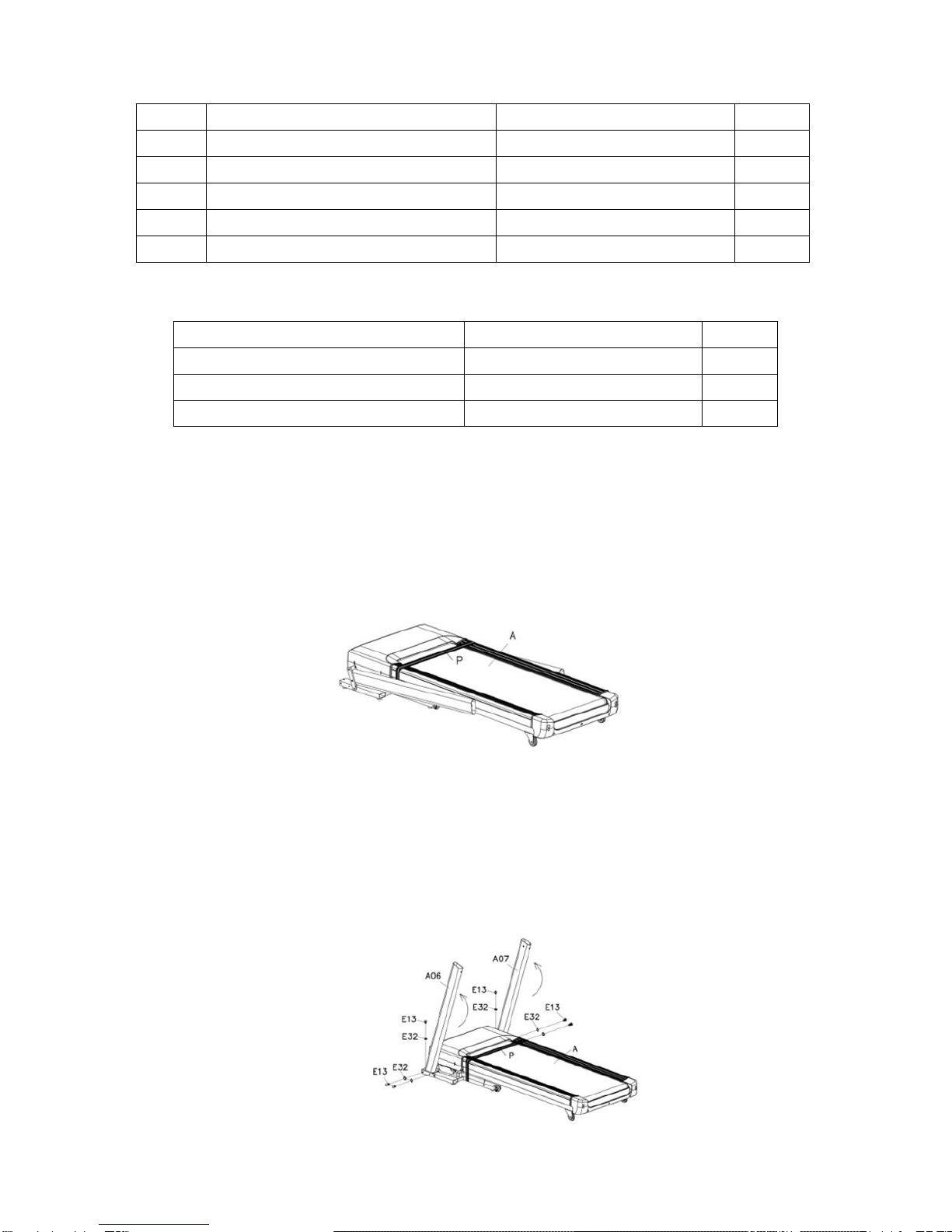

•Open the package and put the mainframe A on the floor.
•WARNING: Don’t open the packing belt (P) before setting up the treadmill.
STEP 2
•First lift columns A06 and A07.
•Fix column A06 to the main frame A with bolt E13 and lock washer E32 using 5# Allen wrench
B09.
•Fix the column A07 to the mainframe according to the steps above.
•WARNING: Support the column with hand to avoid falling.

6
STEP 3

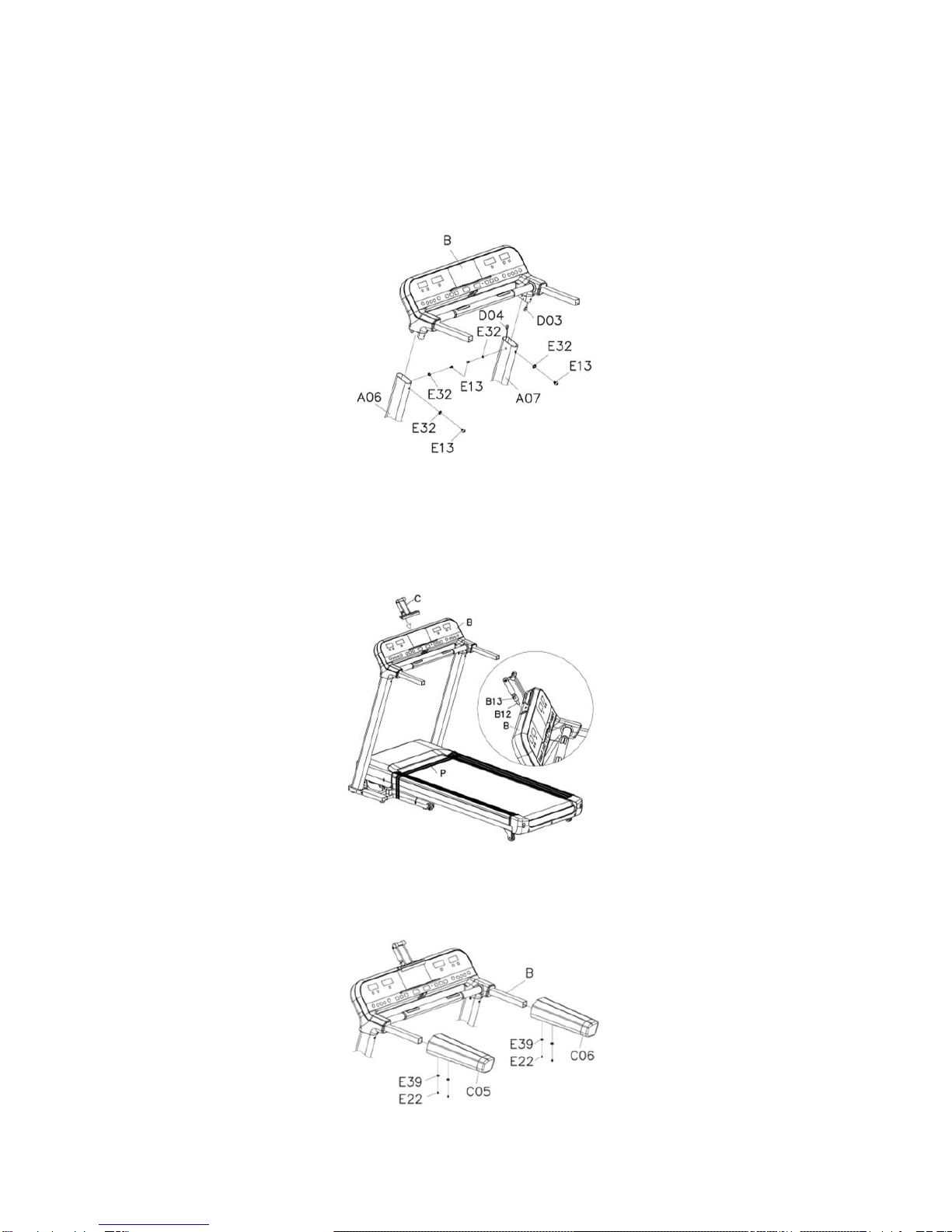

•Connect the monitor cable D03 with cable D04.
•Attach monitor B to the left and right column A06/A07 using bolt E13 and lock washer E32 with
5# Allen wrench B09.
•WARNING: Make sure the cables are properly connected before fastening.
STEP 4
•Screw the iPad holder C into the monitor B with solid wrench B15.
•WARNING: First screw the shaft B12 of the iPad holder into the monitor B by hand and then
fasten the stop nut B13 using solid wrench B15. The iPad holder is an optional part. You will
not assemble it, if you don’t find it in the package.
STEP 5
•Fix the left and right foam handlebar C05/C06 to the monitor B with bolt E22 and big washer
E39 using cross solid wrench B08.

7
STEP 6
•Fix the left and right bottom cover C14/C15 to the mainframe.
•WARNING: The structure of the left and right bottom cover is a buckle design. Please make
sure, all the buckles are securely fastened.
STEP 7
•Fix the bottle holder B01 to the right column A07 using bolt E22 with cross solid wrench B08.
STEP 8
•Cut off the P belt.
•Insert the safety key D07 into the monitor B.

8
SAFETY KEY USAGE:
•Before running, attach the safety key clip D07 to your clothes.
•In some danger pull rope of the safety key and the machine will stop.
STEP 9
•Take apart the bolt M8*15 (E13) in the bottom side of the steel cable (E) using 5# Allen
wrench B09.
STEP 10
•Take apart the bolt M8*15 (E13) in the top side of the steel cable (E) using 5# Allen wrench
B09. Then take away the steel cable from the bottom frame.
•NOTICE: The steel cable will ensure your safety during assembly. You can keep it for future
using.

9
FOLDING STEPS
FOLDING UP
•Hold the running deck which showed in the F position and then fold it up in the arrow direction
until you hear a bang sound from the air cylinder.
•WARNING: It is forbidden to fold up it when the machine is in running or incline mode.
FOLDING DOWN
•Support place F with hand, kick the place E of air pressure bar, then the base frame will fall
automatically.
TRANSPORT TIPS
•To tilt it, start by placing one hand at position F to support the top end of the treadmill. Next
place one foot at position D to hold the bottom end of the treadmill steady. With your foot at D,
slowly tilt the top of the treadmill downward and towards the ground. Once the main frame F
reaches a low enough point, the wheels of the treadmill will become active.

10
•To transport, hold the treadmill from F position and tilt until the wheels are able to move on the
ground.
OPERATION INTRODUCTION
No.
Icon
Function description

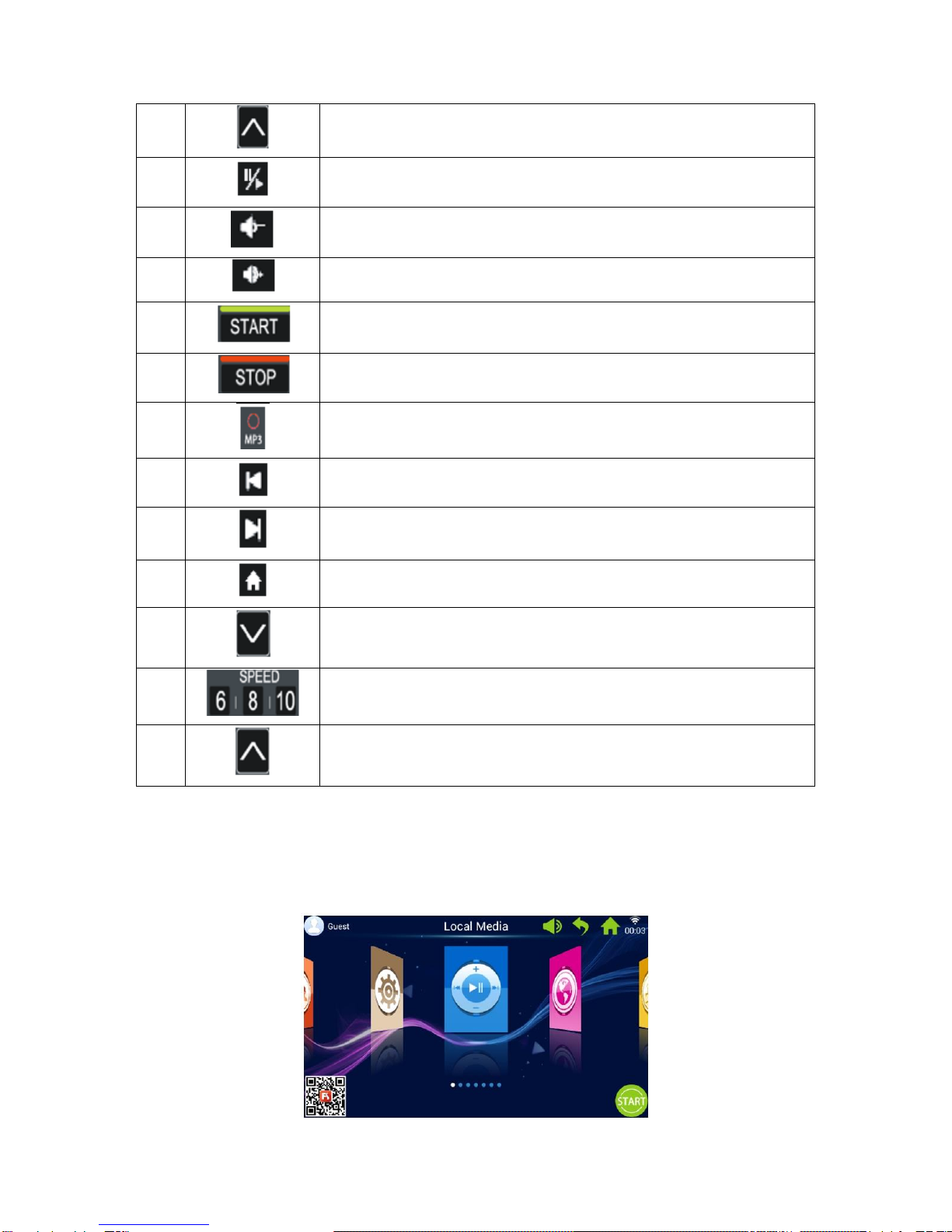

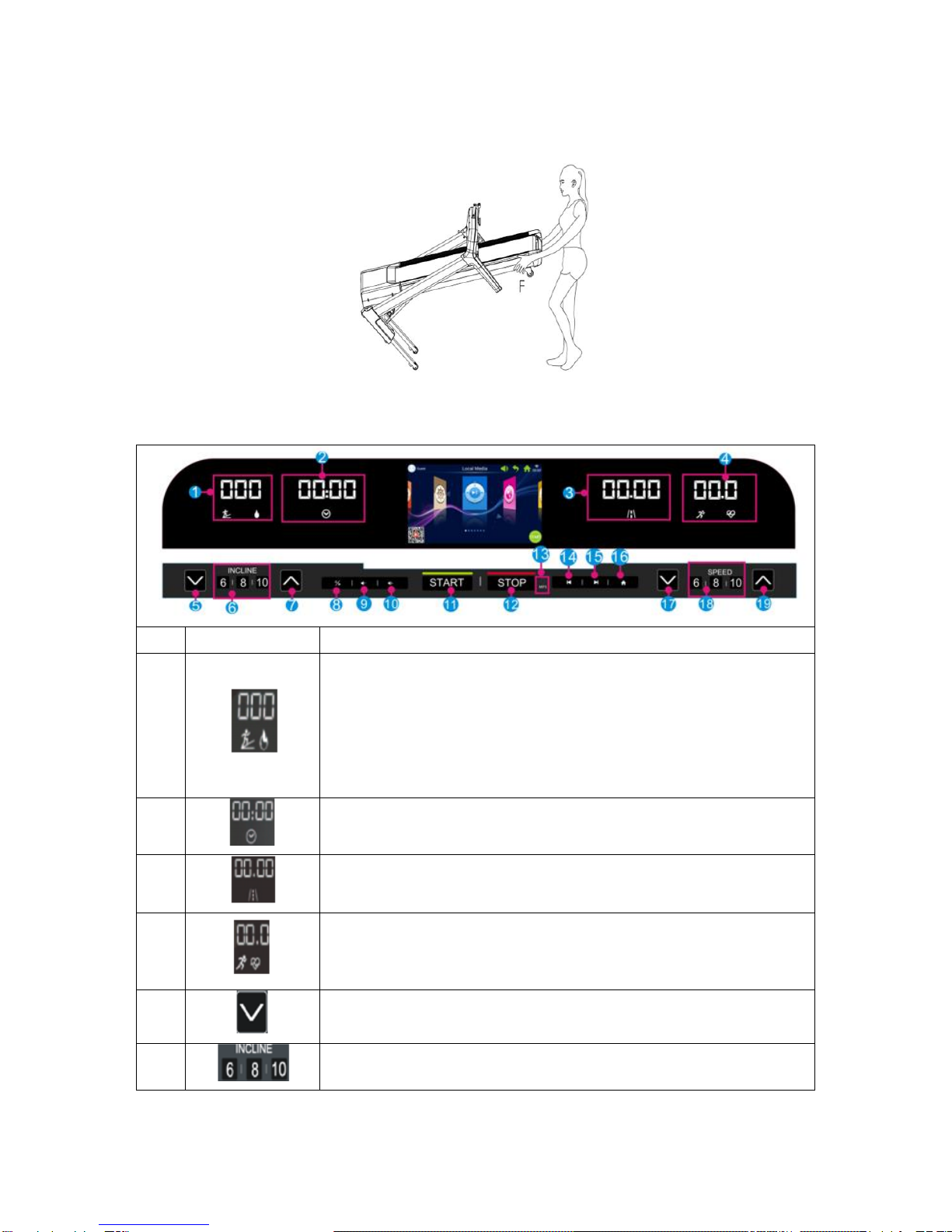

1
Inclination/Calorie window
Generally, it shows runners calories that worked out. It counts from 0 to
999. If it reaches 999, it counts again from 0. When counting down, it
counts from the setting data to 0. Thereafter it stops smoothly and enters
standby mode.
When set inclination, it shows current inclination in range 0-15%. If there
is not any operation, it enters calorie window after 30 seconds.
2
Time window: displays running time
3
Distance window: displays running distance
4
Speed/Pulse window: it shows usually your current speed in range 0.8-
20.0 km/h. If you hold the pulse sensor for several seconds it shows your
current pulse in range 50-200 bpm. These data are only for reference and
cannot be used for medical purpose.
5
Incline - button: each press decreases by 1 section. Press it over 0.5
second and incline will be decreased continually.
6
INCLINE: 6, 8, 10: Shortcut key for inclination.

11
7
Incline + button: each press increases by 1 section. Press it over 0.5
second and incline will be increased continually.
8
Play/pause key to stop or to restart the music or video.
9
VOL- button: Push it to turn down the volume in booth music and video
mode.
10
VOL+ button: Push it to turn up the volume in both music and video mode.
11
When getting through the power and safety key attached, press this
button at any time to start the machine.
12
Stop/Pause: During running, press stop to pause. When it is in pause,
press stop to clear the workout and to back to the standby mode.
13
MP3 interface: You can connect external MP3 and mobile phone with a
MP3 wire to play music.
14
Press it to go to the previous music or video.
15
Press it to go to the next music or video.
16
Press this button to go back to home page.
17
Speed –button: each press decreases the speed by 0.1 km/h. Press it
over 0.5 second and the speed decreases continually.
18
Speed 6, 8, 10: Shortcut key for different speed selection.
19
Speed + button: each press increases the speed by 0.1 km/h. Press it
over 0.5 second and the speed increases continually.
HOMEPAGE INTRODUCTION
There are seven function modules: Local Media, Internet, Programs Running, Pace, Real View Sport,
User, System Manage.
You can click to choose the icon you need by sliding around on the screen with your finger.

12
ICON DESCRIPTION

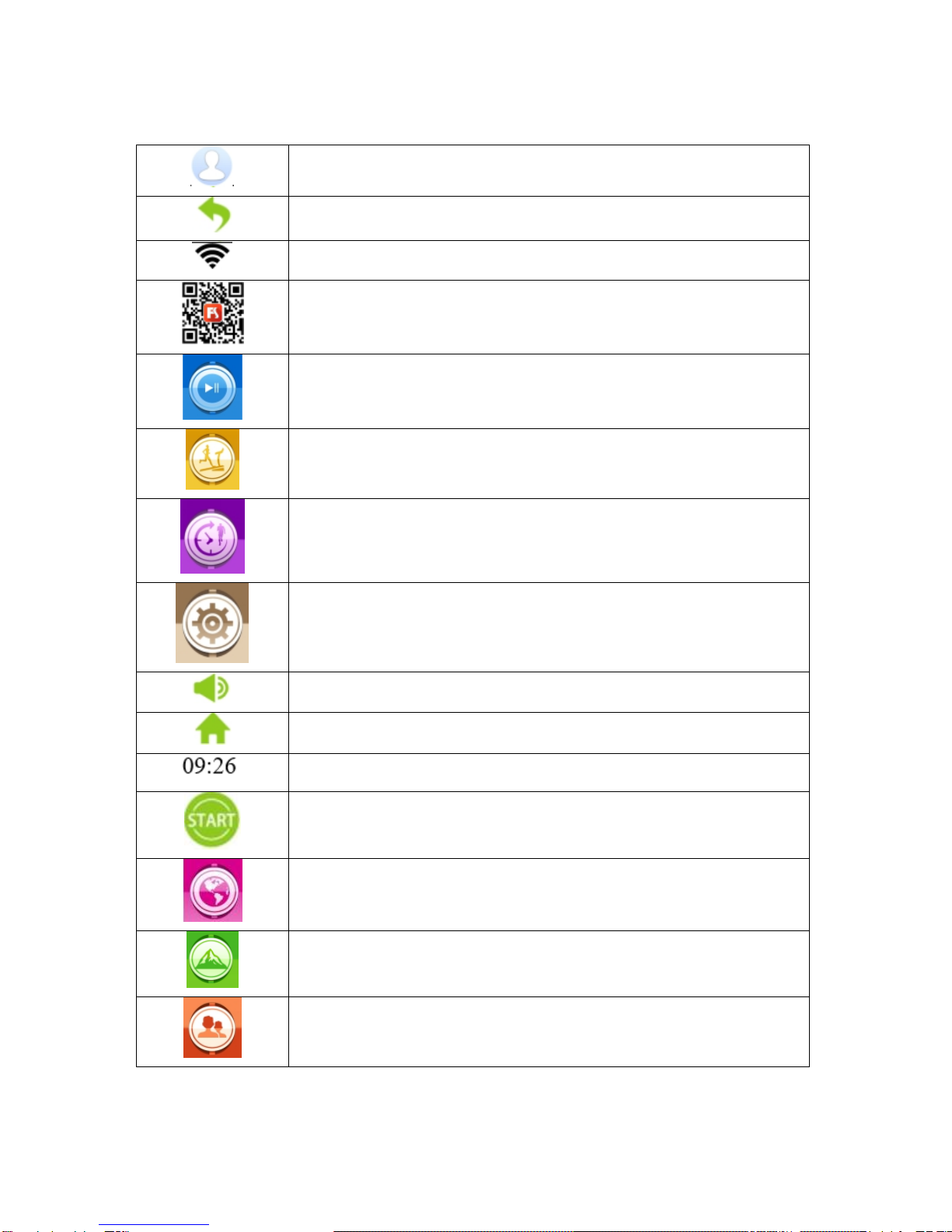

User image and user name: click to set or to modify the user image and user
name.
Back button: click to go back to the last page.
Wifi button: click to search and to connect to available wifi.
FitShow QR code: Scan to download FitShow APP with your mobile phone. It
is an optional function according to the request.
Local Media
Programs
Pace
System manage
Volume button: click to adjust the volume while playing music or video.
Home button: click to go back to the home page.
Time: current time displaying.
Start button: click to start running and you can drag the icon to set its position.
Internet
Real view sport
User

13
FUNCTION DESCRIPTION

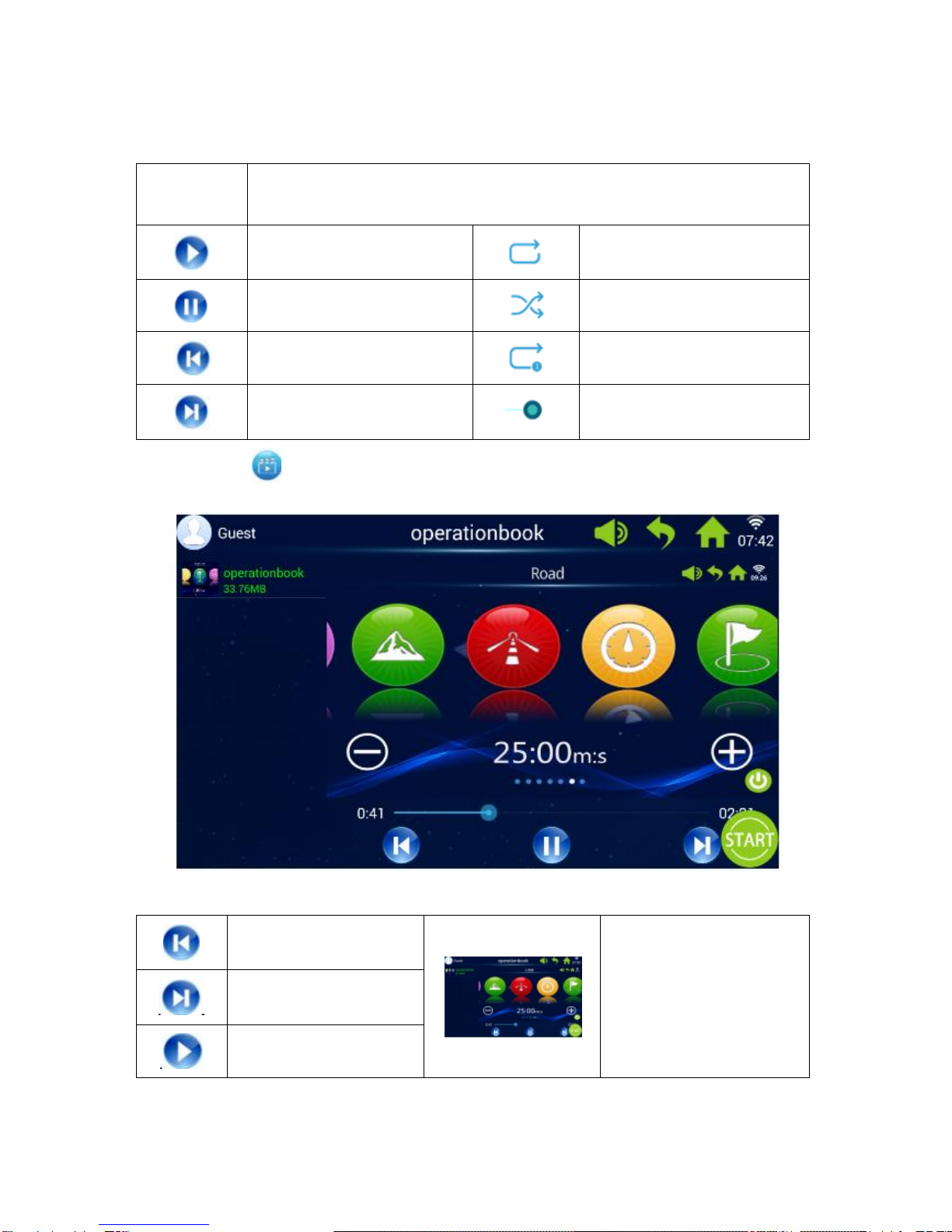

1. Local Media: Manage and display music or video from local or external USB card.
•Support to display music and video format of MP3, APE, MP4, MOV.
•It is better to play music with bright rhythm during music. Music with fast
or changeful rhythm will disrupt your running pace.
•It is dangerous to watch video while running because of mind distraction.
a. Click local media icon to enter local media page as below.
Click on music icon to show the page as below.

14
Slide up and down with your finger and play the music by clicking on the song.
ICON DESCRIPTION:
SONG1
8.36 MB
The green words stand for the name of playing music and the file size.
The white words stand for the rest of the music and the size of the file.
PLAY
Play in order
PAUSE
Random play
PREV
Single cycle
NEXT
Progress bar
b. Click on to enter video page as below. Slide up and down and click to play the video that
you want.
ICON DESCRIPTION:
PREV
Toggle between full screen
and windowed by single tap
of the playing video.
NEXT
PLAY

15
PAUSE
The green words stand for
the name of the video and
size of the file.
Progress bar
2. Internet
•Internet is available after connecting to WIFI.
•Support to display music and video format of MP3, APE, MP4,
MOV.
•It is dangerous to search the internet while running because of
mental distraction.
Click on the internet icon to check the available APP.

16
3. Programs
•Make sure the safety key function works well before running.
•It is better to exercise 30-60 mins. after having a meal.
Click on the program icon to enter the page as shown below. There are three countdown modes
and five pre-set programs available.
Click to choose the icon that you need by sliding around on the screen with your finger. Adjust the
value by clicking on the buttons and .
ICON DESCRIPTION:
3 countdown modes
5 pre-set programs
Time countdown
Body sculpting
Distance countdown
Fat burning
Calories countdown
Mountain

17
Road
Heart rate control
a. Countdown mode –take time countdown mode for reference.
Click on the countdown mode and the page as below will show.
During the process of time countdown, click anywhere of the screen to enter incline and speed
adjustment page as below. Press -Incline+ and -Speed+ button to adjust the speed and incline.

18

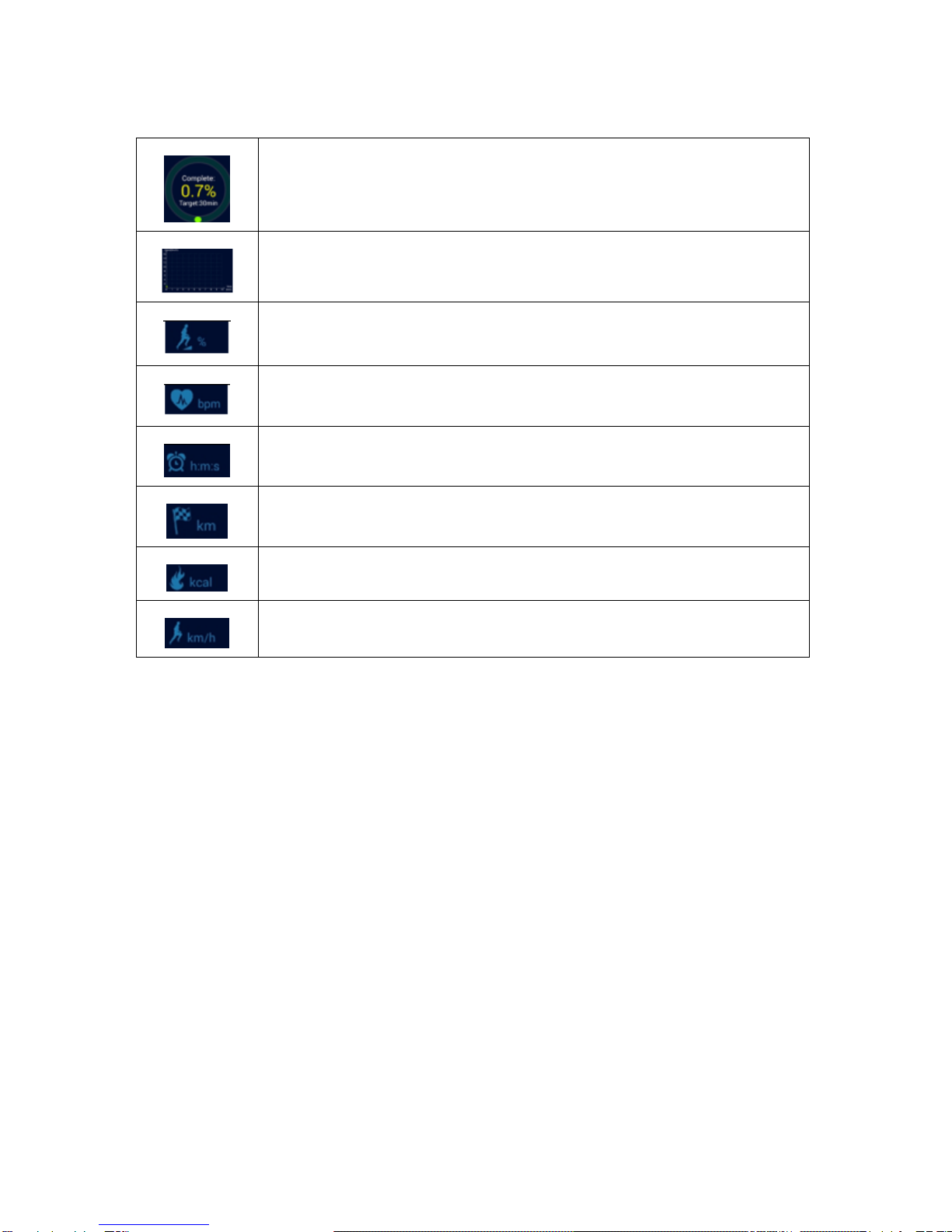

ICON DESCRIPTION:
Annular map: displays the percentage of current process to the target setting
value.
Coordinate graphs: horizontal display current running time, ordinate display current
running speed.
Incline: display incline section.
Hold the pulse sensor for several seconds and it shows the current pulse in range
from 50 to 200 bpm. Data only for reference without any medical value.
Display running time.
Display running distance.
Display consumed calories.
Display running speed.
b. Pre-set programs –take program Road for reference
Click on the ROAD icon and adjust the target time and press START button to exercise. The speed
will change according to each stage. You can change the speed and incline by pressing -SPEED+ and
-INCLINE+ key during each stage. Also, you can adjust the speed and incline by touching the screen.
Click anywhere on the screen and it will show speed and incline adjustment page. When entering next
stage, the speed comes back to its original data. When stop, the screen will pop-up a running data
automatically.

19
ICON DESCRIPTION:
Annular map: display the percentage of current running time to the target setting
time.
Speed and incline column diagram: horizontal display segments. Each pre-set
program is divided into 16 sections. Ordinate displays running speed and incline of
each section.
Light green stands for speed.
Dark green stands for incline.

20
Stage/
Formula
Pre-set time/16=Each exercising time.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Body
Sculpting
SPEED
3
6
7
8
9
10
9
8
8
9
10
9
8
7
6
3
INCLINE
0
2
2
4
4
4
2
2
2
3
3
4
4
3
2
1
Fat
burning
SPEED
5
7
9
9
11
8
8
10
10
8
10
8
6
5
4
3
INCLINE
3
5
4
4
3
5
5
3
3
5
3
5
5
3
3
3
Mountain
SPEED
3
4
6
5
3
5
6
4
5
6
7
6
8
6
5
3
INCLINE
6
8
10
12
14
12
10
14
12
10
8
10
6
4
3
2
Road
SPEED
3
6
7
7
8
9
9
10
10
10
9
9
8
6
4
3
INCLINE
1
1
2
2
3
3
3
2
2
2
3
3
2
2
1
1
c. Heart rate control program –it is an optional function. It is only available, if the treadmill comes
with heart rate reviver and a chest belt.
Click on the heart rate control program icon to enter the setting page as above. Click on the START
icon after setting the age, target heart rate and max. adjust speed.
The program starts with a warm stage which lasts 1 minute with incline 0 and lowest speed. You can
adjust the speed and incline according to your need. Finish warm stage, the speed and incline with
automatic changing according to your heart rate variation.
The treadmill will stop and pop up a running data automatically after the competition of target running
time.
