Vivid storm S pro User manual

Donottouch

thescreenmaterial

SPROElectricTab-TensionFloorScreen

VIVIDSTORM

Content

TheIntroductionofProduct ------------ 2

Appearance ------------------------------- 2

Accessories List ------------------------- 3

Importantsafetyprecautions ---------- 4

MattersNeedingAttention -------------- 5

Precautions for Use --------------------- 7

Matters Concerning Projection -------- 8

Projected Area ---------------------------- 8

Screen and projector compatibility --- 9

AboutScreenPerformance ------------- 10

InstallationWarning ---------------------- 13

Before pre installation ---------------- 13

Hardware Parts List ------------------- 13

Ground Installation ---------------------- 14

Wall Installation -------------------------- 15

Scr een Runni n g - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 6

Manual Switch ----------------------------- 17

Remote control ----------------------------- 18

Screen hight limit setting------------------ 21

Black border down ------------------------ 21

( L o w e r t h e ﬁ x e d h e i g h t o f t h e s c r e e n )

Black border up ---------------------------- 23

( R a i s e t h e ﬁ x e d h e i g h t o f t h e s c r e e n )

Screen mai n te n ance - - - - - - - - - - - - - - - - - - - - - - 2 5

Manufacturer's warranty - - -- - -- -- - -- - -- -- 2 6

C e r t i ﬁ c a t e  - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 7

ProductWarrantyCard ------------------------------- 27

VIVIDSTORM

TheIntroductionofProduct

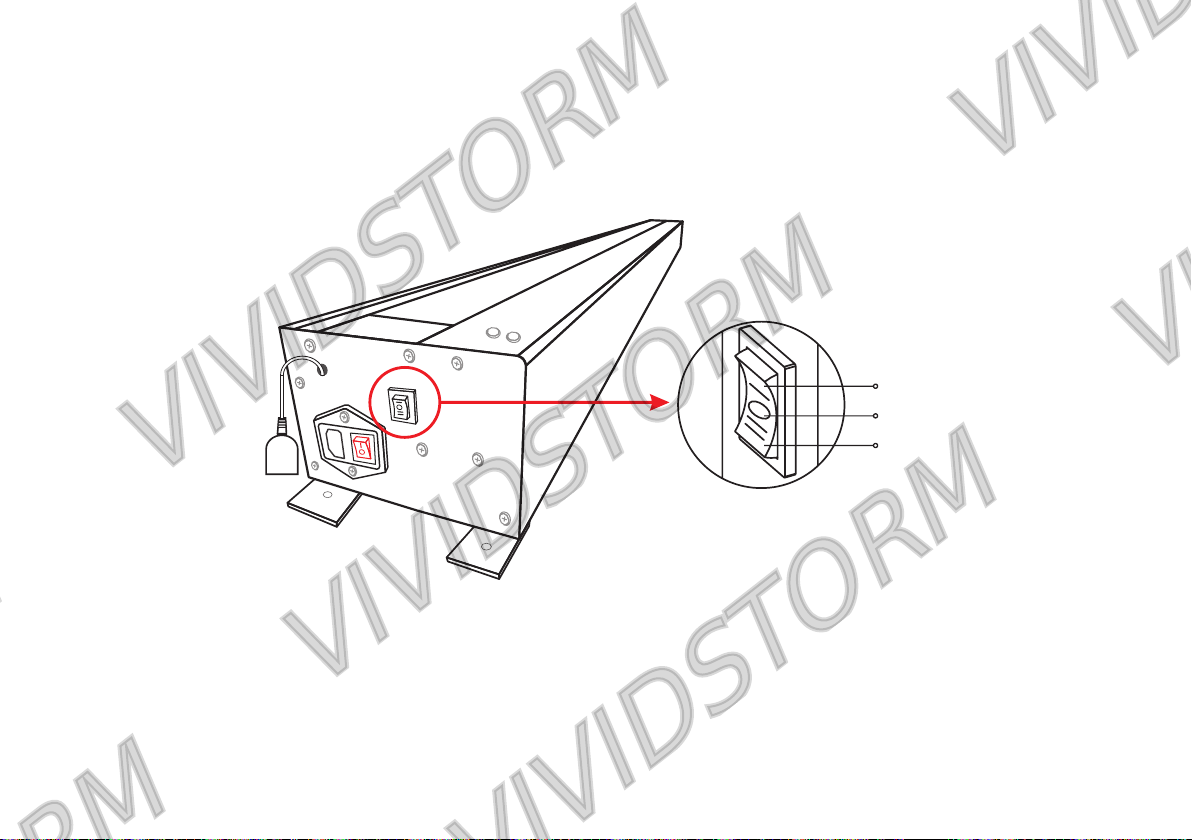

Appearance

IR receiver

Power cord socket

Power Switch

Screen manual switch

Donottouch

thescreenmaterial

Schematic diagram of left end cover

Upper cover

Screen material

Screen Black border

Housing

VIVIDSTORM

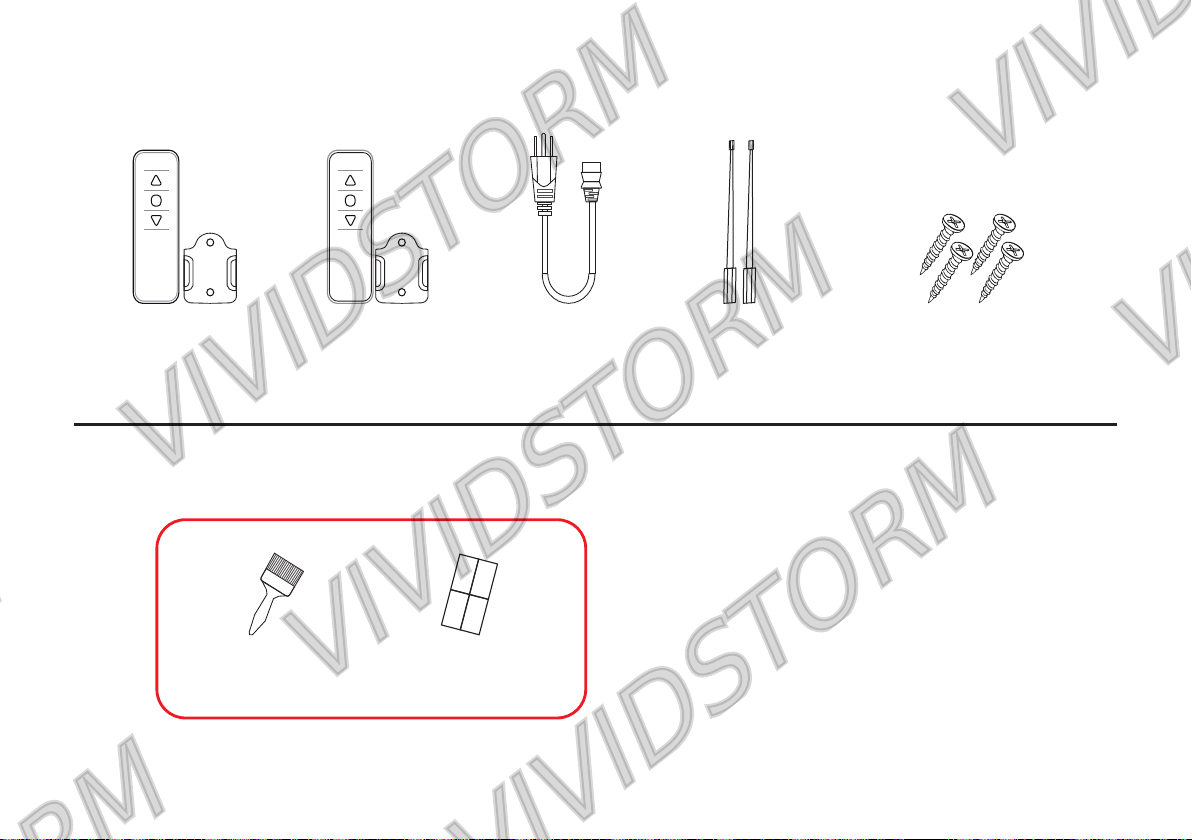

Accessories list

Gifts

Special cleaning brush

for screen material

Thetwopartsontheleftare

freegifts,sotheyarenotcovered

bythewarranty.

Cleaning stickers

Power cordIR

remote control

Adjust Rod

(Hard and soft)

Small Bracket Screw

x4 pcs

VIVIDSTORM

ImportantSafetyPrecautions

Pleasereadallthecontentsoftheuserguidecarefully

andfollowtheoperationstepsbelow.

1. In order to avoid damage to the equipment, please prohibit the use of any accessories not authorized by the

manufacturer.

2. Be sure to handle the products carefully during transportation, so as to prevent product damage caused by

collision.

For reference when necessary, please keep this user guide.

3. In order to ensure the personal safety of the user and realize the reliable operation of the equipment, please

make sure to use the power cord provided by the equipment to connect the power supply for charging.

6. In order to avoid electric shock, short circuit or ﬁre caused by loose plug, please use the power cord correctly.

7. Since this product is equipped with a V-spring support system with strong tension, removing the screen

without permission will bring certain risks. Please do not disassemble the screen by yourself. In case of

machine failure caused by your improper operation, the seller and the manufacturer have the right not to be

responsible for replace the product. In case of personal injury, no liability shall be assumed.

8. The tubular motor on the electric screen of this product has a temperature control sensor with overheating

protection mechanism. If the screen runs up and down continuously for One and a half minutes, the motor will

rest for more than 30 minutes.in order to prevent the motor from overheating and damage,If the motor stops

operation due to the start of overheat protection mechanism, please turn oﬀ the power and wait for 30 minutes

to 2 hours until the motor cools down.

4. Please place the device close to the power socket to connect the power supply for charging.

5. You need to place the product properly. Please do not place any heavy objects on the power cord and screen

to avoid danger or operation obstacles.

9.The remote control supplied with this product contains a coin / button cell battery. If the coin / button cell battery

is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used

batteries away from children. If the battery compartment does not close securely, stop using the product and

keep it away from children. If you think batteries might have been swallowed or placed inside any part of the

body, seek immediate medical attention.

VIVIDSTORM

MattersNeedingAttention

Pleaseobservethefamilyﬁresafetyregulations;donotplacetheequipmentneartheﬁreplaceor

hightemperatureobjectssuchasgasstove,barbecueorheatertoavoidequipmentdamage.

Beforethescreenturnsoﬀ,pleasemakesurethereisnodebrisinthecover.

Warning! If you do not strictly follow the prescribed precautions during use, this may lead to

equipmentdamageandotherunnecessarydamage.

The seller and the manufacturer are not responsible for any damage to the equipment caused

thereby.

Pleasedonotputanysundriesinsideofthecovertoavoiddamagetotheequipment.

Pleasekeepthisproductoutofthereachofchildren.

VIVIDSTORM

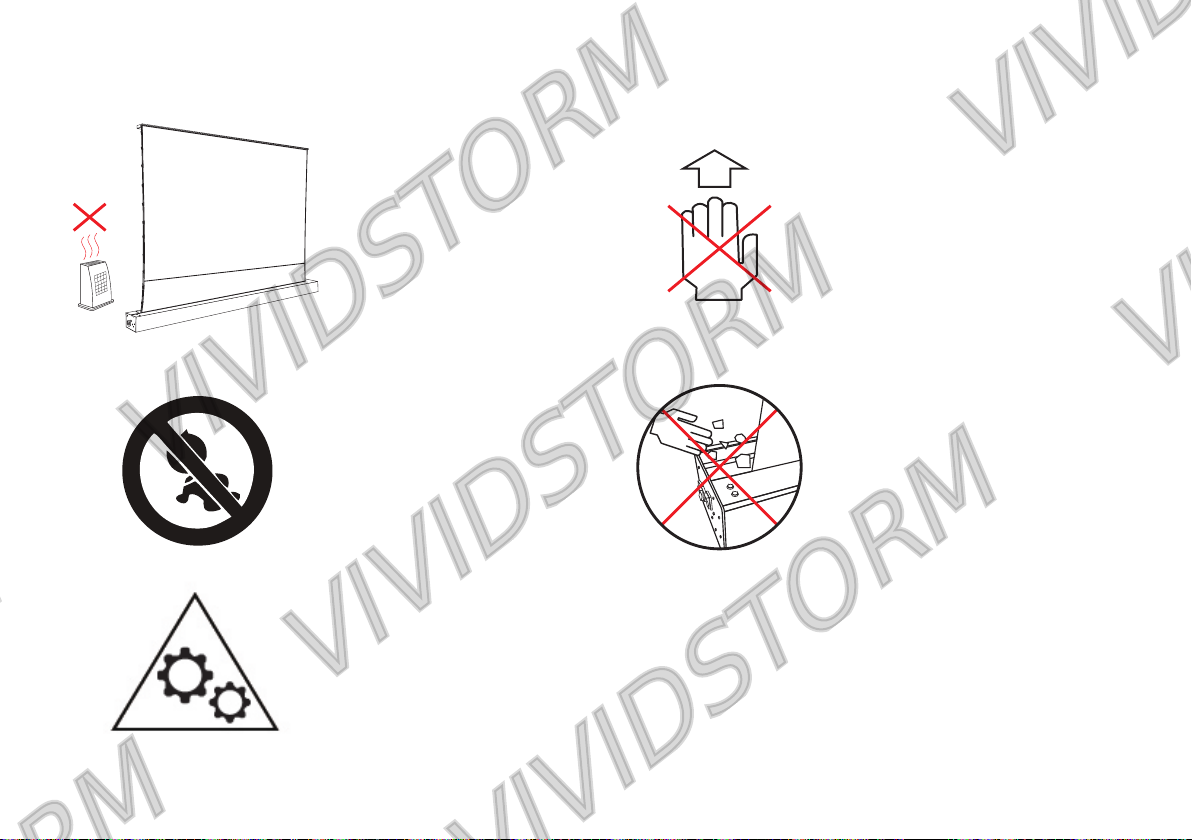

Keepchildrenawayfrom

theproduct

Do notput your handsinto

thecoveroftheproduct

Do not place the equipment

near the ﬁreplace or high

temperature objects such as

gasstove,barbecueorheater

Beforethescreenturnsoﬀ,

please make sure there is

nodebrisinthecover

Do not put any sundries

insideofthecover;

Movingparts!

Keepbodypartsawayfrom

movingparts.

VIVIDSTORM

Precautions for Use

3. When your hands and feet are in contact with water, do not operate the power plug in this case.

8. If there is any obvious damage to any parts of the product, in order to avoid any injury and electric shock,

please do not continue to use.

9. When installing in the residential and commercial buildings, users should provide reasonable protection for the

products to prevent the radiated RF energy from interfering with the operation of the products. However, there

is no guarantee that the product will not be disturbed in special installation.

6. In order to prevent the product from overheating, keep away from ﬁre source and high temperature equipment

when using this product. At the same time, the power supply of this product should be cut oﬀ before

transportation or maintenance.

4. When you encounter heavy rain, wind, thunder or lightning in the process of using this product, please be sure

to disconnect the power line.

7. Like any other household appliances, when this product is not used for a long time, please completely

disconnect the power supply to ensure safety.

5. The curtain of this product should not be placed in direct sunlight, rain and humid environment.

No one is allowed to open the inside of the equipment and repair the product without authorization, except for the

authorized technicians.

1. Please make sure that the power supply connected to this product has stable current.

2. If you need to use the extension cord for this product, please make sure that the power cord rating of the

extension cord is the same as that of this product, so as to avoid equipment damage due to overheating.

VIVIDSTORM

MattersConcerningProjection

Projected Area

2.Since the position of black border has been preset on the screen of this product, please do not exceed the

speciﬁed projected area during projection. You should note that the default black border is not the projection

area.

1.Please project according to the actual projection size of the screen purchased when using the projector.

Brand-new product design:

Screen without black border, black

border size has been preset

size

Black border has been preset Classic product design:

Screen with black border

VIVIDSTORM

Ambient light can be absorbed

Th e p rojec tio n con ten t of the

product can be well reﬂected to the

viewer

If a part of the projected light is

absorbed, the brightness of the

image will be dimmed, Low contrast

Screen and projector compatibility

Please note that the screen of this product is only suitable for use with Ultra short throw laser projector. If it is

used with other projector ，the eﬀect of picture will be greatly reduced.

It is suggested that the ultra short

focus laser projector throw ratio

should be ≤ 0.4. (please consult the

projection manufacturer for speciﬁc

parameters)

In view of the particularity of the

screen structure of the product,

projectors other than ultra short

fo c us la se r p r oj e ct o rs ar e n ot

compatible with this Screen fabric. If

ot her pro jecto rs are u se d, t he

projection light may be absorbed or

blocked by the Screen fabric.

VIVIDSTORM

AboutScreenPerformance

1.Please note that when placing this product, please make sure that the product is always in a horizontal state.

Do not place the screen in an inclined or vertical position.

2. After using for a period of time, if the cover on both ends of the screen is slightly tilted, there is no need to worry.

This is a normal phenomenon and does not aﬀect the viewing and use. In addition, due to the cover warping,

there is a gap between the screen and the housing case after closing, which is also a normal phenomenon.

3.If there are regular creases on the screen surface after the screen is opened, don't worry. This is a normal

phenomenon. It is caused by the screen being curled and tightened for a long time, which does not aﬀect the

user's viewing. After opening the screen for a period of time, you will notice that the stripes on the screen will

gradually disappear.

Please make sure the product

is placed horizontally

There was a slight tilt after the

screen was closed

VIVIDSTORM

4.When there are a few black spots, white spots, stains and other impurities on the screen surface, but if they are

qualiﬁed according to the detection method, then such situation is not a product quality problem, and it is

within the scope of product qualiﬁcation.

Figure 2 top view

screen

Figure 1 side view

The ambient illumination of the

central point is 500-600lx

The center of the screen

45°

Horizontal line of sight

As long as the test results of the product are within the allowable range, the product is qualiﬁed.

(3).The distance between the observer and the front of the screen should be kept at a distance of 3 meters , and

the center point of the screen should be close to or higher than the horizontal line of sight (as shown in Figure

1), and the observation should be made at the center point, 1 m to the left and 1 m to the right (as shown in

Fig. 2).

The detection method is as follows:

(2).The observer needs to observe the shadow in the normal light environment (illumination 500-600lx);

(1).Please raise the screen of this product and close to the wall, and the observer can observe the ﬁlm at a

distance of 3 meters away from the screen;

screen

VIVIDSTORM

For the black spot defect which can be

measured in appearance, if it can not be

found by visual inspection, the product is

normal.

F o r t h e a p p e a r a n c e o f s p e c i ﬁ c

measurable white spot defects, if visual

inspection can not be found, then the

product is normal.

If the visible dirt is within the allowable

range of defects, the product is normal.

For the faint linear printing trace, if within

the allowable range of defects, the

product is normal.

For the inks caused by uneven printing

traces, if within the allowable range of

defects, the product is normal.

(2).Diﬀerent from the white screen, the black screen is used as a functional surface to absorb indoor ambient

light. In view of the fact that there is no direct correlation between the black screen surface and the image

viewing quality, its quality speciﬁcations are quite diﬀerent from that of the white surface. It should be noted

that the slight black marks on the black screen surface are inevitable appearance phenomena in the

production process of industrial products, which meet the factory qualiﬁcation standard.

(1).The white screen is listed as the quality standard because it is not only the reﬂection surface of the projector

image (the black surface is observed from the upper and lower direction, and the white surface is observed

from the bottom direction), but also the main function surface of the viewing image, so the white screen is

listed as the quality standard. It should be noted that if the white screen surface does not exceed the quality

speciﬁcation, it will be regarded as meeting the factory qualiﬁcation standard.

Conclusion: it should be noted that the slight black marks and white spots on the black screen surface of the anti

light projection screen products are normal product appearance phenomena, which will never aﬀect the

image viewing quality. Please use it at ease.

VIVIDSTORM

InstallationWarning

Before pre installation

Hardware Parts List

1. When you open the package, please carefully open the screen package to avoid the product from rubbing or

falling.

2. Please always place the screen in a horizontal position. Do not install the product on an uneven or inclined

surface.

3. Please keep the screen away from dust, sawdust and liquid to protect the screen from contamination.

Since the installation environment of each user is diﬀerent, the instructions in this user guide are only for

reference. If you need further installation and safety suggestions, please consult the professional installation

company. It should be noted that no matter what kind of installation method you take, the product should not be

loosened or dropped due to vibration or tension, so as to keep the product stable. The installation personnel of

the product must ensure that the bracket accessories used have suﬃcient strength to support the product and

select the appropriate installation position.

Before you install the product, make sure that all parts of the product are included. Please note that the wall

screws supplied with this product may not be suitable for all mounting surfaces. Please consult the professional

installation personnel or hardware store to get the correct installation screws and anchors.

VIVIDSTORM

GroundInstallation

Safety tips: it is recommended that two people lift the product and place it horizontally.

1. When using this product, you can place the product on the horizontal ground and ﬁx it. Before placing the

product, please pay attention to cleaning the ground debris to keep the ﬂoor dry.

2. When using and rotate the four bottom supports, rotate the four bottom supports, one of which can be selected

to ﬁx the bracket according to the actual situation. It is recommended to use screws to ﬁx the product on the

ground.

Bottom ﬁxed base

VIVIDSTORM

WallInstallation (The wall hanger can be used as a reference If additional purchase it)

1. If you purchase the wall bracket, you can ﬁx the product screen on the wall.

2. When installing the product, ﬁrst you need to make a horizontal mark on the wall and mark the hole position,

and then ﬁx the wall bracket on the wall. It should be noted that when lifting the product, two people should lift

and place it on the rack at the same time.

Wall rack accessories

Diagram on the front

of the screen

Schematic diagram of wall bracket accessories

VIVIDSTORM

ScreenRunning

Voltage information: make sure your screen is working at the , depending on the area.correct voltage

(2) When the product power is turned on, a "beep" sound will be emitted for 1.5 seconds, indicating that the

product has been powered on.

(Using the wrong voltage may cause the screen to become inoperable)

(1) Plug the screen power cord into the correct power outlet.

(3) When the screen is fully raised, you can choose to turn oﬀ the power switch and unplug the power cord due to

long-term viewing. At this time, the screen will remain open and will not be closed due to power oﬀ. To turn oﬀ

the screen, connect the power cord and turn on the switch to resume operation.

Note: when the screen is raised, make sure there is no obstacle and enough space on the top of the screen, and

do not put your head on the top of the screen to avoid personal injury and product failure.

(4) When the left power switch is powered on, you can use any of the methods described below to run the screen.

VIVIDSTORM

1.Manual Switch

The left side of the screen shell is equipped with a manual switch which can control the screen "up / stop /

down".

Stop

Down

Position of manual switch

VIVIDSTORM

2.Remote control——RF remote control / IR remote control

(2) IR remote control needs to be connected with the IR receiver. When using IR remote control, make sure that

the power switch is turned on and aligned with the IR receiver head, so that the IR remote control can operate

normally.(Unlike the wireless remote control, the back of the infrared remote control is black, and there is an

infrared signal lamp on the top)

(1) Wireless RF remote control: when the screen is hidden and installed in the slot or requires remote control,

wireless remote control can be used. It can control the screen without aiming at the IR receiver.

Front of remote control Perspective view of infrared

remote control

When using, please aim

at the IR receiver

IR receiver

Stop

Down

VIVIDSTORM

This manual suits for next models

Table of contents

Other VIVID STORM Projector Accessories manuals

VIVID STORM

VIVID STORM S User manual

VIVID STORM

VIVID STORM CineVision Pro User manual

VIVID STORM

VIVID STORM PHANTOM Recessed In-Ceiling Motorized Tension UST... User manual

Popular Projector Accessories manuals by other brands

Epson

Epson ELPMBP02 - False Ceiling Plate Installation and assembly

Sony

Sony VPLL-Z3010 operating instructions

Sharp

Sharp AN-C12MZ installation manual

Promounts

Promounts UPR-PRO200 user manual

FONESTAR

FONESTAR PPTR-43100-BA quick start guide

Mersive

Mersive Solstice Pod quick start guide

Premier Mounts

Premier Mounts PDS-LAT installation instructions

Kramer

Kramer VIA CONNECT PRO quick start guide

Sony

Sony VPLL-Z3020 operating instructions

Panasonic

Panasonic ET-PAD310 installation instructions

New Star

New Star Beamer-C350Black instruction manual

Clear One

Clear One TeachCam Specifications

Techly

Techly ICA-PM 18S user manual

Sharp

Sharp AN-PH80CW installation manual

Sanyo

Sanyo LNS-T03 Replacement /installation instructions

Viz-Art Automation

Viz-Art Automation SLIM 12/1640 quick start guide

ADEO SCREEN

ADEO SCREEN SCREEN RESEARCH FCIN1 installation manual

David Engineering & Mfg

David Engineering & Mfg PDR UPM50 instructions

VIVID STORM S PRO User manual

Popular Projector Accessories manuals by other brands
