Vivitar HA-23 User manual

Wi-Fi Smart Plug
Quick Start Guide
HA-23
Wireless Remote Plug
© 2009-2018 Sakar International, Inc. All rights reserved.

1
What’s Included
• Smart Plug
• Quick Start Guide
Wi-Fi Indicator Light
On/Off/Reset Button

2
Features
• Built-in Wi-Fi for complete control in or out of the house
• Perfect solution for single outlet applications
• Full schedule management via the Vivitar Smart Home Security App
• Easily connects to your smart phone or tablet
Wi-Fi Indicator Light
LED Light
LED Status
Function
BLUE
Flashing Quickly
Searching for network
BLUE
Flashing Slowly
AP mode
BLUE
ON (solid light)
Network disconnected
BLUE
OFF
Connected to network
How to Install the App
MOBILE DEVICE SYSTEM REQUIREMENTS
• Android cellphone/tablet with OS 4.4 or higher
• iPhone/iPad with iOS 9.0 or higher
APP INSTALL AND LAUNCH
Use your mobile phone or tablet to search for Vivitar Smart Home
Security in Google Play Store (Android) or the Apple App Store (iOS).

3
Or you can scan the QR codes below to find the application.
Android OS iOS
1. Install Vivitar Smart Home Security app according to the
instructions as seen on your mobile device.
2. Ta p th e a p p icon t o launch the application and register.
Connecting Your Smart Plug with the App
NOTE: Your smart plug is supported only on a 2.4GHz Wi-Fi network.
Before setup, make sure your mobile device is connected to a 2.4GHz
Wi-Fi network.

4
INITIAL DEVICE SETUP

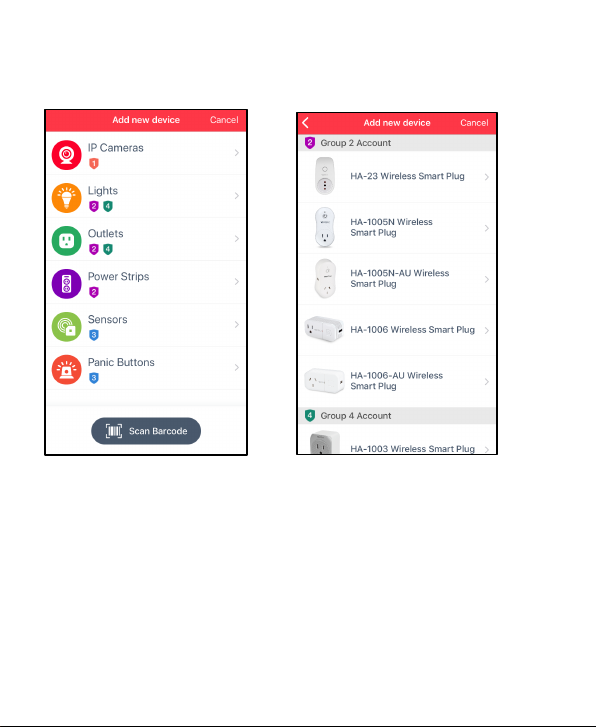

1. Tap +Add device from the “Devices” screen to add your smart
plug.

5
2. Tap Outlets.
3. Tap HA-23
4. The ‘Register a new device’ screen appears.
Tap Register and follow the prompts to register your new device.

6
5. Switch on your smart plug and
ensure it is rapidly flashing,
then tap Continue.
NOTE: If it is not flashing,
please follow the instructions
on the screen to reset your
smart plug.
6. Enter your Wi-Fi password,
then tap Continue.

7
7. The ‘Connecting’ window then
appears, displaying the
progress as the device
connects to the app.
8. After the connection is
complete, enter a name for
your smart plug and choose a
room from the list, and then
tap Done.

8

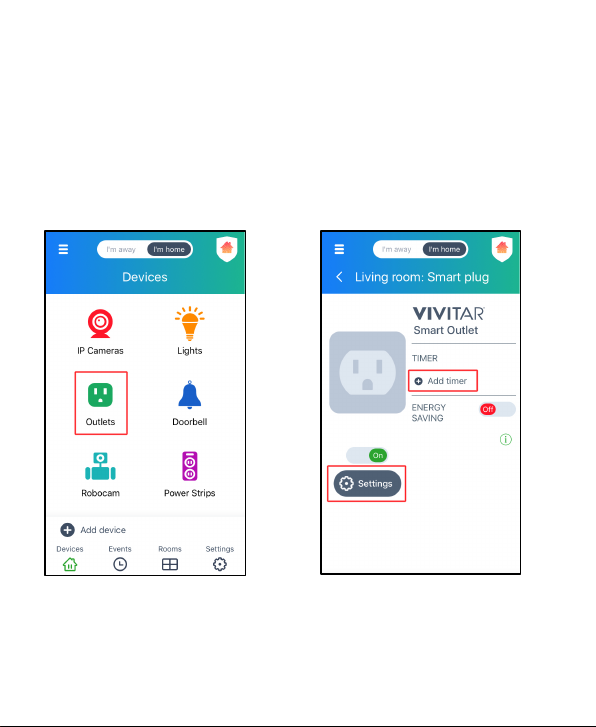

9. The ‘Devices’ window opens,
then tap Outlets to enter the
main Control Panel screen.

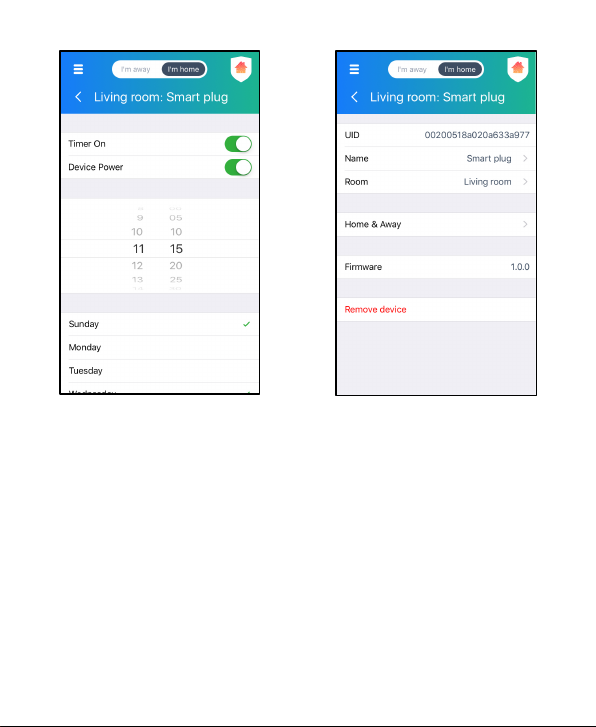

10. Tap Add timer to set the
timer.
Tap Settings to change the
device’s name or room. You
can also remove the device.

9

10

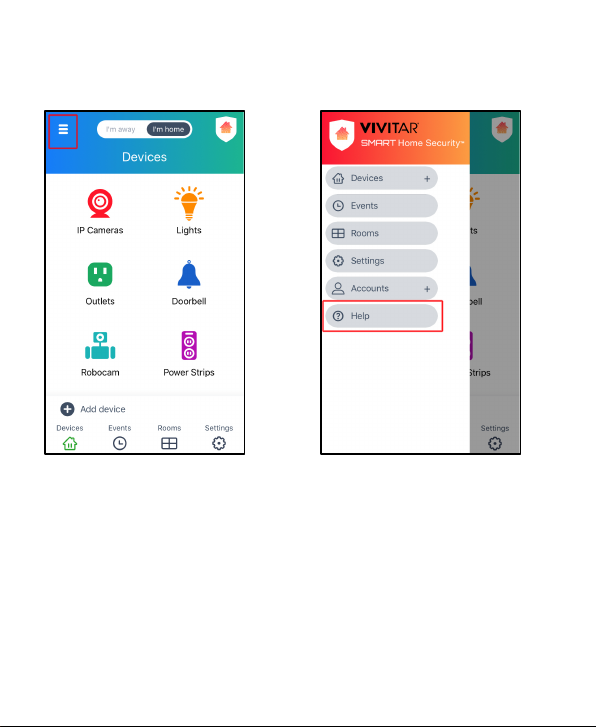

For more app features, please access ‘Help’ in the App’s menu options.

11
Technical Specifications
Note：
1) The pictures used in this manual show iOS interface.
2) Product and software are updated periodically. The application interface in this
manual are only for example. No extra notification on further changes.
3) AP mode allows your smartphone to access the camera’s Wi-Fi directly, without
the aid of a router/internet connection. It’s useful in scenarios where users want to
install an IP camera but there is no router or Internet connection available. Please
note that if you switch your camera to AP mode, remote access to the camera
can’t be supported.
Voltage Range
80-250V AC
Max Current
10A
Wattage
2400 Watts
Switch Type
Wi-Fi Remote
Plug Format
Type L
