Video Conferencing Room Solution
VLCAM200

1
Attentions
This manual introduces functions, installation and operations for VLCAM200
video conferencing room solution in details. Please read this manual carefully
before installation and use.
1. How to Use
To prevent damage to this product or any product connected to it, this product can only be used
within the specified range.
1.1 Do not expose the product to rain or moisture.
1.2 To prevent the risk of electric shock, do not open the case. Installation and maintenance should
only be carried out by qualified technicians.
1.3 Do not use the product beyond the specified temperature, humidity or power supply
specifications.
1.4 Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent
if needed. Do not use strong or corrosive detergents to avoid scratching the lens and affecting
the image;
2. Electrical Safety
Installation and use of this product must strictly comply with local electrical safety standards.
3. Handle with care
Avoid damage to product caused by heavy pressure, strong vibration or immersion during
transportation, storage and installation.
4. Install with Caution
4.1 Do not rotate the camera head violently, otherwise it may cause mechanical failure;
4.2 This product should be placed on a stable desktop or other horizontal surface. Do not install the
product obliquely, otherwise it may display inclined image;
4.3 Housing of this product is made of organic materials. Do not expose it to any liquid, gas or
solids which may corrode the shell.
4.4 Ensure there are no obstacles within rotation range of the holder.
4.5 Do not power on before completely installation.
5. Do not Disassemble the Product without Permission

2
This product contains no parts which can be maintained by users themselves. Any damage caused
by dismantling the product by user without permission is not covered by warranty.
6. Magnetic Interference
Electromagnetic fields at specific frequencies may affect the image. This product is Class A. It may
cause radio interference in household application. Appropriate measure is required.
Content
ATTENTIONS ..................................................................................................................................1
1. Packing Contents .........................................................................................................................3
2. Product Overview .......................................................................................................................4
2.1 VLCAM200-A: Speakerphone .............................................................................................4
2.2 VLCAM200-V: HD PTZ Camera ...........................................................................................4
2.3 VLCAM200-H: Hub ...............................................................................................................5
3. Connection Description.................................................................................................................6
4. Keys Description...........................................................................................................................7
4.1 Keys Description of Remote Control ......................................................................................7
4.2 keys Description of Speakerphone..........................................................................................8
5. Work with Video Conferencing Software .....................................................................................9
6. Bluetooth Pairing ........................................................................................................................10
7. Presets .........................................................................................................................................10
8. Technical Specifications..............................................................................................................10
Copyright Statement .......................................................................................................................12

3
1 Packing Contents
1. Speakerphone
2. HD PTZ Camera
3. Hub
4. Remote Control
5. 5m DIN6 Cable * 2 pcs
6. 3m USB Cable *1 pcs
7. Power supply

4
2 Product Overview
2.1 VLCAM200-A: Speakerphone
1. Optional expansion microphone port 1
2. Optional expansion microphone port 2
3. DIN6 cable port
4. IR remote control receiver
5. Function keys
6. Status indicator
2.2 VLCAM200-V: HD PTZ Camera

5
1. LAN（Upgrade and maintenance）2. DIN6 Cable port
3. Power and infrared receiving indicator 4. Bracket mounting screw holes
5. Bracket mounting positioning hole

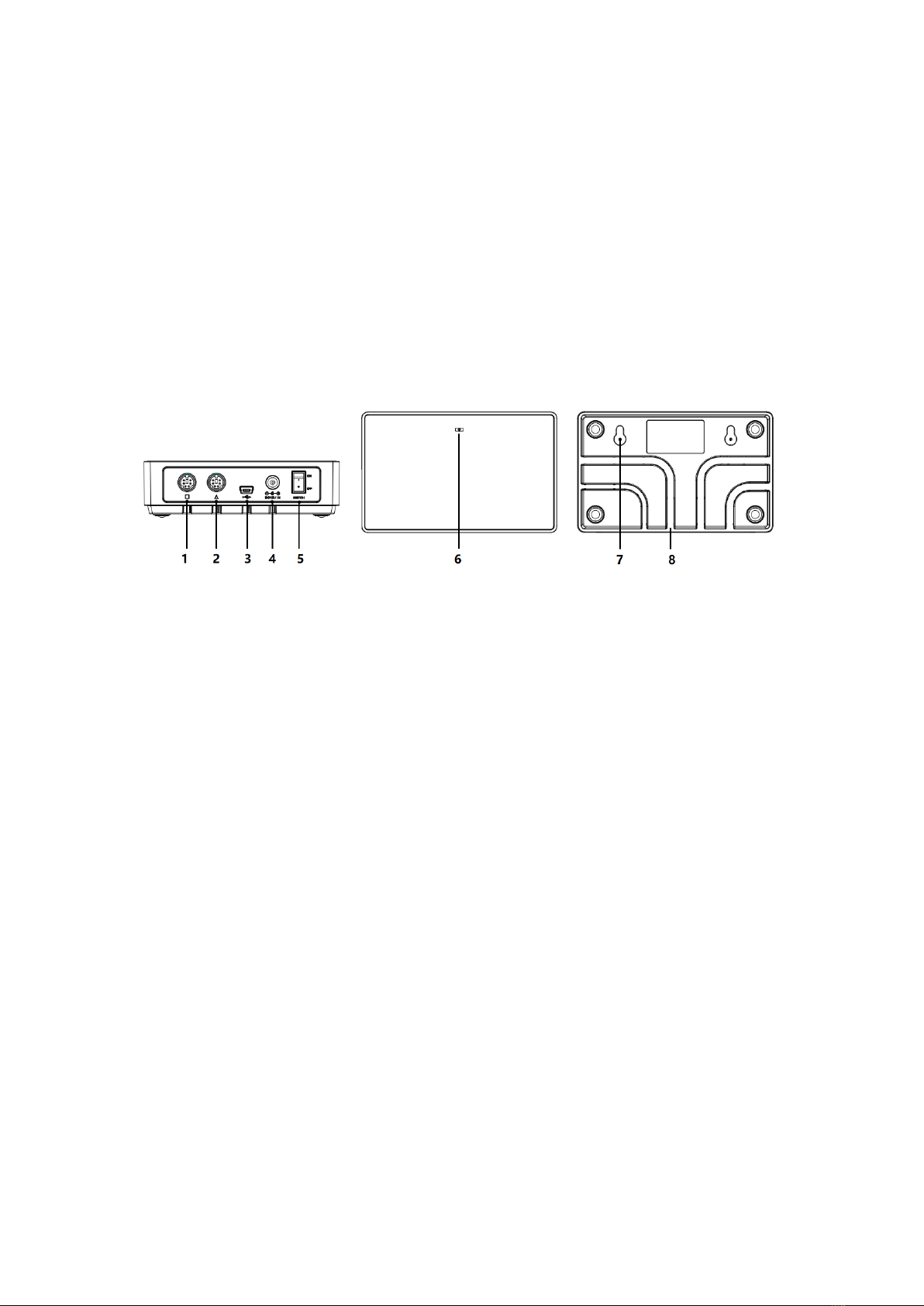

2.3 VLCAM200-H: Hub
1. DIN6 Cable port
2. DIN6 Cable port
3. Mini USB port
4. Power port
5. Power switch
6. Power indicator
7. Screw holes
8. Wire slot

6
3 Connection Description
1. Connect camera and hub with original DIN6 data cable
2. Connect the speakerphone and hub with original DIN6 data cable
3. Connect the computer to the hub with the original USB cable
4. Connect with the original power adapter and power supply
5. Switch to power on

7
4 Keys Description
4.1 Keys Description of Remote Control
1: Device standby
2: Zoom in
3: Zoom out
4: Volume up
5: Volume down
6: Pan / Tilt
7: HOME（Camera Zero position）
8: Mute microphone
9: Pick up
10: Hang up
11: 0-9 Camera presets
12: Reserved (for future functions)

8
4.2 keys Description of Speakerphone
1. 1-3 Presets2. Zoom in / Zoom out
3. Camera Zero position 4. Bluetooth pairing
5. Camera pan / tilt 6. Mute microphone
7. Pick up / Hang up 8. Volume up / volume down

9
5 Work with Video Conferencing Software
Correctly connect VLCAM200. Login on your video conferencing software on the computer, and
select the corresponding camera, microphone and speaker driver, then the VLCAM200 and VC
software could serve for your video conferencing perfectly.

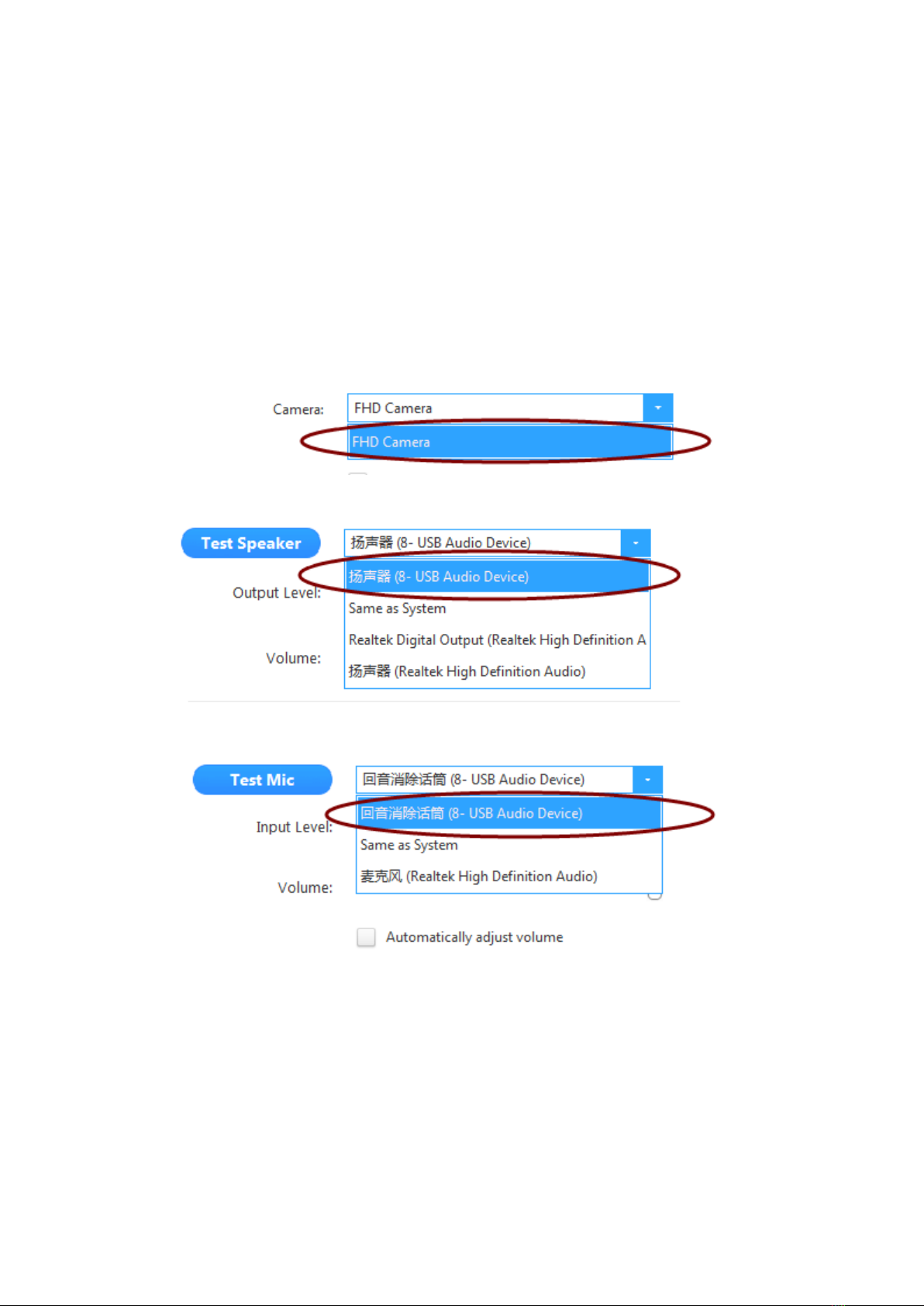

Refer to the image below (ZOOM software for example).

10
6 Bluetooth Pairing
Once paired with a Bluetooth device, you can use the speakerphone for audio call.
To pair your Bluetooth device with the speakerphone, follow steps below:
1. Press and hold the Bluetooth pairing button until the status indicator flashes blue light. The
speakerphone is under Bluetooth pairing mode.
2. Search VLCAM200 with your Bluetooth device and connect.
7 Preset
How to save preset:
Adjust the camera to the position that needs to be preset. Press and hold the preset button for 5
seconds. The corresponding preset position is set successfully. (Note: 10 preset positions (0-9) can
be set on the remote control; 3 preset positions (1-3) available for the speakerphone. The preset 0 is
the power-on preset position).
How to use preset position:
Short press the preset button to call the corresponding preset position (Note: the number key is
invalid if it’s not preset);

11
8 Technical Specifications
Model NO. VLCAM200-V
Product Picture
Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels 2.07M,16：9
Video Format
176x144/320x240/320x180/352x288/640x480/720x480/720x576/
640x360/800X600/960X540/1024X576/1024X768/1280X720/
1920X1080P30/25/20/15/10/5
Optical zoom lens 5xoptical zoom, f＝3.1～15.5mm
View angle 20°（tele）83.7°（wide）
Aperture value F1.8 – F2.8
Digital Zoom
X10
Minimum Illumination
0.5Lux(F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/
3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus
Auto/Manual/One Push
Aperture/Electronic
Shutter Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment

12
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR
>55dB
Rotation angle Pan: -125°～+125°, Tilt:-30°～+30°
Control speed Pan: 0.1 ～65°/sec, Tilt:0.1～35°/sec
Preset speed Pan: 65°/sec, Tilt: 35°/sec
Dimensions 151.64mm×131.25mm×154.5mm (L×W×H)

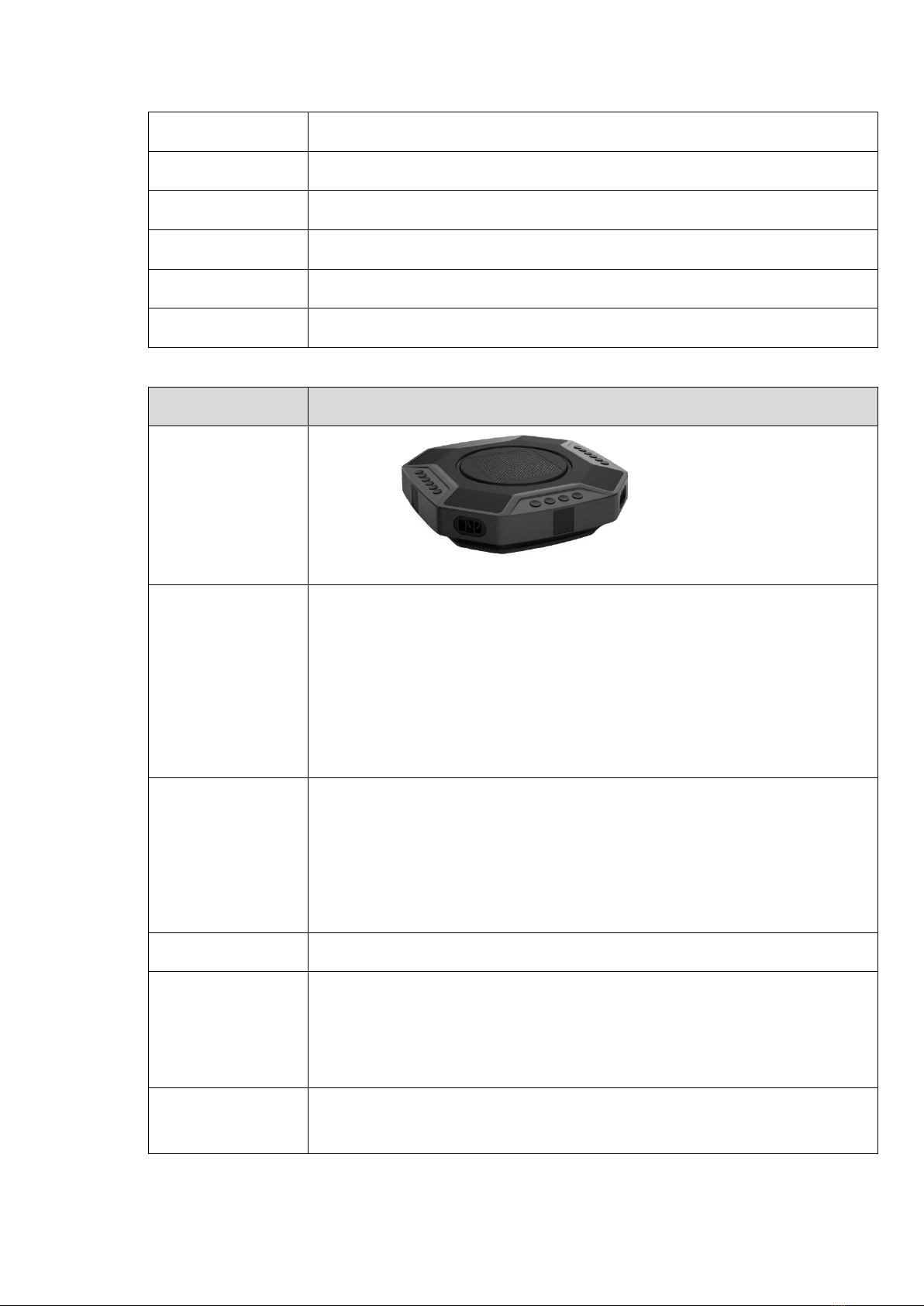

Model NO. VLCAM200-A
Product Picture
Voi ce-technical
parameters
Acoustic Echo cancellation（AEC）： >65dB
Echo length cancellation：≥400ms
Bidirectional noise compression（NC）： <25dB
Automatic Direction finding Technology of Intelligent microphone（EMI）
Automatic gain control（AGC）
Audio parameters
Microphone frequency response：100Hz-22KHz
Speaker frequency response：100Hz-22KHz
Speaker volume: 95dB at the most
Microphone sound-pickup diameter: 6 meters, 360 degrees full range
Bluetooth Bluetooth devices available
IR Reception
Angle: 360°
Distance: 10m
IR Transparent transmission available
Expansion Mic
(optional)
2 external microphones optional for connection makes the sound-pickup diameter up to 10 meters

13
Dimensions 200mm×200mm×52mm(L×W×H)
Model NO. VLCAM200-H
Product Picture
Interface
Mini DIN6 ×2
Power interface × 1
Power switch × 1
Mini USB interface × 1
Power supply
EC3800 plug(DC12V)
Adapter input AC110V-AC220V,output DC12V/1.5A
Connection Cable
Mini DIN6 data line × 2
Length: 5m（10m/15m for options）
USB cable USB2.0 cable
Compatibility
Support Windows, Android, iOS and Linux
Drive-free automatic recognition of cameras, microphones and speakers
Compatible with Zoom, Lynch, Vidyo, Skype for business and etc.
Dimensions 100mm×62mm×27mm(L×W×H)
Accessories Power adapter, USB2.0 cable, remote controller, 2 connection cables, user manual,
Copyright Statement
All the contents in this manual and its copyright are owned by Vivolink. No one is allowed to imitate,
copy, or translate this manual without the company’s permission. This manual contains no guarantee,
standpoint expression or other implies in any form. Product specification and information in this
manual is for reference only and subject to change without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
