Vivo Link VL120002 User manual

VL120002
Compact Scaler Switcher 6x1
User Manual

Compact Scaler Switcher 6x1
Preface
Read this user manual carefully before using this product. Pictures shown in this
manual is for reference only, different model and specifications are subject to real
product.
This manual is only for operation instruction only, not for any maintenance usage.
Trademarks
Product model, VivoLink and its logo are trademarks of EET EuropartsA/S. Any other
trademarks mentioned in this manual are acknowledged as the properties of the
trademark owner. No part of this publication may be copied or reproduced without the
prior written consent of EET Europarts A/S.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

Compact Scaler Switcher 6x1
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

Compact Scaler Switcher 6x1
Contents
1. Introduction.................................................................................................................1
1.1 Introduction to VL120002...................................................................................1
1.2 Features ............................................................................................................1
1.3 Package List......................................................................................................1
2. Panel Description........................................................................................................2
2.1 Front Panel........................................................................................................2
2.2 Rear Panel.........................................................................................................3
3. System Connection.....................................................................................................3
3.1 Usage Precautions............................................................................................3
3.2 System Diagram................................................................................................4
3.3 Connection Procedures.....................................................................................4
3.4 Application.........................................................................................................4
4. System Operations .....................................................................................................4
4.1 Front Panel Button Control................................................................................4
4.2 RS232 Control...................................................................................................6
4.2.1 Control Software Operation.....................................................................6
4.2.2 Basic Settings..........................................................................................6
4.2.3 RS232 Communication Commands ........................................................7
4.3 IR control.........................................................................................................11
4.4 Firmware Updating..........................................................................................12
5. Specification .............................................................................................................13
6. Panel Drawing ..........................................................................................................15
7. Troubleshooting & Maintenance ...............................................................................16
8. After-sales Service....................................................................................................17

Compact Scaler Switcher 6x1
1. Introduction
1.1 Introduction to VL120002
VL120002 is a compact 6x1 mini scaler switcher with 6 video inputs (4 HDMI, 2 VGA),
2 auxiliary audio inputs (switched following VGA), 1 HDMI output and 3 audio outputs
(1 dual-mono analog audio, 1 3.5mm stereo audio, 1 optical audio).
VL120002 switches VGA or HDMI/DVI input signal to HDMI output. Besides, VL120002
up-scales VGA to HDMI output and supports resolution adjustment (6 types in total). It
bypass HDMI and provides comprehensive resolution capacities up to 4K& 1080p 3D.
The unit also supports RS232&IR control and EDID management.
1.2 Features
Control -- via Front panel buttons, RS232 commands and IR Remote
Switch -- select 6 input source to HDMI output
Scale –scale VGA to HDMI output, Output resolutions selectable to assure
preferred output, and supports various output resolutions, such as 1920x1200,
1920x1080,1360x768,1280x800,1024x768,1280x720
Support HDMI 1.4, 4Kx2K&1080P 3D, compliance with HDCP1.4.
Transmit 4Kx2K signal up to 15m.
Support EDID management
Two input switching modes: auto-switching or manual-switching
Intuitive indicator for power connect states & source selection & output resolution
selection
Support audio&video output management via OUTPUT BLACK button.
Support online software upgrading
Compact design for easy operation
Support power-off memory
Support hot plug
1.3 Package List
1 x VL120002
2 x Mounting ears (separate from VL120002)
4 x Screws
4 x Plastic cushions
1 x Power adapter (DC 5V 3A)
2 x 3-pin Pluggable terminal blocks (pitch:3.81mm)
1 x IR Receiver
1 x IR Remote (Cell battery is not included)

Compact Scaler Switcher 6x1
1 x User manual
Notes:Confirm all the accessories are included, if not, please contact with the
dealers.
2. Panel Description

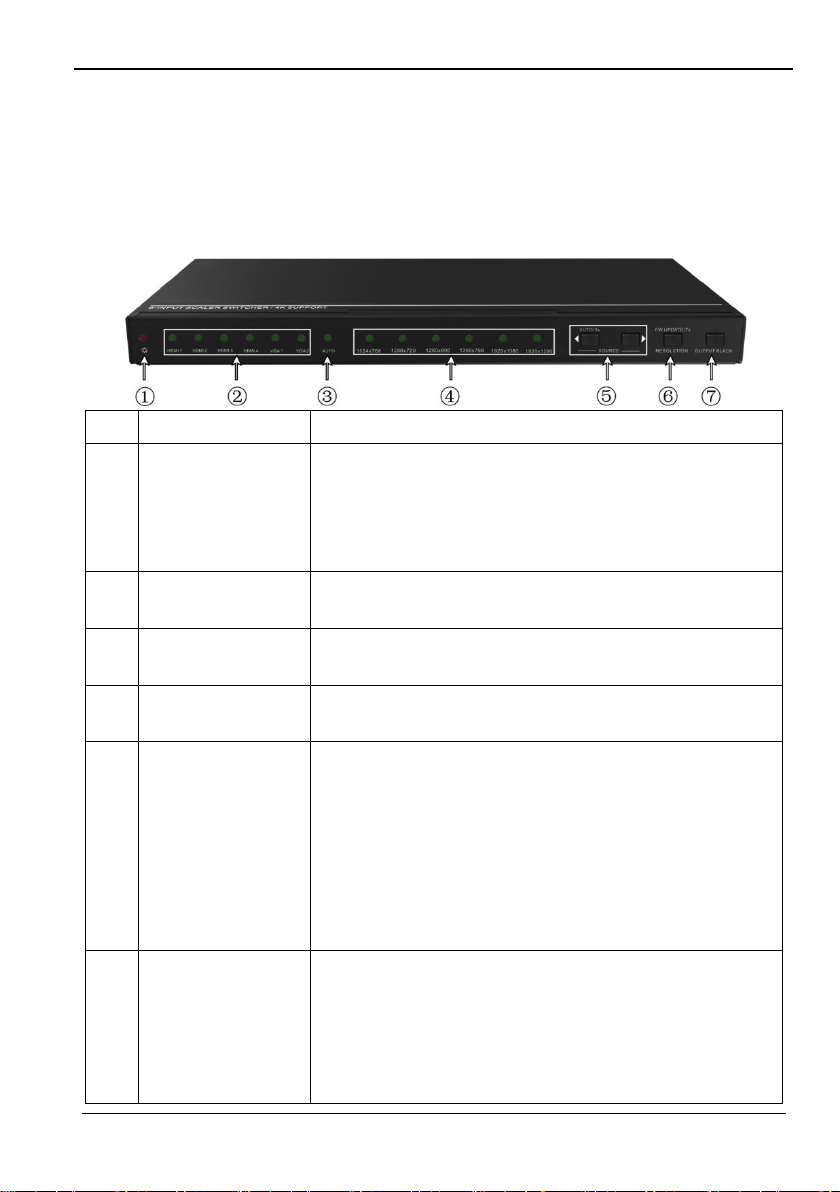

2.1 Front Panel
No.
Name
Description
①
Power LED
Indicator for power status
Off when no power.
Constantly green when the system is in working.
Constantly red when the system is enter in standby.
②
Inputs LED
Constantly green when choosing the corresponding
audio source.
③
Auto-switching
LED
Constantly green when enter in auto-switching mode.
④
Output resolution
selection LED
Constantly green when choosing the corresponding
output resolution (Input is VGA).
⑤
SOURCE/AUTO
Audio source selection button: switching circularly
between HDMI1, HDMI2, HDMI3, HDMI4, VGA1,
VGA2. dial ◀to select the previous one, dial ▶to
select the next one.
Switching mode selection button ◀: press and hold
for 3 seconds or more to enter in auto-switching
mode, press and hold for 3 seconds or more again
to enter in manual-switching mode.
⑥
RESOLUTION/FW
UPDATE
Output resolution manual switching button for VGA
input: selection circularly among 1920×1200, 1920
×1080, 1360×768, 1280×800, 1024×768, 1280×
720.default resolution:1920×1080.
Firmware updating button: press and hold for 7
seconds or more to enter in software updating

Compact Scaler Switcher 6x1
procedure. All LED blinking when the system is
loading firmware.
⑦
OUTPUT BLACK
Press to switch on/off audio&Video output. All LED turn
off except power LED when switch off output.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
2.2 Rear Panel
No.
Name
Description
①
INPUTS
HDMI: 4 HDMI/DVI video source input ports(embedded
HDMI audio format:PCM).
VGA: 2 VGA video source input ports.
AUDIO: 2 3.5mm stereo audio source input ports, switched
following the corresponding VGA.
②
OUTPUTS
HDMI: HDMI video output port.
3P AUDIO: Dual-Mono analog audio output port.
3.5mm AUDIO: stereo audio output port.
OPTICAL: optical audio output port.
③
Control
FIRMWARE: Type-A USB port for updating firmware.
RS232: Serial port, 3-pin pluggable terminal block, connect
with control terminal (e.g. a PC) to control VL120002.
IR IN: connect to an IR Receiver, to receive IR signal send
by corresponding IR remote.
④
DC 5V
Connect to a DC 5V 3A power adapter.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment that has a prop temperature and
humidity.

Compact Scaler Switcher 6x1
2) All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3) All devices should be connected before power on.

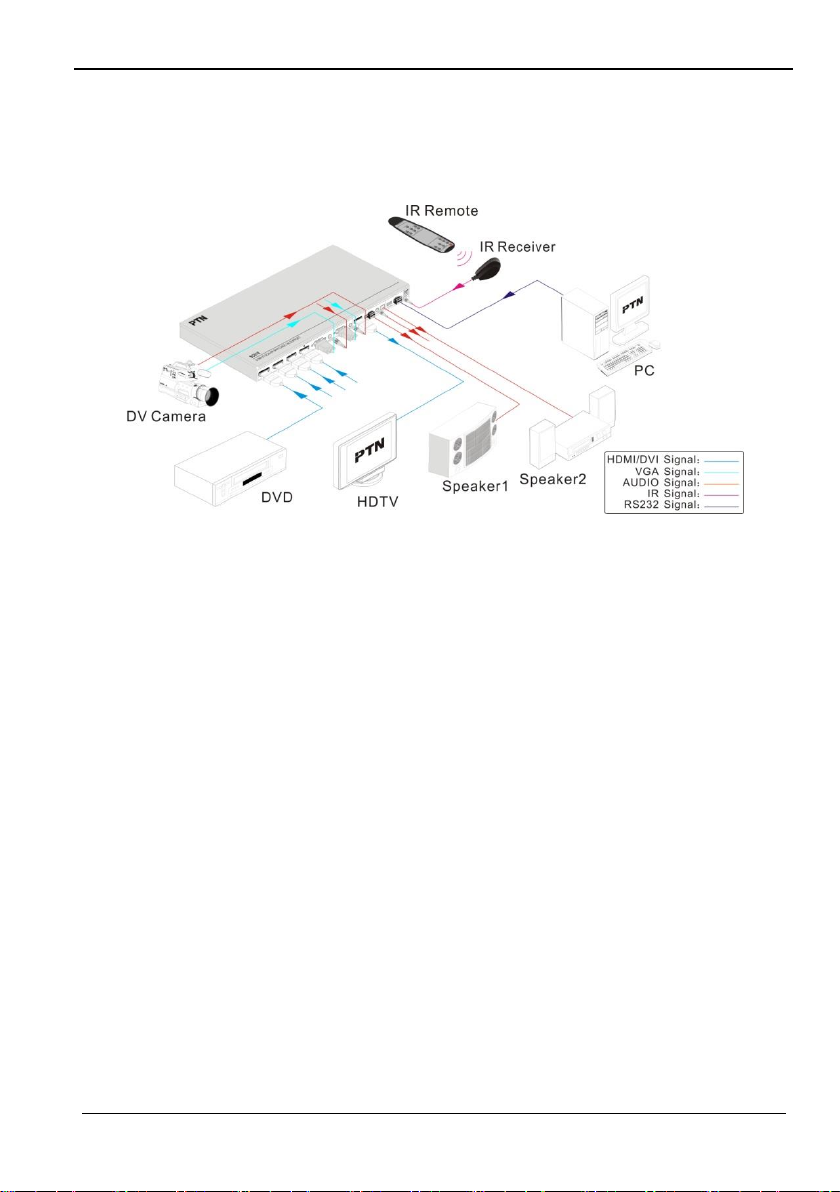

3.2 System Diagram
Figure 3- 1 Connection Diagram
3.3 Connection Procedures
Step1.Connect HDMI/DVI sources (e.g. DVD) to HDMI input ports of the VL120002
with HDMI cables.
Step2.Connect VGA sources (e.g. DV Camera) to VGA input ports of the VL120002
with VGA cables.
Step3.Connect sources to the AUDIO input ports of the VL120002 with audio cables.
Step4.Connect a HDMI display (e.g. HDTV) to HDMI output port of the VL120002.
Step5.Connect audio amplifiers (e.g. speaker/earphone) to audio outputs of the
VL120002.
Step6.Connect a control device (e.g. PC) to the RS232 port of VL120002.
Step7.Connect an IR Receiver(working voltage:5V)to the IR IN port of VL120002.
Step8.Plug DC 5V 3A power adapter to VL120002.
3.4 Application
VL120002 has a good application in various occasions, such as computer realm,
monitoring, conference room, big screen displaying, television education, command &
control center and smart home etc.
4. System Operations
4.1 Front Panel Button Control

Compact Scaler Switcher 6x1
Front panel buttons can be used for source selections, output resolution adjusting, front
panel buttons management, software updating and output screen setting. (Please refer
to chapter 2.1 ).
Here is the detail information for source selections:
There are 6 sources for choose in total, including HDMI1, HDMI2, HDMI3, HDMI4,
VGA1, VGA2. Video signals support auto-switching and manual-switching (factory
default). Press and hold for SOURCE/AUTO for 3 seconds or more to enter in auto-
switching/ manual-switching mode.
Manual-switching:
Dial ◀to select the previous source, dial ▶to select the next source.
Auto-switching:
In this mode, select input source via front panel button (◀▶) is not available, but
RS232 command and IR remote are able to switch mode. The auto LED turn green and
keep on.
The auto-switching mode abides by the following principles:
New input principle
Once detecting a new input signal, VL120002 would switch to this new signal
automatically.
Rebooting device principle
VL120002 have the ability of power-off memory. If the last switching mode is auto-
switching, once rebooted, VL120002 will automatically enter auto-switching mode, and
then detect all inputs and memorize their connection status for future rebooting using. If
the last displayed signal is still available, VL120002 will output the signal. If not, the unit
will detect all the inputs signals with priority from HDMI1 to VGA2. When detected the
first signal, it will transfer to output.
Signal removing principle
Once removing the current display signal, VL120002 will detect all input signals with
priority from HDMI1 to VGA2. It will transfer the signal firstly detected to be available to
output devices
Operation Examples:
Connect HDMI2, HDMI4, and VGA2 ports with source devices, select HDMI4 to
outputs.
Press and hold for the front button SOURCE/AUTO for 3 seconds or more to enter
in auto-switching mode.
Connect HDMI3 with a source device, and then it will choose HDMI3 to output.
Remove the signal of HDMI3, VL120002 will detect from HDMI1 to VGA2. And

Compact Scaler Switcher 6x1
when it detects that HDMI2 is available, it will choose HDMI2 to output.
Cut off the power of VL120002, then reboot. As VL120002 is in auto-switching
mode, it will choose HDMI2 to output.
4.2 RS232 Control
Here we take the software CommWatch.exe as example.
4.2.1 Control Software Operation
Installation Copy the control software file to the computer connected with
VL120002.
Uninstallation Delete all the control software files in corresponding file path.
4.2.2 Basic Settings
Firstly, connect VL120002 with an input device and an output device. Then, connect it

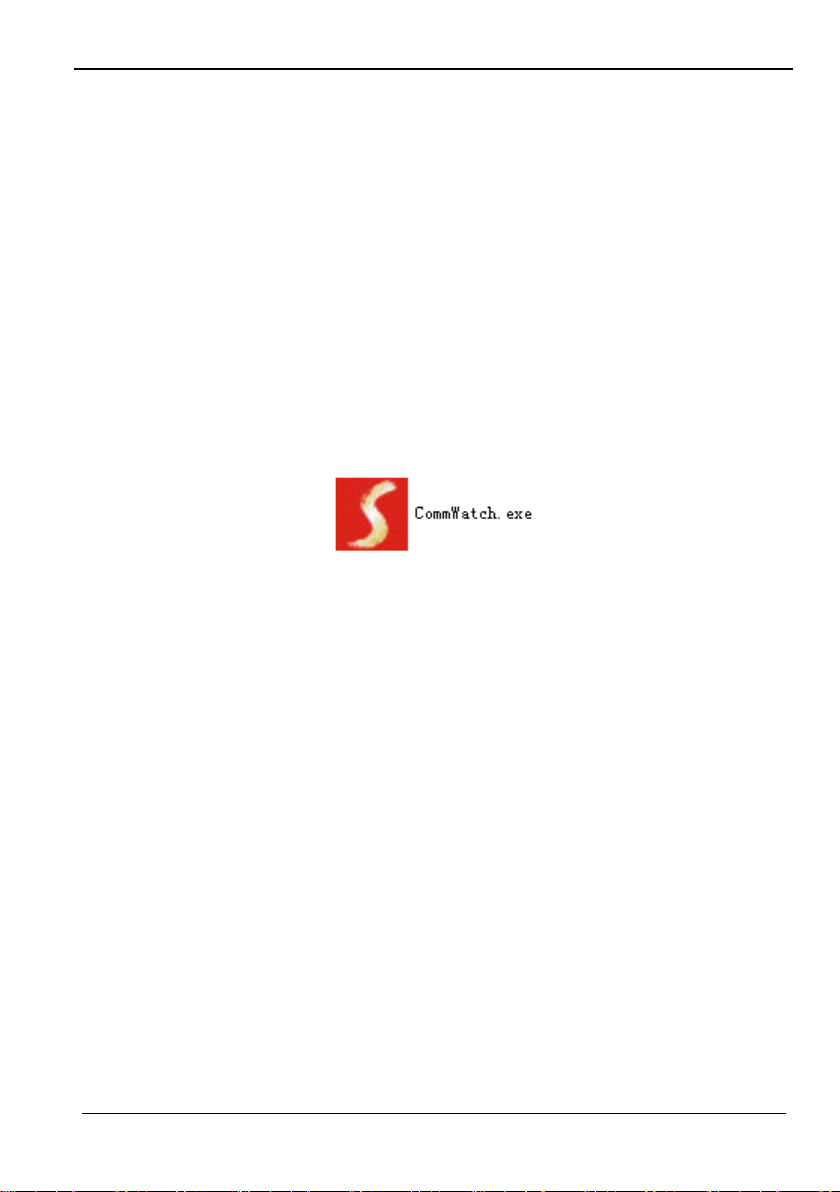

with a computer which is installed with RS232 control software. Double-click the
software icon to run this software. The icon is showed as below:
The interface of the control software is showed as below:

Compact Scaler Switcher 6x1
Please set the parameters of COM number, bound rate, data bit, stop bit and the parity
bit correctly, only then will you be able to send command in Command Sending Area.
4.2.3 RS232 Communication Commands
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
Command
Function
Feedback Example
Switch Commands
50701%
Switch to HDMI 1 Input
Switch to HDMI 1
50702%
Switch to HDMI 2 Input
Switch to HDMI 2
50703%
Switch to HDMI 3 Input
Switch to HDMI 3
50704%
Switch to HDMI 4 Input
Switch to HDMI 4
50705%
Switch to VGA 1 input
Switch to VGA 1
50706%
Switch to VGA 2 input
Switch to VGA 2
50785%
Enable auto-switching
Auto Switching
50786%
Disable auto-switching
Manual Switching
Resolution Select Commands for VGA Input
Monitoring area, indicates
whether the command
sent works.
Command Sending area

Compact Scaler Switcher 6x1
50619%
Change the resolution to 1360X 768
Resolution: 1360x768
50620%
Change the resolution to1920X1200
WUXGA
Resolution: 1920x1200
50626%
Change the resolution to 1024X768
XGA
Resolution: 1024x768
50627%
Change the resolution to 1280X720
720P
Resolution: 1280x720
50628%
Change the resolution to 1280X800
WXGA
Resolution: 1280x800
50629%
Change the resolution to 1920X1080
1080P
Resolution: 1920x1080
Setup Commands
50604%
Lock the front panel buttons
Front Panel lock
50605%
Unlock the front panel buttons
Front Panel Unlock
502xx%
Set the brightness to xx (xx ranges
from 0 to 99) for VGA input
Brightness: xx
503xx%
Set the contrast to xx (xx ranges from 0
to 99) for VGA input
Contrast: xx
504xx%
Set the saturation to xx (xx ranges from
0 to 99) for VGA input
Saturation: xx
505xx%
Set the sharpness to xx (xx ranges
from 0 to 99) for VGA input
Sharpness: xx
50607%
Adjust the color temperature for VGA
input
Color Temperature: xx
(xx= Cool/ Medium/ Warm/
User.)
50608%
Set the aspect ratio for VGAinput
Aspect Ratio: xx
(xx= 16:9/ 4:3/ auto/)
50614%
Set the picture mode for VGAinput
Picture Mode: xx (xx=
dynamic/ standard/ mild/
user)
50615%
Set SM audio mode for VGAinput
Sound Mode: xx
Sound Mode: xx (xx=
standard/ music/ movie/
sports/ user)
50648%
Enable HDMI embedded audio output
Embedded Audio Output:
enable

Compact Scaler Switcher 6x1
50649%
Disable HDMI embedded audio output
Embedded Audio Output:
disable
50606%
Auto-adjust the input parameter for
(VGA only)
VGA Input Auto
50699%
Check the system version
Version Vx.x.x
50697%
Exit standby mode
Wake up!
50797%
Enter standby mode
Go to standby!
50698%
Software update
50617%
Reset to factory defaults
Factory Reset
50707%
Change the horizontal polarity to the
opposite,1 means positive polarity,0
means negative polarity
Hpolarity:0/1
50708%
Change the vertical polarity to the
opposite,1 means positive polarity,0
means negative polarity
Vpolarity:0/1
50769%
Read the EDID file( the file must be
named EDID.bin) to the flash from U
flash disk
50772%
Set the EDID date of all input ports:
bypass mode
EDID:bypass mode
50773%
Set the EDID date of all input ports:
1080P&PCM 2ch
EDID:1080P&PCM 2ch
50774%
Set the EDID date of all input
ports:1080P&5.1ch
EDID:1080P&5.1ch
50775%
Set the EDID date of all input ports:
1080P 3D&5.1ch
EDID:1080P3d&5.1ch
50776%
Set the EDID date of all input ports:
1080i&PCM 2ch
EDID:1080i&PCM 2ch
50777%
Set the EDID date of all input ports:
4K&PCM 2ch
EDID:4K&PCM 2ch
50787%
Set the EDID date of all input ports:
user
EDID:user
50653%
Switch off audio&video output
Output black:enable
50654%
Switch on audio&videio output
Output black:disable
Switch to VGA2
Inquire Commands

Compact Scaler Switcher 6x1
50631%
Check the input source
Input: xx
50632%
Check the output resolution
Resolution: xx
50633%
Check the image mode
Picture Mode: xx
50634%
Check the audio mode
Sound Mode: xx
50635%
Check the image aspect ratio
Aspect Ratio: xx
50636%
Check the brightness
Brightness: xx
50637%
Check the contrast
Contrast: xx
50638%
Check the saturation
Saturation: xx
50639%
Check sharpness
Sharpness: xx
50640%
Check the color temperature
Color Temperature: xx
50652%
Check Digital audio output status
Embedded Audio Output:
enable/disable
50655%
Check video&audio output status
50655%
Black screen Disable/
Black screen Enable
50709%
Check the present resolution and
polarity
1920x1080
Hpolarity:1
Vpolarity:0
50754%
Check the panel locked status
Front Panel Lock/UnLock
50778%
Inquire EDIDs
EDID:xx
Adjustment Commands for VGA input
50670%
Move the image to left
Output Position Adjust X
xx
50671%
Move the image to right
Output Position Adjust X
xx
50672%
Move the image up
Output Position Adjust Y
xx
50673%
Move the image down
Output Position Adjust Y
xx
50674%
Stretch left from left side (increase
image width)
Output Width Adjust xx
50675%
Pull right from left side (decrease
image width)
Output Width Adjust xx
50676%
Stretch upwards from top side
Output Height Adjust xx

Compact Scaler Switcher 6x1
(increase image height)
50677%
Stretch downwards from top
side(decrease image height)
Output height adjust xx
50678%
Enable screen output adjusting
Enter Output Position
Adjust
50679%
Disable screen output adjusting
Exit Output Position Adjust
Notes:
1 Please remember to end the commands with the ending symbol “%”.
2 EDID commands are for HDMI sources only.
3 The procedure of upgrading EDID data for user:
Step1.Copy the file ( the file must be named EDID.bin) to the root directory of a
USB flash disk.
Step2.Plug the USB flash disk to the VL120002 Firmware port on its rear panel.
Step3.Send command 50769% to read EDID data from U flash disk, then, send
command 50787% to update EDID.

Compact Scaler Switcher 6x1
4.3 IR control
The unit enables to use the IR remote to control it. Here is brief description of IR
remote.
①Standby button
Enter/ exit standby mode.
②Input channel selection buttons
Selection video source via pressing
corresponding button (audio switched
following the corresponding VGA).
③Auto button
Enter/ exit auto-switching mode.
④Resolution selection buttons
Select resolution via pressing corresponding
button.
⑤Output black button
Press to switch on/off Audio& Video output
4.4 Firmware Updating
VL120002 supports firmware updating via USB flash disk. The procedures as follows:
Step1.Copy the file “MERGE.bin”to the root directory of a USB flash disk. (Make
Sure the file is copied to the root directory for normal use. The “MERGE.bin file
Is provided/authorized.
Step2.Plug the USB flash disk to the VL120002 FIRMWARE port on its rear panel.
Step3.Press the button “RESOLUTION/FW UPDATE” for 7 seconds or more to
update the firmware automatically. Or send command 50698% to update
software.

Compact Scaler Switcher 6x1
5. Specification
Video Input
Video Output
Input
4 HDMI, 2 VGA
Output
1 HDMI
Input
Connector
4 female HDMI (Type-A)
2 female VGA (15Pin)
Output
connector
1 female HDMI
Video Signal
HDMI/DVI,VGA
Video Signal
HDMI
Resolution
HDMI: up to 4Kx2K
VGA: output resolution selectable
Standard
Compliant with VGA&DVI HDMI1.4, HDCP 1.4
Audio Input
Audio Output
Input
2 stereo audio for VGA
Output
1 Dual-Mono analog
audio
1 stereo audio
1 optical audio
Input
Connector
1 3.5mm jack
Output
Connector
1 3-pin pluggable
terminal block (3.81mm)
1 3.5mm jack
1 SPF fiber connector
Control parts
Control
Ports
RS232, IR remote
Pin
configuration
2 = TX, 3 = RX, 5 =
GND
Panel
Control
Front Panel Button
General
Power
Supply
DC 5V 3A
Power
Consumption
3.8(Max)
Dimension
(W*H*D)
W347 x H28 x D110 mm
Weight
0.63Kg
Temperature
0℃~ 50℃
Reference
Humidity
10% ~ 90%
Transmit
Distance
4Kx2K≤15m
Note: VL120002 supports 4k&1080p 3D HDMI signal, please adopt quality HDMI
cables compliant with HDMI1.4 for reliable transmission when connecting

Compact Scaler Switcher 6x1

Compact Scaler Switcher 6x1
Supported Input Resolutions
Format
Resolution
HDMI/DVI
800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@42Hz,
1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz,
1024x768@85Hz, 1152x864@75Hz, 1280x768@60Hz,
1280x768@75Hz, 1280x768@85Hz, 1280x960@60Hz,
1280x960@85Hz, 1280x1024@60Hz, 1280x1024@75Hz,
1280x1024@85Hz, 1365x1024@60Hz, 1365x1024@60Hz,
1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz,
1600x1200@70Hz, 1600x1200@75Hz, 1600x1200@85Hz,
1680x1050@60Hz, 1792x1344@60Hz, 1856x1392@60Hz,
1856x1392@75Hz, 1920x1080@60Hz, 1920x1200@60Hz,
1920x1440@60Hz, 3840x2160@24Hz, 3840x2160@30Hz,
3840x2160@25Hz, 4096x2160@24Hz, 4096x2160@25Hz,
4096x2160@30Hz,
VGA
800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@60Hz,
1024x768@70Hz, 1024x768@75Hz, 1280x768@60Hz,
1280x768@75Hz, 1280x960@60Hz, 1280x1024@60Hz,
1280x1024@75Hz, 1365x1024@60Hz, 1365x1024@75Hz,
1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz,
1600x1200@70Hz, 1600x1200@75Hz, 1680x1050@60Hz,
1792x1344@60Hz, 1920x1080@60Hz, 1920x1200@60Hz
6. Panel Drawing

Compact Scaler Switcher 6x1
7. Troubleshooting & Maintenance
Problems
Causes
Solutions
Power LED dosen’t
work or no response to
any operation
Fail connection of power
cord
Make sure the power cord
connection is normal
Power adapter dosen’t
suitable
Please replace the power
adapter with factory default
No output image on
display when switching
Fail or loose connection
Make sure the connection is
enable
Output image with
snowflake or ghost
Bad quality of the
connecting cable
Please replace high quality
cable.
Over the transmission
distance
please replace the proper
distance cable
Cannot control the
device via front panel
button
Front panel buttons are
locked
Send command 50605% to
unlock it
Cannot select source
via SOURCE/AUTO
buttons
In auto-switching mode
Press it and hold for 3
seconds or more to enter in
manual-switching mode
Cannot control the
device by control
device (e.g. a PC)
through RS232 port
Wrong RS232
communication
parameters
Type in correct RS232
communication parameters.
Broken RS232 port
Send it to authorized dealer
for checking.
Cannot control the
device via IR remote
The battery has run off.
Change for new battery.
The IR remote is broken.
Send it to authorized dealer
for repairing.
Beyond the effective
range of the IR signal or
not pointing at the IR
receiver
Adjust the distance and angle
and point right at the IR
receiver.
Cannot control the
device
The device has already
been broken.
Send it to authorized dealer
for repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.
Table of contents
Other Vivo Link Switch manuals

Vivo Link
Vivo Link VL120000 User manual

Vivo Link
Vivo Link VL120026 User manual

Vivo Link
Vivo Link VL120014 User manual

Vivo Link
Vivo Link VL120020 User manual

Vivo Link
Vivo Link VLSW141H User manual

Vivo Link
Vivo Link VLHUB121-MME User manual

Vivo Link
Vivo Link VLSC151H User manual

Vivo Link
Vivo Link VLSC262 User manual
