User’s Manual

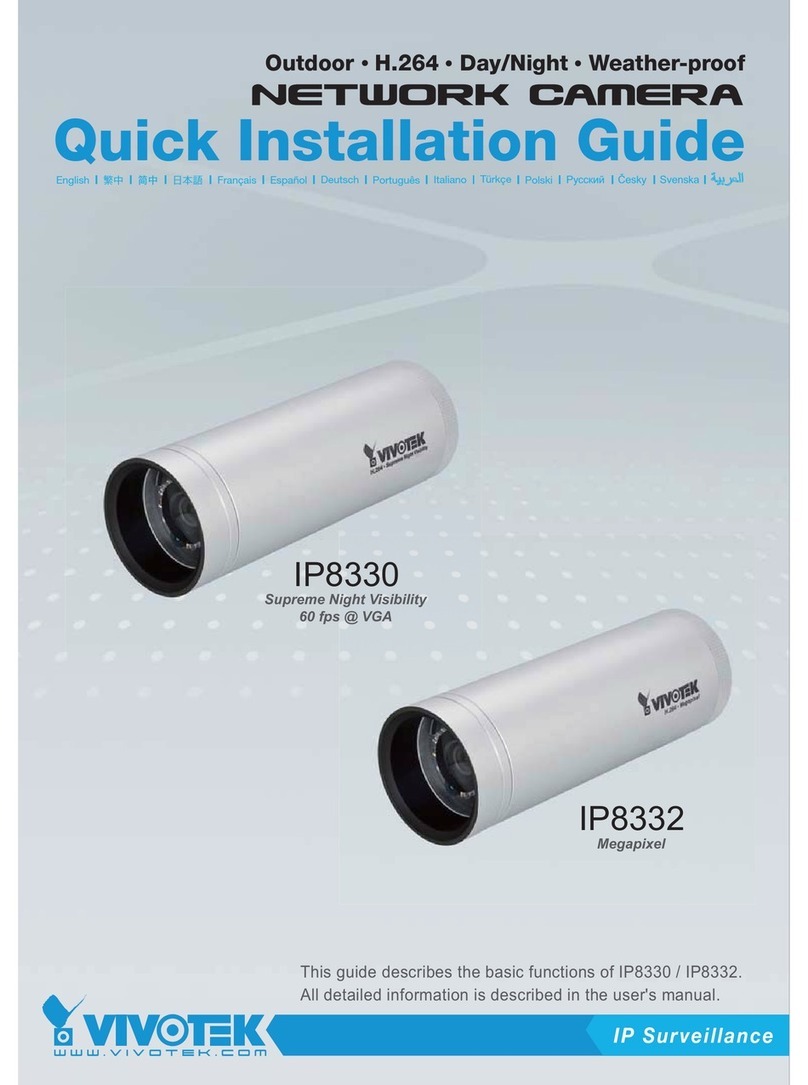

IP8330/8332 Bullet
Network Camera
IP8330: Supreme Night Visibility • 60 fps @ VGA
IP8332: Megapixel
IP8330
IP8332
Rev. 1.0

VIVOTEK
2 - User's Manual
Table of Contents
Overview.......................................................................................................................................................3
Read Before Use.....................................................................................................................................3
Package Contents ...................................................................................................................................3
Revision History ......................................................................................................................................3
Physical Description ................................................................................................................................4
Installation ....................................................................................................................................................7
Hardware Installation...............................................................................................................................7
Network Deployment ...............................................................................................................................9
Software Installation ..............................................................................................................................12
Ready to Use.........................................................................................................................................13
Accessing the Network Camera .................................................................................................................14
Using Web Browsers.............................................................................................................................14
Using RTSP Players..............................................................................................................................16
Using 3GPP-compatible Mobile Devices...............................................................................................17
Using VIVOTEK Recording Software ....................................................................................................18
Main Page ..................................................................................................................................................19
Client Settings ............................................................................................................................................22
Conguration ..............................................................................................................................................24
System ..................................................................................................................................................25
Security .................................................................................................................................................27
HTTPS (Hypertext Transfer Protocol over SSL) ...................................................................................28
SNMP (Simple Network Management Protocol) ..................................................................................33
Network .................................................................................................................................................34
DDNS ....................................................................................................................................................48
Access List ...........................................................................................................................................50
Video .....................................................................................................................................................53
Motion Detection ...................................................................................................................................63
Camera Tampering Detection ...............................................................................................................66
Homepage Layout ................................................................................................................................67
Application ............................................................................................................................................70
Recording .............................................................................................................................................83
Local Storage .......................................................................................................................................86
System Log ..........................................................................................................................................90
View Parameters ..................................................................................................................................91
Maintenance..........................................................................................................................................92
Appendix ....................................................................................................................................................96
URL Commands for the Network Camera.............................................................................................96
Technical Specications ......................................................................................................................146
Technology License Notice..................................................................................................................148
Electromagnetic Compatibility (EMC)..................................................................................................149

VIVOTEK
User's Manual - 3
Overview
Read Before Use
The use of surveillance devices may be prohibited by law in your country. The Network Camera is not
only a high-performance web-ready camera but can also be part of a exible surveillance system. It is
the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for
its intended use.
It is important to rst verify that all contents received are complete according to the Package Contents
listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is
installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to
faulty assembly and installation. This also ensures the product is used properly as intended.
The Network Camera is a network device and its use should be straightforward for those who have basic
networking knowledge. It is designed for various applications including video sharing, general security/
surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and
ensure proper operations. For creative and professional developers, the URL Commands of the Network
Camera section serves as a helpful reference to customizing existing homepages or integrating with the
current web server.
Package Contents
■ IP8330 or IP8332
■ Waterproof Connector (3 holes, for backup use)
■ Moisture Absorber
■ Camera Stand
■ Acryllic opener
■ Power Adapter
■ RJ45 Female/Female Coupler
■ Quick Installation Guide / Warranty Card
■ Software CD
Revision History
■ Rev. 1.0: Initial release for the IP8330/8332 series that comes with an angle cut sunshield.

VIVOTEK
4 - User's Manual
Physical Description
Front Panel
Back Panel
Connectors
IR LED
Lens
Light Sensor
Reset Button
SD/SDHC Card Slot
Ethernet 10/100 RJ45 Plug
Power Cord Socket (black)
General I/O Terminal Block

VIVOTEK
User's Manual - 5
General I/O Terminal Block
This Network Camera provides a general I/O terminal block which is used to connect external
input devices. The pin denitions are described below.
DI Diagram
Please refer to the following illustration for the connection method.
MicroSD/SDHC Card Capacity
This network camera is compliant with MicroSD/SDHC 32GB and other preceding standard SD
cards.
GND
DI
AC24V
AC24V
Pin Name
GND Ground
DI Digital Iutput
AC24V 24V
AC24V 24V
+12V
Digital input
PIN 2
Ground
PIN 1

VIVOTEK
6 - User's Manual
Hardware Reset
The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the system problems remain
after reset, restore the factory settings and install again.
Reset: Press and release the recessed reset button with a paper clip or thin object. Wait for the
Network Camera to reboot.
Restore: Press and hold the recessed reset button until the status LED rapidly blinks. Note that
all settings will be restored to factory default. Upon successful restore, the status LED will blink
green and red during normal operation.
Reset Button

VIVOTEK
User's Manual - 7
Installation
Hardware Installation
1. Loose the waterproof connector, then remove the rubber.
2. Loose the back cover.
3. Tear down the aluminum foil vacuum bag and take out the silica gel. Attach the supplied silica
gel to the inner side of the Network Camera. (Please replace the silica gel with a new one if
you open the back cover after installation.)
4. Make sure all cable lines are securely connected.
5. Tighten the back cover, rubber and waterproof connector.
6. Secure the Network Camera to the wall/ceiling by the supplied camera stand.
3
Silica gel
6
5
1
2
Ceiling Mount
Wall Mount

VIVOTEK
8 - User's Manual
Alignment marks
Sunshield
Camera
1. The camera comes with an angled cut sunshield. If you install the camera in a ceiling-mount
orientation, you will need to change the sunshield's orientation.
To adjust the sunshield,
1-1. Loosen the sunshield seal ring using an included acrylic opener.
1-2. You do not need to remove the sunshield. Rotate the protruding ridge to the desired
direction from which sunlight can cause glare.
1-3. Hold the sunshield and the camera using one hand, and then tighten the seal ring using
the same acrylic opener.
Seal Ring
Sunshield
IMPORTANT!
2. Although the camera and the cable gland on the camera's end are waterproof, the cable
molding at the other end is not waterproof.
Measures should be taken to prevent water from leaking in through the cable-end molding,
such as the use of expanding foam sealant, putties, and so on. Note that the cable gland on
the camera should also be securely fastened to attain its waterproof functionality.
Cable Gland Waterproof Not Waterproof
Cable Molding

VIVOTEK
User's Manual - 9
Network Deployment
Setting up the Network Camera over the Internet
This section explains how to congure the Network Camera to an Internet connection.
1. If you have external devices such as sensors and alarms, make the connection from the
general I/O terminal block.
2. Use the supplied RJ45 female/female coupler to connect the Network Camera to a switch.
Use a Category 5 Cross Cable when Network Camera is directly connected to PC.
3. Connect the power cable from the Network Camera to a power outlet.
There are several ways to set up the Network Camera over the Internet. The rst way is to set
up the Network Camera behind a router. The second way is to utilize a static IP. The third way is
to use PPPoE.
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below.
1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 12 for
details.
POWER C
OLLIS
ION
LINK
RE
CEIVE
PARTITION
12345
GND: Ground
DI: Digital Input
AC24V: 24V
AC24V: 24V
GND
DI
AC24V
AC24V

VIVOTEK
10 - User's Manual
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
Internet
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is
192.168.0.3, please forward the following ports for the Network Camera on the router.
■ HTTP port
■ RTSP port
■ RTP port for video
■ RTCP port for video
If you have changed the port numbers on the Network page, please open the ports accordingly
on your router. For information on how to forward ports on the router, please refer to your
router’s user’s manual.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Network Camera from the
Internet. Please refer to Network Type on page 34 for details.
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN on page 34 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 35 for details.

VIVOTEK
User's Manual - 11
Set up the Network Camera through Power over Ethernet (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled
switch via Ethernet cable.
When using a non-PoE switch
If your switch/router does not support PoE, use a PoE power injector (optional) to connect
between the Network Camera and a non-PoE switch.
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
PoE Switch
power + data transmission
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
PoE Power Injector
(optional)
Non-PoE Switch

VIVOTEK
12 - User's Manual
Software Installation
Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up
your Network Camera on the LAN.
1. Install IW2 under the Software Utility directory from the software CD.
Double click the IW2 shortcut on your desktop to launch the program.
2. The program will conduct an analysis of your network environment.
After your network environment is analyzed, please click Next to continue the program.
3. The program will search for all VIVOTEK network devices on the same LAN.
4. After searching, the main installer window will pop up. Click on the MAC and model name
which matches the product label on your device to connect to the Network Camera via
Internet Explorer.
0002D1730202
00-02-D1-73-02-02 192.168.5.151 FD8361
Network Camera
Model No: IP8330
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Pat. 6,930,709
RoHS
MAC:0002D1733012

VIVOTEK
User's Manual - 13
Ready to Use
1. Access the Network Camera on the LAN.
2. Retrieve live video through a web browser or recording software.

VIVOTEK
14 - User's Manual
Accessing the Network Camera
This chapter explains how to access the Network Camera through web browsers, RTSP players,
3GPP-compatible mobile devices, and VIVOTEK recording software.
Using Web Browsers
Use Installation Wizard 2 (IW2) to access to the Network Cameras on the LAN.
If your network environment is not a LAN, follow these steps to access the Network Camera:
1. Launch your web browser (ex. Microsoft®Internet Explorer, Mozilla Firefox, or Netscape).
2. Enter the IP address of the Network Camera in the address eld. Press Enter.
3. The live video will be displayed in your web browser.
4. If it is the rst time installing the VIVOTEK network camera, an information bar will pop up as
shown below. Follow the instructions to install the required plug-in on your computer.
NOTE
► For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream the live
video. If you do not have Quick Time on your computer, please download it rst, then launch
the web browser.

VIVOTEK
User's Manual - 15
► By default, the Network Camera is not password-protected. To prevent unauthorized access,
it is highly recommended to set a password for the Network Camera.
For more information about how to enable password protection, please refer to Security on
page 27.
► If you see a dialog box indicating that your security settings prohibit running ActiveX®
Controls, please enable the ActiveX®Controls for your browser.
1. Choose Tools > Internet Options > Security > Custom Level.
2. Look for Download signed ActiveX®controls; select Enable or Prompt. Click OK.
3. Refresh your web browser, then install the Active X®control. Follow the instructions to
complete installation.

VIVOTEK
16 - User's Manual
Using RTSP Players
To view the MPEG-4 streaming media using RTSP players, you can use one of the following
players that support RTSP streaming.
Quick Time Player
Real Player
VLC media player
mpegable Player
pvPlayer
As most ISPs and players only allow RTSP streaming through port number 554, please set the
RTSP port to 554. For more information, please refer to RTSP Streaming on page 46.
For example:
4. The live video will be displayed in your player.
For more information on how to configure the RTSP access name, please refer to RTSP
Streaming on page 46 for details.
rtsp://192.168.5.151:554/live.sdp
Video 16:38:01 2010/01/13
1. Launch the RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. The address format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for
stream1 or stream2>

VIVOTEK
User's Manual - 17
Using 3GPP-compatible Mobile Devices
To view the streaming media through 3GPP-compatible mobile devices, make sure the Network
Camera can be accessed over the Internet. For more information on how to set up the Network
Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 9.
To utilize this feature, please check the following settings on your Network Camera:
1. Because most players on 3GPP mobile phones do not support RTSP authentication, make
sure the authentication mode of RTSP streaming is set to disable.
For more information, please refer to RTSP Streaming on page 46.
2. As the the bandwidth on 3G networks is limited, you will not be able to use a large video size.
Please set the video and audio streaming parameters as listed below.
For more information, please refer to Viewing Window on page 58.
Video Mode MPEG-4
Frame size 176 x 144
Maximum frame rate 5 fps
Intra frame period 1S
Video quality (Constant bit rate) 40kbps
3. As most ISPs and players only allow RTSP streaming through port number 554, please set
the RTSP port to 554. For more information, please refer to RTSP Streaming on page 46.
4. Launch the player on the 3GPP-compatible mobile devices (ex. Real Player).
5. Type the following URL commands into the player.
The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming
access name for stream 3>.
For example:
rtsp://192.168.5.151:554/live.sdp

VIVOTEK
18 - User's Manual
Using VIVOTEK Recording Software
The product software CD also contains recording software, allowing simultaneous monitoring
and video recording for multiple Network Cameras. Please install the recording software; then
launch the program to add the Network Camera to the Channel list. For detailed information
about how to use the recording software, please refer to the user’s manual of the software or
download it from http://www.vivotek.com.

VIVOTEK
User's Manual - 19
Main Page
This chapter explains the layout of the main page. It is composed of the following sections:
VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live
Video Window.
VIVOTEK INC. Logo
Click this logo to visit the VIVOTEK website.
Host Name
The host name can be customized to t your needs. For more information, please refer to System on page
25.
Camera Control Area
Video Stream: This Network Cmera supports multiple streams (stream 1 ~ 4) simultaneously. You can
select either one for live viewing. For more information about multiple streams, please refer to page 58
for detailed information.
Conguration Area
Client Settings: Click this button to access the client setting page. For more information, please refer to
Client Settings on page 22.
Conguration: Click this button to access the conguration page of the Network Camera. It is suggested
that a password be applied to the Network Camera so that only the administrator can configure the
Network Camera. For more information, please refer to Conguration on page 24.
Language: Click this button to choose a language for the user interface. Language options are available
in: English, Deutsch, Español, Français, Italiano, 日本語 , Português, 簡体中文 , and 繁體中文 .
VIVOTEK INC. Logo
Camera Control Area
Configuration Area
Host Name
Live View Window

VIVOTEK
20 - User's Manual
Live Video Window
■ The following window is displayed when the video mode is set to H.264 / MPEG-4:
Video Title: The video title can be congured. For more information, please refer to Video Settings on
page 53.
H.264 / MPEG-4 Protocol and Media Options: The transmission protocol and media options for H.264 /
MPEG-4 video streaming. For further conguration, please refer to Client Settings on page 22.
Time: Display the current time. For further conguration, please refer to Video Settings on page 53.
Title and Time: The video title and time can be stamped on the streaming video. For further conguration,
please refer to Video Settings on page 53.
Video Control Buttons: Depending on the Network Camera model and Network Camera conguration,
some buttons may not be available.
Snapshot: Click this button to capture and save still images. The captured images will be displayed
in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen.
Pause: Pause the transmission of the streaming media. The button becomes the Resume button
after clicking the Pause button.
Stop: Stop the transmission of the streaming media. Click the Resume button to continue
transmission.
Start MP4 Recording: Click this button to record video clips in MP4 file format to your computer.
Press the Stop MP4 Recording button to end recording. When you exit the web browser, video
recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving
Options on page 23 for details.
Time
Title and Time Video 13:44:17 2010/01/13
MPEG-4 Protocol and Media Options
Video Title 2010/01/13 13:44:17
Video Control Buttons
