Vivotek Fixed Dome Series User manual

IP Surveillance
Installation Guide
VIVOTEK Fixed Dome Series
Wall-mount Bracket
Using AM-218 wall-mount bracket
and compatible accessories
Rev. 1.0
Part no. for this document:
625035000G
Corresponding part numbers:
AM-218: 100146100G
AM-714: 625031000G
AM-520: 900020102G (v03)
AM-525: 100140500G
AM-527: 100140400G
AM-528: 100147800G
AM-312: 900034800G
AM-412: 900034900G

2
Compatible VIVOTEK Cameras
I
For the list of compatible cameras, refer to the table below:
AM-520
Fixed Dome series
FD8361 / FD8361L / FD8362 /FD8362E / FD8363 / FD8335H/ FD8372 /
FD8162 / FD8135H / FD8163 / FD8131V / FD8133V/ FD8134V / FE8172V
/ FE8171V / FE8174/ FE8174V / FE8181 / FE8181V / MD7530 / MD7560
/ MD8562 / FD8164 / FD8137H / FD8131 / FD8133 / FD8134 / FE8172
/ F8173 / FD8164V / FD8137HV / FD8167 / FD8167-T / FD8138-H /
FD8367-V / FD8367-TV / FD8338-HV
Direct installation:
+AM-525
FD9371-(E)HTV, FD9381-(E)HTV, FD836B-(E)HVF2, FD836B-(E)
HTV, FD8382-(E)VF2, FD8382-(E)TV
w/ AM-513:
AM-525+AM-513
FD8367-(T)V, FD8338-HV
w/ AM-51C:
AM-525+AM-51C
FE8181, FE8191, FD9371-(E)HTV, FD9381-(E)HTV, FD836B-(E)
HVF2, FD836B-(E)HTV, FD8382-(E)VF2, FD8382-(E)TV
Revision History:
* Rev. 1.0: Initial Release

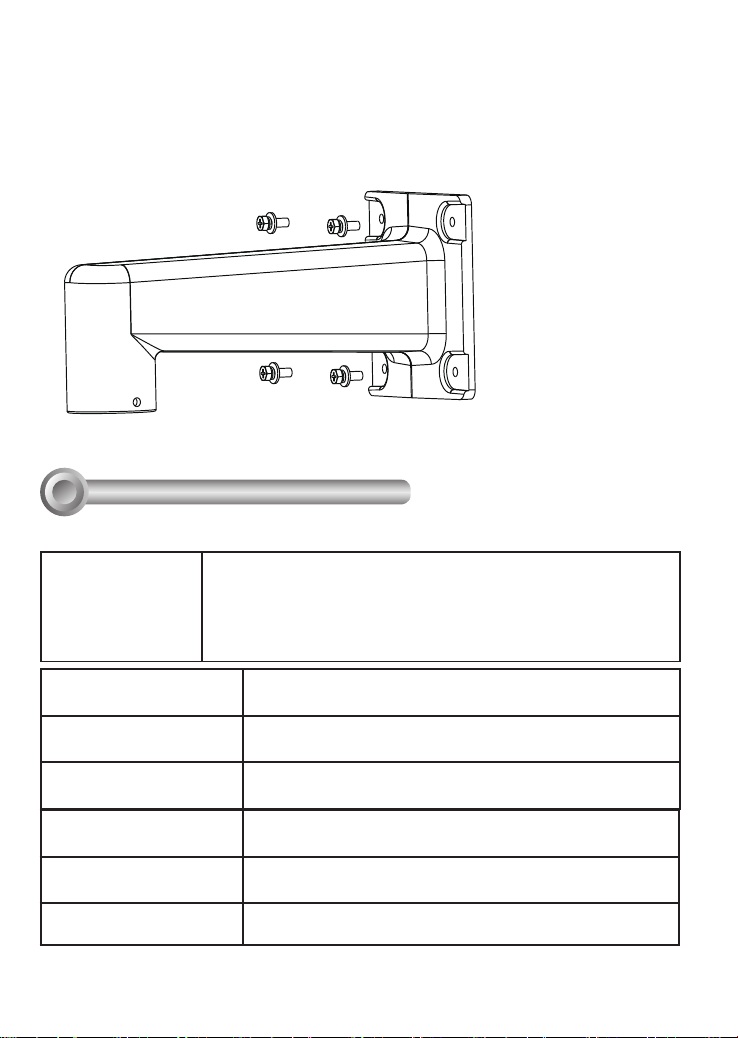

Package Contents - AM-218
Direct installation:
+AM-527
FD9171-HT, FD9181-HT, FD816B-HF2, FD816B-HT, FD8182-F2,
FD8182-T
w/ AM-514:
+AM-527+AM-514
FE8174, FD8167(-T), FD8138-H, FD9171-HT, FD9181-HT, FD816B-
HF2, FD816B-HT, FD8182-F2, FD8182-T
AM-528 FD8367A, FD8369A, FD8377-HV, FD8379-HV, FD8167A, FD8169A,
FD8177-H, FD8179-H

3
English
Installation
II
Mounting Hole Denitions for AM-714
For details about mounting cameras to the AM-520, AM-525, and AM-527 brackets, refer
to their Installation Guides.
For cabling and conguration details with each network camera, please refer to their
documentation.
The AM-218 has to be installed with the AM-714. You should also purchase the AM-214
conduit box and corresponding AM-520, AM-525, and AM-527 adapter.
IMPORTANT:

4
Refer to the table below for the description of the included screws:
Screw Description No. of
screws
Material char.
M5X14 4 Stainless steel, hex and cross head
NOTE:
1. It is presumed that this wall-mount bracket is installed with a hole drilled on the wall for
routing power lines, DI/DO, and Ethernet cables.
2. Route cables before you secure the wall-mount bracket to a wall.
3. For details on the cable connections with each camera, please refer to their Quick
Installation Guide.
IMPORTANT:
Wall Mount Installation
The screws and mounting surface must be able to support a weight of 5 kg.
Use the included alignment sticker on a preferred position. Drill holes on the wall and
install the junction box. If space behind the wall allows, you may also pass cables through
the wall. Note that an NPT pipe is still recommended if the connection goes through a
wall. Make sure water can not enter the drilled hole. Use silicon or caulk the drilled hole to
prevent water leakage. .

5
English
A 3/4" conduit is required for routing the cables with waterproof connection.
#1
#2
#3
#4
Install the cable gland and pass cables through it. Form a drip loop when routing with the
conduits.

6
1. Route cables through the AM-218 bracket and the adapter (AM-520/AM-525/AM-527/
AM-528).
2. Secure the bracket to the conduit box using the included hex screws.
3. Secure the adapter by turning them clockwise. When done, fasten the hex socket screw
to secure the connection.
AM-218
AM-527
AM-714
AM-525
AM-520
- OR -
- OR -
- OR -
AM-528
Installing the Bracket and Adapter

7
English
4. Follow the instructions in the Installation Guide that came with the adapter to install
network cameras.

8
AM-312 AM-412
Pole mount and corner mount are also supported. Please refer to their Installation Guides
for more information.
