VSB205 - QUICK START GUIDE
32” HOME THEATER SOUND BAR

Incorporated under license from SRS Labs, Inc.
SRS WOW HD is a trademark of SRS Labs, Inc.
PACKAGE CONTENTS .....................................................................................................................1
CONTROLS & CONNECTIONS .........................................................................................................2
FIRST-TIME SETUP.........................................................................................................................3
USING THE REMOTE.......................................................................................................................6
WALL MOUNTING THE SOUND BAR ................................................................................................7
VIZIO RECOMMENDS......................................................................................................................8
TROUBLESHOOTING AND TECHNICAL SUPPORT .............................................................................9
IMPORTANT SAFETY INSTRUCTIONS ..............................................................................................10
SPECIFICATIONS ............................................................................................................................11
ONE-YEAR LIMITED WARRANTY .....................................................................................................12
LEGAL & COMPLIANCE...................................................................................................................13
TABLE OF CONTENTS

PACKAGE CONTENTS
Power Adapter for Sound Bar
Remote Control with Battery
Quick Start Guide
32” Home Theater Sound Bar
Stereo RCA to 3.5mm Audio Cable
1

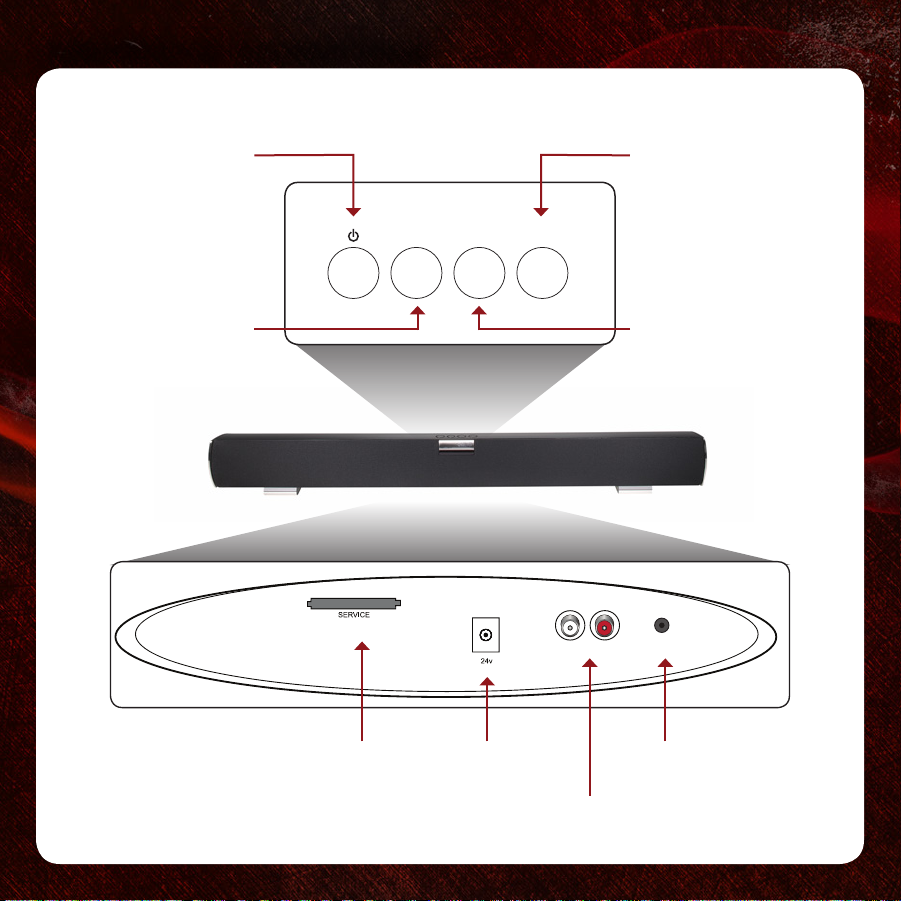

CONTROLS & CONNECTIONS
TOP
Power
Press to turn on or off.
Volume Up
Press to increase system
volume.
Volume Down
Press to decrease system
volume.
Input
Press to change input
source.
BACK
Input Vol -Vol +
Input 1 Input 2
Input 1
(Stereo RCA)
Power PortService Port
(For use by authorized
service technician only.)
Input 2
(3.5mm Stereo)
2

Input 1 Input 2
Input 1 Input 2
AUDIO OUT
OR
Back of TV*
Stereo RCA to
3.5mm Cable
1
AUDIO OUT
Input 1 Input 2
*For best performance, connect the Sound Bar to one of the audio outputs of your TV as shown above. Not all TVs have the audio outputs
shown above. To connect the Sound Bar directly to your other devices (Blu-ray player, game system, etc) see your device’s user manual.

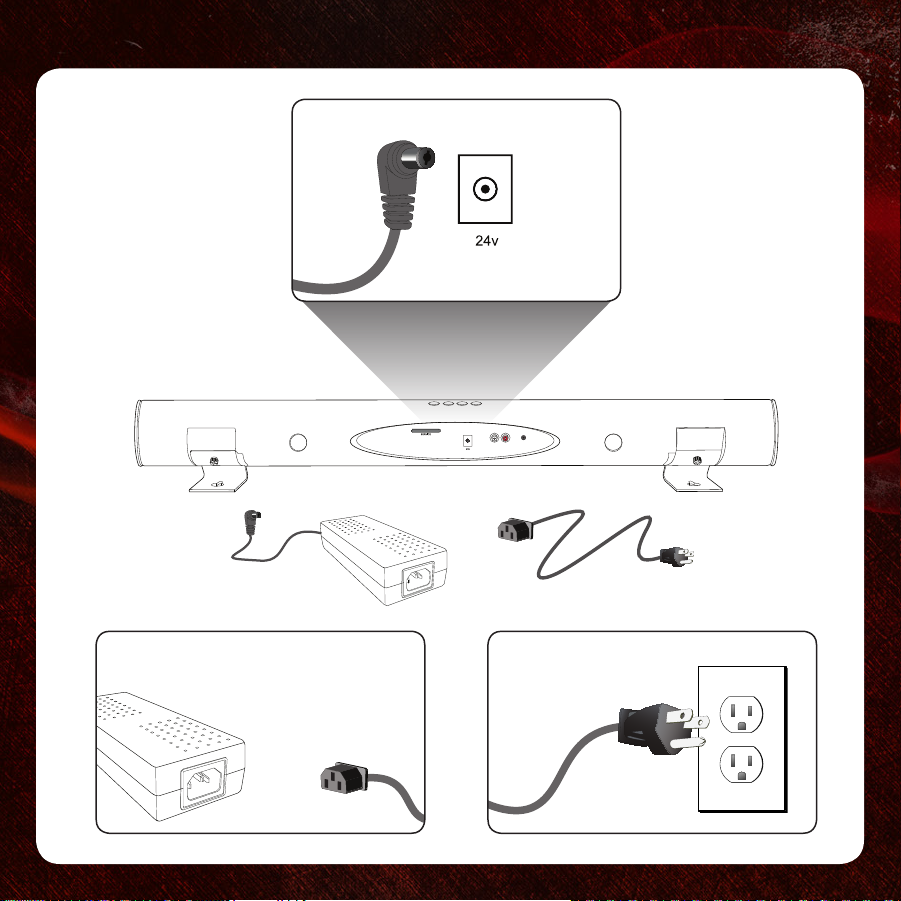

FIRST-TIME SETUP
Stereo RCA to
3.5mm Cable
1
3

Input 1 Input 2
3 4
Input 1 Input 2
2
4

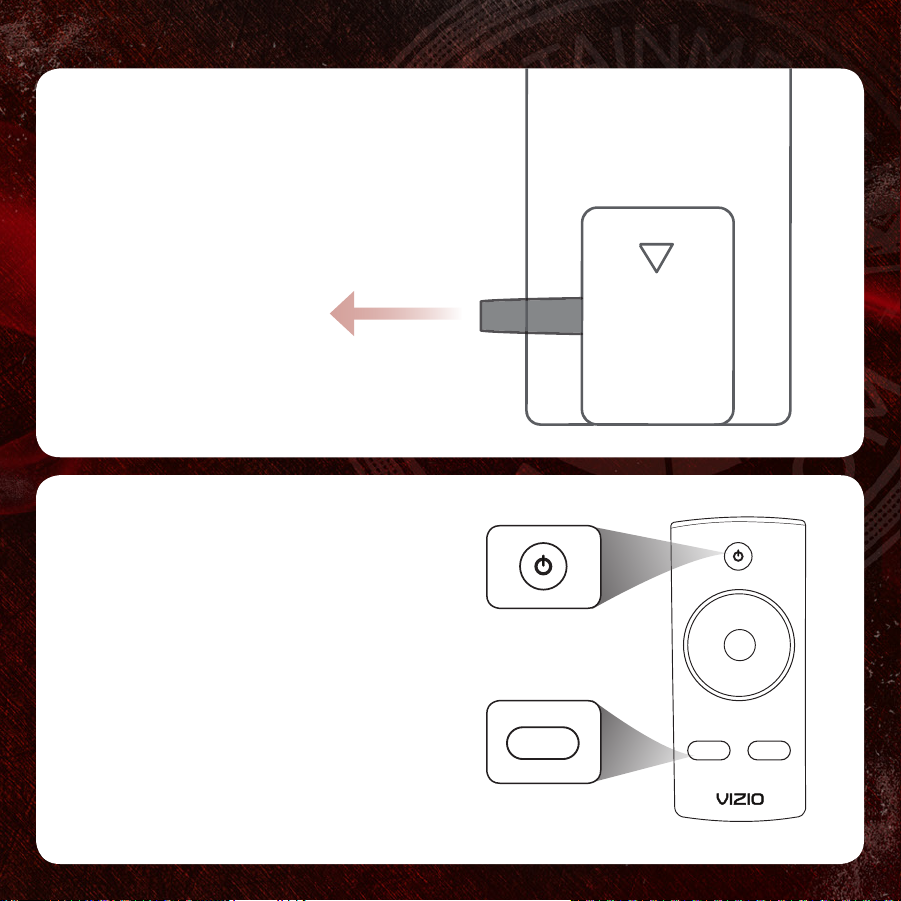

Gently pull the plastic tab from the back of
the remote control. (The plastic tab can be
thrown away.)
5
6
Turn your TV on, then press the Power button
on the remote to turn the Sound Bar on.
Press the Input button to switch between
the Input 1 and Input 2 audio sources. For
example, if you connected your TV to Input 1,
set the Sound Bar to Input 1.
Setup is complete.
Input SRS
+
-
MUTE
Input SRS
+
-
MUTE
Input SRS
+
-
MUTE
Input
Power
5

Input SRS
+
-
MUTE

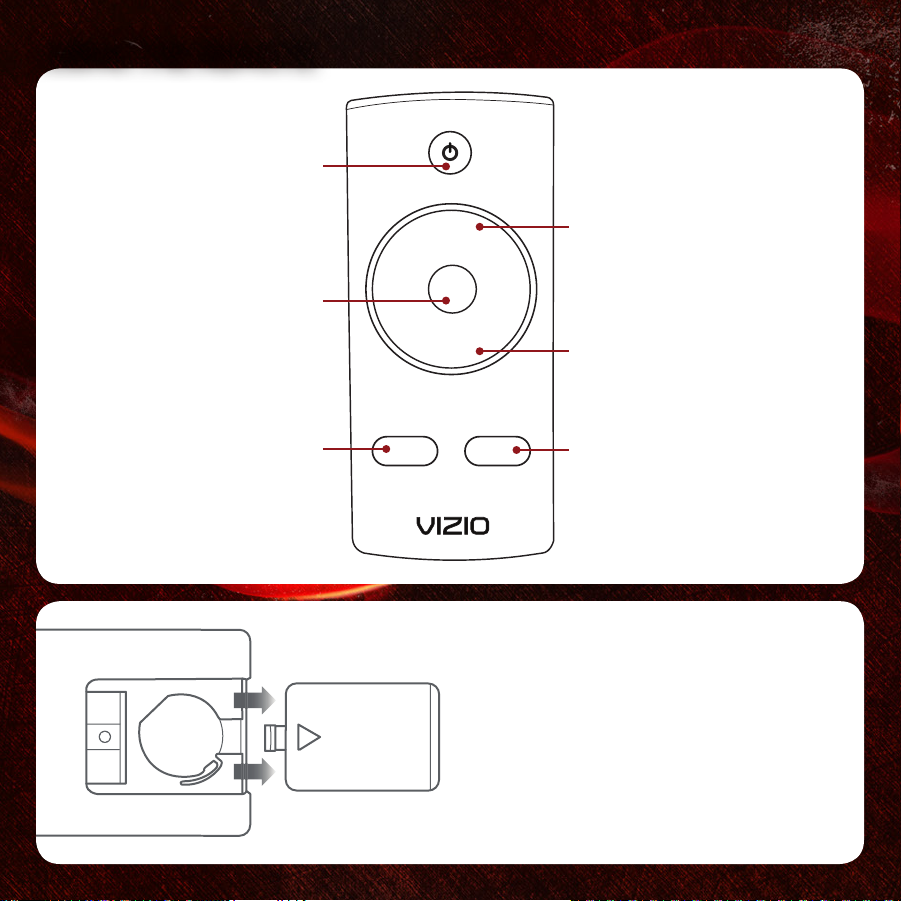

USING THE REMOTE
If your remote stops responding, you may
need to replace the battery.
To replace the battery, remove the cover from
the back of the remote as shown, then replace
the old battery with a new CR2025. Be sure
that the +sign on the battery is facing up.
Power
Press to turn on or off.
Volume Up
Press to increase volume.
Volume Down
Press to decrease volume.
Input
Press to change input source.
Mute
Press to mute/unmute.
There is no sound when muted.
SRS
Press to turn SRS WOW on or off.
SRS WOW enhances your music
and movie audio for more clarity
and better bass.
6

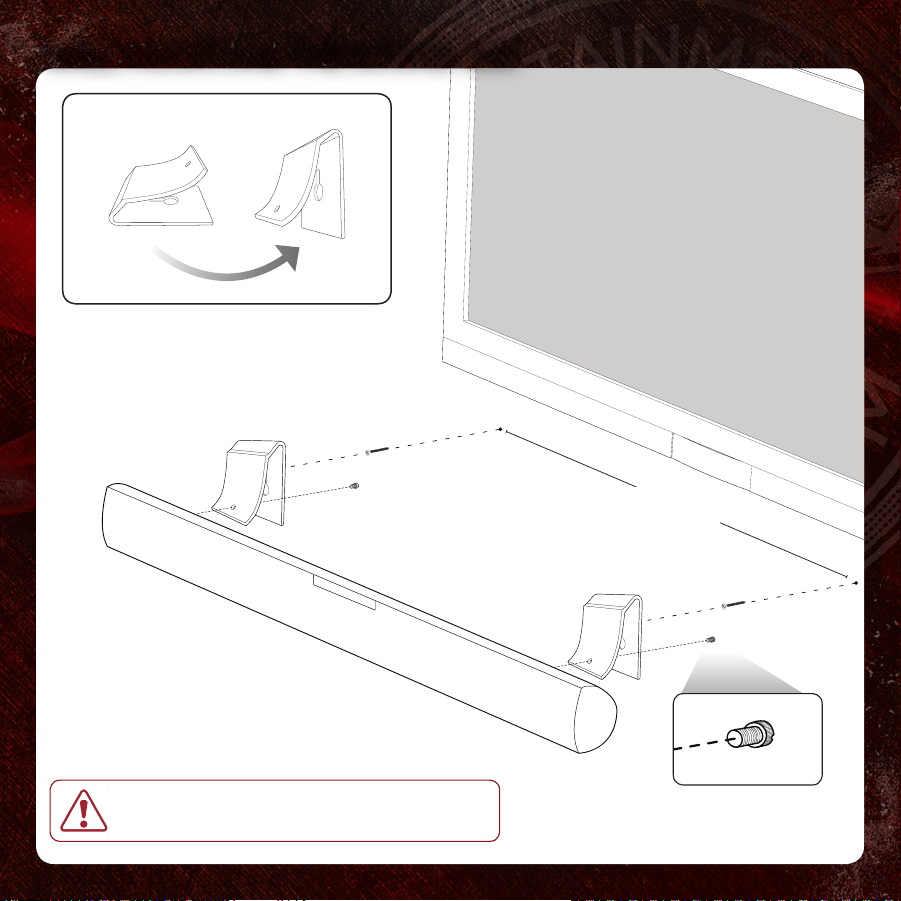

WALL MOUNTING THE SOUND BAR
2
Be sure your screws are attached
to wood studs or drywall anchors
(for drywall) or concrete anchors
(for brick/concrete walls).
Reattach stands using
the included screw.
1
Remove the screw from the Sound
Bar stands and rotate as shown.
If you are unfamiliar with power tools or the layout of electrical
wiring in the walls of your home, consult a professional installer.
22 ⁄”
(58.26 cm)
7
