EN
ENGLISH
(Translation of original instructions)
2
TECHNICAL SPECIFICATIONS .............................................................................4
MACHINE DIMENSIONS ........................................................................................6
IMPORTANT SAFETY PRECAUTIONS .................................................................7

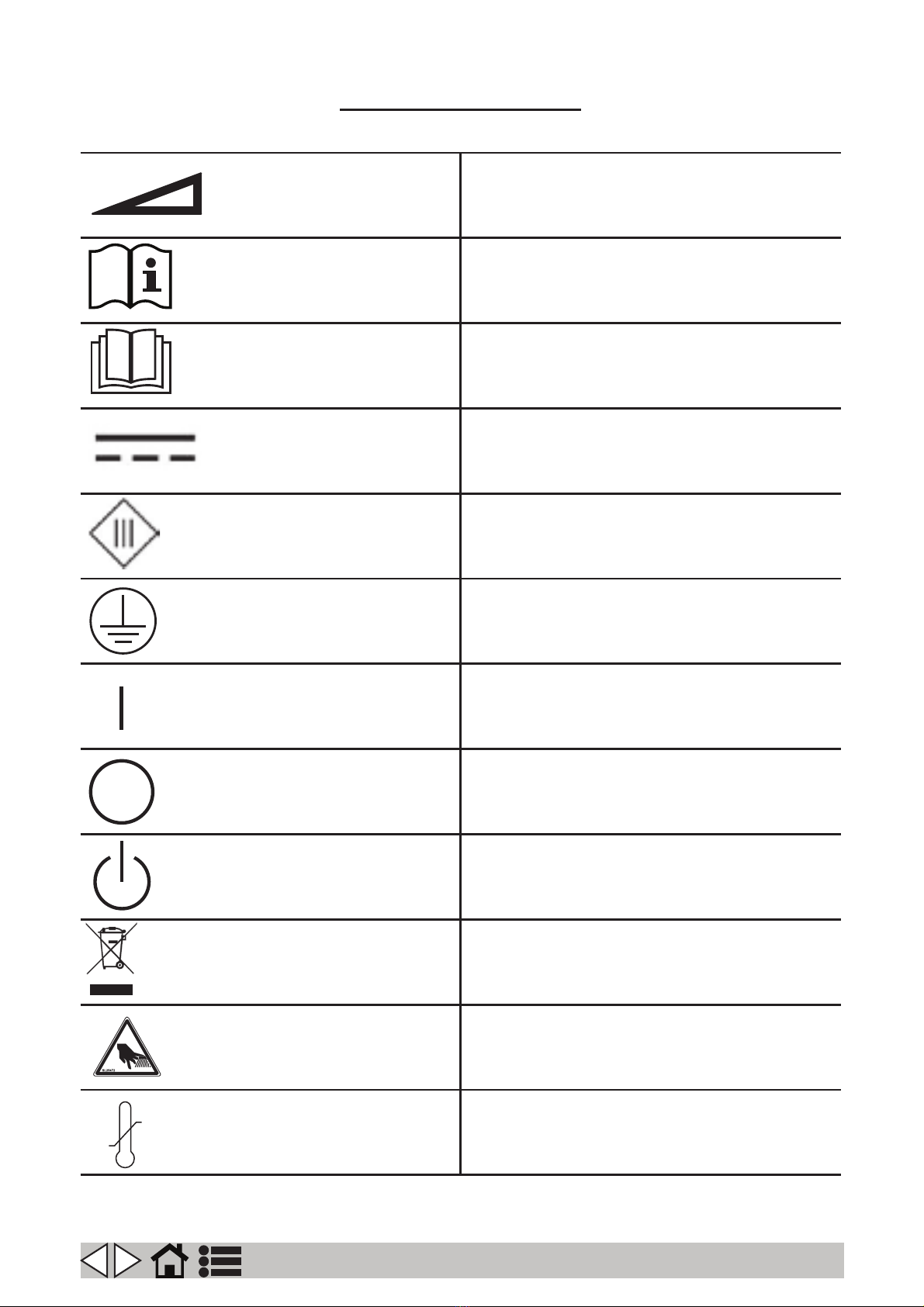

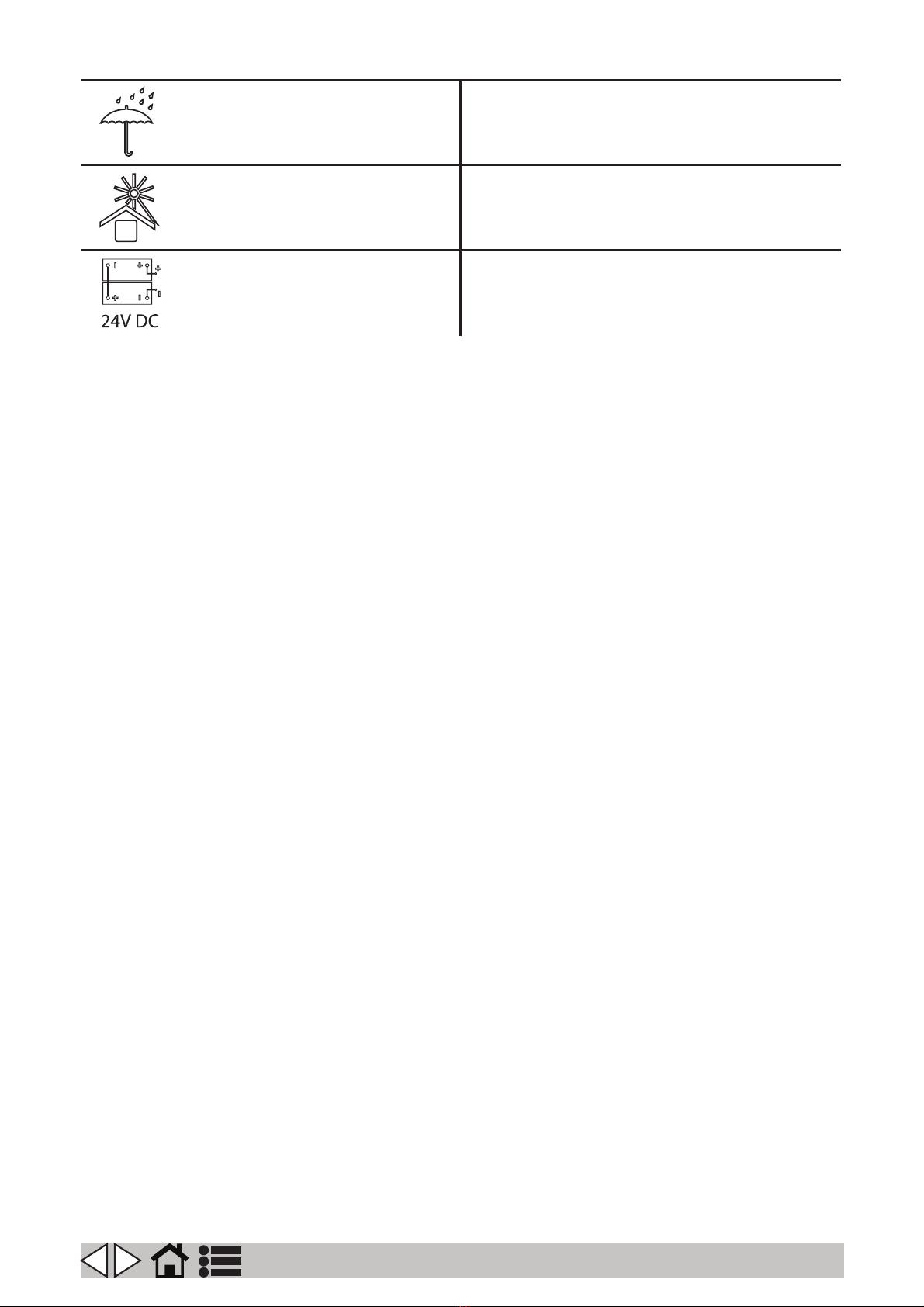

SAFETY SYMBOLS ...............................................................................................12

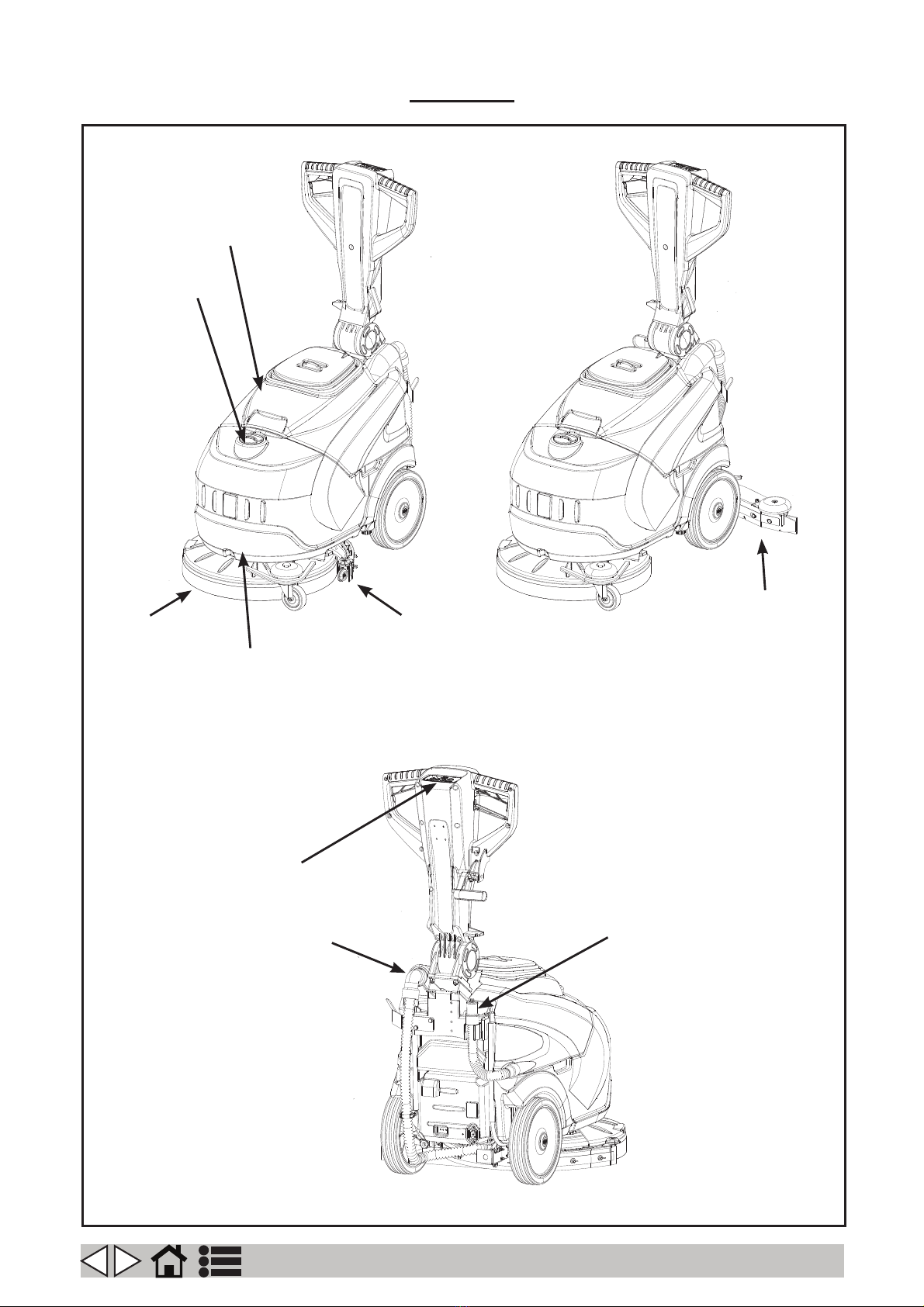

FIGURE ..................................................................................................................14
GENERAL INFORMATION ....................................................................................20
Purpose of this manual ................................................................................................................. 20
Identifying the machine ................................................................................................................. 20
Documentation provided with the machine ................................................................................... 20
TECHNICAL INFORMATION .................................................................................21
General description ....................................................................................................................... 21
Parts of the machine ..................................................................................................................... 21
'DQJHU]RQHV ................................................................................................................................ 21
Accessories ................................................................................................................................... 21
MOVEMENT INSTALLATION ...............................................................................22
Lifting and transporting the packaged machine ............................................................................ 22
Delivery checks ............................................................................................................................. 22

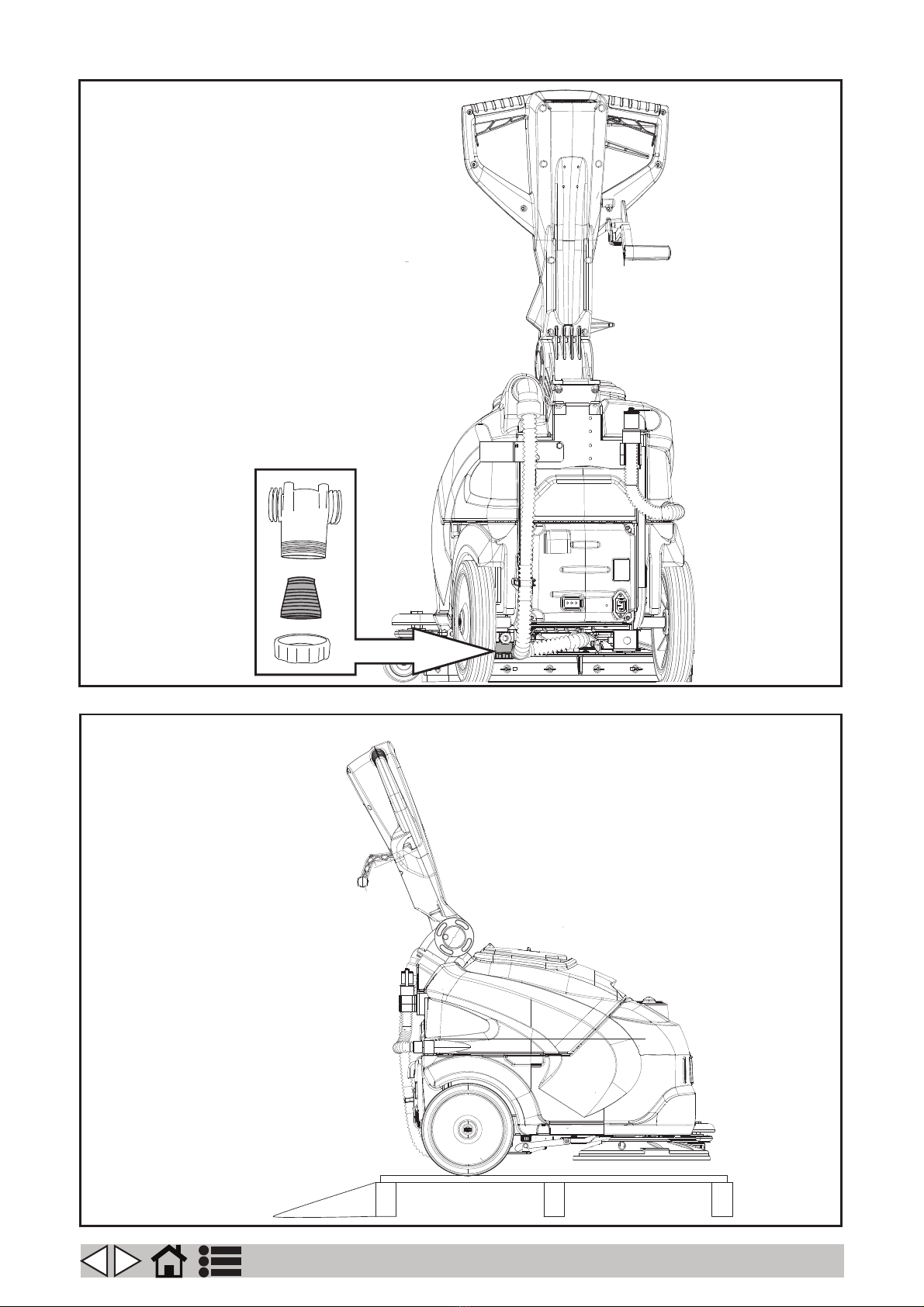

Unpacking ..................................................................................................................................... 22

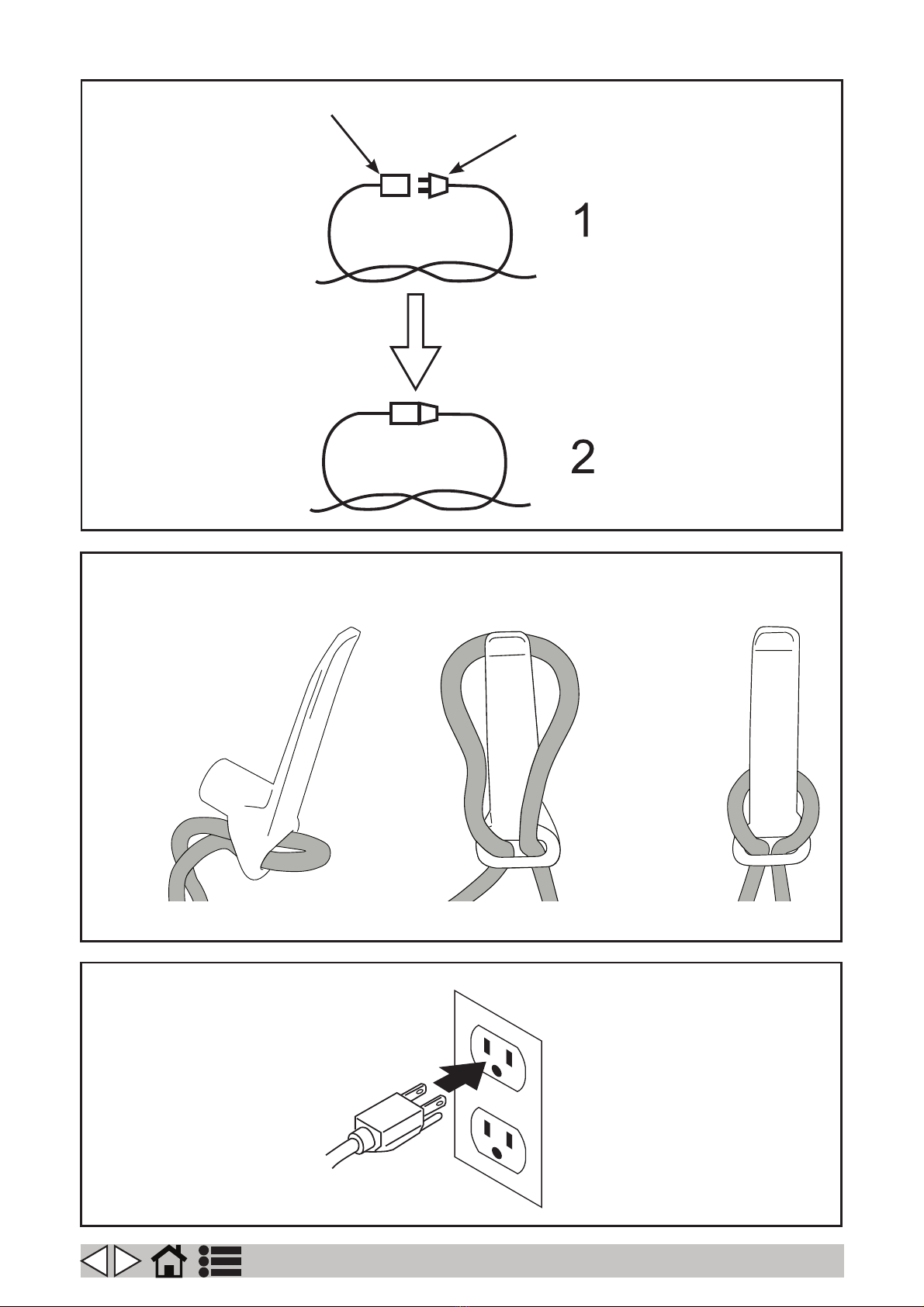

Electrical connections and earth (mains powered versions) ......................................................... 22
Power supply batteries (battery powered versions) ...................................................................... 23
Batteries: preparation .................................................................................................................... 23
Batteries: installation and connection............................................................................................ 24
Batteries: removal ......................................................................................................................... 24
Lifting and transporting the machine ............................................................................................. 24
PRACTICAL GUIDE FOR THE OPERATOR .........................................................25

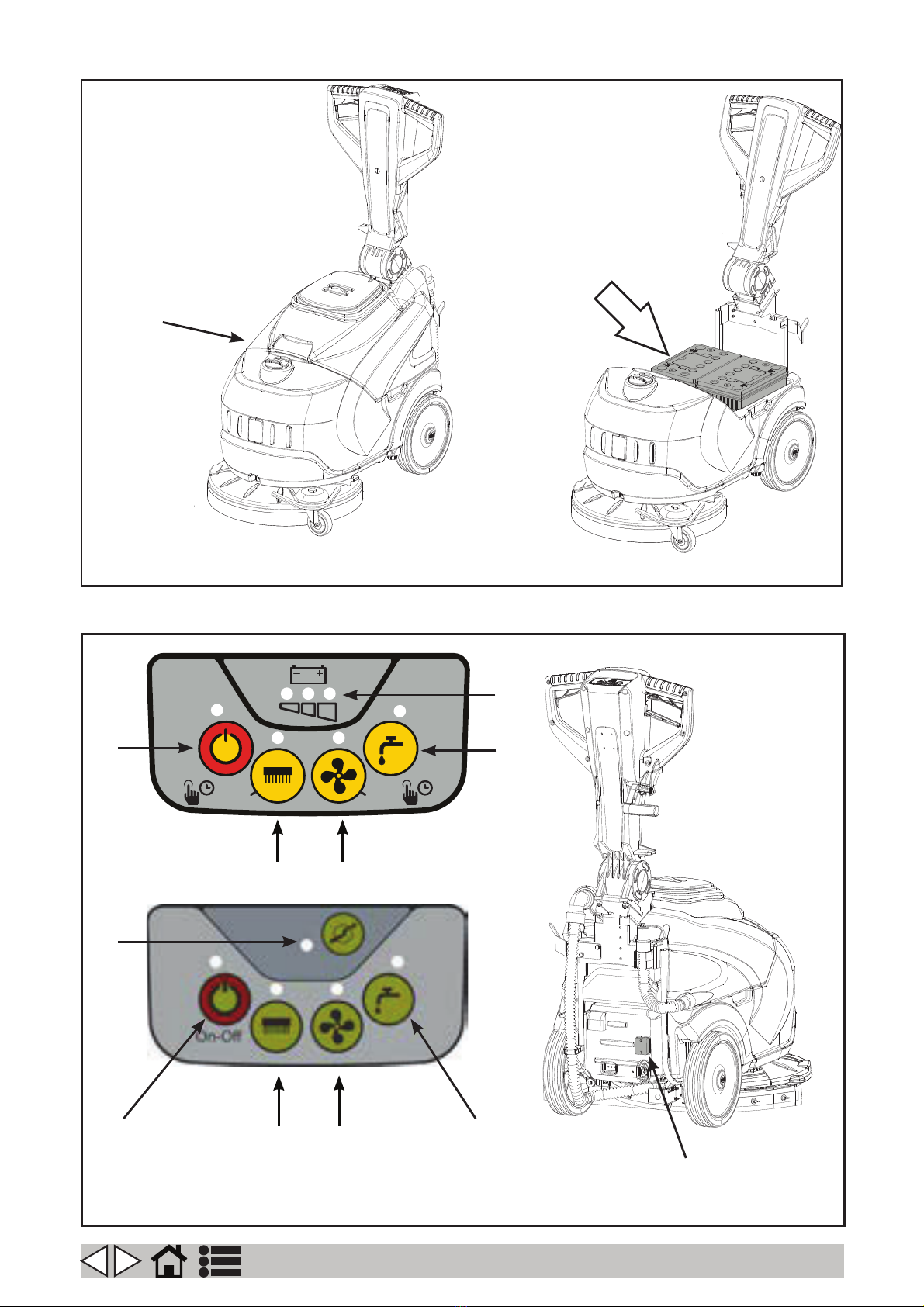

Controls - Description.................................................................................................................... 25
Mounting and adjusting the squeegee .......................................................................................... 25
Moving the machine when not in operation................................................................................... 26
0RXQWLQJDQGFKDQJLQJWKHEUXVKdrive disks ............................................................................... 26
Detergents - Instructions ............................................................................................................... 26
Preparing the machine for work .................................................................................................... 27
Working ......................................................................................................................................... 27
At the end of work: ........................................................................................................................ 28
Some useful tips to get the most from your scrubber drier ........................................................... 28
Draining the dirty water ................................................................................................................. 28
Draining the clean water ............................................................................................................... 28
PERIODS OF INACTIVITY ....................................................................................29
BATTERY MAINTENANCE AND CHARGING ......................................................29
MAINTENANCE INSTRUCTIONS .........................................................................29
Maintenance - General rules ......................................................................................................... 29
Routine maintenance .................................................................................................................... 30
Squeegee blades: replacing.......................................................................................................... 30
Fuses: replacing ............................................................................................................................ 30
Routine maintenance .................................................................................................................... 30
Six monthly operations .................................................................................................................. 30
Maintenance.................................................................................................................................. 31
TROUBLESHOOTING ...........................................................................................32
How to resolve possible problems ................................................................................................ 32
ERROR CODE DISPLAY, BATTERY VERSION ....................................................33
3
EN
TECHNICAL SPECIFICATIONS
B
(battery power)
Cleaning width
mm 455
inches 17,91
Parabolic squeegee width
mm 545
inches 21,45
V-squeegee width
mm 710
inches 27,95
Cleaning capacity per hour
m2K 1670
ft2K 17975,72
Number of brushes no. 1
Brush diameter
mm 455
inches 17,91
Maximum brush pressure JFP2
Brush rotation speed RPM 140
Brush motor power
W 350
HP 0,469
Drive motor power W
Maximum speed NPK
Suction motor power
W 550
HP 0,73
Solution tank
l28
galls. 7,39
Dirty water tank
l30
galls. 7,92
Rear wheel diameter
mm 250
inches 9,84
Maximum slope % 2
Gross weight
kg 126
lbs 277,782
Transported weight
kg 76
lbs 167,551
Machine dimensions
(parabolic squeegee)
mm
X=850
Z=1220
Z=745
Y=568
inches
X=33.46
Z=48.03
Z=29.33
Y=22.36
4
EN
Gross weight: maximum allowable weight with the machine fully loaded and ready for use. The
gross weight of the vehicle includes, when applicable, full clean water tanks, empty dirty water tanks
KDOIIXOOLQWKHFDVHRIUHF\FOLQJV\VWHPVHPSW\GXVWEDJVWKHKRSSHU¿OOHGWRLWVUDWHGFDSDFLW\
the largest recommended batteries and all accessories such as cables, hoses, detergent, mops
and brushes.
Transported weight: the weight of the machine including the batteries, but excluding optionals (for
H[DPSOHWKHRSHUDWRU¶VFDELQ)236VHFRQGDQGWKLUGVLGHEUXVKHVDQGIURQWEUXVKDWWDFKPHQW
fresh water (in the case of scrubbers or combined machines) and the weight of a standard operator
(75 kg)
Data subject to variation without warning.
Machine dimensions (V-squeegee)
mm
X=970
Z=1220
Z=745
Y=730
inches
X=38.18
Z=48.03
Z=29.33
Y=28.74
Battery compartment dimensions
(length, width, height)
mm 240x330x220
inches 9,44x12,99x8,66
3DFNHGVL]HOHQJWKZLGWKKHLJKW
mm 900x610x960
inches 35,43x24,01x37,79
Sound pressure (EN 60704) LpA
(dBA)
Measurement uncertainty K
(dBA) 2,5
Vibration level (hand) (IEC 60335-2-72) ahv
PVHF2
Measurement uncertainty, k PVHF20,5
Vibration level (body) HBV
PVHF2
Measurement uncertainty, k PVHF2
Maximum water and detergent tempera-
ture
°C 4 - 35
°F 39 - 95
Battery charger
V 100 - 240
+] 50 - 60
A4,6
Number of batteries no. 2
Battery voltage V 12
Individual battery capacity Ah (5h) 74
Power system voltage V 24
Rated current A 37,5
Power supply frequency +]
Rated power W 900
IP Degree of protection IP IPX3
5
EN
MACHINE DIMENSIONS
;<= 6HH³7(&+1,&$/63(&,),&$7,216´WDEOH
Z
Z1
YX
Z
Z1
YX
6
EN
IMPORTANT SAFETY
PRECAUTIONS
Basic safety precautions must be followed when using
any electrical equipment.
READ ALL INSTRUCTIONS
BEFORE OPERATING THIS
MACHINE
WARNING! - To minimise the risk of electrocution or injury:
a) Never leave the machine unsupervised when connected to the mains power
supply. Disconnect the machine from the mains power socket after use or befo-
re performing maintenance.
b) Never allow the machine to be used as a toy. Be extremely vigilant whenever
the machine is operated by or near children.
c) Only use the machine as instructed in this manual. Only use the accessories
recommended by the manufacturer.
d) Do not use the machine if the power cable or plug is damaged. If the machine
does not function as it should or has been dropped, damaged, left outdoors or
has fallen in water, have it checked and repaired by a specialist service centre.
e) Do not move or transport the machine by pulling on its power cable. Do not
use the power cable as a handle, close doors on it or pull it over sharp objects
or corners. Do not run over the power cable with the machine. Keep the power
cable well clear of hot surfaces.
f) Do not disconnect the machine by pulling on the power cable. Grip the plug,
not the cable, to disconnect the machine.
g) Never touch a mains powered machine with wet hands.
h) Do not insert objects into the ventilation slots. Do not operate the machine
7
EN
with blocked ventilation slots. Remove all dust, dirt, hair and debris that might
EHEORFNLQJWKHDLUÀRZ
L.HHSKDLUORRVHJDUPHQWV¿QJHUVDQGDOORWKHUSDUWVRIWKHERG\ZHOOFOHDURI
slots and moving parts.
O6ZLWFKRႇDOOFRQWUROVEHIRUHXQSOXJJLQJWKHPDFKLQH
m) Take particular care when cleaning stairs.
Q'RQRWXVHWKHPDFKLQHWRFOHDQXSÀDPPDEOHRUFRPEXVWLEOHOLTXLGVOLNH
petrol, and do not operate the machine in areas where such liquids may be
present.
The machine must not be used for purposes other than those for which it was
expressly designed.
Scrupulously respect all safety standards and conditions applicable to the type
of building in which the machine is to be operated (e.g.: pharmaceutical compa-
nies, hospitals, chemicals, etc.).
Do not operate the machine in inadequate lighting, explosive atmospheres, on
SXEOLFURDGVRUWRFOHDQGLUWWKDWLVKD]DUGRXVWRKHDOWKGXVWJDVHWF
The machine must be kept indoors at all times.
7KHPDFKLQHLVGHVLJQHGWRRSHUDWHLQWHPSHUDWXUHVEHWZHHQ&DQG&
,WFDQEHVWRUHGLQWHPSHUDWXUHVEHWZHHQ&DQG&ZKHQQRWLQXVH
The machine must be used at an altitude below 2000 m.
The machine is designed to operate at relative humidity levels between 0% and
95%.
7KHPDFKLQHPXVWEHXVHGH[FOXVLYHO\E\SHUVRQVWUDLQHGLQLWVXVHDQGRUZKR
have demonstrated their ability and have been expressly authorised to use it.
The machine is not intended for use by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience and knowl-
edge, unless they are supervised by a person responsible for their safety and
have received instruction in the use of the machine.
1HYHUXVHGHWHUJHQWVRWKHUWKDQWKRVHVSHFL¿HG)ROORZWKHLQVWUXFWLRQVRQWKH
relative safety sheet.
We recommend keeping detergents out of reach of children. In the event of con-
tact with the eyes, wash immediately with abundant water. If ingested, consult
a doctor immediately.
Numerous unpleasant experiences have shown that a wide range of personal
objects may cause serious accidents. Before beginning work, remove jewellery,
8
EN
watches, ties, etc.
The operator must always use personal protection devices: protective apron or
overalls, non-slip waterproof shoes, rubber gloves, protective goggles and ear
protectors and mask to protect the respiratory tract.
Do not pick up burning or smoking material like cigarettes, matches or hot ash-
es.
Never operate the machine on slopes or ramps of more than 2%. Never drive
across even gentle slopes. Always manoeuvre with care and avoid reversing.
If you need to transport the machine over ramps or steep slopes, to prevent it
tipping over or running out of control, completely empty the detergent and dirty
water tanks and remove the batteries.
Never park the machine on a slope.
Never leave the machine unattended while switched on. Before leaving it, dis-
connect the machine from the mains power supply and make sure it cannot
move accidentally.
Never use the machine to transport people or goods or to tow things. Do not
tow the machine.
Never rest objects of any weight on the machine for any reason.
Do not remove, modify or bypass safety devices (brush guards, battery covers,
fuses, electric system covers, etc.).
Always check the condition of the brush guard before operating the machine. If
any damage is found, do not operate the machine but have the guard replaced
by personnel trained and authorised by the manufacturer.
Never touch the brush unless the machine is disconnected from the power sup-
ply.
7KHÀXLGVFROOHFWHGGXULQJZRUNFRQWDLQGHWHUJHQWGLVLQIHFWDQWZDWHUDQGRU-
ganic and inorganic material. 7KH\ PXVW EH GLVSRVHG Rႇ LQ DFFRUGDQFH ZLWK
current legislation.
Never wash the machine with water jets.
Make sure the electrical characteristics of the machine (voltage, frequency,
power) given on the nameplate correspond to those of the mains electricity
supply.
Make sure the power sockets used for mains powered models and battery
chargers are properly earthed and protected by a 2-pole thermal magnetic
VZLWFKZLWKGLႇHUHQWLDOFLUFXLWEUHDNHU:
Źrated current 15-16A
Ź ,ǻQGLႇHUHQWLDOFXUUHQW$
ŹIcn breaking capacity: 6000 A
9
EN
Ź $&GLႇHUHQWLDOEUHDNHULQWHUYHQWLRQ
This equipment must be earthed. In the event of a malfunction or failure, the
earth connection provides the path of least resistance for electrical current, min-
imising the risk of electrocution.
Mains powered versions come with a three-wire cable and a three-pin earthed
plug for use in a suitable earthed socket. The earth wire is yellow and green.
Never connect this wire to anything other than the earth terminal of the socket.
The plug must be plugged into a suitable socket, correctly installed and wired
according to local standards.
,QFRUUHFWZLULQJRUIDLOXUHWRFRQQHFWWKHPDFKLQH¶VHDUWKZLUHPD\OHDGWRDULVN
of electrocution.
If you are in doubt about the proper earthing of the power socket, have it checked
E\DTXDOL¿HGHOHFWULFLDQ
Do not tamper with the plug supplied with the machine. Only use sockets that
DUHVXLWDEOHIRUWKHPDFKLQH¶VPDLQVSOXJ,IWKHSOXJQHHGVWREHUHSODFHGKDYH
the job done by a TXDOL¿HGHOHFWULFLDQ.
8VHRIDGDSWHUVZLWKWKHPDFKLQH¶VPDLQVSRZHUSOXJLVVWULFWO\IRUELGGHQ
When operating mains powered versions, to avoid the risk of electrocution, use
only the extension supplied with the machine.
When using mains powered versions, take care to prevent the rotating brush
from coming into contact with the power cable.
7RUHGXFHWKHULVNRISHUVRQDOLQMXU\FDXVHGE\WKHPDFKLQH¶VSRZHUSOXJEH-
coming loose in the extension, periodically check that the connection is secure.
Using an extension with a loose connection can cause overheating, smoke and
HYHQ¿UH
7RUHGXFHWKHULVNRIWKHPDFKLQH¶VPDLQVSRZHUSOXJEHFRPLQJORRVHLQWKH
extension, tie a knot as shown ¿J0RUVHFXUHWKHPDFKLQH¶VSRZHUFDEOHWR
WKHFOLSRQWKHPDFKLQH¶VKDQGOHDVVKRZQ¿J1.
When operating mains powered versions, periodically examine the mains cable
and extension. If any damage is detected, do not use the machine and refer
the necessary repairs to personnel trained and authorised by the manufacturer.
Battery charger: check the power cable regularly for damage. In the event of
damage, do not use the machine. Have the cable replaced by personnel trained
and authorised by the manufacturer.
Use only the battery charger supplied with the machine to recharge the batter-
ies.
,WLVHVVHQWLDOWRUHVSHFWWKHEDWWHU\PDQXIDFWXUHU¶VLQVWUXFWLRQV
ŹAlways keep the batteries clean and dry to avoid surface leakage cur-
rents.
ŹProtect the batteries from impurities such as metal dust.
ŹNever rest metal tools on batteries as they could cause short circuits and
10
EN
lead to explosions.
ŹNever wear metal rings or bracelets when working on batteries.
Ź 'RQRWVPRNHXVHQDNHGÀDPHVRUVSDUNVQHDUEDWWHULHV
ŹNever lift or handle batteries by their terminals.
ŹBatteries must be disposed of through appropriate channels and not as
normal waste.
ŹIn the case of gel batteries, never attempt to remove the battery cover to
DGGZDWHURUDFLGWRWKHFHOOVLQVLGH
ŹWhen using acid for leak-proof tubular batteries, always follow the safety
instructions scrupulously.
ŹThe electrolyte contained in batteries is a sulphuric acid solution and
is highly corrosive.
ŹIn the event of contact with the eyes, wash immediately with plenty
of water and seek medical advice
ŹIn the event of contact with the skin or clothing, wash with plenty of
water.
ŹStore out of the reach of children.
ŹUse suitable gloves and protect the eyes and face.
ŹMake sure that the area is well ventilated before recharging batter-
ies.
All maintenance operations must be performed in an adequately lit place and
only after disconnecting the machine from the power supply. With mains pow-
ered models, unplug the machine from the mains power socket. With battery
models, remove the fuse from the battery bridge. With mains powered models,
the operator must always be in a position to verify that the plug remains un-
plugged from the mains power socket throughout maintenance operations.
All work on the electrical system and all maintenance and repair op-
erations other than those explicitly described in this manual must be
performed by personnel trained and authorised by the manufacturer.
If the power cable, plug or terminals require replacing, make sure the electrical
connections and cable grip are tightly fastened to guarantee the resistance of
the cable if pulled.
KEEP THESE INSTRUCTIONS SAFE.
11
EN
SAFETY SYMBOLS
MAXIMUM SLOPE
OPERATOR'S MANUAL, INSTRUCTIONS FOR USE
READ THE OPERATOR'S MANUAL
DIRECT CURRENT SYMBOL
INSULATION CLASS, THIS CLASSIFICATION ONLY AP-
PLIES TO BATTERY POWERED MACHINES.
EARTH SYMBOL, IDENTIFIES ANY TERMINAL DESTINED
FOR CONNECTION TO AN EXTERNAL EARTH CONDUC-
TOR TO PROTECT AGAINST ELECTROCUTION IN THE
EVENT OF A MALFUNCTION.
MACHINE RUN SYMBOL
MACHINE STOP SYMBOL
MACHINE STANDBY SYMBOL
SPECIAL WASTE. DO NOT DISPOSE OF AS NORMAL
WASTE.
CAUTION! RISK OF ABRASION
MINIMUM AND MAXIMUM TEMPERATURE OF LIQUID IN
TANK
4°C
35°C
12
EN
CAUTION! PROTECT AGAINST RAIN
CAUTION! PROTECT AGAINST DIRECT SUNLIGHT
ARRANGEMENT AND CONNECTION OF BATTERIES
13
EN
FIGURE
A
2
8
1
55
4
6
3
7
14
EN
1
B
ECO ECO
7
2
3
3
45
6
6
C8
45
15
EN
D
1
1
1
1
3
3
2
4
16
EN
E
2 - 12
7
9
4
8
33
11
5
1
6
10
F21
G1H
1
17
EN
I
L
18
EN
Extension Machine power
cable
1
2
3
M
N
O
19
EN
GENERAL INFORMATION
IMPORTANT!
5HDGWKLVPDQXDOFDUHIXOO\EHIRUHFDUU\LQJRXWDQ\ZRUNRQWKHPDFKLQH
Purpose of this manual
This manual has been written by the Manufacturer and is an integral part of the machine1.
,WGH¿QHVWKHSXUSRVHIRUZKLFKWKHPDFKLQHKDVEHHQGHVLJQHGDQGFRQVWUXFWHGDQGFRQWDLQVDOOWKHLQIRUPDWLRQ
required by operators2.
In addition to this manual, which contains information for operators, other publications are available providing
VSHFL¿FLQIRUPDWLRQIRUmaintenance personnel3.
7KHWHUPV³ULJKW´DQG³OHIW´³FORFNZLVH´DQG³DQWLFORFNZLVH´UHIHUWRWKHIRUZDUGPRYHPHQWRIWKHPDFKLQH
Constant compliance with the instructions provided in this manual guarantees the safety of the operator and the
machine, ensures low running costs and high quality results and extends the working life of the machine. Failure
WRIROORZWKHVHLQVWUXFWLRQVPD\OHDGWRLQMXU\WRWKHRSHUDWRURUGDPDJHWRWKHPDFKLQHÀRRUDQGHQYLURQPHQW
&RQVXOWWKHWDEOHRIFRQWHQWVDWWKHEHJLQQLQJRIWKHPDQXDOWR¿QGWKHVHFWLRQ\RXQHHGUDSLGO\
Parts of the text requiring special attention are printed in bold and preceded by the symbols illustrated and de-
scribed here.
DANGER
,QGLFDWHVWKHQHHGIRUDWWHQWLRQLQRUGHUWRDYRLGDVHULHVRIFRQVHTXHQFHVZKLFKFRXOGFDXVHGHDWKRU
serious injury to personnel.
WARNING
,QGLFDWHVWKHQHHGIRUDWWHQWLRQLQRUGHUWRDYRLGDVHULHVRIFRQVHTXHQFHVZKLFKFRXOGFDXVHLQMXU\WR
SHUVRQQHORUGDPDJHWRWKHPDFKLQHRUZRUNHQYLURQPHQWRU¿QDQFLDOORVV
IMPORTANT!
Indicates particularly important instructions.
,QOLQHZLWKWKHFRPSDQ\¶VSROLF\RIFRQVWDQWSURGXFWGHYHORSPHQWDQGXSGDWLQJWKH0DQXIDFWXUHUUHVHUYHVWKH
ULJKWWRPDNHPRGL¿FDWLRQVZLWKRXWSULRUQRWLFH
$OWKRXJK\RXUPDFKLQHPD\GLႇHUDSSUHFLDEO\IURPWKHLOOXVWUDWLRQVLQWKLVGRFXPHQWWKHFRUUHFWQHVVDQGYDOLGLW\
of the instructions contained in this manual are guaranteed.
Identifying the machine
The nameplate provides the following information:
Ź PRGHO
Ź SRZHUVXSSO\
Ź WRWDOQRPLQDOSRZHU
Ź VHULDOQXPEHU
Ź \HDURIIDEULFDWLRQ
Ź GU\ZHLJKW
Ź PD[LPXPVORSH
Ź PDQXIDFWXUHU¶VLGHQWL¿FDWLRQ
'RFXPHQWDWLRQSURYLGHGZLWKWKHPDFKLQH
Ź RSHUDWRU¶VPDQXDO
Ź JXDUDQWHHFHUWL¿FDWH
Ź (&FHUWL¿FDWHRIFRQIRUPLW\
7KHGH¿QLWLRQPDFKLQHUHSODFHVWKHWUDGHQDPHFRYHUHGE\WKLVPDQXDO
3HUVRQVUHVSRQVLEOHIRUXVLQJWKHPDFKLQHZLWKRXWSHUIRUPLQJDQ\RSHUDWLRQVUHTXLULQJSUHFLVHWHFKQLFDOVNLOOV
3HUVRQVZLWKH[SHULHQFHWHFKQLFDOWUDLQLQJDQGDNQRZOHGJHRIOHJLVODWLRQDQGVWDQGDUGVDEOHWRSHUIRUPDOOWKHQHFHV-
VDU\RSHUDWLRQVDQGWRUHFRJQLVHDQGDYRLGSRVVLEOHULVNVLQKDQGOLQJLQVWDOODWLRQXVHDQGPDLQWHQDQFHRIWKLVPDFKLQH
Model :
Vac :
W :
A :
Hz :
Ser.N :
Date :
IP :
Kg :
20
Table of contents
Other VLX Scrubber manuals
