VMI Artesia DP-7 User manual

DP-7
Virgin Musical Instruments
Owner s Manual

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings,install in accordance with the
manufacturer s instructions.
8) Do not install near any heat sources such
as radiators, heat registers,stoves,or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the
polarized or grounding-type plug.A polarized
plug hase two blades
with one wider than the other.A grounding
type plug has two blades and a third
grounding prong.The wide blade
or the third prong are provided for your
safety,if the provided plug does not fit into
your outlet.consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked
on or pinched particularly at plugs.convenience
receptacles,and the point where they exit from
the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
(Figure 1)
Thank you for purchasing this digital instrument.For perfect operation and security,please read the
manual carefully and keep it for future reference.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
The lightning flash with arrowhead symbol within an equilateral triangle is in
within the product s enclosure that may be of sufficient magnitude to constitute a
Tended to alert the user to the presence of uninsulated dangerous voltage
The exclamation point within an equilateral triangle is intended to alert the user
risk of electric shock to persons.
the literature accompanying the product.
to the presence of important operating and maintenance(servicing) instructions in
Safety Precautions
Important Safety Instructions
12) Use only with the cart,stand,tripod,bracket,or
table specified by the manufacturer,or sold with
the apparatus.When a cart is used,use caution
when moving the cart/apparatus combination to
avoid injury from tip-over (Figure 1).
13) Unplug this apparatus during lightning storms
or when unused for a long periods fo time.
14) Refer all servicing to qualified service
personnel.Servicing is required when the
apparatus has been damaged in any way,such as
power-supply cord or plug is damaged,liquid has
been spilled or objects have fallen into the
apparatus,the apparatus has been exposed to rain
or moisture,does not operate normally,or has been
dropped.
WARNING:To reduce the risk of fire or
electric shock,do not expose this
apparatus to rain or moisture.
CAUTION:Apparatus shall not be
exposed to dripping or splashing and no
objects filled with
liquids,such as vases,shall be placed on
the apparatus.
Digital Piano
Precaution

Your digital piano is a high-quality digital piano with 88 standard touch sensitivity
keyboard and combines the most advanced PCM tone generation technology. Your
instrument has 8 demo songs and hundreds of learning songs. Real-time record
function, and the recording data won't be lost when you turn off the power.
In order to obtain maximum performance and enjoyment, please read this manual
thoroughly while trying out the various features described.
Thanks for using our digital piano

Control Panel .................................................................................................................
Basic Operation ............................................................................................................
Turn on the Power .....................................................................................................
Adjust the Main Volume ............................................................................................
Demo songs ..............................................................................................................
Connection ................................................................................................................
Headphone ................................................................................................................
Pedal .........................................................................................................................
Line Out .....................................................................................................................
.................................................................................
..............................................................................................
...........................................................................................................................
Voices ...........................................................................................................................
Select a voice ...........................................................................................................
Layer button .............................................................................................................
Split Voice ..................................................................................................................
Effect ............................................................................................................................
Digital effect .............................................................................................................
Touch ........................................................................................................................
Transpose .................................................................................................................
Twin ...........................................................................................................................
Metronome ...............................................................................................................
Tempo/Tap ...............................................................................................................
Recording ........................................................................................................
........................................................................................................
Play Recording ...........................................................................................................
Clear Recording ........................................................................................................
...........................................................................................................
Practicing The Left Hand Of The Selected Song .......................................................
Practicing The Left Hand Of The Selected Song .......................................................
..........................................................................................
Reset ............................................................................................................................
.......................................................................................................................
Voice list ...................................................................................................................
Percussion voice list .................................................................................................
Midi implementation chart ........................................................................................
Troubleshooting Hints ................................................................................................
Specifications ...........................................................................................................
Assembly instructions ...............................................................................................
...
Recording Functions .....................................................................................................
Start
Stop Recording
Learning Functions .......................................................................................................
Play the song
Exit the Learning Funtion
USB MIDI / USB AUDIO Jack
Using DC Power Jack
MP3
Appendix
3
5
5
5
5
6
6
6
7
7
7
7
8
8
8
9
11
11
12
13
14
14
15
16
16
16
16
17
18
18
18
18
18
19
20
20
21
22
23
24
25
2
Contents

6 7 8 9 10
13 14 15 16
1. POWER (STANDBY/ON)
2. VOLUME Control
MASTER VOLUME Knob
3. LCD Display
4. REVERB Button
5. CHORUS Button
6. TRANSPOSE Button
7. TOUCH Button
8. LAYER Button
9. SPLIT Button
10. TWIN Button
11. METRONOME Button
12. TEMPO/TAP Button
13. DATA CONTROL Knob
14. Voice Select Buttons
15. RECORDING FUNCTION
RECORD Button
TRACK/LEFT Button
TRACK/RIGHT Button
PLAY Button
16. LEARN Button
17. DEMO Button
18. Mp3
11 12
4
2
3
18
5
MP3
STANDBY/ON
1
MASTER VOLUME LAYERREVERB CHORUS TRANSPOSE SPLIT TWIN METRONOME TEMPO/TAP DATA CONTROL GRAND
PIANO
BRIGHT
PIANO
ELECTRIC
PIANO 1
ELECTRIC
PIANO 2
CHURCH
ORGAN GUITAR STRINGS BRASS GMVOICE RECORD TRACK 1/
LEFT
TRACK 2/
RIGHT PLAY LEARN
DEMO
17
Top Panel Controls
3
TOUCH
MASTER VOLUME LAYERREVERB CHORUS TRANSPOSE SPLIT TWIN METRONOME TEMPO/TAPTOUCH
DATA CONTROL GRAND
PIANO
BRIGHT
PIANO
ELECTRIC
PIANO 1
ELECTRIC
PIANO 2
CHURCH
ORGAN GUITAR STRINGS BRASS GM VOICE RECORD TRACK 1/
LEFT
TRACK 2/
RIGHT PLAY LEARN
DEMO

19 20 21 22
PEDALPEDAL USB TOH OSTUSB TOH OST LINE OUTLINE OUT LINE INLINE IN DC 12VDC 12V
PEDALPEDAL USB TO HOSTUSB TO HOST LINE OUTLINE OUT DC 12VDC 12V
23
PHONES 1
PHONES 2
19. PEDAL JACK
20. USB TO HOST JACK
21. LINE OUT JACK
22. DC POWER
23. PHONES1 JACK
PHONES2 JACK
Rear Panel Controls
4

Turn the power on, the LCD will light.
STANDBY/ON
MASTER VOLUME
DEMO
Deactivate the Auto Standby function
Standby On
This product will switch off automatically in 30 minutes after no any operation on it.
In this case, press the [STANDBY/ON] button again to turn the power switch on.
Hold the first white key and first black key on the left side of the keyboard at the
same time and then turn on the unit to deactivate the AUTO STANDBY function.
POWER
ON/OFF
MP3
Press [DEMO] button again to stop playing.
Use [MASTER VOLUME] control to adjust the volume to
your desired level.
There are 8 preset demo songs that you can play individually. Listen to the pre-
programmed demo songs and they will give you a good idea of what the instrument can do.
Press [DEMO] button to play the demo songs in sequence. You can use the number
buttons (001-008) to select the demo songs.
Demo Songs
Adjust the Main Volume
Basic Operation
Turn on the power
5

Damper Pedal (Right)
It performs the same function as the damper pedal on an actual acoustic piano, letting
you sustain the sound of the voices even after releasing your fingers from the keys.
Sostenuto Pedal (Center)
If you play a note or chord on the keyboard and press the sostenuto pedal while the
notes are held, those notes will be sustained as long as the pedal is held, but all
subsequently played notes will not be sustained.
Soft Pedal (Left)
The Soft Pedal controlling the sound volume. Press the pedal to decrease the output
sound volume.
SOFT
PHONES 1
Two sets of Headphones can be plugged in for private
practice. The sockets are located in the front of the
instrument in left part of the keyboard and allows you
to play without disturbing anyone else or being disturbed
by outside noise, and the internal speaker system is
automatically shut off when the headphone is plugged.
SOSTENUTO
SUSTAIN
PHONES 2
Connection
Pedal
Connect the plug of the foot pedal unit to the pedal
connector under the piano.
Headphones
6

The Line out jack can be used to deliver the output of the
piano to a keyboard amplifier, stereo sound system, mixing
console or tape recorder.
Note: To avoid damaging the speakers, please ensure that the volume
has set to the minimum level before connecting the power and other devices
LINE OUT
Stereo
System
USB TO HOSTUSB TO HOST
Using DC Power Jack
Note:1.Ensure the piano is turned off when connecting and disconnecting the power.
2.Turn the volume switch to the minimum level before turning on the power.
1. Ensure the keyboard is turned off when connecting and disconnecting the power,
and turn the volume switch to the minimum level.
2. Plug the adaptor into the AC wall outlet and the cord into the unit, then turn the
power on.
The audio output from other sound system connected to the MP3
jack can be mixed with the sound of the unit. This function is
convenient when you want to play along with a favourite song. MP3
Line Out
USB MIDI / USB AUDIO Jack
This product allows the transfer of MIDI information over USB to a computer.
Because your piano is USB Class Compliant,
there is no need to install a driver to enable it to work with OSX, Windows XP, Vista or
Windows 7. Just plug it in and the OS will do the rest. The piano will work with all standard
MIDI based computer software.
USB AUDIO interface is a digital audio interface. By USB cable,
you can digitally transfer intact audio signals of PC to
when you play
this instrument; likewise, you can transfer intact audio signals of the
instrument to PC to record and edit music.
Complicated as it sounds, it's pretty simple.
this instrument,
and enjoy it on this instrument or use it for accompany
Mp3
7

GRAND
PIANO
BRIGHT
PIANO
ELECTRIC
PIANO 1
ELECTRIC
PIANO 2
CHURCH
ORGAN GUITAR STRINGS BRASS GM VOICE
There are 9 voices that can be selected quickly by Pressing one of the 9 voice select
buttons and its indicator is lighted.
Select a voice, then use [DATA CONTROL] knob to select your desired voice.
This function is capable of enhancing the delicacy of your music by playing two voices
of musical instruments simultaneously; new combinations of voices and music could be
created. When the layer function is off, the voice indicated is VOICER1. When the layer
function is on, the voice indicated is VOICE R2.
Press [LAYER] button to turn on or turn off Layer function.
Select Layer Voice
Press [LAYER] button to enter the Layer voice mode, the indicator is lighted
Voices
Your piano has 128 sounds in the internal sound library numbered from 01 to 128, and
The available sounds can be played in three different modes: Main voice, Layer voice
and Split voice.
You can use the voice button on the panel, or use [DATA CONTROL] knob to select
voice.
Select a Voice
Selecting Voice Directly
Use [DATA CONTROL] knob
Layer Button
8

LAYER
Adjust Layer Voice Volume
old down the [LAYER] button, then use [DATA CONTROL] to adjust Layer
Voice volume. Range: 000-127.
Press the [GRAND PIANO
Press and h
] and [BRIGHT PIANO] buttons simultaneously to restore
the default value: 75.
to exit the Layer mode.
Split function let the keyboard split into two sections which means different voices
can be played with the left and right hands at the same time.
Select Split Voice
Press [SPLIT] button to enter the split mode, the [SPLIT] indicator light is light, now
you can change the split voice by using [DATA CONTROL] knob.
Exit The Layer Mode
Press [LAYER] button again
simultaneously. The number of the dual voice will be displayed on the LCD. Now, you
can play two different sounds at the same time.
To change the Layer voice by using [DATA CONTROL] knob while the Layer indicator
is light.
LAYER
Split Voice
9

SPLIT

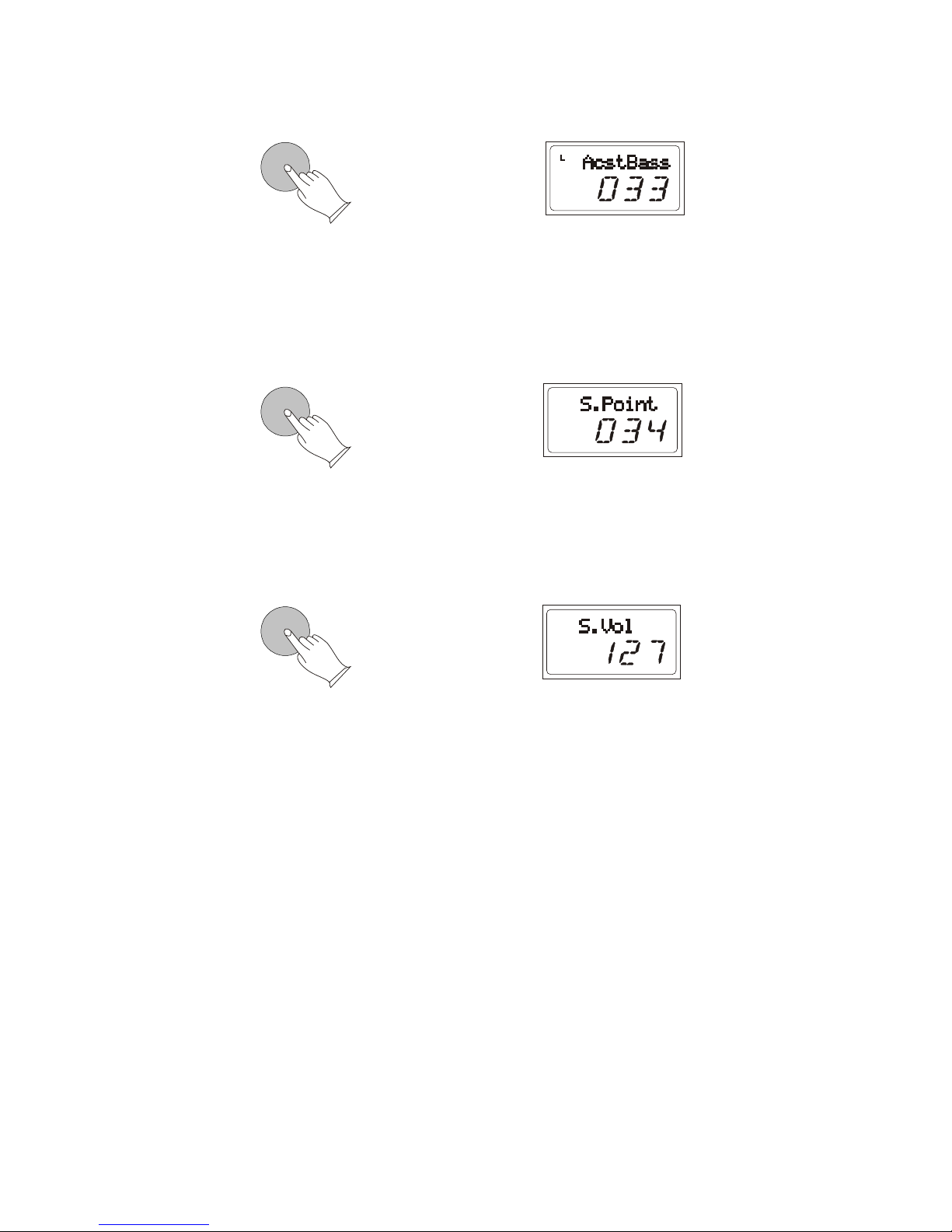

Change the Split Point
Adjust Spilt Voice Volume
old down the [SPLIT] button, then use [DATA CONTROL] to adjust Layer
Voice volume. Range: 000-127.
Press the [GRAND PIANO
Press and hold down [SPLIT] button, then press the appropriate piano key to select the
Split Point. Range:000~087. Default: 034.
Press and h
] and [BRIGHT PIANO] buttons simultaneously to restore
the default value: 127.
to exit the Layer mode.
Exit The Split Mode
Press [SPLIT] button again
SPLIT
SPLIT
10

REVERB
REVERB
This function allows you to perform the overall sound in a realistic style.
Reverb
The [REVERB] button selects a number of digital reverb effects that you can use for
extra depth and expressive power.
Press [REVERB] button, use [DATA CONTROL] knob to select reverb type.
Press the [GRAND PIANO
The reverb types in the list below can be selected from the reverb display.
Press [REVERB] button again to turn off the reverb effect.
Reverb Level
Press and hold down the [REVERB] button, use [DATA CONTROL] knob to adjust the
reverb level.
Range: 000~127. Default: 036.
] and [BRIGHT PIANO] buttons simultaneously to restore
the default value: Room3.
1 2 3 4 5 6 7 8
Hall1 Hall2 Room1 Room2 Room3 Stage1 Stage2 Plate
Effect
Digital Effect
11

The touch function provides three different types of keyboard touch sensitivity
that can be selected to match different playing styles.
CHORUS
REVERB
Chorus
Press [CHORUS] button, use [DATA CONTROL] knob to select chorus type.
Press the [GRAND PIANO
The chorus types in the list below can be selected from the reverb display.
Press [CHORUS] button again to turn off the reverb effect.
Chorus Level
Press and hold down the [CHORUS] button, use [DATA CONTROL] knob to adjust the
chorus level.
Range: 000~127. Default: 036.
] and [BRIGHT PIANO] buttons simultaneously to restore
the default value: Chorus3.
1 2 3 4 5 6 7 8 9 10 11 12 13
Chorus1 Chorus2 Chorus3 Chorus4 Feedbak Flanger1 ShDl S hDlFb Flanger2 Flanger3 Celeste1 Celeste2 Celeste3
Touch
12

TOUCH
TRANSPOSE

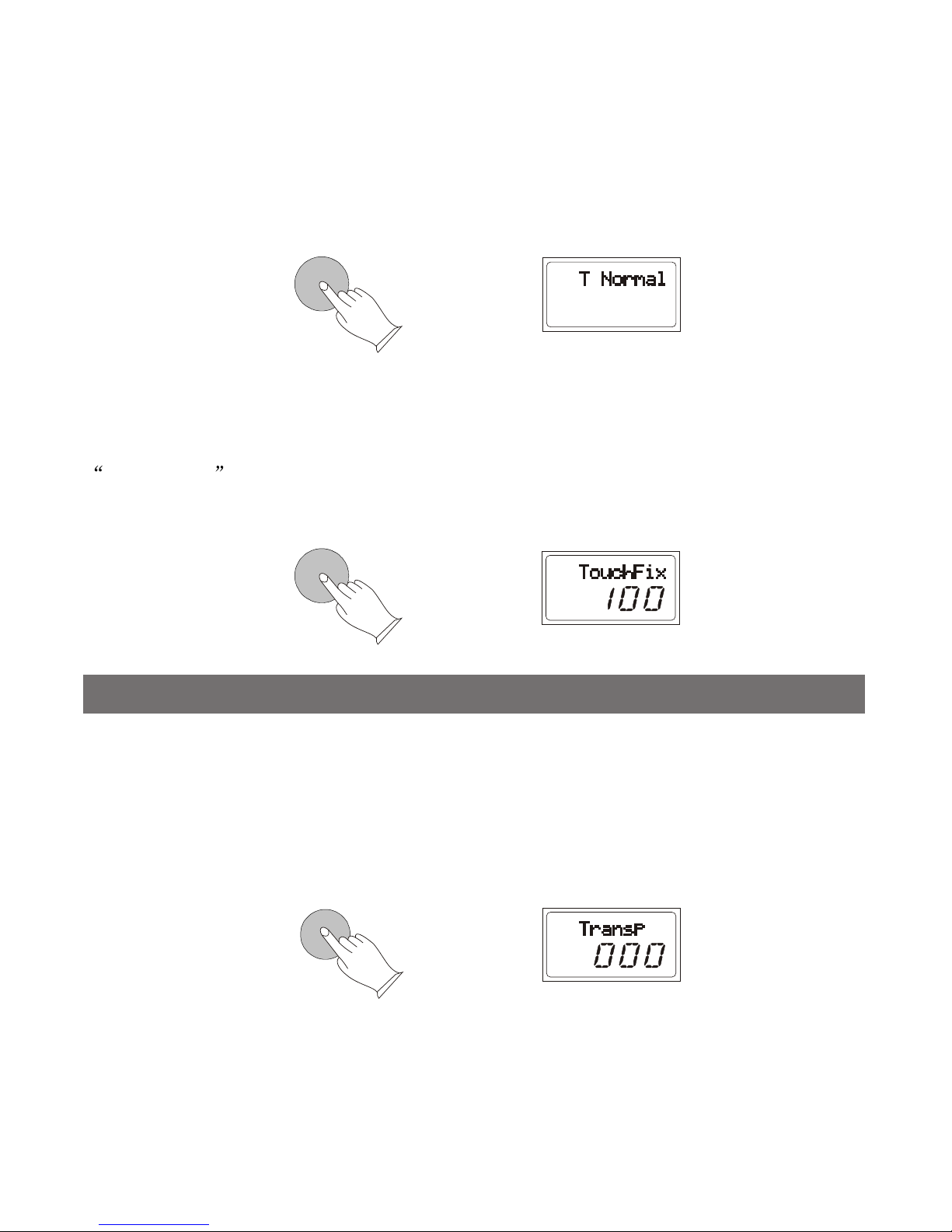

Press the [TOUCH] button and its indicator is lighted , use [DATA CONTROL] knob to
select the touch sensitivity type. Range: Low, Normal, High. Default: Normal.
When [TOUCH] is off, the indicator is unlighted, means that regardless of how hard you
play, the keyboard will transmit a velocity value of 100. Hold [TOUCH] button till
Touchfix:100 displayed, then use [DATA CONTROL] knob to set the fixed touch level.
Range: 000~127. Default: 100.
TOUCH
The Transpose function allows you to change the pitch of the instrument in semitone
steps, up to a maximum setting of 12 semitones (a maximum of one octave up or down).
Press [TRANSPOSE] button, the Transp 000 appears, then use the
[DATA CONTROL] button to change the transpose value. Range: -12 to 12. Default: 000.
Transpose
13

TWIN
METRONOME
Press the [TWIN] button to enter TWIN mode. In this mode, the keyboard will be
separated into two playing areas.
Right: from C#3 to C7
Left: from A-1 to C3
This will be very helpful when the instrument is used by two players at the same time
(example: Teacher and Student) and they will be able to play the same piano sound in the
same octave.
When the Twin mode is selected, use the optional 3 level pedal and the pedals will
automatically switch in a different configuration where there are 2 Sustain pedals, one for
the left and anther for the right part of the keyboard.
Metronome is a convenient feature for practice, and it can also provide a solid
rhythmic guide when recording.
The metronome sound is alternately turned on and turned off by pressing
[METRONOME] button.
Time signature
Press [METRONOME] button, the time signature appears in the display, use the
[DATA CONTROL] to select it.
Time signature: 2/2, 1/4, 2/4, 3/4, 4/4, 5/4, 6/4, 3/8, 6/8, 7/8, 9/8, 12/8.
Default: 4/4
Twin
Metronome
14

TEMPO/TAP
METRONOME
This function allows you to set the rhythm tempo by tapping tempo on the [TEMPO/TAP]
button. Tap on the button 2 times while rhythm is playing, the rhythm tempo are set as your
desired speed.
If you want to set the tempo before starting rhythm, you have to tap the button 4 times,
You also can set the tempo by using
tap on the button one time.
Range:020~280. Default: 120.
but only tap 3 times for 3/4 time signature.
[DATA CONTROL] button after
Tempo/Tap
15

RECORD
RECORD
TRACK 1/
LEFT
TRACK 1/
LEFT
TRACK 2/
RIGHT
TRACK 2/
RIGHT
PLAY
PLAY
Recording function lets you record your performances using up to two independent
tracks. The recorded data will not be lost when you turn off the power.
Note: If the other track has data recorded, it will play when the record is started.
You also can press the track button to mute it.
Recording Function
Start Recording
Hold down the [RECORD] button, and then press [TRACK1/LEFT] (or [TRACK2/
RIGHT]) button to enter record mode, the [RECORD] button and tracks indicator and is
flishing, then set the tempo, press the key to start Recording.
Press [TRACK1/LEFT] or [TRACK2/RIGHT] button, the indicator is lighted, then press
the [PLAY] button to play recording.
Stop Recording
Press the [RECORD] button again to stop recording.
Play Recording
16

RECORD TRACK 1/
LEFT
TRACK 2/
RIGHT PLAY
Hold down the [TRACK1/LEFT] button or [TRACK2/RIGHT] button to clear the
recording data.
RECORD TRACK 1/
LEFT
TRACK 2/
RIGHT PLAY
Clear Recording
Press the [PLAY] button again to stop recording.
17

LEARN
Your instrument has three bank songs to select for learning. The CZERNY bank includes
70 learning songs, the BEYER bank includes 106 learning songs and the School bank
includes 124 learning songs
RECORD TRACK 1/
LEFT
TRACK 2/
RIGHT PLAY
Learning Function
In Learn Mode, press the [LEFT] button to mute the right hand part. The left indicator
lights up. You will then hear the right-hand part.
indicator is flashing.
Press [PLAY] button to play the song,
the [LEARN] button
Play the Song
Press [LEARN] button repeatedly to select three bank
and its . Then use [DATA CONTROL]
to select three bank songs.
Press [PLAY] button to play the song, the [LEARN] button
indicator is lighted
indicator is flashing.
Adjust the song's tempo
Press the [TEMPO/TAP] button to adjust the song's tempo. Range:20-280.
Practicing The Left Hand Of The Selected Song
In Learn Mode, press the [RIGHT] button to mute the right hand part. The right indicator
lights up. You will then hear the left-hand part.
indicator is flashing.
Press [PLAY] button to play the song, the
[LEARN] button
Practicing The Right Hand Of The Selected Song
Press [LEARN] button again to exit theLearning function.
Exit the Learning Function
18
