Don’t dare risk it… Read all
TVM 7675 (PRO) Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
…we just wanted to say thanks for choosing Vogel’s. Smart choice.
And you’re already making another smart choice – reading the manual! Keep
reading to learn all about safe, efficient installation, and how to use your new
mount.
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at
substantial risk.
Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
2/30
Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect installation.
Please consult the manual for your TV and ensure that the weight and size of the TV is within the maximum weight and size
limits specified for this product, and that the TV mounting bolts used are of a suitable length and diameter. Note that not all the
TV mounting accessories provided are required for the installation of any one TV.
The wall mounting accessories provided are exclusively intended for installation on walls made of solid brick, solid concrete or
solid wood columns.
Any material covering the wall must not exceed 3 mm/ 0.12 inch.
For mounting on walls made of other materials, such as hollow bricks, wood panels or plasterboard, please consult your installer
and/or specialist supplier.
Clean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean the product.
Only qualified, certified personnel may repair the product. Use only original spare parts. The use of other parts will result in
voiding the warranty, and could lead to injuries.
Alterations to the product and technical modifications are not permitted. This will void the warranty, and could lead to injuries.
Always store the product in a dry and safe place with a temperature between -10°C to +50°C.
Handle and transport the product with care.
Repack the product when transporting or not using it for a longer period of time.
Lifting your TV is a two-person job. Don’t be bold!

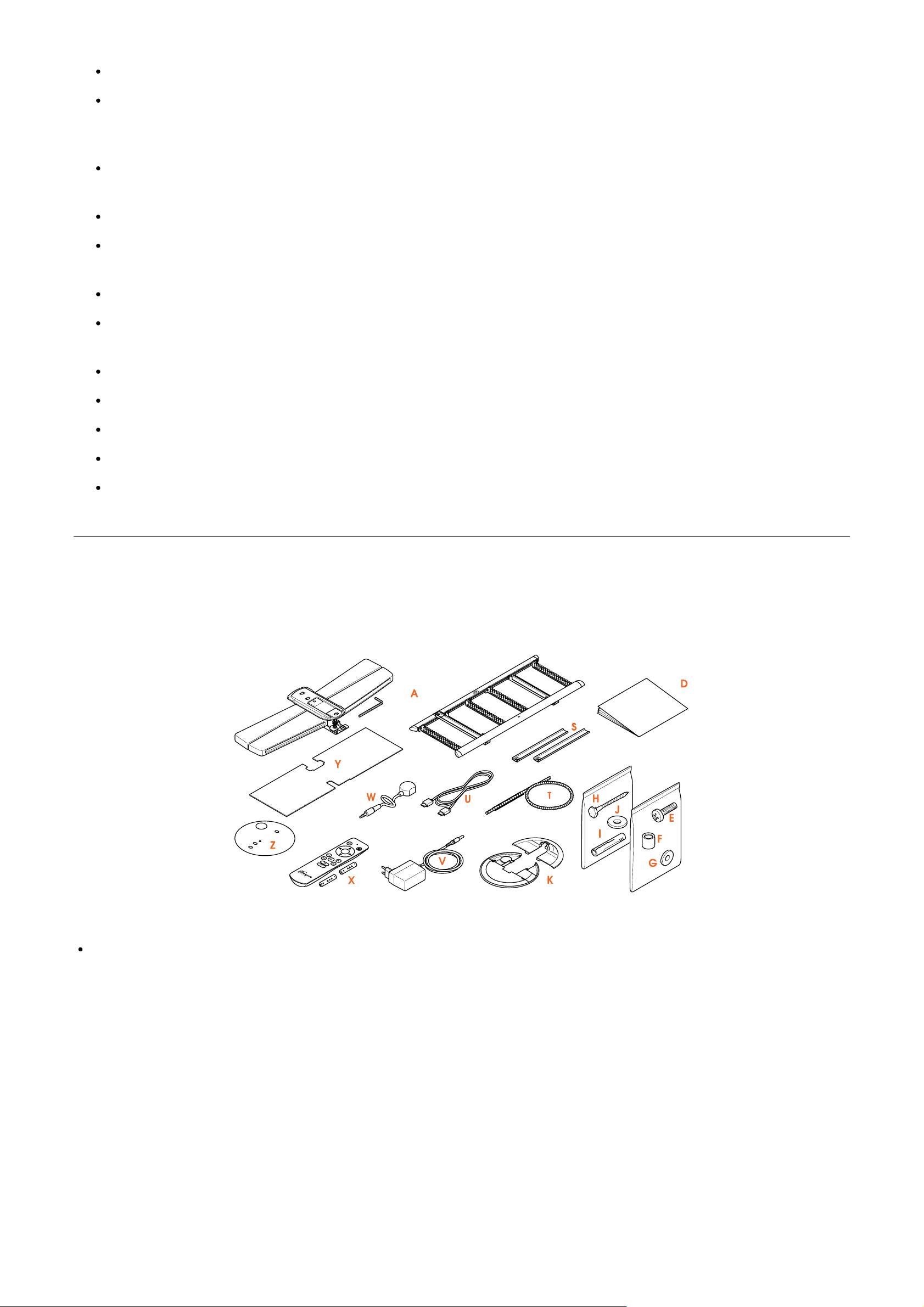

What’s in your box?
Something missing? Make sure your packaging has everything in place:
A. Wall mount, with interface attached
D. Safety instructions
E. Bolts for fastening strips on TV (see contents below)
F. Spacers
G. Washers ∅ 26mm
H. Screws
I. Plugs
J. Washers ∅ 26mm
K. Wall plate cover

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
3/30
S. Interface extension strips
T. Cable sleeve
U. HDMI cable – 2m
V. Power cable and adaptor including international socket attachments
W. Infra-red receiver
X. Infra-red remote control – including 2x AAA batteries
Y. Interface cover
Z. Drilling template
Contents of the TV fasteners kit:
4x M6x12mm
4x M6x25mm
4x M6x35mm
4x M8x12mm
4x M8x25mm
4x M8x45mm
4x M6x18mm washer
4x spacer 10mm
4x spacer 5mm
Need a long HDMI cable? Or a Cable Cover to hide your wall cables? Visit us online and order the right accessories directly
through our website (https://www.vogels.com/en-gb/c/tv-bracket-accessories).
Got your tools ready?
Don’t start without all the necessary tools:

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
4/30
Spirit level
Stud finder
Socket wrench no.13
Crosshead screwdriver
Drilling machine
For stone walls:
20 mm / 0.8” (⌀ 5 mm / ⌀ 13/64”) masonry drill bit (for predrilling)
70 mm / 2.8” (⌀ 10 mm / ⌀ 25/64”) masonry drill bit
For walls with wooden studs:
50 mm / 2” (⌀ 5 mm / ⌀ 13/64”) wood drill bit
Pencil
Take care of your safety
Who cares about looking cool? Always wear personal protective equipment:
Eye protection
Ear protection
Safety shoes
Lifting your TV is a two-person job. Don’t be bold!
Additional tools
Mark the first
drilling hole
Use our free DrillRight™ AR App to find
the perfect mounting height.
Let our video guide
you
No more stress. Watch and learn, with
our handy online installation video.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
5/30
Click to download the app
(https://www.vogels.com/en-
us/c/tvmountguide)
Click to watch
(https://youtu.be/TBG9Af-wyWE)
Ready… set… get installing!
Step 1: Attach the interface to the TV
1. Carefully place the wall mount Ⓐ with the attached interface, and the TV face down on a clean surface without any obstacles.
2. Remove the thumbnut and detach the wall mount Ⓐ from the interface. Keep the thumbnut for later use.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
6/30

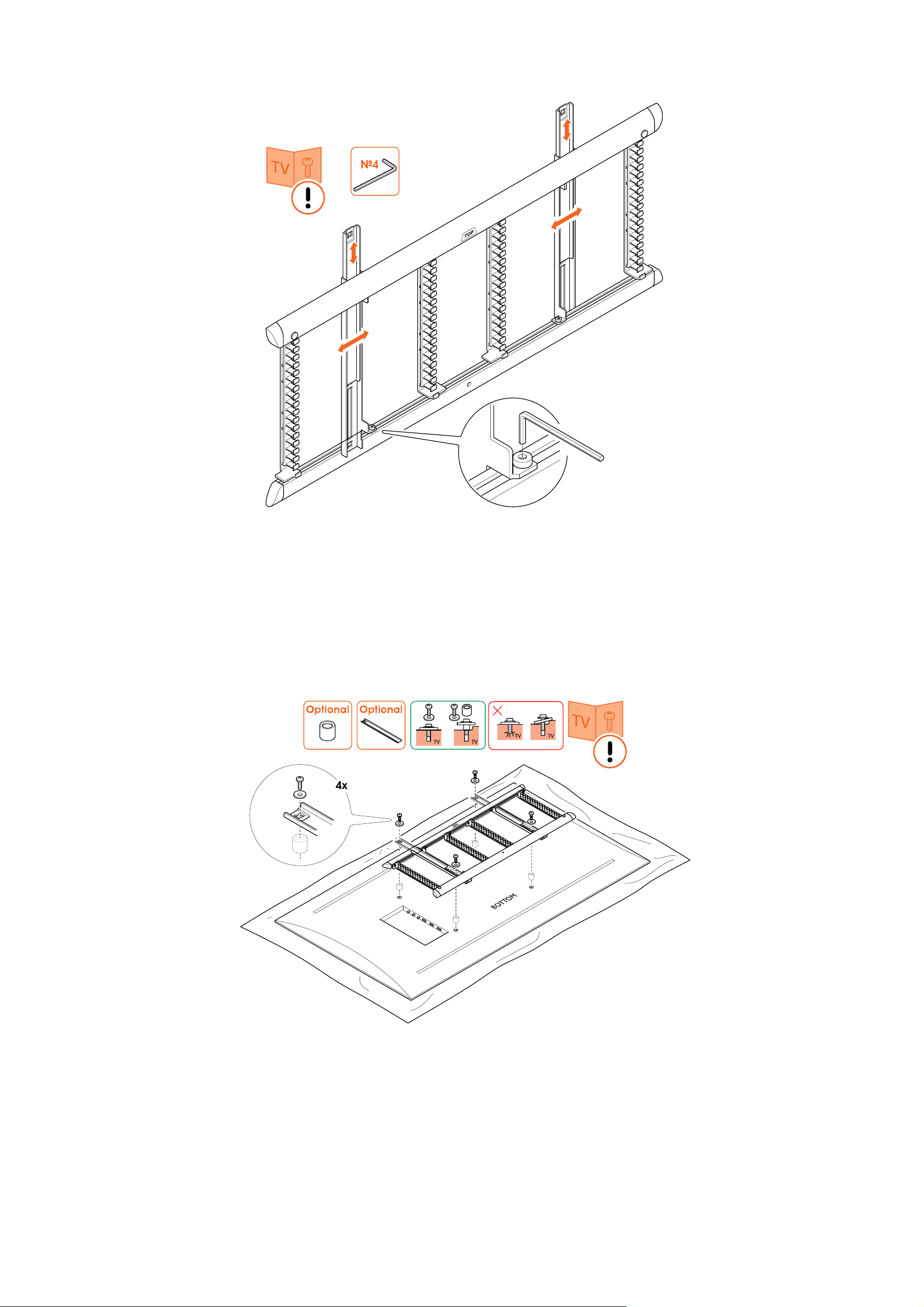

3. Check the mounting holes on the TV screen. Adjust the dimensions of the interface accordingly, after loosening the pre-attached
bolts with the Allen key.
4. Additionally, interface extension strips Ⓢ can be inserted into the top or bottom side of the vertical strips to increase the height of
the interface. Make sure both interface extension strips Ⓢ are at the same height and do not stick out.
5. Attach the interface to the TV screen with the bolts Ⓔ and spacers Ⓕ. Make sure the top side of the frame is positioned correctly,
as indicated by the word ‘top’ on the interface.
6. After adjusting the dimensions of the interface, make sure to tighten the pre-attached bolts with the Allen key.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
7/30
Concrete / Brick wall
Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help:
vogels.com/contact (http://www.vogels.com/contact)
Make sure bolts and spacers are positioned correctly.
Refer to the user manual of your TV for the correct mounting material.
Step 2: Attach the wall mount to the wall
How well do you know your walls? What they’re made of matters more than you think…
If you are mounting your TV screen onto a wall with wooden studs, please follow the instructions in the Wall with wooden
studs section.
For this step you will need:
Drilling template Ⓩ
Drilling machine

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
8/30
20 mm / 0.8” (⌀ 5 mm / ⌀ 13/64”) masonry drill bit (for predrilling)
70 mm / 2.8” (⌀ 10 mm / ⌀ 25/64”) masonry drill bit
The contents of the wall mounting kit Ⓗ Ⓘ Ⓙ
Spirit level
Pencil
1. Determine where to mount your TV screen.
Use the drilling template Ⓩ to mark the correct position on the wall if you’re using the TVA 7000 cable column or if the
connecting cables protrude from the wall. The drilling template Ⓩ can be found on the back of the inlay card provided in the
package.
In other situations, download and use our free DrillRight™ AR App to find the perfect mounting height and mark the first drilling
hole. Always use the drilling template Ⓩ to mark the other drill holes.
2. Drill the holes. Make sure to drill the positioning hole first.
3. Put the plugs Ⓘ in the holes.
How deep do you drill? Check the length of the screw (not the plug!) to find the right depth – this stops things from
breaking.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
9/30
The cable hole should only be used to lead cables that come out of the wall through the wall mount. Do not use the cable
hole to attach the wall mount to the wall.
4. Attach the wall mount to the wall while making sure to:
a. begin with the hole directly above the Vogel’s logo on the wall mount Ⓐ
b. use the spirit level to level the wall mount
c. attach the wall mount Ⓐ to the wall with the provided screws Ⓗ and washers Ⓙ
Lubricate the screws for easy screwing in.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
10/30
Wall with wooden studs
5. Slide the wall plate cover Ⓚ onto the wall mount Ⓐ. To remove the cover plate, press the left tab and slide it off the wall mount.
If you are mounting your TV screen onto a concrete/brick wall, please follow the instructions in the Concrete/Brick wall
section.
For this step you will need:
Drilling template Ⓩ
Drilling machine
50 mm / 2” (⌀ 5 mm / ⌀ 13/64”) wood drill bit
The contents of the wall mounting kit Ⓗ Ⓙ
Spirit level
TVA 6950 Stud adapter (optional, available on www.vogels.com)
Stud finder
Pencil

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
11/30
Don’t just guess! The wall mount must always be attached to the studs. Always use a stud finder to determine the position of
studs. Don’t destroy your belongings!
1. Determine where to hang your TV screen.
Use the drilling template Ⓩ to mark the correct position on the wall if you’re using the TVA 7000 cable column or if the
connecting cables protrude from the wall. The drilling template Ⓩ can be found on the back of the inlay card provided in the
package.
In other situations, download and use our free DrillRight™ AR App to find the perfect mounting height and mark the first drilling
hole. Always use the drilling template Ⓩ to mark the other drill holes.
2. Now for the fun part… drilling the holes. Make sure to drill the positioning hole first.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
12/30
3. Attach the wall mount to the wall while making sure to:
a. begin with the hole directly above the Vogel’s logo on the wall mount Ⓐ
b. use the spirit level to level the wall mount
c. attach the wall mount Ⓐ to the wall with the provided screws Ⓗ and washers Ⓙ
Lubricate the screws for easy screwing in.
4. Slide the wall plate cover Ⓚ onto the wall mount Ⓐ. To remove the cover plate, press the left tab and slide it off the wall mount.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
13/30
Other wall type / I don’t know my wall type
If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t
sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact
(http://www.vogels.com/contact).

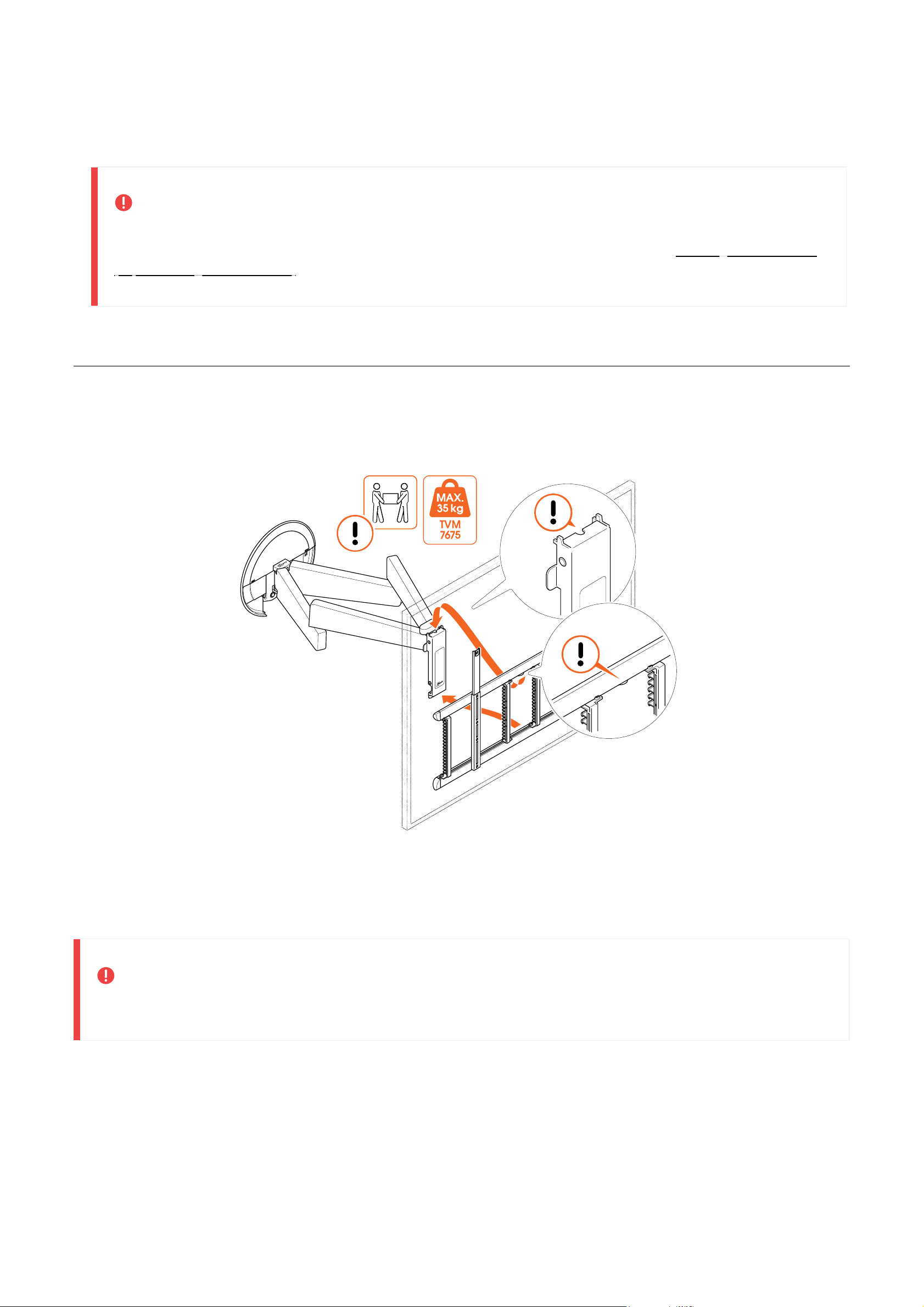

Step 3: Attach the TV to the wall mount
1. Carefully lift and attach the TV onto the interface bracket on the wall mount Ⓐ. Make sure the plug on the interface falls into the
notch on the wall mount.
Lifting your TV is a two-person job. Don’t be bold!

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
14/30
2. Secure the interface to the wall mount with the saved thumbnut from step 1.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
15/30

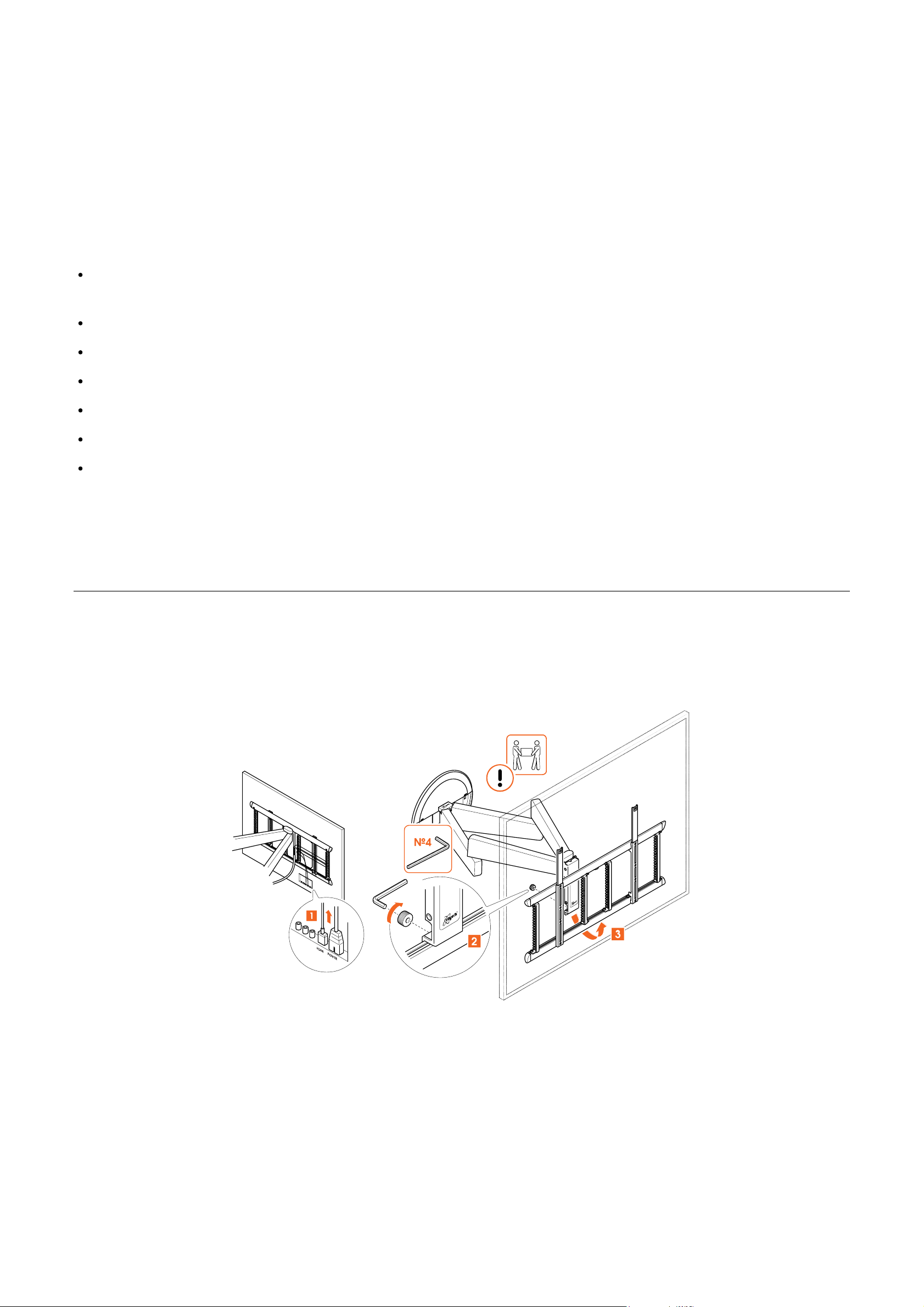

3. Level the wall mount and the TV screen. Use a spirit level and the Allen key to correct the position. Tighten the thumbnut and the
thumb bolt with the Allen key when finished.
The wall mount and TV must be leveled vertically and horizontally before using the wall mount!
Step 4: Attach the cables to the wall mount
1. Attach the cable sleeve Ⓣ to the wall mount Ⓐ, by sliding it into the holes on the bottom side of the right arm.
2. Put the TV power cable and the provided HDMI 2.0 (2 meter) cable into the cable sleeve Ⓣ. Note that if you use a connectbox you
need a 4.5 meter HDMI cable (available on www.vogels.com, art. no. 999985).
3. Secure one end of the cable sleeve Ⓣ to the frame by using the velcro strip.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
16/30
4. Connect the following cables to the wall mount:
a. Internal motor cable (attached to the bottom side of the wall mount arm)
b. HDMI 2.0 (2 meter) cable
c. Power adapter cable
d. Infra-red eye cable (optional, when using the remote control)
e. RS-232 3,5 mm Jack (TVM 7675 PRO only; cable not included)
f. Ethernet cable (TVM 7675 PRO only; cable not included)
5. Connect the power cable and the HDMI 2.0 (2 meter) cable to the TV. Make sure all other cables are neatly stowed away by using
the vertical cable clip strips on the interface.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
17/30
6. Put the wall plate cover Ⓚ onto the wall mount and the interface cover Ⓨ onto the back of the interface.
7. Connect the power cable Ⓥ to the power outlet.
8. Your MotionMount is now ready to be used!

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
18/30
Set-up the MotionMount SIGNATURE app
Configure your MotionMount
Need a long HDMI cable? Or a Cable Cover to hide your wall cables? Visit us online and order the right accessories directly
through our website (https://www.vogels.com/en-gb/c/tv-bracket-accessories).
Step 5: Connect to the MotionMount SIGNATURE app
The Vogel’s MotionMount SIGNATURE app functions as a remote control for the Vogel’s TVM 7675 (PRO). It features:
7 memory positions for your TV
Automatic motion management
Analysis & support
Sliders for forward/backward and left/right motion
1. Make sure your MotionMount is connected to your TV with the provided HDMI cable and that HDMI-CEC is enabled on your TV.
Automatic operation of the MotionMount when the TV is turned on or off is controlled by the HDMI (CEC) setting on the
TV.
Note that some TV manufacturers have different names for HDMI-CEC:
Samsung – AnyNet(+)
Sharp – Aquos Link
Sony – BRAVIA Link and/or BRAVIA Sync
Toshiba – CE-Link and Regza Link
LG – SimpLink
Panasonic – HDAVI Control, EZ-Sync and VIERA Link
Phillips – EasyLink
2. Download and install the MotionMount SIGNATURE app to your tablet or smartphone in the Google Play Store (Android
(https://play.google.com/store/apps/details?id=nl.vogels.motionmount)) or Apple App Store (iOS
(https://itunes.apple.com/nl/app/motionmount/id1178996865?mt=8)). Make sure you are always using the latest version of the
app.
1. Open the MotionMount SIGNATURE app.
Make sure Bluetooth® is activated on your tablet or smartphone.
2. Select the desired MotionMount.
The MotionMount SIGNATURE app connects to the selected MotionMount.

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
19/30
Manage your settings
3. Follow the set-up procedure to configure your new MotionMount.
4. Add presets by using the Remote Control button or the (+) symbol from the main menu of the selected MotionMount.
5. Edit the options of a preset by using the (...) symbol on the presets panel.
Pro tip: iOS users can create a Siri command for even greater convenience!
To access and manage your settings choose Settings from the main menu of the selected MotionMount. From this menu you can:
Change the name of your MotionMount
Remove your MotionMount
Change the configuration of your MotionMount
Change the HDMI settings
Manage access to your MotionMount
Receive support for your MotionMount
Step 6: Set up the remote control
The infrared remote control (IRC) is specially designed for Vogel's TVM 7675 (PRO). It features:
7 memory positions for your TV that match the preset positions in your MotionMount SIGNATURE app
a home button to bring the MotionMount into a safe position against the wall
a 4-way touchpad for forward/backward and left/right motion
A. IR transmitter
B. Demo button
C. Red LED
D. Home button
E. 4-way touchpad
F. Preset buttons 1-7
G. Battery compartment for 2x AAA
To set up the IRC:

2023-08-17 08:51
TVM 7675 (PRO) Series
https://manuals.vogels.com/en-us/tvm7675_pro.html
20/30
1. Connect the provided infrared eye cable to your TV.
Make sure its infrared eye is in view.
2. Put the 2 AAA batteries in the battery compartment of the IRC.
To configure a memory position:
1. Put the MotionMount to the preferred position using the 4-way touchpad on the IRC.
2. Push and hold one of the seven preset buttons (P1-P7) for 5 seconds.
Precautions concerning batteries
When the remote control is not going to be used for a long time, remove the batteries from the remote control to prevent them from
leaking.
If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones.
Do not use any batteries other than those specified.
Do not heat or disassemble batteries.
Never throw them in fire or water.
Do not carry or store batteries with other metallic objects as this may cause the batteries to short-circuit, leak or explode.
Never recharge a battery unless it is confirmed to be rechargeable.
WEEE disposal instructions
Do not dispose of this remote control or its batteries with unsorted household waste. Improper disposal may be harmful to the
environment and human health. Please refer to your local waste authority for information on return and collection services in your area.
Removing your TV
1. Remove all cables from your TV and interface.
2. Remove the bottom thumbnut from the interface.
3. Lift your TV off of the interface bracket, and put it down somewhere safe.
