TVS 3690/3695 - English 1
TVS 3690/3695
TV Floor Stand
Full Installation Guide
Everything you need to get your TV safely on the floor stand, in no time
Before you start
…we just wanted to say thanks for choosing Vogel’s. Smart choice.
And you’re already making another smart choice – reading the manual! Keep reading to learn all about
safe, efficient installation, and how to use your new floor stand.

TVS 3690/3695 - English 2
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could put
you, your TV, and your family at substantial risk.
Don’t dare risk it… Read all
lVogel’s recommends that the mounting and/or installation of this product should be carried out
by a suitably qualified expert.
lVogel’s cannot be held responsible for any injury and/or damage caused by incorrect
installation.
lPlease consult the manual for your TV and ensure that the weight and size of the TV is within
the maximum weight and size limits specified for this product, and that the TV mounting bolts
used are of a suitable length and diameter. Note that not all the TV mounting accessories
provided are required for the installation of any one TV.
lClean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean the
product.
lOnly qualified, certified personnel may repair the product. Use only original spare parts. The
use of other parts will result in voiding the warranty, and could lead to injuries.
lAlterations to the product and technical modifications are not permitted. This will void the
warranty, and could lead to injuries.
lAlways store the product in a dry and safe place with a temperature between -10°C to +50°C.
lHandle and transport the product with care.
lRepack the product when transporting or not using it for a longer period of time.
lLifting your TV is a two-person job. Don’t be bold!

TVS 3690/3695 - English 3
What’s in the box?
lSomething missing? Make sure your packaging has everything in place:
B. Interface bars
C. Interface strips
D. Safety instructions
E. Bolts for fastening strips on TV (see contents of the TV fasteners kit)
F. Spacers
G. Washers 18mm
L. Protective TV patches
M. Bolts for attaching feet to stand (see contents below)
N. Thumbnuts
O. Allen key
P. Cover plate (TVS 3695)
Q. Cable clips (TVS 3695)
R. Wooden/steel stand
S. Foot (left)
T. Foot (right; with pre-attached bolts)
U. Steel bracket

TVS 3690/3695 - English 4
lContents of the TV fasteners kit:
l4x M6*12mm bolts
l4x M6*25mm bolts
l4x M6*35mm bolts
l4x M8*12mm bolts
l4x M8*25mm bolts
l4x M8*45mm bolts
l4x M6 washer
l4x spacer 10mm
l4x spacer 5mm
lContents of the floor stand fasteners kit:
l2x M8*20mm bolts
l2x M6*10mm thumbnuts
lAllen key
You don't need all fasteners to mount your TV. Store the rest for later or other use!

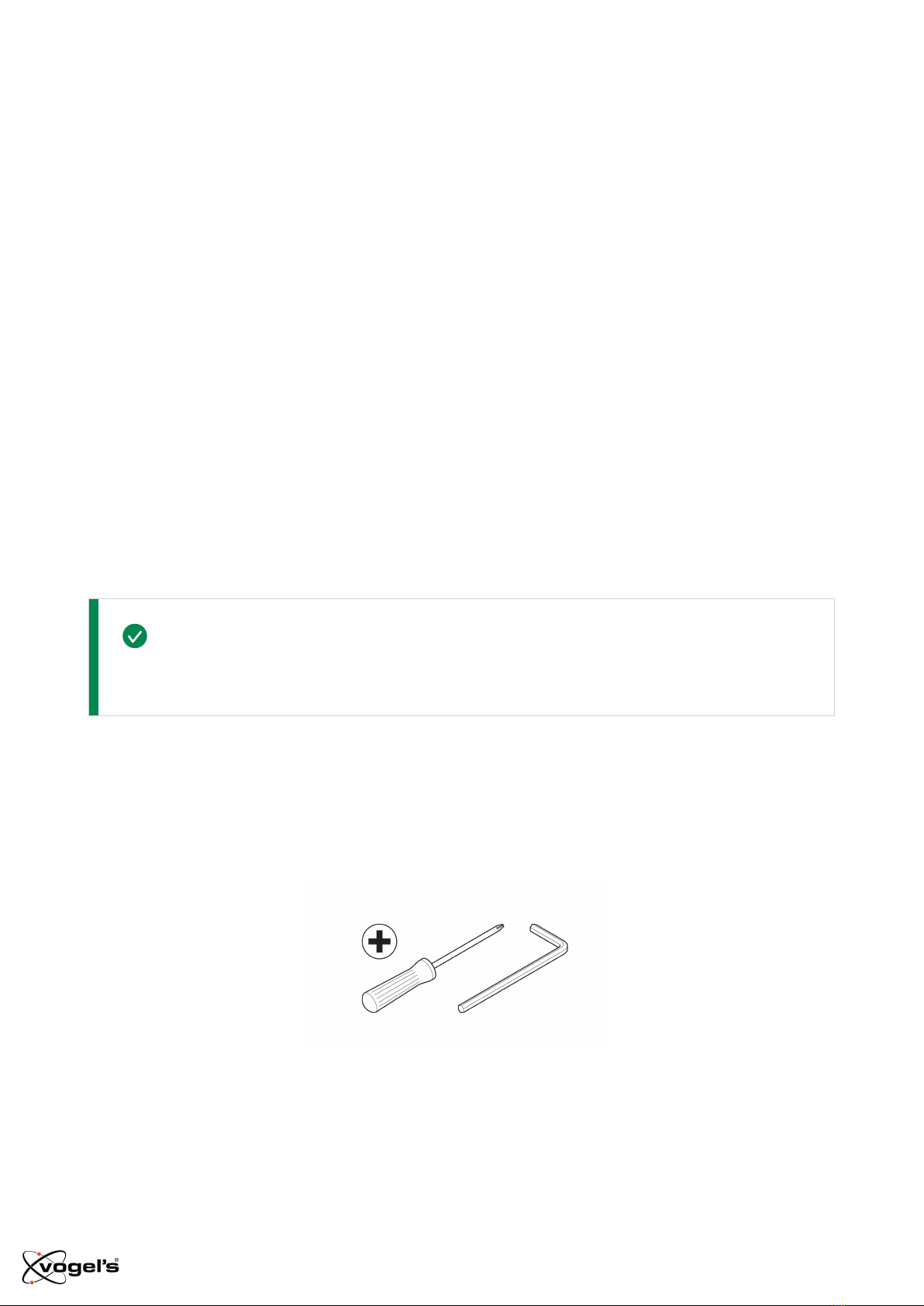

Got your tools ready?
lDon’t start without all the necessary tools:
lCrosshead screwdriver
lM4 (4mm) Allen key

TVS 3690/3695 - English 5

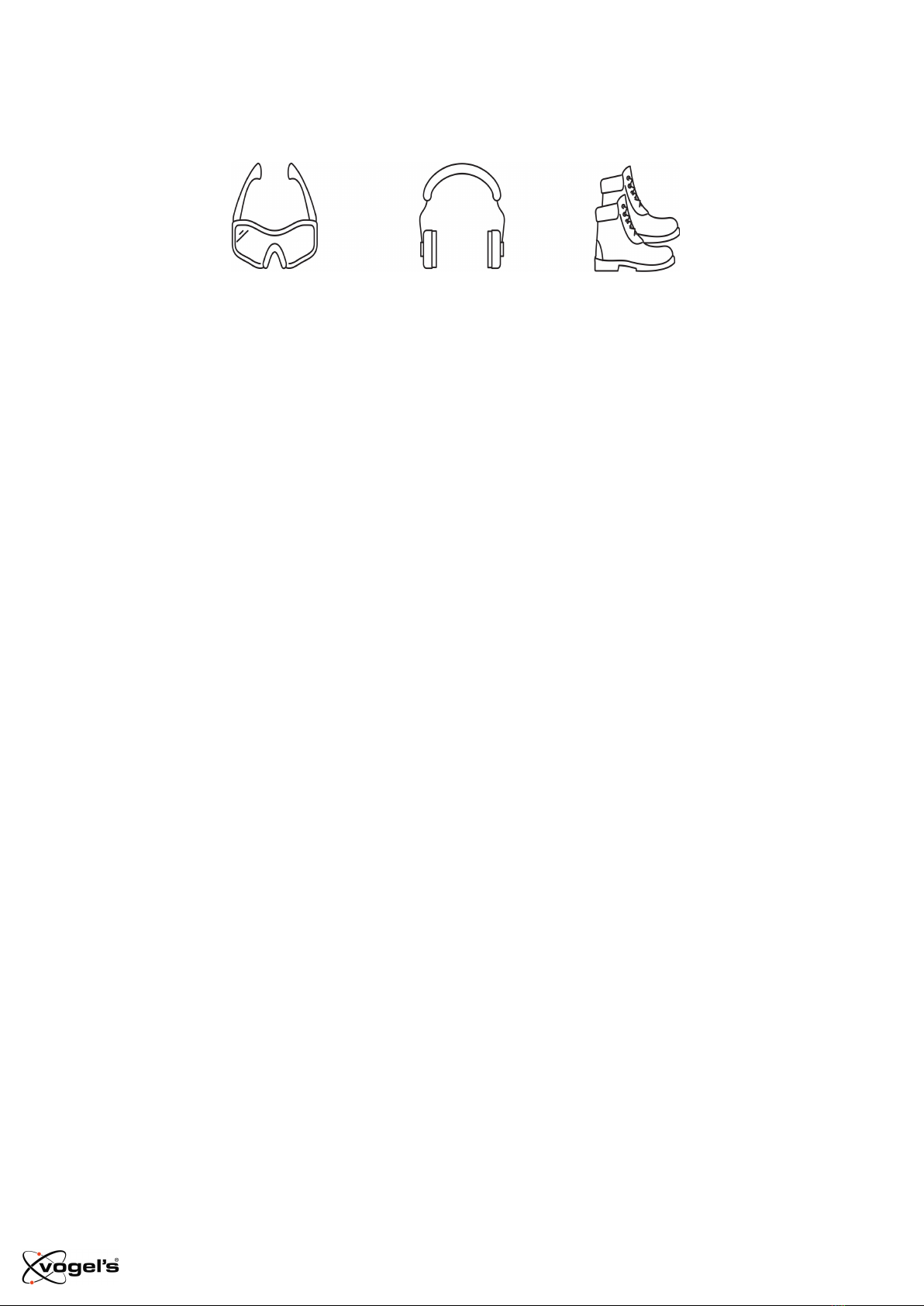

Take care of your safety
lWho cares about looking cool? Always wear personal protective equipment:
lEye protection
lEar protection
lSafety shoes

TVS 3690/3695 - English 6
Ready… set… get installing!
Step 1: Attach the strips to the TV
For this step you will need:
lA crosshead screwdriver
l4x Bolts (Not sure which size you need for your TV? Then please consult our website for help.)
Ⓔ
l2x M6*10mm thumbnuts Ⓝ
l4x Washers Ⓖ
l4x Protective TV patches Ⓛ
l4x Spacers (optional; depending on your type of TV, use either the 5mm or 10mm spacers) Ⓕ
l2x Interface bars Ⓑ
l2x Interface strips Ⓒ
l1x Allen key Ⓞ
l1x Steel Bracket Ⓤ
Carefully place the TV face down, on a clean surface without any obstacles!
1. Fix the protective TV patches Ⓛonto the interface strips Ⓒ. Screw the interface strips Ⓒonto
the TV with the bolts Ⓔ. Make sure the interface strips Ⓒare at the same height and do not
stick out.

TVS 3690/3695 - English 7
Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer
Care are waiting to help: vogels.com/contact
Make sure bolts and spacers are positioned correctly.
Refer to the user manual of your TV for the correct mounting material.

TVS 3690/3695 - English 8
2. Loosen the pre-attached bolts Ⓒwith the allen key Ⓞ.
3. Slide the lower interface bar Ⓑthrough the designated spacing of the interface strip Ⓒ. Make
sure the interface bar Ⓑis placed in a centered position. Notice the holes on the side of this
interface bar Ⓑ. They need to face downwards.
4. Slide the upper interface bar Ⓑthrough the designated spacing of the interface strip Ⓒ. Make
sure this interface bar Ⓑis also placed in a centered position.
5. Attach the interface bars Ⓑto the strips by tightening the pre-attached bolts Ⓒwith the allen
key Ⓞ.
6. Screw the thumbnut Ⓝinto the upper bar. Make sure you don’t screw it in completely, yet.

TVS 3690/3695 - English 9

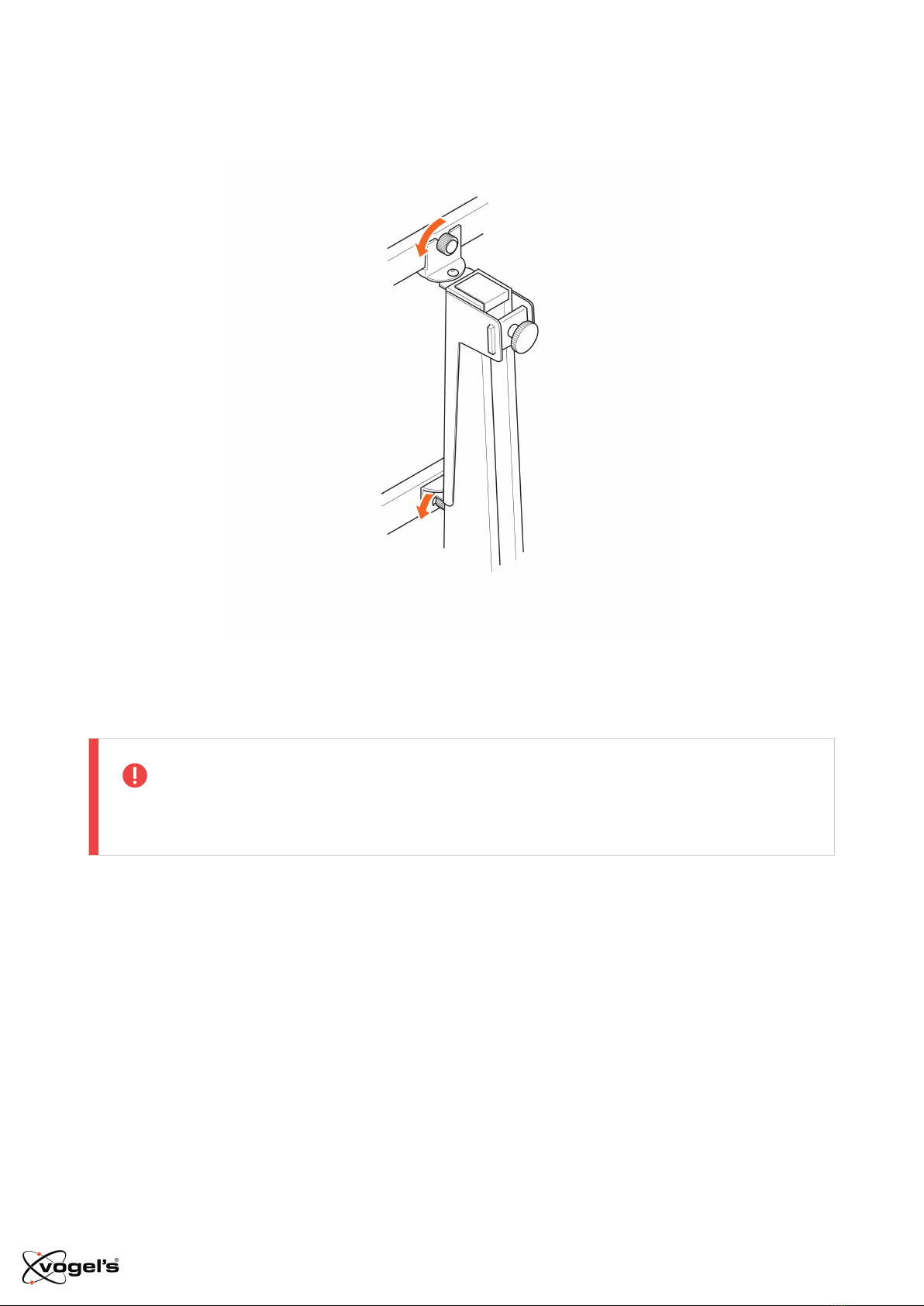

7. Slide the v-cut part of the steel bracket Ⓤonto the upper thumbnut Ⓝ.Make sure the clutches
of the steel bracket Ⓤslide into the holes of the upper interface bar!
8. Fasten the upper thumbnut Ⓝuntil the steel bracket Ⓤis secured.
9. Fasten the lower thumbnut Ⓝuntil the steel bracket Ⓤis secured.

TVS 3690/3695 - English 10
Step 2: Install the floor stand
For this step you will need:
l1x Wooden/steel stand Ⓡ
l1x Left foot Ⓢ
l1x Right foot (with pre-attached bolts) Ⓣ
l2x M8*20mm bolts Ⓜ
l1x Cover plate Ⓟ
l1x Allen key Ⓞ
1. Slide the right foot (with pre-attached bolts) Ⓣinto the wooden/steel stand Ⓡ. Make sure the
longer leg is at the front of the wooden/steel stand Ⓡ. The back of the wooden/steel stand Ⓡ
includes a hidden notch for cable management.
2. Use the allen key Ⓞto attach the left foot Ⓢ(without pre-attached bolts) to the wooden/steel
stand Ⓡby screwing the two M8*20mm bolts Ⓜinto the pre-attached screws of the right foot
Ⓣ.

TVS 3690/3695 - English 11
Step 3: Attach the TV to the floor stand
Lifting your TV is a two-person job. Don’t be bold!
1. Slide the steel bracket Ⓤover the top of the wooden/steel stand Ⓡ. Use the knob (see
illustration) to fasten the steel bracket Ⓤto the top of the wooden/steel stand Ⓡ.

TVS 3690/3695 - English 12
2. Apply the click-on stainless-steel cover plate Ⓟon top of the steel bracket Ⓤ. (TVS 3695)

TVS 3690/3695 - English 13
Handy features
Cable management
TVS 3695
For this step you will need:
l5x Cable clips Ⓠ(TVS 3695)
1. Carefully guide the cables through the notch on the back of the wooden stand Ⓡ.
2. Apply the cable clips Ⓠover the cables by clicking them into the notch Ⓡ, beginning at the top
and working your way down.

TVS 3690/3695 - English 14
TVS 3690
1. Carefully guide the cables through the back of the wooden/steel stand Ⓡ.
Having a cable mess? Do you need inspiration about how to hide and guide your cables or how
to place other TV accessories? Take a look at our website vogels.com!
Job done now! Enjoy watching your TV!

TVS 3690/3695 - English 15
Removing your TV
1. Partially unscrew the thumbnuts Ⓝby turning them counterclockwise.
2. Remove the TV, and put it down somewhere safe.
Again, lifting your TV is a two-person job. Always get help.

TVS 3690/3695 - English 16
Tell us how you feel!
Your opinion matters more than you might think. It helps us make better products, and helps other
customers make informed choices.
Share your feedback, and sign up to win Vogel’s products!
Simply visit vogels.com/review for sharing or the Terms and Conditions.
Confused? Unsure? Going crazy?
There’s plenty of help waiting for you, online:
[e-mail]
www.vogels.com/contact
facebook.com/
VogelsForSure/
instagram.com/
vogels_official/
www.youtube.com/
c/VogelsForSure

TVS 3690/3695 - English 17
Simple troubleshooting
Found a problem you can’t fix? Don’t panic… try these!
Problem Cause Solution
‘I don’t have the right
bolts for my TV!’
The world of TV technology
is always changing – it can
be hard to keep up
sometimes. So, it might be
the case that the correct
bolt size is not included…
you’re just too advanced!
Just ask Vogel’s Consumer Care to
request a service kit, and we’ll send
everything you need. Click here to contact
Vogel's Consumer Care.
‘I have a lot of leftover
bolts, is something
wrong?’
No, you did it very well! You
only need 4 bolts to install
the mount to your TV.
Because of all the different
types of TVs, we have
included the most common
sizes for the most sold TVs.
Don’t waste the other bolts, save them!
You can use them for another TV when
you buy a new one or use it elsewhere.

TVS 3690/3695 - English 18
FAQs
‘Where can I request the correct bolts for my
TV (a service kit)?’
Whatever you need, simply contact your local
Vogel's dealer or Vogel's. Click here to contact
Vogel's Consumer Care.
‘Where can I find installation videos?’ The installation video can be found at the
product page of your product on our website. It
can also be found on our YouTube channel:
www.youtube.com/c/VogelsForSure
‘What if I need spare parts?’ If you require a spare part, please contact your
local dealer or Vogel's. Click here to contact
Vogel's Consumer Care.
‘Which bolts or screws do I need to use?’ Vogel's offers a complete assembly kit with all
mounting materials included in the box, for both
your TV and wall. Vogel's offers a complete
assembly kit with all mounting materials
included in the box. Do you miss the correct
bolts for your TV? Please contact your local
Vogel's dealer. Click here to contact Vogel's
Consumer Care.
‘What is VESA?’ VESA is a standard pattern of mounting location
holes on the back of a TV which allows many
standard TV mounts to be easily fitted to your
TV.

TVS 3690/3695 - English 19
Go green!
We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your
local recycling facility, or contact your municipal office. Recycling matters!

TVS 3690/3695 - English 20
Guarantee
Thanks again for choosing Vogel’s! Just like every product we make, your new purchase is made of
durable materials and is based on a meticulous design. That is why Vogel’s gives you a 10-year
guarantee for defects in materials and manufacturing.
1. Vogel’s guarantees that if during the guarantee period of a product, faults arise due to defects in
manufacturing and/or materials, it will, at its discretion, repair or if necessary replace the product,
free of charge. A guarantee for normal wear and tear is hereby expressly excluded.
2. If the guarantee is invoked, the product should be sent to Vogel’s, together with the original
purchase document (invoice, sales slip or cash receipt). The purchase document should clearly
show the name of the supplier and the date of purchase.
3. Vogel’s guarantee shall lapse in the following cases:
lIf the product has not been drilled, installed and used in accordance with the Instructions for
Use;
lIf the product has been altered or repaired by someone other than Vogel’s;
lIf a fault arises due to external causes (outside the product) such as for example lightning,
water nuisance, fire, scuffing, exposure to extreme temperatures, weather conditions,
solvents or acids, wrong use or negligence;
lIf the product is used for different equipment than is mentioned on or in the packing.
