VOGELS PFW 6880 User manual

MOUIN_PFW6880_V02
Max: 45kg/100lbs
Press and Release ™ Pop Out Slim
v4.0
PFW 6880
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
www.vogels.com | Europe [phone]
Press and Release ™ Pop Out Slim
PFW 6880
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione,
Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]
Page 2
5/16” x 3” Lag Bolts
(Qty 4)
Thread Depth Indicator
(Qty 1)
Universal Spacers
(Qty 8)
5/16” Flat Washers
(Qty 4)
Universal Washers
(Qty 4)
Pencil Protective Eyewear
Electronic Stud Finder M6 or 1/4” Drill Bit M8 or 5/16” Concrete Drill Bit
Portable DrillPhillips Head Screwdriver Socket Wrench
13mm or 1/2” Socket10mm Socket
Level
M5 Allen Driver
(Qty 1)
M4 x 12mm (Qty 4)
M4 x 16mm (Qty 4)
M4 x 25mm (Qty 4)
M6 x 12mm (Qty 4)
M6 x 16mm (Qty 4)
M6 x 25mm (Qty 4)
M8 x 12mm (Qty 4)
M8 x 16mm (Qty 4)
M8 x 25mm (Qty 4)
Wall Mount
(Qty 1)
Bracket
(Qty 1 Pair)

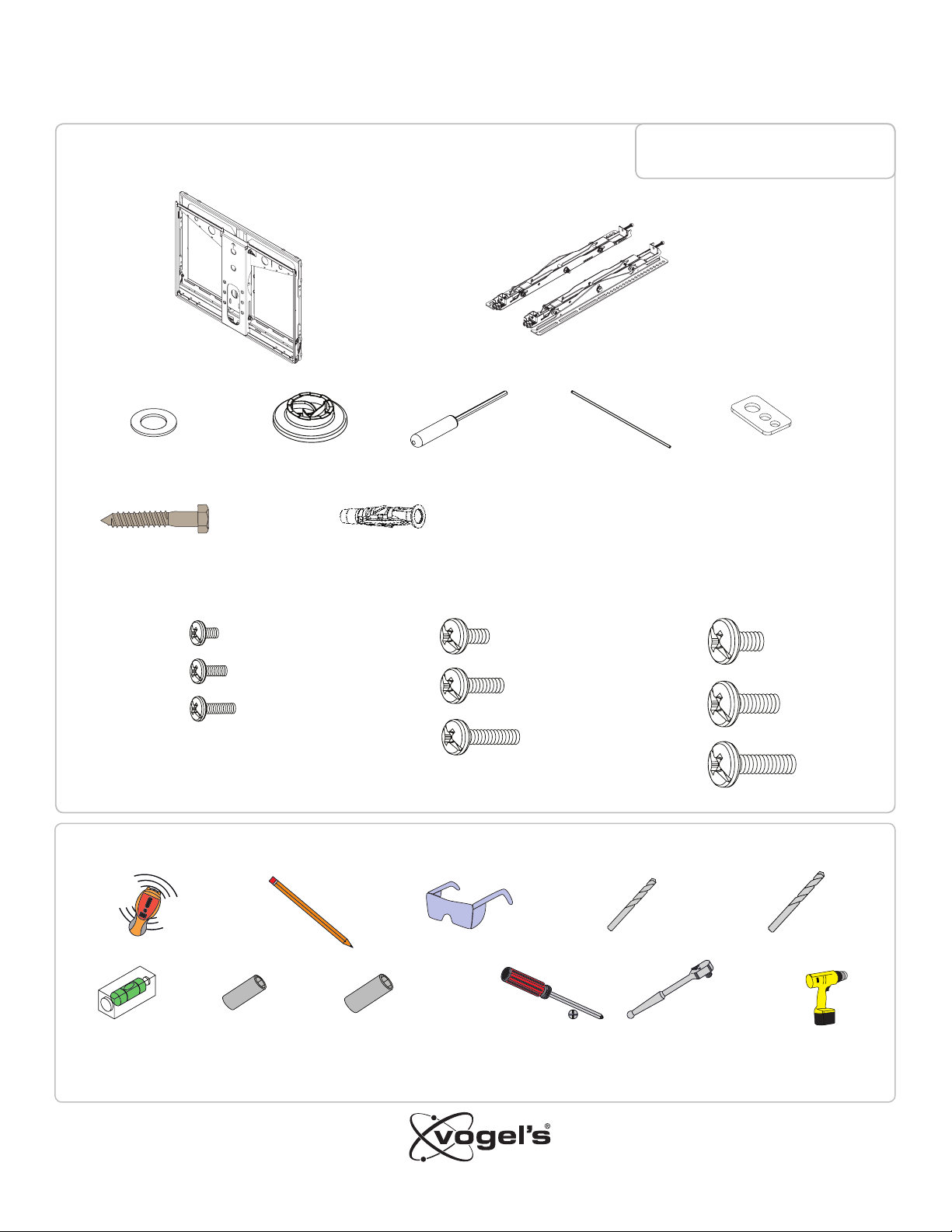

Included Components
Required for installation
Maximum Flat Panel Weight:
100 lb. / 45.35 kg.
Finned Anchors
(Qty 4)
PFW 6880
www.vogels.com | Europe [phone]
Page 2
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]www.vogels.com | Europe [phone] Page 3
1
3
2
4

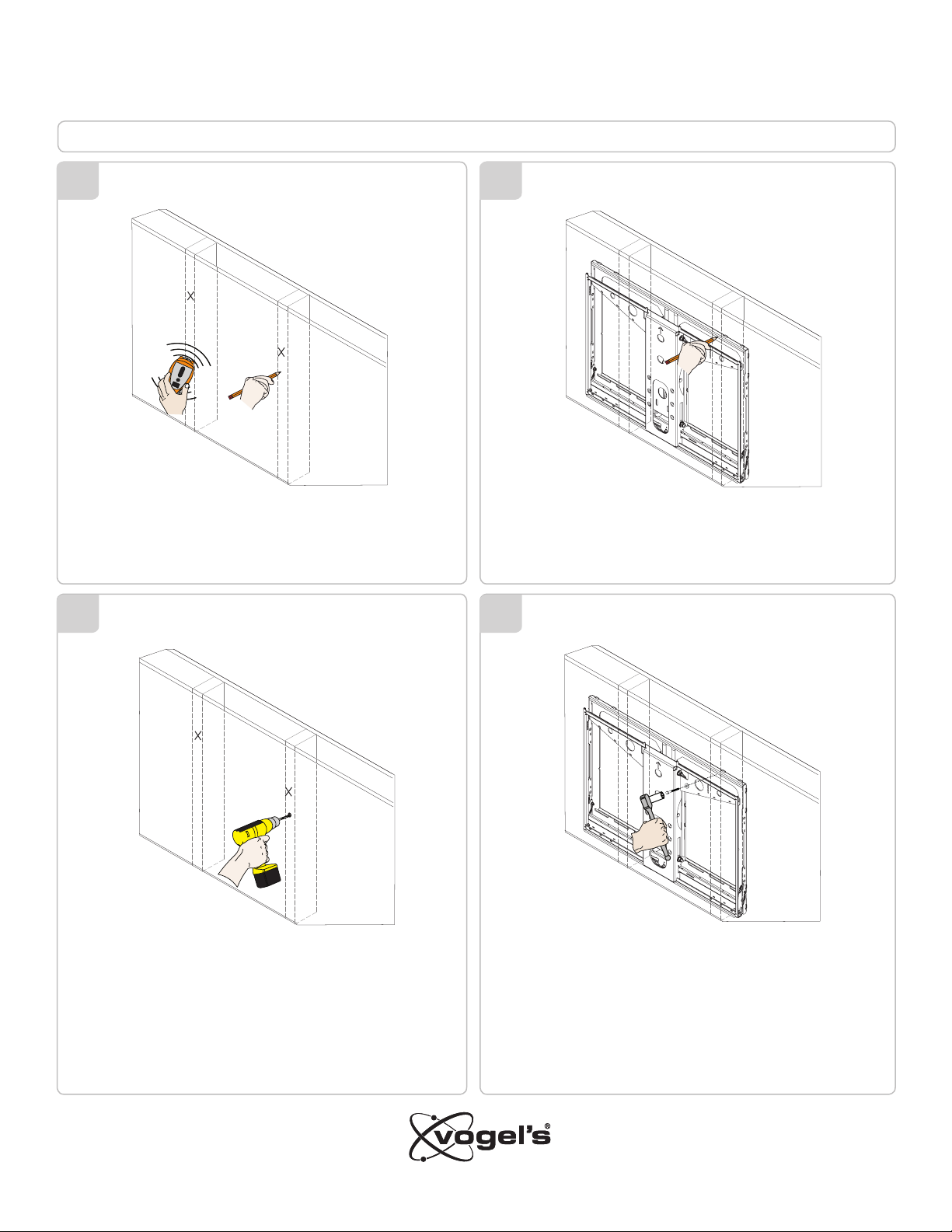

Wood Stud Installation
1. Use a stud nder to determine the wall studs in
the vicinity of the mount.
2. Use a pencil to mark each of the wall studs.
Use a pencil to mark the upper right mounting location
of the wall stud.
Drill a pilot hole using a M6 or 1/4” drill bit on the
stud that was marked on the upper right.
1. Place the mount against the wall and align it
with the pilot hole.
2. Insert one (1) 5/16” x 3” lag bolt one (1) 5/16”
washer into the upper right pilot hole.
3. Use a socket wrench and a 1/2” socket to
tighten the lag bolt.
4. Do not over tighten the lag bolt.
PFW 6880
www.vogels.com | Europe [phone] Page 3
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]
Page 4
2
3
1
5
7
6

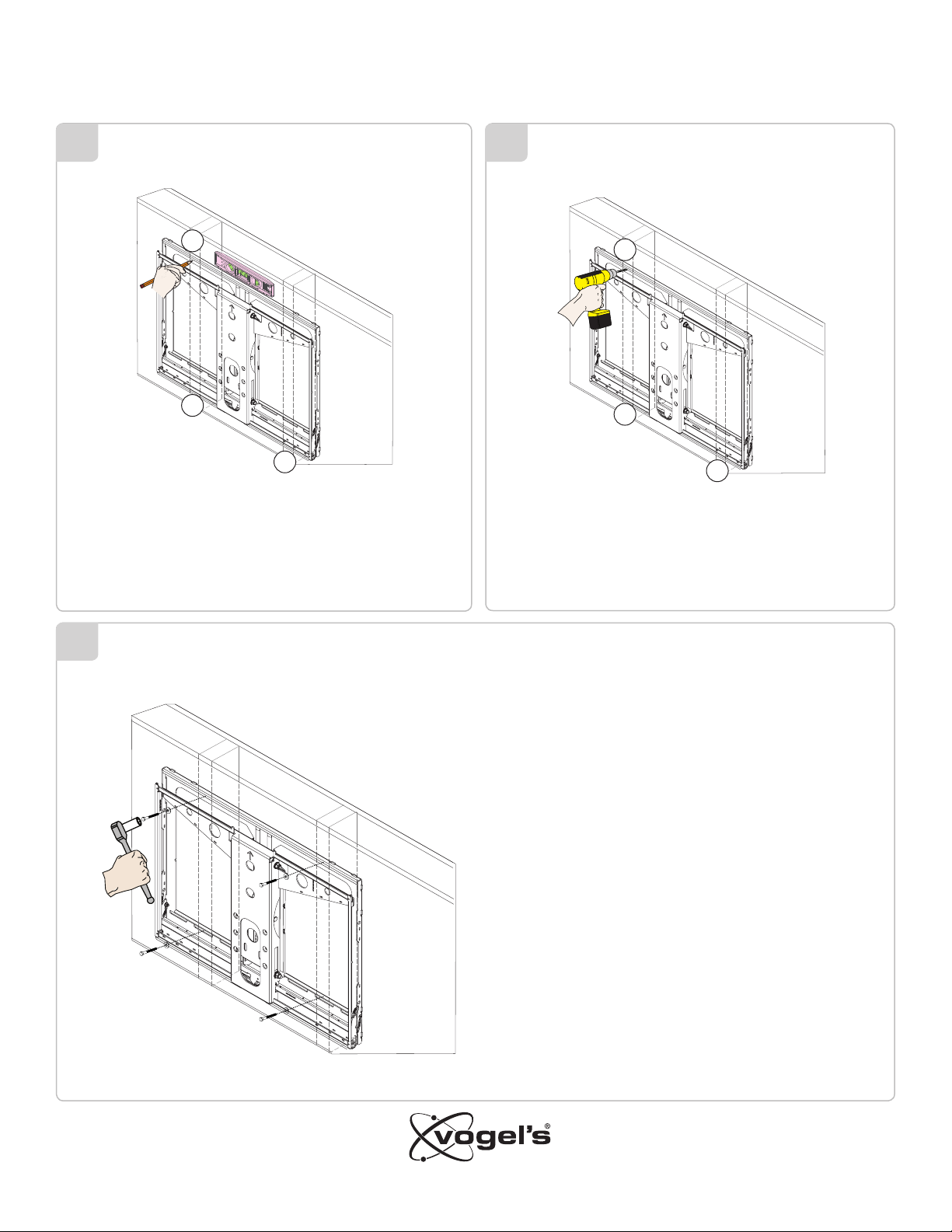

1. Level the mount
2. Use a pencil to mark the remaining three (3)
mounting locations
1. Insert one (1) 5/16” x 3” lag bolt and one (1) 5/16”
washer into each pilot hole.
2. Tighten all lag bolts using a socket wrench and
1/2” socket.
3. Do not over tighten the lag bolts
Drill a pilot hole in each of the three (3) marks with a
power drill and a M6 or 1/4” drill bit.
2
3
1
PFW 6880
www.vogels.com | Europe [phone]
Page 4
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]www.vogels.com | Europe [phone] Page 5
10
9
8
11
Two people recommended for this step; one person
to level the mount and another person to mark the
mounting locations.
Drill a pilot hole in each of the four (4) mark areas
with a 3/8” masonry drill bit.
Insert the Finned anchors into each pilot holes.
Lightly tap each Finned anchors into place with a
hammer.
1. Insert one (1) 5/16” x 3” Lag Bolt and one (1) 5/16”
washer into each pilot holes.
2. Tighten all lag bolts using a socket wrench and
1/2” socket.

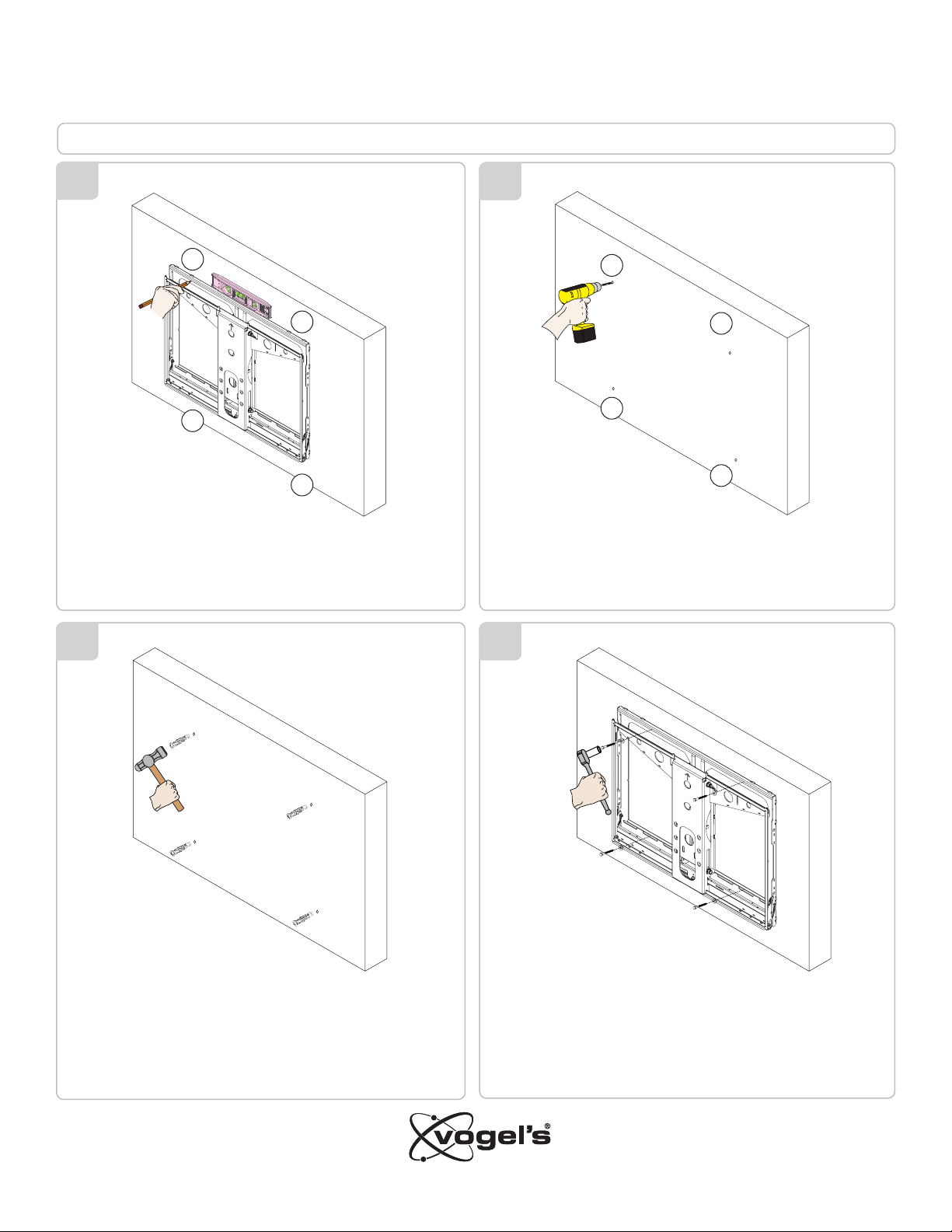

Concrete Wall Installation
3
4
1
2
3
4
1
2
PFW 6880
www.vogels.com | Europe [phone] Page 5
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]
Page 6
Installing OPTIONAL Model Specic Spacers
Use commercially available hardware to secure the spacer.
Utilize the same spacer for multiple PFW6880 installations.
For illustration only. PFW6880 Spacer will vary.
Multiple PFW6880 mounts can be installed using model specic
spacers. Simply repeat step one when installing each of the
surrounding PFW6880 mounts. Use one spacer for each 2x2
installation by mounting it to the wall, or utilize the same spacer
as many times needed to complete an unlimited PFW6880 large
matrix video wall.
1. Plumb and level and mark each corner where the PFW6880
will be mounted (or secure to the wall).
2. Install the second mount working in a horizontal direction.
3. Square, Level, and Plumb.
4. Repeat this step for each mount horizontally
1) Mount the PFW6880 to the desired location.
2) Align and Level the spacer to the corner register tabs
of the mount.
Level
For ease of installation
Model-specic spacers are availible for most at-panel
displays. Engineered with the intent of signicantly reducing
installation tim on large video wall array. Contact Customer
Service to inquire about model specic spacers.
PFW 6880
www.vogels.com | Europe [phone]
Page 6
12
14
13
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]www.vogels.com | Europe [phone] Page 7
1) Insert a small straw or toothpick into the threaded inserts found
on the back of the at-panel.
2) Use a pencil to mark the depth of the threaded insert on the
small straw or toothpick.
3) Mark the straw or toothpick 1/8” above the depth of the
threaded insert, as shown in Figure 1.
4) Insert the small straw or toothpick into the remaining threaded
inserts to compare and verify their depth using the straw or
toothpick’s 1/8” allowance mark.
5) Locate the correct diameter screw for the threaded insert.
If the selected screw is longer than the 1/8” allowance mark
on the small straw or toothpick, as shown in Figure 2 and
Figure 3, do not use this screw. The screw length must not
bypass the mark.
6) Test each size of the screws provided.
The correct screws should thread easily into the mounting
point and not pull out when tension is applied.
Small Straw or Toothpick
Marking the 1/8”
Allowance
Small Straw
or Toothpick
Small Straw
or Toothpick Depth Plus 1/8” Allowance
Mark
Depth Plus 1/8” Allowance
Mark
Selecting the Mounting Hardware
PFW 6880
www.vogels.com | Europe [phone] Page 7
15
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]
Page 8

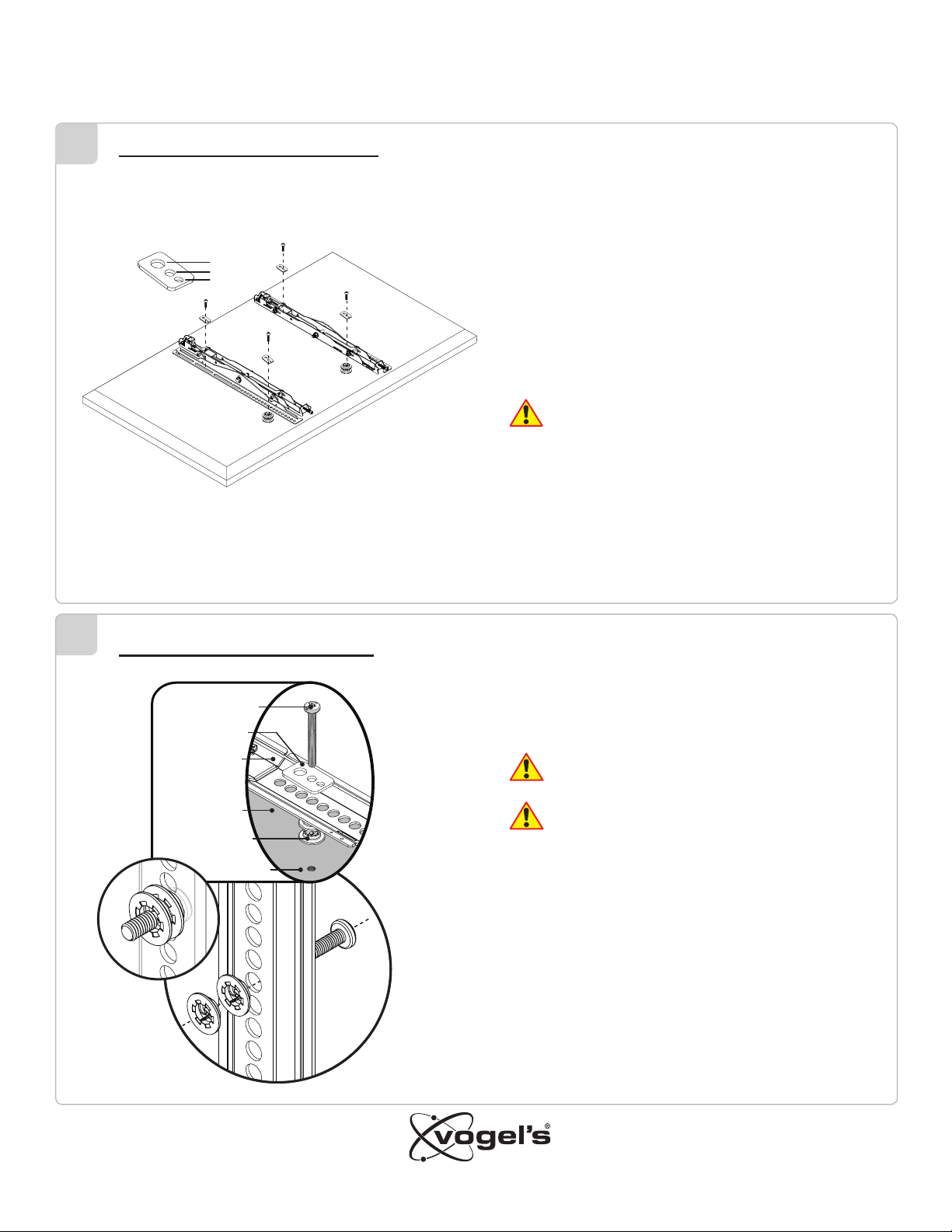

Universal Spacer Installation
Flat Panel
Universal Washer
Universal Spacer
Mounting Bracket
Mount Point
Mounting Screw
1) Place the at-panel screen-side down on a soft, at surface.
2) Identify the number and location of the thread inserts on the
back of the at-panel.
3) Aligning the holes on each mounting bracket with the thread
inserts on the back of your at-panel.
4) Secure each mounting bracket to the at-panel by inserting a
minimum of two (2) screws per bracket.
Do not over tighten the mounting hardware.
Make sure the directional arrows on the mounting brackets
are facing up.
Universal Washer Installation
Universal Washers are designed to accommodate the various
M4, M5, M6 and M8 hole sizes required by at-panels.
17
M8
M5, M6
M4
PFW 6880
www.vogels.com | Europe [phone]
Page 8
Universal Spacers allow the user to attach the mounting bracket
to at-panels which have recessed or uneven mount points. Each
Universal Spacer adds 1/4” to the distance between the mounting
bracket and the at-panel.
The Universal Spacers must be stacked and oriented as
shown.
The Universal Spacers must only be installed between the
mounting bracket and the at-panel.
16
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]www.vogels.com | Europe [phone] Page 9
Mounting bracket adjustments are factory pre-set (see Note).
This section requires two people.
Do not release the at-panel prematurely. The top and bottom
hooks of both mounting brackets must be securely seated on
the upper and lower mounting rails.
1) Raise the at-panel past the top and bottom mounting rails on the
wall panel.
2) Slide the at-panel down slowly, keeping it close to the wall.
3) Engage the top and bottom mounting brackets to the rails of the
mount.

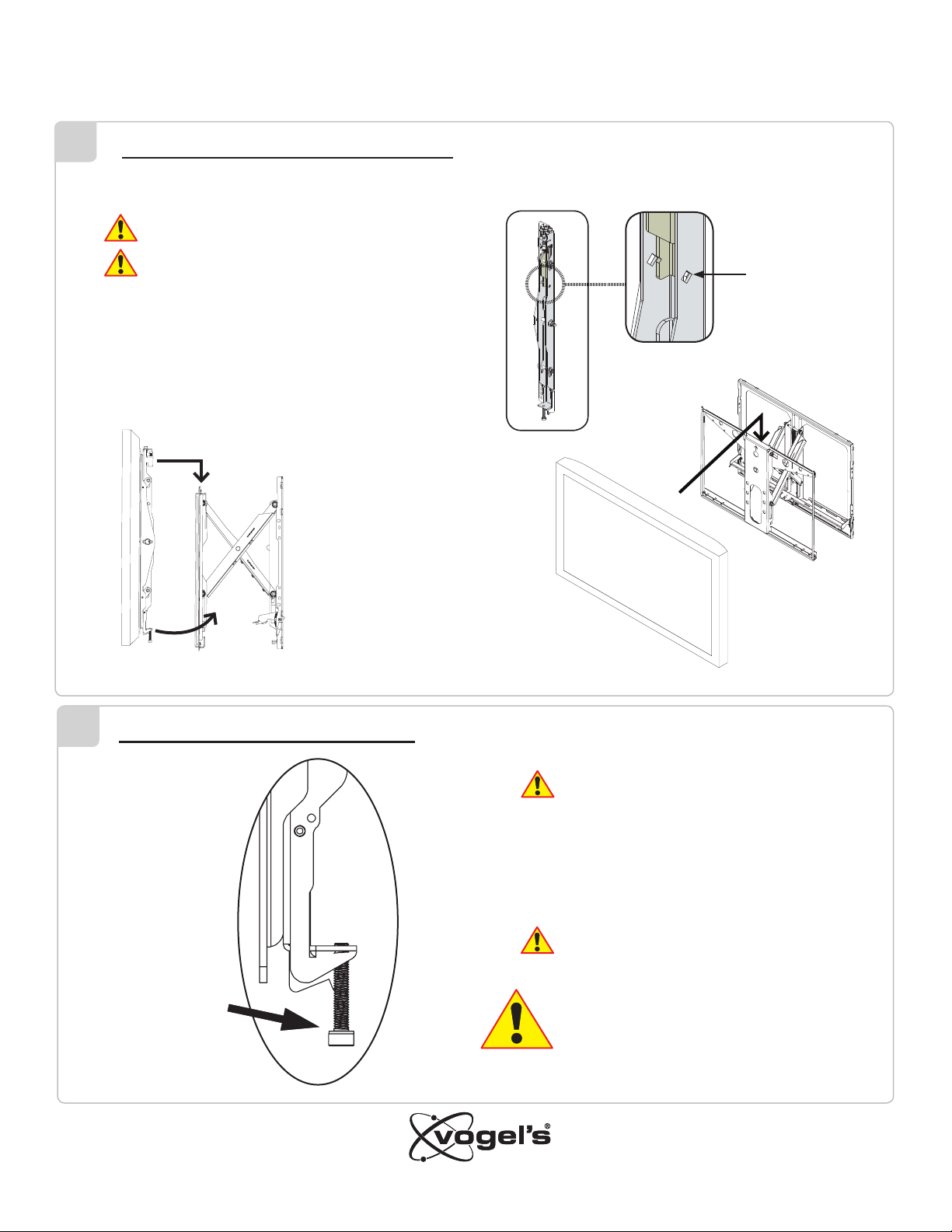

Attaching the Flat-Panel to the Mount
The locking safety screws keep the at-panel from
being accidently dislodged from the mount.
1) Locate the pre-installed security locking safety screw at
the bottom of each of the mounting brackets.
2) Use the M5 Allen driver (supplied) to tighten the locking
safety screw.
Locking Safety Screw Installation
Do not overtighten the locking safety screws.
Note: Tighten screw to surface, then tighten 1/4” turn
Pre-installed
Locking Safety Screw
( 1 per Bracket )
18
19
Note: These
registers must align
prior to installation.
They are factory set.
Check to determine
proper alignment
ONLY TIGHTEN AFTER
FINAL ADJUSTMENT
PFW 6880
www.vogels.com | Europe [phone] Page 9
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]
Page 10
Left
Control
Left
Control
Right
Control
Right
Control
TOPLOW
TOPLOW
TOPLOW TOPLOW
TOPLOW
TOPLOW
TOPLOW TOPLOW
TOPLOW
TOPLOW TOPLOW
TOPLOW

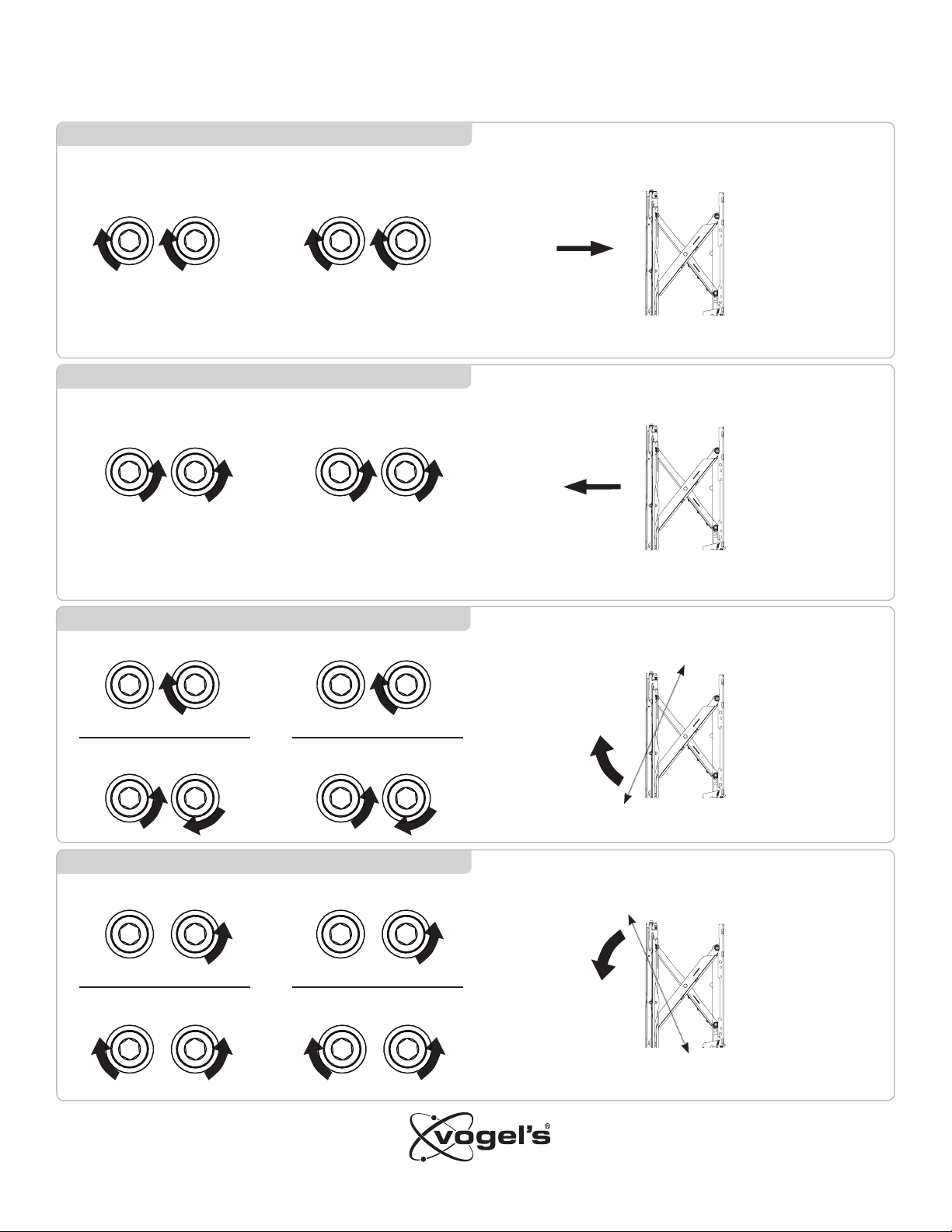

TILT DOWN
TILT UP
MOVE OUTWARD
MOVE INWARD
AND/
OR
AND/
OR
PFW 6880
www.vogels.com | Europe [phone]
Page 10
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]www.vogels.com | Europe [phone] Page 11
LEVEL LEVEL
Left
Control
Right
Control
LEVEL
Left
Control
Right
Control
LEVEL
LEVEL
Left
Control
Right
Control
LEVEL
LEVEL
Left
Control
Right
Control
LEVEL
ROTATE RIGHT
ROTATE LEFT
LEVEL DOWN
LEVEL UP
PFW 6880
www.vogels.com | Europe [phone] Page 11
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]
Page 12

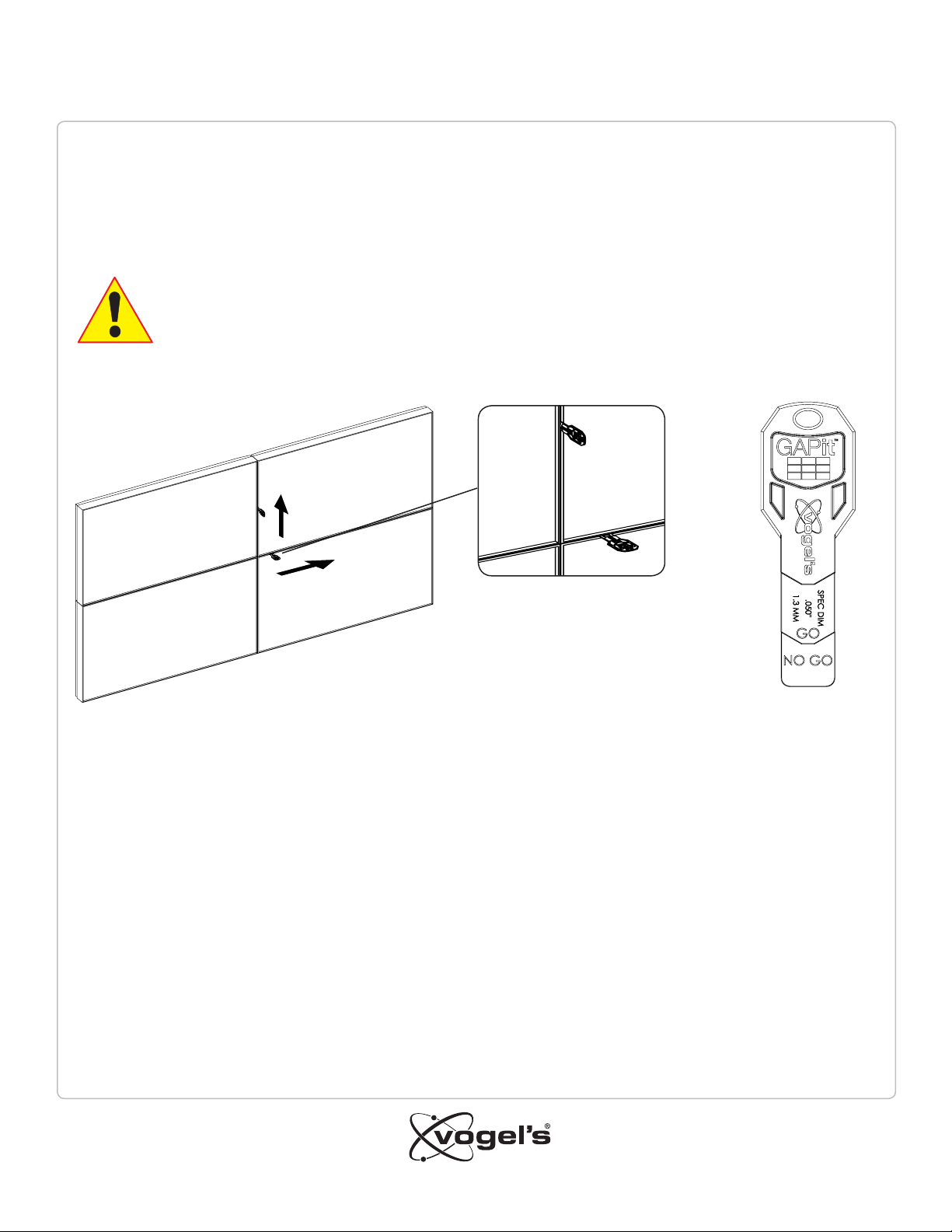

1. Swipe GAPit along vertical gap
2. Inspect for .050” gap & adjust if
needed
3. Swipe GAPit along horizontal gap
4. Inspect for .050” gap & adjust if
needed
Damage happens when weight is transferred to the ultra-thin bezels of video wall installations,
if the recommended gap specications of .050” is not maintained vertically and horizontally.
This results in image distortion, and costly repairs and replacement
Use the GAPit GO/No Go Gauge (supplied with model specific spacer) as a final step in the process
to inspect and adjust the gap to prevent costly replacement and extend the lifespan of the displays.
PFW 6880
www.vogels.com | Europe [phone]
Page 12
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.vogels.com | Europe [phone]www.vogels.com | Europe [phone] Page 13
C
L
C
L
PFW 6880
www.vogels.com | Europe [phone] Page 13
Figure 3
Figure 1
Figure 2
Single Latch
Spring Lock

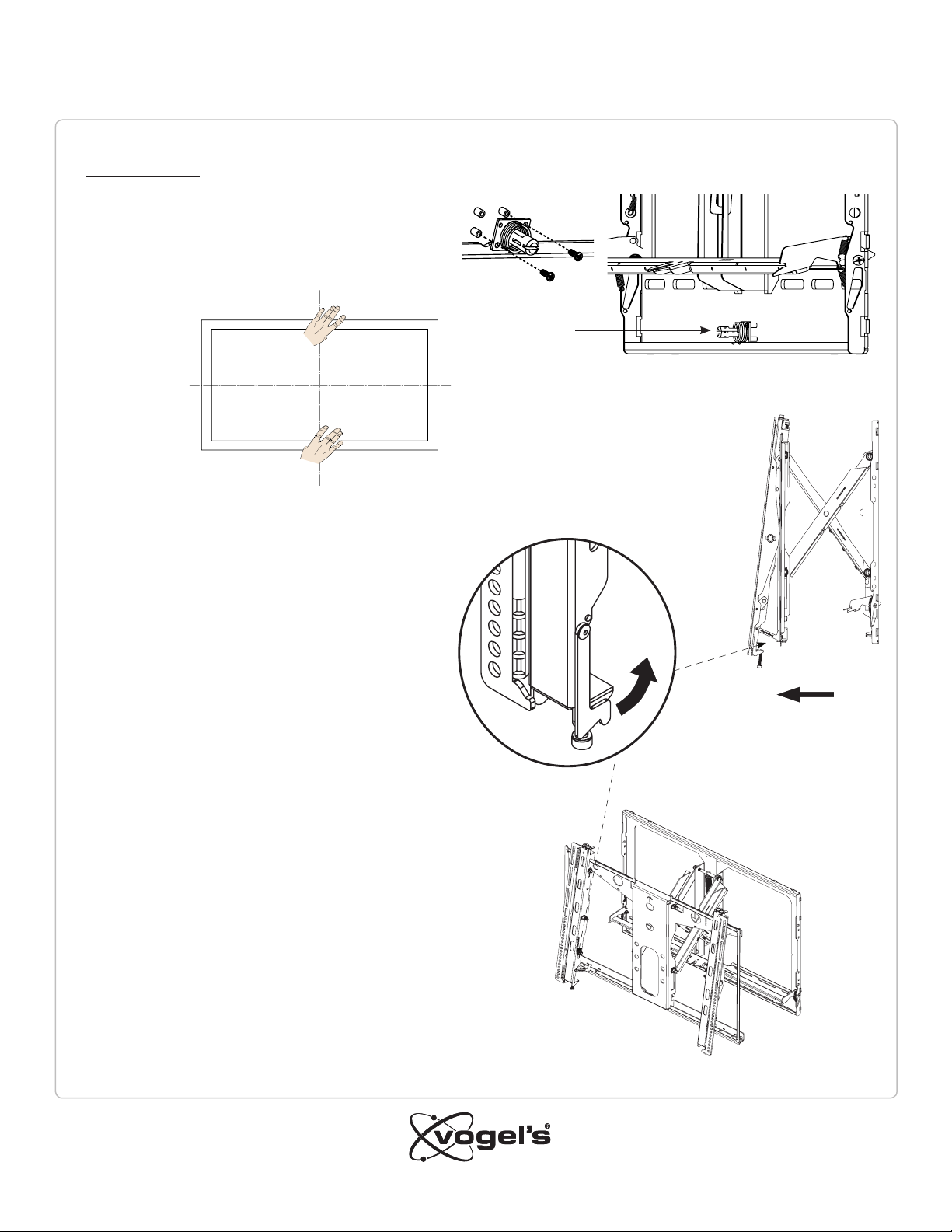

Maintenance
1) Push evenly in the front of the PFW6880 to
release the single latch spring lock (Figure 1).
2) Slowly pull the front of the mount to extend the
scissor arms (Figure 2).
3) Loosen the locking safety screws on both
mounting brackets.
4. Tilt up the bottom of the at-panel, then set their
kickstands against the bottom tubing of the
mount (Figures 2 & 3).
5. Perform any neccessary repairs. Close the latch
after servicing.
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
