Volt Polska SINUS PROTECT 900 User manual

PRODUKT MANUAL
PURE SINE WAVE
UNINTERRUPTIBLE POWER WAVE
CHARGER INVERTER
SINUS PROTECT
900
VOLT POLSKA Sp. z o.o.
ul. Grunwaldzka 76
81-771 Sopot
www.voltpolska.pl
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99
SINUS PROTECT-900 (600W)
UNINTERRUPTIBLE POWER SUPPLY

Thank you for selecting this desktop pure sine wave Uninterruptible Power
Supply ( UPS) / Inverter.
This manual is a guide to install and use the UPS. It includes important safety
instructions for operation and correct installation of the UPS.
PLEASE READ AND KEEP THIS MANUAL
This symbol gives information, warnings, and other suggestions.
This symbol gives information regarding the points important for
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

..............................................P1
...........................................................P2
.............................................................................P3
.....................................................................P4
...............................................................P5
..................................................................P7
.........................................................................P8
.......................................................................P8
..................................................P9
................................................................P9
..................P9
...........................................................P9
...............................................................P10
...................................................P10
.......................P10
..........................................P10
.........................................P10
....................................................P11
......................................................................P12
................................................................P11
.................................P7
..................................................................................P4
1. IMPORTANT SAFETY INSTRUCTIONS
2. INTRODUCTION OF THE UPS
3.SPECIFICATIONS
4. INSTALLATION OF THE UPS
4.1. UNPACK AND CHECK.
4.2. PLACEMENT
4.3. FAMILIAR WITH THE UPS
4.4. CONNECT TO BATTERY
4.5. CONNECT TO MAINS POWER AND TO LOAD
5. OPERATION OF THE UPS
5.1. TURN ON THE UPS
5.2. TURN OFF THE UPS
5.3. CHARGING CURRENT SELECTOR
5.4. MUTE BUZZER BEEPING
5.5. WORK AS AVR (AUTOMATIC VOLTAGE REGULATOR)
6. MAINTENANCE OF BATTERY
7. ALARM AND PROTECTION
7.1 BATTERY MODE ALARM
7.2 BATTERY LOW VOLTAGE ALARM AND SHUT DOWN
7.3 OVERHEAT ALARM AND PROTECTION
7.4 SHORT CIRCUIT PROTECTION
7.5 OVERLOAD ALARM AND PROTECTION
8.MAINTENANCES OF THE UPS
8.1 REGULAR INSPECTION
8.2 EXTRAORDINARY INSPECTION
9.TROUBLE SHOOTING
TABLE OF CONTENTS
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

1. IMPORTANT SAFETY INSTRUCTIONS
•Before operating the UPS, make sure you carefully read all the instructions
and warnings in this manual.
In order to avoid any damage to the UPS, it is advised to transport it in its own•
packing.
Place all the cables in a proper place so that they are not be stepped on or get•
caught into people’s feet.
Don’t drop any foreign materials (like clips, nails etc...) into the cabinet.•
•In emergencies (damage to the cabinet, front panel, or mains connections,
splashing of liquid, dropping of any foreign materials into the cabinet), switch
off the UPS, disconnect the UPS from mains power and from battery, then
inform the authorized service center.
•Do not connect any appliances to the UPS, which exceed its power range.
UPS may not work properly when input distortion or resistance is too high.•
Earth cable should be chosen according to the current capacity. All
units’ earth connections, which are connected to UPS, should be
done with earth cable. Without earth connection or unproved earth
connected units are dangerous for user’s health, and have high risk
of electronic circuit board faults. Using earth cable with improper
diameter could be dangerous for user’s health and safety of the unit.
The UPS can only be repaired by the authorized technical service
personnel. Any attempt to open and to repair by the user on his own
could prove to be dangerous.
Placing magnetic storage media on the top of the UPS may result in
data corruption.
Special Precautions: When the UPS input comes from a generator:
-Output power capacity must be higher than the UPS rating, otherwise
the UPS and generator may not work properly;
-Output frequency of generator must be in range from 45 to 65Hz, and
wave form must be sine wave, otherwise the UPS and generator may
not work properly.
1
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

2. INTRODUCTION OF THE UPS
SINUS PROTECT 900 are specifically designed to backup all the home
and office electrical appliances when the mains power is failure. It’s equipped
with the latest line interactive technology, CPU-controlled PWM technology,
and full-protected modular circuit. It’s a reliable backup power source for all
kinds of loads.
FEATURES:
• 365x24 hours backup design (Long backup design)
High up to 15A charging current, recharge the large battery like 100AH
or 200AH in short time.
• Pure sine wave output
Applicable to all kinds of loads, especially good for the motorized loads.
• Modular CPU controlled circuit
Offer accurate output and protection.
• AVR (automatic voltage regulator) function at mains mode
Best for places where the mains voltage is extremely unstable.
• Heavy duty transformer and circuit
With the high efficiency heavy-duty transformer, and specially designed
circuit, with strong loading ability.
• Smart charging technology
Ensuring the battery is fully charged in short time without damage.
• 3-stage charging current selector
Allow the user to connect different battery, base on the requested backup
time.
• Full protection design
overload, overheat, battery over charge/discharge, surge, short circuit,
and battery reverse connection protections.
• Excellent performance for motor loading, like fan and small pumps.
• Generator compatible
2
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

I
155-285 V~
45-65 Hz
Input Frequency Range
Rated Output Voltage
Output Voltage Precision
Output Waveform
Efficiency
Display
Transfer Time
Operating Temperature
Storage Temperature
Operating Humidity
Noise
Generator Compatible
Safety Standard
IP Level
Protection Class
Output Frequency
Input Voltage Range
Battery mode: ; ±10%
Mains mode: , +8% -10%
Graphic
Charging Current
Protection
Buzzer Alarm
Overload, overheat, over charge/discharge,
short circuit, battery reverse connection
Battery mode, battery low voltage,
overload, overheat, other errors
230 V~
Battery mode: Hz ±1% ;50
Mains mode: synchronized with input frequency
Battery mode: 80% max;
Mains mode: 95% max
Pure sine wave
<4ms
3 stages selectable by user: Low (3A~5A);
Medium (7A~9A); High (10A~15A)
Yes
CE (EMC+LVD), IEC62040
<56dB, at 1m distance with full load
-10°C - +40°C
10-90%, non-condensing
-20°C - +45°C
Machine Size
(W x H x D mm )
140x180x350
140x180x350
160x240x390
160x240x390
160x240x390
160x240x390
210x350x430
210x350x430
Battery
Voltage
Capacity
800VA / 480W
500VA / 300W
300VA / 180W
900VA / 600W
1500VA / 900W
12VDC
12VDC
12VDC
12VDC
24VDC
3
Charging
Current
12A max
10A max
8A max
15A max
15A max
3000VA / 1800W
2000VA / 1200W
48VDC
24VDC
15A max
15A max
5000VA / 3000W 48VDC 15A max
Model No.
PSU-816-800VA
PSU-816-500VA
PSU-816-300VA
PSU-816-1000VA
PSU-816-1500VA
PSU-816-3000VA
PSU-816-2000VA
PSU-816-5000VA
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

This UPS is for indoor use only!
4.INSTALLATION OF THE UPS
4.1. UNPACK AND CHECK
Open the package, you will find:
UPS............................................1 set
User’s Manual .............................1 piece
Warranty Card.............................1 piece
Battery Cable...............................1 pair (optional accessories)
Check the rating label/plate to make sure the UPS is in accordance with your
purchase order.
4.2. PLACEMENT
• Install the UPS in a cool, dry, clean place.
• Install the UPS in a well-ventilated area, keep 50 cm at least between UPS
and the wall.
• Keep away from unstable base or sources of excessive vibration.
• Keep away from windows, dust, moisture and cold places.
• Keep away from fire, heat sources.
• Keep away from corrosive gas or fluid.
• Operating temperature: -10C~ +40C.
• Operating humidity: 10-90% (non-condensing)
• Operating altitude: <1000m
The designed working altitude of this UPS is below 1000m. If the installation
place is over 1000m altitude,the load capacity will accordingly decrease, show
as below table.
Make sure the main body of the UPS is not damaged! If any
damage, do not switch it on or try to repair it by yourself! Contact the
seller or authorized dealer immediately!
Please keep the package for future carriage!
4
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

5
4.3 FAMILIAR WITH THE UPS
1: Colorful Display
2: Temporary Mute Button
3: Inverter ON/OFF Switch
1
2
3
Overload
Error
Battery Mode
Mains Mode
A. Front Side of the UPS
Battery Capacity
Output Voltage
Intput Voltage
Load Rate
%
Battery Capacity
Load Rate
20% 40% 60% 80% 100%
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

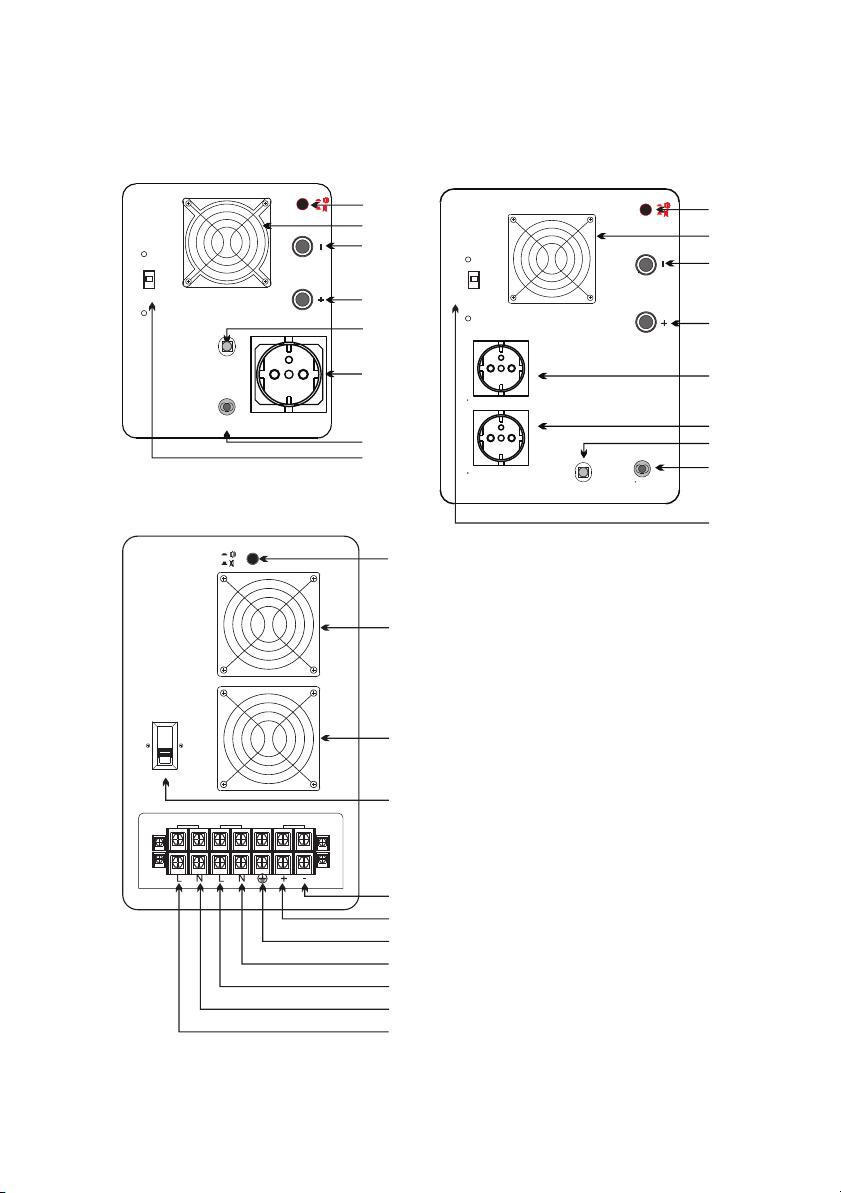

B. Back Side of the UPS
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99
1
2
3
4
5
6
7
For models: 800VA / 900VA,
1500VA / 2000VA
14
For models: 300VA / 500VA
OUTPUT
OUTPUT
2
3
6
5
4
4
1
CIRCUIT
BREAKER
AC INPUT
14
For models: 3000VA / 5000VA
7
CHARGING CURRENT
OUTPUT
AC INPUT
CHARGING CURRENT COOLING FAN
CIRCUIT
BREAKER
COOLING FAN
2
3
INPUT OUTPUT BATTERY
1: Cooling Fan
2: Battery Terminal “-”
3: Battery Terminal “+”
4: Input Circuit Breaker
5: Output Socket
6: AC Input Cable
7: Permanent Mute Button
8: Input Air Breaker
9: Terminal “Earth Cable”
10: Terminal “Input Live Cable”
11: Terminal “Input Neutral Cable”
12: Terminal “Output Live Cable”
13: Terminal “Output Neutral Cable”
14: Three stage charging current selector
13
12
11
10
9
7
8
1
1
COOLING FAN
ON
OFF

4.4. CONNECT TO BATTERY
A. Make sure using the correct battery cable. The over current capability of the
battery cable should not be less than the maximum discharging current.
Please refer to the below table.
B. Make sure the battery voltage is correct, you can find the battery voltage
which is marked where near the two battery terminals / cables.
C. Disconnect the UPS from mains power completely.
D. Connect the negative (-) of battery to the BATTERY TERMINAL “-” of UPS,
and positive (+) to the BATTERY TERMINAL “+”.
This UPS is designed for long time backup, the connected battery
should be at least 20AH due to the initial charging current is at least 3A.
Smaller battery could be damaged easily.
Diameter Battery Cable
PSU-816-500VA （12VDC, 300W)
PSU-816-300VA （12VDC, 180W)
PSU-816-800VA （12VDC, 480W)
PSU-816-1500VA （24VDC, 900W)
PSU-816-2000VA （24VDC, 1200W)
PSU-816-900VA （12VDC, 600W)
Model No.
8AWG / 8.37mm²
6AWG / 13.3mm²
8AWG / 8.37mm²
10AWG / 5.26mm²
10AWG / 5.26mm²
6AWG / 13.3mm²
PSU-816-3000VA （48VDC, 1800W) 8AWG / 8.37mm²
PSU-816-5000VA （48VDC, 3000W) 6AWG / 13.3mm²
4.5. CONNECT TO MAINS POWER AND TO LOAD
A Plug the UPS into the wall socket..
B Make sure the appliance is turned off before connection. .
C. Plug the appliance into the of the UPS. OUTPUT SOCKET
If there are two or more appliances are connected, make sure the total
maximum capacity of connected appliances does not exceed the rated
capacity of UPS.
7
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99
For models: 300VA/500VA/800VA/ 1500VA/2000VA:900VA/

L N L N
INPUT OUTPUT BATTERY
+-
For models: 3000VA/5000VA:
C. Make sure the appliances are turned o ffbefore connection.
D. Connect the mains to the “INPUT” terminal, the load to the “OUTPUT”
terminal. Make sure connections are tighten, not loose.
А. Make sure use connection cables in correct diameter.
B. Make connection as shown in below chart.
Input & Output Cable
PSU-816-5000VA （48VDC, 3000W)
PSU-816-3000VA （48VDC, 1800W)
Model No.
12AWG / 3.332mm²
14AWG / 2.075mm²
If there are two or more appliances are connected, make sure the total
maximum capacity of connected appliances does not exceed the rated
capacity of UPS.
8
5. OPERATION OF THE UPS
5.1. TURN ON THE UPS
Press and hold the till the UPS give one INVERTER ON/OFF SWITCH
beeping sound, the UPS is switched on and delivers output.
Then switch on the connected appliances one by one. If there are two or many
appliances connected, please turn on the biggest one at the first, the smallest
one at the last, according to their rated power.
5.2. TURN OFF THE UPS
Turn off the appliances on by one, then press INVERTER ON/OFF SWITCH
till the UPS give one beeping sound again, the output is turned off.
Even if the output of UPS is turned off, the UPS is still working to
charge the battery, the UPS is not totally switched off. To switch
it off completely, unplug the UPS from the mains power.
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

Battery Capacity Level Charging Current
20AH to 50AH L Low (3A~5A)
60AH to 100AH M Medium (7A~9A)
100AH to 200AH H High (10A~15A)
Wrong selection of the charging current may lead to the damage of
battery in charging process!
5.3. CHARGING CURRENT SELECTOR
It’s recommended to select the charging current as below:
9
5.4. MUTE BUZZER BEEPING
• Temporary Mute Button
At battery mode, press and hold the TEMPORARY MUTE BUTTON for 1~2
seconds, the UPS will be muted. When mains power restore, the UPS will work
at mains mode, if mains power is failure again, the MUTE FUNCTION will be
disabled, the UPS will beep till press this button again.
• Permanent Mute Button
Press up the , the UPS won’t give beeping atPERMANENT MUTE BUTTON
any cases. Press it down to cancel the “mute mode”.
5.5. WORK AS AVR (AUTOMATIC VOLTAGE REGULATOR)
At mains mode, the UPS works as an AVR, offering regulated output and surge
protection to the connected appliances.
6. MAINTENANCE OF BATTERY
With correct using and maintenance, the life of the battery can last for three to
six years, depending on the times of discharging and temperature. So regular
check and maintenance are very necessary.
• Charge the battery every three months if you don’t use the UPS for a long
time. The charging time should be at least 12 hours.
• If the UPS works continuously in mains mode for more than fours months,
please discharge the battery with 50% of rated load, so as to keep the battery
be active.
• For more details, please refer to the specification of the battery
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

7. ALARM AND PROTECTION
7.1. BATTERY MODE ALARM
The UPS will beep once (4 continous sound) every 30 seconds when working
at battery mode.
7.2. BATTERY LOW VOLTAGE ALARM AND SHUT DOWN
The UPS will beep once per second when battery is in low level. When the
battery is near empty, it will beep rapidly for 20 seconds and then shut down
automatically.
7.3. OVERHEAT ALARM AND PROTECTION
When the temperature of transformer winding/heat sink is exceeding the limit.
Mains Mode: UPS will beep once per second only, the output won’t be cut off.
Battery Mode: the output will be cut off immediately,the UPS will beep rapidly
for around 20 seconds, then shut down automatically.
7.4. SHORT CIRCUIT
Mains Mode: the circuit breaker will cut off the input power automatically once
a short circuit happens.
Battery Mode: UPS will cut off output immediately, and beep rapidly for around
20 seconds, then shut down automatically.
7.5. OVERLOAD ALARM PROTECTION
Mains Mode: UPS will beep once per second, until the overload is removed.
Battery Mode:
• when load is is >120%, the UPS will beep once every second for 30 seconds,
then shut down automatically.
• when load is >150%, the output of UPS will cut off immediately, and start to
beep rapidly for 20 seconds, then shut down automatically.
10
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

8.MAINTENANCES OF THE UPS
This UPS is basically maintenance free! while regular maintenance can extend
the life of the UPS by the following steps:
8.1. REGULAR INSPECTION
• Disconnect the UPS from the mains power and battery completely.
• Use cotton cloth and detergent to clean the body and ventilation holes.
8.2. EXTRAORDINARY INSPECTION
• When malfunction occurs, or the UPS is abnormal, please measure and
check the parameters, refer to the authorized dealer if needed.
• In thunder and lightning or rainy season, Extraordinary Inspection should be
executed to prevent malfunction.
• Maintenance must not be operated when UPS is working.
11
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

Ambient temperature
is too high
Cut off the output and input, and
wait for at least 30 minutes, then
restart it.
Cooling fan is dead
UPS is short circuit
Load is short circuit
Remove load and restart the UPS,
if it’s still not ok,contact the dealer/
manufacturer
Malfunction Cause Solution
2. Can’t turn on
UPS when there
is mains power.
1. UPS goes into
battery mode, but
there is mains
power
3. Can’t turn on
UPS at battery
mode.
4. Can’t charge
the battery.
5. Short backup
time.
8. Input circuit
breaker tripps off
9. Others Others
6. “Overload”
symbol appears,
or “Overload” LED
is ON, and UPS is
beeping.
7. “Error”
symbol appears,
or “Overload” LED
is ON (not due to
overload, and
UPS is beeping.
Press and hold the power switch till
the UPS give a beeping sound.
Wait till the input voltage or input
requency is normal
Press and hold the power switch till
the UPS give a beeping sound.
Others.
Others.
UPS is overloaded
UPS is overheating
Ventilation holes are
blocked Clean the ventilation holes
Charger is faulty.
Short charging time. Charge battery at least 10 hours.
Contact the dealer / manufacturer.
Battery is empty.
Battery is faulty.
Battery is faulty.
Fuse for battery
reverse burnt.
Press time is too
short.
The input voltage or
input frequency is
out of range.
Press time is too
short.
Contact the dealer / manufacturer.
Contact the dealer / manufacturer.
Charge the battery.
Replace the battery.
Replace the battery.
Contact the dealer / manufacturer.
Remove the non-critical load
Remove the non-critical load
Replace it
Contact the dealer/manufacturer
Contact the dealer/manufacturer
9. TROUBLE SHOOTING
12
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

12
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99 [email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99
FILL IN IF NEEDEED
(*) Cross incorrect
I agree to pay the cost of inverter repair due to:
* expiration of the warranty period / * warranty void
Before proceeding with the repair, service will inform by phone about the
exact costs of the repair.
Please attach a copy of the purchase document (receipt or invoice) to the
complaint.
The full regulations of service repairs can be found on our website
www.voltpolska.pl
DATE OF PURCHASE
SHIPPING ADDRESS
SIGNATURE / STAMP
DAMAGE DESCRIPTION
SERVICE COMMENTS
WARRANTY CARD
