Volvo EC330B User manual

EC330B
EC330B
Volvo Construction Equipment
OPERATOR’S MANUAL
Ref. No. : VOE 2134355130 English
Printed in Sweden KOR

California
Proposition 65 Warning
Diesel engine exhaust and some of its constituents are
known to the State of California to cause cancer, birth
defects, and other reproductive harm.
California
Proposition 65 Warning
Battery posts, terminals and other related accessories
contain lead and lead compounds, chemicals known
to the State of California to cause cancer and other
reproductive harm.
Wash hands after handling.

Contents
Presentation
Operating instructions
Safety when servicing
Service and maintenance
Specifications
Alphabetical index
Instruments and controls
EC330B
Foreword
This Operator Manual is intended as a guide for the correct use
and maintenance of the machine. Therefore, study it carefully
before starting and operating the machine, or before carrying
out any preventive maintenance.
Keep the manual in the intended place in the cab so that it is
always at hand. Replace it immediately, if it is lost.
The manual describes the applications for which the machine
primarily is intended and is written to apply to all markets. We
therefore ask you to disregard the sections which are not appli-
cable to your machine or to the work for which you use your ma-
chine.
Many hours are spent on design and production to make a ma-
chine that is as efficient and safe as possible. The accidents
which occur in spite of this, are mostly caused by the human
factor. A safety conscious person and a well maintained ma-
chine make a safe, efficient and profitable combination. There-
fore, read the safety instructions and follow them.
We continually strive to improve our products and to make them
more efficient through changes to their design. We retain the
right to make these improvements on products which have al-
ready been delivered.
We also retain the right to change data and equipment, as well
as instructions for service and maintenance without prior no-
tice.
Safety regulations
It is the operator obligation to know and follow the applicable
national and local safety regulations. The safety instructions in
this manual only apply to cases when there are no national or
local regulations.
NOTE : This manual has been adapted to cover all markets.
Disregard optional or special equipment included for vari-
ous markets, which are not applicable to your machine.
WARNING!
The symbol above appears at various points in the
manual together with a warning text. It means:
Warning, be alert! Your safety is involved! It is the
obligation of the operator to make sure that all warning
decals are in place on the machine and that they are
readable. Accidents may otherwise occur.
Get to know the capacity and limits of your machine!
OPERATOR’S MANUAL
Ref. No. : VOE 2134355130
1-09. 2003 Printed in Sweden

Forewor
2
VOE 2134355130
This symbol, which is shown at various places in the Operator’s
Manual together with a warning statement, means:
Handling and maintenance of the machine
Volvo Construction Equipment is responsible only if:
– the machine has been used in a correct way and been main-
tained in accordance with the instructions contained in the Op-
erator’s Manual and Service Manuals.
– prescribed service and prescribed inspections have been car-
ried out at the stated points in time.
– the recommended lubricants according to the manual have
been used.
– fitted security seals are unbroken or that adjustments and refit-
ting of security seals has been carried out by an authorized
dealer workshop.
– all modifications and repairs performed, and methods used,
have been prescribed by Volvo.
– only Volvo genuine spare parts/accessories, or genuine spare
parts/accessories which meet Volvo’s requirements, have been
used.
WARNING!
Warning, be alert! Your safety is involved!
To ignore the risks may lead to an accident, serious injuries
or death.
It is the obligation of the operator to make sure that all
warning decals are in place on the machine and that they
are readable. Accidents may otherwise occur.
Get to know the capacity and limits of your machine!
WARNING!
An operator of an excavator must have sufficient
knowledge and instructions before he/she operates the
machine.
An untrained operator can cause serious injuries or even
death.
Never use an excavator which has no Operator’s Manual.
Understand the warning plates and symbols on the
machine and its operator instructions before you begin to
use the machine.

Forewor
Communication equipment, installation 3
VOE 2134355130
Communication equipment,
installation
IMPORTANT!
All installation of optional electronic communication equip-
ment must be performed by trained professionals and in
accordance with Volvo Construction Equipment instructions
applicable to the specified machine.
Protection from electromagnetic interfer-
ence
This machine has been tested in accordance with EU directive 89/
336EEC governing electromagnetic interference. It is therefore
very important that all non-approved electronic accessories, such
as communication equipment, should be tested before installation
and use, since they can cause interference to the electronic sys-
tems of the machine.
Mobile telephones
To obtain the best functionality, mobile telephones should be per-
manently installed in the electrical system of the excavator, with a
permanently antenna fixed on the cab, installed as advised by the
manufacturer. If a portable mobile telephone is used, note that this
can constantly transmit information to its base station, even when
the telephone is not used. For this reason, it should not be located
right beside electronic equipment in the machine, such as directly
on a control panel etc.
Guidelines
The following guidelines must be followed during installation:
– The antenna placement must be chosen to give good adapta-
tion to the surroundings.
– The antenna cable must be of the coaxial type. Be careful to
ensure that the cable is undamaged, that the sheath and braid
are not split at the ends, the braid covers the connector ferrules
and has good galvanic contact with them.
– The mating surface between the antenna mounting bracket
and the bodywork must have clean metal surfaces, with all dirt
and oxide removed. Protect the mating surfaces against corro-
sion after installation to maintain good galvanic contact.
– Remember to separate interfering and interfered cables physi-
cally. Interfering cables consist of the communication equip-
ment’s supply cables and antenna cable. Interfered cables are
those which are connected to electronic devices in the ma-
chine. Install the cables as close as possible to
earthed(grounded) sheet metal surfaces, since the sheet metal
has a shielding effect.

Forewor
4 Communication equipment, installation
VOE 2134355130

Contents
5
VOE 2134355130
Contents
Forewor ................................................................... 1
Communication equipment, installation ................................ 3
Contents .................................................................. 5
Presentation ............................................................ 7
General ................................................................................. 7
Plates and decals ............................................................... 10
Service ................................................................................ 24
General information ............................................................ 25
Instruments and controls .................................... 29
General ............................................................................... 29
Overview ............................................................................. 30
Description of instrument panel .......................................... 31
Display unit ......................................................................... 49
Controls .............................................................................. 53
Selecting valves for optional parts ...................................... 56
Operator seat ...................................................................... 59
Safety locking system ......................................................... 60
Cab window ........................................................................ 61
Fire extinguisher and emergency exit ................................. 65
Fuel accessory pump ......................................................... 66
Air conditioner/heater (option) ............................................ 67
Radio and cassette player .................................................. 69
Operating instructions ......................................... 71
Introduction ......................................................................... 71
Running-in instructions ....................................................... 72
Safety and responsibility ..................................................... 73
Disassembling for transportation ........................................ 80
Counterweight removal and installation .............................. 84
Changing bucket ................................................................. 86
Hydraulic quickfit (s1) (option) ............................................ 87
Selecting track shoe ........................................................... 90
Hose rupture valves (option) .............................................. 91
Before operating ................................................................. 92
Start switch ......................................................................... 94
Starting engine ................................................................... 96
Operating machine ............................................................. 98
After operating .................................................................. 101
Parking ............................................................................. 102
Towing method ................................................................. 103
Anti-vandalism (option) ..................................................... 104
Work with bucket .............................................................. 105
Escaping from swampy ground ........................................ 109
Signalling diagram ............................................................ 110
Lifting objects .................................................................... 114
Optional parts ................................................................... 115

Contents
6
VOE 2134355130
Safety when servicing ....................................... 119
Introduction ....................................................................... 119
Service position ................................................................ 120
General ............................................................................. 121
Handling lines, tubes and hoses ....................................... 123
Measures to prevent fire ................................................... 124
Batteries ........................................................................... 128
Air conditioning ................................................................. 130
Use handholds and steps for climbing on / off .................. 132
Service and maintenance .................................. 133
Engine .............................................................................. 133
Fuel system ...................................................................... 136
Intercooler ......................................................................... 139
Turbocharger .................................................................... 139
Air cleaner ........................................................................ 140
Oil bath Air cleaner (option) .............................................. 142
Cooling system ................................................................. 144
Electrical system ............................................................... 148
Hydraulic system .............................................................. 153
Swing drive unit ................................................................ 158
Track drive unit ................................................................. 159
Handling accumulator ....................................................... 160
Swing gear and bath, greasing ......................................... 161
Air conditioner ................................................................... 165
Track slack ....................................................................... 166
Replacing bucket teeth ..................................................... 169
Lubrication ........................................................................ 171
Lubrication and service chart ............................................ 172
Periodic replacement of safety critical parts ..................... 176
Specifications ..................................................... 177
Recommended lubricants ................................................. 177
Capacities, lntervals between changes ............................ 179
Specifications ................................................................... 180
Sound and vibration levels ............................................... 182
Dimensions ....................................................................... 183
Bucket & Arm combination ............................................... 184
Digging force with direct fit bucket .................................... 188
Working ranges ................................................................ 189
Care and maintenance journal ......................................... 190
Alphabetical index ............................................. 201

Presentation
General 7
VOE 2134355130
Presentation
General
Intended use
The machine is intended to be used in the way described in this
manual. If the machine is used in another way or in potentially dan-
gerous environments, e.g. explosive atmosphere or areas with
dust containing asbestos, special safety regulations must be fol-
lowed and the machine be equipped for such use.
Contact the manufacturer/ dealer for further information.
Engine
The engine is a straight six-cylinder, four stroke, direct injection
diesel with 9.6 liter cylinder volume, turbo charged, intercooled
and electronic controller fuel injection, EMS (Engine Management
System) with a cast iron block and cylinder head. Volvo engine
D12CECE2
Electrical system
The electrical system consists of engine starting system, charging
system, machine monitoring system, engine/ pump control system
and air conditioning system.
Engine speed is controlled by a rotary switch that incrementally
changes rpm, and an auto idle system that automatically engages
low idle when the machine is not operated for 5 seconds or more.
Engine condition can be checked via the VECU (Vehicle Electronic
Control Unit) by the data connection between EMS (Engine Man-
agement System) and VECU.
Hydraulic pump
The hydraulic pump assembly consists of two pumps connected
by a splined coupling. The two pumps are driven simultaneously
as the engine rotation is transmitted to the front drive shaft.
The pump consist of rotary group, swash plate group and valve
block group.
The displacement of the pump is controlled by the regulator, and
engine output power is effectively utilized by the proportional sole-
noid valve.
S82006

Presentation
8 General
VOE 2134355130
Main control valve
The control valve consists of two 5-spool blocks and an intermedi-
ate block connected by screws. They contain six main spools for
digging units, three spools for conflux and straight travel, a spool
for the option unit, a main relief valve, port relief valves, holding
valves and check valves. These are remotely controlled by the ser-
vo hydraulic system.
Track motor and gearbox
The track motor is a variable axial piston motor that consists of a
housing, a rotary group and a port plate. The housing contains the
swash angle control screw. The rotary group consists of the cylin-
ders and the pistons. The port plate consists of the counterbalance
valve, the check valves, the relief valves and the displacement
changeover valve.
The gearbox has a three-stage planetary mechanism has three
sets of sun gears, planetary gears and pinion gears, driven by the
splined output shaft of the track motor mounted directly to the
gearbox. The gearbox also houses the spring applied, hydraulical-
ly released parking brake assembly.
Swing motor and gearbox
The swing motor is a fixed axial piston motor. The rotary group
consists of a cylinder block and nine pistons located in the cylinder.
The cover section has relief valves, an anti-cavitation valves and
anti-rebound valves. The housing has a delay valve and a disk
type brake.
The gearbox is composed of the sun gear, the planetary gear, the
pinion gear and the housing. The power supplied to the output
shaft of the swing motor reduces motor speed through the sun
gear and the planetary gear, developing high torque that is trans-
mitted to the pinion gear.

Presentation
General 9
VOE 2134355130
CE marking and Declaration of Conformity
NOTE :
Applies only to machines marketed within the EU/ EEA.
This machine is CE marked. This means that, when delivered to
the customer, the machine meets the applicable “Essential Health
and Safety Requirements”, according to the EU Machine Safety
Directive. Any person carrying out an alteration that affects the
safety of the machine, is responsible for the consequences.
The machine is supplied together with a Declaration of Conformity
with the EU Machine Safety Directive. The documentation is a
valuable document, which should be kept safe and always be kept
in the machine.
If the machine is used for purposes, or with other special bodies or
add-ons,other than described in these instructions, safety must at
all times and in each case be maintained. The person carrying out
such action is also responsible for the action, which, in some cas-
es, may require a new CE marking and the issue of a new Decla-
ration of Conformity in compliance with the EU Machine Safety
Directive.
Volvo Construction Equipment is only responsible for a ma-
chine which is used with approved equipment and spare parts
specified by Volvo Construction Equipment.
EU EMC Directive
The electronic equipment of the machine may in some cases
cause interference to other electronic equipment, or suffer from ex-
ternal electromagnetic interference, which may constitute safety
risks.
The EU EMC directive on “Electromagnetic compatibility”, 89 / 336
/ EEC, provides general description of what demands can be
made on the machine out of a safety point of view, where permitted
limits have been determined and given according to international
standards.
A machine or device which meets the requirements should be CE
marked. Our machines have been tested particularly for electro-
magnetic interference. The CE marking of the machine and the
declaration of conformity also cover the EMC directive.
If other electronic equipment is fitted to this machine, the equip-
ment must be CE marked and tested on the machine with regard
to electromagnetic interference.
S82280
Volvo Construction Equipment
Volvo Construction Equipment Korea Ltd.
1, Guehyun-Dong, Changwon-City, Kyungnam, Korea 641-430
Model/Type
Product
Identification
Number
Machine mass Kg
Engine net power KW
14880000
Manufacturing year

Presentation
10 Plates and decals
VOE 2134355130
Plates and decals

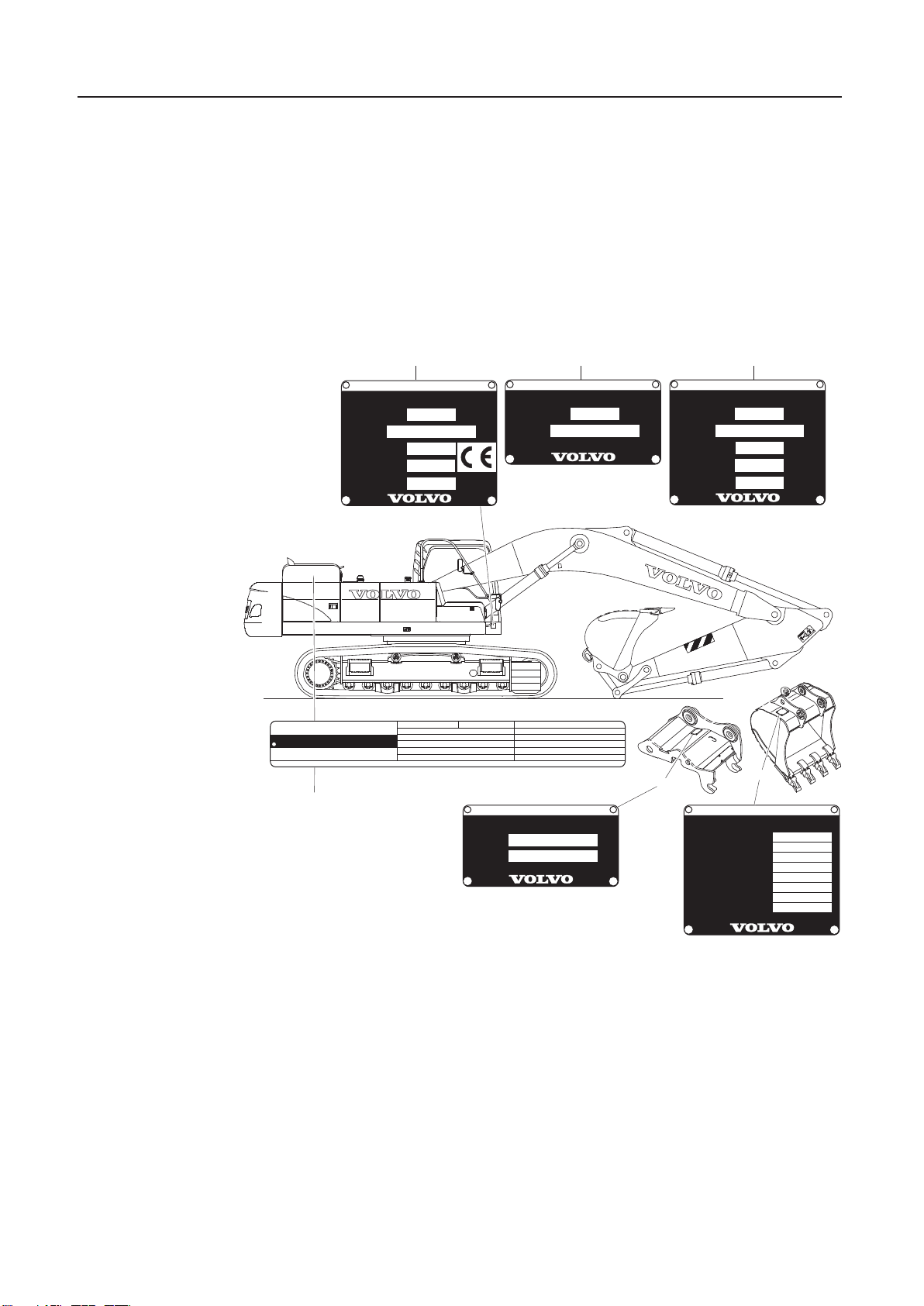

Product plates
This illustration and text below show which product plates are
found on the machine.
When ordering spare parts and when making enquires by tele-
phone or correspondence, the model designation and Product
Identification Number (PIN) should be stated.
1 Product plate with Product Identification Number, PIN for the
complete machine (shows the model, serial numbers, machine
weight, engine output and when applicable CE approval). The
plate is positioned on the right side of the upper frame.
1A: Product plate, version for EU market
1B: Product plate, version for North America, International mar-
ket
1C: Product plate, version for Middle East market
2 The engine type designation, part and serial numbers are
stamped into both sides of the cylinder block.
S82007
Volvo Construction Equipment
Volvo Construction Equipment Korea Ltd.
1, Guehyun-Dong, Changwon-City, Kyungnam, Korea 641-430
Model/Type
Product
Identification
Number
Machine mass Kg
Engine net power KW
14880000
Manufacturing year
Volvo Construction Equipment
Volvo Construction Equipment Korea Ltd.
1, Guehyun-Dong, Changwon-City, Kyungnam, Korea 641-430
Model/Type
Product
Identification
Number
Machine mass Kg
Engine net power KW
14880002
Manufacturing year
Volvo Construction Equipment
Volvo Construction Equipment Korea Ltd.
MANUFACTURED IN KOREA
1, Guehyun-Dong, Changwon-City, Kyungnam, Korea 641-430
Model/Type
Product
Identification
Number
14880001
2
34
1B
C.I.D./L CPL Engine Seria NO
Engine Model
Fuel rate at rated HP
Timing-TDC
Cust Spec
Family
Low idle RPM
Valve lash cold
Firing Order
Rated HP/kw
Volvo Construction Equipment
Volvo Construction Equipment Korea Ltd.
MANUFACTURED IN KOREA
1, Guehyun-Dong, Changwon-City, Kyungnam, Korea 641-430
Part Number
Weight kg
14880004
Volvo Construction Equipment
Volvo Construction Equipment Korea Ltd.
MANUFACTURED IN KOREA
1, Guehyun-Dong, Changwon-City, Kyungnam, Korea 641-430
Bucket model order No.
Bucket part No.
Serial No.
Rated capacity(ISO/SAE)
Weight
Cutting width
Tooth part No.
Adapter part No.
14880005
1A 1C

Presentation
Plates and decals 11
VOE 2134355130
3 The quickfit nameplate is attached on the outside of the quick-
fit. (shows part number and weight)
4 The bucket nameplate is attached on the top of the bucket.
(shows the bucket model order Number, serial number, bucket
part number, rated capacity, weight, cutting width, tooth part
number and adapter part number)

Presentation
12 Plates and decals
VOE 2134355130

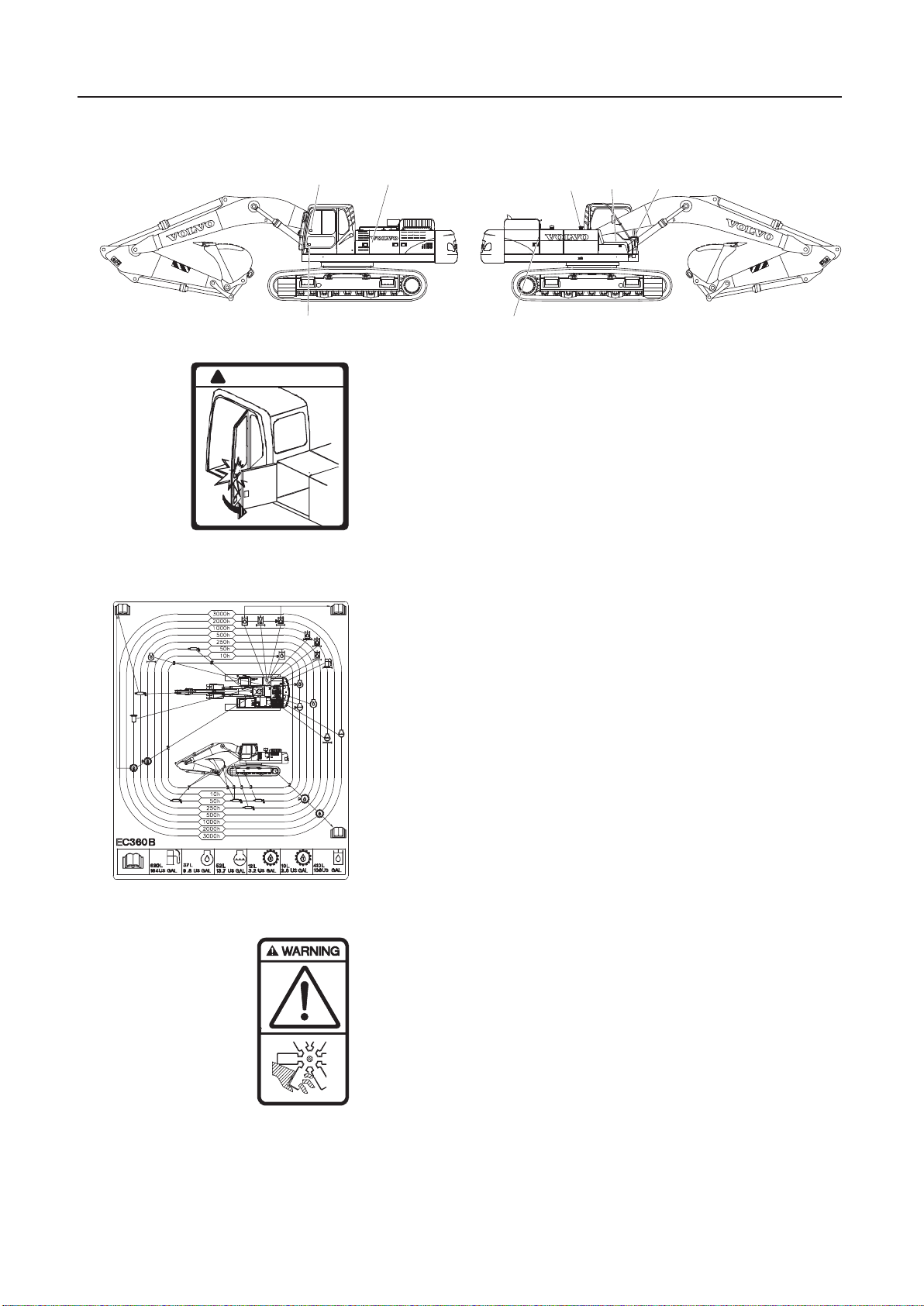

Information and warning plates
The following depicts various warning and information texts that
may be affixed to the machine and their mounting location. The op-
erator must know and pay attention to the warning and safety in-
formation on each decal and plate. Decals / plates that are lost,
damaged, illegible, painted over or not clearly visible must be re-
placed immediately.
The part number (order number) of the respective plates / decals
can be found in the Parts Catalogue.
1 Do not start the engine
2 Safety locking
See Safety locking system on page 60.
3 Do not unscrew the recoil spring
See Inspecting and adjusting the track slack on page 166.
S82282
5
6
47
3
1
2
S80606
S82335
S80599

Presentation
Plates and decals 13
VOE 2134355130
4 Emergency exit
See The emergency hammer (B) should be used in emergen-
cy situations for: on page 65.
5 Warning, high voltage
See Never operate close to a high tension power line on page
76.
6 Warning when operating the optional attach-
ment
If the excavator is equipped with an adjustable boom or quickfit
bucket, the digging arm with its boom fully retracted can damage
the driver’s cab.
7 Operating optional attachments
WARNING!
If the machine is equipped with any other attachments
(quickfit, hammer, large bucket,...), that may damage the
operator cab and other structure.
S80954
S80602
S82004
S81209

Presentation
14 Plates and decals
VOE 2134355130

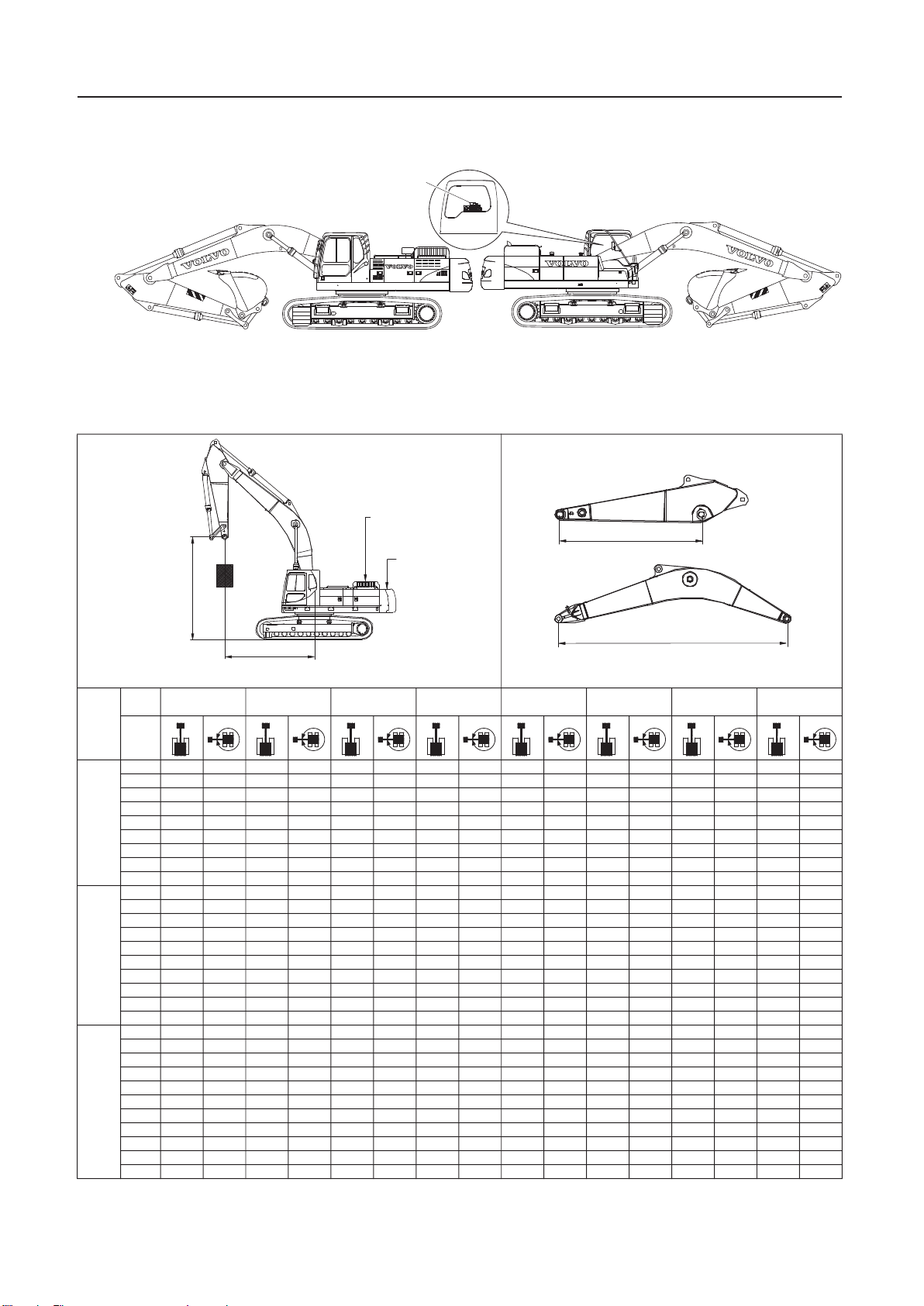

8 Lifting capacity table
Shoe 600 mm (kg)
∗Power booster ON
L
A0.0m 1.5m 3.0m 4.5m 6.0m 7.5m 9.0m Maximum
B
2.6 m
7.5 m ∗8870 7040
6.0 m ∗10780 9060 9690 6260 ∗8590 5600
4.5 m ∗15940 13380 ∗12380 8600 9480 6070 7610 4870
3.0 m ∗20110 12190 13090 8090 9200 5830 7090 4500
1.5 m ∗15570 11550 12620 7690 8960 5600 6960 4380
0.0 m ∗20140 11390 12370 7470 8800 5460 7180 5460
-1.5 m ∗14290 ∗14290 20240 11430 12310 7420 8770 5430 7870 4910
-3.0 m ∗25570 23930 ∗19860 11630 12440 7530 9430 5860
-4.5 m ∗20920 ∗20920 ∗16010 12030 ∗12040 8230
3.2 m
7.5 m ∗7920 6580 ∗7120 6240
6.0 m ∗8050 6510 ∗6920 5130
4.5 m ∗12290 ∗12290 ∗9890 8910 ∗8710 6290 7200 4650 ∗6990 4540
3.0 m ∗15880 12700 ∗11600 8360 9400 6010 7070 4530 6590 4220
1.5 m ∗18490 11830 12840 7890 9120 5750 6930 4400 4670 4110
0.0 m ∗19440 11480 12500 7590 8910 5570 6830 4310 6630 4190
-1.5 m ∗13820 ∗13820 ∗19200 11420 12370 7480 8820 5490 7160 4510
-3.0 m ∗16340 ∗16340 ∗21900 ∗21900 ∗17960 11550 12420 7520 8880 5550 8300 5210
-4.5 m ∗20830 ∗20830 ∗15380 11870 ∗11540 7760 ∗9990 6790
-6.0 m
3.9 m
9.0 m ∗6060 ∗6060
7.5 m ∗8000 6760 ∗5650 5340
6.0 m ∗8370 6620 ∗6980 4780 ∗5520 4480
4.5 m ∗10230 9090 ∗9230 6350 7240 4660 ∗5560 3990
3.0 m ∗16260 13020 ∗12290 8440 9440 6010 7050 4490 ∗5760 3710
1.5 m ∗19870 12840 12840 7840 9070 5680 6860 4310 5760 3600
0.0 m ∗8400 ∗8400 20030 11200 12360 7420 8790 5420 6700 4170 5870 3650
-1.5 m ∗8840 ∗8840 ∗13010 ∗13010 19760 10990 12110 7210 8630 5280 6630 4100 6250 3870
-3.0 m ∗13770 ∗13770 ∗18880 ∗18880 19810 11030 12080 7180 8610 5260 7060 4370
-4.5 m ∗19650 ∗19650 ∗27110 23010 ∗19370 11290 12260 7340 8810 5440 8760 5410
-6.0 m ∗20590 ∗20590 ∗14990 11830 ∗11060 8120
S84243
8
5800 kg
Pressure
34.34 MPa
(350 bar)
Kg
B
A
S84240C
S84241
6.45 m
L

Presentation
Plates and decals 15
VOE 2134355130

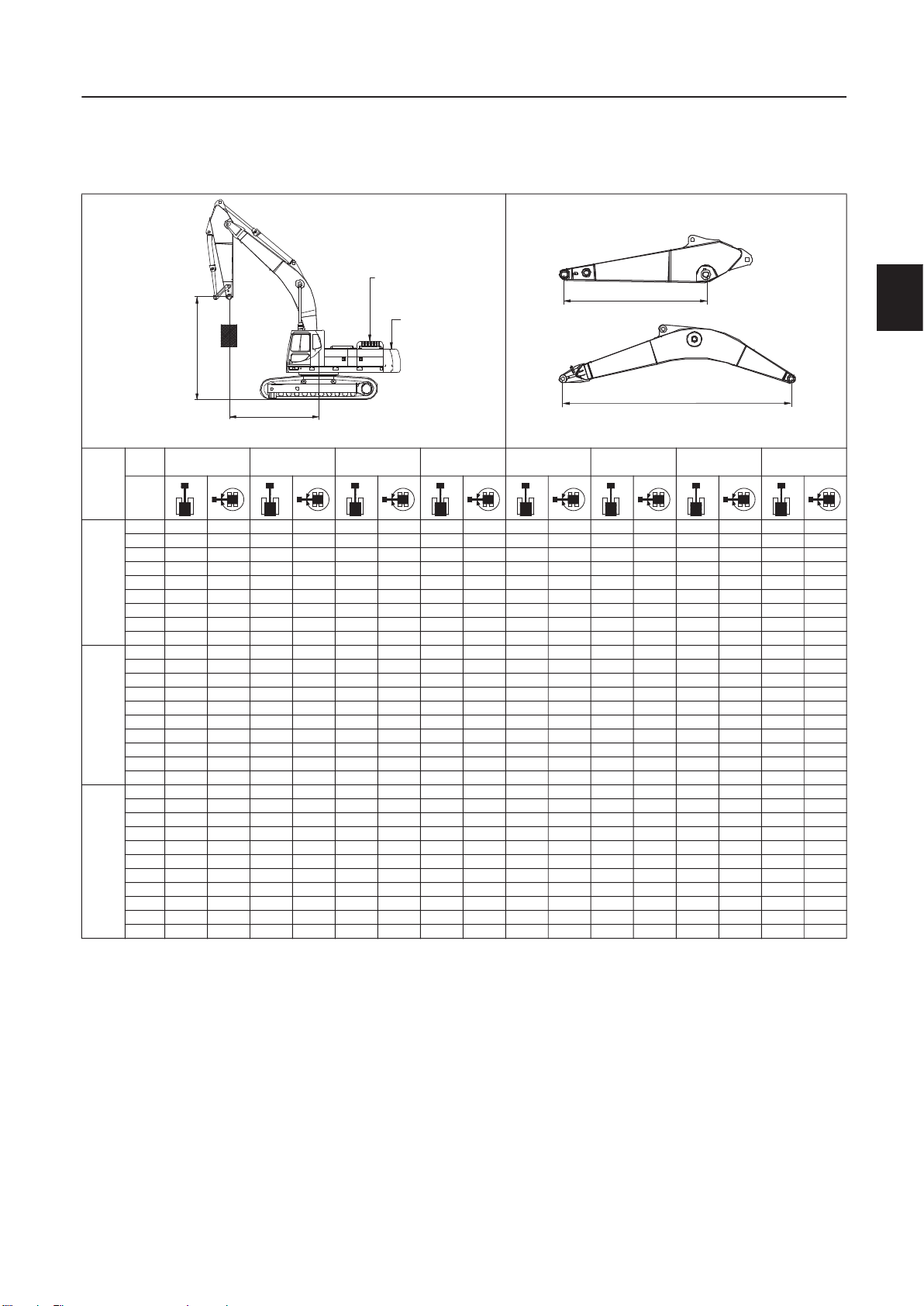

Shoe 23.6 in (lb)
∗Power booster ON
L
A0.0 ft 5.0 ft 10.0 ft 15.0 ft 20.0 ft 25.0 ft 30.0 ft Maximum
B
8' 6"
25 ft ∗20050 19990 ∗19670 15890
20 ft ∗23460 19510 20800 13450 ∗18980 12490
15 ft ∗34150 28910 ∗26800 18570 20390 13080 16860 10790
10 ft ∗43120 26370 28170 17480 19820 12560 15660 9940
5ft ∗38070 24910 27160 16600 19290 12080 15340 9660
0ft 43230 24520 26600 16110 18950 11780 15830 9920
-5 ft ∗32520 ∗32520 43320 24590 26470 16000 18900 11730 17390 10860
-10 ft ∗57130 51140 ∗43020 25020 26760 16250 20950 13020
-15 ft ∗44960 ∗44960 ∗34250 25940 ∗26490 18580
10' 6"
25 ft ∗16010 14100 ∗15760 14040
20 ft ∗17650 14010 ∗15280 11440
15 ft ∗26390 ∗26390 ∗21430 19230 ∗18990 13560 ∗15400 10060
10 ft ∗34110 27460 ∗25090 18060 20260 12980 15210 9760 14570 9330
5ft ∗39890 25540 27640 17040 19650 12420 14920 9490 14280 9080
0ft ∗42110 24730 26900 16390 19210 12020 14730 9310 14630 9250
-5 ft ∗31280 ∗31280 ∗41640 24590 26610 16140 19020 11860 15820 9970
-10 ft ∗36620 ∗36620 ∗49630 ∗49630 ∗38910 24870 26730 16240 19180 12000 18420 11570
-15 ft ∗44880 ∗44880 ∗33070 25590 ∗24590 16790 ∗22040 15250
-20 ft
12' 1"
25 ft ∗17720 14490 ∗12520 11980
20 ft ∗18350 14240 ∗13560 10220 ∗12180 9980
15 ft ∗22170 19600 ∗20130 13680 15560 10020 ∗12240 8840
10 ft ∗34950 28120 ∗26600 18220 20330 12960 15170 9660 ∗12680 8210
5ft ∗42860 25540 27630 16930 19540 12250 14760 9280 12710 7960
0ft ∗19100 ∗19100 42910 24130 26580 16010 18930 11690 14440 8980 12940 8050
-5 ft ∗19720 ∗19720 ∗29390 ∗29390 42300 23640 26040 15540 18580 11380 14300 8850 13800 8560
-10 ft ∗30830 ∗30830 ∗42720 ∗42720 42410 23730 25980 15490 18560 11370 15650 9690
-15 ft ∗44210 ∗44210 ∗58790 49240 ∗41790 24310 26400 15850 19580 12100
-20 ft ∗43640 ∗43640 ∗31640 25570 ∗24340 18620
-25 ft
12790 lb
Pressure
34.34 MPa
(350 bar)
lb
B
A
S84240D
S84241A
21' 2"
L

Presentation
16 Plates and decals
VOE 2134355130

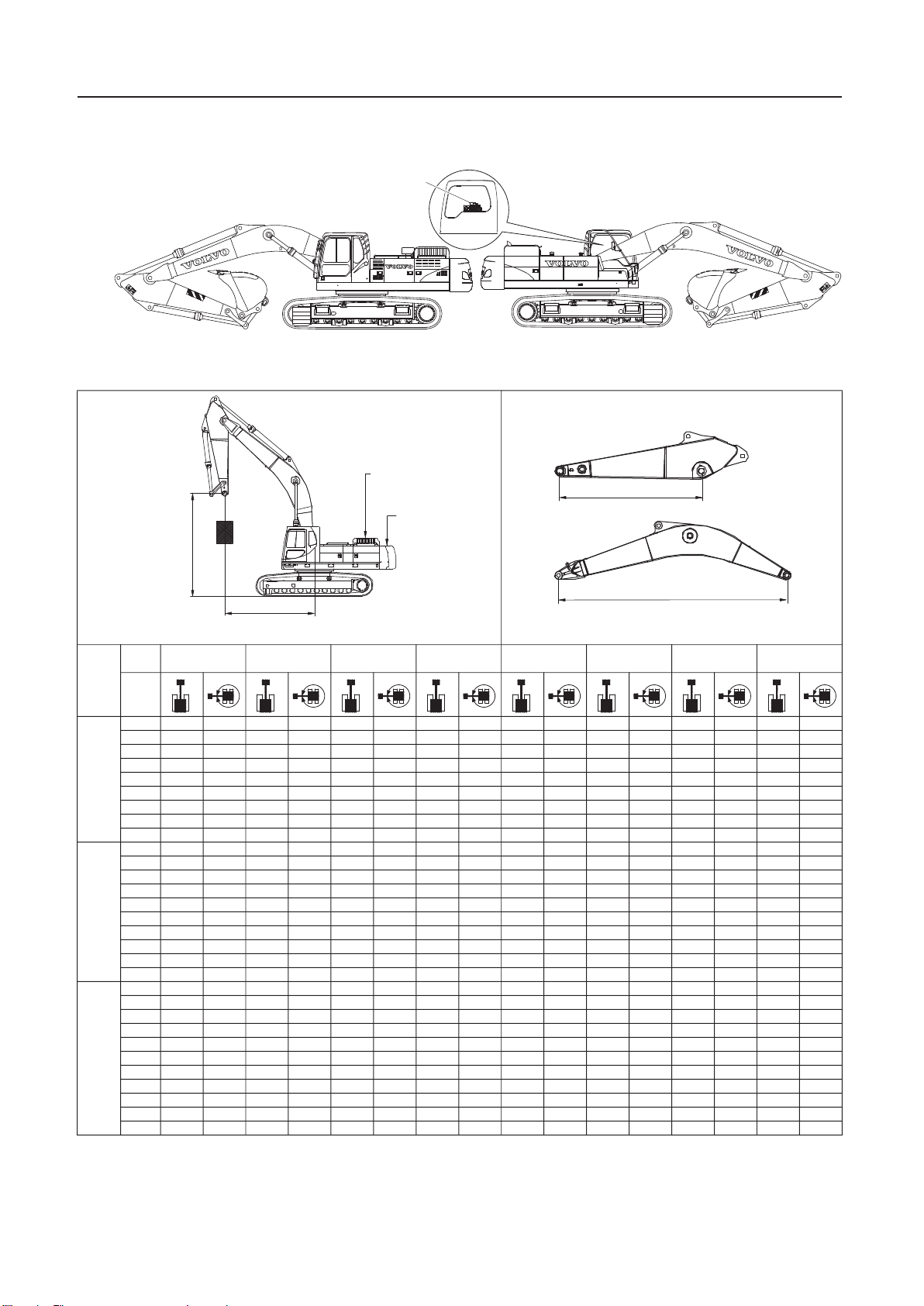

Shoe 31.5 in (lb)
∗Power booster ON
L
A0.0 ft 5.0 ft 10.0 ft 15.0 ft 20.0 ft 25.0 ft 30.0 ft Maximum
B
8' 6"
25 ft ∗20050 20490 ∗19670 16310
20 ft ∗23460 20010 21410 13820 ∗18980 12850
15 ft ∗34150 29640 ∗26800 19060 21010 13450 17390 11120
10 ft ∗43120 27100 29010 17970 20430 12930 16170 10250
5ft ∗38070 25640 28000 17090 19910 12460 15840 9970
0ft 44570 25250 27450 16610 19570 12160 16350 10240
-5 ft ∗32520 ∗32520 44670 25330 27320 16500 19520 12110 17960 11210
-10 ft ∗57130 52550 ∗43020 25750 27610 16750 21620 13430
-15 ft ∗44960 ∗44960 ∗34250 26670 ∗26490 19120
10' 6"
25 ft ∗16010 14480 ∗15760 14430
20 ft ∗17650 14400 ∗15280 11780
15 ft ∗26390 ∗26390 ∗21430 19750 ∗18990 13950 ∗15400 10370
10 ft ∗34110 28220 ∗25090 18580 ∗20870 13370 15720 10070 15060 9640
5ft ∗39890 26300 ∗28380 17550 20290 12810 15430 9800 14760 9380
0ft ∗42110 25490 27780 16910 19850 12410 15240 9630 15140 9560
-5 ft ∗31280 ∗31280 ∗41640 25350 27480 16650 19660 12250 16360 10300
-10 ft ∗36620 ∗36620 ∗49630 ∗49630 ∗38910 25630 27610 16760 19820 12390 19030 11940
-15 ft ∗44880 ∗44880 ∗33070 26360 ∗24590 17310 ∗22040 15710
-20 ft
12' 1"
25 ft ∗17720 14860 ∗12520 12310
20 ft ∗18350 14610 ∗13560 10520 ∗12180 10270
15 ft ∗22170 20100 ∗20130 14050 16050 10320 ∗12240 9110
10 ft ∗34950 28850 ∗26600 18720 20940 13330 15660 9960 ∗12680 8480
5ft ∗42860 26280 28480 17420 20150 12620 15250 9580 13140 8220
0ft ∗19100 ∗19100 44250 24870 27430 16510 19540 12070 14920 9280 13380 8320
-5 ft ∗19720 ∗19720 ∗29390 ∗29390 43650 24370 26890 16040 19200 11760 14780 9150 14270 8850
-10 ft ∗30830 ∗30830 ∗42720 ∗42720 43760 24470 26820 15980 19180 11740 16170 10010
-15 ft ∗44210 ∗44210 ∗58790 50660 ∗41790 25050 27240 16350 20220 12480
-20 ft ∗43640 ∗43640 ∗31640 26300 ∗24340 19160
-25 ft
S84243
8
12790 lb
Pressure
34.34 MPa
(350 bar)
lb
B
A
S84240E
S84241A
21' 2"
L

Presentation
Plates and decals 17
VOE 2134355130

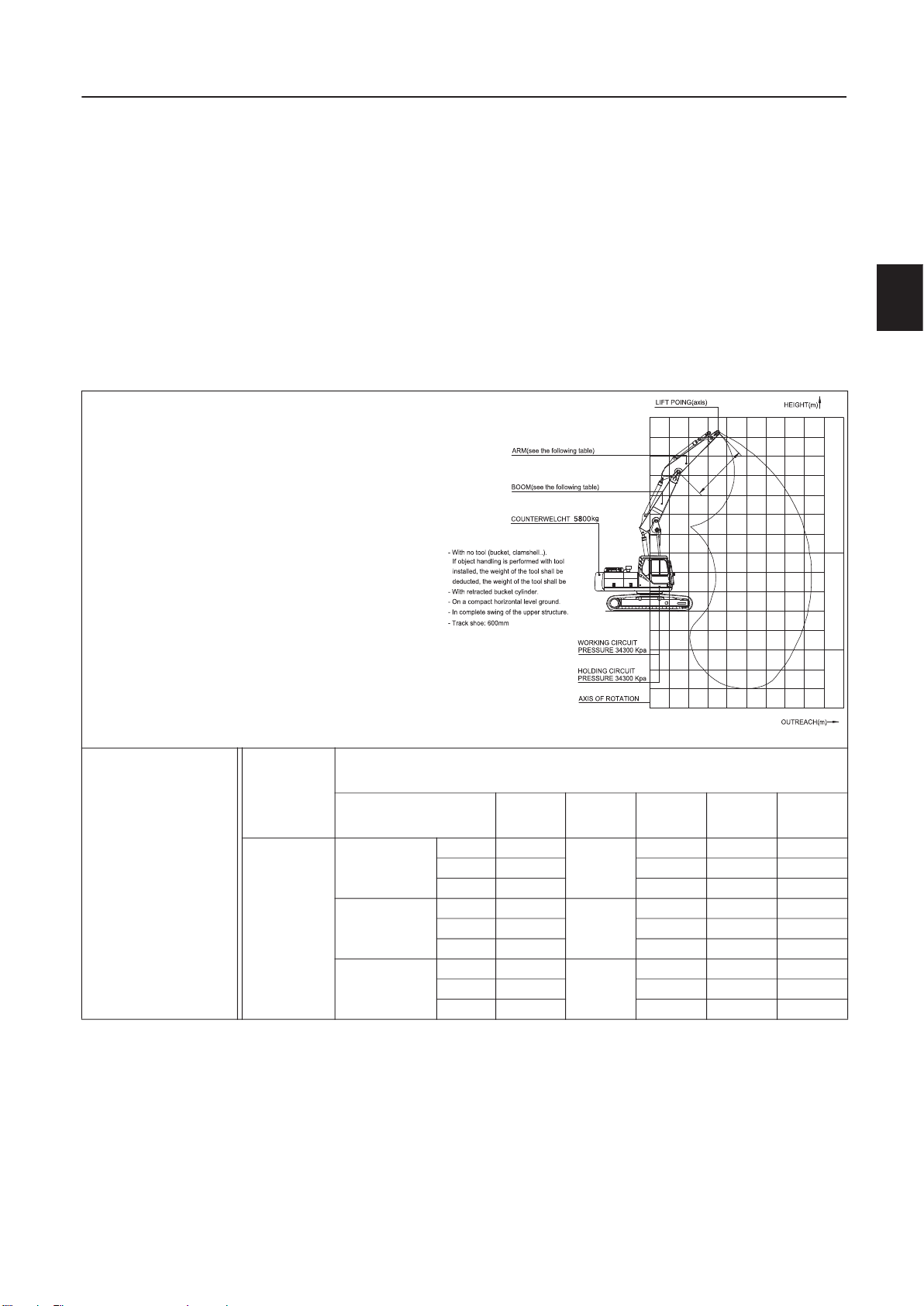

Shoe 600 mm (kg)
Working conditions:
– With no tool (bucket, clamshell.).
If object handling is performed with tool installed, the weight of
the tool shall be deducted, the weight of the tool shall be
– With retracted bucket cylinder.
– On a compact horizontal level ground.
– In complete swing of the upper structure.
– Track shoe: 600 mm
BOOM length 6.45 m
OUTREACH IN METERS - LOADS IN kg
OUTREACH (m) 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
ARM (LD)
LD=2.6
Z2 -
11390
7690 5830 -
Z1 14290 7420 5430 -
Z3 20920 7530 - -
LD=3.2
Z2 -
11420
8360 6010 4530
Z1 13820 7480 5490 4310
Z3 20830 7520 5550 -
LD=3.9
Z2 -
10990
8440 6010 4490
Z1 8400 7210 5280 4100
Z3 18880 7180 5260 -
S84242B
9
8
7
6
5
4
3
2
1
0
1
2
3
4
5
012 34 5 67 89
Z3
Z1
Z2
LD

Presentation
18 Plates and decals
VOE 2134355130
9 Cab door window breakage
10 Lubrication and service chart
See Lubrication and service chart on page 172.
11 Warning for rotating parts
S82283E
15
12 13 14
9
10
11
S82002
WARNING
!
S83013
S80605A
