Von Duprin 2227-F User manual

2227 Series
Vertical Rod
Exit Device
Service manual

2 • Von Duprin • 2227 Series Vertical Rod Exit Device Service Manual
INDEX
2227 Vertical Rod Devices
Basic Panic Device.....................................................................................................................4-5
Basic Fire Device........................................................................................................................6-7
Vertical Rods and Latch Cases.................................................................................................... 8-9
Baseplate Assemblies.................................................................................................................. 10

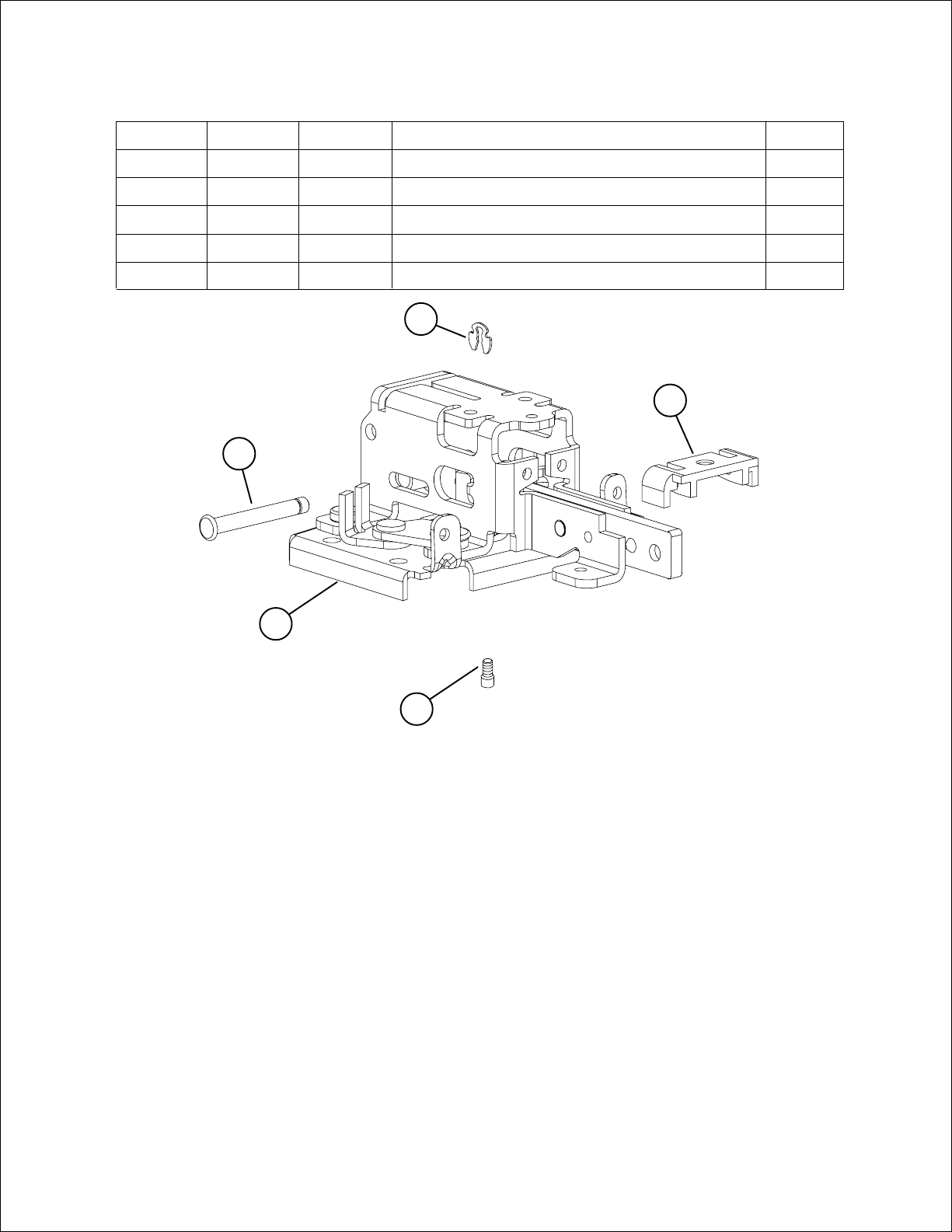

Center Case Assembly.................................................................................................................. 11

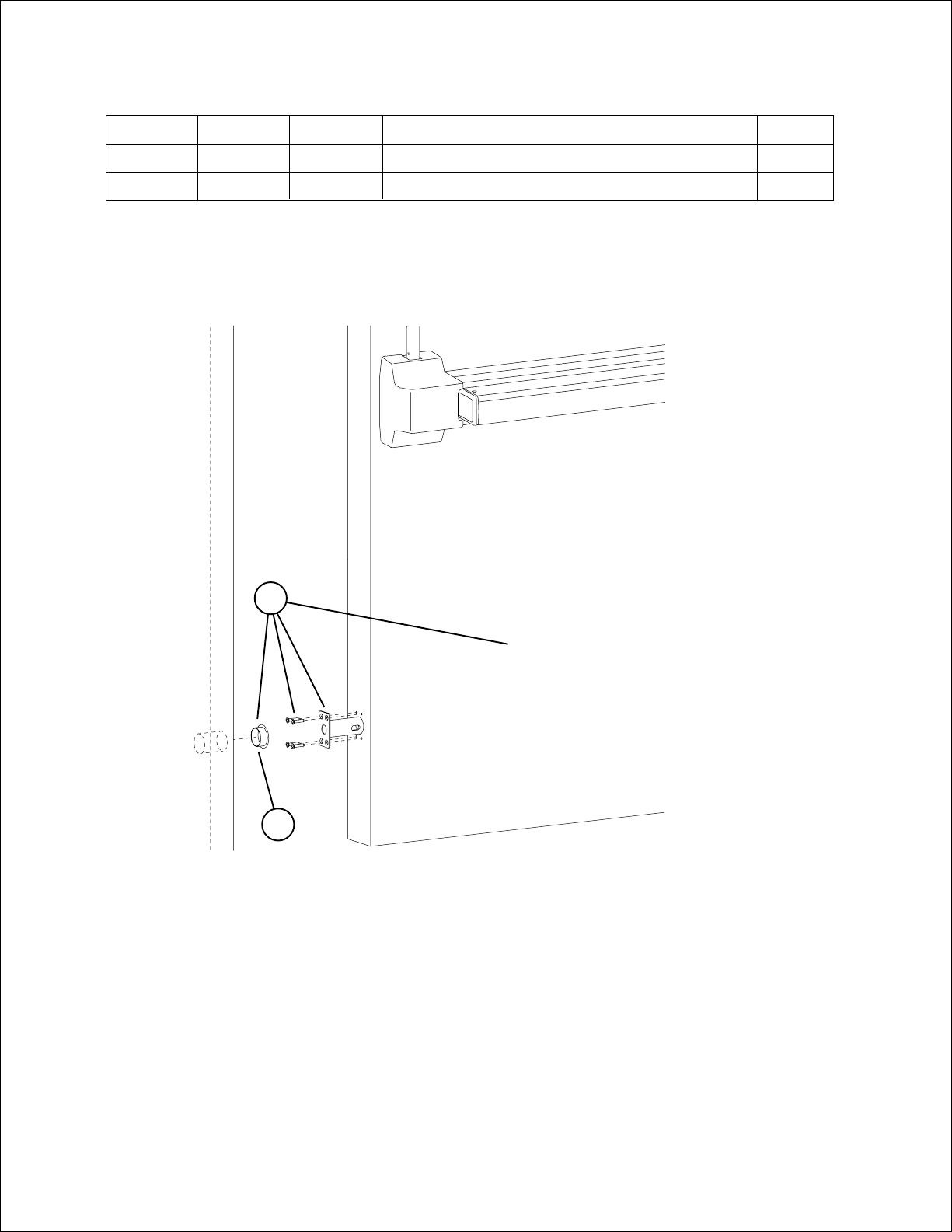

LBR Fire Latch Kit ........................................................................................................................ 12
Variations of the Basic Device

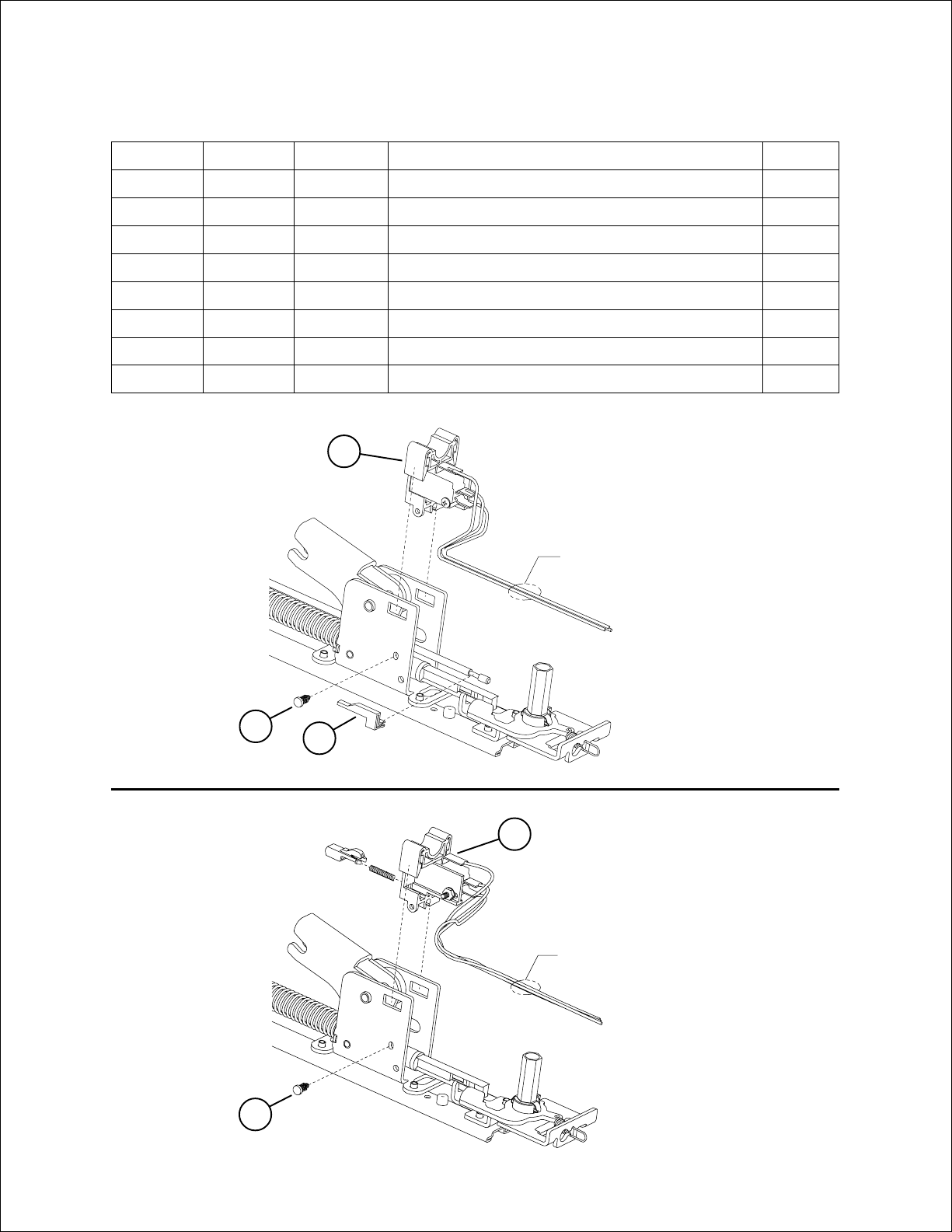

RX (Request to Exit)........................................................................................................... 13
LX (Latch Bolt Monitoring)................................................................................................... 13
ALK Exit Alarm Kit .............................................................................................................. 14
General Information
Introduction..................................................................................................................................... 2
How to Order.................................................................................................................................. 2
Part Number Changes.................................................................................................................... 2
Finishes......................................................................................................................................... 3
Outside Trim Functions.................................................................................................................. 3
Strikes ............................................................................................................................................ 3
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 2227 and 2227-F Exit Hardware
Devices.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package.
For the best possible service when ordering replacement parts or assemblies, please provide the following
information:
•Part number or assembly number
•Description
•Quantity needed
•Finish desired (if available finished)
•Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division
Allegion
2720 Tobey Drive
Indianapolis, IN 46219
Phone: [phone]
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale.
Because of changes to the product and/or manufacturing process, part numbers and availability can
change over time.

Von Duprin • 2227 Series Vertical Rod Exit Device Service Manual • 3

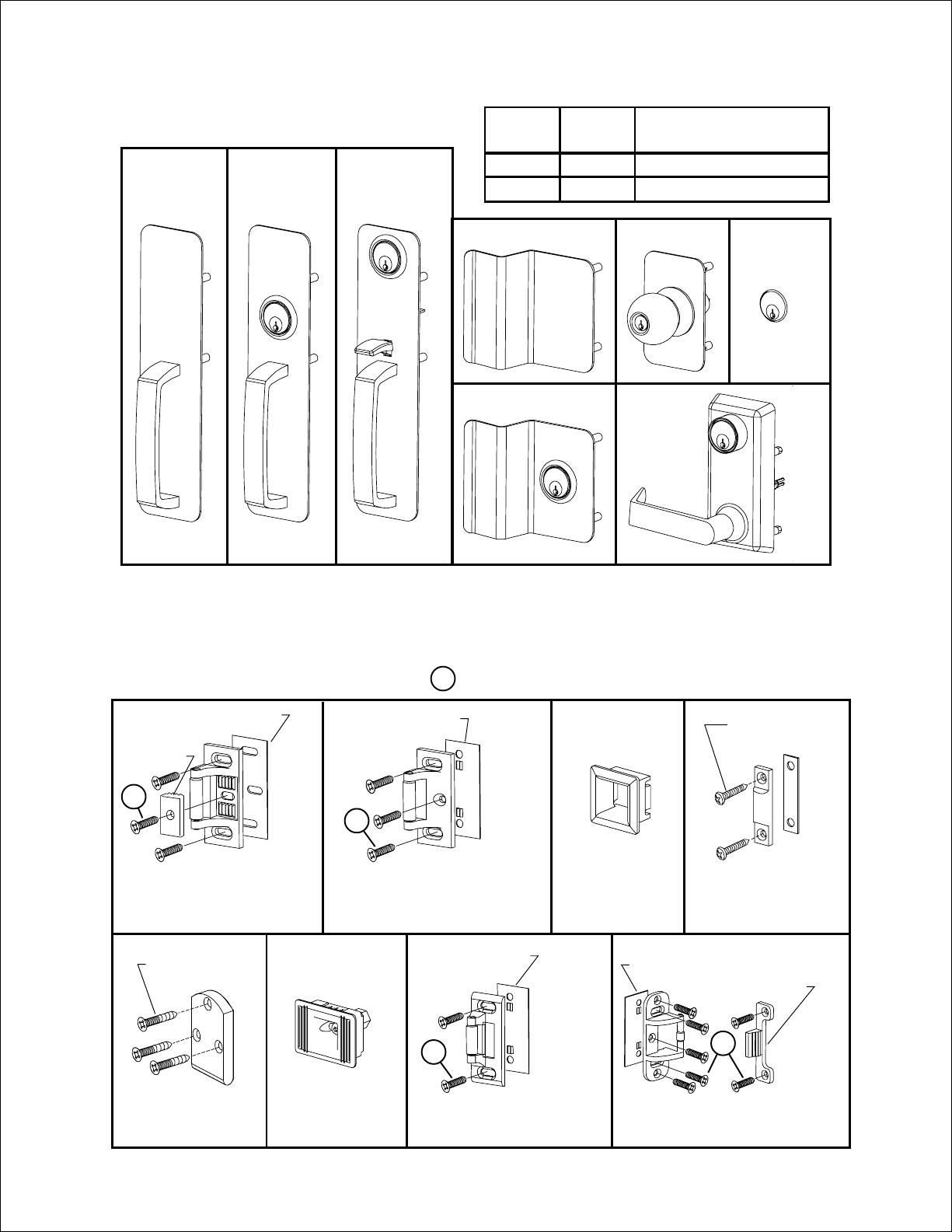

299 (Top) Strike - Standard
Single or Double Door
Panic Exit Hardware
Adjusting Shim 945521
499F (Top) Strike - Supplied
with LBR Fire Latch/Strike Kit
Strike Hook 969300
299F (Top) Strike -
Single or Double Door
Fire Exit Hardware
Adjusting Shim
945521
260U (Top) Strike -
Panic or Fire Exit
Hardware
304L
(Bottom) Strike
Panic or Fire
Exit Hardware
STRIKES
248L-4
(Bottom) Strike
Panic Exit
Hardware
385A
(Bottom) Strike
Panic or Fire Exit
Hardware
1Metal Door Screw Package PKGSRV.1023 (Pkg of 10)
Wood Door Screw 964291 (Qty of 1)
Adjusting Shim 970321
Strike Plate
970323
Screw Pkg
900252
Screw Pkg
900263
Adjusting Shim
945521
1
264 (Top) Strike - Single
Door Panic Exit Hardware
1
1
1
210K
OUTSIDE TRIM FUNCTIONS
* “BE” (Blank Escutcheon) no cylinder used - lever always active
** “NL” (Night Latch) rigid lever - key retracts latch bolt
***”DT” (Dummy Trim) rigid lever for pull operation
**** Optional Pull needs to be added
210DT
210NL**230L
230DT*** 230NL** 230TP
110NL****
22 SERIES FINISHES
SP28
SP313
689
695
Painted Aluminum
Painted Dark Bronze
U.S. Std
Reference
BHMA
ReferenceDescription

4 • Von Duprin • 2227 Series Vertical Rod Exit Device Service Manual

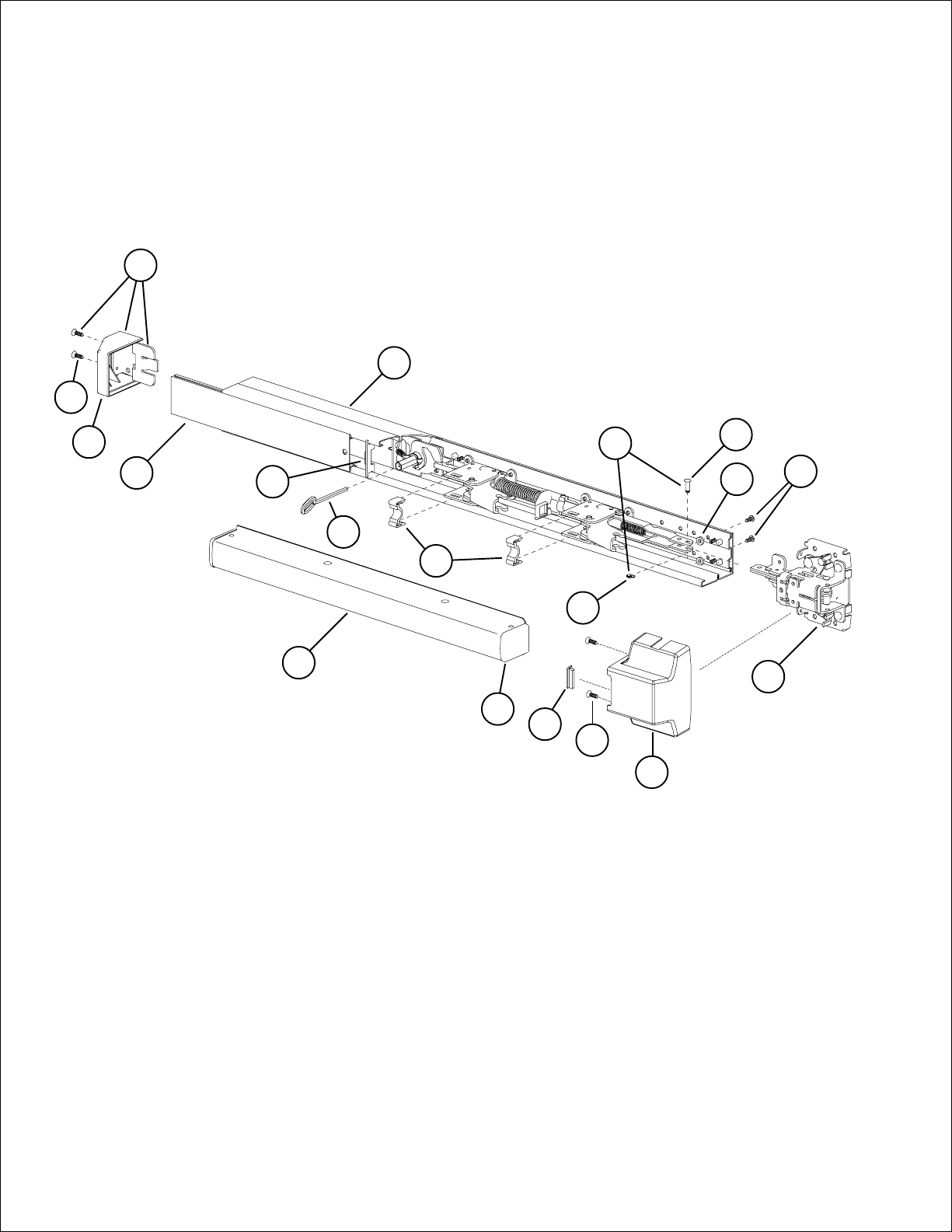

2227 VERTICAL ROD PANIC DEVICE
13
9
65
11
2
10
1
8
3
7
14
12
15
4
16
17
18
19

Von Duprin • 2227 Series Vertical Rod Exit Device Service Manual • 5
Item No. Quantity Part No. Description Finish
19005632227 Series Mounting Pkg 1-3/4 Door
19005682227 Series Mounting Pkg 2-1/4 Door
1 1 090085227 Dog Key 5/32” Hex (Pkg of 10)
1 1 090005227 Dog Key 5/32” Hex (Pkg of 2)
2 1 *PBKIT22 Series Push Bar Retrofit Kit - 3’ Door X
2 1 *PBKIT22 Series Push Bar Retrofit Kit - 4’ Door X
3 1 1093582227/27-F Center Case Less Cover
4 1 96860122 Mechanism Case End Cap
5 2 090037 Baseplate Screw (Pkg of 10)
6 2 964013 3/8” x 3/16” x 3/32” Washer
7 1 05052922 Series Control Link Pin & Ret. Ring
8 1 090107Ret. Ring Pkg/10
9 1 090031Control Link Pin Pkg/10
10 1 968592Cover Plate Bearing Insert
11 1 96859522/2227 Cover Plate - 3' Dr X
11 1 96859622/2227 Cover Plate - 4' Dr X
12 1 90098122 End Cap Kit
13 1 97003522 Mechanism Case - 3' Dr X
13 1 97003622 Mechanism Case - 4' Dr X
14 2 966268 Touch Bar Cover Bearing Insert
15 1 96859822 Push Bar End Cap
16 1 968888 2227/27-F Center Case Cover X
17 2 09007722 Series Center Case Cover Screw Pkg/4
18 2 96452022 End Cap Screw
19 1 966268 Touch Bar Cover Bearing Insert
X in “Finish” column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 22 3’ SP28
2227 VERTICAL ROD PANIC DEVICE

6 • Von Duprin • 2227 Series Vertical Rod Exit Device Service Manual
2227-F VERTICAL ROD FIRE DEVICE
12
8
54
10
1
9
7
2
6
13
11
14
3
15
16
17
18

Von Duprin • 2227 Series Vertical Rod Exit Device Service Manual • 7
Item No. Quantity Part No. Description Finish
19005632227 Series Mounting Pkg 1-3/4 Door
19005682227 Series Mounting Pkg 2-1/4 Door
1 1 *PBKIT22 Series Push Bar Retrofit Kit - 3’ Door X
1 1 *PBKIT22 Series Push Bar Retrofit Kit - 4’ Door X
2 1 1093582227/27-F Center Case Less Cover
3 1 96860122 Mechanism Case End Cap
4 2 090037 Baseplate Screw (Pkg of 10)
5 2 964013 3/8” x 3/16” x 3/32” Washer
6 1 05052922 Series Control Link Pin & Ret. Ring
7 1 090107Ret. Ring Pkg/10
8 1 090031Control Link Pin Pkg/10
9 1 968592Cover Plate Bearing Insert
10 1 96912722/2227-F Cover Plate - 3' Dr X
10 1 96912622/2227-F Cover Plate - 4' Dr X
11 1 90098122 End Cap Kit
12 1 97003522 Mechanism Case - 3' Dr X
12 1 97003622 Mechanism Case - 4' Dr X
13 2 966268 Touch Bar Cover Bearing Insert
14 1 96859822 Push Bar End Cap
15 1 968888 2227/27-F Center Case Cover X
16 2 09007722 Series Center Case Cover Screw Pkg/4
17 2 96452022 End Cap Screw
18 1 966268 Touch Bar Cover Bearing Insert
X in “Finish” column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 22 3’ SP28
2227-F VERTICAL ROD FIRE DEVICE

8 • Von Duprin • 2227 Series Vertical Rod Exit Device Service Manual

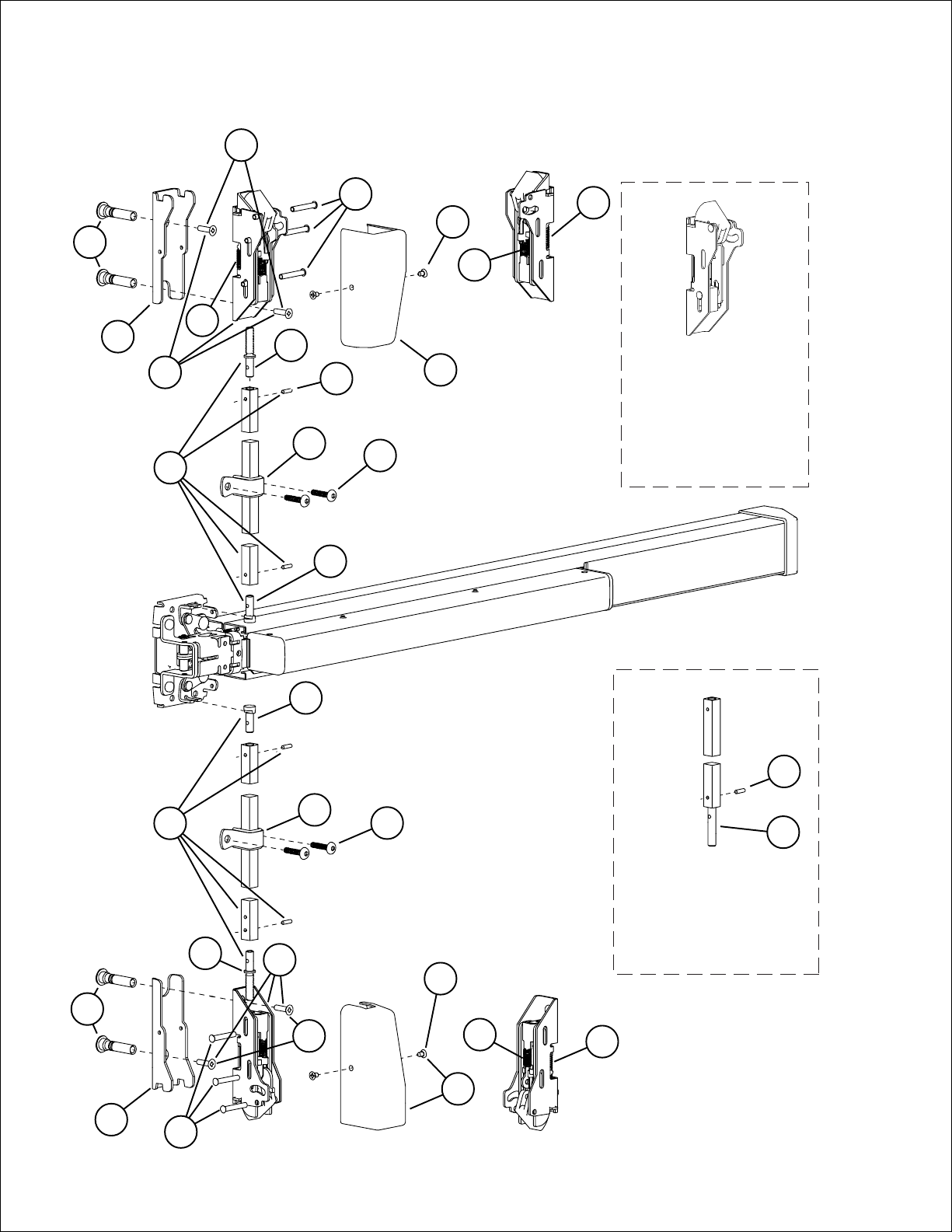

2227 VERTICAL RODS AND LATCHES
12
8
11
18
14
1
19
16
7
10
49
17
13
2
17
49
14
11
8
10
15
1
19
20
20
3
6
7
5
18
Extension Rod Kits
2227 36” 051804
(36” extension rod kits
include items 4 & 9)
Optional
Pullman Latch
Kit Less Cover
050402
Panic Device Only -
Includes Mtg Screws

Von Duprin • 2227 Series Vertical Rod Exit Device Service Manual • 9
2227 VERTICAL RODS AND LATCHES
Item No. Quantity Part No. Description Finish
1 2 034902325 Sex Bolt Package (Pkg of 2) X
2 1 109361 XdoRlacitreVpoT7222
3 1 1093622227 XdoRlacitreVmottoB
4 2 112063 XgkPediuGdoR7222
5 1 0504012227 Bottom Latch Kit Less Cover
6 1 0504002227 Top Latch Kit Less Cover
7 1 900589 Latch Mounting Package (Pkg of 4)
8 2 900850 Latch Case Cover Screw (Pkg of 2) X
9 2 9009192227 Rod Guide Mounting Package X
10 4 090054 Rod Roll Pin (Pkg of 10)
11 2 090065Bolt Return Spring (Pkg of 10)
12 1 090056 Top Latch Compression Spring (Pkg of 10)
12 1 090057 PL Top Latch Spring (Pkg of 10)
13 1 090058 Bottom Latch Case Spring (Pkg of 10)
14 2 090067Rod Connector - Latch (Pkg of 2)
15 1 0900752227 Rod Extension Connector Pkg/4
16 1 090076 Aux. Bolt Spring (Pkg of 10)
17 2 090068Rod Connector - Center Case (Pkg of 2)
18 2 050566 Latch Case Cover Kit w/Screws X
19 2 050546 Latch Case Mtg. Bracket Kit
20 6 090055 Housing Guide Pin (Pkg of 10)
* 1 0500902227 Bottom Latch Retrofit Kit X
* 1 0500912227 Top Latch Retrofit Kit X
* For devices shipped before October 1998.
X in “Finish” column designates finished items; finish must be specified when ordering.

10 • Von Duprin • 2227 Series Vertical Rod Exit Device Service Manual
Item No. Quantity Part No. Description Finish
1 1 090043Dogging adapter (Pkg of 2)
2 1 090042Dogging adapter spring (Pkg of 2)
3 1 090041 Dogging spring (Pkg of 2)
4 1 090040Hex dogging shaft (Pkg of 2)
5 1 090044Dogging hook (Pkg of 2)
6 1 090039Latch return spring (Pkg of 10)
7 4 090038Rubber bumper (Pkg of 4)
8 1 050491Shock absorber
9 1 090048 Baseplate Bearing Strip (Pkg of 2)
7
64
5
1
2
3
89
2227 PANIC DEVICE BASEPLATE ASSEMBLY
1
2
1
Item No. Quantity Part No. Description Finish
1 4 090038Rubber bumper (Pkg of 4)
2 1 090039 Baseplate Return Spring Pkg/10
2227-F FIRE DEVICE BASEPLATE ASSEMBLY
