Von Duprin 9950WDC User manual

*24739468*
24739468
NOTE: If door does not have a
cutout for cabling inside lock
stile, door must be routed. Refer
to 98/9950WDC wood door
template #24663650.
!
1-Point
Latch
(LBL)
2-Point
Latch
includes these
additional
components
Fire-Rated
Devices
include these
additional
components
Metal Edge
Wrap required
for 60 and
90-minute
applications
98/9950WDC
Installation Instructions

2
1 OVERVIEW AND DOOR PREPARATION
TABLE OF CONTENTS
INSTALLATION
Overview and Door Preparation pg 2-3
Fire Barrier pg 4-5
Latch Installation pg 6
Cable Installation pg 7
Device Installation pg 8-9
ADJUSTMENT
Device Adjustment pg 10-11
Strikes and Fire Pin pg 12-13
Bottom Latchbolt Clearance pg 14
Top Strike and Covers pg 15
Troubleshooting pg 16
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
98/9950WDC
Instead of traditional rods, concealed vertical cables are utilized, making use of a proven technology
that enables quick installation and allows for easy maintenance. Simplified sizing, ease of adjustment
and greater door integrity make the Wood Door Concealed exit device a more secure solution, without
the complexity associated with traditional concealed systems. Another key benefit of the system is the
ability to make adjustments to the system by simply removing the scalp plate from the edge of the
door.
If you have any questions or comments please visit the resources below or give us a call so we can
help get you on your way. Thank you for your continued support of Von Duprin.
Technical Support hot line: 877-671-7011
Scan this QR code or visit us online at kc.allegion.com to access the
Allegion Knowledge Center.
Need a reader for your phone?
For iPhone: QR Reader
For Android: QR Barcode Scanner

3
1 (continued)

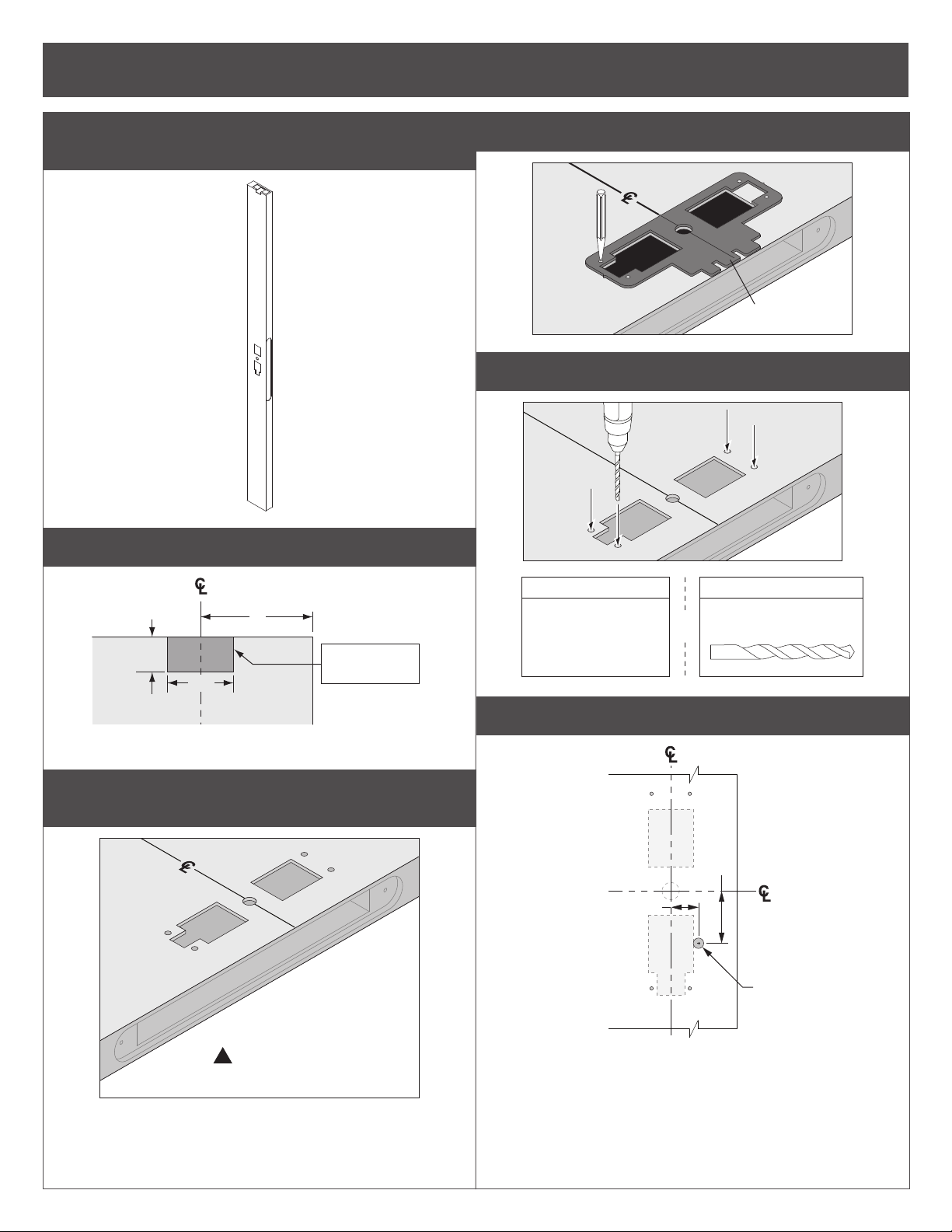

1a For 60 and 90-minute applications, install metal edge
wrap.
1b If necessary, prepare door for top strike cutout.
⁵⁄₈"
Cut out material
this side only
Latch
Push side of door, RHR shown
2"
1³⁄₁₆"
1c With door laying at, draw horizontal device center
line (C
L).
RHR shown
(LHR opposite)
NOTE: Centerline is
predetermined by cutout.
!
1d If necessary, align plastic template to mark 4 holes.
Plastic
Template
1e Prepare center case mounting holes as required.
Sex Bolts or 990 Trims
¹³⁄₃₂"
Trim side
⁵⁄₁₆"
Device side
Surface Mount
¹⁄₈" Drill
Pilot 1¹⁄₂" Deep
OR
1f Prepare center slide mounting hole.
Ø ³⁄₈"
Push side
only
1⁷⁄₈"
Push side of door, RHR shown
(LHR opposite)
Device
1"
Device

4

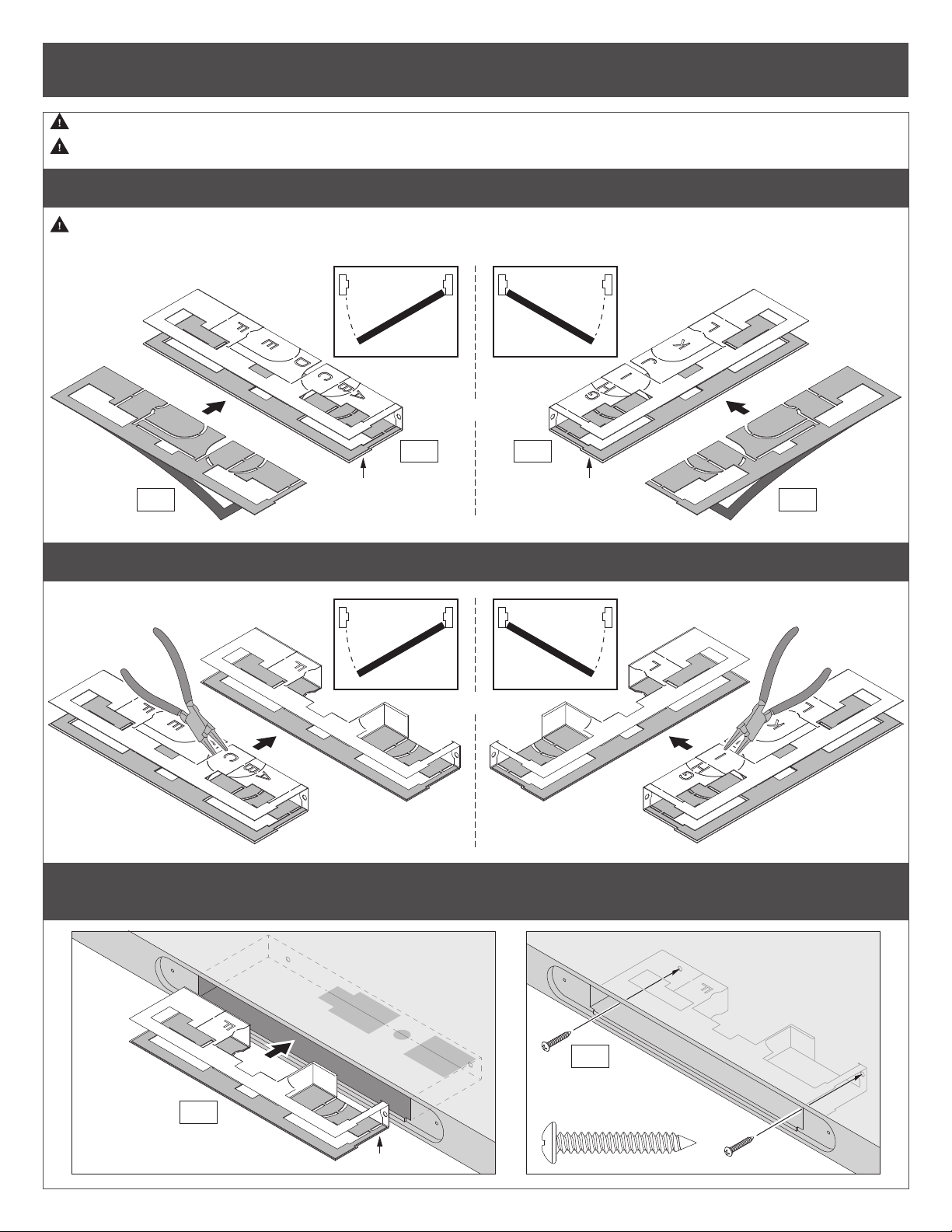

2 FIRE BARRIER
Fire application only
 Firecomponentsmustbeinstalledtomaintainreratingofopening.
2a Peel adhesive backing from intumescent and apply to trim side of re barrier.
 Intumescentmustbeproperlyalignedbeforeexposedadhesivecontactsrebarrier.Adhesiveispermanentandnot
repositionable.
Trim Side Trim Side
RHR LHR
OR
a-1 a-1
a-2 a-2
2b Remove appropriate knockouts for device and trim.
RHR LHR
Exit Only (EO) shown Exit Only (EO) shown
OR
2c With re barrier in correct orientation, slide barrier into door pocket. Secure re barrier to inside of pocket with 2
screws.
Trim Side
c-1
c-2
RHR shown

5
2 (continued)
Trim
Model
Exit Only
990
990
996
996
990
990
996
996
996
996
996
996
VR910
VR910
VR914
VR914
AD-993
CO-993
696
697
392-7
696
697
696
696
697
697
110
110WD
IVES 8190
Trim
Function
EO
DT
NL
L-NL
K-NL
TP
TP-BE
L
L-BE
L-DT
K
K-BE
K-DT
DT
NL
DT
NL
-
-
DT
DT
-
NL
NL
TP
TP-BE
TP
TP-BE
NL-MD
NL-OP
-
Right Hand Reverse (RHR)
Remove the knockouts listed below
A B C D E J K
A B C D E H I J K
A B C D E H I J K L
A B C D E K
A B C D E H I K
A B C D E F H I K
A B C D E H I K
Drill thru barrier
Left Hand Reverse (LHR)
Remove the knockouts listed below
D E G H I J K
B C D E G H I J K
B C D E F G H I J K
E G H I J K
B C E G H I J K
B C E G H I J K L
B C E G H I J K
Drill thru barrier
FIRE BARRIER KNOCKOUT TABLE
RHR LHR

6

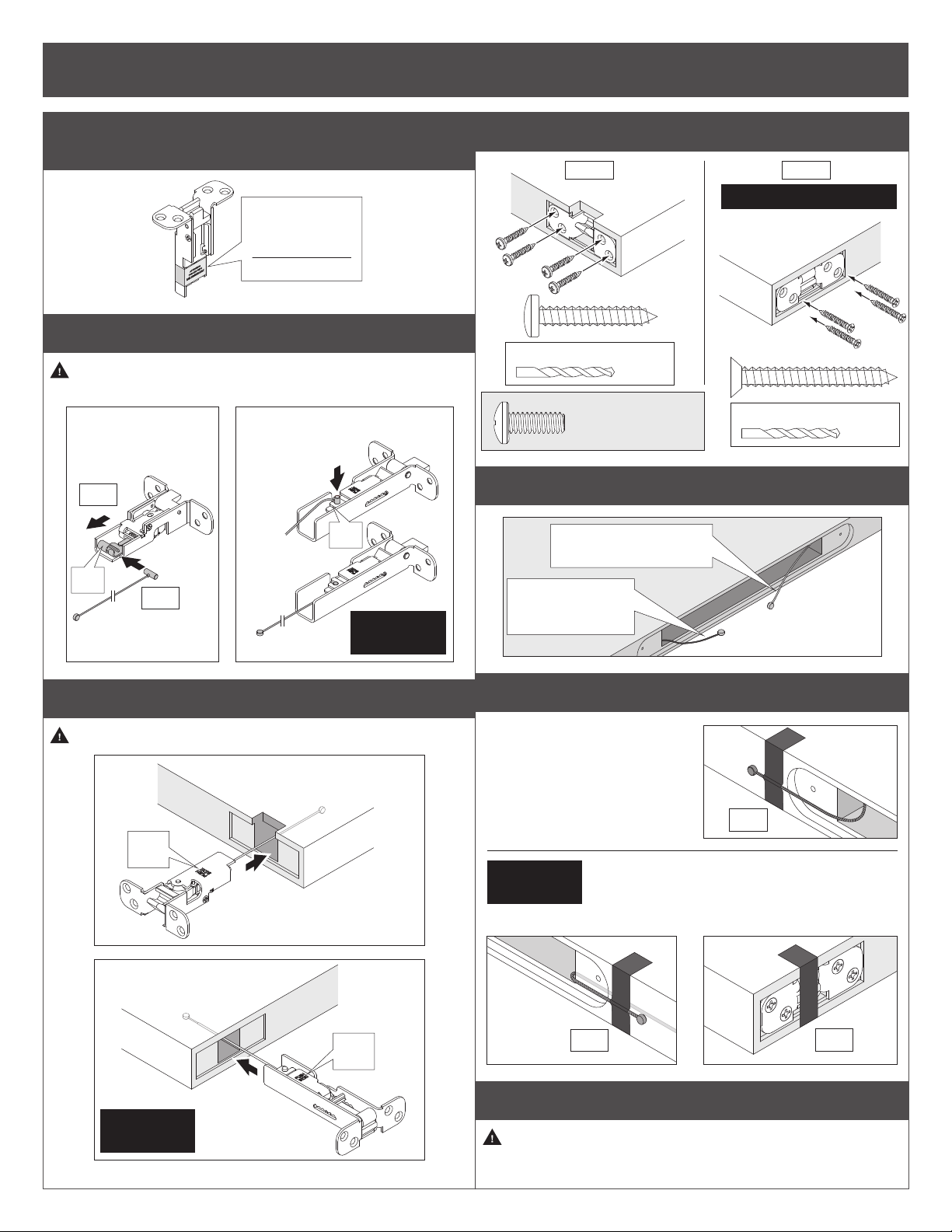

3 LATCH INSTALLATION
3a Conrm top latch is marked for EXIT DEVICES ONLY,
then remove label.
ATTENTION:
FOR USE WITH
EXIT DEVICES ONLY
3b Connect cable end tting(s) to latch(es).
 For2-pointlatches,thetopcableisthelongerofthetwo
cables.Topcableissilver,bottomcableisblack.
Top Bottom
For 2-Point
Latch Only
Pull down on
cable link
Slide cable end
into cable link
b-2
b-1
Bend cable slightly
to access
cable link,
then
install
cable
link
cable
link
3c Slide latch(es) into door pocket.
 Clearcablechannelofdebrisrstifnecessary.
Push Side
of Door
Push Side
of Door
Bottom
For 2-Point
Latch Only
Top
Push
Side
Push
Side
3d Secure latch(es).
RHR shown
Push Side
of Door
Push Side
of Door
BottomTop
For 2-Point Latch Only
#25 Drill, Pilot 1¹⁄₂" Deep x4
#10 x 1¹⁄₂"
#25 Drill, Pilot 1¹⁄₂" Deep x4
If using metal edge
wrap, mount latches
using this screw
3e Perform cable binding check at mortise pocket.
TOP
Pulling on top cable should
lock and unlock top latch.
(2-pt only) Pulling on
bottom cable should
retract bottom latch.
3f Prepare door for hanging.
Pull bottom cable taut enough so bottom bolt will not
drag against floor, and tape cable end to door edge
(f-2). This holds cable in place, preventing it from
dropping into door channel. Tape bottom bolt in place
(f-3).
Pull top cable taut and tape cable
end to door edge (f-1).
f-3
f-2
f-1
For 2-Point
Latch Only
3g Hang door on frame.
 For2-pointlatches,bottomlatchcannotbeinlocked
positionwhilehangingdooronframe.Latchmustbe
retracted.

7

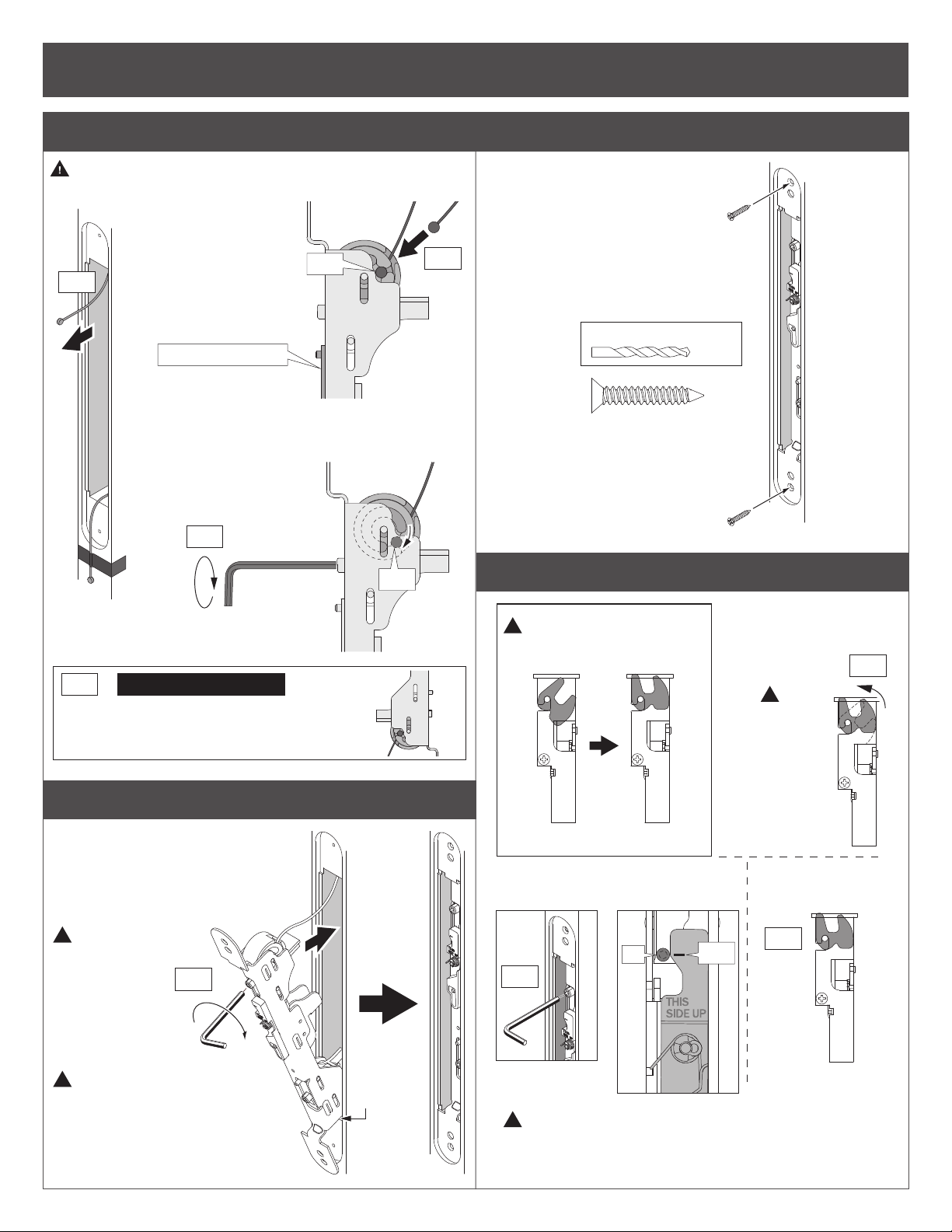

4 CABLE INSTALLATION
4a Insert cable end tting(s) into center slide.
 Besuretoattachtopcabletotopendofcenterslide
(marked“ThisSideUp”)
a-4
a-5
⁵⁄₃₂"
hex
wrench
a-2 a-3
Remove tape from door edge, then repeat
process to install bottom cable into bottom spool.
For 2-Point Latch Only
a-6
a-1
Pull top cable thru mortise
opening (a-1).
Rotate spool using hex
wrench to reveal cable hole
in spool (a-2), if it is not
visible or only partially
visible.
Insert cable end into spool
(a-3).
Turn spool screw clockwise
(a-4) to rotate spool until
cable end is beneath profile
of center slide (a-5).
Marked "This Side Up"
4b Take up top cable slack only.
⁵⁄₃₂"
hex wrench
Position center slide as shown. Turn top
spool screw clockwise to tighten (b-1)
until center slide is no longer hanging
outside door.
NOTE: If clicking noises are heard
during clockwise adjustment, unwind
the cable with one-half turn counter-
clockwise. Then, continue clockwise
adjustment. If clicking persists, check to
be sure cable is not caught on an edge.
!
Center slide
is resting on
step of door
pocket
b-1
Do not adjust
bottom cable
at this time.
!
4c Secure center slide.
¹⁄₈" Drill, Pilot 1" Deep x2
#8 x 1"
4d Adjust top spool.
Turn top spool screw (d-2) until pin is
centered to the line (d-3).
Put top latch in locked
position (d-1).
NOTE: Top latch must be placed
in locked position prior to making
top adjustment.
!
Released Locked
NOTE: No further top spool adjustment needed.
Put hex wrench away until Step 8b.
!
Confirm top latch is
still locked (d-4).
Locked
d-1
d-4
d-2
pin d-3
If latch won’t lock,
top spool screw
was overtightened
in Step 4b and
needs to be
backed out
counter-clockwise.
!

8
5 DEVICE INSTALLATION
5a If necessary, cut device.
Cover Plate
Flush
Door
1¹⁄₂" (38 mm)
Recommended
Jamb
Jamb
Temporarily Remove
Anti-Rattle Clip
5b If necessary, remove NL drive screw.
With the NL drive screw removed, key locks and unlocks lever, knob, or
thumb piece. For the trims listed below,
REMOVE NL drive screw.
996L 696TP 990TP
996K 697TP
With the NL drive screw installed, key retracts latch bolt.
DO NOT remove
NL drive screw for the following applications:
NL, EO, DT trims and 98/99-2 double cylinder devices (i.e. TP-2,
L-2, and K-2).
If the trim being installed is "BE" (i.e. 996L-BE), the trim lock tumbler
on the back of the device must be in the
UP position before device
is installed. This allows the trim to be unlocked at all times.
*
*996L-BE
*996K-BE
*E996L
*E996L-BE
*696TP-BE
*697TP-BE
*990TP-BE
NL drive screw
Factory installed on
back of center case
Correct
Orientation
(RHR shown)
Incorrect
Orientation
trim lock
tumbler in
UP position
If necessary,
remove drive
screw and
rotate cam
until trim lock
tumbler is in
UP position,
then reinstall
drive screw
360˚
5c Install lift nger(s) and retainer clip(s).
With device center case hanging over
edge of table, slide L-shaped lift finger
thru upper block of center case.
Insert lift finger screw and turn
clockwise with screwdriver to
raise lift finger until the slot aligns
with diameter of screw hole.
Lightly tighten locking screw (c-4)
.
Install retainer clip against lift finger,
snapping it into the slot of the lift
finger screw.
For 2-Point Latch Only
Repeat steps c-1 thru c-5 for lower block of center case.
Confirm lift finger screw is
free to rotate (c-5).
!
It may be necessary to rotate
the lift finger screw to realign
retainer clip and lift finger holes.
!
Top
c-1
c-6
c-2
slot
c-3
c-5
c-4
Bottom

9
5 (continued)

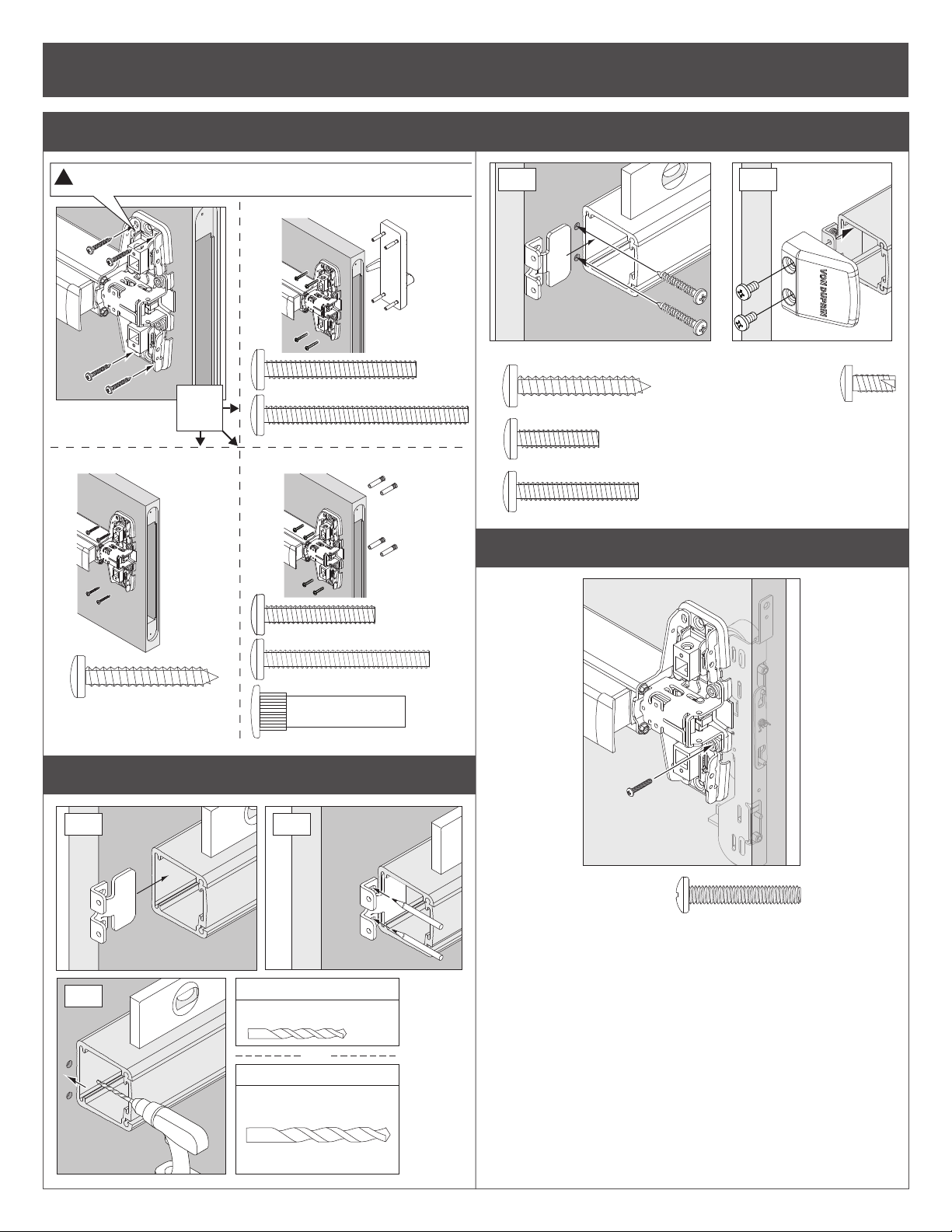

5d Attach center case to door.
Surface Mount Sex Bolts
Thru-bolting Trim
(1³⁄₄" door)
(2¹⁄₄" door)
(1³⁄₄" door)
(2¹⁄₄" door)
OR
!Do not overtighten center case to door (door edge cover plate won’t fit).
5e Mark and prepare 2 holes.
Surface Mount
¹⁄₈" Drill, Pilot 1" Deep
Sex Bolts
OR
¹³⁄₃₂" Drill thru
e-1 e-2
e-3
5f Install end cap bracket and end cap.
#10 x 1¹⁄₄" Wood screw
(Surface mount WDC)
#10-24 x ³⁄₄"
(Sex bolts, 1³⁄₄" door)
#10-24 x 1¹⁄₈"
(Sex bolts, 2¹⁄₄" door)
f-1 f-2
5g Secure center slide to face of door.
8-32 x 1"

10
6 DEVICEADJUSTMENT
ADJUSTMENT COMPONENTS
Push Side of Door
Center Case
Push Side / Edge of Door
Center Slide
For 2-point
latch only
*
Top lift finger screw:
Adjusts release point of latches
Bottom lift finger screw*:
Adjusts release point of latches
Top locking screw:
Locks lift finger screw adjustment
Bottom locking screw*:
Locks lift finger screw adjustment
Top spool screw:
Sizes cable to door height
and undercut
Bottom spool screw*:
Sizes cable to door height
and undercut
Bottom latch pin*
(reference for adjustment)
Bottom lift finger*:
Transfers motion from exit
device spool inputs
Top lift finger:
Transfers motion from exit
device spool inputs

11
6 (continued)

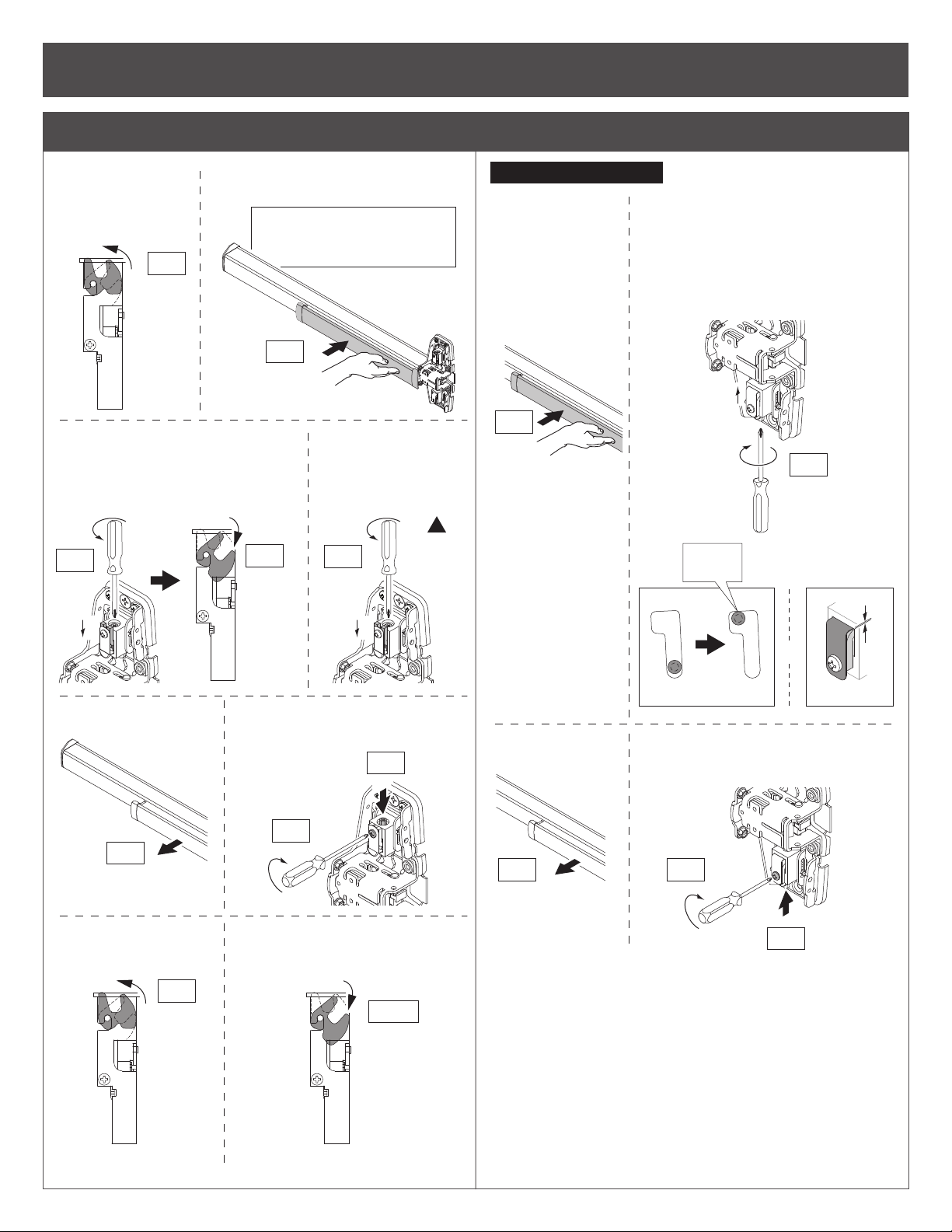

6a Adjust device for top latch retraction position.
Put top latch in locked
position.
While pressing down on top lift finger
screw (a-7) so it is seated, tighten top
locking screw (a-8).
With pushpad depressed, you should be
able to release top latch with your finger
as shown below.
Using your finger, put top
latch in locked position.
Turn top lift finger screw
counterclockwise an
additional 2 full turns.
a-1
a-2
a-6
a-4
ReleasedLocked
a-9 a-10
Depress and HOLD push pad (or dog
device) until Step a-6.
If top latch releases, adjustment is
good; proceed to Step a-5.
Otherwise, continue to Step a-3.
Maintain downward pressure on screwdriver
and turn top lift finger screw counterclock-
wise to lower lift finger. With other hand,
press on top latchbolt. STOP as soon as top
latch releases.
a-3
Release push pad.
a-5
!
2 additional
turns
a-7
a-8
6b Adjust device for bottom latch retraction positon.
For 2-Point Latch Only
Push up on bottom lift finger screw (b-4)
so it is seated, and tighten the bottom
locking screw (b-5).
Release push pad.
Depress and HOLD
push pad (or dog
device) until Step b-3.
Maintain upward pressure on screwdriver
and turn bottom lift finger screw (b-2)
counterclockwise to adjust. Continue
adjusting until bottom latch pin reaches
end of travel or until bottom lift finger
reaches max adjust. If bottom latch pin
does not move, see Troubleshooting on
back page.
0
max adjust
end of travel
bottom
latch pin
OR
b-1
b-3
b-2
b-5
b-4

12
7 STRIKES AND FIRE PIN

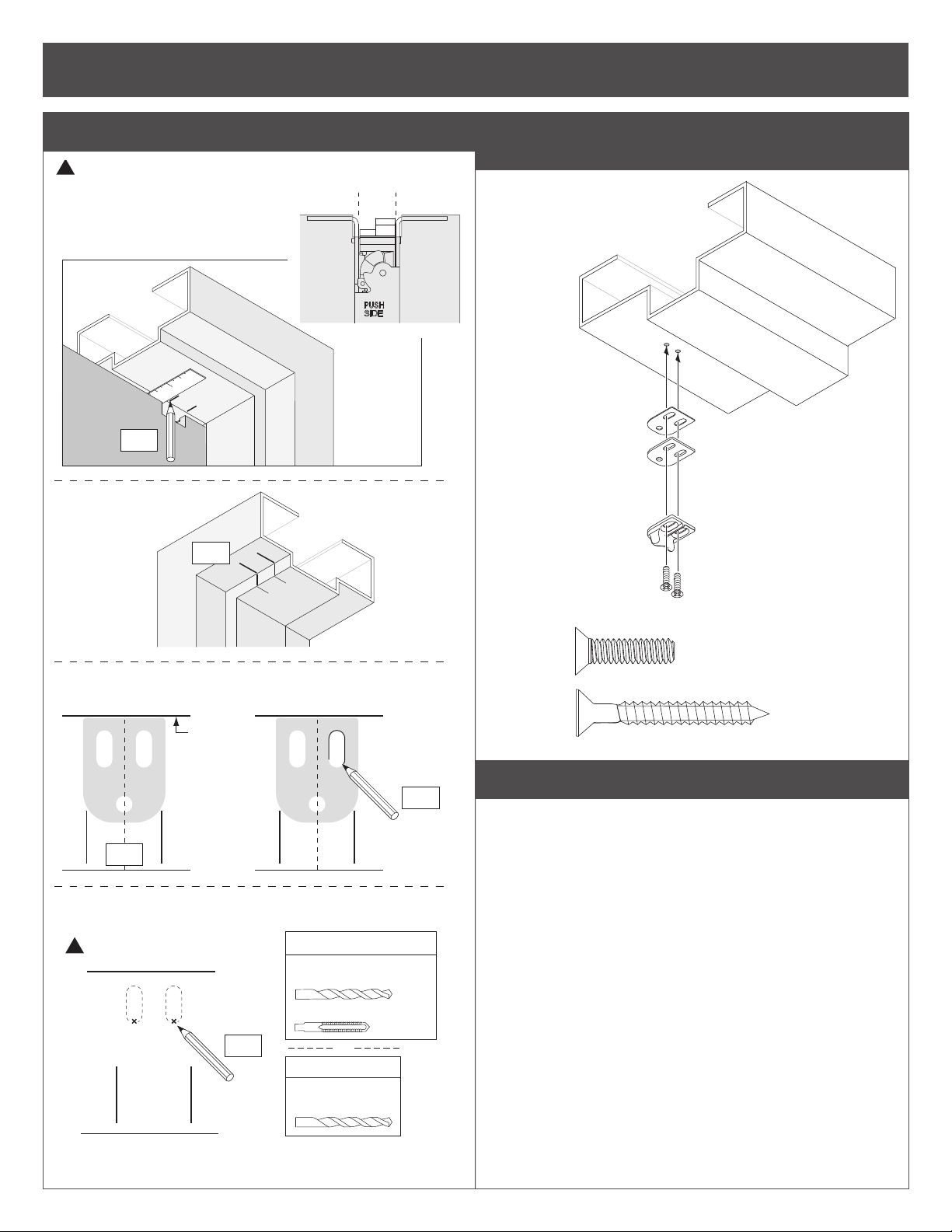

7a Prepare door frame for top strike.
Metal
Wood
#25 x ³⁄₄" Deep x2
#10-24
Center punch + ¹⁄₁₆" Pilot
¹⁄₈" Drill
Pilot 1" Deep x2
OR
With flat end of strike against stop, center strike to marks on frame (a-3).
Use a pencil to trace contour of the two slotted holes (a-4).
Mark the bottom center point of each slot (a-5) and prepare door frame as
shown.
From push side of door, with door nearly
closed, use straight edge to transfer
location of inside edges of top latch
housing to underside of stop (a-1).
Edge of stop
or gasket
From pull side of door,
transfer marks to
underside of
frame (a-2).
PUSH SIDE
OF DOOR
PULL SIDE
OF DOOR
a-1
a-2
a-5
a-3
a-4
Do not drill 3rd hole at this time.
!
If using a door seal or gasket, install first.
!
7b Install 2 top strike screws using the slot features on
the strike.
Typical installation
requires 1-thick and
1-thin shim. Adjust as
necessary.
150 Top Strike
(metal)
(wood)
7c Perform top latch functional test.
c-1. Close door.
c-2. With door closed, top latch should be secure.
c-3. If door fails to relatch, adjust top strike location.
c-4. Depress pushbar. Door should begin to open when
pushbar is nearly fully depressed. If necessary, refer to
Step 6A to readjust top latch retraction position.

13
7 (continued)
7d Prepare oor for bottom strike.
For 2-Point Latch Only
⁷⁄₈"¹⁄₂"
1¹⁄₄"
1"
³⁄₈" Dia. x 1¹⁄₄" Deep
2 places
Chisel out pocket
¹⁄₂" Deep
Latch
Push Side
Pull Side
1" 1"
7e Install bottom strike.
For 2-Point Latch Only
Clear holes of debris, then
drop in anchors (slotted end
first)
Secure the anchors using a
hammer and punch
Install strike plate and secure
with 2 screws
450 Bottom Strike
IMPORTANT:
Anchors must
be below flush.
!
e-2
e-1
e-3
7f For Fire LBL applications only, install re pin.
 Seeinstructionspackagedwithrepin.

14
8 BOTTOMLATCHBOLTCLEARANCE
8a Remove tape holding bottom bolt in place from bottom
of door.
For 2-Point Latch Only
8b Adjust bottom latchbolt clearance.
Pull top spool screw downward to release top
latch, if not already retracted.
Push bottom latch pin upward. Link will tilt.
For 2-Point Latch Only
b-1
b-2
b-3
Turn bottom spool screw clockwise approximately 20 turns to
remove slack. Continue turning until bolt just clears top of strike (b-4).
NOTE: If clicking noises are heard during clockwise
adjustment, unwind the cable with one-half turn counter-
clockwise. Then, continue clockwise adjustment. If clicking
persists, check to be sure cable is not caught on an edge.
!
bolt
strike b-4
³⁄₈" standard
undercut
8c Perform bottom latch functional test.
For 2-Point Latch Only
c-1. Conrm bottom latchbolt does not drag against oor when
door is opened.
c-2. With door closed, bottom latch should be secure.

15
9 TOP STRIKE AND COVERS
9a Adjust top strike as necessary, then install the third
strike screw to x the strike position.
Metal
Wood
#25 x ³⁄₄" Deep
#10-24
¹⁄₈" Drill
Pilot 1" Deep
OR
(metal) (wood)
9b For re devices, prepare door edge and cover plate.
Fire application only
 Intumescentmustbeproperlyalignedbeforeexposed
adhesivecontactscoverplate.Adhesiveispermanentand
notrepositionable.
³⁄₁₆" Drill, Pilot 1" Deep x2
Insert plastic
anchors
Peel adhesive backing from
intumescent and apply to
back side of cover plate
b-1
b-1
b-2
9c Install cover plate to door edge, then completely
tighten down center case screws.
For non-fire devices, first
prepare door edge
¹⁄₈" Drill, Pilot 1" Deep x2
c-1
c-2
9d Install center case cover.
Remove protective
film from
pushbar

© Allegion 2016
Printed in U.S.A.
24739468 Rev. 01/16-c
Customer Service
1-877-671-7011 www.allegion.com/us

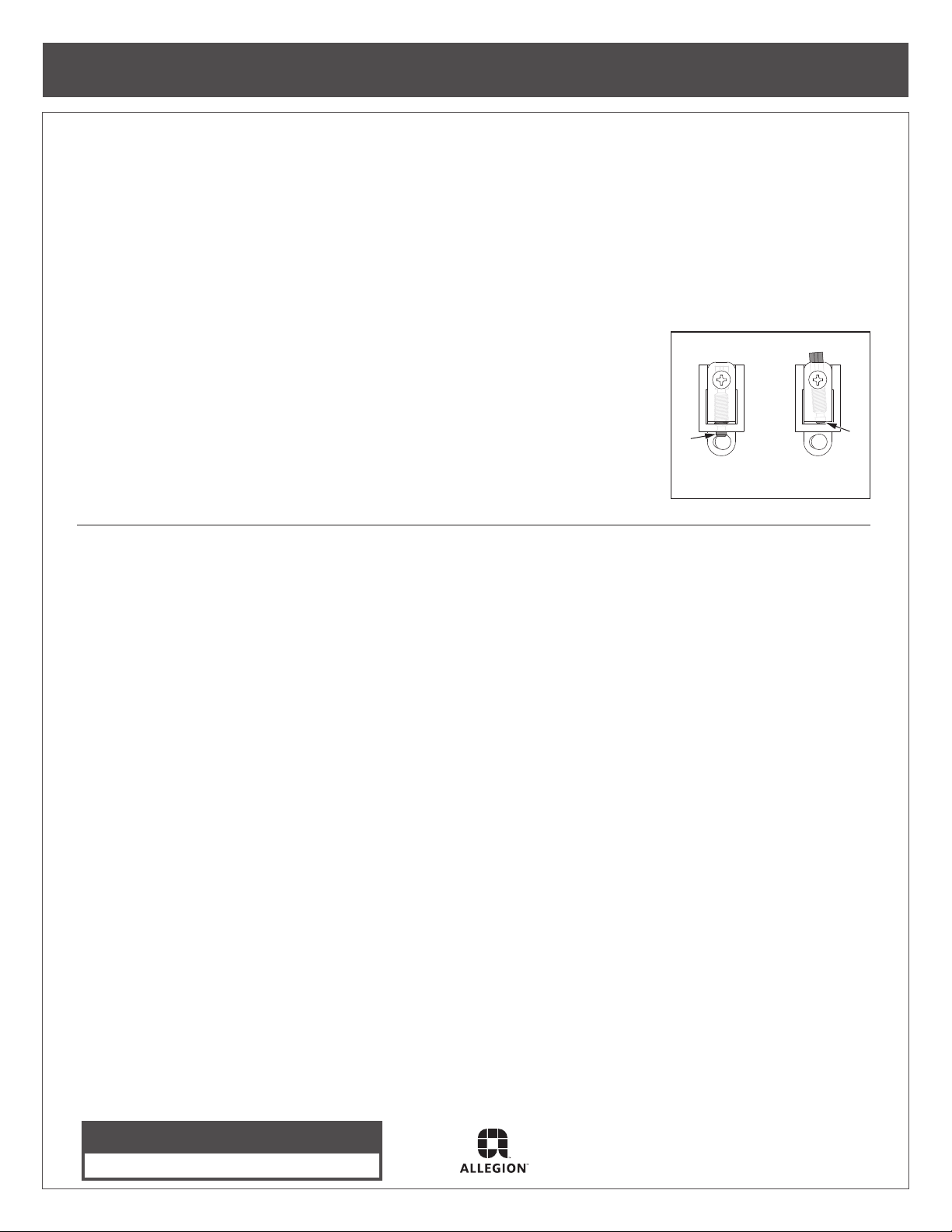

10 TROUBLESHOOTING
If latches do not retract when pushpad is depressed:
Remove cover plate from edge of door
Pull down on top spool screw. If the top latch fails to actuate, readjust top spool (Steps 4d-1 thru 4d-4).
Pull up on bottom spool screw. If the bottom latch fails to actuate, readjust bottom latch clearance (Steps 8b-1 thru 8b-4).
If both actuate and the door is not functioning, proceed to next check.
Remove center case cover
Check lift finger screws to ensure they are still fully seated. If unseated, loosen
locking screw, and while applying pressure to the head of the lift finger screw to
seat it, tighten locking screw. If door is not functioning, proceed to next step.
With both lift finger screws fully seated, loosen top and bottom locking
screws, turn lift finger screws clockwise to end of travel, and repeat
device adjustment, Step 6.
If bottom latch pin does not move during Step 6b-2:
Loosen bottom spool screw 10 turns.
Seated Unseated
