VOPTech WiFi SIP Phone C2W User Manual
Version: 2.0

2
Content
VOPTech WiFi SIP Phone C2W User Manual........................................................................................................................1
1. Overview ofC2W....................................................................................................................................................................4
1.1 Interfaces .............................................................................................................................................................4
1.2 Hardware .............................................................................................................................................................4
1.3 Software...............................................................................................................................................................4
1.4 Network...............................................................................................................................................................5
1.5 Management and Maintenance ............................................................................................................................5
1.6 Protocol................................................................................................................................................................5
1.7 Compliant and AuthenticatedStandard ...............................................................................................................5
1.8 Packing List .........................................................................................................................................................5
1.9 Installation...........................................................................................................................................................6
1.10 Installation instruction.........................................................................................................................................6
2. Keypad of IP Phone...............................................................................................................................................................9
2.1 Describe of the buttons andScreen......................................................................................................................9
2.3 Describe of the LCD Screen Icons .......................................................................................................................11
3. Basic functions and operations ...........................................................................................................................................12
3.1 Answer the calls.................................................................................................................................................12
3.2 Make Call...........................................................................................................................................................12
3.3 Pre- dial..............................................................................................................................................................13
3.4 Hang up the phone.............................................................................................................................................13
3.5 Call Transfer......................................................................................................................................................20
3.6 Voicemail...........................................................................................................................................................20
3.7 Mute calls...........................................................................................................................................................20
3.8 3-Way Conference Call......................................................................................................................................20
3.9 Call History........................................................................................................................................................21
3.10 Default Password...............................................................................................................................................21
3.11 Check the Phone’s IP address............................................................................................................................22
3.12 Dial Plan............................................................................................................................................................22
4. Web settings .........................................................................................................................................................................24
4.1 Systemstatus......................................................................................................................................................24
4.2 Network.............................................................................................................................................................25
4.2.1 Basic..................................................................................................................................................................25
4.2.2 Advance.............................................................................................................................................................25
 VPN...................................................................................................................................................................26
26
 VLAN................................................................................................................................................................27
 Port Link............................................................................................................................................................27
 Qos.....................................................................................................................................................................27
 Syslog ................................................................................................................................................................27
4.3 SIP Setting.........................................................................................................................................................28
 RTP Parameters .................................................................................................................................................28
 SDP Payload Types ...........................................................................................................................................29
 NAT Support Parameters...................................................................................................................................29

3
4.4 Account..............................................................................................................................................................30
 SIP .....................................................................................................................................................................30
 Codec Configuration..........................................................................................................................................31
 Call FeatureSetting............................................................................................................................................32
 Dial Plan ............................................................................................................................................................32
4.5 Phone Setting.....................................................................................................................................................32
4.5.1 Preference..........................................................................................................................................................33
 Input Gain..........................................................................................................................................................33
 LCD...................................................................................................................................................................33
 Phone Lock........................................................................................................................................................34
 Control TimerValues(Seconds).........................................................................................................................34
 Watch Dog.........................................................................................................................................................34
 Date And Time ..................................................................................................................................................34
Manual........................................................................................................................................................................35
 Daylight Saving Time........................................................................................................................................35
4.5.2 Features..............................................................................................................................................................35
 Call Settings.......................................................................................................................................................35
4.5.3 Voice..................................................................................................................................................................36
Jitter Buffer.................................................................................................................................................................37
4.5.4 Ring ...................................................................................................................................................................37
4.5.5 Tone...................................................................................................................................................................37
4.6 Update................................................................................................................................................................38
4.6.1 Manual Update...................................................................................................................................................38
4.6.2 Update/AutoProvision.......................................................................................................................................39
4.6.3 Reset & Reboot..................................................................................................................................................40
4.7 Phone Book........................................................................................................................................................40
4.7.1 Phonebook.........................................................................................................................................................40
4.7.2 LDAP.................................................................................................................................................................41
4.7.3 Remote Phonebook............................................................................................................................................42
4.8 Call Log................................................................................................................................................................42
5. Wi-Fi.....................................................................................................................................................................................43
1、Configure the wifi on the phone...........................................................................................................................43
2、Configure the wifi on the WEB............................................................................................................................43
6. FAQ & Trouble Shooting....................................................................................................................................................45
Frequently Asked Questions.......................................................................................................................................45
6.1 How to make a factoryreset ..............................................................................................................................45
6.2 Upgrade firmware under safemode...................................................................................................................45
6.3 How to make direct IP call.................................................................................................................................45
7. Trouble Shooting..................................................................................................................................................................46
7.1 The phone can’t register successfully................................................................................................................46
7.2 The phone can’t obtain IP address.....................................................................................................................46
7.3 Only one part can hear the voice during thecall................................................................................................46
8. Abbreviations.......................................................................................................................................................................47

4
1. Overview of C2W
1.1 Interfaces
 Power input: DC 5V, 1000mA
 LAN: RJ45 port
 PC: RJ45 port
 Headset jack 1 : RJ9 port
 Handset jack 1 : RJ9 port
1.2 Hardware
LCD: 132×58
 CPU: 400MHz Dual Core
 LED indicator: 1 Status Light, 2 line indicators
1.3 Software
 Sip 2.0 (RFC3261) and other related SIP RFCs
 2 SIP lines
 STUN
 Jitter Buffer, VAD,CNG
G711A/u, G722, G726-16, G726-24, G726-32, G726-40, G729 , Lin16-16, iLBC
 Echo Cancellation
 SIP Domain name, Authentication
 DTMF（inband, RFC2833, info）
 Call transfer, Call forward, 3-way conference, Call hold, Call back
 DND(Do Not Disturb), Auto answer, Blacklists, Block Call-ID, Block Anonymous call, Dial
plan, IP call
 Phone book with 1000 white records and 100 black records, 200 answered calls, 200 missed
calls, 200 dialed calls

5
 Update via HTTP, FTP, TFTP, PNP,HTTPS
 Syslog
 SNTP
 WEB access with different login level
 Multi-language: English, Chinese, Farsi, French, German, Hebrew, Italian, Portuguese,
Russian, Spanish, Turkish
 Soft button: soft button * 3
 Redundancy SIP server
 BLF
1.4 Network
 LAN/PC: Support bridge mode
 Support VLAN（LAN VLAN and PC VLAN）
 Support L2TP VPN
 LAN support Primary and Secondary DNS
 LAN support DHCP Client
 Support QoS
1.5 Management and Maintenance
 Support safe mode and firmware updating under safe mode
 Support different level user management
 Configuration via web , keyboard
 Support multi-language
 Auto provision (Firmware and configuration file)
 Support system log and call log
1.6 Protocol
IEEE 802.3 /802.3 u 10 Base T / 100Base TX
 DHCP: Dynamic Host Configuration Protocol
SIP RFC3261, RFC3262, RFC3263, RFC3264, RFC3265, RFC2543, RFC3489, RFC3842,
RFC3515, RFC2976, RFC3428, RFC2327, RFC2782, RFC1889
 TCP/IP: Transfer Control Protocol/Internet Protocol
 RTP: Real-time Transport Protocol
 RTCP:RTP Control Protocol
 DNS: Domain Name Server
 TFTP: Trivial File Transfer Protocol
 HTTP:Hypertext Transfer Protocol
 FTP:File Transfer Protocol
1.7 Compliant and Authenticated Standard
CE: AGC01180140201E2，AGC01180140202E2
 Comply with ROHS in EU
 Comply with ROHS in China

 Operation temperature: lower than 60°C
 Storage temperature: lower than 60°C
 Humidity: 10 to 90% no dew
1.8 Packing List

6
Model
Phone
Handset
Handset
line
Stand
bracket
Ethernet
Cable
C2W
1
1
1
1
1pcs
1.5m
Note: Power adapter (Input: AC 100~240V, 50/60Hz; Output: 5V, 1000mA;)
1.9 Installation
Connect LAN port to PC with Ethernet cable, or connect C2W to a switch/router which is in the
same network as your PC. It uses DHCP mode by default, and you can review its
current IP address by pressing key on idle state. To access the web interface, you can input
the IP address in IE browser. E.G. The IP address of your C2W is 192.168.1.100, you can input
192.168.1.100 and press enter key on your browser to access its webpage. There are two login
level: User, Admin
Password is set for those two accounts as user and admin with factory settings. You can click
admin button on the right corner of the webpage to switch from the user to admin mode.
1.10 Installation instruction
A. Put the bottom side of the IP phone upside and press one-side joints of stand bracket into the slot,
please refer the picture as below:

7
B. Press the other side joints into the slot according to the direction of the arrow
C. It is the right picture after fixing the stand bracket below:

8
Connecting the cables according to the picture guide below.

9
2. Keypad of IP Phone
2.1 Describe of the buttons and Screen
Soft Keys
Press to select a function which displayed at the soft key zone
of screen
Display all optional functions at the last line of LCD screen.
Speaker
LED
Indicator
Indicates the phone’s status,
 If the phone is being started ,the LED is on
 If the phone is standby, the LED is off
 If there is income calling, the LED will blink at 120ms on,
120ms off.
LCD Screen
All information such as date, time, phone number, incoming
caller’s ID (if available), line/call status, extension numbers
and the soft key features are displayed on it.
Line Key
Shows extension number and status. Click to select the line.
Dial pad
Entering numbers or characters.
Navigation keys
Allows users to navigate (left, right, up, down). Press
enter “Directory”. Press can enter “History”.
can

10
Adjust the volume (speaker/handset/headset/ring). Volume
level will be displayed on LCD when pressing volume key.
Enter menu settings.
Pick up and hung up under the speaker mode.

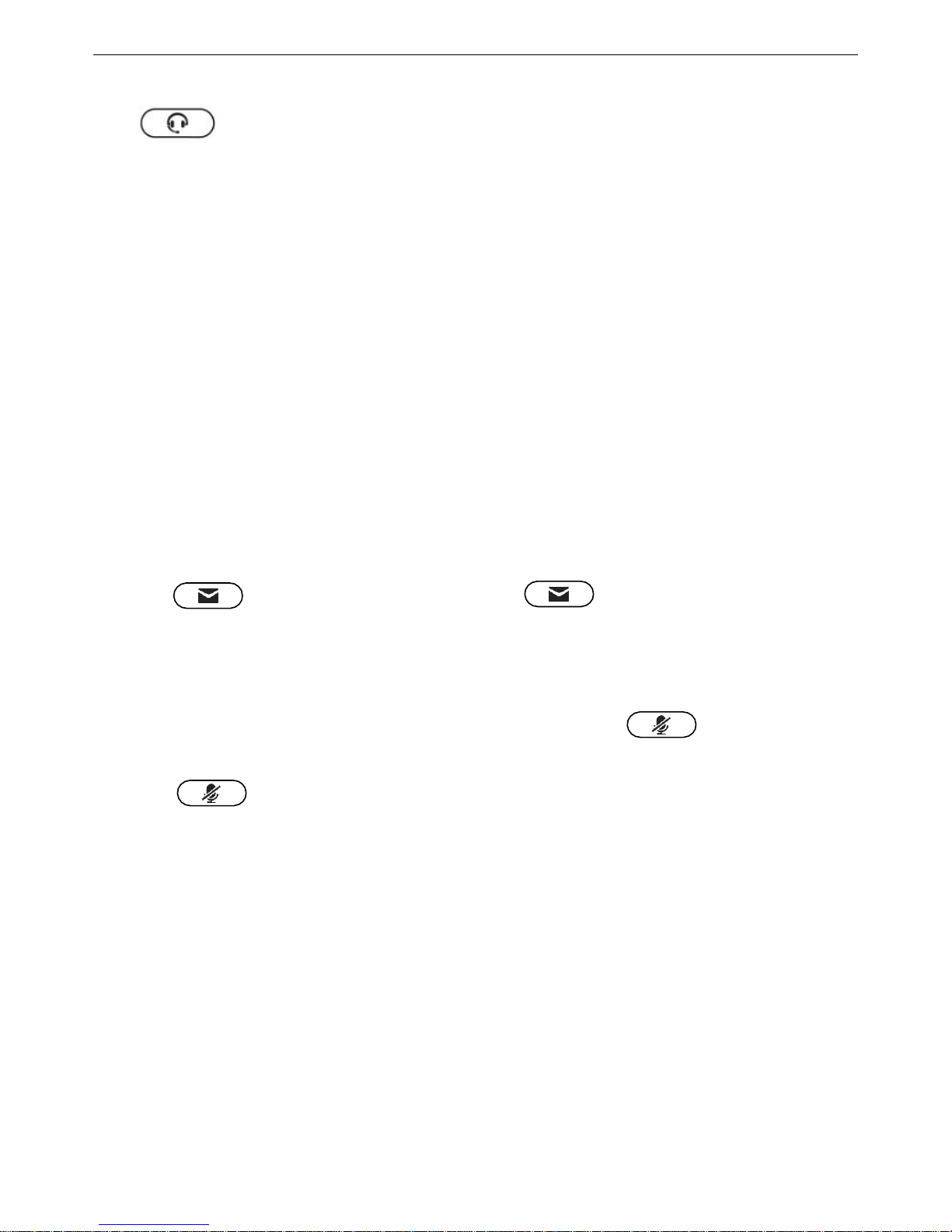

Mute the mic in a conversation by pressing the Mute button;
this prevents the person on the active call from hearing what
you or someone else in the room is saying.
To un-mute, press the Mute button again.
Pick up and hung up under headset mode.
Check the Voicemail status.
Redial the last dialed number

11
WiFi SIP Phone C2W User Manual
2.3 Describe of the LCD Screen Icons
Icon
Description
The extension is registered
The extension is unregistered
There is a new voice mail
There is an incoming call
The call is held
C2w is in speaker mode
C2W is in handset mode
C2W is in headset mode
The call is muted
WiFi connected, if show
×,
WiFi
connection failed, if show ?, WiFi is
connecting.

12
WiFi SIP Phone C2W UserManual
3. Basic functions and operations
3.1 Answer the calls
When there is an incoming call, phone will remind user with ringing. There are 3 ways to answer the
call
A. Answer by handset
Pick up the handset and talk with the caller. If you want to hang up, just put back the handset. When
you are talking with the handset and want to switch to speaker mode or headset mode, please press
key or key, then put down the handset.
B. Answer by speaker
Press key and talk with callers by built-in Micro-phone and Speaker. If you want to hang
up, please press key again. Switch calling or talking into handset mode by lifting the
handset under speaker mode. Press key will switch calling or talking into headset mode.
C. Answer by headset
Keep your microphone connected with the RJ9 headset jack, when there is an incoming call, press
key and talk with the caller. If you want to hang up, please press key again.
Pressing key can change calling or talking into speaker mode, and lifting the handset
switches to handset mode.
3.2 Make Call
A. Use the handset
Pickup the handset and input a phone number. Press soft key "Send" to dial the number. When you
hear the tones of “du~~du~~” and the phone number your dialed is being displayed on the LCD, the
phone at the side of being called should be ringing. If the called party answers this calling, the call is
established and the calling timer is started immediately.
B. Use the speaker
Press key and input a phone number. Press soft key "Send" to dial the number. When
caller hear the tones of “du~~du~~” and the phone number your dialed is being displayed on the
LCD, the phone at the side of being called should be ringing. If the called party answers this calling,
the call is established and the calling timer is started immediately.
C. Use the headset
Press Key and input a phone number. Press soft key "Send" to dial the number. When
caller hear the tones of “du~~du~~” and the phone number your dialed is being displayed on the

13
WiFi SIP Phone C2W UserManual
LCD, the phone at the side of being called should be ringing. If the called party answers this calling,
the call is established and the calling timer is started immediately.
D. Dial from phone book
1. Press key to enter the menu and then select “Directory” option. Press "Select" soft key
and then find the contact person by navigation keys. When the certain contact person is
highlighted, press "Dial" or just pick up the handset to call this number.
2. Pick up the handset, press "Contact" soft key, then select 2”Directory” to find the contact and
press "Dial" soft key.
3. Press soft key “Directory”, then select the contact person and press “Dial” soft key.
E. Dial from call history
1. Press key to enter the menu and choose “Call History” option, then enter sub-directory
“Dialed Calls”, “Received Calls” or ” Missed Calls” to select one of call history entry, and press
"Dial" soft key or pick up handset to call this number.
2. Pickup the handset, press "Contact” soft key, then select “Call History”entry, and press
"Dial" soft key to call this number.
3. Press soft key “History” ,then select one of call history entry, and press "Dial" soft key to call this
number.
3.3 Pre- dial
It’s a method to dial a phone number immediacy at standby mode.
A、Dial-up the phone number at standby mode
B、Press soft key "Dial" to send out the number
Multiple line dial-up
C2W supports 2 SIP lines. That means user can register on2 different sip accounts simultaneity. User
is able to choose line1 or line2 by pressing corresponding line key. Line1 is the priority line.
C2W maximum supports 4 concurrent calls. When there is an incoming call to another line, LCD
will show the incoming telephone number. User is able to press the corresponding line key on
which you’re talking then press “Answer” to receive the incoming call from another line.
3.4 Hang up the phone
1. Handset hang up
Put back the handset at handset mode, the current calling will be hung up.
2. Speaker hang up
Press key at speaker model, the current calling will be hung up.

WiFi SIP Phone C2W UserManual
20
3. Headset Hang up
Press key at headset model, the current calling will be hung up.
4. Hang up one line call
Press the hook to hang up the current calling when 2 calls happened simultaneously.
3.5 Call Transfer
1. Attended call transfer
The attended transfer allows user to call a third-party before transferring the calling.
While on calling, press the "Transfer" soft key to hold the current call and phone the third party. Then
dial the target number you want to transfer to on the activated line and press “Send” soft key to call
that number. After the target party answers the call, press "Transfer" soft key again to complete the
transfer.
2. Blind call transfer
The blind transfer allows user to transfer a call without speaking to the third party. On the user side,
the call will be ended as soon as the target phone number is dialed.
Operating steps: Press “More” soft key to get more option, then press “Bxfer” soft key, input the
transfer target number and press “Send” soft key.
3.6 Voicemail
C2W has a key for entering voicemail box. Press key to enter the menu to
configure voicemail number if never configure it previously. Otherwise, the voicemail number will
be called after press it. If you want to modify it after configured it, please go to the Account
webpage to modify the voicemail number.
3.7 Mute calls
The input audio will be not transmitted to peer phone after pressing key, and the phone
will be muted even switched among different modes of speaker, handset and headset. To un-mute,
just press key again.
3.8 3-Way Conference Call
To initiate a conference call:
Press “More” soft key on calling to get more options, then press “Conf” soft key to start a conference
call. Enter the phone number of the third party and press “Send” soft key to send it out.
1. After the third party answers the call, pressing "Conf" key again to establish the 3-way conference.
2. 3-way conference initiator can press "Exit" soft key to quit from the conference and leave the other
two parties still in the conversation.
3. If the initiator hangs up the call or press the “End Conf” soft key, the conference will be ended and
the calling between the other two parties will be hung up.

WiFi SIP Phone C2W UserManual
21
3.9 Call History
C2W supports 200 missed calls list, 200 incoming calls list and 200 dialed calls list. When the
storage is full, the old record will be erased by the new one.
Press "History" soft key or key when C2W is standby, all the incoming(->), outgoing(<-)
and missed calls(!) will be listed. There is other ways to check them:
A. Missed call
1. Press key.
2. Press key and key to select “Call History” then press “Select” soft key.
3. Press key and key to select “Missed Calls” then press “Select” soft key.
4. Press key and key to browse the missed call record. If there is no record, the LCD
display will be indicated “List is Empty”.
B. Answered call
1. Press key .
2. Press key and key to choose “Call History” and then press “Select” soft key.
3. Press key and key to choose “Answered Calls” and then press “Select” soft key.
4. Press key and key to browse the answered call records. If there is no record, the LCD
display will be indicated “List is Empty”.
C. Dialed call
1) Press key.
2) Press key and key to select "Call History" and then press “Select” soft key.
3) Press key and key to select “Dialed Calls” and then press “OK” soft key.
4) Press key and key to browse the dialed call records. If there is no record, the LCD
display will be indicated “List is Empty”.
3.10 Default Password
Password is needed to access menu and web.

WiFi SIP Phone C2W UserManual
22
The default password for accessing menu is 123.
There are 2 modes to access web: User mode and Admin mode. All the parameters can be visible at
Admin mode while part of them can be visible at User mode.
 User Mode
Username：user Password: user
 Admin Mode：
Username：admin Password: admin
3.11 Check the Phone’s IP address
Press key, then the status of the phone will be displayed on the screen and you will
see the current IP address of the phone.
3.12 Dial Plan
Dial plan defines the rule of dial. The syntax of dial plan for C2W is closely similar as the
corresponding syntax specified by MGCP and MEGACO.
Dial plan is stipulated by the below configurable parameters:
 Interdigit Long Timer——refer to Interdigit long timer for more detail description
 Interdigit Short Timer——refer to Interdigit short timer for more detail description
 Dial Plan
Dial plan contains a series of digit sequences, separated by the ‘|’ character. The collection of
sequences is enclosed in parentheses ‘(‘ and ‘)’.
Default: (*xx.|xxxxxxxxxxxx.)
When user dials a series of digits, C2W will response in below way:
• No candidate sequences matched, the number will be rejected and “call ended” will be displayed
on the screen. For instance, if the default dial plan only supports digits, any ‘*’ character or letters
input will be rejected.
 More than one candidate sequences matched, C2W will wait for more digits input.
 When input timeout occurs, C2W will dial the digits input already.
 When input ‘#’ character, C2W will dial the input digits immediately.
Digit Sequence Syntax:
‘x’: Matches any one numeric digit (‘0’ ... ‘9’)
‘[]’: Numeric ranges are allowed within ‘[]’. For example, [389] means ‘3’ or ‘8’ or ‘9’, [3-6] means
‘3’ or ‘4’ or ‘5’ or ‘6’ , [235-8*] means ‘2’ or ‘3’ or ‘5’ or ‘6’ or ‘7’ or ‘8’ or ‘*’.
‘.’ ：Any element can be repeated zero or more times by appending a ‘.’ character. For example, 01.
matches 01,011,0111,01111,...,011111111...etc.
‘<>’: subsequence substitution. For example, ‘<8:1650>xxxxxxx’ would match ‘85551212’ and the
first digit ‘8’ will be replaced by ‘1650’ and ‘16505551212’ will be dialed.
‘,’: An “outside line” dial tone can be generated within a sequence by appending a ‘,’ character
between digits. Thus, the sequence “9, 1xxxxxxxxxx” sounds an “outside line” dial tone after the
user presses ‘9’, until the ‘1’ is pressed.
‘!’: A sequence can be barred (rejected) by placing a ‘!’ character at the end of the sequence. For
example, “137xxxxxxxx!” will forbid numbers which have 11 digits and start by 137 to be dialed.

WiFi SIP Phone C2W UserManual
23
Example:
(xxxxxxx|[*#]xxxx|9,1xxxxxxxxxx|00xxx!) contains 4 subsequences:
1. Allow to dial numbers with 7 digits
2. Allow to dial numbers with 4 digits and start by ‘*’ or ‘#’
3. Allow to play an “outside line” dial tone after pressing ‘9’ and dial numbers with 11 digits and
start by 1
4. Forbid to dial numbers with 5 digits and start by 00

WiFi SIP Phone C2W UserManual
24
4. Web settings
Input the IP address in the web browser and press ‘Enter’ key to access C2W's user webpage.
Click "admin" which is on the right top corner to enter administrator webpage.
4.1 System status
This page shows the IP phone's system status.
1. Product Information shows the product name, protocol, software and hardware version,
Mac address and serial number.
2. Network Information shows the network connection type, IP address, netmask, gateway, DNS,
host name, domain and VPN information.
3. Account Information account 1/2 shows registration state, proxy, user ID, message waiting on
or off , the last and next registration time.

WiFi SIP Phone C2W UserManual
25
4.2 Network
4.2.1 Basic
There are 2 ways to connect to the internet: DHCP and Static, please choose one according to your
own situation.
Network mode: DHCP ,Static IP
1. DHCP
Obtain automatically dynamic IP from DHCP server.
2. Static IP
a) IP Address: set IP address
b) Subnet Mask：set netmask
c) Default Gateway：set gateway
d) Primary DNS：set primary DNS server
e) Secondary DNS：set secondary DNS server
Press ‘Submit’ button after finishing setting and all the settings info will be saved and taken effect
after C2W reboots.
4.2.2 Advance
 Web Server

WiFi SIP Phone C2W UserManual
26
 Enable Web Server: Enable or disable web access. If choose "no", you’re not able to access
C2W’s webpage.
 Web Sever Type: Set the web server type.
 Admin password: Set password for admin webpage access. Input ‘http://ip-address/index.asp’
in the web browser to access admin’s login webpage after setting the admin password, then input
username(admin) and password to access the admin’s webpage.
 User password: Set password for user webpage access. Input ‘http://ip-address/user.asp’in the
web browser to access user’s login webpage after setting the user password, then input
username(user) and password to access the user’s webpage.
 HTTP port: set port for HTTP access (defaults to 80)
For example, C2W's IP is 192.168.1.223
HTTP port was set as 100, you have to type "http://192.168.1.223:100" in web browser to enter
C2W’s webpage.
HTTPS port: set port for HTTPS access (Default is 443)
 VPN
1. VPN Enable: Select “Yes” or “No” to enable or disable VPN
2. VPN Type: Only support OpenVPN
3. Upgrade the OpenVPN certification file which generated from your VPN server under
Update—Manual Update—Upload OpenVPN config--Upgrade
After apply, the phone will be reboot. The VPN IP address will be shown on the System Status
