Grandstream Networks BudgeTone 200 User manual

1
User Manual
BudgeTone - 200 Series
IP Phone
For Firmware Version 1.1.0.16
Grandstream Networks, Inc.
www.grandstream.com

2
Table of Contents
1WELCOME……………………………………………………………. 4
2INSTALLATION……………………………………………………… 5
2.1 WHAT IS INCLUDED IN THE PACKAGE…………………………………5
2.2 CONNECTING YOUR PHONE…………………………………………...5
2.3 SAFETY COMPLIANCES………………………………………………..6
2.4 WARRANTY…………………………………………………………...6
3PRODUCT OVERVIEW………………………………………………8
3.1 KEY FEATURES………………………………………………………. 9
3.2 HARDWARE SPECIFICATION………………………………………….10
4USING BUDGETONE-200 IP PHONE……………………………... 12
4.1 GETTING FAMILIAR WITH LCD……………………………………... 12
4.2 GETTING FAMILIAR WITH KEYPAD…………………………………. 14
4.3 MAKING AND ANSWERING PHONE CALLS…………………………... 16
4.3.1 Handset, Speakerphone and Headset Mode……………………. 16
4.3.2 Making Calls……………………………………………………….. 16
4.3.3 Making Calls using IP Address………………………………….. 17
4.3.4 Receiving Calls…………………………………………………….. 17
4.3.5 Call Hold…………………………………………………………… 18
4.3.6 Call Waiting and Switch between Calls………………………… 18
4.3.7 Call Transfer……………………………………………………….. 18
4.3.8 3-Way Conferencing………………………………………………. 19
4.3.9 Checking Message and Message Waiting Indication………… 20
4.3.10 Mute and Delete……………………………………………………. 20
4.4 CALL FEATURES……………………………………………………. 20
5CONFIGURATION GUIDE………………………………………... 22
5.1 CONFIGURATION WITH KEYPAD……………………………………. 22
5.2 CONFIGURATION WITH WEB BROWSER……………………………... 25
5.2.1 Access the Web Configuration Menu…………………………… 25
5.2.2 End User Configuration………………………………………….. 25
5.2.3 Advanced User Configuration…………………………………… 30
5.2.4 Saving the Configuration Changes……………………………… 43
5.2.5 Rebooting the Phone from Remote……………………………… 43
5.3 CONFIGURATION THROUGH CENTRAL PROVISIONING SERVER……... 44
6FIRMWARE UPGRADE……………………………………………. 45
6.1 UPGRADE THROUGH HTTP…………………………………………. 45

3
6.2 UPGRADE THROUGH TFTP………………………………………….. 45
7RESTORE FACTORY DEFAULT SETTING……………………47
APPENDIX I GLOSSARY OF TERMS………………………………...48

4
1 Welcome
Thank you for purchasing Grandstream BudgeTone-200 IP Phone. You
made an excellent choice and we hope you will enjoy all its capabilities.
Grandstream's BudgeTone-200 SIP IP phone is the innovative IP telephone
that offers a rich set of functionality and superb sound quality. They are
fully compatible with SIP industry standard and can interoperate with many
other SIP compliant devices and software on the market.
This document is subject to changes without notice. The latest electronic
version of this user manual is available for download from the following
location:
http://www.grandstream.com/user_manuals/BudgeTone200.pdf

5
2 Installation
2.1 What is Included in the Package
The BudgeTone-200 phone package contains:
1. One BudgeTone -200 Main Case
2. One Handset
3. One Phone Cord
4. One Universal Power Adapter
5. One Ethernet Cable
2.2 Connecting Your Phone
Following is a backside picture of BudgeTone-200, each connection port is
labeled with the name in the following table:-
PC Port
LAN port
POWER
HEADSET

6
The table below describes the connectors on the BudgeTone-200 phone:
LAN 10/100 Switch LAN port for connecting to
Ethernet.
PC 10/100 Switch port for connecting PC
POWER 5V power port
HEADSET 2.5mm Headset port
2.3 Safety Compliances
The BudgeTone-200 phone is compliant with various safety standards
including FCC/CE. Its power adaptor is compliant with UL standard. The
phone should only be operated with the universal power adaptor provided
with the package. Damages to the phone caused by using other unsupported
power adaptors are not covered by the manufacturer’s warranty.
2.4 Warranty
Grandstream has a reseller agreement with our reseller customer. End user
should contact the company from whom you purchased the product for
replacement, repair or refund.
If you purchased the product directly from Grandstream, contact your
Grandstream Sales and Service Representative for a RMA (Return Materials
Authorization) number.
Grandstream reserves the right to remedy warranty policy without prior
notification.

7
Warning: Please do not attempt to use a different power adaptor. Using other power
adaptor may damage the BudgeTone-200 and will void the manufacturer warranty.
Caution: Changes or modifications to this product not expressly approved
by Grandstream, or operation of this product in any way other than as
detailed by this User Manual, could void your manufacturer warranty.
Information in this document is subject to change without notice. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose without
the express written permission of Grandstream Networks, Inc..

8
3 Product Overview

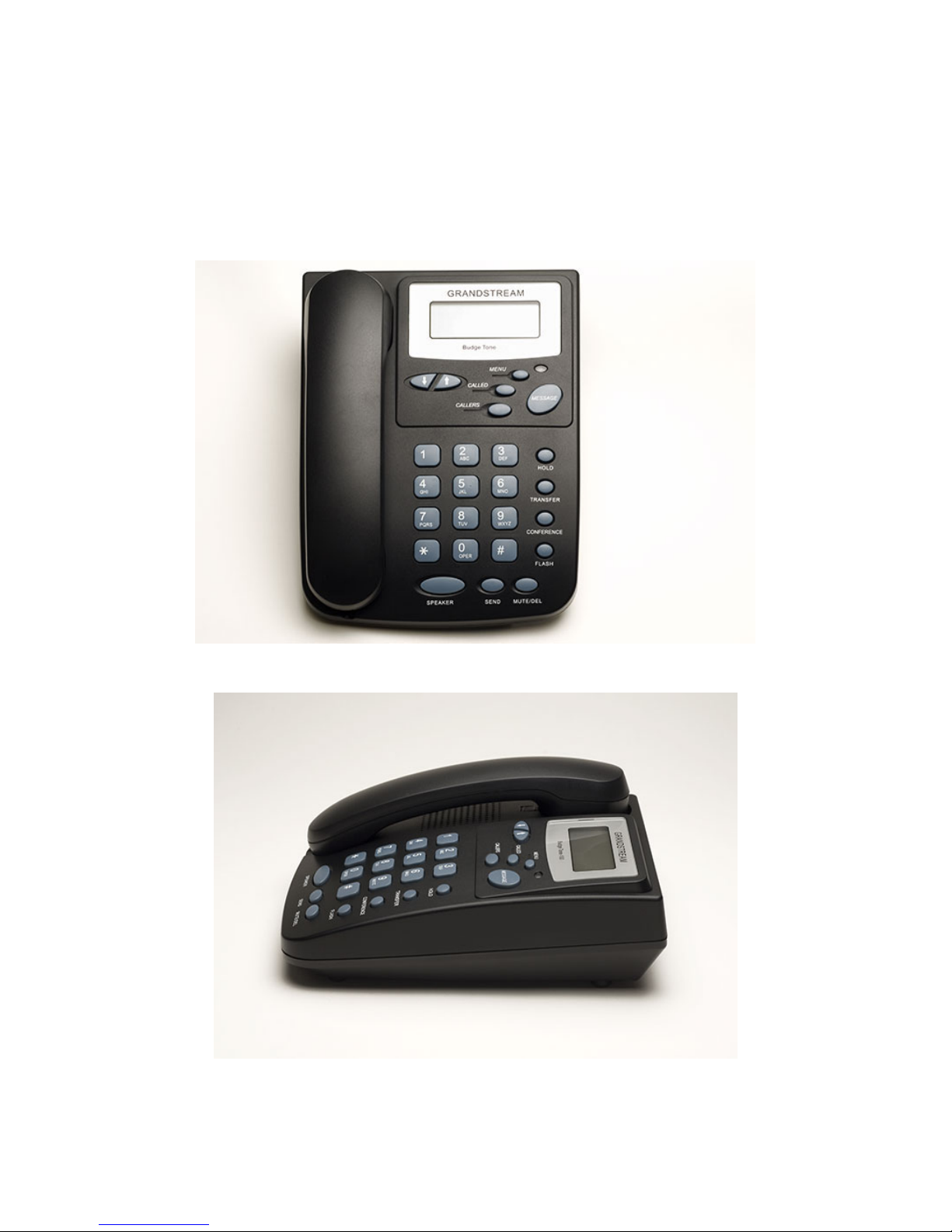

The following photo illustrates the appearance of a BudgeTone-200 IP
phone.
Front View
Side View

9
3.1 Key Features
Grandstream BudgeTone-200 IP Phone is a next generation IP telephone based on
industry open standard SIP (Session Initiation Protocol). Built on innovative technology,
Grandstream IP Phone features market leading superb sound quality and rich
functionalities at mass-affordable price.
Software Features:
•Support SIP 2.0, TCP/UDP/IP, PPPoE, RTP/RTCP, HTTP, ARP/RARP, ICMP,
DNS, DHCP, NTP/SNTP, TFTP.
•Support multiparty conferencing
•Supports Quick IP Call Mode.
•Support NAT traversal using IETF STUN and Symmetric RTP
•Advanced Digital Signal Processing (DSP) technology to ensure superior hi-
fidelity audio quality, interoperable with various 3rd party SIP end user device,
Proxy/Registrar/Server and Gateway products
•Advanced and patent pending adaptive jitter buffer control, packet delay and loss
concealment technology
•Support popular codecs including G711 (a-law and u-law), G.723.1 (6.3K),
G.729A/B and GSM. Dynamic negotiation of codec and voice payload length
•Support standard voice features such as Caller ID Display or Block, Call Waiting,
Call Waiting Caller ID, Call Hold, Call Transfer (attended/blind), Do-Not-Disturb,
Call Forwarding, in-band and out-of-band DTMF(RFC2833), SIP INFO, Dial
Plans, Off-Hook Auto Dial, Auto Answer, Early Dial and Speed Dial, etc.
•Full duplex hands-free speakerphone, redial, call log, volume control, voice mail
with indicator, downloadable ring tone, etc.
•Support Silence Suppression, VAD (Voice Activity Detection), CNG (Comfort
Noise Generation), Line Echo Cancellation (G.168) and AGC (Automatic Gain
Control)
•Support Acoustic Echo Cancellation (AEC) with Acoustic Gain Control (AGC)
for speakerphone mode
•Support sidetone
•Support DIGEST authentication and encryption using MD5 and MD5-sess
•Provide easy configuration through manual operation (phone keypad), Web
interface or automated provisioning by downloading encrypted configuration file
via HTTP/TFTP for mass deployment
•Support for Layer 2 (802.1Q VLAN, 802.1p) and Layer 3 QoS (ToS, DiffServ,
MPLS)
•Support firmware upgrade via TFTP or HTTP.
•Support DNS SRV Look up and SIP Server Fail Over
•Acoustic Echo Cancellation (AEC) with Acoustic Gain Control (AGC) for
speakerphone mode
•Support for Authenticating configuration file before accepting changes

10
•allow user to specify different URL for configuration file and firmware files
Hardware Features:
•Support Headset which will auto switch to Headset when plugged in
•Support 10/100 Full/Half Duplex Ethernet Switch with LAN and PC port,
Ethernet polarity can be auto detected, thus either straight through or twist cable
can be used.
•Support Message Waiting Indication LED

11
3.2 Hardware Specification
The table below describes the hardware specification of BudgeTone-200:
Model BudgeTone-200
LAN interface 2xRJ45 10/100Base-T
Headset Jack 2.5mm Headset port
LED 1 LED in RED color
Phone Case 25-button keypad
12-digit caller ID LCD
Universal Switching
Power Adaptor
Input: 100-240VAC 50-60 Hz
Output: +5VDC, 1200mA,
UL certified
Dimension 18cm (W)
22cm (D)
6.5cm (H)
Weight 0.9kg (2lbs)
Temperature 40 - 130oF
5 – 45oC
Humidity 10% - 90%
(non-condensing)
Compliance FCC / CE / C-Tick

12
4 Using BudgeTone-200 IP Phone
4.1 Getting Familiar with LCD / LED
BudgeTone-200 phone has a numeric LCD of 64mmx24mm size with backlight. This
model has a small red LED status reminder. Here is the display when all segments
illuminate:
PM
下午
010
A
M上午
When the phone is in the normal idle state, the backlight is off. Whenever an event (call)
occurs, the backlight will turn on automatically to bring the user’s attention. In addition,
if Voice Mail configured and there is a VM waiting, the red LED will be blinking to
remind user there is a Voice Mail in the Voice Mail server.
Icon LCD Icon Definitions
Network Status Icon:
FLASH in the case of Ethernet link failure or the phone
is not registered properly.
OFF if IP address or SIP server is not found
ON if IP address and SIP server are located
Phone Status Icon:
OFF when the handset is on-hook
ON when the handset is off-hook
Speakerphone/Headset Status Icon:
FLASH when phone rings
OFF when the speakerphone/headset is off
ON when the speakerphone/headset is on

13
Handset and Speakerphone/Headset Volume Icons:
0-7 scales to adjust handset / speakerphone volume
Real-time Clock:
Synchronized to Internet time server
Time zone configurable via web browser
Call Logs:
01-10 for CALLED history (dialed number)
01-10 for CALLERS history (Incoming caller ID)
Time Icon:
AM for the morning
PM for the afternoon
IP Address Separator Icons:
Numerical Numbers and Characters:
0 - 9
* = └
# = ┘
A, b, C, c, d, E, F, G, g, H, h, I, L, n, O, o, P, q, r, S, t,
U, u, Y
PM
A
M

14
4.2 Getting Familiar with Keypad
Called
Numbers
Menu
Button
LCD
Red
LED
Message
Hold
Mute/Delete
Send/Dial
Speakerphone
Flash
Conference
Transfer
Up/Down
Keys
Callers

15
Key Button Key Button Definitions
0 - 9, *, # Digit, star and pound keys are usually used to make
phone calls
↓
1) Reduce handset, speakerphone/headset volume after
off hook the phone via handset or speaker
2) Reduce ring tone volume when phone in IDLE and off
hook to confirm the changed ring tone volume
3) Next menu item browsing when phone is in IDLE
mode after MENU key pressed, off hook to interrupt and
exit
↑
1) Increase handset, speakerphone/headset volume after
off hook the phone via handset or speaker
2) Increase ring tone volume when phone in IDLE and
off hook to confirm the changed ring tone volume
3) Previous menu item browsing when phone is in IDLE
mode after MENU key pressed, off hook to interrupt and
exit
MENU
Enter keypad MENU mode when phone is in IDLE
mode.
It is also the ENTER key once entering MENU
CALLED
After off hook, press to display the dialed numbers.
When number displayed, press the SEND key can make
call using that displayed number
CALLERS
After off hook, press to display the incoming Caller IDs.
When number displayed, press the SEND key can make
call using that displayed number
MESSAGE Enter to retrieve voice mails from Voice Mail Portal or
Server
HOLD Temporarily hold the active call
TRANSFER Transfer the active call to another party
CONFERENCE Establish 3-way conferencing call
FLASH Flash event to switch between two lines
MUTE/DEL Mute an active call; or Delete a key entry, call log etc
Also used to ‘REJECT’ incoming call.

16
SEND/(RE)DIAL
Dial a new number inputted or Redial the number last
dialed. After entering the phone number, pressing this
key would force a call to go out immediately before
timeout
SPEAKERPHONE Enter hands-free mode
4.3 Making and Answering Phone Calls
4.3.1 Handset, Speakerphone and Headset Mode
The regular Handset mode can be switched with either the Speaker mode (Hand free) or
the Headset mode, however, whenever the Headset is plugged in, Speaker mode will be
switched to the Headset mode automatically.
Handset mode and Speakerphone/Headset mode cannot be enabled at the same time.
Pressing the hook-switch or Speakerphone button would toggle the phone between these
two modes.
To Switch between Handset and Speaker/Headset, simply press the Hook Flash in the
Handset cradle or the Speaker button.
4.3.2 Make Calls using Numbers
There are FIVE ways to make phone calls:
•Pick up handset or press SPEAKERPHONE button, and then enter the phone
numbers
•Press the SEND button directly to redial the number last called.
•Once pressed, the last dialed number will be displayed on the LCD as the
corresponding DTMF tones are played out and an outgoing call is sent.
•Browse the CALLED/CALLER history and press the SEND/REDIAL button.
•Pick up the handset or press the speakerphone button, then press the
“CALLED/CALLERS” button to browse thru the last 10 numbers dialed out.
Once the desired number is identified and displayed on the LCD screen, press the
SEND button and a new call to that displayed number will be sent out
immediately.
Examples:

17
•To dial another extension on the same proxy, such as 1008, simply pick up
handset or press speakerphone, dial 1008 and then press the “SEND” button.
•To dial a PSTN number such as 6266667890, you might need to enter in some
prefix number followed by the phone number. Please check with your VoIP
service provider to get the information. If you phone is assigned with a PSTN-like
number such as 6265556789, most likely you just follow the rule to dial
16266667890 as if you were calling from a regular analog phone, followed by
pressing the “SEND” button.
4.3.3 Make Calls using IP Address
Direct IP calling allows two parties, that is, a BudgeTone phone and another VoIP
Device, to talk to each other in an ad hoc fashion without a SIP proxy. This kind of VoIP
calls can be made between two parties if:
•Both BudgeTone phone and other VoIP Device(i.e., another IP Phone or
BudgeTone SIP phone or other VoIP unit) have public IP addresses, or
•Both BudgeTone phone and other VoIP Device are on the same LAN using
private or public IP addresses, or
•Both BudgeTone phone and other VoIP Device can be connected through a router
using public or private IP addresses (with necessary port forwarding or DMZ).
This model has the ability to dial an IP address under the same LAN segment by simply
pressing the last octet in the IP address.
In the Advanced Settings page there is an option "Use Quick IP-call mode", by default it
is set to No. When this option is set to YES, and #XXX is dialed, where X is 0-9 and
XXX <=255, phone will make direct IP call to aaa.bbb.ccc.XXX where aaa.bbb.ccc
comes from the local IP address REGARDLESS of subnet mask.
#XX or #X are also valid so leading 0 is not required (but OK).
eg.
192.168.0.2 calling 192.168.0.3 just dial #3 follow by SEND or #
192.168.0.2 calling 192.168.0.23 just dial #23 follow by SEND or #
192.168.0.2 calling 192.168.0.123 just dial #123 follow by SEND or #
192.168.0.2 dial #3 and #03 and #003 has same effect --> call 192.168.0.3
Note:- If you have a SIP Server configured, Direct IP-IP call will still work. However, if
you are using STUN, Direct IP-IP call will also use STUN.
OR

18
To make a direct IP to IP call, first off hook, then press “MENU” key, then enter a 12-
digit target IP address to make the call. If port is not default 5060, destination ports can
be specified by using “*4” (encoding for “:”) followed by the port number.
Examples:
•If the target IP address is 192.168.0.10, the dialing convention is
MENU_key 192 168 000 010
followed by pressing the “SEND” key or wait for seconds in the No Key Entry
Timeout.
•If the target IP address/port is 192.168.1.20:5062, then the dialing convention
would be:
MENU_key 192168001020*45062
followed by pressing the “SEND” key wait for seconds in the No Key Entry
Timeout.
4.3.4 Answer an Incoming Call
There are two ways to answer an incoming call:
1. Pick up the handset to answer the call normally using handset, or
2. Press the SPEAKERPHONE button to answer in speakerphone or headset mode
4.3.5 Call Hold
While in conversation, pressing the “Hold” button will put the remote end on hold.
Pressing the “Hold” button again will release the previously Hold state and resume the bi-
directional media.
4.3.6 Call Waiting and Call Flashing
If call waiting feature is enabled, while the user is in a conversation, he will hear a
special stutter tone if there is another incoming call. User then can press FLASH button
to put the current call party on hold automatically and switch to the other call. Pressing
flash button toggles between two active calls.
4.3.7 Call Transfer
Two transfer operations are supported.

19
4.3.7.1 Blind Transfer
User can transfer an active call to a third party without announcement.
User presses the “TRANSFER” button and if the other voice channel is available
(i.e., there is no other active conversation besides the current one), user will hear a
dial tone. User can then dial the third party’s phone number followed by pressing
SEND button.
NOTE:
•“Enable Call Feature” has to be configured to “Yes” in web configuration page
in order to make the features to work.
A can hold on to the phone and wait for one of the three following behaviors:
•A quick confirmation tone (temporarily using the call waiting indication tone)
follows by a dial tone. This indicates the transfer has been successful. At this
point, the user can either hang up or make another call.
•A quick busy tone followed by a restored call (On supported platforms
only). This means the transfer has failed due to the failed response sent from
server and the phone will try to recover the call. The busy tone is just to indicate
to the transferor that the transfer has failed.
•Busy tone keeps playing. This means the phone has failed to receive the final
response and decide to time out. Be advised that this does not indicate the
transfer has been successful, nor does it indicate the transfer has failed.
4.3.7.2 Attended Transfer
User can transfer an active call to a third party with announcement.
User presses the “FLASH” button and hears a dial tone, then dial the third party’s
phone number followed by pressing “SEND” button. If the call is answered, press
“TRANSFER” to complete the transfer operation and hand up, if the call is not
answered, pressing “FLASH” button to resume the original call.
NOTE:
•When Attended Transfer failed, if A hangs up, the BudgeTone phone will ring user
A back again to remind A that B is still on the call. A can pick up the phone to
restore conversation with B.
4.3.8 Conference Call
BudgeTone 200 phone supports 3-way conference.

20
Assuming that call party A and B are in conversation. A wants to bring C in a conference:
1. A presses the “CONFERENCE” button to get a dial tone and put B on hold
2. A dials C’s number then “SEND” key to make the call
3. If C answers the call, then A presses “CONFERENCE” button to bring B, C in
the conference.
4. If C does not answer the call, A can press FLASH back to talk to B.
NOTE:
•During the conference, if B or C drops the call, the remaining two parties
can still talk. However, if A the conference initiator hangs up, all calls will
be terminated.
4.3.9 Checking Message and Message Waiting Indication
When BudgeTone-200 is on-hook, pressing the MESSAGE button will trigger the phone
to call the VM Server (VMS) configured for the Account.
The MWI (Message Waiting Indicator) LED will flash in red color in three quarters of a
second when voicemail server sends message waiting information to BudgeTone-200.
4.3.10 Mute and Delete
When in conversation with an ACTIVE LINE, pressing “MUTE/DEL” will mute the
conversation, that is, you can hear the other party but the other party cannot hear you.
Pressing the button again will resume the conversation.
When dialing a number, press “MUTE/DEL” will delete the last entered digit.
When receiving incoming call, press “MUTE/DEL” will Reject the call and forward to
voice mail.
4.4 Call Features
BudgeTone-200 series phone supports a list of call features: Caller ID Block (or
Anonymous Call), Disable/Enable Call Waiting, Call Forward on Busy, Delay, or
Unconditional, etc.
Following table shows the call features of BudgeTone-200 series phone.
