Vortex RAZOR AMG UH-1 User manual

1

2 3

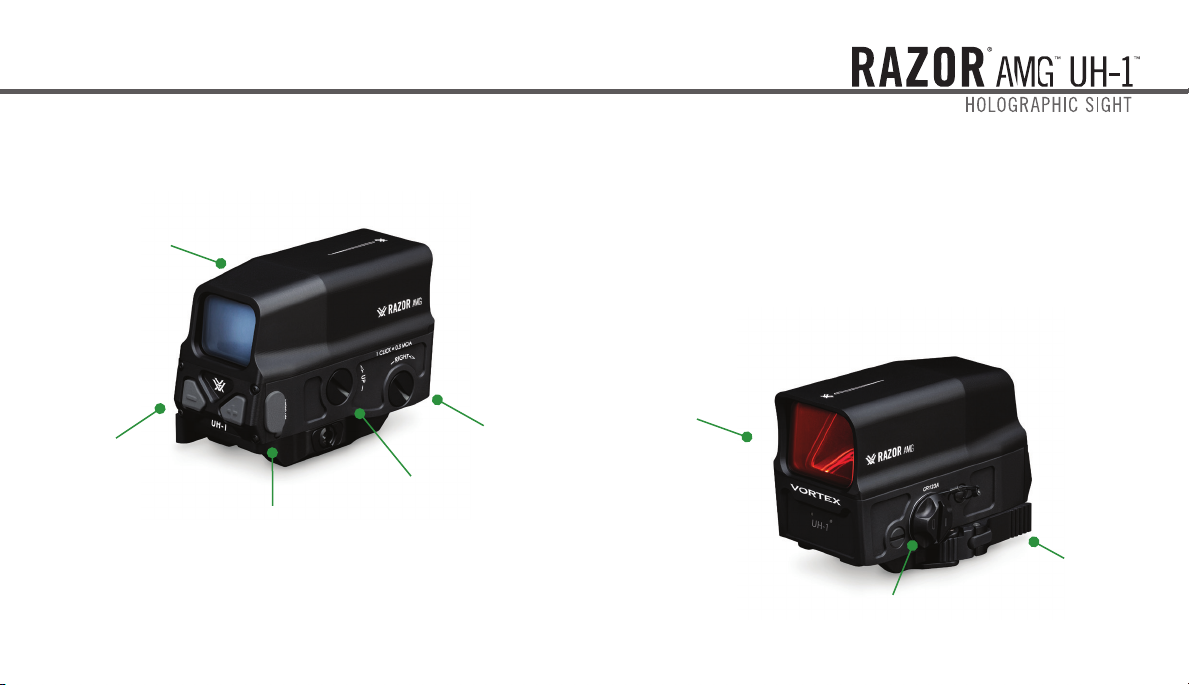

Shockproof Housing
Windage
Adjustment
Elevation Adjustment
Micro USB Port
Shatterproof Sight
Window
Snag Free Battery Cap
Integrated Quick
Release Mount
On/Off Buttons
The incredible features of the Razor®AMG™UH-1™are
matched only by its tough, tenacious performance. Absolute
zero image distortion and an impressive sight picture with un-
obstructed view ensure rapid, instinctual target acquisition.
The shatterproof XR plus fully multi-coated windows and holo-
graphic elements are incredibly durable and promote optimal
light transmission. All sensitive components are protected in
the base of the sight, increasing durability, while eliminating
the need for an obstructive secondary shroud.

4 5
Powering Up
To turn the UH-1 on press either button. It is set to the middle
illumination setting. Use the plus and minus buttons to switch
brightness levels. There are 15 brightness settings for extreme
low light to daytime bright.
To turn off, simultaneously press both buttons.
Auto Shut Off
The UH-1 will automatically shut off after 14 hours if no button
is pressed. The 14-hour Auto Shut Off feature can be disabled.
To disable the Auto Shut Off feature, press the minus button (-)
for 5 seconds. The reticle will blink twice to confirm. To re-en-
able the feature, press the plus button (+) for 5 seconds. The
reticle will blink three times to confirm.
Please note, when the auto shut off feature is disabled, you
must remember to manually turn off the sight, otherwise the
sight will stay on until the battery runs completely out.
Operating the UH-1™
Power Off:
Press both buttons
simultaneously.
Power On:
Press either
button.

6 7
Windage Adjustment
Elevation Adjustment
Windage and Elevation Adjustments
Use a coin or other flat head item to turn the knobs to adjust for
point of aim. For both adjustment knobs, one click will change
the point of aim approximately ½ MOA when zeroing.
One full rotation of either knob will change the point of aim
approximately 16.5 MOA—8.25” at 50 yards or 16.5” at 100
yards when zeroing.
Please note:
When adjusting, you may encounter increased resistance. This
means the end of the adjustment range has been reached
and you should not turn the knob any further.
One click yields ½ MOA of adjustments
¹/8-inch (3.18mm) at 25-yds (23.75 meters)
¼-inch (6.35mm) at 50-yds (47.5 meters)

8 9
Using the EBR-CQB Holographic Reticle
The EBR-CQB is designed to take full advantage of both the
center dot and the bottom triangle for targeting.
Use the center dot for zeroing your rifle and as the point of aim
for targets at 25 to 400 yards/meters.
The bottom triangle will be your point of impact for close quar-
ters distances of 10 yards/meters or less.
See trajectory charts on next page.

10 11
Trajectory and Ballistics Examples
This example is based on M855 ammunition. This example is based on M855 ammunition.

12 13
One CR123A battery powers the UH-1. The UH-1 also runs on the
LFP123A, the high-end rechargeable version of the CR123A. Charge
the battery using the Micro USB port and it will recharge while in the
sight. This LFP123A rechargeable battery does not have as long of life
for continuous use as a standard CR123A, but does provide the advan-
tage of recharging.
Please note:
If the reticle begins to pulse, the battery should be changed
or recharged.
Replacing the Battery
To remove the snag-free battery cap, insert a nickel into the slot and
turn the cap counterclockwise. A - symbol on the unit shows battery
direction. Special threads hold the cap in place, it will not back out
with recoil.
Battery Information
Charging the Battery
While charging a LFP 123A battery in the sight, the reticle will
pulse back and forth between dim/bright. The actual brightness
values for the pulsing will be one setting above the “on” setting
and one setting below the “on” setting.
During a low battery condition in the sight:
When you turn on the sight it goes straight to the “puls-
ing” function, as described above. The sight will continue
to pulse for 5 seconds no matter what, and will continue
pulsing unless the user cancels by cycling between two
brightness settings.
The above low battery condition will occur when using
the CR 123A when there are 25 hours of battery life left.
When using the LFP 123A battery pulsing will occur
when there is about one hour of battery life left. These es-
timates are based on 70° F. The exact amount of battery
life will vary due to the ambient conditions.

14 15
VIP Warranty
Vortex Optics
2120 West Greenview Drive
Middleton, WI 53562
[email protected]
We build optics based on our commitment to your absolute
satisfaction. That’s why Vortex products are unconditionally
guaranteed and we make this Very Important Promise to you—a
Very Important Person.
Rest assured that in the event your optic becomes damaged or
defective, Vortex Optics will repair or replace it at no charge
to you. If we cannot repair your optic, we will replace it with a
product in perfect working order and in equal or better physical
condition. Call Vortex Optics at 800-426-0048 for prompt,
professional, and friendly service.
Visit www.vortexoptics.com for more information.
Note: The VIP Warranty does not cover loss, theft, deliberate
damage, or cosmetic damage that does not hinder the perfor-
mance of the product.
Maintenance
The UH-1™will require virtually no maintenance other than
periodically cleaning the exterior lenses. If desired, the exterior
lens may be cleaned by wiping with a soft, dry cloth.
• When cleaning the lenses, be sure to use products specifically designed
for use on coated optical lenses such as the Vortex Lens Pen, the Fog Free
Cleaning kits, or the included microfiber cloth.
• Be sure to blow away any dust or grit on the lens prior to wiping the surface.
• Using your breath, or a very small amount of water or pure alcohol, can help
remove stubborn things like dried water spots.
CAUTION - Use of controls, adjustments or performance of procedures other than those specified herein may result
in hazardous laser radiation exposure.
Laser safety
CLASS 1 LASER PRODUCT
THIS PRODUCT COMPLIES WITH IEC 60825-1:2014-05 Ed.3.0
and IEC 60825-1:2007-03 Ed. 2.0
Sheltered Wings, Inc., 2120 West Greenview Drive,
Middleton, WI 53562
Sheltered Wings, Inc., 2120 West Greenview Drive,
Middleton, WI 53562
Manufactured: January 2017
THIS PRODUCT COMPLIES WITH
21CFR SUBCHAPTER J PARTS
1040.10 AND 1040.11 EXCEPT FOR
DEVIATIONS PURSUANT TO LASER
NOTICE NO. 50 DATED JUNE 24, 2007.
