Voxoa T40 User manual

User Manual
使用說明書
皮帶式黑膠唱機
BJ-U2350EPD (V.0.1-011216).indd 1BJ-U2350EPD (V.0.1-011216).indd 1 2016/1/14 上午 09:27:012016/1/14 上午 09:27:01

BJ-U2350EPD (V.0.1-011216).indd 章節1:2BJ-U2350EPD (V.0.1-011216).indd 章節1:2 2016/1/14 上午 09:27:062016/1/14 上午 09:27:06

T40
T40
3
Contents
ENGLISH
中文
IMPORTANT SAFETY INSTRUCTIONS .............................................................................12
BEFORE USE................................................................................................................14
PART NAMES AND FUNCTIONS........................................................................................................................... 16
OPERATING .................................................................................................................18
SPECIFICATIONS & ACCESSORIES SUPPLIED..................................................................19
重要安全指示........................................................................................................ 04
初始設置............................................................................................................... 06
部件名稱與功能 .......................................................................... 08
操作 ..................................................................................................................... 10
規格和配件 ........................................................................................................... 11
BJ-U2350EPD (V.0.1-011216).indd 章節2:3BJ-U2350EPD (V.0.1-011216).indd 章節2:3 2016/1/14 上午 09:27:062016/1/14 上午 09:27:06

4
中
文
1. 閱讀說明書 - 操作本產品前應先閱讀所有安全性及操作說明。
2. 保留說明書 - 安全性及操作說明應妥善保存供未來參考用。
3. 留心警告 - 所有在本產品及操作說明上的警告都要遵守。
4. 參照說明書 - 需參照所有操作及使用說明。
5. 水和濕氣 - 在操作本產品時絕對不要靠近水-例如靠近浴缸、臉盆、洗碗槽、洗衣盆、游泳池、及在潮濕
地下室等等。禁止將装有液体的容器，例如花瓶，酒瓶等至於本產品上。
6. 移動平台及固定檯面 - 本產品只能使用在製造商所建議的移動平台及固定檯面。本產品與移動平
台的組合在移動時應特別注意。突然地停止，過大的外力及不平衡的表面，都會造成本產品在移
動平台上翻覆。
7. 牆壁或天花板架置 - 本產品應只參照製造商所建議的方式來架置在牆壁或天花板上。
8. 高溫 - 本產品應遠離熱氣來源，例如散熱器、暖器、火爐或者其他會產生高溫的用品(包含擴大機)。
9. 電源 - 本產品只能照電壓標籤所示來操作。如果你不確定你住家的電源的種類，請諮詢你的產品賣家或當
地電力公司。若本產品需要用電池或其他電源，請參照操作說明書。
10. 接地與電極 - 本產品可能供給極化交流電插頭。插頭只有一個方向插入插座。這是一個安全裝置，如果沒
辦法完全插入插座，請試著把插頭反方向。如果插頭仍無法插入插座，請連絡電工來更換插座，請勿毀
損安全性為考量的插頭。
11. 電源線的保護 - 電源供應線應該妥善規劃佈線的路徑，避免被其他物件所纏繞。應特別注意所使用的插座
是否與電源供應線的插頭吻合，這插座要靠近本產品的使用地點。
12. 清潔 - 本產品須依照製造商所建議的方式做清潔。清潔本產品應使用柔軟的乾布清潔。
13. 交流電供電零件 - 維修完成後在交還產品給使用者前，應使用電阻測量表測量交流電插頭及所有暴露在外
的金屬零件，電阻值應大於100k歐姆。
14. 長時間未使用 - 本產品在長時間未使用的狀況下，應將插頭拔除。
15. 物體及液體進入 - 小心不要讓物體掉入及液體流進本產品裡。
16. 損壞需求服務 - 當A.電源線或插頭已經毀損；或B.異物或液體掉進本產品；或C.本產品暴露在雨中；或
D.操作或功能不正常；或E.本產品被摔落或內部損壞時，應送回合格的服務人員處進行維修。
17. 售後服務 - 除了操作說明書所提到的正常操作外，使用者不應進行其他不當操作或試圖自行維修。當本產
品有問題時應請教合格的維修服務人員或送回合格的維修站進行維修服務。
重要安全指示
BJ-U2350EPD (V.0.1-011216).indd 章節2:4BJ-U2350EPD (V.0.1-011216).indd 章節2:4 2016/1/14 上午 09:27:062016/1/14 上午 09:27:06

T40
T40
5
中
文
皮帶式黑膠唱盤
18. 保持本產品在空氣流通的環境中 - 本產品上的散熱孔提供流通的空氣，以避免本產品在操作時產生過熱的
現象。這些為保持本產品空氣流通的散熱孔嚴禁被阻隔或被其他物品覆蓋。特別是較柔軟的表面，例如
床，沙發及地毯等等。本產品不應被安裝在內建的空間內，例如書櫥及架子，除非能夠依製造產商所規範
的空氣流通指示建構。
19. 連接安裝 - 請勿安裝非本產品製造商所建議的連接器材，以避免本產品遭受害。
20. 配件 - 請勿將本產品放置在不穩定的移動推車，三角架，支撐架或桌子上。本產品可能會掉落因而使小孩
或是成人受傷，並且本產品會受到嚴重的損害。只能使用製造商所建議的移動推車，三角架，支撐架或桌
子，或是與本產品一起銷售的配件。必須依製造商指示安裝本產品，並且安裝的配件必須使用製造商所建
議的。
21. 閃電 - 為保護本產品在風雨期間不受到閃電的影響及侵害，當本產品長時間不使用時將插頭拔除，並拆除
天線。這將保護本產品免於受到閃電及電源突然增加的損害。
22. 替換零件 - 當需要替換零件時，請確保維修技術人員使用製造商所指定的零件或是與原零件具有相同特性
的替代品。未經授權的替代零件會導致過熱著火，電磁衝擊或其他嚴重的損害。
23. 安全性檢查 - 本產品在進行維修或任何服務時，請要求維修服務人員進行安全性檢查，以確保本產品在正
確地操作狀況下。
重要安全指示
警 告
嚴禁本產品暴露在下雨及潮濕的環境之中，以降低起火及觸電的危險。本產品避免暴露在會滴水及會濺到
水的環境中。裝有液體的容器絕對禁止放在本產品上，例如酒瓶，花瓶等等。
注 意
為了杜絕觸電的危險，請勿使用不合規格的插座。應使用插頭能夠完全插入插座的插孔。
注意:嚴禁打開機蓋以降低觸電的風險。維修及更換零件請諮詢維修中心
合格的維修工程師。
三角形中有個驚嘆號是為了提醒使用者重要的操作及維護指示。
三角形中有個箭頭的閃電標誌是為了警告在產品內部因未絕緣而可能產生的高壓電，這高壓電會
造成觸電的危險。
BJ-U2350EPD (V.0.1-011216).indd 章節2:5BJ-U2350EPD (V.0.1-011216).indd 章節2:5 2016/1/14 上午 09:27:062016/1/14 上午 09:27:06

6
中
文
初始設置
組裝
1. 从包装盒中取出机台，移除包装材料。
2. 把 45-RPM接合器放置在机台上。
3. 將唱机轉盤放置于唱机中心主軸位置。
4. 將橡胶皮帶連接放置在马達上, 將防滑橡胶墊放置于唱机轉盤上。
5. 安装唱头：
當安装唱头時，請参照唱头的操作規則進行安装。
在安装時，請保护唱針，以免傾斜造成唱針的損坏。
(1) 連接主線到唱头端口。大部分唱头的端口是有顏色區別的，請遵循顏色對應原則進行連接。
White （L +） ..................... Left Channel +
Blue （L -） ...................... Left Channel ﹣
Red （R +） ..................... Right Channel +
Green （R -） ...................... Right Channel ﹣
(2) 安装唱头于唱臂前座時，請用螺絲擰緊固定。
6. 將唱臂前座嵌入唱臂的前端，然后逆時針轉动螺帽，使其固定。
7. 輕輕地旋緊平衡錘，將平衡錘栓在唱臂后面。
8. 調整水平“零”平衡和唱針針壓：
(1) 从唱臂前座上面移除唱針的保护套，在調節過程中，請勿触碰唱針針头。
(2) 设置唱臂控制杆在一个較低的位置。
(3) 鬆開唱臂的綁帶，升起唱臂。
(4) 旋轉平衡錘，直到唱臂接近平衡的水平位置（自由浮动）。
(5) 重新用唱臂夾鉗固定唱臂。
(6) 用一隻手托住平衡錘使其靜止，旋轉平衡錘直到唱針針壓環上的刻度“0”与唱臂後端的中心線對齊。
(7) 同時旋轉平衡錘和唱針壓環，直到刻度顯示值与所使用的唱針針壓值一致。如果您使用不同款式的的唱
針，請按照制造商的指示進行操作。
9．设置防滑控制旋鈕，与唱針針壓保持相同值。
10. 使用防塵盖扣環，安装連接防塵盖与唱机本身。
BJ-U2350EPD (V.0.1-011216).indd 章節2:6BJ-U2350EPD (V.0.1-011216).indd 章節2:6 2016/1/14 上午 09:27:062016/1/14 上午 09:27:06

T40
T40
7
中
文
皮帶式黑膠唱盤

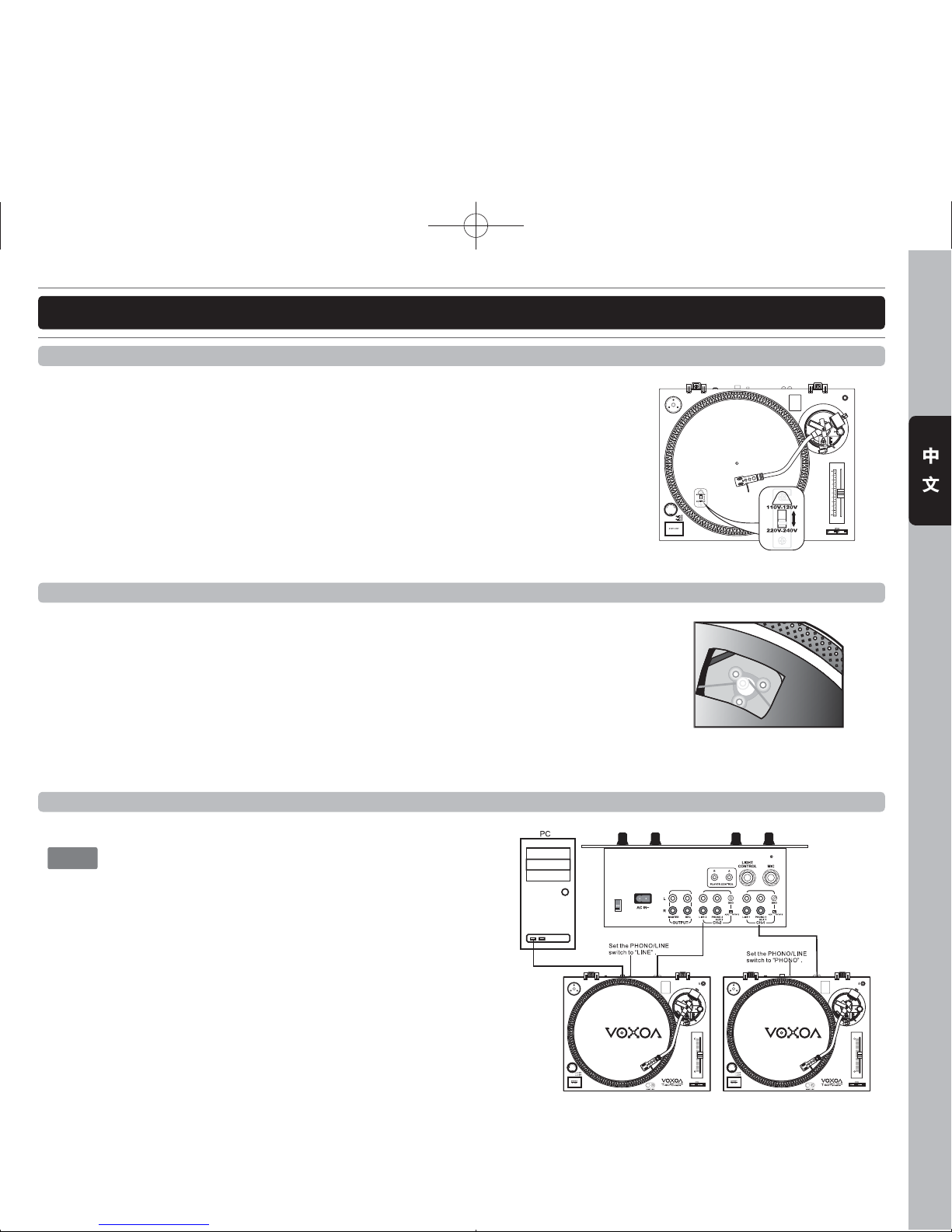

电壓選擇開關-僅供双电壓模式選擇
由于各国使用电壓不一致，机台內置電壓切換開關供使用者做適當的设定。
•电壓切換開關位于轉盤下側。（使用扁平螺絲刀切換即可）。
•切勿過度施力於此開關，這可能会導致电壓切換開關的損坏。
•如果電壓切換開關不能正常切換，請联系專业維修人員。
重要提示
在安装連接過程中，确實地將橡胶皮帶安装在马達上。
將唱机轉盤放置于唱机中心主軸上，并調整其中一个開口對准马達皮帶轮的位置，
仔細地把皮帶繞過马達皮帶轮。
連接
連接本机之前，建議您参閱使用說明書。
注 意
：在進行不同的連接之前，一定要關閉机台电源。
1. 將電源線連接到交流电电源插座。
2. 當PHONO/LINE開關设定到PHONO位置時，請將RCA線連
接到放大器的PHONO输入。你也可以透過切換機台後面板
PHONO/LINE的設定 ，使用放大器LINE的输入端口。
输出端子 放大器（接收器）
L(白色) L通道
R(紅色) R通道
3. 使用USB線連接电腦与机台。
初始設置
BJ-U2350EPD (V.0.1-011216).indd 章節2:7BJ-U2350EPD (V.0.1-011216).indd 章節2:7 2016/1/14 上午 09:27:062016/1/14 上午 09:27:06

8
中
文
部件名稱與功能
4. 電源開/關
向右轉開啟電源。
向左轉關閉電源。
5. 啟動/停止按鍵
按下啟動/停止鍵來開始或停止圓盤轉動。
6. 照明灯
將照明灯插入底座，灯就会亮起來。
7. 圓盤轉动速度選擇
按下鍵33選擇轉速33rpm。
按下鍵45選擇轉速45rpm。
8. Pitch Slider
當PITCH顯示灯亮時，移动 Pitch Slider可以改变轉
盤的轉速。
9. 唱头存放插座
备用唱头的存放位置（不包含于附件中）。
10. 防塵盖扣環
11. RCA输出接口
用來输出PHONO输出的信号或LINE输出的信号。
紅色的RCA線，表示右邊通道的输入，白色的RCA
線表示左邊通道的输入。
12.PHONO/LINE输出切換開關
依PHONE/LINE输出切換開關位置的不同，你可以
連接這台黑胶唱機到任何一个有PHONO或LINE输
入的机台。
13.USB卡槽 (USB線限定在3米內)
當通過USB線來連接电腦和唱机時，您可以使用軟
件來刻錄黑胶唱片上的歌曲到硬盤里。
1. 45 RPM 接合器
當播放7吋唱片時，需在中心軸放置45-rpm接合器
以適合7吋唱片中心的大孔徑。
2. 唱机轉盤
此轉盤直接放到中心軸位置上。該轉盤与主軸中
心，正好可以完美容納黑胶唱片。此轉盤同時也可
以穩定一致的速度轉动唱片。
3 頻閃觀測點
在圓盤邊的圓點，當圓盤轉動時圓點會顯示圓盤轉
動的速度，當圓點偏向右表示轉盤速度比顯示的速
度來的慢；偏向左則表示轉速比顯示的來的快；如
果圓點是靜止的，代表是正常轉速。
BJ-U2350EPD (V.0.1-011216).indd 章節2:8BJ-U2350EPD (V.0.1-011216).indd 章節2:8 2016/1/14 上午 09:27:092016/1/14 上午 09:27:09

T40
T40
9
中
文
皮帶式黑膠唱盤

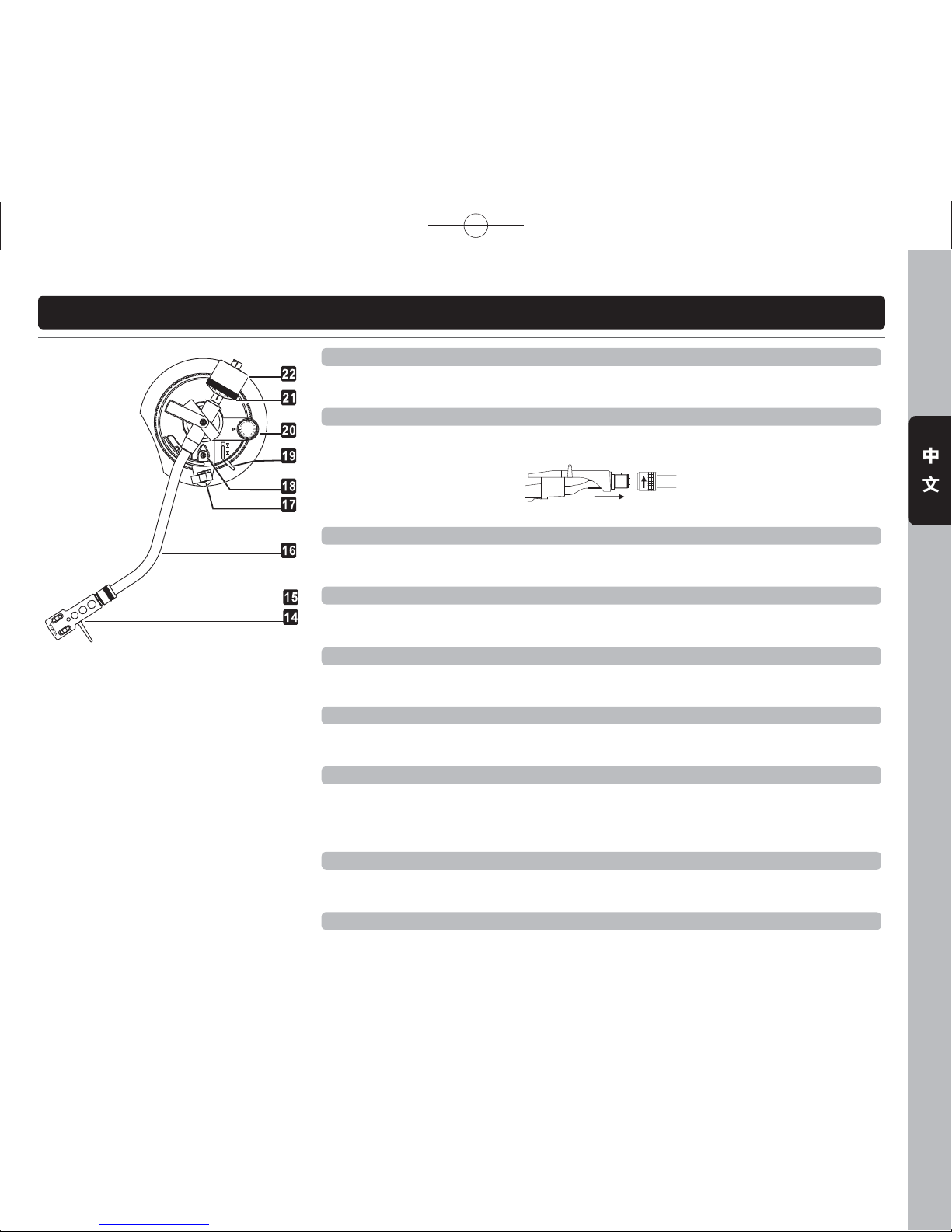

部件名稱與功能
14. 唱臂前座
此唱臂前座用來連接唱針和唱頭。
15. 唱臂前座鎖帽
將唱臂前座嵌入唱臂的前端，然後順時針轉動鎖帽，使其固定。
16. S型唱臂
S型唱臂可減少讀軌的失誤。
17. 唱臂的夾鉗及放置區
用來放置唱臂的地方，在搬運過程中需栓上唱臂的夾鉗做為保護。
18.唱臂舉臂調整螺絲
這螺絲可用來調整唱臂舉臂升降的高度範圍.
19. 唱臂控制桿
用來控制唱臂上下舉臂的動作。
20. 防滑控制
提供唱臂向心力來防止唱片轉動時產生離心力而導致向外滑。唱頭製造
商通常會正確規範設定。
21. 唱針針壓環
平衡錘的調整刻度值，必須面向使用唱机的使用者。
22. 平衡錘
調整唱針對唱片準確的下壓力。輕輕的旋轉將平衡錘栓在唱臂後面。
BJ-U2350EPD (V.0.1-011216).indd 章節2:9BJ-U2350EPD (V.0.1-011216).indd 章節2:9 2016/1/14 上午 09:27:102016/1/14 上午 09:27:10

10
中
文
操作
1. 將開關向右轉開启电源，這時候轉速顯示灯和頻閃觀測灯会亮起來。
2. 把想播放的唱片放到唱盤墊上。當播放7吋唱片時，需先在中心軸放置45-rmp接合器。
3. 再來设定可以符合唱片的轉速（33/45）。
4. 接着松開唱臂的夾鉗。
5. 把唱臂控制杆切換到UP的位置。
6. 然后按下启动/停止鍵，圓盤就会開始轉动。
7. 這時候將唱臂移动到想要播放的唱片曲目上。
8. 然后將唱臂控制杆切換到down的位置，唱臂会慢慢降下來，接着唱片就開始播放。
9. 若還有需要微調pitch速度，可以藉由上下移动pitch slider來做改变。播放的時候觀察在圓盤邊的頻閃觀測点，
當圓点偏向右表示轉盤速度比原本的速度來得慢；偏向左則表示轉速比原來的速度來得慢；如果圓点是靜止
的，代表是正常轉速。
10. 唱片播放過程中，如果要暫停播放，只需舉起唱臂控制杆就可以。
11. 當播放結束時，抬高唱臂控制杆并將唱臂移回放置區，确实拴上唱臂的夾鉗。
12. 然后按下启动/停止鍵來停止圓盤轉动。
13. 最后左轉电源開關關閉电源。
注 意
：1) 在唱機尚未装配好前請勿連接电源線。
2) 當唱機通电時，請再次确認所有的連接和电壓设置均無誤]。當連接或誤接其他机台時請關閉电源。
3) 在使用唱機前，請仔細閱讀使用手冊，并妥善惠存該使用手冊以便后續参考。
指示灯
該唱機配备了指示灯，在唱片播放過程中用來照亮唱針。
按下指示灯鍵，指示灯將会升起用以照亮唱針。當無需使用時，保持指示灯處于回落狀態。
BJ-U2350EPD (V.0.1-011216).indd 章節2:10BJ-U2350EPD (V.0.1-011216).indd 章節2:10 2016/1/14 上午 09:27:102016/1/14 上午 09:27:10

T40
T40
11
中
文
皮帶式黑膠唱盤
規格和配件
一般規格 :
• 電源供應: AC 115/230V~, 60/50Hz
• 電源消耗量：14瓦特
• 尺寸：450 (W) x 350 (D) x 150 (H) mm
• 重量：9公斤
唱盤部份 :
• 手動二段速
• 馬達：DC馬達
• 驅動方式：皮帶驅動
• 圓盤：直徑332公釐，鋁鑄圓盤
• 播放速度：33 1/3 及 45rpm
•
Wow and flutter : 速度33 1/3 rpm時低於0.25%
WRMS (JIS WTD)
• 信噪比：大於50dB (DIN-B)
• Pitch控制：+/- 10%
• 啟動時間： 低於1秒
• 煞車時間： 低於1秒
• 速度切換所需時間： 低於1秒
• High of cue(first track): 8~10.5mm
• Descend of cue: 1~3 sec.
• USB功能：USB錄音功能
 A/D，D/A：16BIT 44.1KHz 或48KHz USB選擇
 电腦接口：USB1.1兼容WINDOWS XP, Vista或
MAC OSX
唱臂部份 : (唱頭: AT-3600L)
•種類：穩定平衡的S型唱臂
•可使用唱臂長度：230.5公釐
•超距：16mm
•循軌錯誤角度：少於3度
•循軌力調整范圍：3~4公克
•防滑範圍：0~7公克
•合適的唱頭重量：3.5~8.5公克
•音頻輸出：1.5~3.6mV at 1KHz 5cm/sec (HP-4005)
•線性輸出：90~216mV at 1KHz 5cm/sec (HP-4005)
•頻率響應： 20Hz~20KHz
•頻道分離度: 大於15dB
•頻道平衡: Within 2.5dB at 1KHz
EQ AMP：
•
Output: 150mV +/-4dB (IN: 2.5 mV 1KHz)
•RIAA: 20Hz~20KHz +1/-3dB (IN: 1.5 mV 1KHz)
配件 :
- 1 平衡錘 - 1 唱臂前座
- 1 轉盤 - 1 45 rpm 接合器
- 1 滑墊 - 1 USB線
- 1 信號線 - 1 防塵蓋
- 2 後鈕用插梢 - 1 Audacity 軟件光碟
- 1 保修卡 - 1 使用手冊
注 意
: 本手冊中的規格及資訊如有變更，恕不另行通知，請上網下載最新版本。
BJ-U2350EPD (V.0.1-011216).indd 章節2:11BJ-U2350EPD (V.0.1-011216).indd 章節2:11 2016/1/14 上午 09:27:112016/1/14 上午 09:27:11

12
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. When the mains plug or appliance coupler used as the disconnect device, it shall remain readily operable.
16. Please keep the unit in a good ventilation environment.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be
exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade exposure.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use to the presence
of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock.
CAUTION : To reduce the risk of electric shock, do not remove any cover. No user-
serviceable parts inside. Refer servicing to qualified service personnel only.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of important
operation and maintenance (servicing) instructions in the literature accompanying this appliance.
WARNING
CAUTION
BJ-U2350EPD (V.0.1-011216).indd 章節2:12BJ-U2350EPD (V.0.1-011216).indd 章節2:12 2016/1/14 上午 09:27:112016/1/14 上午 09:27:11

T40
T40
13
ENGLISH
17. All warnings on the appliance and in the operating instructions should be adhered to.
18. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
19 .Power Sources - This product should be operated only from the type of power source indicated on the rating label. If you are
not sure of the type of power supply to your home, consult your product dealer or local power company. For products
intended to operate from battery power, or other sources, refer the operating instructions.
20. Grounding or Polarization - This product may be equipped with a polarized alternation-current line plug (a plug having one
blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
21. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to the cord in correspondence of plugs, convenience receptacles,
and the point where they exit from the appliance.
22. For AC line powered units - Before returning repaired unit to user, use an ohm-meter to measure from both AC plug blades to
all exposed metallic parts. The resistance should be more than 100,000 ohms.
23. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period
of time.
24. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through
openings.
25. Damage Requiring Service - The appliance should be serviced by qualified service personnel when: A. The power-supply cord
or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance
has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in
performance; or E. The appliance has been dropped, or the enclosure damaged.
26. Servicing - The user should not attempt any service to the appliance beyond that that described in the operating instructions.
All other servicing should be referred to qualified service personnel.
27. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
28. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards.
29. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks
to determine that the product is in proper operating condition.
IMPORTANT SAFETY INSTRUCTIONS
BJ-U2350EPD (V.0.1-011216).indd 章節2:13BJ-U2350EPD (V.0.1-011216).indd 章節2:13 2016/1/14 上午 09:27:112016/1/14 上午 09:27:11

14
ENGLISH
BEFORE USE
Assembly
1. Remove the main unit with the packing from the box and take off the packing.
2. Set the 45-RPM adaptor on the main unit.
3. Insert the turntable platter onto the center spindle.
4. Set the slip mat on the platter.
5. Installation of cartridge:
When installing a cartridge, refer to the operating instructions of that cartridge.
During installation, attach the stylus protector to guard the stylus tip from damage.
(1) Connect the lead wires to the cartridge terminals. The terminals of most cartridges are color coded.
Connect each lead wire to the terminal of the same color.
White (L+) Left channel+
Blue (L-) Left channel-
Red (R+) Right channel+
Green (R-) Right channel-
(2) Install the cartridge to the headshell and tighten it with screws provided with the artridge.
6. Insert the headshell into the front end of the tonearm, and then turn the lock nut clockwise with the headshell
firmly held horizontally.
7. Slide counterweight onto tonearm. Twist it lightly and it will screw onto the rear shaft of the tonearm.
8. Adjustment of horizontal zero (0) balance and stylus pressure:
(1) Remove the stylus protector; do not touch the stylus tip during the adjustment.
(2) Set the cueing lever to the lower position.
(3) Release the arm clamp and lift the tonearm from the arm rest to free it.
(4) Rotate the counterweight until the tonearm is approximately balanced horizontally (floats freely).
(5) Refasten the tonearm with the arm clamp.
(6) Hold the counterweight stationary with one hand and rotate only the stylus-pressure ring to bring the number
"0" of the ring into alignment with the center line on the tonearm rear shaft.
(7) Rotate the counterweight clockwise until the scale shows the value corresponding to the pressure of the used
stylus. It you use a separate pick-up system; please follow the manufacturer’s instructions.
9. Set the anti-skating control knob to the same value as the stylus pressure.
10. Install the dust cover to the main unit.
BJ-U2350EPD (V.0.1-011216).indd 章節2:14BJ-U2350EPD (V.0.1-011216).indd 章節2:14 2016/1/14 上午 09:27:112016/1/14 上午 09:27:11

T40
T40
15
ENGLISH
BEFORE USE

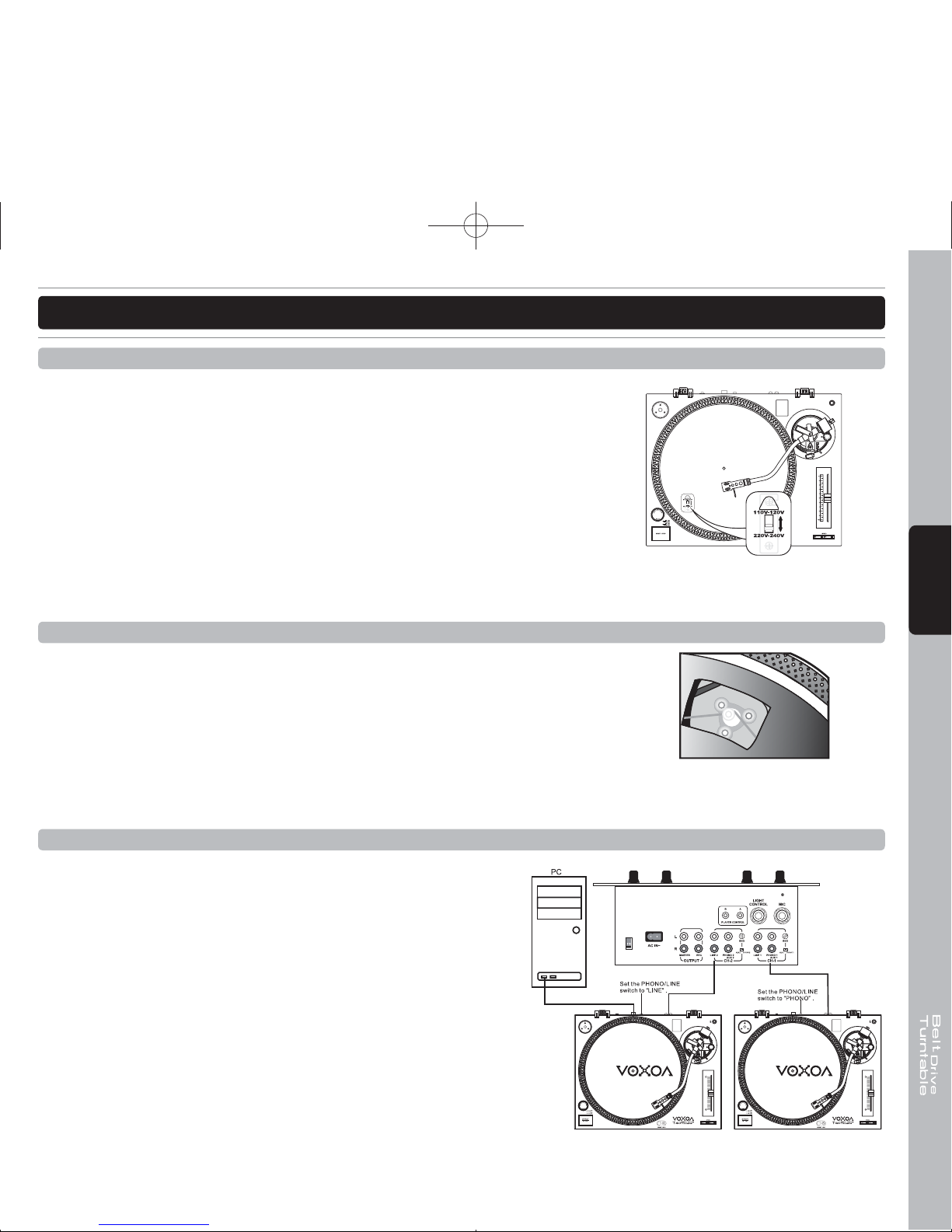

Line voltage selection
Just for dual voltage mode only!
Because power supplies vary from location to location we have
incorporated a selectable power supply.

The desired voltage may be set with the VOLTAGE SELECTOR switch
located under the platter. (Use a flat head screw driver).

Do not force the VOLTAGE SELECTOR switch as this may cause damage.
If the VOLTAGE SELECTOR switch does not move smoothly, please
contact a qualified service technician.
Very important!!
Do not forget to attach rubber belt to motor for correct operation.
After placing the Turntable Platter onto the turntable through the Center pindle, move
one of the large windows on the Platter to top right corner. Attach rubber belt around
motor. (Rubber belt is already attached to the underside of the Turntable Platter.)
Connection
Before connecting the unit it is advised that you also consult
your current equipment instruction manual.
IMPORTANT: Be sure to turn off the equipment before you
make changes to the different connections.
1. Connect the power cord to an AC outlet.
2. Connect the RCA cable to the PHONO input of your Amplifier
when you set the PHONO/ LINE switch to PHONO position.
You can also use a line input by setting the PHONO/ LINE
switch at the rear of the turntable.
Output terminals Amplifier (Receiver)
L (White) L Channel
R (Red) R Channel
3. Connect PC via USB cord.
BJ-U2350EPD (V.0.1-011216).indd 章節2:15BJ-U2350EPD (V.0.1-011216).indd 章節2:15 2016/1/14 上午 09:27:112016/1/14 上午 09:27:11

16
ENGLISH
PART NAME AND FUNCTIONS
1. 45 RPM adapter
For 45 RPM records, place the 45 RPM adapter on
the center spindle before placing the record on the
platter.
2. Turntable platter
This platter connects directly to the center spindle.
The platter and center spindle holds a vinyl record
perfectly center. The platter also spins the record at
a consistent speed.
3. Strobe dots
The dots around the edge of the platter are used in
conjunction with the light located inside the power.
While the platter is in rotation, the dots help to
indicate the speed of rotation. The speed is lower
than the displayed speed (33,45,78) when the dots
are flowing to the right. It is higher than the displayed
speed (33,45,78) when the dots are flowing to
the left. When the strobe is stopped, the platter is
rotating at the displayed speed.
4. Power ON/OFF
On - Rotate Right. Off - Rotate Left.
5. Start/Stop button
Press this button to start or stop the platter.
6. Target light
Insert target light to the deck and it will light up.
7 . Platter revolution speeds
33 rpm – Press 33
45 rpm – Press 45
8. Pitch slider
Use this to change the speed of the platter when the
PITCH indicator is lit.
9. HEADSHELL RECEPTACLE
Storage receptacle for extra headshell (not
included).
10.Hinge for dust cover
11.RCA output jacks
The output is able to switch to PHONO output or
LINE output. For example: These jacks are used
to send a low voltage "phono" level output signal
to a mixers "phono" input jacks. Turntables should
be connected to “Phono” inputs on a mixer. The
red colored RCA jack represents the right channel
input and the white represents the left channel
input.
12.Phono/line switch
Depending on the position of the phono/line switch,
you can connect the turntable to any phono or line
level input.
13.USB Socket (USB cable limit within 3m)
USB Socket (USB cable limit within 3m)
After connecting the Turntable to the computer
via USB, you can record your vinyl to hard disk
using the software.
BJ-U2350EPD (V.0.1-011216).indd 章節2:16BJ-U2350EPD (V.0.1-011216).indd 章節2:16 2016/1/14 上午 09:27:132016/1/14 上午 09:27:13

T40
T40
17
ENGLISH

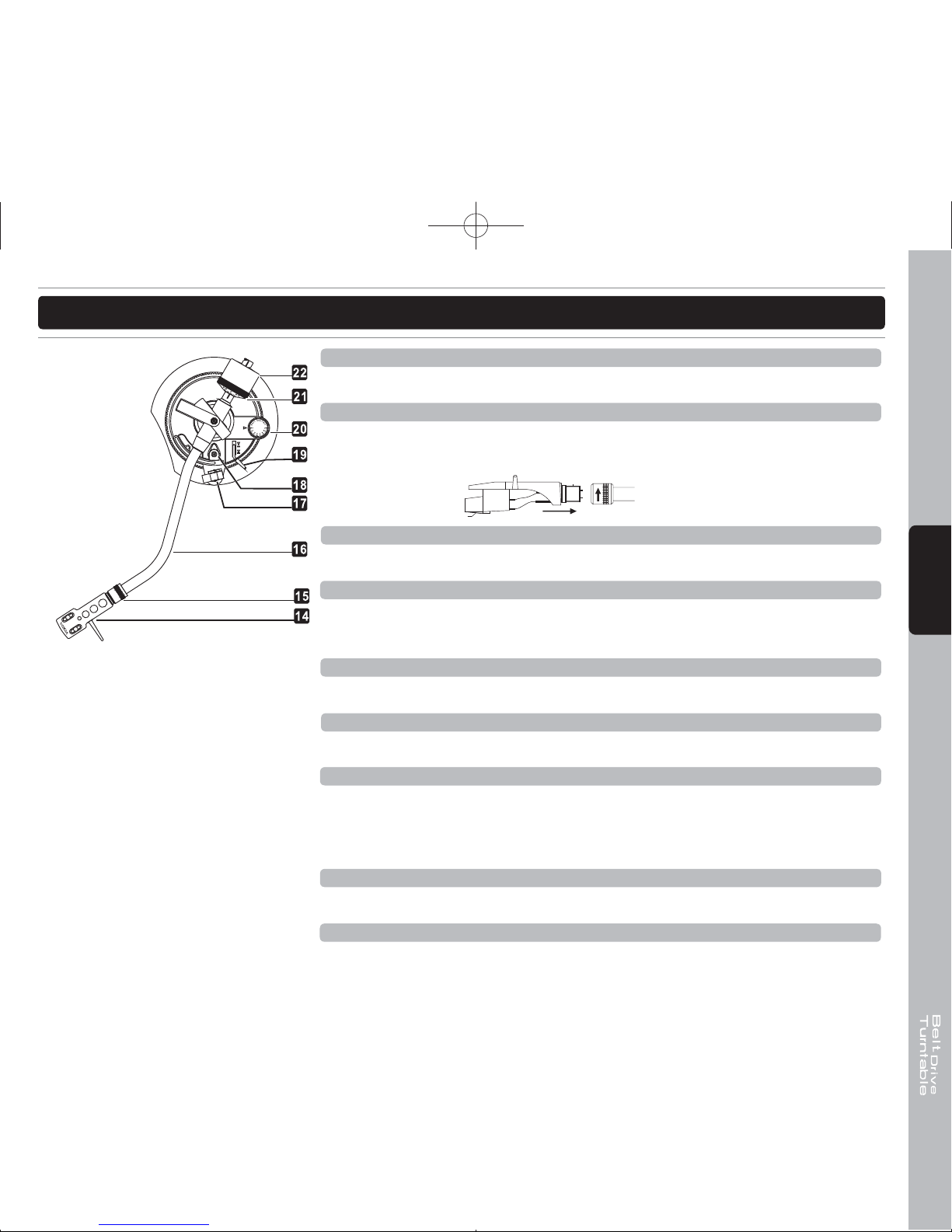

PART NAME AND FUNCTIONS
14.Stylus headshell
The included headshell is used to connect your stylus with the tone arm.
15.Headshell locking nut
Attach headshell by inserting into the front end of the tone arm, then turn
the locking nut clockwise with the head shell firmly held horizontally.
16.S-shaped tonearm
S-shaped tone arm geometry reduces tracking error.
17.Tonearm clamp and rest
Use this rest for the tone arm and clamp it in position during
transportation.
18.Tone arm lift adjust screw
Used to set the armount of tone arm lift.
19.Tonearm lever
Controls the up and down action of the tone arm lift.
20.Anti-Skate control
This applies inward force to the tone arm so it doesn't skip outward
across the record due to the centrifugal force of the record spinning.
Cartridge manufacturers usually specify the proper setting of this.
21.Stylus-pressure ring
The counterweight scale must face toward the DJ.
22.Counterweight
Adjustment creates the proper downward pressure of the stylus to the
record. Attach now by sliding the counterweight onto the rear of the tone
arm. Twist it lightly and it will screw onto the rear shaft of the tone arm.
BJ-U2350EPD (V.0.1-011216).indd 章節2:17BJ-U2350EPD (V.0.1-011216).indd 章節2:17 2016/1/14 上午 09:27:142016/1/14 上午 09:27:14

18
ENGLISH
OPERATING
1. Turn the power dial to turn on and the speed indicator and the strobe-illuminator will light up.
2. Place a record on the turntable mat. When playing a 45rpm record with a large center hole; place the 45-rpm
adapter on the center spindle.
3. Set the rotation speed (33/45) to match the record.
4. Release the arm clamp.
5. Set the cueing lever to the up position.
6. Press the Start/Stop button and the turntable platter will start to rotate.
7. Move the tone arm over the desired groove.
8. Set the cueing lever to the down position, the tone arm will descend slowly onto. The record and play begins.
9. Adjust the pitch to a desirable speed. During play, observe the strobe dots. If the strobe dots appear to the right,
the pitch is slower than the rated speed. If they flow to the left, the pitch is faster than the rated speed. If the
strobe dots appear stationary, which means the platter is in normal turntable speed, move the pitch control slider
up or down to adjust the speed.
10.To suspend play, lift tone arm with cueing lever.
11.When play is finished, raise the cueing lever, move the tone arm to the armrest and secure the tone arm with the
arm clamp.
12.Press the Start/Stop button to stop the platter rotating.
13.Turn the power dial to turn off the power.
Notes:
1) Do not connect the AC power plug before assembly has been completed.
2) Before turning the power on, make sure once again all the connections and power voltage settings are correct.
Always turn off the power when connecting or disconnecting.
3) Read this manual carefully before using the unit .Be sure to store the manual in a safe place for future reference.
Target light
This unit is provided with a target light for illumination the stylus tip during play.
Push the target light button, the target light will be raised into position for illumination the stylus tip. When not in
use, keep the target light lowered through depression.
BJ-U2350EPD (V.0.1-011216).indd 章節2:18BJ-U2350EPD (V.0.1-011216).indd 章節2:18 2016/1/14 上午 09:27:152016/1/14 上午 09:27:15

T40
T40
19
ENGLISH
SPECIFICATIONS &ACCESSORIES SUPPLIED
General Specifications
• Power supply : AC 115/230V~, 60/50Hz
• Power consumption : 14 Watts
• Dimensions : 450 (W) x 350 (D) x 150 (H) mm
• Weight : 9 Kg
Turntable section
• 2-speed full manual
• Motor : DC motor
• Driving : Belt drive
• Platter : 332mm dia. aluminum
• Speed : 33 1/3 and 45 rpm
• Wow and flutter : Less than 0.25% WRMS (JIS
WTD) with 33 1/3rpm
• S/N Ratio : More than 50dB (DIN-B)
• Pitch controls : +/- 10%
• Starting time : Less than 1 sec.
• Braking time : Less than 1 sec.
• Time for speed change: Less than 1 sec.
• High of cue (first track): 8~10.5mm
• Descend of cue: 1~3 sec.
• USB Function : USB rec. Function

A/D, D/A : 16BIT 44.1KHz or 48KHz USB Selectable

Computer interface : USB 1.1 Compliant WINDOWS
XP, Vista or MAC OSX
Tonearm section (Cartridge: AT-3600L)
• Type : Static balanced S-shaped
• Effective arm length : 230.5mm
• Overhang : 16mm
• Tracking error angle : Less than 3 degree
• Tracking Force Adjustment range 3~4g
• Anti-skating range : 0~7g
• Applicable cartridge weight : 3.5 ~8.5g
• Phono output : 1.5~3.6mV at 1KHz 5cm/sec (HP-4005)
• Line output : 90~216mV at 1KHz 5cm/sec (HP-4005)
• Frequency response : 20Hz~20KHz
• Channel separation : More than 15dB
• Channel balance : Within 2.5dB at 1KHz
EQ AMP：
• Output: 150mV +/-4dB (IN: 2.5 mV 1KHz)
•RIAA: 20Hz~20KHz +1/-3dB(IN: 1.5 mV 1KHz)
Accessories supplied
- 1 Counterweight
- 1 Headshell
- 1 Platter
- 1 45 RPM adaptor
- 1 Slipmat
- 1 Audio cable
- 1 USB cable
- 1 Dust Cover
- 2 Hinge
- 1 Audacity software disc
- 1 Warranty Card
- 1 User Manual
NOTES : Specifications and improvements in the design of this unit and this manual are subject to change
without any prior written notice.
BJ-U2350EPD (V.0.1-011216).indd 章節2:19BJ-U2350EPD (V.0.1-011216).indd 章節2:19 2016/1/14 上午 09:27:152016/1/14 上午 09:27:15

Printed in ChinaVERSION 1.0
BJ-U2350EPD (V.0.1-011216).indd 章節2:20BJ-U2350EPD (V.0.1-011216).indd 章節2:20 2016/1/14 上午 09:27:152016/1/14 上午 09:27:15
