VT X300BT User manual

VT X300 BT Headset
User Manual

User Manual
1
2
. WELCOME
3
. VT X300 BT OVERVIEW
4
2
.1 HEADSET OVERVIEW
.2 INCLUDED ACCESSORIES
4
2
5
3
. HOW TO WEAR
5
3
3
3
3
.1 LEFT OR RIGHT WEARING STYLE
6
.2 ADJUST THE HEADBAND
6
.3 POSITION THE
MICROPHONE
7
.4 STORING THE MICROPHONE
7
4
5
. HOW TO CHARGE THE BATTERY
. HOW TO CONNECT
8
9
5.1 CONNECT TO PC (USING BT 100U)
9
5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH)
9
6
7
8
. HOW TO USE
10
11
12
12
12
12
13
6.1 EVERYDAY USE
6.2 MULTIPLE
CALL HANDLING
. SUPPORT
7.1 FAQ
7.2 HOW TO CARE FOR YOUR HEADSET
. TECHNICAL SPECIFICATION

1 . WELCOME
Thank you for using the VT X300 BT Headset. We hope you will enjoy it !
VT Authorized Distributor
:
https://voip
.world
VT X300 BT FEATURES
•
•
•
•
•
•
Connect to PC via BT 50U Bluetooth adapter
Connect to mobile devices via Bluetooth
Integrated Busylight
Discreet boom arm can fold neatly away into the headband when not on a call
Superior music and voice capabilities
Hi-Fi Sound
3

2 . VT X300 BT OVERVIEW
2.1 HEADSET
T
-
Bar
Adjustable headband
Busylight indicator
Adjustable headband
Busylight indicator
Multi
-
function
touch button
Multi
-
function
touch button
Microphone
boom
-
arm
Microphone
boom
-
arm
Mute button
Base Charge Point
Volume up
Volume down
Bluetooth
indicator
USB charging port
Power On/off/
Connect switch
4

2.2 INCLUDED ACCESSORIES
Carry pouch
USB C cable
Charging Base
(Optional)
3 . HOW TO WEAR
5

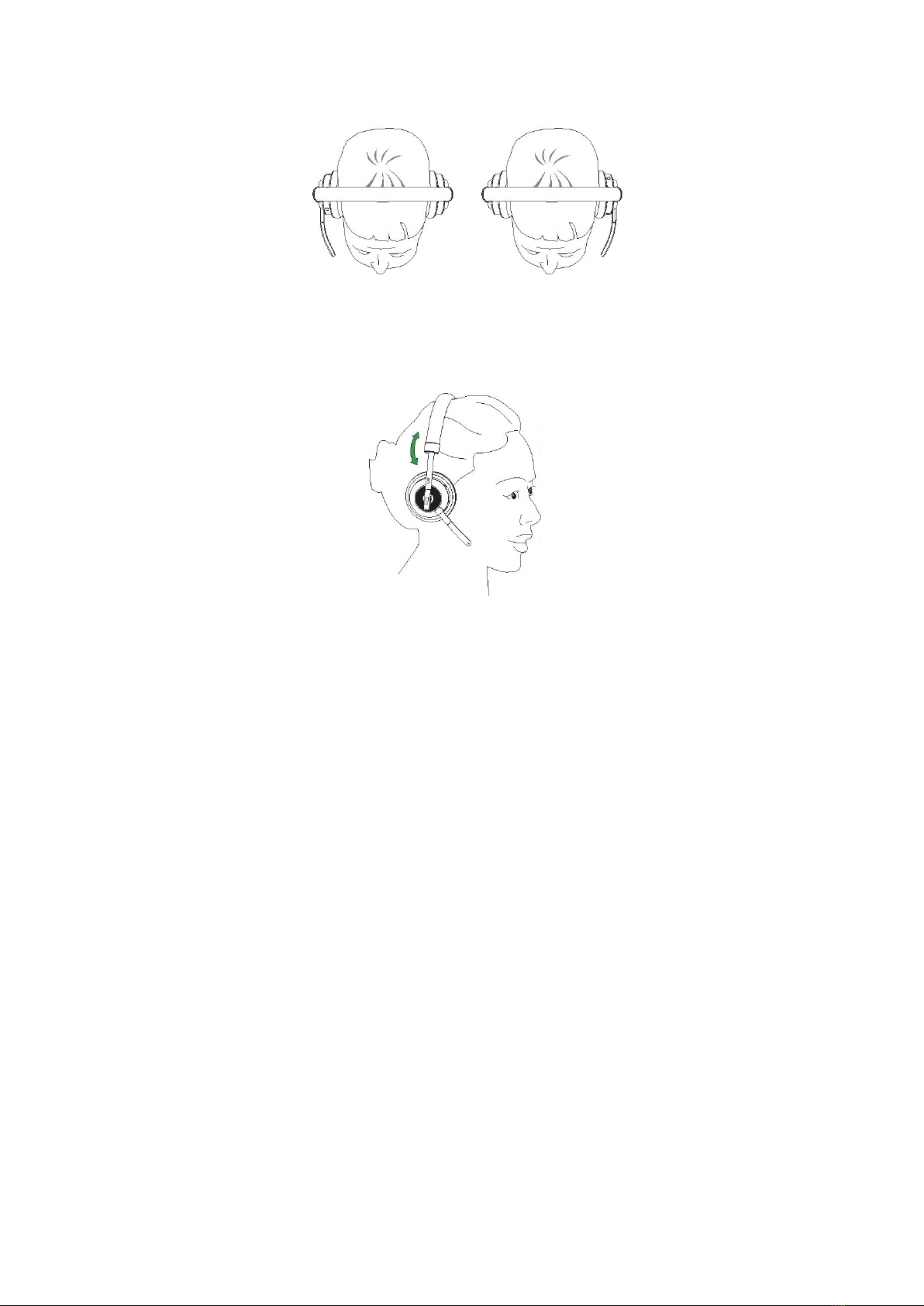

3.1 LEFT OR RIGHT WEARING STYLE
The VT X300 BT DUO can be worn on the
right or left which you want.
3.2 ADJUST THE HEADBAND
Adjust the headband to find the most comfortable fit.
6

3.3 POSITION THE MICROPHONE
It is recommended to position the microphone close to your mouth.
3.4 STORING THE MICROPHONE
Discreet boom
arm can fold neatly away into the headband when not on a call .
7

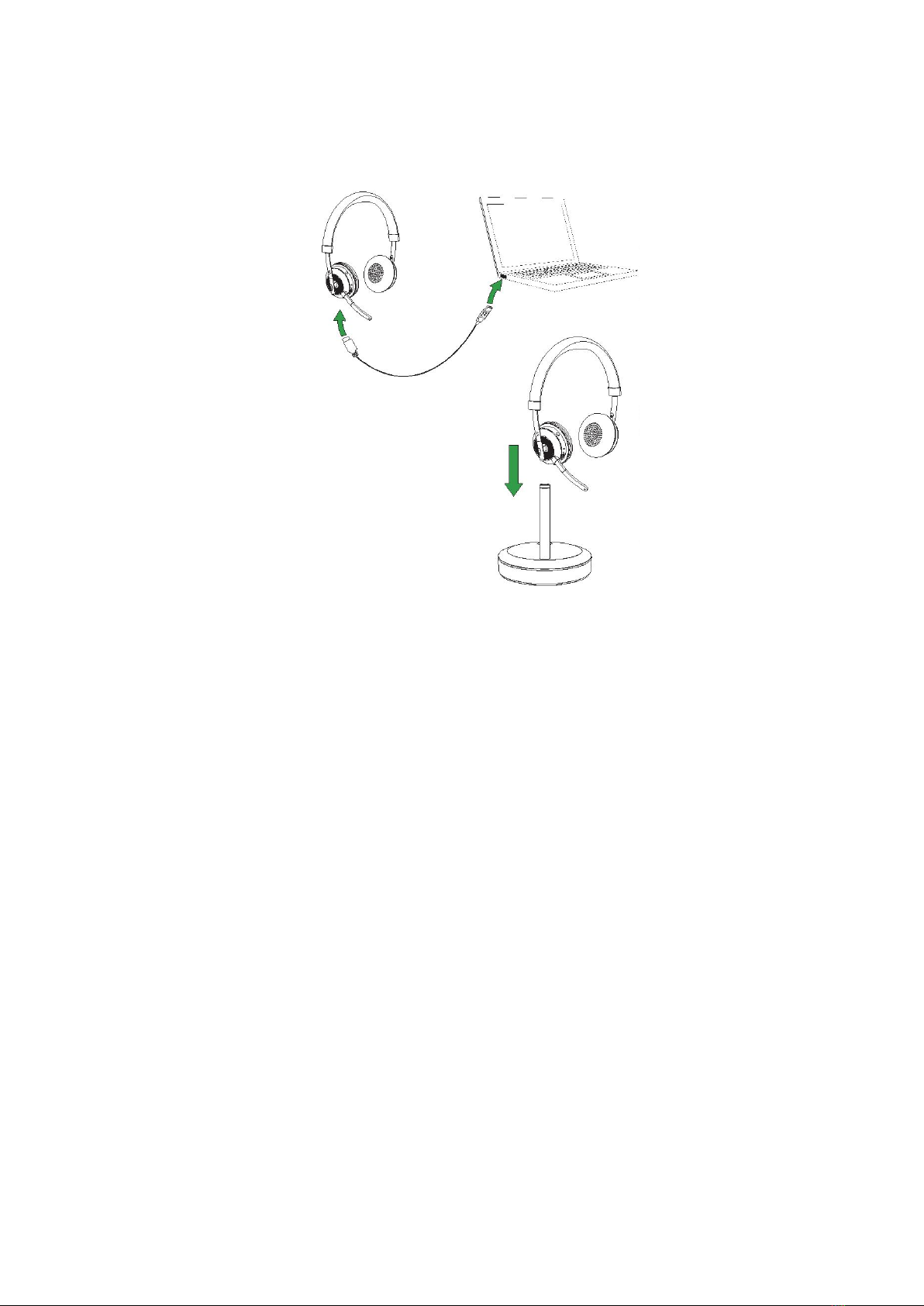

4 . HOW TO CHARGE THE BATTERY
Option 1: The headset
battery
will be charged when connected to a PC using a USB cable, or
when using any USB charger supplied with your mobile device.
Option 2: If you have a charging base, you could plug the charging base into a powered USB
port and then dock the headset.
It takes approx.3 hours to fully charge the
battery.
8

5 . HOW TO CONNECT
5
.1 CONNECT TO PC (USING BT
5
0U)
1
.
Ensure the headset is switched on.
2
.
Plug the BT
5
0U dongle into a USB port on your PC. The headset and BT
5
0U are
already pre
-
connected.
5.2 CONNECT TO MOBILE DEVICE (USING BLUETOOTH)
1. Wear the headset.
2. Hold (2 secs) the On/off/connect switch in th
e connect position until you hear the voice
guided instructions. The Bluetooth indicator will flash blue.
3. Follow the voice guided instructions to connect.
9

6 . HOW TO USE
T
-
Bar
Adjustable headband
Busylight indicator
Adjustable headband
Busylight indicator
Multi
-
function
touch button
Multi
-
function
touch button
Microphone
boom
-
arm
Microphone
boom
-
arm
Mute button
Base Charge Point
Volume up
Volume down
Bluetooth
indicator
USB charging port
Power On/off/
Connect switch
10

6.1 EVERYDAY USE
FUNCTION
ACTION
LED STATUS
Blue Light flash twice in
succession
Headset on
Headset off
Slide the On switch
Red Light flash twice in
succession
Slide the off switch
Slide the Pair Button
Pairing
Blue Light flash
Blue Light flash twice in
succession
Pairing Successfully
Blue Light flash 1 time per
Standby
8
secs
Tap the Multi
-
function
button
Answer/End Call
Double
-
tap the Multi
-
function button
Reject call
Tap the Volume up or
Volume down button
Adjust volume
Mute/unmute
microphone
Tap the Mute button
11

6.2 MULTIPLE CALL HANDLING
The headset can accept and handle multiple calls at the same time.
FUNCTION
ACTION
End current call and
answer incoming call
Tap the Multi
-
function button
Put current call
on hold
and answer incoming call
Press and hold (2 secs) the
Multi-function button
Switch between held call
and active call
Press and hold (2 secs) the
Multi-function button
Reject incoming call,
when on a call
Double
-
tap the Multi
-
function
button
7 . SUPPORT
7.1 FAQ
View the FAQs on www.Vbet.cn/VT X300 BT.
7
•
•
.2 HOW TO CARE FOR YOUR HEADSET
Always store the headset with the power off and safely protected.
Avoid
storage at extreme temperatures (above
55°C
or below
-
10°).
This can
shorten
battery
life and may adversely affect the headset.
12

8 . TECHNICAL SPECIFICATIONS
VT X300 BT HEADSET
SPECIFICATION
Frequency Range
2402~
2480M
H
z
Mono headset 106g
Stereo headset 146g
Headset weight:
Mono headset L196.3mm x W72.5mm x
H189.1mm
Stereo headset L196.3mm x W72.5mm x H191.1mm
Headset dimensions:
Wear Style:
Headband
Talk Time:
10 hours
Charging Time:
Charging Base:
Microphones:
3 hours
Optional
Noise cancelling microphone
Speaker Size:
40 mm
Speaker frequency range:
Cable length:
20hz
-
20 kHz
Connect to PC for charge: 1500 mm
-10°C to
40
°C
Operating temperature:
Storage temperature:
-
20°C
to
25°C
Transmit power:
6.0dBm
BLUETOOTH ADAPTER(BT
5
0U)
SPECIFICATION
PC connection:
Bluetooth range:
USB 2.0
Up to 30m (100
feet), Class 1
Bluetooth profiles:
A2DP (V1.2), Hands free profile (V1.6)
1
Simultaneous Bluetooth
Connection:
Microsoft Teams/Skype for Business/3CX, Cisco
Jabber, Avaya, and Counterpath Bria, etc.
Support Softphones:
Bluetooth audio bandwidth:
Visual indicators:
HD voice (wideband), A2DP
Multicolor LED
13

FCC Warning
ꢀ
is device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) ꢀis device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-
-
-
Reorient or relocate the receiving antenna.
Increase the separation between t
he equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-
Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit
not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
14

Made
in
China
MODEL: VT X300 BT DUO
FCC
ID:
2AC67
-
X300BT
Xiamen VBeT Electronics Co., Ltd. N403, Weiye Building, Xiamen Pioneering Park
for Overseas Chinese Scholars, PRC.
Declaration of Conformity can be found on
www.vbet.cn
