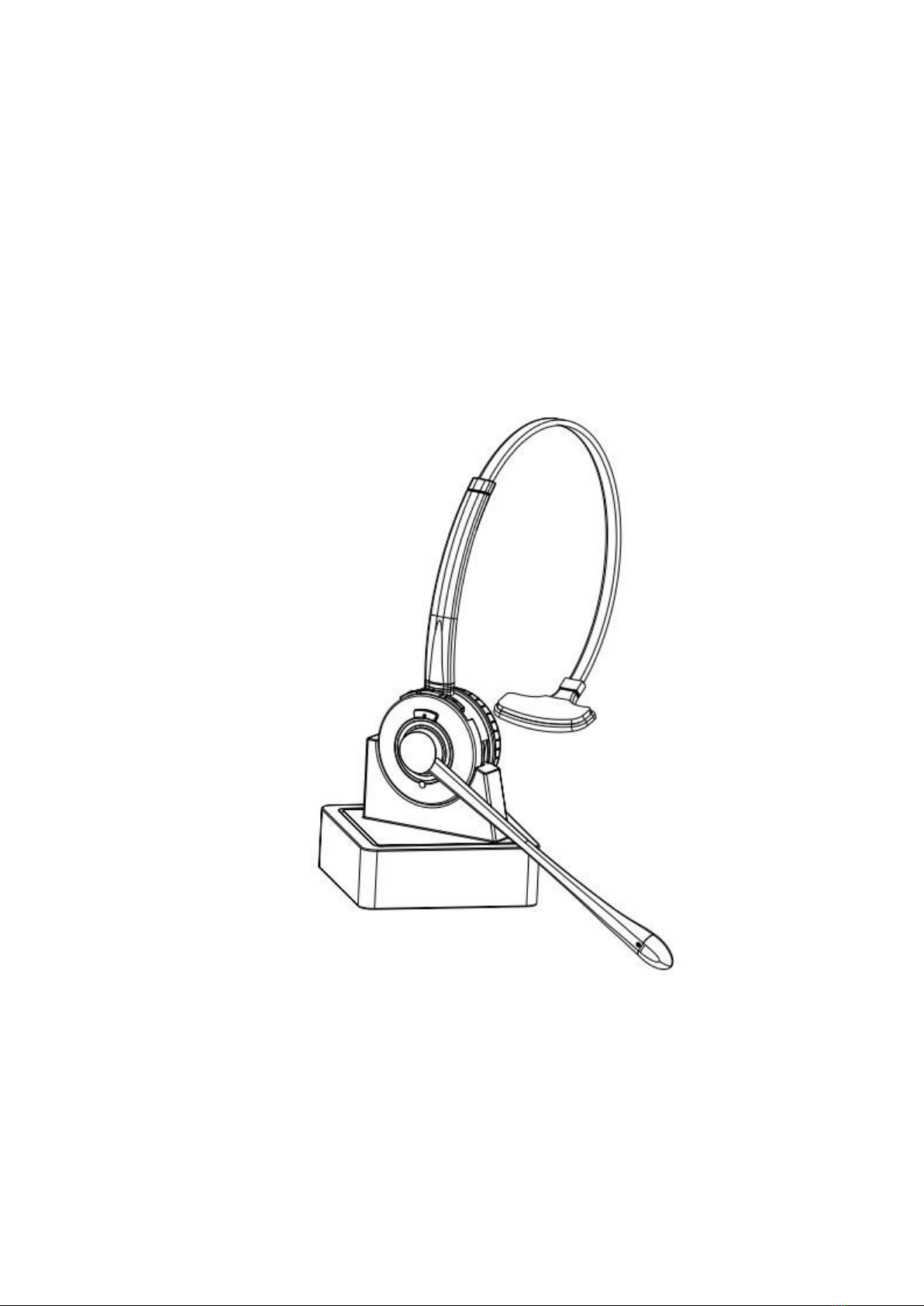

VT 9500 User manual

1
Bluetooth Headset
User Manual

2
User Manual
1.Welcome........................................................................................ 3
2. Product Overview ......................................................................... 3
2.1 Package Contents..........................................................................................3
2.2 Headset Overview .........................................................................................4
2.3 Base Overview ...............................................................................................5
3. Use Instructions ............................................................................ 5
3.1 9500 BT Pairing with Bluetooth Device.........................................................5
3.2 9500 BT Usage ...............................................................................................7
3.3 9500 BT Charging...........................................................................................8
4.Features......................................................................................... 8
4.1 Headset multi-function button .....................................................................8
4.2 Headset Speaker Volume Button .................................................................9
4.3 Headphone Mute Button ..............................................................................9
4.4 Headset LED Indicators..................................................................................9
5. Technical Specifications............................................................ 11
5.1 9500 Bluetooth Headset..............................................................................11
5.2 Headset battery...........................................................................................11
5.3 Charging Base ..............................................................................................12
5.4 Product Disposal Treatment and FCC statement........................................12

3
1.Welcome
Thank you for using the new 9500 Bluetooth Headset. We are confident
that you will fully enjoy a range of powerful features this headset has,
and also pleasantly be surprised to find the headset comfortable to wear
and easy to use.
2. Product Overview
2.1 Package Contents
Headset Charging base
Micro USB cable User manual

4

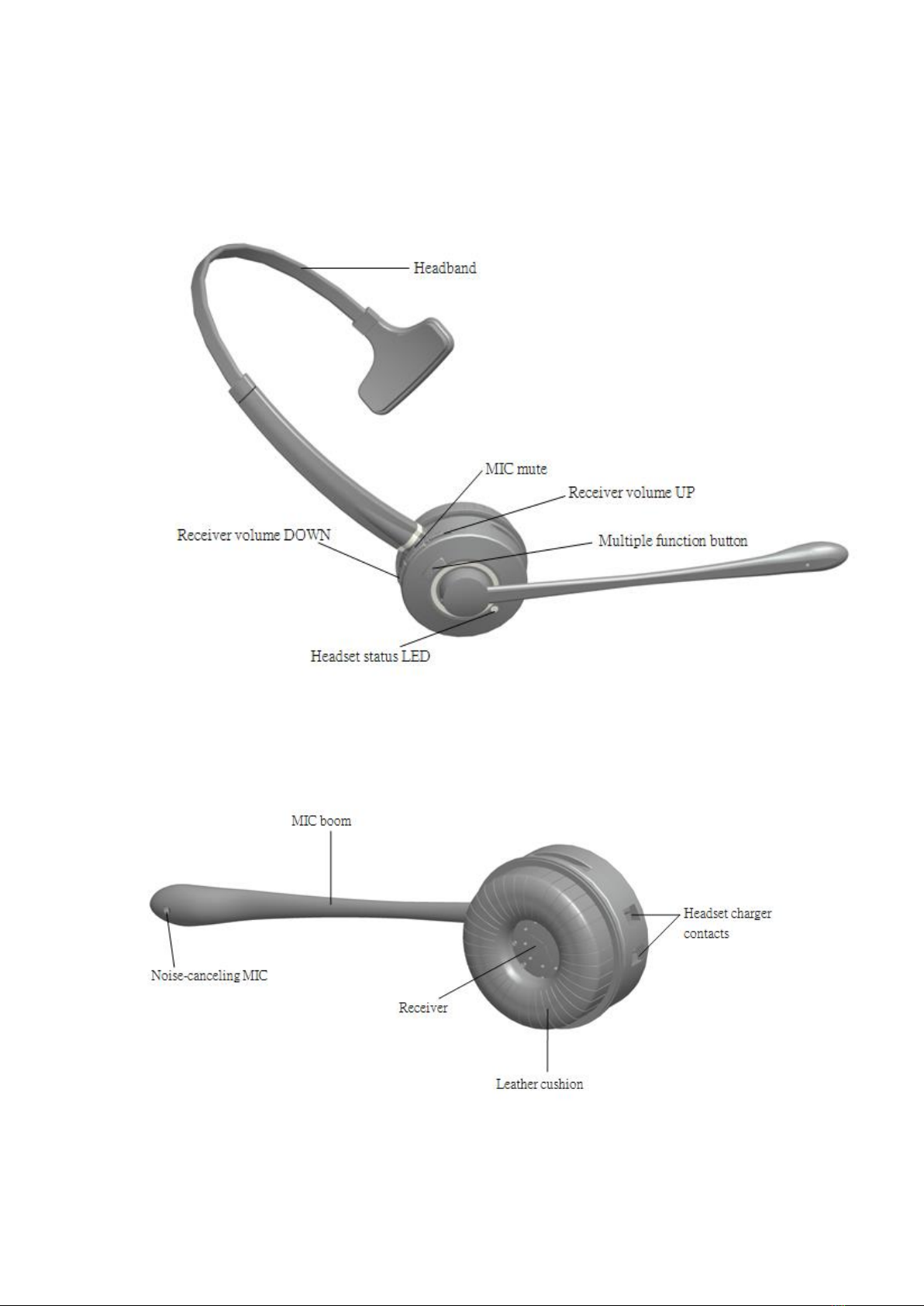

2.2 Headset Overview

5
2.3 Base Overview
Head seat
Charge contacts
Micro USB port for charge

6
3.Use Instructions
3.1 9500 BT Pairing with Bluetooth Device
1. Be sure that your smart phone/ laptop with Bluetooth function.
2. Active the Bluetooth function on your smart phone/ laptop.
3. Turn on your headset
4. Pairing headset with your smart phone/ laptop.
1) Press the multi-function key for more than 6s, the LED will flash
red and blue alternately, which indicates the headset is in pairing mode.
2)Search Bluetooth device on your smart phone/laptops. Open
“Bluetooth”menu and press “discover”or “add”to search 9500 BT on
your smart phone/ laptop.
3)When “9500 BT”showing on your Bluetooth devices list, please click it
to begin the pairing. Sometimes, the PIN code “0000”is required.
4)If pairing is successful, the LED will turn on blue and 9500 BT icon will
show on your smart phone/laptop. You can make calls or listen to music
now. Next time, you don’t need to do pairing again, just click 9500 BT
icon to make connection.
5. If pairing fails, please turn off the headset, and repeat step 4.
6. 9500 BT can pair with two devices simultaneously. If you want to pair
9500 BT with another device simultaneously, please turn off Bluetooth
function on the first smart phone/laptop and power off the headset.
Then repeat step2,step3,step4 with the second smart phone/laptop.
After pairing successfully, reactive the Bluetooth function on the first
smart phone/laptop. You will find 9500 BT is pairing with two devices
now.
7. If no smart phone/laptop is paired with the 9500 BT within 120S in
pairing mode, the 9500 BT will shut down to save power consumption
automatically.
8. After getting paired with 9500 BT, you can rename it on your smart
phone/laptop.
Tips: Headset is using a procedure called "pairing" to connect to a
Bluetooth device.

7
3.2 9500 BT Usage
1.Answer a Call:
After smart phone/laptop successfully pairing with 9500 BT, the headset
will ring when a call coming, please press the multifunction key to
answer it.
2. Hang up a Call
Please short press the multifunction key to hang up a call.
3.Microphone mute and on:
During a call, short press the MUTE button will make microphone on
mute status. If short press the MUTE button again, the microphone will
be on.
4.Volume Adjustment
Short click volume + key to increase the volume while short click volume
- key to decrease it.
3.3 9500 BT Charging
When 9500 BT headset is charging, the red light will on. The green light
will on when it is fully charged. When take the headset off from its
charger base, the headset will be in standby mode. And it is will shut
down automatically to save power consumption if there is no paring
active.

8
4. Features
4.1 Headset multifunction button
Short or long press the Multifunctional button to answer and end a call .
Function Short press Long press
Answer a call √
End a call √
Power on 3s
Paring 6s+
Power off 3s
Multi-function button

9
4.2 Headset Speaker Volume Button
The speaker volume buttons: to adjust the headset speaker volume.
4.3 Headset Mute Button
Mute button: to make the microphone mute or on.
Speaker volume button＂+＂
Speaker volume button”-＂
Mute button

10
4.4 Headset LED Indicators
LED indicates call status
Headset status LED status
Power on Blue light flashes four times (300ms on, 300ms off )
Power off Red light flashes once (2s)
Pairing mode Blue light and red light flash alternately (red light
on 750ms, blue light on 750ms)
Pairing successfully Blue light flashes (300ms on,8s off)
Answer a call or play music Blue light flashes (300ms on,8s off)
Charging Red light on
Fully Charged Blue light on
Led indicator

11
5. Technical Specifications
5.1 Headset
⚫Wideband audio for exceptional sound quality.
⚫Volume and mute controls
⚫Advanced hearing protection with safetone™.
⚫Bluetooth Version: V4.0 backward compatible.
⚫Advanced Multi-points
⚫Profile: Headset:1.2 Handsfree:1.6 A2DP
⚫Microphone with noise cancellation
⚫Crystal clear sound and voice(DSP)
⚫Range: up to 30m
⚫Talk time: 21 hours from 300mAh battery
⚫Stand by time: 500 hours
⚫Compatible with Smart Phone ,Desk Phone ,Computer (Laptop )
⚫Working environment: 0 ˚ C to +40 ˚ C; up to 95% relative humidity
non-condensing.
⚫Visual indicators: LED indicates call status, pairing status and others.
⚫Beep: indicate volume level, microphone mute, and others.
⚫Sound: Mic Noise canceling, the sixth generation CVC echo
cancellation ,tone control.
⚫Charging :When 9500 BT docking the base to charge

12
5.2 Headset battery
Battery type：Lithium-ion polymer.
Battery capacity：300 mA per hour standard.
Battery talking time：Up to 21 hours.
Battery life：Minimum recharging 1000 times.
Battery standby time：At least 500 hours.
Operating temperature range：-20 ˚ C to +60 ˚ C.
Battery charging time：Less than 60 minutes to charge 20%.
Less than 90 minutes to charge 50%.
Fully charged in less than 3.5 hours.
Battery storage life：Before first charging, if turn off the headset, the
battery will have power for six months.
5.3 Charging Base
9500 BT charging base meets the following specifications.
Port: Micro USB port is Power in interface, use USB cable connect PC or
USB adapter to charge
Size:81 mm x 81 mm x 67 mm.
Weight: 135±5g
5.4 Product Disposal Treatment and FCC statement
5.4.1 Dispose of in accordance with local regulations as headphones and recycling

13
regulations. Never treated headset as household waste. Do not dispose of the
headset in a fire, this battery may explode. If damaged, the battery may explode.
5.4.2 FCC statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RF Warning Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
