Instruction sheet -- VTI Flat panel TV cart
Model number: FPCAB4226E
Congratulations for having chosen this excellent VTI product.
To assure your complete satisfaction, this product is warranted against defect in
manufacture for one years after the purchase date. Any parts requiring replacement
during the 1--year period, under normal use and service, as a result of defective
workmanship, will be replaced by VTI or by an authorized VTI dealer, without cost,
except for transportation charges. All unit should be returnd in original packing, to
guarantee safe transport. VTI is not responsible for damage in shipment. If you have
any questions regarding the assembly of your table, please call the VTI helpline at
[phone].
Note: This unit is easier to assemble with two people.
Parts list
Qty. Description
1 Top shelf section
1 Bottom shelf section
2 Poles for supporting flat panel TV
2 Horizontal mount
1 Electrical bracket
1 Power cord
3 Screws and hex nuts(E)
1 Cart handle (Optional)
Qty. Description
9 Set Phillips head bolt, washer and hex nut(I)
2 Casters with brakes
2 Casters without brakes
2 Hex head screws for mounting the poles(F)
1 Hex head screw (G)
1 Hex head screw (H)
1 Set Side extended pull out shelf
Tools required
Hex wrench (provided)
Allen key (provided)
Adjustable wrench/pliers
Rubber mallet
FPCAB4226E
3.
Insert two bolts, washer and nuts(see screw table I) into each leg
of table. Washer should be on the inside of leg. Tighten all bolts
and nuts.
4.
Lay unit on floor . Insert casters with brakes into opposite
corner holes in the bottom of the unit. Insert other casters into
remaining holes of unit.
Manufacturing, Inc.
VTI
Horizontal mount
Pole
Screw table
Some screws may have already been
screwed on the related parts.

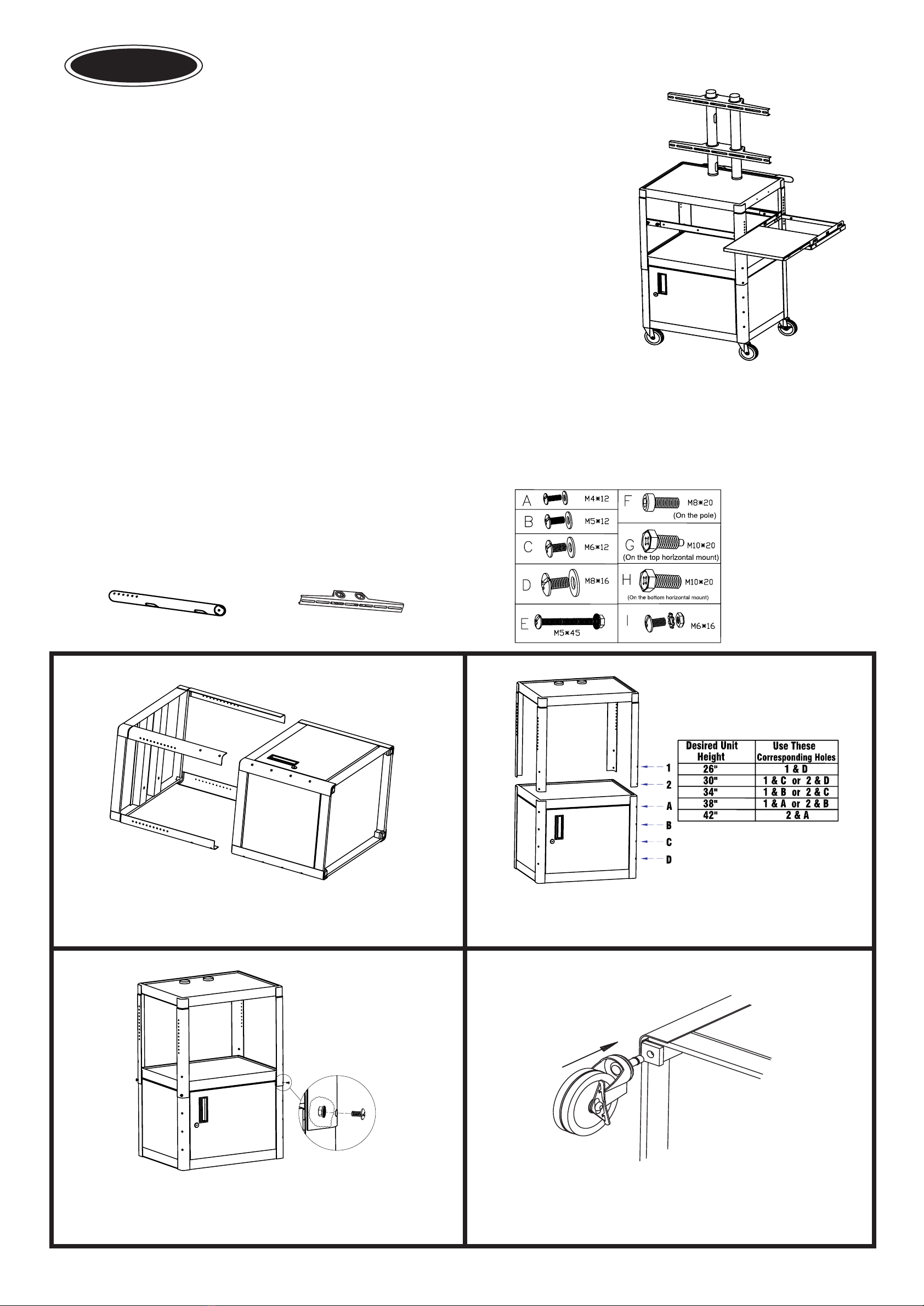

1.
Insert top table section onto bottom section.
2.
Align corresponding holes of unit to obtain desired height of
table as needed..

Page 2
5.
Insert the two
supporting poles
onto the holes
on top shelf.
Wire holes can
face inside or
outside.
B.
Tighten the pull out
shelf onto leg on
both side as shown.
7.
Tighten the two supporting poles onto the top shelf with two hex
head screws (see screw table F) as shown.
Top horizontal mount
6.
Insert the two horizontal
mounts onto the
supporting poles. Note:
The mount with
adjustable screw(see
screw table H) should
go on the bottom. Screw
(see screw table G) the
top mount to desired
height from A to F. Adjust
the bottom mount height
according to the TV
screw position as shown.
Bottom horizontal mount
9.
Use the appropriate bolts needed (M4, M5, M6 or M8, see screw
table A,B,C or D) to fasten the flat panel TV onto the horizontal
mounts as shown.
8.
Electrical bracket assembly instruction
A. Push power cord into cord winder bracket.
B. Attach electrical bracket to back side of top shelf with two nuts
and bolts(see screw table E). Tighten nuts and bolts securely.
Wrap power cord around wings of the bracket.
Side extended pull out shelf assembly instruction
A.
Due to limited packaging space, pull-out shelf was shorten. Adjust
the pull-out shelf out to the maximum inside width of the cart inside
as the pull-out shelf will be installed inside of the legs.
If any parts or hardware are missing or damaged, Do Not
Return the unit to your dealer. Call the VTI helpline at
[phone] for immediate parts replacement.
Manufacturing, Inc.
VTI
11015 Rush street, # 4,
South El Monte, CA 91733, USA
Tel.:[phone]; Fax:[phone].
10.
Handle assembly Instruction ( Optional for cart handle)
A. Unscrew the scews from the handle.
B. Attach the handle to the top shelf (either side) and tighten
handle to the shelf with screws from the inside under the shelf
as shown.

Instruction sheet -- VTI Security drawer for 4226 series
Model number: DRW4226
Note: This unit is easier to assemble with two people.
Screw table
( Instructions continued on next page )
Page 3
MFC4226E with security drawer MFCAB4226E with security drawer
FDC4226E
FDCAB4226E
Manufacturing, Inc.
VTI
Before Installing the security drawer, you have
to fully assemble the unit to its' desired height
(Model number: MFC4226E,MFCAB4226E,
FDC4226E or FDCAB4226E).

For MFC4226E, MFCAB4226E,FDC4226E and FDCAB4226E:
Page 4
If any parts or hardware are missing or damaged, Do Not
Return the unit to your dealer. Call the VTI helpline at
[phone] for immediate parts replacement.
15046 Proctor Avenue,
City of Industry, CA 91746, USA
Tel.:[phone]; Fax:[phone].
Manufacturing, Inc.
VTI
1. After the cart is fully
assembled to the
desired height, install
the drawer to the cart
with 2 security screws
on each side / pole as
shown.
Note: Pull out shelf on
top of the drawer can
be pulled out to the
front along with the
drawer or pulled out to
the back by itself with
the drawer inside the
cart.
2. To restore the
drawer back under
the cart, press down
the locking mechanism
(to ensure the drawer
stay in place when
pulled out) on each
side as shown.
3. To make sure the
drawer is secured
to the cart, before
locking the drawer,
slide the pull out
shelf to the back,
lock the drawer to
the side of the cart
as shown.
4. Restore the pull out
shelf back under the
cart, lock the drawer.
