INSTALLATION INSTRUCTION
In-Ground Color Changing
5031-CCBBR
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting o the electricity.
• Read all instructions before installing.
• System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.
• Place the wall switch in the“OFF”position.
• Go to the main fuse box, or circuit breaker. Unscrew the fuse(s) or switch ”OFF”the circuit breaker switch(es) that control the power to the
space that you are working on.
CAUTION:
All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out
or broken. Failure to follow this instruction could invalidate the ETL/cETL listing of this xture.
AVERTISSEMENT
IMPORTANT : COUPEZ L’ÉLECTRICITÉ AVANT TOUTE MANIPULATION.
• Lisez toutes les instructions avant d’installer.
• Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.
• Placez l’interrupteur mural en position d’arrêt (« OFF »).
• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).
MISE EN GARDE
Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté et ne les
utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation ETL/cETL du luminaire.

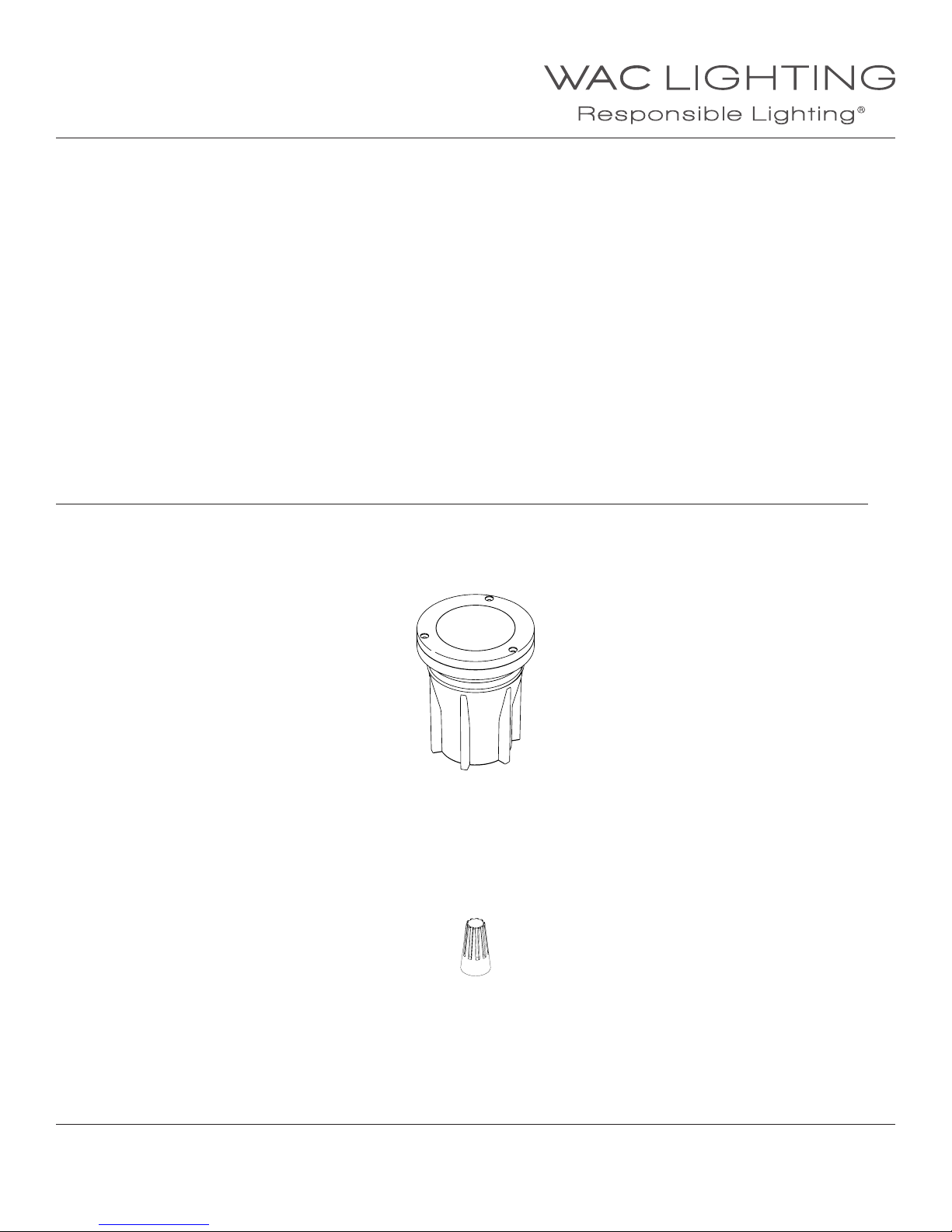

THIS INSTRUCTIONS APPLY TO THE MODELS BELOW:
5031-CCBBR
Fixture Accessory (included in box)
Outdoor Rated Wire Nut
For Model: 5031-CCBBR
Qty: 2pcs

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY, 2016 2
waclighting.com
Phone [phone]
Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
INSTALLATION INSTRUCTION
In-Ground Color Changing
5031-CCBBR
1. Turn the main power o.
2. Install wiring and conduit (use 1/2” NPT) with Concrete Pour
Canister at desired position, plug all un-used holes (Fig. 1)
Secure the canister to the bottom of the application ground
by using screws.
Note: For proper alignment, make sure the at edge of the
canister is parallel to the wall. (Fig. 2)
3. Insert Plastic Cap into Concrete Pour Canister (Fig. 1)
4. Pour concrete until it’s ushed with the Plastic Cap. (Fig. 3)
Note: NO CONCRETE ENTERS THE BOX. USE SAND OR
GRAVEL FOR PROPER DRAINAGE.
5. After concrete has cured, crack concrete and remove Plastic
Cap using a corkscrew or similar tool. (Fig. 4)
6. Connect xture leads to box wiring using supplied outdoor
rated wire nuts. Make sure all power is o while wiring LED
xture.
7. Apply a smear of plumber’s silicone to O-rings. Insert LED
xture into ange with a twisting motion. Make sure the trim
is ushed with the top of the poured concrete.
8. To match dierent height requirements, use extenders and
cover plates. (Fig. 5)
CONCRETE POUR INSTALLATION Fig.1 Fig.2
Fig.3
Fig.4
Fig.5
Plastic Cap
Concrete
Sand or pea gravel
(For Drainage)
Sand or pea gravel
(For Drainage)
1/2” NPT pipe extender
(Not Provided)
4” Junction box cover
(Not Provided)
LED Fixture
Outdoor Rated
Wire Nuts
Concrete
O-Rings
Soil
Soil
Concrete Pour
Canister
1/2” NPT
Wall
Parallel

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY, 2016 3
waclighting.com
Phone [phone]
Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
INSTALLATION INSTRUCTION
In-Ground Color Changing
5031-CCBBR
SOFTSCAPE INSTALLATION
CUSTOMIZE SETTING
1. Turn the main power o.
2. Dig a hole at the point of application. Make sure the hole
measures at least 4-5/8 inches in diameter and 10 inches in
depth. (Fig.6)
3. Place a layer of pea gravel (3 inches) at the base of the hole
to help with drainage.
4. Connect the xture wires to landscape wires coming from
the transformer using the outdoor rated direct burial wire
nuts provided.
5. Place the xture in the hole and repack the soil to hold it in
place. Make sure the trim is ush with the ground.
This xture is equipped with three customizable settings:
Dimming Adjustment, Beam Angle Adjustment, and Beam
Aiming Adjustment. It can be pre-set into desired settings by
taking the light engine assembly out from the xture housing.
(Fig. 7)
1. Unscrew Face Plate Screws with hex L-key.
2. Take out the Face Plate, Gasket, Front Glass and
accessory lens (if any).
3. Pull the Light Engine out of the Fixture housing.
Note: Light Engine can be taken out remotely by disconnecting
the Quick Connector. Users can later reconnect it back into the
housing after all desired settings are been made.
Fig.6
Fig.7
Soil
Outdoor Rated
Wire Nut
From
Transformer
Face Plate Screw
Face Plate
Gasket & Front Glass
Accessory
Light Engine
Quick Connector
Fixture Housing
Beam Angle
Adjustment
To Next
Fixture 4 5/8”
10”
3”
Pea Gravel

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY, 2016 4
waclighting.com
Phone [phone]
Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
INSTALLATION INSTRUCTION
In-Ground Color Changing
5031-CCBBR
BEAM ANGLE ADJUSTMENT:
1. Twist the Lens Holder to the middle vertical slot.
2. Move the Lens Holder Up/Down to any Beam Changing
Slots for desired beam angle.
3. Twist the Lens Holder into the desired Beam Angle
Changing Slot.
Note: Beam angle is pre-set to be 60°, 45°, 30°, and 15°
from bottom up.
Fig.8
Vertical Slot
Beam Changing Slots
Lens Holder

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY, 2016 5
waclighting.com
Phone [phone]
Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
ACCESSORIES:
• Rock Guard – Protects xture front glass from large falling
objects.
To Install (Fig. 11):
1. Unscrew the Face Plate Mounting Screws.
2. Put the Rock Guard on top of the xture face plate,
make sure to match up the mounting index arrow on the
xture and rock guard.
3. Use the same Face Plate Mounting Screws to mount the
Rock Guard onto the xture.
• Color Lens – Comes in red, blue, green and amber lenses
change the light color of the xture. (Fig. 12)
• Hex Louver – Uses to reduce the glare of the xture and
control peripheral light.
Note: Both Color Lens & Hex Louver are installed in the same
place.
To Install (Fig. 12):
1. Unscrew the Face Plate Mounting Screws.
2. Take out the Face Plate, Gasket & Front Glass.
3. Drop the Color Lens/Hex Louver into the xture housing.
4. Put everything from Step 2 back to the xture housing
and tighten the screws.
• Concrete Pour Canister & Cap – used to install xture in
concrete pour applications.
To install (Fig. 13):
Please visit the previous Concrete Pour Installation instructions.
INSTALLATION INSTRUCTION
In-Ground Color Changing
5031-CCBBR
Fig.11
Fig.12
Fig.13
Fixture
Mounting Index Arrow
Rock Guard
Face Plate
Mounting Screws
Face Plate
Mounting Screws
Face Plate
Gasket & Front
Glass
Plastic Cap
Concrete Pour
Canister
Color Lens
Hex Louver
OR

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JANUARY, 2016 6
waclighting.com
Phone [phone]
Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
INSTALLATION INSTRUCTION
In-Ground Color Changing
5031-CCBBR
Fixture Description Halogen Equivalent Fixture “W” setting Comparing VA
Example 5031 xture 25W MR16 4W 4.9VA
A
B
C
D
E
F
G
H
I
J
K
Total:
(sum of VA)
Minimum magnetic
transformer size:
WORKSHEET:
When using a magnetic transformer, the VA total sum of all the xture settings should not exceed the rated transformer capacity.
*Refer to the product yellow tag for more information on power settings

SETUP INSTRUCTION
ilumenight Color Changing Instruction Manual v. 1.0
Written with Tunable Color v. 4.1.3
System Requirements: iOS 8.4+

1838 listed
3" Inground 12V Color Changing
Color and brightness controlled with
Ilumenight™ mobile app
Input
Power
Brightness
Beam Angle
CRI
Rated Life
9-15VAC
0.5W to 14.5W / 1VA to 17VA
Up to 250 lm
15° to 60°
95+
45,000 hours
5031-CCBBR Bronze on Brass
4s"
64"
Wall Wash 12V Color Changing
Color and brightness controlled with
Ilumenight™ mobile app
Input
Power
Brightness
Beam Angle
CRI
Rated Life
9-15VAC
0.5W to 14.5W / 1VA to 17VA
Up to 430 lm
15° upward (50° by 80°)
95+
45,000 hours
4a"3w"
68"
5021-CCBBR Bronze on Brass
Accent 12V Color Changing
Color and brightness controlled with
Ilumenight™ mobile app
Input
Power
Brightness
Beam Angle
CRI
Rated Life
9-15VAC
0.5W to 14.5W / 1VA to 17VA
Up to 355 lm
15° to 60°
95+
45,000 hours
5011-CCBBR
5011-CCBZ
Bronze on Brass
Bronze on Aluminum
2d" 6s"
5d"
Input
Power
Brightness
Beam Angle
CRI
9-15VAC
0.5W to 14.5W / 1VA to 17VA
Up to 430 lm
15° upward (50° by 80°)
95+
Ilumenight™ mobile app
Adjustable beam angle
Adjustable beam angle

TABLE OF CONTENTS
1. Overview 2
2. Getting Started 3
2.1 Create Account
2.2 Login with an Account
2.3 ‘Do This Later’ (Login without an Account)
3. Main Screen 5
4. Commissioning Screen 6

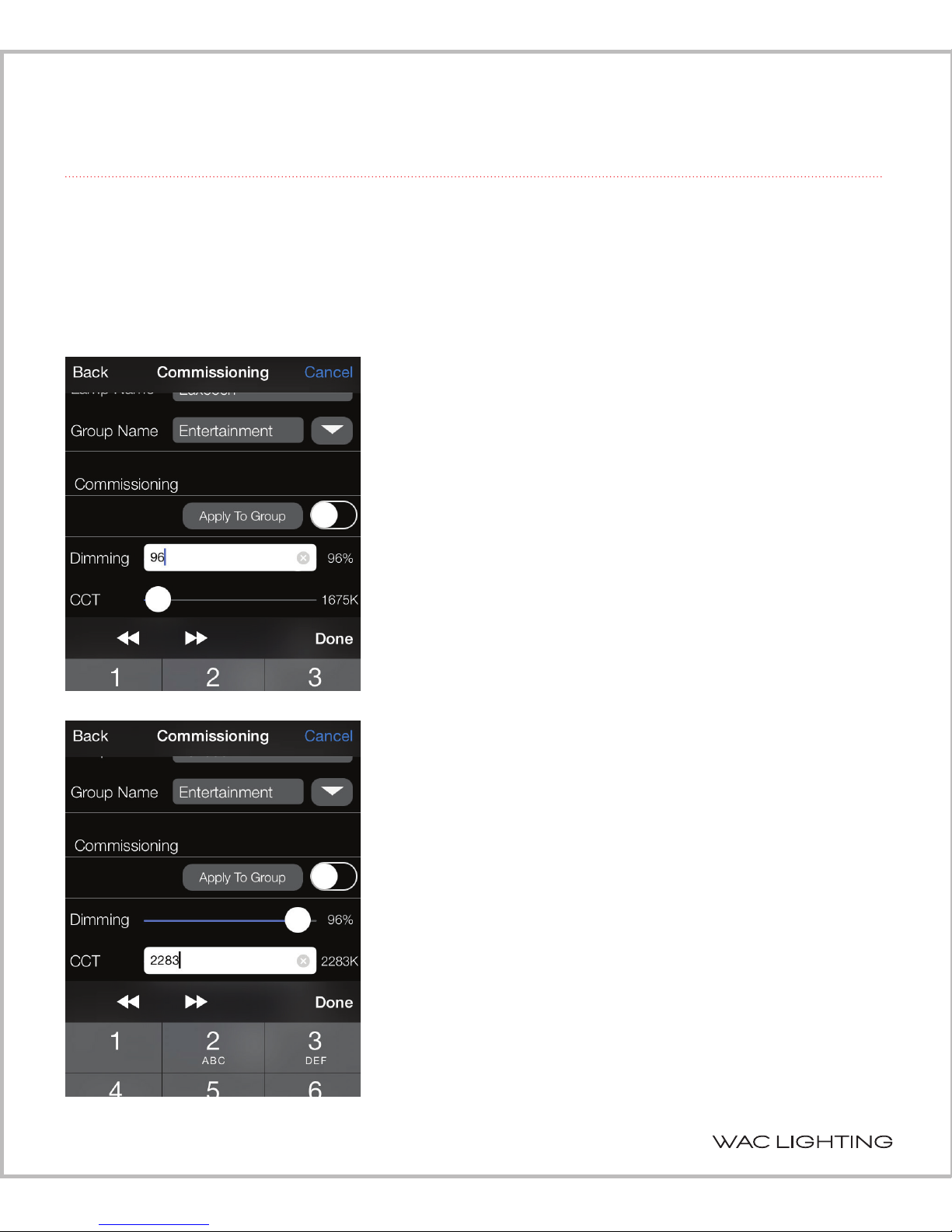

4.1 Commissioning Controls

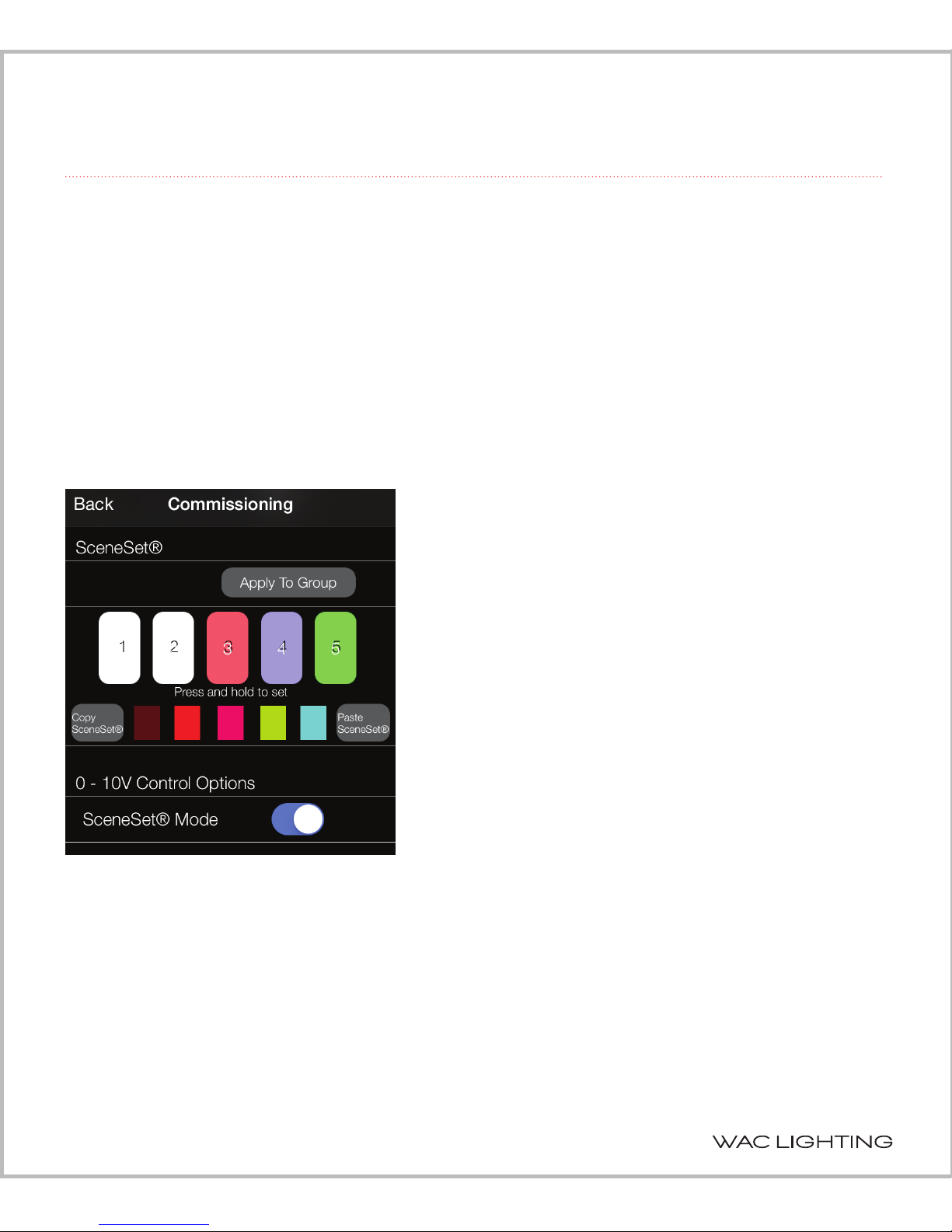

4.2 SceneSet®
5. Options Menu 9

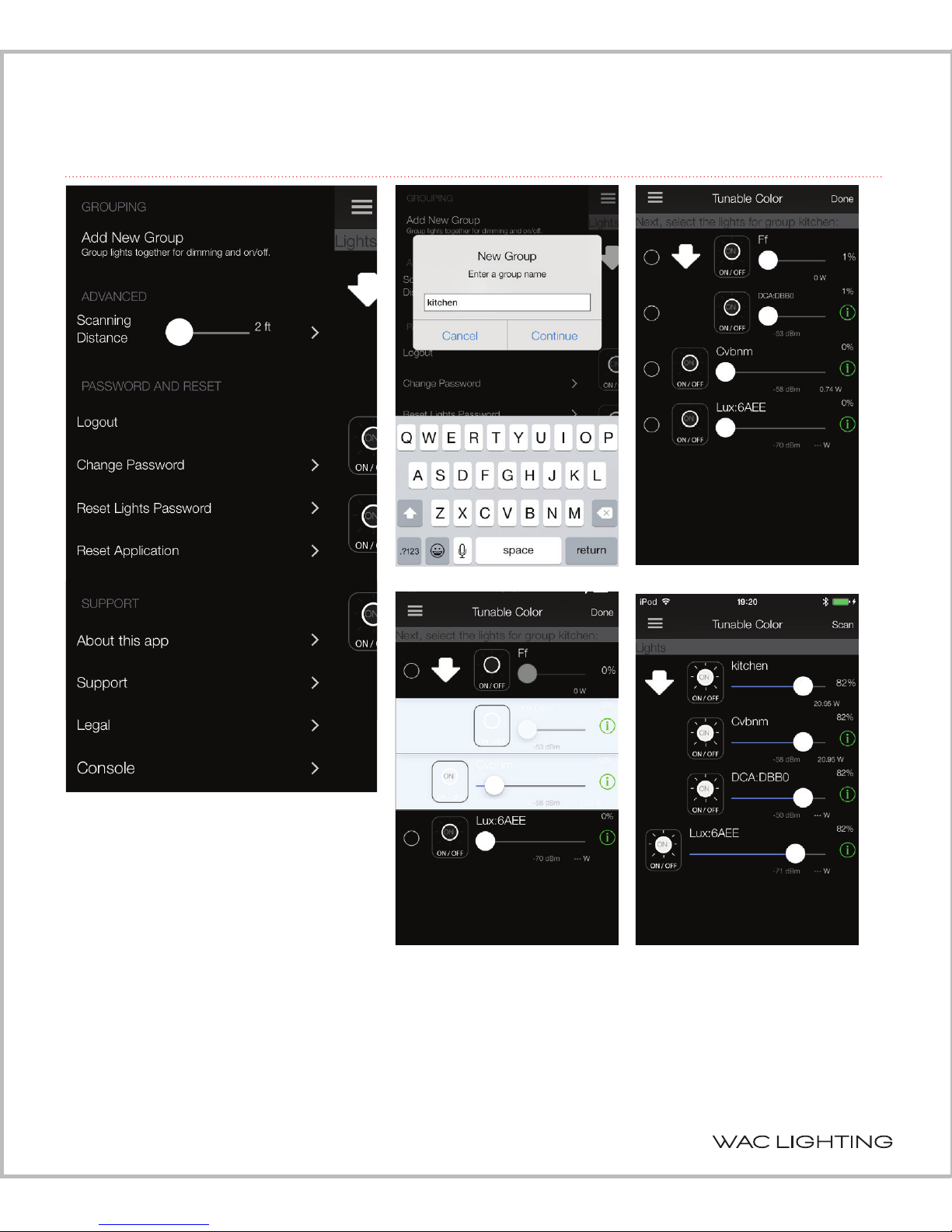

5.1 Add New Group
5.2 Discovery Distance
5.3 Logout
5.4 Change Password
5.5 Reset Lights Password
5.6 Reset Application
5.7 About This App
5.8 Support
5.9 Legal
5.10 Console

2 ilumenight setup instruction
The WAC ilumenight Color changing iOS app enables control of Bluetooth-equipped araya modules
incorporated into a lighting xture. The app is designed for use by professional lighting speciers and
designers.
System Requirements: iOS 8.4+
Type “ilumenight” in the Search window in the App Store screen to view and downloadthe app
on your iOS device.
After downloading and launching, the user can create an account that enables the lamps to be secured
such that others cannot control them unless they use the same password. Upon discovery, the lamps
and modules (including the Digital Control Adapter) can be named, and if desired, assigned to a group.
The app enables the user to set the Correlated Color Temperature (CCT), Dimming, Saturation and
Hue for each lamp/group. SceneSet® enables up to ve scenes –– a scene is any combination of CCT,
Dimming, Saturation and Hue –– to be programmed into the lamp for recall by the app or a 0-10V
connection.
For lamps connected to a 0-10V line, SceneSet® Mode can also be specied in the app
1. OVERVIEW

3 ilumenight setup instruction
2. GETTING STARTED
Make sure that the lighting xture is turned on.
Download the latest version of the WAC ilumenight
color changing app from the App Store and launch
the app (version 4.1.3 as of this writing).
Create a new account name and password to secure
and control any Bluetooth-equipped unlocked lamps
that are“discovered”by the app with a green

icon.
Lamps with a magenta

icon cannot be controlled
(see Main Screen section for further details).
• Enter a desired user name (email address) and
password. Click on the ‘Next” button.
• Conrm your password by entering it again.
Click on the ‘Conrm’ button.
NOTE: The password you create will be assigned to any
unlocked lamps and automatically lock them.
ilumenight
ilumenight

4 ilumenight setup instruction
2. GETTING STARTED
Make sure that the lighting xture is turned on.
2.2 Login with an Account
If you have already created an account, you can log in by entering your
email address and your password and then pressing “OK”. When you
log in with your password, you will be able to control any lamps that
you have previously secured with this password, as well as control any
unlocked lamps (with a green

icon).
Lamps with a magenta

icon indicate that the same user name
was used earlier to secure these lamps, but the password was dierent.
You will not be able to control these lamps since they were previously
locked using a dierent password (see Main Screen section for further
details).
NOTE: The password you use for logging in will be assigned to any
unlocked lamps and automatically lock them.
2.3‘Do This Later’ (Login without an Account)
Using this option, you will bypass the Create Account and Log In steps.
It allows you to access unlocked lamps (with a green

icon) as well as
discover –– but NOT control –– the values of locked lamps
(with a red

icon).
NOTE: When you log in without an account, you cannot lock the lamps
to prevent access by others, and some buttons on the Options menu
are not available (“grayed out”) to prevent unauthorized use.
After completing one of these three startup options, the app scans the
network to discover lamps.
ilumenight

5 ilumenight setup instruction
3. MAIN SCREEN
The main screen lists all discovered lamps and shows a default group name (see Commissioning
Screen section on how to rename the lamp and/or group).
In the main screen, the lamps can be turned on and o by tapping the on/o icon on the left of the
slider. The lamps can also be dimmed by moving the slider right or left, or by tapping to the right or
left of the slider. The dimming level as a percentage of light output is shown to the right of the slider.
The signal strength of the Bluetooth connection is shown below the slider. On lamps that support
power consumption, the consumed wattage is also shown below the slider.
To the right of the slider, there is one of three icons: green, red, or magenta.
• If

is green, the lamp is unlocked and can be commissioned.
• If

is red, you are not logged in (“Do This Later” option), the lamp is locked
(secured by someone else), and it cannot be controlled.
• If

is magenta, the lamp is assigned to the user name, but under a dierent password. This lamp
cannot be controlled unless the password that was previously used to secure the lamp is entered.
An arrow to the left of the on/o icon indicates whether a lamp is assigned to a group
By default, the arrow points downward,
and the sliders forlamp(s) that belong to
that group will be displayed to allow for
individual control of each lamp
(if

is green).
Clicking on the arrow will change its
orientation to the right, and will hide the
list of lamps belonging to that group.
NOTE: Any changes made to the group
dimming slider or the on/o button will
apply to all of the lamps in that group.
To commission the lamp, tap on the green

to launch the Commissioning Screen.

6 ilumenight setup instruction
4. COMMISSIONING SCREEN
4.1 Commissioning Controls
The lamp can be commissioned by dragging the sliders left or right, tapping on either side of the
slider circle to move at preset values, or pressing and holding along the slider for one second to bring
up a numerical keypad for direct entry of the value. When using the direct entry option, you can also
use the two arrows located on the top left of the numerical keypad; tap on either arrow to
automatically increase or decrease the value.
4.1.1 Dimming
The lamp (or the group) can be dimmed from 100–1%, in
increments of 1%. The dimming value is shown at the far left.
Tapping on either side of the slider moves the lamp in 10%
increments.
Pressing and holding along the slider will bring up a keypad for
direct entry of the dimming percentage. Enter the percentage
and then touch “Done”.
4.1.2 CCT
The CCT can be changed in increments of 25K.
The CCT range of the lamp (1650 – 4000K or 2700 – 6000K)
is detected automatically.
Tapping on either side of the slider moves the lamp in
25K increments.
Pressing and holding along the slider will bring up a keypad for
direct entry of the CCT. Enter the CCT and then touch “Done”.
NOTE: Only lamps of the same CCT range can be grouped
together.

7 ilumenight setup instruction
4. COMMISSIONING SCREEN
4.1.3 Saturation
Saturation adds gradients of color to a white point.
Saturation can be added in increments of 1%, from 0 - 100%
(fully saturated).
Tapping on either side of the slider moves the lamp in 10%
increments.
Pressing and holding along the slider will bring up a keypad
for direct entry of the saturation percentage.
Enter the percentage and then touch “Done”.
4.1.4 Hue
Hue enables dierent colors to be added to the light in values
from 1 to 60.
Tapping on either side of the slider moves the lamp in
6° increments.
Pressing and holding along the slider will bring up a keypad
for direct entry of the hue value.
Enter the value and then touch “Done”.
4.1.5‘Apply to Group’ Button
If more than one lamp is assigned to a group, the Apply to Group button is displayed. Tapping on
this button will apply the current commissioning choices (made to a single lamp) to all of the lamps
in the same group.
If this switch is toggled to the “on” position, any changes made to the lamp will always be applied to
the entire group in real time.

8 ilumenight setup instruction
4. COMMISSIONING SCREEN
4.2 SceneSet®
Allows up to ve scenes to be programmed into the lamp and recalled by simply tapping one of the
ve SceneSet buttons.
To activate SceneSet, tap on any one of the SceneSet rectangles (labeled “1”, “2”, “3”, “4” or “5”).
Commission the lamp as previously described. To save scenes, press and hold one of the SceneSet
buttons until either a beep is heard (iPod and iPad) or the device vibrates. The SceneSet button will
then display the dominant color of the scene as a visual cue.
TIP: If the device does not vibrate or make a sound, check to ensure that sounds and vibration are
enabled.
4.2.1‘Apply to Group’ Button
If more than one lamp is assigned to a group, the Apply to
Group button is displayed. Tapping on this button will
apply the current SceneSet color (saved to a single lamp)
to all of the lamps in the same group.
4.2.2 ‘Copy/Paste Sceneset’ Buttons
The “Copy SceneSet” button will copy all of the 5 current
SceneSet color scenes, and display them in the smaller
rectangles shown. You can then paste these 5 scenes to
the SceneSet settings of another lamp (either in the same
group or in another group) by choosing that lamp from
the Main Screen and clicking on the “Paste SceneSet”
button.
4.2.3 0 - 10V Control Option
When the lamp is connected to a 0-10V line, the default is
control of Correlated Color Temperature (CCT). If desired,
the 0-10V line can be set to control SceneSet by sliding the
SceneSet Mode button to the “on” position. In this mode,
the 0-10V control will toggle the light between up to 5
preset scenes.
NOTE: This program allows up to
8 xtures to be connected as a group.

9 ilumenight setup instruction
5. OPTIONS MENU UPPER RIGHT OF COMMISSIONING SCREEN
5.1 Add New Group (only active when logged in)
New groups can be created and named here rst, and then the lamp(s) belonging to each new
group can be chosen directly on the Main Screen.
This process makes it easier to group many lamps at a time.

10 ilumenight setup instruction
5. OPTIONS MENU UPPER RIGHT OF COMMISSIONING SCREEN
5.2 Discovery Distance
This changes the discovery distance. When commissioning multiple lamps, reducing the discovery
distance enables connection to the closest lamp.
5.3 Logout
Logs out of the current account.
5.4 Change Password (only active when logged in)
Changing the password will change the current account password. This will secure the lamps that have
been commissioned using the original password, and the

icon for those lamps on the Main Screen
will turn magenta.
5.5 Reset Lights Password (only active when logged in)
This command will clear the password that was set for
each lamp currently displaying in the app. It will ask
the user for a Master Password (dierent from the login
password) to perform this operation. This Master Password
can be obtained by contacting your WAC LIGHTING sales
representative.
NOTE: Internet access is required to perform this action.
5.6 Reset Application
Used mainly for debugging purposes, this operation will delete the account and password,
remove the control on the lamps and perform a refresh.
NOTE: Internet access is required to perform this action.

11 ilumenight setup instruction
5. OPTIONS MENU UPPER RIGHT OF COMMISSIONING SCREEN
5.7 About This App
Provides information about the release and build number
of the app. If you tap on the website link provided, the app
will exit and take you to a web browser pointing to the
WAC LIGHTING website.
5.8 Support
Please call our technical support team at 800.526.2588
5.9 Legal
Provides necessary and important legal information about the nature and use of the app.
For PDF version of this instruction manual, please visit waclandscapelighting.com
ilumenight
http://waclandscapelighting.com
