Wacom PENPARTNER - USB User manual

ENGLISH
한국어
PenPartner
Quick Start Guide
PenPartner
PenPartner
퀵 스타트 가이드
UM-0295_PenPartner.indd 1 04.10.8 2:31:08 PM

PenPartner Quick Start Guide®,
Copyright©WACOM Company, Limited, 2004
All rights reserved. No part of this manual may be reproduced except for your
express revise this publication without obligation to provide notification of such
changes. A best and accurate information in this manual. However, reserved is
the right to change any at discretion, without prior notice and without obligation to
include such changes in this manual.
TRADEMARKS
Acrobat®Reader Copyright©1987-2004 Adobe Systems Incorporated. Adobe and
Acrobat are trademarks of Adobe Systems Incorporated which may be registered
in certain jurisdictions. Microsoft and Windows are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
Any additional company and product names mentioned in this documentation may
be trademarked and/or registered as trademarks. Mention of third-party products
is for information purposes only and constitutes neither an endorsement nor a
recommendation. No responsibility is assumed with regard to the performance or
use of these products.
RADIO AND TELEVISION INTERFERENCE
The equipment described in this manual generates, uses, and can radiate radio-
frequency energy. If it is not installed and used properly—that is, in strict accordance
with applicable instructions—it may cause interference with radio and television
reception.
Watch for the Penabled logo to ensure you
are getting the natural feel and superior
performance of Wacom's patented
cordless and battery-free pen technology.
UM-0295_PenPartner.indd 2 04.10.8 2:31:09 PM

1
Table of Contents
Table of Contents ............................................................. 1
Contents ........................................................................... 2
Getting Started with PenPartner ...................................... 3
System Requirements ................................................................ 3
Installiing the PenParner Driver software .................................. 3
If you have trouble installing the PenParner Driver software... .. 4
Uninstalliing the software ......................................................... 5
Pen Partner Appearence and Features ............................. 6
Tablet ........................................................................................ 6
Pen ............................................................................................ 7
Control Panel Basics ......................................................... 8
Opening The Control Panel ........................................................ 8
Control Panel Features .............................................................. 9
Troubleshooting ................................................................ 10
Testing Your Tablet .................................................................... 10
Troubleshooting Tables .............................................................. 11
Obtaining Technical Support ..................................................... 15
APPENDICS ....................................................................... 16
Product Specifications ............................................................... 16
Ordering Parts and Accessories ................................................. 16
ENGLISH
UM-0295_PenPartner.indd 1 04.10.8 2:31:09 PM

2
Contents

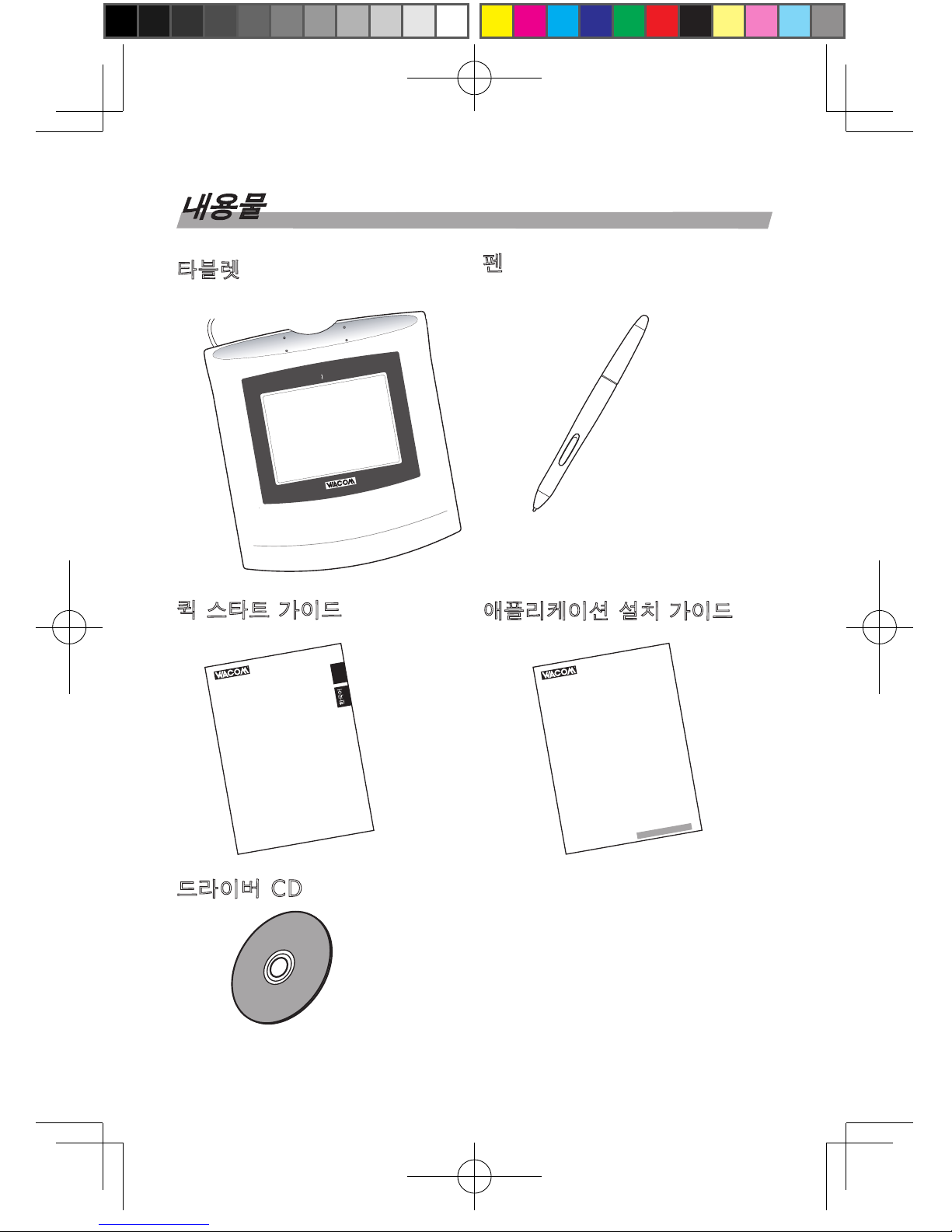

Tablet Pen
Driver CD
Quick Start Guide
Application Installation Guide
H
S
I
L
G
N
E
어
국한
r
e
n
t
r
a
P
n
e
P
Quick Start Guide
PenPartner
PenPartner
r
e
n
t
r
aPn
eP
Application Installation Guide
PenPartner
JustWrite Office
PenPartner
UM-0295_PenPartner.indd 2 04.10.8 2:31:11 PM

3
Application Installation Guide
The WACOM Tablet Driver CD contains the installation software
and the Readme file. Some configurations may also contain some
additional application software.
Getting Started with PenPartner
System Requirements
Windows ® 98, ME, 2000 or XP, IBM-compatible PC (Pentium 200 or
higher), 64 MB RAM,24 bit color display (800x600 or greater), USB port,
CD-ROM drive.
Installiing the PenParner Driver software
1. Insert the WACOM Tablet Driver CD into your computer's CD-ROM
drive.The Wacom Pen Tablet software installer menu should utomatically
display. If the menu does not display, double-click on the "INSTALL"
icon (located on the CD).
2. Click on the "Install Tablet" button and follow the prompts to connect
your tablet hardware and install the driver software.
for Windows 98:
Note
You will occasionally be asked to insert the Windows 98 CD. If
this happens, click on OK and enter the path for theWindows
CAB files (for example d:¥win98). If Windows 98 was already pre-
installed when you bought your computer, load the Windows 98
CAB files from the hard disk or from the system recovery CD.
UM-0295_PenPartner.indd 3 04.10.8 2:31:12 PM

4
for Windows 2000 / XP:
Note
The Wacom Pen Tablet drivers are fully compatible to Windows
2000 and XP. Warning messages reffering to this can be ignored.
If you have trouble installing the PenParner Driver software...
Refer to the Readme file or to the Troubleshooting section( ⇨P10). You can
also visit our Web site at www.wacom-asia.com or contact Technical Support.
Getting Started with PenPartner
UM-0295_PenPartner.indd 4 04.10.8 2:31:12 PM

5
Uninstalliing the software
Follow the appropriate procedure below to remove the tablet and software
from your system.
1. Click the Windows START button. Then choose SETTINGS and
CONTROL PANEL. (For Windows XP, select CONTROL PANEL.)
2. In the CONTROL PANEL window, double-click on the ADD/REMOVE
PROGRAMS icon.
3. In the dialog box that appears, choose the tablet option.
4. Click on the CHANGE/REMOVE... button (ADD/REMOVE... for
some versions of Windows) and follow the prompts to remove the tablet
software driver.
UM-0295_PenPartner.indd 5 04.10.8 2:31:12 PM

6
Pen Partner Appearence and Features
Your new tablet consists of two basic elements: a tablet that serves as
your work area, and the Input Tools you use with the tablet.
Tablet
Active Area
Pen Rest
Status LED
UM-0295_PenPartner.indd 6 04.10.8 2:31:12 PM

7
Pen

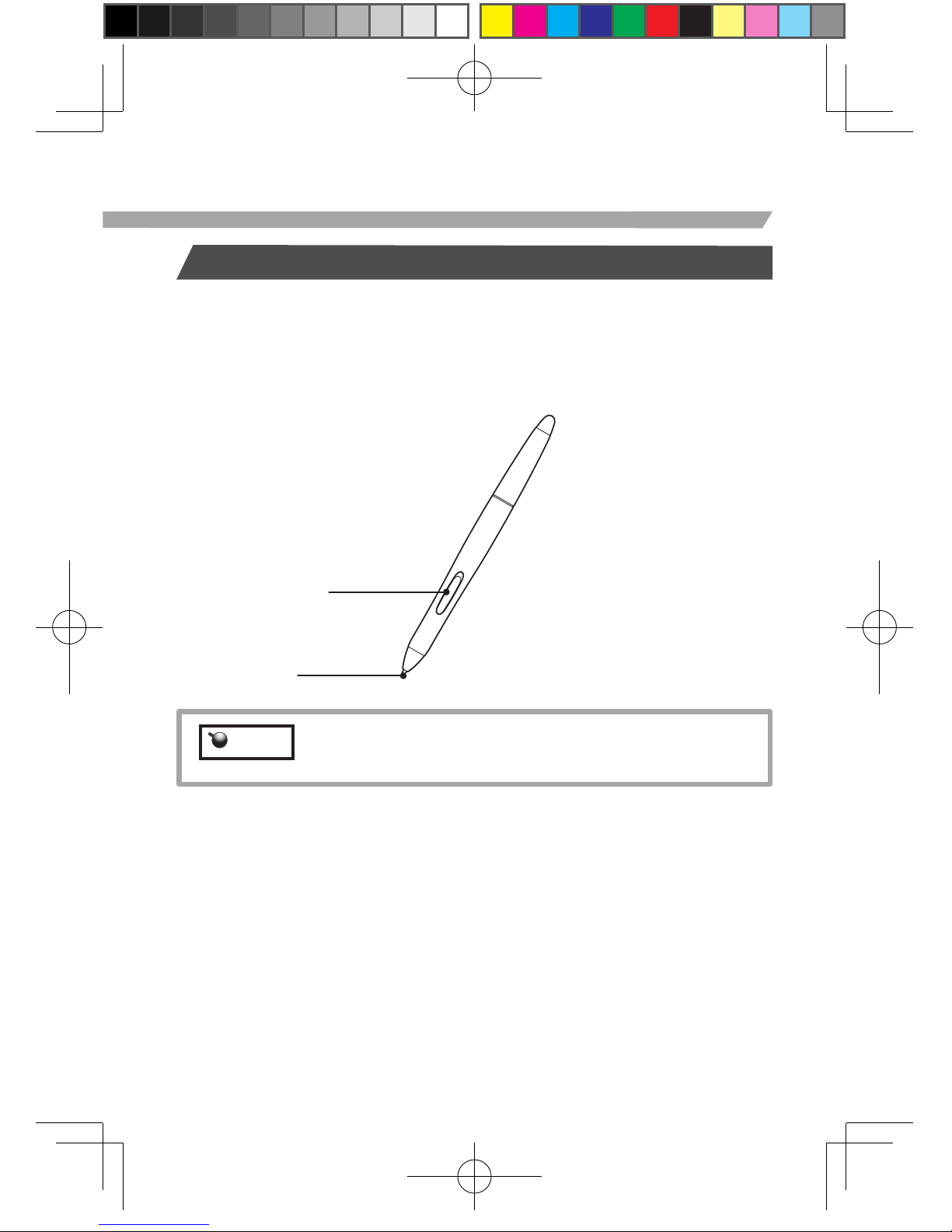

Your tablet tool(s) are cordless, batteryless, and ergonomically designed.
The pen is a pressure-sensitive freehand tool for image editing and creating
natural-looking pen and brush strokes.
Side Switch
Pen Tip
Depending on product configurations the pen might
have a different color.
Note
UM-0295_PenPartner.indd 7 04.10.8 2:31:13 PM

8
CUSTOMIZING THE PEN

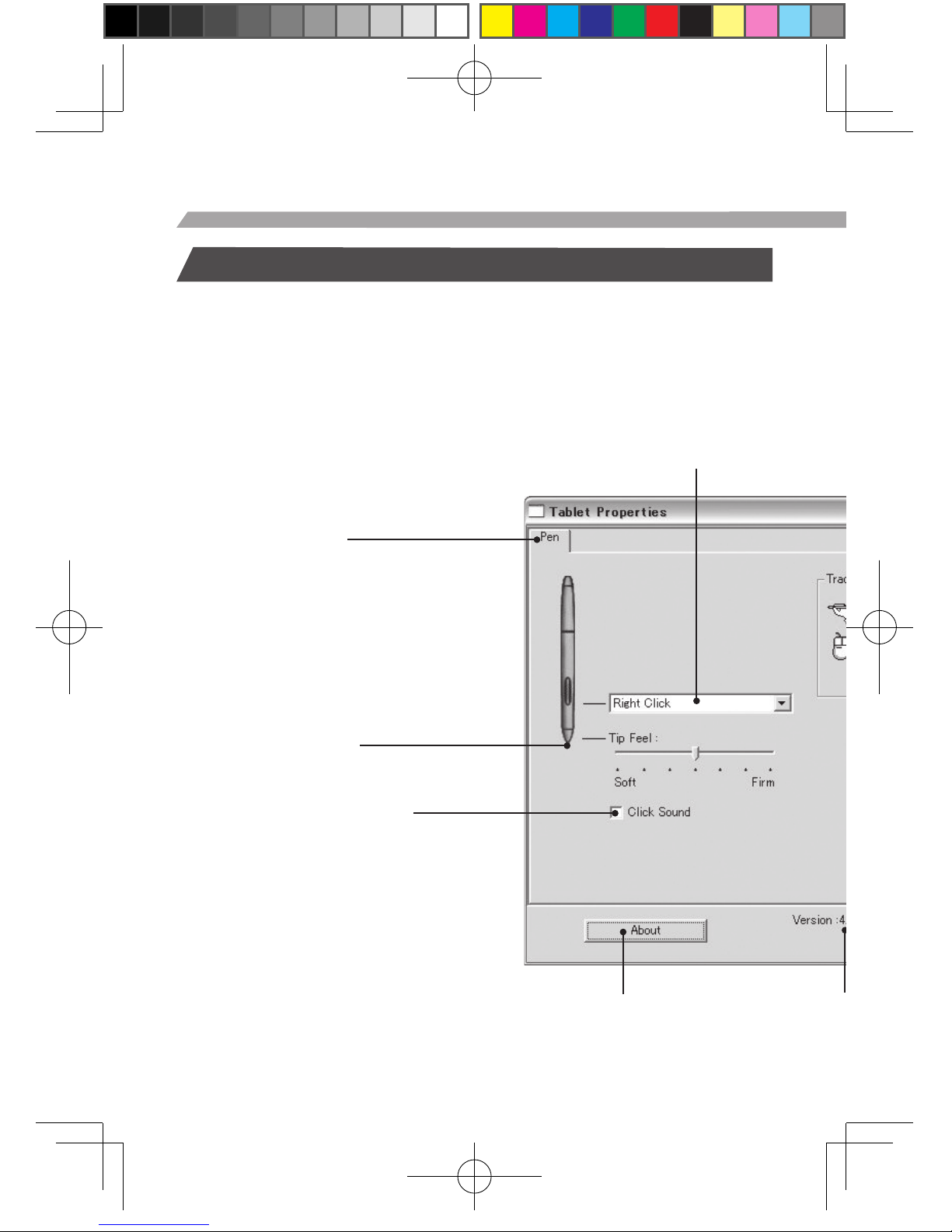

Tabs display settings for
the selected tool.
Control Panel Basics
Open the Tablet control panel with the tool you wish to customize.
Using your pen, click on the Windows START button and choose
PROGRAMS. From the tablet group, choose the tablet option.
Opening The Control Panel
Software driver version.
Customizes the amount of
pressure needed to click or
draw with the pen.
Selects the side switch function.
Displays information about
the control panel and driver.
When checked, an audible
“click” sound will be
heard whenever a pen
click occurs.
UM-0295_PenPartner.indd 8 04.10.8 2:31:13 PM

9
Control Panel Features
Use the Tablet control panel to customize your tool settings. When you change
a setting, your changes take effect immediately. Balloon Help, which provides
quick information and useful tips, is available for most control panel items.
Simply move the screen cursor over an item; in a few moments the balloon
help will pop up.
Returns the PEN tab
settings to factory
defaults.
Closes the control panel.
Software driver version.
Adjusts the size of the
double-click area.
Moves the screen cursor
to correspond with the
position of the pen on the
tablet.
Moves the screen cursor
like a mouse.
UM-0295_PenPartner.indd 9 04.10.8 2:31:13 PM

10
Make sure your computer is turned on, the operating system has finished
loading, and the tablet is properly connected to an active USB port. Then try
the following tests:
Troubleshooting
If the tablet driver failed to load properly, first perform the
recommended action in the error message on your screen. If that
does not solve the problem, perform the troubleshooting tests for your
tablet or tool(s).
Testing Your Tablet
1. Check the tablet. The tabletʼs orange status LED will light whenever
the tablet is properly connected and your computer has registered it as a
USB device. If the LED is on, continue with step 2.
If the LED is off:
• Make sure the USB cable is securely connected to an active USB port.
• If you are connecting the tablet to a USB hub (or hub device such as a
keyboard with USB ports), be sure the USB hub is properly connected
to your computer and is active.
• Connect the tablet into a different USB port or try connecting to the
USB port on another computer.
• If the tabletʼs status LED does not illuminate after your computer is
on and has finished booting up, your USB port may be disabled.
Verify that you have connected the tablet to an active USB port.
2.
Check the pen. Move your pen across the active area of the tablet;
the screen cursor should move in the corresponding direction on your
monitor. Press the pen tip against the tablet surface. The status LED
on the tablet should turn from orange to green. Now, without applying
pressure to the pen tip, hold the pen tip within 5 mm (0.2 inch) of the
tablet surface and press the side switch. The status LED should again
change from orange to green. If not, you may have a defective pen or
tablet.See Obtaining Technical Support.
UM-0295_PenPartner.indd 10 04.10.8 2:31:14 PM

11
Troubleshooting Tables
If you encounter problems with your tool(s) or tablet, refer to the following
tables. Your problem may be described here, and you can try the solution
offered. Be sure you refer to the Read Me file for the latest troubleshooting
information.
GENERAL PROBLEMS
Problem Hint
The computer does not
have an available USB port.
Check if there is an available USB port on a USB
hub device. If none are available you will need to
add a USB hub.
The tablet status LED is off. Verify that your tabletʼs USB cable is properly
connected to an active USB port. If you are
connecting to a USB hub device, make sure the
hub is connected to an active USB port and that
the hub is active.
The pen works only in
mouse mode, and does
not draw with pressure-
sensitivity.
The tablet driver software was not installed or did
not load properly.
Make sure the tablet driver software is installed
and functioning. Insert the Tablet CD into your
computer and install the driver software for the
tablet.
Clicking is difficult. Set the TIP FEEL slider to a softer setting.
Select the CLICK SOUND option (the check
box should be checked) so that you can hear
when the pen registers a mouse click. Note that
your computer speakers must be turned on and
the volume audible before you can hear CLICK
SOUND.
UM-0295_PenPartner.indd 11 04.10.8 2:31:14 PM

12
Problem Hint
Double-clicking is difficult. Be sure you are quickly tapping the tablet twice in
the same place on the tabletʼs active area. Using
the side switch to double-click is recommended .
Try increasing the DOUBLE-CLICK DISTANCE.
Try using a lighter TIP FEEL.Try setting your
system to launch programs with a single click.
The pen selects everything,
will not stop drawing.
Open the Tablet control panel. Move the TIP
FEEL slider toward FIRM.
You notice a screen delay
at the beginning of pen
strokes.
In the Tablet control panel, try decreasing the
DOUBLE-CLICK DISTANCE.
You have to press hard with
the pen when clicking or
drawing.
Open the Tablet control panel. Move the TIP
FEEL slider toward SOFT.
The pen tip does not function.
Make sure the status LED changes from orange to
green when the tip is pressed. If it does not, you
may have defective hardware ( ⇨P10).
The side switch does not
work.
Be sure you press the side switch when the pen tip
is in proximity—do this without pressing down
on the pen tip. Make sure the tablet status LED
changes from orange to green when you press the
side switch. If it does not, you may have defective
hardware ( ⇨P10).
The screen cursor jumps
back when using your
regular mouse or trackball.
Do not place the pen on the tablet when using
another pointing device. Leaving your tool on the
tablet may interfere with screen cursor positioning
when using other input devices.
Troubleshooting
UM-0295_PenPartner.indd 12 04.10.8 2:31:14 PM

13
Problem Hint
Cannot move the cursor
where you want to on the
screen, or the line you are
drawing does not line up
with the location of the
pointer in paint applications.
Open the Tablet control panel. Verify that PEN
MODE is selected.
If this does not work:
Do a Search or Find for the TABLET.DAT file
and delete it. The file should be in your Windows
or Windows\System32 folder. Then restart your
computer. When the tablet driver loads, it will
create a new preferences file with the factory
default settings.
The computer does not go
to sleep.
When you are not using the pen, remove it from
the tablet surface or the tablet will continue to
send data, keeping the computer awake.
The pen tip is worn off and
you can no longer draw
with the pen.
You will need to purchase a new pen. To order a
new pen, please see the Read Me file for contact
information.
When using the tablet the
screen cursor is very erratic
or jumps around.
On rare occasions the tablet may receive
interfering radio frequencies from a computer
monitor or nearby AM radio station. If you notice
interference, try moving the tablet at least 6 inches
away from the monitor, or change the monitor
refresh rate or monitor resolution.
UM-0295_PenPartner.indd 13 04.10.8 2:31:14 PM

14
Problem Hint
In Windows 98 or Me, your
pen or tablet mouse does
not function inside a full
screen DOS window.
You must use a mouse when working in a full
screen DOS window.
After pressing CTRL+ALT+DEL,
the screen cursor cannot be
controlled with your pen or
tablet mouse.
When the CLOSE PROGRAM dialog box
(Windows 98 or Me) is active, the tablet will not
work. Use your mouse or keyboard to continue.
When this dialog box is closed, you can again use
your tablet tool to control the screen cursor.
Windows 98 or Me.
When working with multiple
monitors, the screen cursor
positioning is incorrect after
moving into the unmapped
area of the virtual desktop.
On a multiple monitor system, the tablet is
mapped to the virtual desktop (a rectangular area
covering all monitors).
If your video display areas do not form a rectangle
because they are different sizes or they are not
evenly aligned, the screen cursor positioning will
be incorrect after moving into the unmapped area
of the virtual desktop. To reestablish the correct
screen cursor position, lift your tool out of tablet
proximity and bring it back into proximity over an
area of the tablet that is mapped to a display area.
Windows XP. After installing
the tablet on a system with
multiple users, the tablet
only works on the primary
user desktop.
Reboot the system after installing the tablet on a
system with multiple users.
WINDOWS-SPECIFIC PROBLEMS
Troubleshooting
UM-0295_PenPartner.indd 14 04.10.8 2:31:14 PM

15
Obtaining Technical Support
If you have a problem with your tablet, first check the tablet installation guide
and Having Trouble? to be sure the tablet is installed correctly. If you cannot
find the answer in this manual, you may find updated information about your
problem in the Read Me file located on the Tablet CD. For information on
obtaining Technical Support, see the Read Me file located on the Tablet CD.
UM-0295_PenPartner.indd 15 04.10.8 2:31:15 PM

16
APPENDICS
TABLET (MODEL FT-0203A-U)
Product Specifications
Active area (W x D) 81.2 x 58.0 mm (3.20 x 2.28 in)
Physical size (W x D x H) 147.5 x 160.2 x12.0 mm (5.81 x 6.31 x 0.47 in)
Cable length 150 cm (4.92 ft) [or 90 cm (2.95 ft) with
optional extension cable]
Weight 168 g (0.37 lb), approximately
Power consumption 0.2 watts
Coordinate resolution 40 lpmm (1016 lpi)
Maximum report rate 98 points per second
Communication interface USB
Connector USB A
Power requirements DC 5V, 40 mA, from USB port
Operating temperature 5 to 40 degrees C (41 to 104 degrees F)
Storage temperature -10 to 60 degrees C (14 to 140 degrees F)
Operating relative humidity 20% to 80% noncondensing
Storage relative humidity 20% to 90% noncondensing
Certification CE
Compliance CE
PEN (MODEL FP-100)
Physical size (L x D) 149.0 x 12.3 mm (5.87 x 0.49 in)
Pressure levels 512 levels
Pen tip travel 2 mm (0.08 in) or less
Weight 10 g (0.02 lb), approximately
Ordering Parts and Accessories
To purchase parts and accessories, refer to the tablet Read Me file and see who
to call.
UM-0295_PenPartner.indd 16 04.10.8 2:31:15 PM

1
목 차
한국어
목차 .............................................................1
내용물 ..........................................................2
PenPartner 로 시작하기 ....................................3
시스템 요구조건 ............................................3
PenPartner 드라이버 소프트웨어 설치하기 ............3
PenPartner 드라이버 소프트웨어 설치에 문제가 발생한 경우 ....... 4
소프트웨어 언인스톨하기 ..................................5
Pen Partner 외형과 기능 ..................................6
타블렛 .......................................................6
펜 ............................................................7
제어판 기본 ....................................................8
제어판 열기 .................................................8
제어판 기능 .................................................9
문제해결 ........................................................10
타블렛 검사하기 ............................................10
문제해결표 ..................................................11
기술지원 받기 ..............................................15
부록 .............................................................16
제품사양 ....................................................16
부품과 악세서리 주문하기 .................................16
UM-0295_PenPartner.indd 1 04.10.8 2:31:15 PM

2
내용물
타블렛 펜
드라이버 CD
퀵 스타트 가이드 애플리케이션 설치 가이드
H
S
I
L
G
N
E
어
국한
r
e
n
t
r
a
P
n
e
P
Quick Start Guide
PenPartner
PenPartner
r
e
n
t
r
aPn
eP
Application Installation Guide
PenPartner
JustWrite Office
PenPartner
UM-0295_PenPartner.indd 2 04.10.8 2:31:17 PM
