Waeco CoolMatic CRX50 User manual

CoolMatic CRX50, CRX65,
CRX80, CRX110, CRX140
DE 13 Kompressor-Kühlschrank
Montage- und Bedienungsanleitung
EN 37 Compressor refrigerator
Installation and Operating Manual
FR 59 Réfrigérateur à compression
Instructions de montage et de service
ES 86 Nevera con compresor
Instrucciones de montaje y de uso
IT 111 Frigorifero con compressore
Istruzioni di montaggio e d’uso
NL 136 Compressorkoelkast
Montagehandleiding en gebruiks-
aanwijzing
DA 159 Kompressor-Køleskab
Monterings- og betjeningsvejledning
SV 181 Kylskåp med kompressor
Monterings- och bruksanvisning
NO 203 Kompressorkjøleskap
Monterings- og bruksanvisning
FI 225 Kompressori jääkaappi
Asennus- ja käyttöohje
PT 247 Frigorífico com compressor
Instruções de montagem e manual de
instruções
RU 274 Компрессорный холодильник
Инструкция по монтажу и
эксплуатации
PL 302 Lodówka kompresorowa
Instrukcja montażu i obsługi
CS 325 Kompresorová chladnička
Návod k montáži a obsluze
SK 347 Kompresorová chladnička
Návod na montáž a uvedenie do
prevádzky
HU 369 Kompresszoros hűtőszekrény
Szerelési és használati útmutató

CoolMatic
3
CRX 50
1
2
3
5
4
6
7
1
1
2
3
5
4
6
7
CRX 65
2

CoolMatic
4
1
2
3
5
4
6
7
CRX 80
3
4
1
2
3
5
4
6
7
CRX 110

CoolMatic
5
55
1
2
3
5
4
6
7
CRX 140
1
2
3
46
5
7
8
6CRX50, CRX65, CRX80

CoolMatic
6
7
CRX110, CRX140
1
2
3
46
5
8
7
1
4
3
2
ca. 50 mm
8

CoolMatic
7
2
1
9
1
2
0

CoolMatic
8
a
b
c

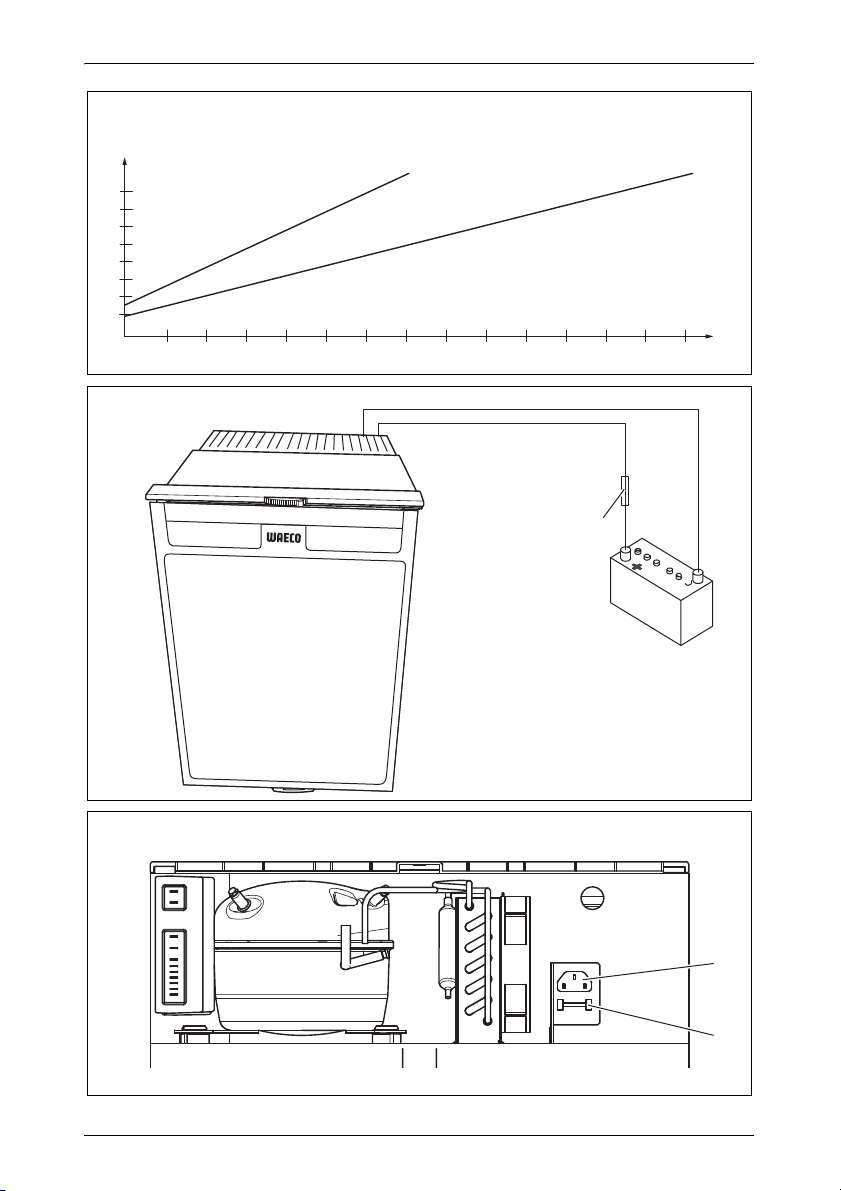

CoolMatic
9
∅/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
d
1
rt
sw
e
1
2
f

CoolMatic
10
1
Vent Lock
g

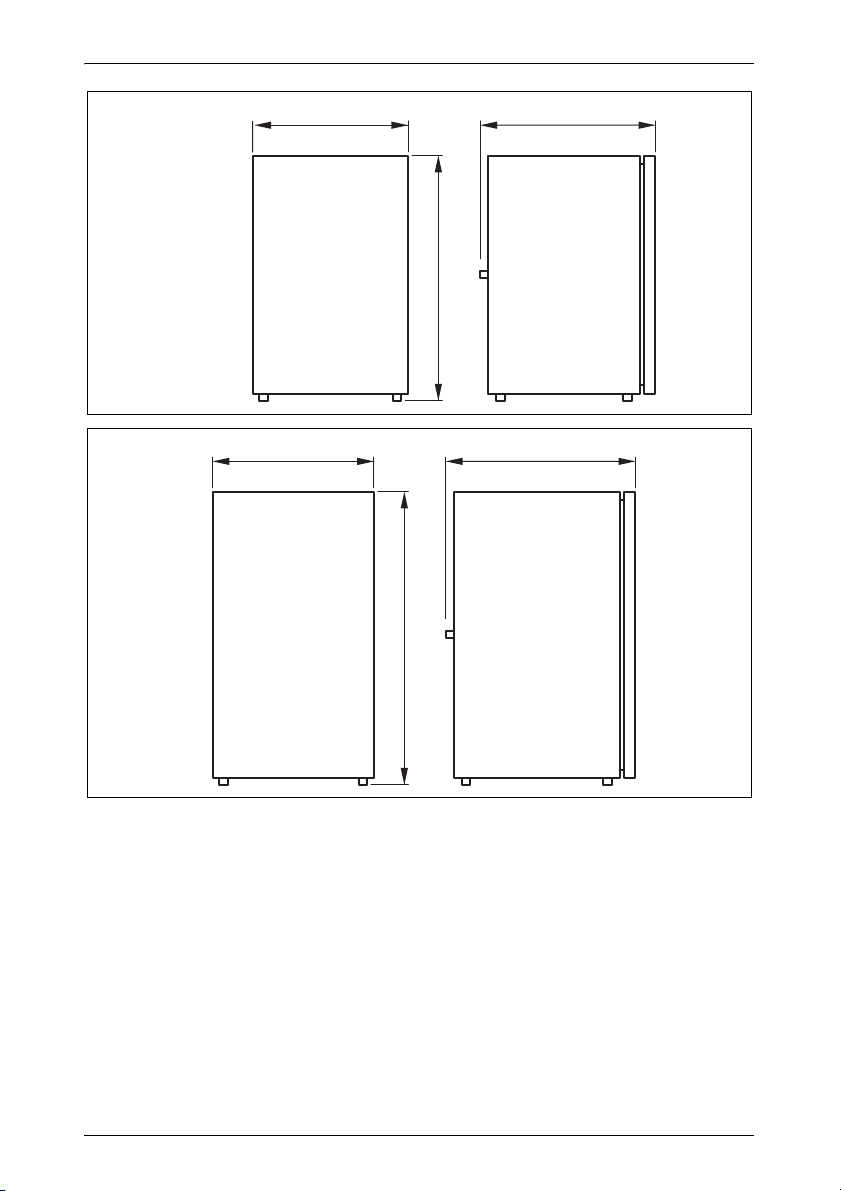

380
534
500
CRX 50
h
CRX 65
448
525
545
i

CoolMatic
11
CRX 80
475
640
528
j
CRX 110
520
745
558
k

CoolMatic
12
CRX 140
525
812
620
l

EN
CoolMatic
37
Please read this instruction manual carefully before installation and
first use, and store it in a safe place. If you pass on the product to
another person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
7 Installing and connecting the refrigerator. . . . . . . . . . . . . . . . . . . . . 44
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
9 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

EN
Explanation of symbols CoolMatic
38
1 Explanation of symbols
D
!
!
A
I
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
Fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
Faulty assembly or connection
Damage to the product resulting from mechanical influences and excess
voltage
Alterations to the product without express permission from the manu-
facturer
Use for purposes other than those described in the operating manual
DANGER!
Safety instruction: Failure to observe this instruction will cause
fatal or serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.

EN
CoolMatic Safety instructions
39
2.1 General safety
DDANGER!
On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
!WARNING!
Have a qualified technician perform the installation in wet
rooms.
Do not operate the device if it is visibly damaged.
If this device's power cable is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified
person in order to prevent safety hazards.
This device may only be repaired by qualified personnel.
Inadequate repairs may cause serious hazards.
This device can be used by children aged 8 years or over, as
well as by persons with diminished physical, sensory or mental
capacities or a lack of experience and knowledge, providing
they are supervised, or have been taught how to use the device
safely and are aware of the resulting risks.
Cleaning and user maintenance must not be carried out by
children without supervision.
Children must be supervised to ensure that they do not play with
the device.
Always keep and use the device out of the reach of children
under 8 years of age.
Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION!
Danger of crushing! Do not put your fingers into the hinge.
Foodstuff may only be stored in its original packaging or in suit-
able containers.
ANOTICE!
Check that the voltage specification on the type plate is the
same as that of the power supply.
Never pull the plug out of the socket by the connection cable.

EN
Safety instructions CoolMatic
40
If the refrigerator is connected to the DC socket: Disconnect the
refrigerator and other electric consumers from the battery
before connecting the quick charging device.
If the refrigerator is connected to the DC socket: Disconnect the
refrigerator or switch it off when you turn off the engine. Other-
wise you may discharge the battery.
The refrigerator is not suitable for storing substances which are
caustic or contain solvents.
Keep the drainage outlet clean at all times.
Do not open the refrigerant circuit under any circumstances.
Never transport the device in a horizontal position, so that no oil
can leak out of the compressor.
Make sure that the refrigerator circuit is not damaged during
transportation. The refrigerant in the refrigerator circuit is highly
flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
Set up the device in a dry location where it is protected against
splashing water.
2.2 Operating the device safely
DDANGER!
Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
!CAUTION!
Before starting the device, ensure that the power supply line
and the plug are dry.
If you connect the device to a battery, make sure that no food
comes into contact with the battery acid.
ANOTICE!
Do not use electrical devices inside the cooling device unless
they are recommended by the manufacturer for that purpose.
Do not place it near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.)

EN
CoolMatic Scope of delivery
41
Danger of overheating!
Always ensure sufficient ventilation so that the heat generated
during operation can dissipate. Make sure that the device is
sufficiently far away from walls and other objects so that the air
can circulate.
Ensure that the ventilation vents are not covered.
Do not fill the inner container with ice or fluid.
Never immerse the appliance in water.
Protect the appliance and the cable against heat and moisture.
Make sure that foodstuffs do not touch the walls of the cooling
area.
3 Scope of delivery
4 Accessories
Available as accessories (not included in the scope of delivery):
Quantity Description
1 Refrigerator with shelves
1 Operating manual
Description Explanation Item no.
Low ambient
control
Connects an additional heater to the compressor.
This ensures the compressor switches on more
frequently at extremely low ambient temperatures
so that it can cool the freezer compartment.
LAC

EN
Intended use CoolMatic
42
5 Intended use
The refrigerator is suitable for cooling and freezing foodstuffs.
!
The refrigerator is only suitable for installation in a fitted niche. Once it is
installed, only the front of the appliance may be accessible.
6 Technical description
The WAECO CoolMatic CRX series cooling appliances can cool products
and keep them cool. Products can be deep-frozen in the freezer compart-
ment. If the refrigerator is operated without a freezer compartment, frozen
products can be stored in the short term using the fast-cooling function.
All materials used in the refrigerator are compatible for use with foodstuffs.
The refrigerant circuit is maintenance-free.
The device can be connected to 12 V and 24 V as well as 100 – 240 V power
sources.
When used on boats the refrigerator can be subjected to a constant inclina-
tion of 30°.
CRX50, CRX65, CRX80:
The temperature is set using the control panel on the inside left of the refrig-
erator. Four temperature ranges from +3 °C to +12 °C, and a fast-cooling
function, are available for selection.
CRX110, CRX140:
The temperature is set using the control panel on the inside left of the refrig-
erator. Four temperature ranges from +3 °C to +12 °C, and a winter mode,
are available for selection.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for
storing the food or medicine you wish to cool.

EN
CoolMatic Technical description
43
6.1 Control elements inside the fridge

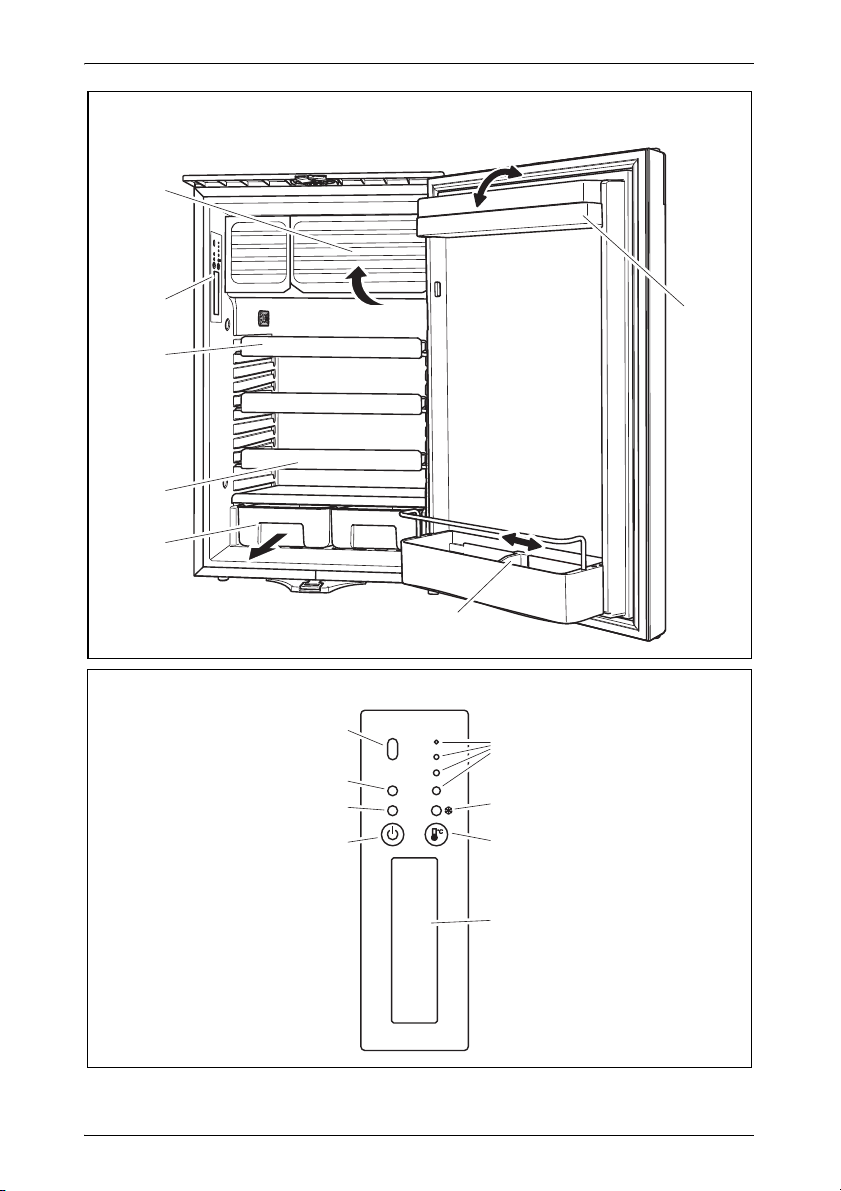

The various types of refrigerators are shown in the following illustrations:
CRX50: fig. 1, page 3
CRX65: fig. 2, page 3
CRX80: fig. 3, page 4
CRX110: fig. 4, page 4
CRX140: fig. 5, page 5
6.2 Control elements
No. Explanation
1 Freezer compartment (detachable: CRX50, CRX65, CRX80
only)
2 Control panel
3 Wire shelf (folding, so that bottles can be put in the fridge)
4Shelf
5 Fruit compartment
6 Bottle restraint
(to hold bottles in the door)
7 Compartment with lid (hinged)

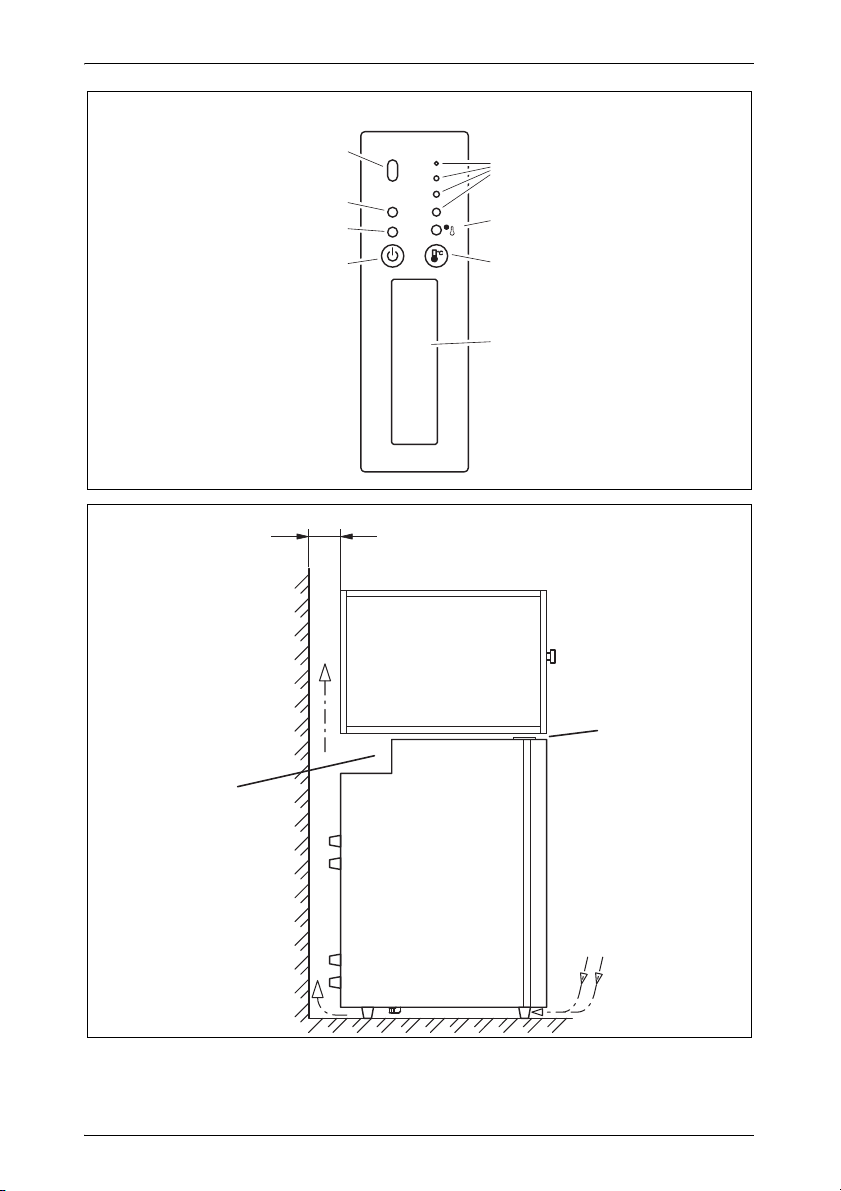

No. in
fig. 6, page 5,
fig. 7, page 6
Explanation
1 IR sensor for switching the interior light
2 LED Service display
3 LED Green: Compressor is running
Orange: Compressor is off
4 On/off button
5 Inner lighting
6 Temperature selection button
7 LED: Fast cooling function on (CRX50, CRX65, CRX80)
LED: Winter mode on (CRX110, CRX140)
8 LEDs: Temperature levels 1 to 4

EN
Installing and connecting the refrigerator CoolMatic
44
7 Installing and connecting the
refrigerator
7.1 Safety instructions for installation on boats
Please note the following instructions for installation on boats:
D
A
7.2 Installing the refrigerator
Observe the following when installing the refrigerator:
Install the refrigerator so that the warm air produced can easily flow away
(either upwards or to the sides, fig. 8, page 6).
Key for fig. 8, page 6
Keep objects clear of openings in the housing or installation structure
(such as ventilation slots, etc.).
DANGER!
If the appliance is powered by the mains, ensure that the voltage
supply has a residual current circuit breaker.
NOTICE!
The device can be tilted sideways up to 30°. When setting up
the refrigerator, note that it must be fastened to take account
of this. If you have any questions regarding installation, consult
your specialist dealer.
Install the refrigerator so that the warm air produced can easily
flow away (either upwards or to the sides, fig. 8, page 6).
The appliance is designed for ambient temperatures between
+16°Cand+43°C.
No. Explanation
1 Cold intake air
2 Hot waste air
3 Condenser
4 Spacing above the refrigerator if there is not sufficient air to circu-
late above or at the side.

EN
CoolMatic Installing and connecting the refrigerator
45
Condensate is produced when the refrigerator is operating normally. You
can either wipe up the condensate in regular intervals, or drain it through
an outlet in the rear of the refrigerator.
Proceed as follows to install the refrigerator:
➤If you wish to drain the condensate through a hose:
Remove the drain plug (fig. 91, page 7).
➤Connect a hose with an inside diameter of 10 mm to the outlet port
(fig. 92, page 7).
➤Undo the transport lock (chapter “Releasing the lock” on page 51).
➤Open the refrigerator door.
➤Remove the blanking plugs (fig. 02, page 7).
➤Push the refrigerator into the recess.
➤Fix the refrigerator in place using suitable screws (fig. 01, page 7).
➤Press the blanking plugs (fig. 02, page 7) into the openings.
7.3 Changing the door hinge
You can also change the hinge of the door, so that it opens to the left rather
than the right.
➤Proceed as shown in fig. a, page 8 to fig. c, page 8, to change the
hinges.
7.4 Connecting the refrigerator
Connecting the refrigerator to DC voltage
A
The refrigerator can be operated with a 12 V or a 24 V DC voltage supply.
NOTICE!
To avoid voltage drops and loss of performance, keep the
connection cable as short as possible and not be interrupted.
Therefore avoid additional switches, plugs or power strips.
Disconnect the cooling device and other electric consumers
from the battery before you connect the battery to a quick
charging device. Overvoltage can damage the electronics of
the device.
