INTRODUCTION
Thank you for purchasing the Wagan Tech®Elite™ 400W PRO Pure Sine Wave
DC to AC Power Inverter. Read and understand this manual before installing and
operating this inverter. Keep this manual for future use.
The "PRO" model represents numerous improvements to our first generation of
Elite pure sine inverters that meet the needs of more demanding environments—
providing clean power at an affordable price. It delivers a true AC sine wave
identical to that of commercial power. Use this inverter to power AC appliances
in your vehicle. Pure Sine Wave AC means that your sensitive electronics, such
as audio/video systems, computers, and communications equipment will operate
properly. Furthermore, appliances with motors operate cooler, quieter, and more
efficiently when they are powered by pure sine wave AC.
The inverter is powered from 12 volt DC and it will continuously deliver 400 watts
AC power at 120 volts, 60 Hz. Superior surge capability of 800 watts allows the
inverter to start most difficult motorized appliances. Advanced microprocessor-
controlled circuits run cooler and are more reliable than competing units. The
Elite™ 400W PRO operates at high efficiency (up to 90%), that results in long
run time and extended battery life compared to other inverters with this level
of power output. A 2.1A USB power port provides a convenient way to power
USB devices, including smartphones, tablets and e-readers, and other mobile
electronics.
The DC terminals have been designed apart from each other to ease installation
and minimize the risk of accidental shortage when handling the DC cables. This
inverter bonds neutral to ground, just like utility power. The enclosure vents have
been minimized to reduce the risk of pest intrusion in arid tropical climates.
The Wagan Elite™ 400W PRO Pure Sine Wave Inverter is an indispensable
addition to your compliment of mobile power equipment. With minimal care and
proper treatment, it will provide years of reliable service.

Elite™ 400W PRO by Wagan Tech®
2www.wagan.com
SPECIFICATIONS
Output waveform Pure sine wave
Input 12V DC
Output 120V AC
TrueRated Power™400 watts (24-hour continuous)
Peak surge 800 watts
Efficiency > 90%
Frequency 60Hz
Total harmonic distortion (THD) < 3%
No load current draw < 0.3A
Battery low alarm 10.5V ± 0.5V DC
Battery low shutdown 9.5V ± 0.5V DC
Over voltage shutdown 15.5V ± 0.5V DC
Cooling fan Thermally controlled
AC output sockets 2 North American standard
USB power port 2.1A, 5V ± 0.25V
Power output control AC ON/OFF switch
Dimensions (body only) 7.1 × 4.1 × 2.0 in.
Net weight (approximate) 1.7 lb
DC plug adapter cord (≤180W) 39.4 in., 14AWG
Battery clip adapter cord (≤400W) 27.6 in., 10 AWG
* All specifications are typical at nominal line, half load, and 77 ºF (25 ºC) unless otherwise noted.
Specifications are subject to change without notice.

©2015 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
3
WARNING
INVERTER OUTPUT CAN BE LETHAL. IMPROPER USE OF THIS INVERTER MAY
RESULT IN PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
• Keep the inverter away from any direct heat source or combustible
materials.
• Keep well ventilated—this device generates heat.
• Keep this inverter in a dry environment.
• Do not operate any equipment over 400 watts.
• This inverter is designed to operate from a 12 volt DC power source only.
• Do not attempt to connect the inverter to any other power source, including
any AC power source.
• Incorrect battery polarity will damage the inverter and void the warranty.
• Do not open the inverter; there are no user serviceable parts inside.
• DO NOT exceed your vehicle's cigarette lighter socket load limitation.

Elite™ 400W PRO by Wagan Tech®
4www.wagan.com

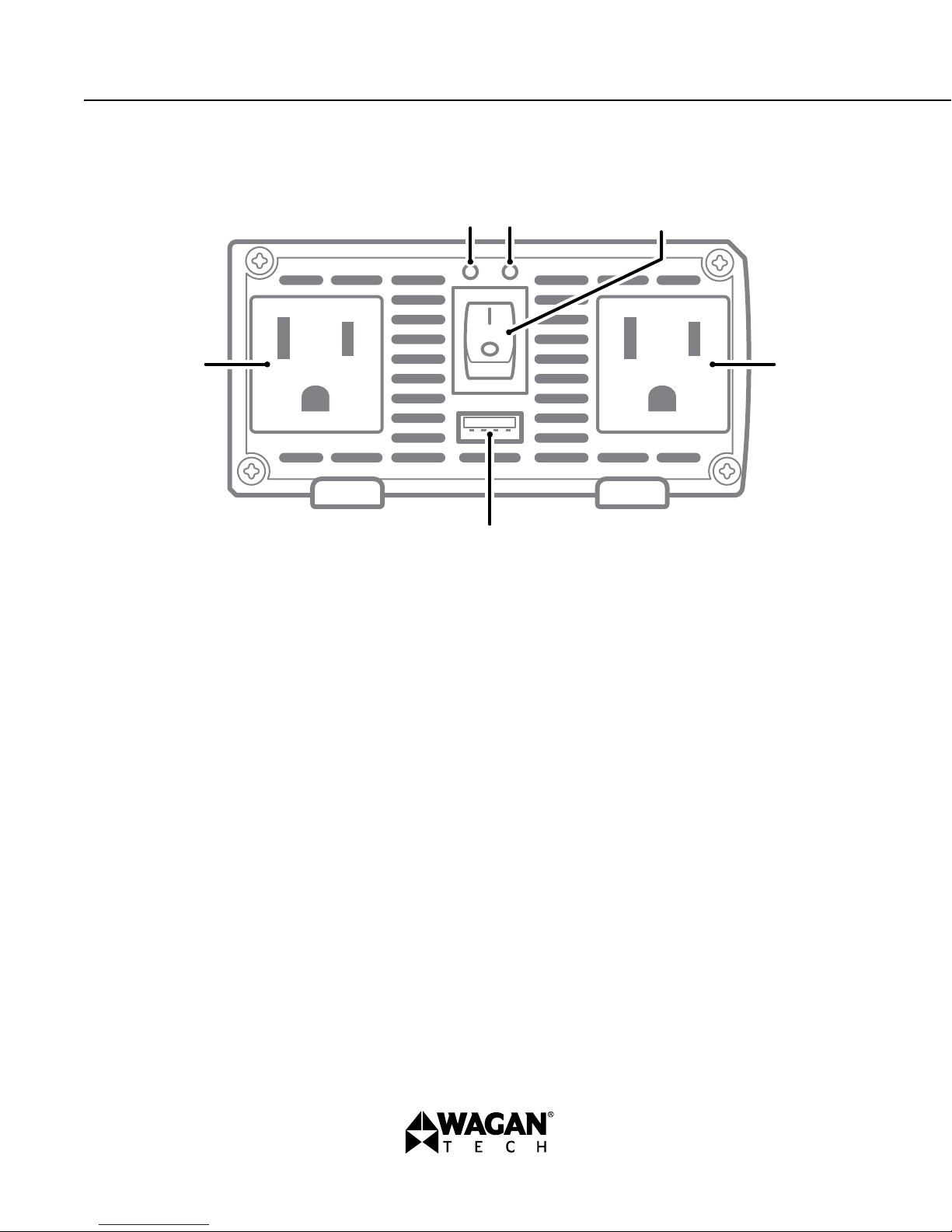

FRONT PANEL
AC Outlet
Power LED Fault LED ON/OFF Switch
AC Outlet
USB Power Port
• ON/OFF Switch — This switch controls AC output of the inverter.
• Power LED (Green) — When this green LED is lit, the inverter is operating
normally.
• Fault LED (Red) — The RED indicator turns on as the inverter shuts down due
to overheating, overload, under voltage, or over voltage.
Immediately turn off all AC appliances if the FAULT LED is lit. Allow the
inverter to cool before continuing. Make sure that the ventilation vents
are not blocked.
If an inverter shutdown was preceded by a buzzing sound, there may
be an excessive load in combination with a low voltage or cable
problem.
• AC Outlets — These outlets can supply up to 3.3 amps at 120V AC 60 Hz
• USB Power Port — This power port can supply 5 volts at 2.1A for charging
or powering smartphones, tablets and e-readers, MP3 players, GPS and
other small electronic devices.

©2015 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
5
• Audible Alarm (internal to the inverter) — When the Audible Alarm makes
a buzzing sound, the inverter senses a low battery condition. The user
should reduce the AC load, charge the battery, and check the DC cable for
excessive losses.
REAR PANEL
Cooling Fan
Negative (−)
Terminal
[Black]
Positive (+)
Terminal
[Red]
Ground
Terminal
• Positive Terminal — Positive (+) DC Input (Red)
• Negative Terminal — Negative (−) DC Input (Black)
• Cooling Fan — High-speed and load controlled
• Ground Terminal — For attaching an insulated safety ground wire. This
safety wire is for protecting personnel if there is an unlikely failure in either
the cabling or enclosure insulation.

Elite™ 400W PRO by Wagan Tech®
6www.wagan.com
LOAD CONSIDERATIONS
The startup load of an appliance is a major factor of whether this inverter
can power it. This initial load is only momentary. With many appliances, it is
approximately twice the continuous load, but some appliance startup loads can
be as high as eight times the continuous load.
The inverter will automatically shut down in the event of an output overload so
there is no danger of damaging either the inverter or the equipment. When the
red LED indicator is lit, the inverter is signaling a fault.
Maximum Power from Vehicle Accessory Sockets
Most vehicle accessory sockets that are controlled through a vehicle’s ignition
switch are fused at 15 amps. This limits inverter output to approximately 180
watts.
To Power 400 Watt Appliances: For temporary use, connect a battery clip
adapter cord (not included) to the inverter and follow the procedure located
under the “Connecting the Inverter” section.
There is no danger in leaving the inverter directly wired to the battery if the
inverter is turned off after each use. The inverter will shut off when the vehicle’s
battery level drops down to 9.5 volts to protect the battery from draining
completely.
DETERMINING MAXIMUM APPLIANCE WATTAGE
Do not exceed the 400 watt maximum AC load or the inverter will shut down.
Most electrical tools, appliances, and audio/video equipment have labels that
list the unit’s power requirements in watts. If the tool or device is rated in amps,
multiply the amps by 120 (120V AC) to determine the watts. For example, an
appliance rated at 0.5 amps will draw 60 watts.
WATTS = VOLTS × AMPS
Remember to consider the startup surge that motorized appliances will cause. Do
not exceed the 800 watt momentary surge rating of this inverter. This can cause

©2015 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
7
immediate overload shut down and or blow a fuse. The fuse on this inverter is
external and replaceable for this purpose.
CONNECTING THE INVERTER
DC Plug Adapter Cord – Up to 180W Output
1. Connect an insulated copper wire to the ground terminal. The other end
of the ground wire should be connected to a proper grounding point. Use
the shortest practical length of wire. Connect this wire to the chassis of
your vehicle or to the grounding system in your boat. In a city, the ground
wire can connect to a metal cold water pipe that goes underground. In
remote locations, the ground wire can be connected to an earth ground.
In the unlikely event of a short circuit, operating the inverter without proper
grounding can result in electric shock. Do not directly connect this ground
wire to the negative DC terminal
2. Connect the red (+) and black (−) terminals of the supplied DC Plug Adapter
Cord to the red (+) and black (−) terminals on the rear of the inverter.
Be sure to connect them into the correct polarity terminals on the rear
of the inverter. Reverse polarity connection will blow the fuse in the
inverter and can permanently damage to the inverter. Damage caused
by reverse polarity will void the warranty.
3. Connect the Plug end of the DC Adapter Cable into your vehicle’s 12V DC
accessory outlet. You may need to place the ignition switch to Accessory
Position if the vehicle engine is not operating.
4. Plug the AC appliance cord into the inverter’s AC receptacle, and/or your
USB appliance into the USB power port.

Elite™ 400W PRO by Wagan Tech®
8www.wagan.com
5. Place the ON/OFF power switch in the “ON” position. The green LED
should turn on, indicating the inverter is powered and operating normally.
6. When the inverter is not in use, place the inverter’s ON/OFF Power Switch
to the “OFF” position. We recommend also unplugging the DC Adapter
cable from the vehicle’s DC outlet.
Battery Clip Adapter Cord – Up to 400W Output
1. Connect an insulated copper wire to the ground terminal. The other end
of the ground wire should be connected to a proper grounding point. Use
the shortest practical length of wire. Connect this wire to the chassis of
your vehicle or to the grounding system in your boat. In a city, the ground
wire can connect to a metal cold water pipe that goes underground. In
remote locations, the ground wire can be connected to an earth ground.
In the unlikely event of a short circuit, operating the inverter without proper
grounding can result in electric shock. Do not directly connect this ground
wire to the negative DC terminal
2. Connect just the red terminal of the supplied DC Battery Clip Adapter Cord
to the red stud terminal (+) on the rear of the inverter.
3. Connect the two battery clips to the battery.
Be sure to connect the clips to the correct polarity battery terminals.
Reverse polarity connection will blow the fuse in the inverter and
can permanently damage to the inverter. Damage caused by reverse
polarity will void the warranty.
4. Connect the Negative black (−) connector to the stud connector on the
rear of the inverter. There may be a momentary spark and the low voltage
buzzer may briefly sound.

©2015 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
9
5. Plug the AC appliance cord into the inverter’s AC outlet, and/or your USB
appliance into the USB power port.
6. Place the ON/OFF power switch in the “ON” position. The green LED
should turn on, indicating the inverter is powered and operating normally.
7. When the inverter is not in use, place the inverter’s ON/OFF Power Switch
to the OFF position.
OPERATING ISSUES: TELEVISION AND AUDIO
EQUIPMENT SUGGESTIONS.
Although all inverters are shielded and filtered to minimize signal interference,
some interference with your television picture may be unavoidable, especially
with weak signals. However, here are some suggestions that may improve
reception.
• Make sure that the television antenna produces a clear signal under normal
operating conditions (i.e. plugged into a standard 110V/120V AC wall
outlet). Also ensure that the antenna cable is of good quality and properly
shielded.
• Sometimes vehicle alternators produce some electrical noise. There are
filters available to mount on the alternator to reduce the noise.
• Change the positions of the inverter, antenna cables, and television power
cord.
• Isolate the television, its power cord, and antenna cables from the 12
volt power source by running an extension cord from the inverter to the
television.

Elite™ 400W PRO by Wagan Tech®
10 www.wagan.com
TROUBLESHOOTING
PROBLEM: Low or No Output Voltage – Fault LED Lit
Reason Solution
Poor contact with battery, inverter
terminals, or DC socket. Clean terminals thoroughly. Reinstall and tighten. Clean DC socket with non-
metallic abrasive emery stick.
PROBLEM: No Output Voltage – No LEDs Lit
Reason Solution
Blown fuse. Check vehicle’s Accessory Socket Fuse.
If the fuse is blown, replace with the
same type and rating fuse.
PROBLEM: Inverter Auto Shut Down – Fault LED Lit
Reason Solution
Battery voltage is below 9.5 volts. Charge or replace battery.
Inverter is too hot (thermal shut down
mode). •Allow inverter to cool.
•Check for adequate ventilation.
• Reduce the load on the inverter to
the specified TrueRated™power
max output.
PROBLEM: Inverter Shut Down – Fault LED Lit
Reason Solution
Equipment being operated draws too
much power. Do not use the equipment with this inverter; use a higher wattage inverter.

©2015 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
11
PROBLEM: Continuous Buzzing Sound
Reason Solution
Input voltage is below 10.5 volts. Keep input voltage above 10.5 volts.
Poor or weak battery condition. Recharge or replace battery.
Poor or loose cable connection. Inspect terminals and tighten all
connections.
Inadequate power being delivered to
the inverter or excessive voltage drop. Use heavier gauge DC cables.
Keep cable length as short as possible.
DISPOSAL/RECYCLING OF INVERTER
Electronic products are known to contain materials that are toxic if improperly
disposed. Contact local authorities for disposal and recycling information.

The WAGAN Corporation warranty is limited to products sold only in
the United States.
Warranty Duration:
Product is warranted to the original purchaser for a period of two (2) years from
the original purchase date, to be free of defects in material and workmanship.
WAGAN Corporation disclaims any liability for consequential damages. In no event
will WAGAN Corporation be responsible for any amount of damages beyond the
amount paid for the product at retail.
Warranty Performance:
During the warranty period, a product with a defect will be replaced with a
comparable model when the product is returned to WAGAN Corporation with an
original store receipt. WAGAN Corporation will, at its discretion, replace or repair
the defective part. The replacement product will be warranted for the balance of the
original warranty period. This warranty does not extend to any units which have
been used in violation of written instructions furnished.
Warranty Disclaimers:
This warranty is in lieu of all warranties expressed or implied and no representative
or person is authorized to assume any other liability in connection with the sale of our
products. There shall be no claims for defects or failure of performance or product
failure under any theory of tort, contract or commercial law including,but not limited
to negligence, gross negligence, strict liability, breach of warranty, and breach of
contract.
Returns:
Please contact customer service by phone, email, or visiting our website under
"Customer Care" page for instructions on how to process a warranty claim. WAGAN
Corporation is not responsible for any shipping charges incurred in returning the
item(s) back to the company for repair or replacement, nor is WAGAN responsible
for any item(s) returned without an official Return Authorization number (RA#).
Register your product online at http://tinyurl.com/wagan-registration to be added to
our email list. You will receive previews on our upcoming products, promotions, and
events.
©2015
WAGAN Corp. Limited Warranty

Elite™ 400W PRO de Wagan Tech®
14 www.wagan.com
INTRODUCCIÓN
Gracias por adquirir el inversor de onda sinusoidal pura de CC a CA
Elite™ 400W PRO de Wagan Tech®. Lea y comprenda este manual antes de
instalar y utilizar este inversor. Guarde este manual para futuras consultas.
El modelo "PRO" representa numerosas mejoras a nuestra primera generación
de Elite inversores sinusoidales puras estándar que satisfacen las necesidades
de los entornos más exigentes, suministrando energía limpia de calidad a un
precio asequible. Ofrece una verdadera CA de onda sinusoidal idéntica a la
de la energía comercial. Utilice este inversor para accionar aparatos de CA en
su vehículo. CA de onda sinusoidal pura significa que sus equipos electrónicos
sensibles, tales como sistemas de audio y video, computadoras y equipos de
comunicaciones funcionarán de forma correcta. Además, los aparatos con
motores funcionan más frescos, más silenciosos y de forma más eficiente cuando
son accionados por CA de onda sinusoidal.
El inversor se alimenta con 12 voltios de corriente continua y proporcionará
de forma continua 200 vatios de corriente alterna a 120 voltios, 60 Hz.
La capacidad superior para resistir sobretensiones de 800 vatios permite
que inversor encienda los aparatos motorizados más difíciles. Los circuitos
avanzados controlados por microprocesador funcionan más frescos y son más
confiables que las unidades de la competencia.
Los terminales de CC se han diseñado separados entre sí para facilitar la
instalación y minimizar el riesgo de falta de energía accidental al manejar los
cables de CC. Unión neutro a tierra, al igual que la red pública. El inversor se
suministra con un cable adaptador de alimentación que conecta el inversor
a una fuente de alimentación de CC. Las rejillas de ventilación de la carcasa
se han minimizado para reducir el riesgo de intrusión de plagas en climas
tropicales áridos.

© Corporación Wagan 2015. Todos los derechos reservados.
Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan.
Manual de Usuario—Leer antes de utilizar este equipo
15
El Elite™ 400W PRO también funciona con una alta eficiencia (hasta del 90%),
que se traduce en tiempo de funcionamiento prolongado y duración extendida
de la batería en comparación con otros inversores con este nivel de potencia
de salida. Un puerto de alimentación USB de 2.1A proporciona una manera
conveniente para accionar aparatos USB o cargar teléfonos inteligentes, tabletas
y lectores electrónicos, así como otros dispositivos electrónicos móviles.
El inversor de onda sinusoidal pura Wagan Elite™ 400W PRO es un
complemento indispensable para completar su equipo de energía móvil. Con
cuidados mínimos y un tratamiento adecuado, proporcionará años de servicio
confiable.

Elite™ 400W PRO de Wagan Tech®
16 www.wagan.com
ESPECIFICACIONES*
Forma de onda de salida Onda sinusoidal pura
Entrada 12V de CC
Salida 120V de CA
Potencia TrueRated™400 vatios (24 horas continuas)
Sobretensión máxima 800 vatios
Eficiencia > 90%
Frecuencia 60 Hz
Distorsión armónica total (THD) < 3%
Consumo de corriente sin carga < 0.3A
Alarma de batería baja 10.5V ± 0.5V de CC
Apagado por batería baja 9.5V ± 0.5V de CC
Apagado por sobre voltaje 15.5V ± 0.5V de CC
Ventilador de enfriamiento Controla térmicamente
Tomas de salida de CA 2 Estándar Norteamericano
Puerto de alimentación USB 2.1A, 5V ± 0.25V
Control de potencia de salida Control CA ON/OFF
Dimensiones (solo el cuerpo) 15.8 × 10.5 × 5.2 cm
Peso neto (aproximado) 0.8 kg
Cable adaptador del enchufe CC (≤180W) 100 cm, 14AWG
Cable adaptador para la pinza de la
batería (≤400W) 70 cm, 10 AWG
* Todas las especificaciones son las típicas en la línea nominal, media carga y 25ºC (77ºF) a menos
que se indique lo contrario. Las especificaciones están sujetas a cambios sin previo aviso

© Corporación Wagan 2015. Todos los derechos reservados.
Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan.
Manual de Usuario—Leer antes de utilizar este equipo
17
ADVERTENCIA
LA SALIDA DEL INVERSOR PUEDE SER MORTAL. EL USO INDEBIDO DE ESTE
INVERSOR PUEDE CAUSAR DAÑOS A LA PROPIEDAD, LESIONES PERSONALES O
LA MUERTE.
• Mantenga el inversor alejado de cualquier fuente de calor directo o
materiales combustibles.
• Mantenga una buena ventilación, este dispositivo genera calor.
• Mantenga este inversor en un ambiente seco.
• No utilice ningún equipo de más de 400 vatios.
• Este inversor está diseñado para funcionar con una fuente de alimentación
de CC de 12 voltios solamente.
• No intente conectar el inversor a ninguna otra fuente de energía,
incluyendo cualquier fuente de alimentación de CA.
• La polaridad incorrecta de la batería puede dañar el inversor y anular la
garantía.
• No abra el inversor; no contiene partes que puedan ser reparadas por el
usuario.
• NO exceda la limitación de carga del enchufe del encendedor de
cigarrillos de su vehículo.

Elite™ 400W PRO de Wagan Tech®
18 www.wagan.com
PANEL FRONTAL
LED de Funcionamiento LED de Falla Interruptor de
Encendido/Apagado
Salida
de CA Salida de CA
Puerto de Alimentación USB
• Interruptor de Encendido/Apagado (ON/OFF) — Este interruptor controla
la salida de CA del inversor.
• LED de Funcionamiento (Verde) — Cuando este LED esté en verde, el
inversor está funcionando normalmente.
• LED de Falla (Rojo) — El indicador ROJO se enciende cuando el inversor se
apaga debido a un sobrecalentamiento, sobrecarga, bajo voltaje o sobre
voltaje.
Apague inmediatamente todos los aparatos de CA si se enciende
el LED de Falla. Deje que el inversor se enfríe antes de continuar.
Asegúrese de que las rejillas de ventilación no estén bloqueadas.
Si el apagado del inversor fue precedido por un sonido de zumbido,
puede haber una carga excesiva en combinación con un bajo voltaje
o un problema con el cable.
• Salidas de CA — Estas dos tomas, combinadas, pueden suministrar energía
hasta de 1.6 amperios a 120V CA 60 Hz.
