Wagan SOLAR e POWER CASE 800 User manual

Item No. / Artículo No/ Article n° : 8822 (115 V )
8822-7 (230V)
User’s Manual • Guide d’Utilisation • Manual de Usuario

©2018 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks of Wagan Corporation.
User’s Manual—Read before using this equipment
3
ENGLISH
MOBILITY • RAPID SETUP • INSTANT POWER

Solar e Power™Case 800 by Wagan Tech®
4www.wagan.com
ENGLISH
CONTENTS
Introduction....................................................................................................................................6
Warnings, Cautions and Notes .......................................................................................................6
Warnings—General........................................................................................................... 6
Major features ...............................................................................................................................7
Components...................................................................................................................................8
Digital LCD Voltmeter (Battery Status) ................................................................................... 9
26 Ah AGM Battery..........................................................................................................10
External Battery Terminals..................................................................................................10
Charging The Solar e Power Case .................................................................................................10
Charging Methods........................................................................................................................ 11
AC Charging Adapter .......................................................................................................11
DC Charging Adapter .......................................................................................................12
Charging With Solar Panels...............................................................................................13
Solar Panel Positioning ......................................................................................................13
Output Power...............................................................................................................................13
Using the AC Outlet Power Receptacle(s).............................................................................13
12V DC Accessory Outlet ..................................................................................................15
USB Power Ports ...............................................................................................................15
AC Operating Time Using Inverter................................................................................................. 15
DC Operating Time.......................................................................................................................16
Vehicle Battery Boosting Using the DC Charging Adapter ..............................................................16

©2018 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks of Wagan Corporation.
User’s Manual—Read before using this equipment
5
ENGLISH
Power Expansion Options............................................................................................................. 17
Adding Batteries to the System ...........................................................................................17
External Battery Connection Procedure................................................................................17
Maintenance ................................................................................................................................ 17
Cleaning..........................................................................................................................17
Troubleshooting Guide .................................................................................................................18
Recycling/Disposal....................................................................................................................... 19
Specifications ...............................................................................................................................19
Solar e Power Case Shipping Specifications ........................................................................19
12V DC Battery and Outlets...............................................................................................19
Inverter ............................................................................................................................19
AC Charging Adapter ...................................................................................................... 20
DC Charging Adapter ...................................................................................................... 20
Solar Panels and Solar Charge Controller........................................................................... 20

Solar e Power™Case 800 by Wagan Tech®
6www.wagan.com
ENGLISH
INTRODUCTION
Congratulations on your purchase of Wagan Tech’s Solar e Power™Case 800. As supplied, the
Solar e Power Case is a balanced electrical system that can power AC appliances and operate
and charge a variety of communication and entertainment devices. In an emergency, it can boost
a low charge car battery. On the job site, it can power tools where no power lines or generators
exist. At night, it can power a variety of light sources from DC spotlights to AC floodlights. At the
campground it can power an RV Microwave oven, water pumps and entertainment equipment. The
Solar e Power Case is expandable: As your needs change, external batteries can be added to the
system to increase run time. This flexibility preserves your investment in the Solar e Power Case.
Read and understand all warnings, cautions and notes included in this manual before using the
Solar e Power Case. Follow instructions provided by your vehicle and other device manufacturers
intended to be used with the Solar e Power Case.
Keep these instructions for future reference.
Fully Charge The Solar e Power Case Before First Use.
WARNINGS, CAUTIONS AND NOTES
WARNINGS identify important safety concerns when operating this equipment. Failure to follow
these warnings could result in personal injury or loss of life.
CAUTIONS identify conditions that can cause damage to equipment
NOTES identify operating details.
Warnings—General
Shock or fire hazard—The Solar e Power Case generates the same potentially lethal AC power as a
normal household wall outlet. Treat it with the same respect that you would any AC outlet.
Explosion Hazard—Do not use this product around flammable fumes or gasses, such as in the
bilge of a gasoline powered boat, or near a propane tank. Do not use Solar e Power Case in an
enclosure containing automotive-type lead-acid batteries. These batteries, unlike the sealed battery
pack in the Solar e Power Case, vent explosive hydrogen gas, which can be ignited by sparks from
electrical connections or disconnections.
When working on electrical equipment, always make sure that someone is nearby to help you in an
emergency
Heavy Lifting—This unit weighs about 37.2 pounds (16.9 kg). Proper care should be taken when
lifting the unit.
Limitations on Use—The Solar e Power Case has not been tested for use with life support systems or
other medical equipment or devices. The user assumes all risk if medical devices are used with this
product.
Temperature Limits—Do not expose Solar e Power Case to excessive temperatures.

©2018 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks of Wagan Corporation.
User’s Manual—Read before using this equipment
7
ENGLISH
MAJOR FEATURES
• 800 watt Power Inverter (1600 watts peak)
• 115/230 volt AC Outlet(s) depending on the model
• One 12 volt Automotive Outlet for powering DC appliances (loads to 20 amps)
• Three USB Power Ports for charging/operating cell phones, PDAs and MP3 players
• AC Charging Adapter with 2 amp output
• DC Charging Adapter
• Digital LCD screen to communicate all power functions and status
• Solar Panel Terminals to connect solar panels to the internal Solar Charge Controller
• Terminals to connect additional batteries
• Storage compartment for chargers and cables
• Rugged handle and luggage strap for easy lifting
• 26 Ah AGM battery for long life
• 60 Watts of solar panels for charging the internal battery
• Waterproof case (IP67) when closed

Solar e Power™Case 800 by Wagan Tech®
8www.wagan.com
ENGLISH
COMPONENTS
DC INPUT
12V
5V 2.1A
115V/60HZ
RECHARGE | RECARGAR | RECHARGER
LCD | ACL
BATTERY DISCONNECT SWITCH
OFF
ON
1
2
3
4
56
78
9
10
11
12
13
14

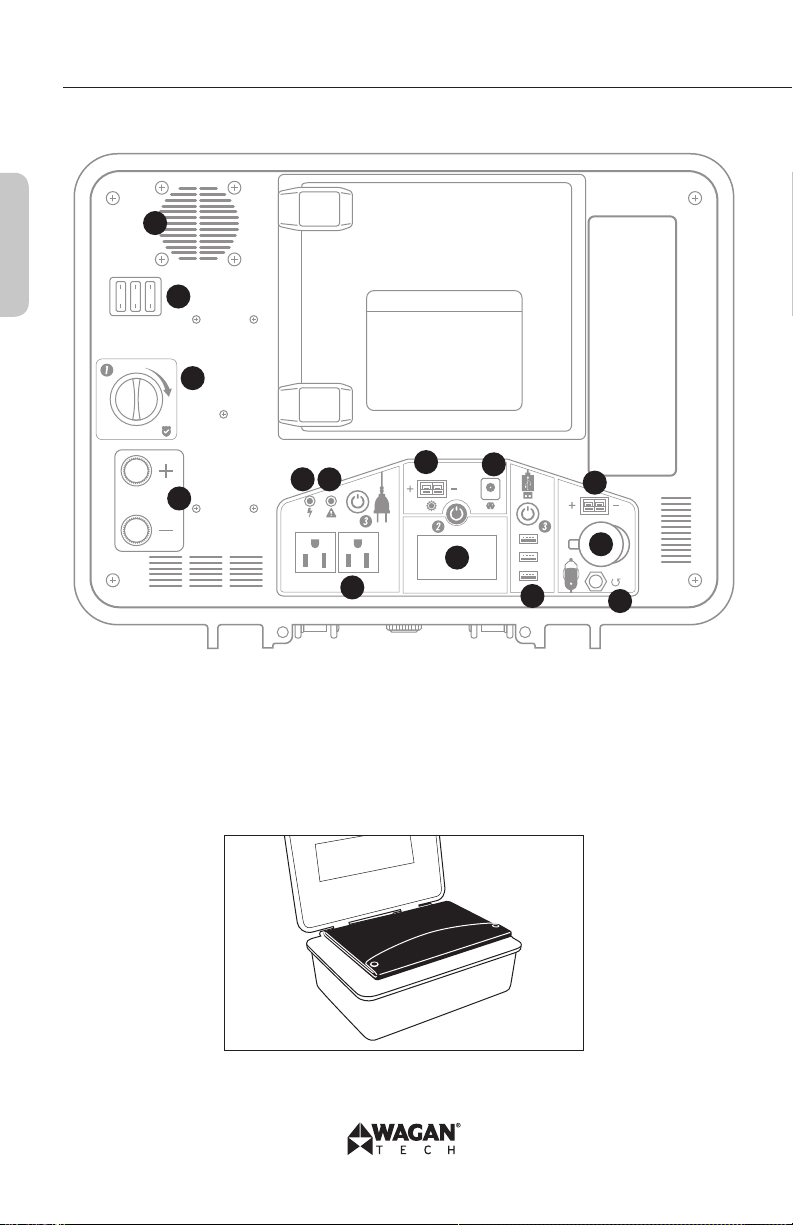

1. Internal Cooling Fan
2. Replaceable Fuses
3. Battery Disconnection Safety Switch
4. External Battery Terminals
5. AC Operation LED
6. AC Fault LED
7. Solar Panel Connection Port
8. Recharge Adapter Port
9. Anderson DC Output Ports
10. AC Outlets
11. LCD Screen
12. USB Ports
13. DC Socket with Dust Cover
14. Circuit Breaker Reset
Solar Panel

©2018 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks of Wagan Corporation.
User’s Manual—Read before using this equipment
9
ENGLISH
BATTERY
FULL
OUTPUT
FUSE AC!
MAX
12V
DC
WATTS
Low Battery
Total combined power output
Solar panels
connected
Inverter output on
USB output on
12V DC output on
AC charger connected
Battery status:
When charging,
the bars will flash Battery depleted:
Recharge
immediately
AC output:
Total power
as a % of 800W
Digital LCD Voltmeter (Battery Status)
The Digital LCD Voltmeter provides the user with the current charge state of the internal battery. It is
the user’s responsibility to periodically monitor the battery charge and to recharge the battery after
each use. Recharge every three months even if the Solar e Power Case is not used.
NOTE: Battery status (voltage) is accurate with Charging Adapters disconnected
1. Press and hold the Battery Status Push-Button for 3 seconds.
2. The Digital LCD Voltmeter (Battery Status meter) will display the battery voltage.
BATTERY
FULL
FUSE AC!
12V
DC
WATTS
5
4
3
2
1
1 flashing
> 12.5V
> 12.3V
> 12.0V
> 11.7V
> 11.0V
> 10.0V
VoltageBars displayed

Solar e Power™Case 800 by Wagan Tech®
10 www.wagan.com
ENGLISH
26 Ah AGM Battery
The Solar e Power Case is equipped with the latest in battery technology. Supplied batteries
combine the charging characteristics and compatibility of AGM valve regulated, sealed lead-acid
batteries.
These batteries are electrically compatible with AGM batteries for expansion and also follow AGM
charge characteristics. It is recommended that only AGM batteries be used for long term expansion
or replacement because they are more compatible with portable applications and do not spill or
leak.
CAUTION—Battery Life:
Repetitive quick deep discharging of any rechargeable battery will reduce the capacity and life of
the battery. Frequent charging will preserve battery life.

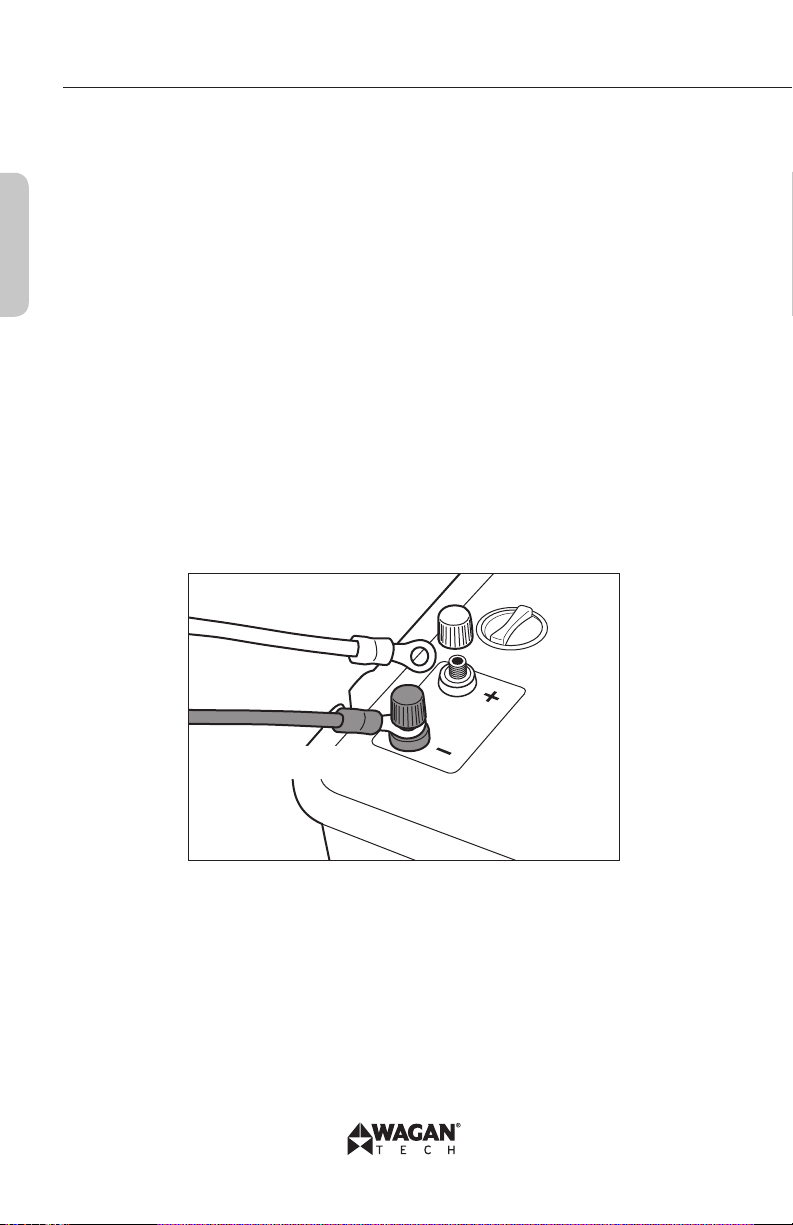

External Battery Terminals
Red and black terminals labeled “Battery Terminal” are located on the top panel of the Solar e
Power Case. Battery Terminals can be used for DC load applications greater than 20 amps. Care
must be taken to ensure that the battery is not over-discharged. Battery Terminals can be used to
connect additional (external) batteries to increase capacity of the battery bank.
CAUTION—Live Battery Terminals:
The Battery Terminals are connected to the internal battery. Proper care must be taken to keep
Battery Terminals covered (insulated) at all times when not in use.
DC INPUT
(+) RED
(−) BLACK
Battery Terminals
CHARGING THE SOLAR E POWER CASE
Make Sure The Solar e Power Case Is Fully Charged Before First Use.
It is important to charge the Solar e Power Case for 24 hours before initial use. Recharge after each
use. When storing for long periods of time, it is recommended to charge the battery once every 3
months. Failure to follow these instructions can damage the battery and reduce the battery’s ability
to hold a charge

©2018 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks of Wagan Corporation.
User’s Manual—Read before using this equipment
11
ENGLISH
CAUTION—Risk Of Damage To Battery: Do not attempt to charge Solar e Power Case battery if it
is frozen. A frozen battery should be gradually warmed to 32°F (0°C) before charging.

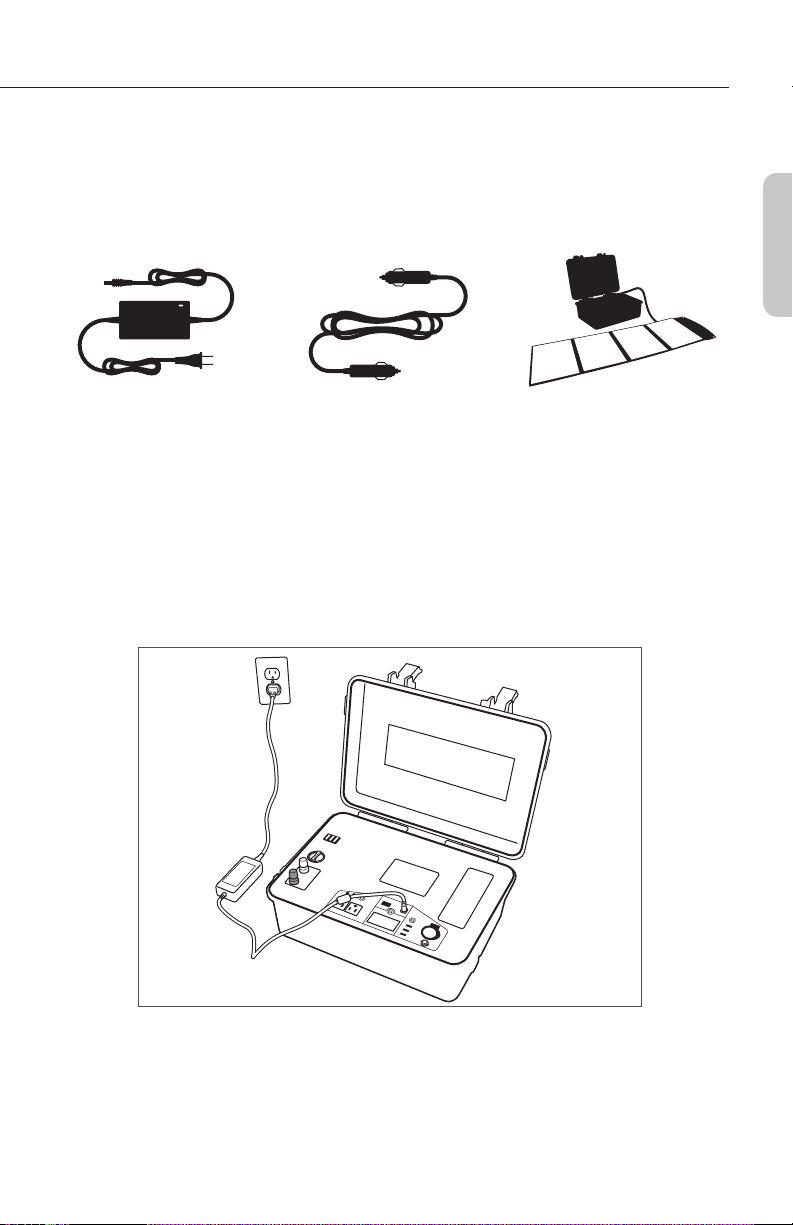

CHARGING METHODS
Factory supplied equipment allows the Solar e Power Case to be charged using:
AC Charging Adapter DC Charging Adapter
(Charging from your
vehicle as you drive)
Solar Panels
AC Charging Adapter
The Solar e Power Case is supplied with a fully automatic AC Charging Adapter. The indicator
light on the top of the adapter shows red when the battery is charging and green when the battery
has reached a full charge. The charger will continue to trickle charge the battery to maintain a full
charge when the green light is on. The Charging Adapter has a wide range of input voltages and
automatically adjusts to 115V or 230V depending on the AC source. Note that initial AC charge
can take up to 24 hours. The AC Charging Adapter connects to the Solar e Power Case through the
AC input port located on the Front Panel.
Plug AC Charging Adapter into wall socket

Solar e Power™Case 800 by Wagan Tech®
12 www.wagan.com
ENGLISH
DC Charging Adapter

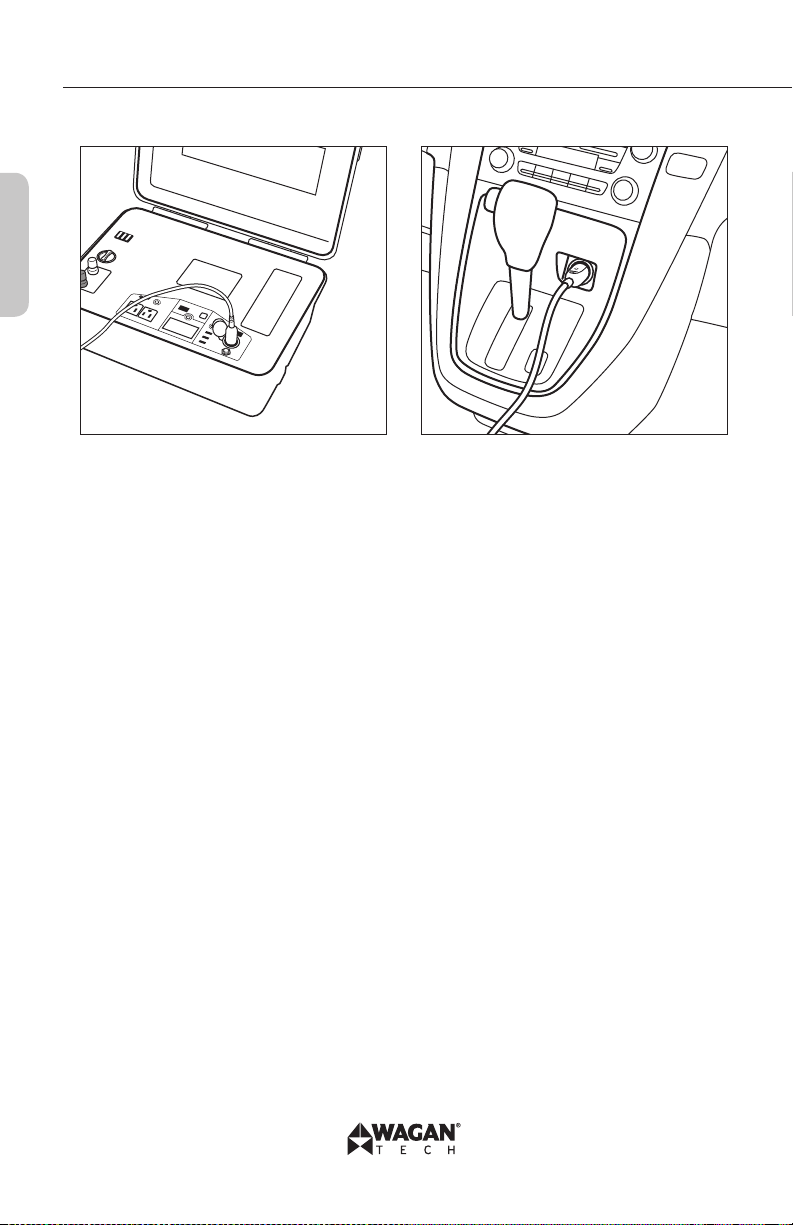

Plug DC Charging Adapter into vehicle DC accessory socket
To charge the Solar e Power Case using the DC Charging Adapter:
Only use the DC Charging Adapter supplied with this unit. Do not continuously charge for more
than 16 hours using the DC to DC method.
1. Note that the engine must be running while charging the Solar e Power Case to avoid draining
the vehicle’s battery.
2. Make sure all Solar e Power Case switches are set to OFF except the master switch and the
LCD display switch so you can see the charging status.
3. Plug the DC Charging Adapter into the Solar e Power Case’s DC Outlet.
4. Plug the other end of the DC Charging Adapter into the vehicle’s accessory socket (cigarette
lighter socket).
5. After charging the battery, disconnect the DC Charging Adapter from the vehicle accessory
socket first, then from the Solar e Power Case DC Outlet.
6. Store the DC Charging Adapter in the Storage Hatch.
Do not leave the Solar e Power Case connected to your vehicle’s DC socket when the engine is
turned off.
CAUTION—Equipment Damage:
• While the Solar e Power Case is being charged with the DC Charging Adapter from your
vehicle, do not operate the Inverter with a load of over 100 watts. Further, do not plug in or
operate any DC appliance from the Solar e Power Case that requires more than 10 amps.
Either action may blow a vehicle fuse.
• Always remove the DC Charging Adapter from the vehicle’s DC socket before starting the
vehicle.
• Disconnect the Solar e Power Case from the vehicle’s DC socket when the engine is turned off
to prevent discharging the vehicle’s battery.

©2018 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks of Wagan Corporation.
User’s Manual—Read before using this equipment
13
ENGLISH
Charging With Solar Panels
The Solar e Power Case is supplied with a 60W foldable solar panel and a connecting cable. Plug
the the cable directly into the solar port on the Solar e Power Case.
12V
RECHARGE | RECARGAR | RECHARGER
5V 2.1A
115V/60HZ
LCD | ACL
You will see the solar indication on the LCD screen when connected properly and charging.
CAUTION—Keep any objects from resting on the solar panels. This will reduce panel exposure to
sunlight and slow battery charging. Heavy objects can damage the solar panels.
Factory supplied solar panels have a combined rating of 60W, however, actual charging power
may vary depending on environmental factors and sun intensity in your region. The approximate
charging time for the Solar e Power Case using the supplied solar panels is 10 hours of peak
sunlight.
CAUTION—Solar Charge Controller Amperage Limit:
The Solar Charge Controller is rated at a maximum of 10A. Do not connect more than 90W of
solar panels, including the 60W panels that are supplied. Doing so will damage the Solar Charge
Controller and void the warranty.
Solar Panel Positioning
To ensure maximum power from the solar panels, position the panels perpendicular to the position
of the sun. For best results, the solar panels should be in line with the expected path of the sun.
Panel placement varies depending on your location. It is recommended that panel positions are
checked and adjusted every 3 hours to ensure solar absorption is optimized.
OUTPUT POWER
Using the AC Outlet Power Receptacle(s)
The Solar e Power Case’s Inverter can operate most AC appliances or a combination of appliances
up to 800 watts. The Inverter is capable or handling up to 800 watts for an extended period of
time when additional batteries are connected. However, additional batteries will not increase the
Inverters wattage capability beyond 800W. Operating time (run time) is dependant on the AC
load (watts) and the charge and condition of the Solar e Power Case’s internal battery and any
connected external batteries. Low wattage AC loads and a full battery charge result in longer
operating times. Be sure to turn off or disconnect any AC appliance not in use. The Inverter has a

Solar e Power™Case 800 by Wagan Tech®
14 www.wagan.com
ENGLISH
soft start function that protects the Inverter circuitry from a power surge commonly present when
starting heavy loads. This function may take up to 3 seconds for the Inverter power light to turn on.
Converting DC battery power to AC generates heat. To minimize heat buildup and possible thermal
shutdown, remove obstacles blocking or hindering airflow between the intake and exhaust sides of
the Solar e Power Case. Ambient temperatures above 25°C will reduce the Inverter’s ability to cool
effectively, thus affecting operating times. Leave the case open during Inverter operation.
This Inverter produces Modified Sine Wave (MSW) AC. The waveform differences can be seen
below. Both waveforms have the same electrical energy, however some average reading AC
voltmeters can not properly read MSW. Readings on a non-TRUE RMS meter will display up to 30
volts lower voltage than sine wave AC.
Pure Sine Wave Modified Sine Wave
CAUTION—Modified Sine Wave:
• Some rechargeable devices are equipped with a separate AC charger. These devices are
likely to operate properly with this Inverter. Rechargeable devices that have built-in chargers
(see device owner’s manual) may not operate properly with this type of Inverter.
• Some motorized devices may operate at excessively elevated temperature when used with this
Inverter. During first use with this Inverter, check for excessive motor temperature. Abnormally
elevated temperature of the motor is an indication that they should not be used with this
Inverter.
To use the AC Power Inverter:
1. Turn on the Safety switch. 
2. Turn on the LCD Display power. 
3. Turn on the Inverter Power. 
4. When the Inverter Power Indicator LED is green, the Inverter is operating normally.
5. Check the battery voltage level on the LCD panel.
6. Connect the AC appliance or appliances to the AC Outlet(s).
7. Turn on one AC appliance and observe the Power Indicator and FAULT LEDs.
• If the LED remains green, proceed to turn on the second appliance.
• If the Power Indicator LED continues to remain green, then both appliances are operating
properly.
• If the red FAULT LED light is lit, then remove all loads and restart the inverter
• If the Power indicator LED is not lit, then reduce the AC load. If the Inverter is still not
operating, refer to the Troubleshooting table at the end of this User’s Manual.

©2018 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks of Wagan Corporation.
User’s Manual—Read before using this equipment
15
ENGLISH
8. After appliance use, turn OFF the Inverter switch
9. Remove AC appliance plug(s) from the AC Outlet(s) on the Solar e Power Case
10. Recharge the Solar e Power Case as soon as convenient.
Note: The external cooling fan operates only when needed. The cooling fan helps maintain Solar e
Power Case internal temperature when products with high power requirements are in use.
12V DC Accessory Outlet
The DC Accessory Outlet can power a DC load up to 20 amps. Overloading the port will result in
tripping a circuit breaker. To reset the circuit breaker, remove all loads attached to the case, then
press the reset button.
CAUTION—Do not insert an automotive cigarette lighter into the Outlet. There is no pop-out feature
and excessive heat may damage the Outlet.
USB Power Ports
1. Turn on the Safety switch. 
2. Turn on the LCD Display power. 
3. Turn on the USB Power. 
4. After appliance use, turn OFF the USB Power switch
5. Remove USB appliance plug(s) from the USB Power Outlets on the Solar e Power Case.
6. Recharge the Solar e Power Case as soon as convenient.
AC OPERATING TIME USING INVERTER
Below are typical AC products that can be operated by the Solar e Power Case with estimated
operating times. The operating times will vary depending on the internal battery charge level,
ambient temperature and the actual AC product being operated. The Solar e Power Case will not
continuously operate AC appliances rated at more than 800 watts, However, extending the battery
capacity will not increase the capacity of the inverter to loads over 800W. Operating times can be
extended if external batteries or chargers are connected to the Solar e Power Case.
AC Powered Products* Watts Estimated Run time
3W LED light bulb 3 86 hours
Radio 4 65 hours
Portable stereo 20 12 hours
Laptop computer 45 5 hours
19” Color TV 160 1 hour
Computer with 15” monitor 200 50 minutes
Power drill 320 24 minutes
* Power usages listed are averages. Check your appliance rating for more accurate time
estimates. Operating times assume a fully charged battery and ambient temperature of 25° C.
Actual results may vary based on model/brand used.

Solar e Power™Case 800 by Wagan Tech®
16 www.wagan.com
ENGLISH
DC OPERATING TIME
Below are typical DC accessories that may be operated by the Solar e Power Case. Operating
time will vary depending on the battery charge level and the specific accessory being operated.
Operating times can be extended if external batteries are connected to Solar e Power Case.
DC Powered Products* Watts Estimated Run time
Cellphone or tablet 6 43 hours
Florescent light 8 32 hours
Portable cooler 30 8 hours
* Power usages listed are averages. Check your appliance rating for more accurate time
estimates. Operating times assume a fully charged battery and ambient temperature of 25° C.
Actual results may vary based on model/brand used.
VEHICLE BATTERY BOOSTING USING THE DC CHARGING ADAPTER
CAUTION—Do not leave the DC Charging Adapter connected to the vehicle’s lighter socket when
starting the vehicle. Remove the DC Charging Adapter before starting the vehicle. This will prevent
the vehicle’s DC socket fuse from blowing.
In some cases when the vehicle battery has enough power to crank the engine, but not enough to
start the vehicle, the DC Charging Adapter can be used to provide enough charge to the vehicle’s
battery to start. Make sure the Solar e Power Case is fully charged. The following procedure
outlines this process:
1. Make sure the Inverter switch is OFF and all appliances have been disconnected from the
Accessory Outlets and USB ports.
2. Plug one end of the DC Charging Adapter to your vehicle’s cigarette lighter (accessory) socket.
You may need to switch the ignition key to the “Accessory” position to supply power to the
lighter socket. Be sure to turn off any lights or accessories such as radio or A/C fan that may
be operating from the vehicle’s battery.
3. Plug the other end into the DC Outlet on the Solar e Power Case Front Panel.
4. Wait 15 minutes while the Solar e Power Case trickle charges you vehicle’s battery.
5. Remove the DC Charging Adapter from the vehicle’s cigarette lighter socket before attempting
to start the engine.
6. If your vehicle engine cranks but does not start, investigate for other problems.
7. Store the DC Charging Adapter in the Storage Hatch.
8. Charge the Solar e Power Case as soon as possible.

©2018 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks of Wagan Corporation.
User’s Manual—Read before using this equipment
17
ENGLISH
POWER EXPANSION OPTIONS
Adding Batteries to the System
For extended operating time, additional batteries may be added in parallel using the Battery
Terminals located above the wheels. It is recommended to connect 12V AGM batteries with
the same capacity as the internal battery (26 Ah) into the system for long-term use. Connecting
flooded, GEL batteries can, over time, result in uneven charge and discharge between the internal
and external batteries, a battery damaging condition. You may temporarily connect flooded, GEL
batteries to the Solar e Power Case for discharge purposes only. Different battery types require
different charging conditions. The charging systems are designed to charge AGM batteries only. It
is important that you only connect same voltage (12V) batteries to the DC terminals. Reverse polarity
connections can cause an explosion. Connecting external batteries to the Solar e Power Case in
series could cause damage to the system and void the warranty. It is recommended that adding
batteries be performed by a qualified person. If in doubt, a user-provided voltmeter may be needed
to verify voltage and polarity of external batteries to be connected to Solar e Power Case.
CAUTION—External Battery:
• When adding batteries to the system for long-term use, you must use 12V AGM batteries.
Using different construction or chemistry batteries can damage components.
• Total internal and external amp hour rating should not exceed 104 amp hours.
• It is recommended to use at least 10 AWG cable or larger to connect additional batteries
to the Solar e Power Case when drawing full power from the Inverter. Heavy cables reduce
voltage loss in the cables.
External Battery Connection Procedure
1. Locate the Battery Terminals. Batteries must only be connected in parallel.
2. Loosen the Battery Terminal covers and connect the batteries using either ring terminals or
jumper cable clamps. Make sure the connection is secure.
3. With a voltmeter, verify that the battery voltage is correct at the terminals.
4. Turn ON the LCD Display button and observe the combined battery voltage.
CAUTION—Battery Discharge:
The LCD display shows the combined voltage of external and internal battery system. It is important
to monitor the external battery voltage to prevent battery over-discharge.
MAINTENANCE
Maintaining the Solar e Power Case in good operating condition is relatively simple. Charge the
battery until full as often as possible and keep all surfaces free of dust and dirt.
Cleaning
With the Solar e Power Case disconnected from all electrical cords and the fans OFF, you may
carefully vacuum the vents to remove dust.

Solar e Power™Case 800 by Wagan Tech®
18 www.wagan.com
ENGLISH
The solar panels should be periodically cleaned during extended use and before storing. Check
your panels weekly or following a storm to make sure no damage has occurred.
• Check for dirt buildup.
• Using a soft brush, remove dust or droppings from the panels.
• Wipe surface with a soft damp cloth.
• Dry the panels with a soft cloth. Solar panels are more efficient when they are clean.
• Check wiring or cables that are attached to the solar panels. Wire or cables may become
loose from turbulent weather conditions.
• Store panels when not in use.
TROUBLESHOOTING GUIDE
Problem Possible Cause Solution
No AC output, Green LED
is not lit, Voltmeter reads
below 10 volts
Battery voltage too low Reduce AC load and charge the Solar e
Power Case battery
Excessive AC load
No AC output, no displays
lit Inverter Switch is OFF Turn ON Switch
No AC output, 12 volt
outlet operates, USB ports
operate. Inverter Switch
is ON
Inverter is not working Call Wagan Tech Support
12 volt DC outlet switches
on and off DC Outlet is overloaded Reduce DC load.
Television interference Picture breaking up (static) Place the Solar e Power Case as far as
possible from the TV, the antenna and the
coaxial cable
TV station may be out of range
Static/noise interference in
audio system Sound system has weak alternating current shielding Do not use Inverter with low quality audio AC filtering system
Replace audio system with high quality
noise filtering
Run time is less than
expected Solar e Power Case is not fully charged Charge using the AC Charging Adapter.
Product power consumption is
higher than expected Check the power or “wattage” rating and compare with the tables in Battery
Operating Times section of this manual
Charging light is OFF
when AC Charging
Adapter is connected
No AC power at wall socket Ensure power is available at the wall socket
DC Charging Adapter
does not work Blown fuse Check for and replace blown fuse.

©2018 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks of Wagan Corporation.
User’s Manual—Read before using this equipment
19
ENGLISH
RECYCLING/DISPOSAL
The Solar e Power Case contains materials that are prohibited from being placed in landfills and
require recycling. These include lead-acid batteries, solar panels and some components in the
Inverter. Contact local authorities for disposal/recycling instructions.
SPECIFICATIONS
Specifications are subject to change without notice.
Solar e Power Case Shipping Specifications
Dimensions (closed) 18.3 × 14.4 × 7.3 in.
(46.5 × 36.5 × 18.5 cm)
Weight 37.2 lbs (16.9 kgs)
Solar e Power Case warranty—see warranty statement at
rear of manual 2 years
Battery warranty 1 year, subject to terms of use
12V DC Battery and Outlets
Internal battery type Sealed lead-acid AGM
Internal battery voltage (nominal) 12V
Internal battery capacity 26 Ah
Maximum load current through 12 volt DC accessory
outlet (continuous) 20A
DC accessory outlet circuit breaker rating 20A
USB max output current (each) 2.1A
Inverter
AC output voltage (nominal) 115V 230V
AC output frequency 60 Hz 50 Hz
Maximum continuous AC output power 800W
Momentary AC surge power 1600W
AC output waveform Modified sine wave
Battery drain with no load/outlets on Less than 0.5A
Operating temperature 23–113°F (−5–45°C)
Storage temperature −4–131°F (−20–55°C)
Low battery alarm trigger (nominal) 10.5V ± 0.5V
Low battery shutdown (nominal) 10.0V ± 0.5V
Item no. 8822 Item no. 8822-7

Solar e Power™Case 800 by Wagan Tech®
20 www.wagan.com
ENGLISH
AC Charging Adapter
AC input voltage range 90–230V AC
AC input frequency 47–63 Hz
DC output voltage For 12 volt batteries
DC output current charge current maximum 2.0 amps
AC charging adapter indicator LED (red/green) Red—Charging
Green—Charging complete/float charge
Output connector DC plug (automotive)
DC Charging Adapter
DC cable length 48 in. (122 cm)
Solar Panels and Solar Charge Controller
Active panel materials Monocrystalline
Voltage output range 16–22 volts
Panel wattage maximum 60 watts
Panel efficiency 17%
Internal solar controller maximum panel wattage 75W
Controller max charge current 7. 5A
