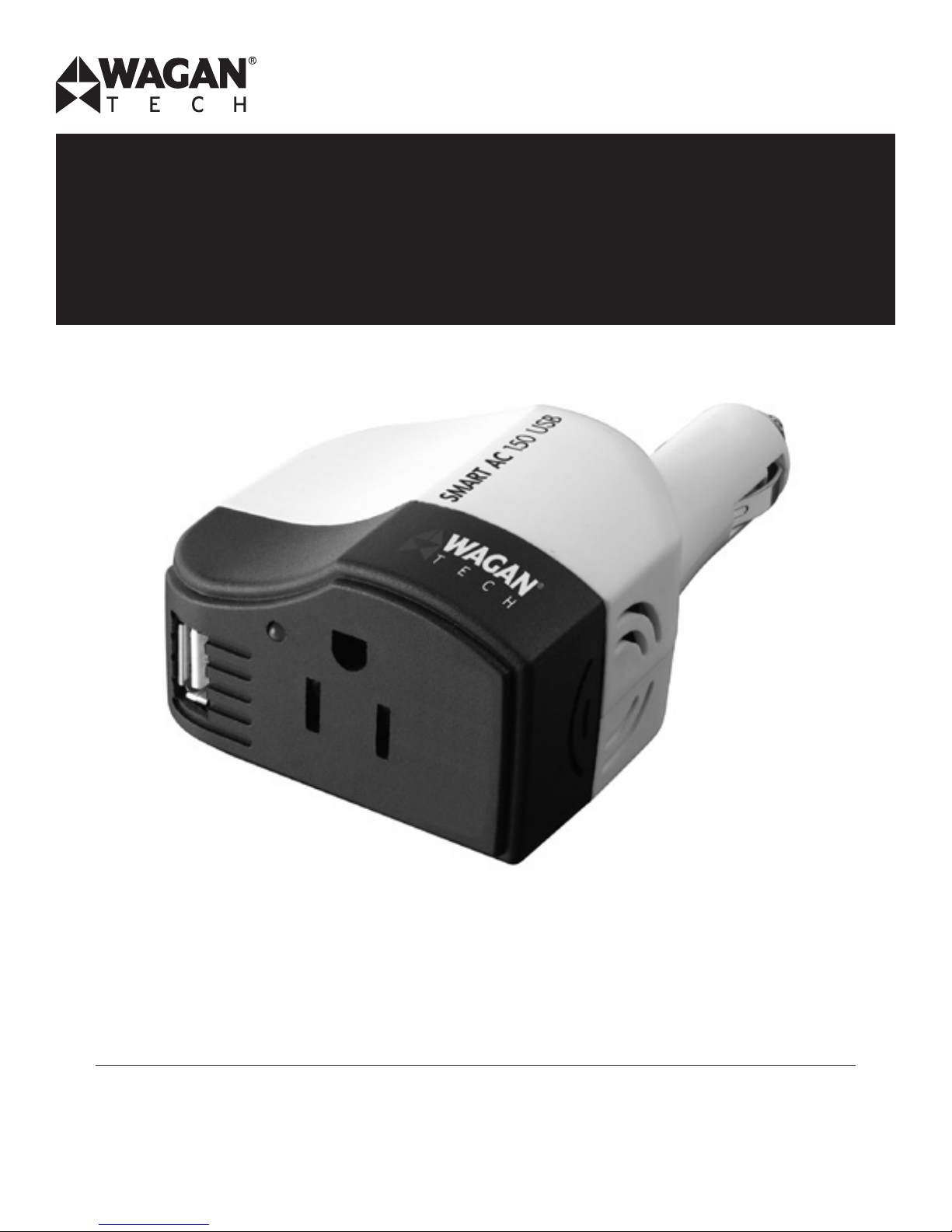

Wagan Smart AC 150 USB User manual

Item No. / Article n° : 2221-6
Smart AC®150 USB
User’s Manual / Guide d’Utilisation
We are constantly improving our products so specifications are subject to change
without notice. Visit our website for the latest product information.
Nous améliorons constamment nos produits, alors les spécifications sont sujettes à changement
sans préavis. Visitez notre site Web, pour obtenir les dernières informations sur nos produits.

Smart AC®150 USB by Wagan Tech®
1www.wagan.com
Thank you for purchasing the Smart AC®150 USB by Wagan Tech®. With normal
care and proper treatment, it will provide years of reliable service. Please read
all operating instructions carefully before use.
Your Smart AC Power Inverter converts 12V DC battery power to 110 V AC
household electrical power so you can operate products from your car, truck,
boat, SUV or RV.
sIMPORTANT: BEFORE USING YOUR SMART AC POWER INVERTER READ
AND UNDERSTAND THIS OWNER’S GUIDE. SAVE THESE INSTRUCTIONS—
THIS OWNER’S GUIDE CONTAINS IMPORTANT SAFETY INSTRUCTIONS.

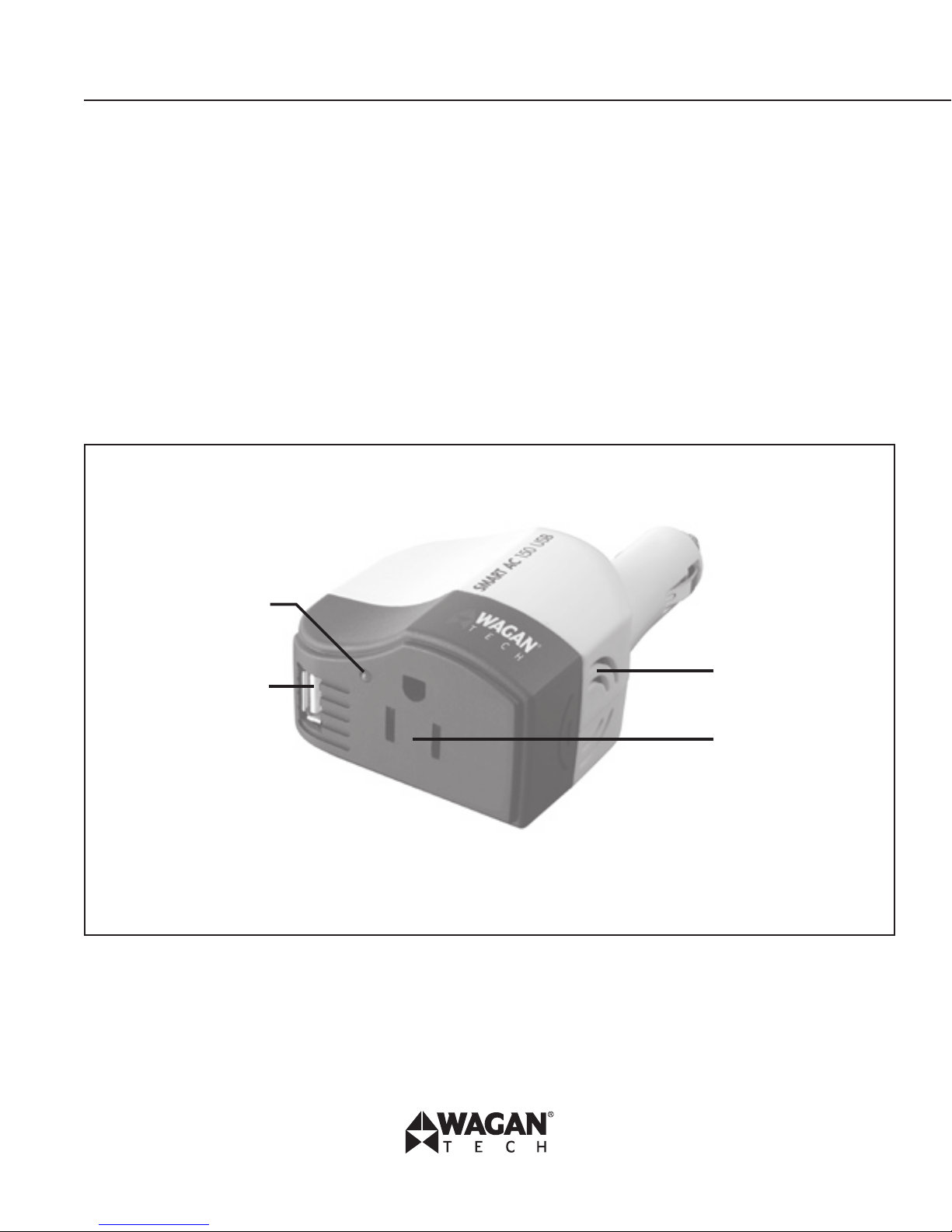

AC Output
USB Port
Green
Power LED
Cooling Fan

©2017 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
2
SPECIFICATIONS
TrueRated Power™150 Watts (for 24 hours)
Peak Surge Power 450 Watts
AC Output Voltage 110V ± 5V AC RMS
AC Output Frequency 60 Hz ± 5 Hz
AC Output Waveform Modified Sine Wave
DC Input Voltage Range 12V DC (10–15V) DC
Optimum Efficiency 90%
No Load Battery Drain 0.15A DC
Low Battery Shutdown Yes (10V ± 0.5V DC)
Thermal Cooling Fan Yes
Input Short Circuit Protection Yes
AC Outlets 1
USB Outlets 1
USB Power 1.0A
Fuse 15A slow blow
Net Weight 0.37 lbs

Smart AC®150 USB by Wagan Tech®
3www.wagan.com
OPERATION
1. Verify the fuse size of your vehicle cigarette lighter socket. If the fuse is a
10A fuse, your output will be limited to 120W. Most recent vehicle models
come with 15A fuses.
2. Plug the inverter into your vehicle’s lighter socket. The (green) LED will
light up.
3. Plug an AC product into the three prong AC receptacle and turn it on.
Ensure your product draws 150 watts or less of continuous AC power. To
avoid discharging the battery, always remove the inverter from the lighter
socket when not in use.
WARNINGS
sShock hazard: The Smart AC Power Inverter generates the same AC power
as a normal household wall outlet.
• Do not open (no user-servicable parts inside).
• Do not insert foreign objects into the outlet.
• Do not expose to water, rain or snow.
• Do not connect to power utility AC distribution wiring.
• Heated surface: The inverter housing may become uncomfortably warm,
reaching 65°C (150°F) under extended high power operation.
• During operation, keep the inverter from materials that may be affected by
high temperatures.
• Failure to follow the above may result in personal injury or damage to
the inverter.

©2017 Wagan Corporation. All Rights Reserved.
Wagan Tech and wagan.com are trademarks used by Wagan Corporation.
User’s Manual—Read before using this equipment
4
CAUTION
• THE ELECTRICITY GENERATED BY THE INVERTER IS MODIFIED
SINE WAVE.
• Before using this inverter, please check the equipment manufacturer’s
manual and specification to check if the equipment is capable of operating
on modified sine wave.

Smart AC®150 USB by Wagan Tech®
5www.wagan.com
TROUBLESHOOTING
Problem: AC product does not operate, green light does not light
Probable Cause Suggested Remedy
AC product connected is rated at more
than 150 watts; overload shutdown
occurs.
Use product with a power rating of less
than 150 watts.
High starting surge has caused
overload shutdown even though AC
product connected is rated at less than
450 watts.
Product exceeds inverter’s surge
capability. Use a product with starting
surge power of less than 450 watts.
Lighter socket or 12 volt outlet may
require ignition to be switched on. Turn ignition key to accessory position.
Poor contact with lighter socket or 12
volt outlet. Press inverter firmly into the lighter socket. Make sure the socket is clean.
Battery is discharged. Recharge battery.
Fuse blown by heavy load. Replace the fuse by unscrewing the
fitting in the positive connector.
Problem: Buzzing sound in audio systems
Inexpensive stereo systems have an inadequate internal power supply filtering
which causes a buzzing sound. A system with a high quality filter is the
only solution.
For additional technical support please e-mail [e-mail]

The WAGAN Corporation warranty is limited to products sold only in
the United States.
Warranty Duration:
Product is warranted to the original purchaser for a period of one (1) year from
the original purchase date, to be free of defects in material and workmanship.
WAGAN Corporation disclaims any liability for consequential damages. In no event
will WAGAN Corporation be responsible for any amount of damages beyond the
amount paid for the product at retail.
Warranty Performance:
During the warranty period, a product with a defect will be replaced with a
comparable model when the product is returned to WAGAN Corporation with an
original store receipt. WAGAN Corporation will, at its discretion, replace or repair
the defective part. The replacement product will be warranted for the balance of the
original warranty period. This warranty does not extend to any units which have
been used in violation of written instructions furnished.
Warranty Disclaimers:
This warranty is in lieu of all warranties expressed or implied and no representative
or person is authorized to assume any other liability in connection with the sale of our
products. There shall be no claims for defects or failure of performance or product
failure under any theory of tort, contract or commercial law including,but not limited
to negligence, gross negligence, strict liability, breach of warranty, and breach of
contract.
Returns:
WAGAN Corporation is not responsible for any item(s) returned without an official
Return Authorization number (RA#). Please contact our customer service team by
phone or email to obtain an RA#. You can also visit our website and chat with our team
during our normal business hours. For more details and instructions on how to process
a warranty claim, please read the “Returns” section under the “Contact” page on our
website. WAGAN Corporation is not responsible for any shipping charges incurred in
returning the item(s) back to the company for repair or replacement.
Register your product online at http://tinyurl.com/wagan-registration to be added to
our email list. You will receive previews on our upcoming products, promotions, and
events.
©2015
WAGAN Corp. Limited Warranty

7www.wagan.com
Smart ACMD 150 USB de Wagan TechMD
Merci d’avoir acheté le Smart ACMD 150 USB de Wagan TechMD. Une utilisation
normale et un traitement adapté vous garantirons des d’années d’utilisation sans
problème. Veuillez lire attentivement toutes les instructions d’utilisation avant de
l’utiliser.
Le convertisseur portable intelligent qui transforme le courant. Le courant continu
de 12 V en courant alternatif pour vos appariels électroniques à partir de la
voiture, du camion, du bateau, du véhicule utilitaire sport et du véhicule récréatif.
sIMPORTANT: AVANT D’UTILISER L’INVERSEUR DE COURANT ALTERNATIF,
LIRE ET COMPRENDRE LE GUIDE D’UTILISATION. CONSERVER CES
INSTRUCTIONS—CE GUIDE CONTIENT DES CONSIGNES DE SÉCURITÉ
IMPORTANTES.
Prise CA
Port USB
Voyant
d'Alimentation
Vert
Ventilateur

©2017 Wagan Corporation. Tous droits réservés.
Wagan Tech et wagan.com sont des marques de commerce utilisées par Wagan Corporation.
Guide d’Utilisation—Lire avant d’utiliser cet équipement
8
SPÉCIFICATIONS
Alimentation continue 150 Watts (24 heures)
Surtension d’alimentation admissible 450 Watts
Tension de sortie CA 110V ± 5V CA RMS
Fréquence de sortie CA 60 Hz ± 5 Hz
Forme d’onde de sortie CA Onde sinusoïdale modifiée
Tension d’entrée 12V CC (10–15V CC)
Efficacité optimale 90%
Appel du courant de batterie sans
charge 0.15A CC
Coupure de batterie en cas de bas
niveau Oui (10V ± 0.5V CC)
Ventilateur de protection contre les
surcharges thermiques Oui
Protection contre les courts-circuits
à l’entrée Oui
Prise CA 1
Prise USB 1
Puissance à USB 1.0A
Fusible 15A
Masse 170 g

9www.wagan.com
Smart ACMD 150 USB de Wagan TechMD
FONCTIONNEMENT
1. Vérifiez la taille du fusible de votre prise allume-cigare du véhicule. Si le
fusible est un fusible de 10A, votre sortie sera limitée à 120W. Modèles de
véhicules les plus récents sont livrés avec fusibles 15A.
2. Brancher l’inverseur dans l’allume-cigarette du véhicule. Le voyant LED (vert)
s’allumera
3. Brancher l’article en courant alternatif dans la prise tripolaire, puis
actionner. Vèrifier que l’appareil produit continuellement un maximum de
150 watts en courant alternatif. Pour éviter toute surcharge de la batterie,
toujours retirer l’inverseur de l’allume-cigarette lorsqu’on ne l’utilise pas.
AVERTISSEMENT
sRisque de choc électrique: L’inverseur de courant alternatif Smart AC produit
le même type d’alimentation en alternatif qu’une prise de courant murale
normale de domicile.
• Ne pas ouvrir (ne comporte aucune pièce réparable par l’utilisateur).
•N’insérer aucun corps étranger dans la prise.
• Ne pas exposer à l’eau, la pluie ou la neige.
• Ne pas brancher dans le but d’alimenter un câblage de distribution en
courant alternatif.
• Surface chauffée: Le boîtier de l’inverseur peut devenir trop chaud pour être
tolérable et peut atteindre une température de 65°C (150°F) s’il est alimenté
par une source trop puissante. Lors de son utilisation, tenir tout matériau qui
pourrait être affecté par des températures élevées loin de l’inverseur.
• Le non-respect des instructions ci-dessus peut causer des blessures ou
endommager l’inverseur.
