WAGO EPSITRON 787-1675 User manual

Pos: 2/ D oku me ntati on allg em ein /Ei nb and/ Ei nb and H a nd buch - Dec kblatt o h ne Vari a nt en fel d(S ta n dar d) @ 9\mod_1285229289866_0.doc@ 64941@ @ 1
Manual
EPSITRON®
Switched-
Mode Power Supply with Integrated
UPS Charger and Controller
787-1675
Version 1.0.0
Pos: 3/ All e Seri en ( All g e mei n e M od ule) /H in w eise zur Doku m en tati o n/I m pr es su m f ür Sta nd ard h an dbüc h er - al lg. Ang aben, An schrif ten, Tel efon nummer n und E-Mai l-Adr ess e n @ 3\mod_1219151118203_21.doc @ 21060@ @1

2 EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
© 2013 by WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D-32423 Minden
Phone: [phone] – 0
Fax: [phone] – 1 69
E-Mail: [email protected]om
Web: http://www.wago.com
Technical Support
Phone: [phone] – 5 55
Fax: [phone] – 85 55
E-Mail: [email protected]om
Every conceivable measure has been taken to ensure the accuracy and
completeness of this documentation. However, as errors can never be fully
excluded, we always appreciate any information or suggestions for improving the
documentation.
E-Mail: [e-mail]
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally protected by trademark or patent.
=== Ende d er List e f ür T e xt mar ke Ei nb a nd_ v orn e == =

EPSITRON® Table of Contents 3
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 5/D o ku me nt ati on al lg e mei n/ Ver zei c hni sse /I nh alts v erz ei ch nis - Ü bers chrif t oG und Verz eich nis @ 3\mod_1219151230875_21.doc@ 21063@ @1
Table of Contents
1Notes about this Documentation................................................................. 5
1.1 Copyright................................................................................................... 5
1.2 Symbols..................................................................................................... 6
1.3 Number Notation....................................................................................... 8
1.4 Font Conventions ...................................................................................... 8
2Important Notes ........................................................................................... 9
2.1 Legal Bases ............................................................................................... 9
2.1.1 Subject to Changes ............................................................................... 9
2.1.2 Personnel Qualifications....................................................................... 9
2.1.3 Use of the 787 Series in Compliance with Underlying Provisions ...... 9
2.1.4 Technical Condition of Specified Devices ......................................... 10
2.2 Safety Advice (Precautions).................................................................... 11
3Device Description ..................................................................................... 13
3.1 View ........................................................................................................ 14

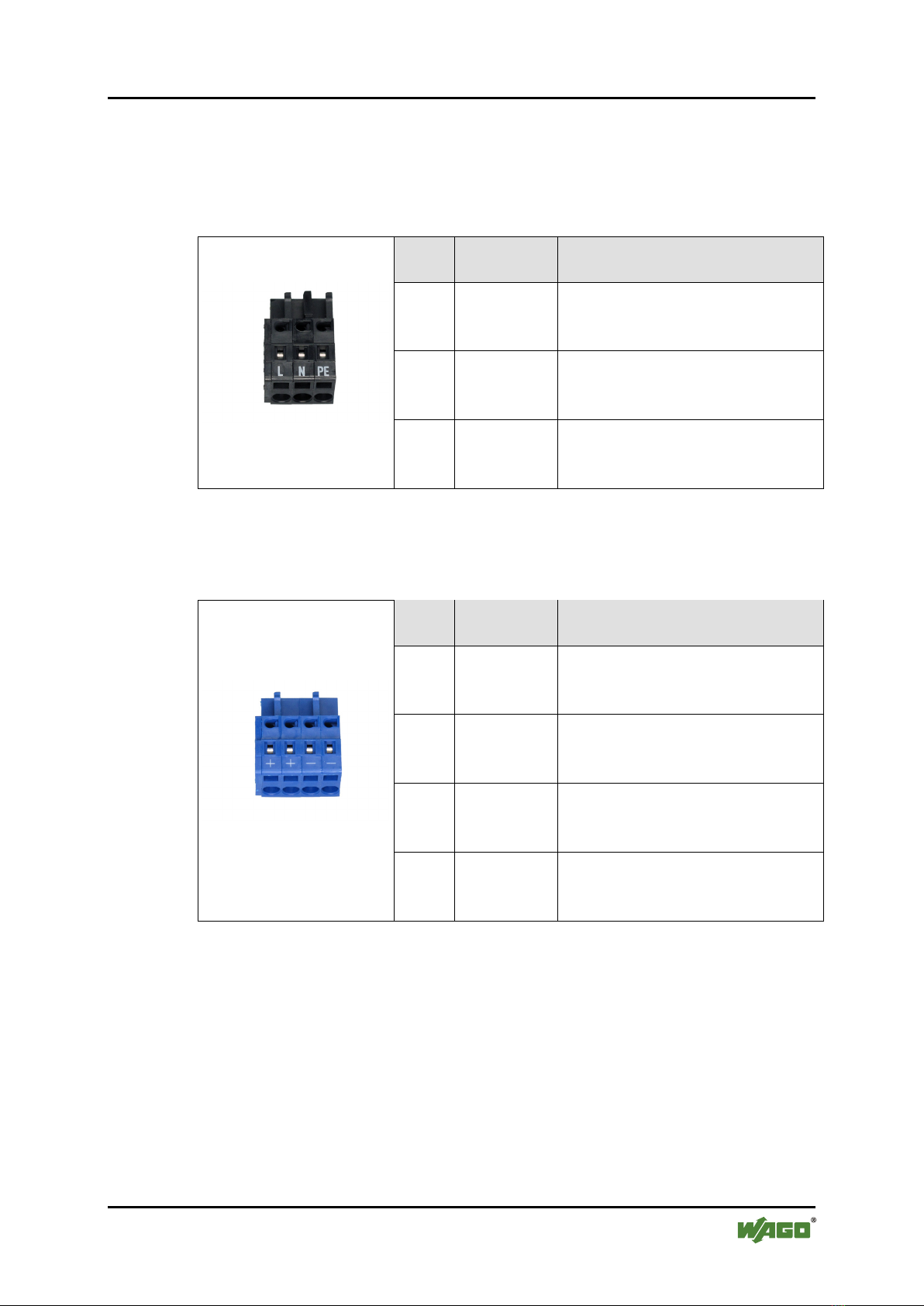

3.2 Connectors............................................................................................... 15
3.2.1 Supply................................................................................................. 15
3.2.2 Load .................................................................................................... 15

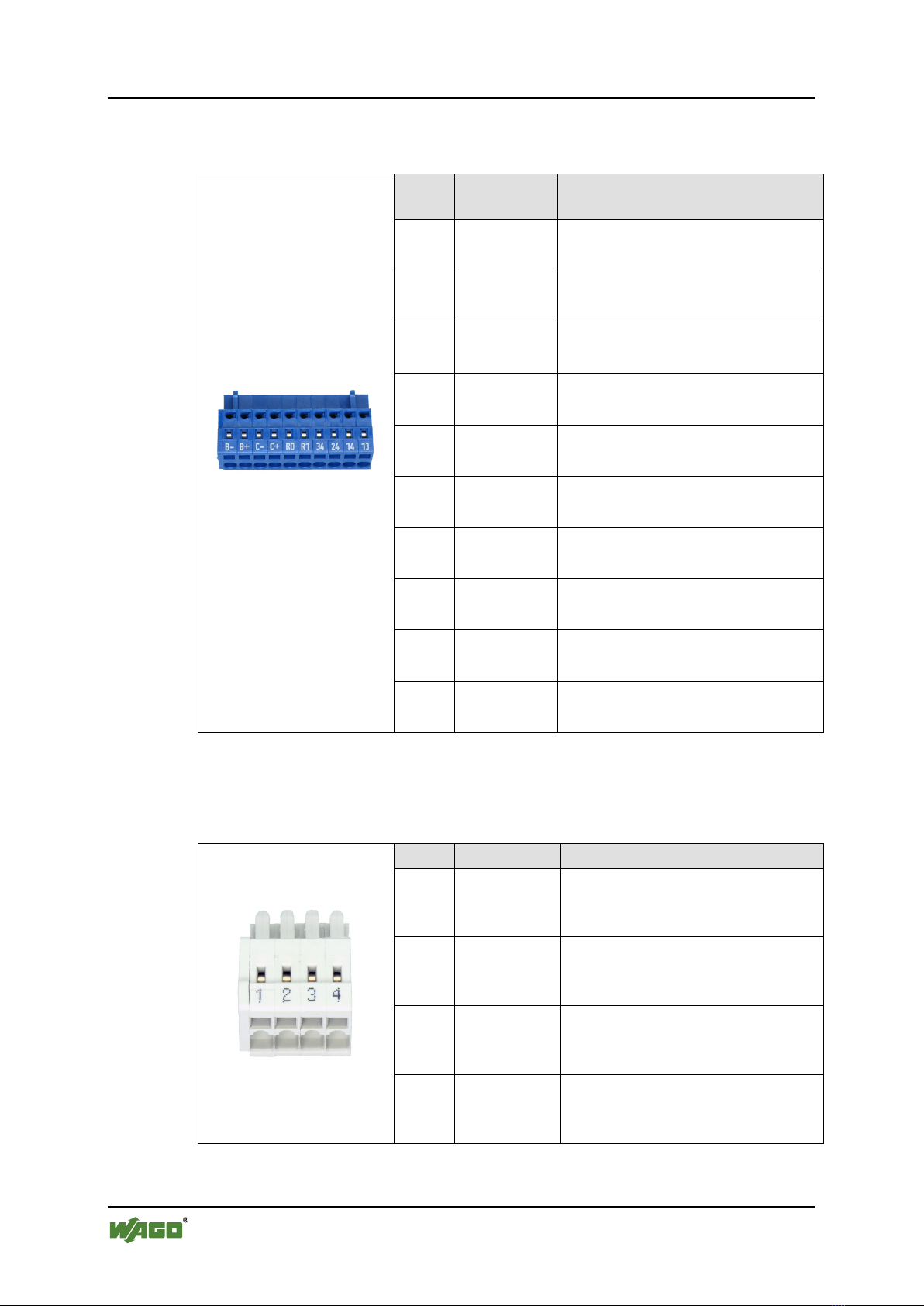

3.2.3 Battery, Control and Signaling Contacts............................................ 16
3.2.4 RS-232 Interface................................................................................. 16
3.3 Display Elements .................................................................................... 17
3.4 Operating Elements................................................................................. 18
3.4.1 Rotary Switch for Output Voltage...................................................... 18
3.4.2 Rotary Switch for Timed Buffer Mode .............................................. 18
3.5 Technical Data ........................................................................................ 19
3.5.1 Device Data ........................................................................................ 19
3.5.2 Technical Data "Input" ....................................................................... 19
3.5.3 Technical Data "Output" .................................................................... 20
3.5.3.1 Technical Data for the Output during Operation with Mains System20
3.5.3.2 Technical Data for the Output during Battery Mode..................... 20
3.5.4 Technical Data "Signaling" ................................................................ 22
3.5.5 Technical Data "Interface" ................................................................. 22
3.5.6 Technical Data "Ambient Conditions"............................................... 23
3.5.7 Miscellaneous Data ............................................................................ 23
3.6 Approvals ................................................................................................ 24
3.7 Standards and Guidelines........................................................................ 25
4Mounting..................................................................................................... 26
4.1 Mounting the EPSITRON®Device on the DIN 35 Rail.......................... 26
4.2 Removing the EPSITRON®Device from the DIN 35 Rail ..................... 26
5Connect Devices ......................................................................................... 27
5.1 Connection Example ............................................................................... 27
6Function Description ................................................................................. 28
6.1 Tripping of Circuit Breakers ................................................................... 28

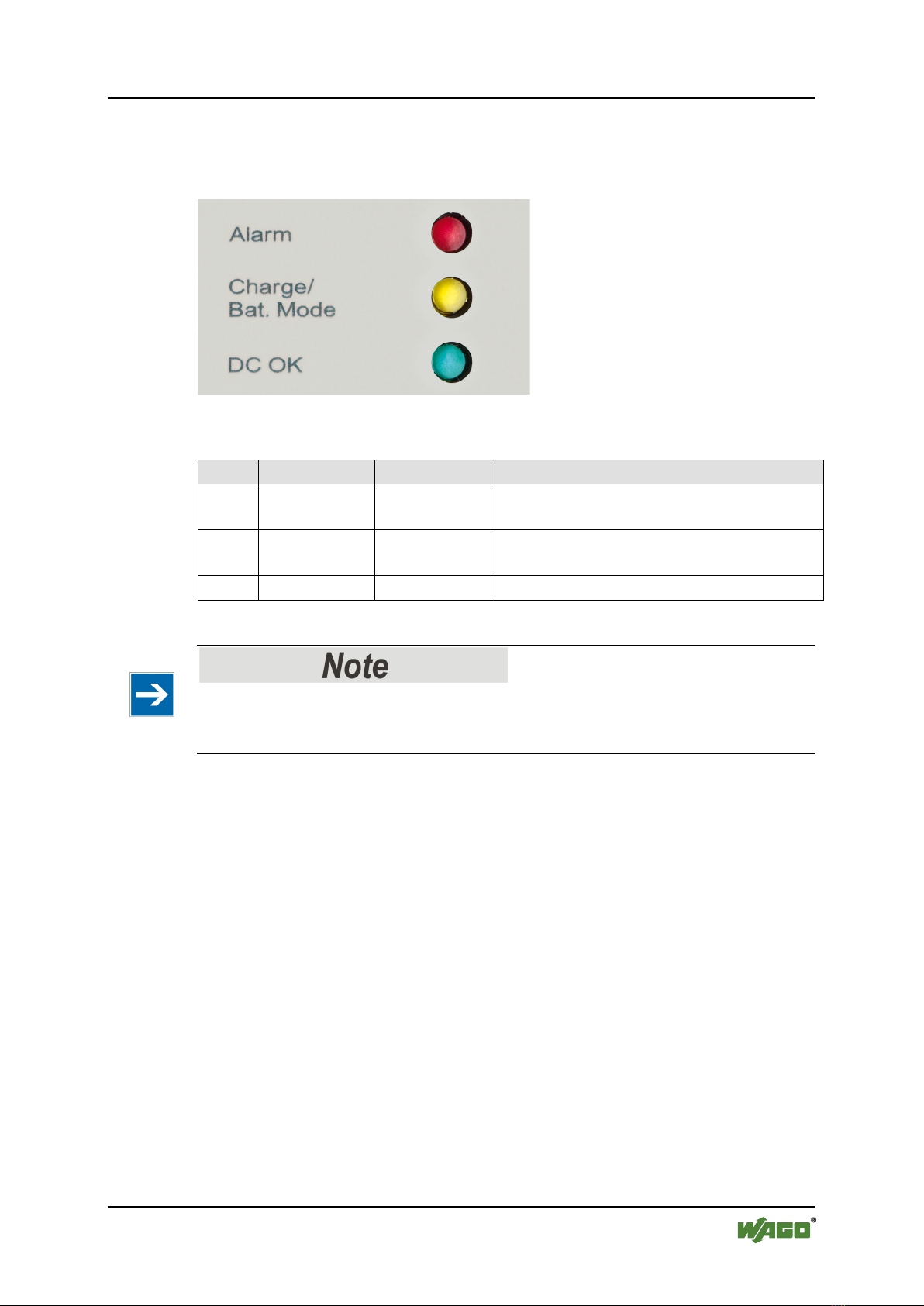

6.2 Signaling via LEDs ................................................................................. 29
6.3 Signaling via the Signal Outputs............................................................. 29

4 Table of Contents EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
6.4 Automatic Detection of Battery Modules ............................................... 30
6.4.1 Battery Charging ................................................................................ 30
6.4.1.1 Connecting the 787 Series Battery Modules ................................. 30
6.4.1.2 Connecting a Battery Module from a Third-Party Manufacturer.. 31
6.5 Battery Testing ........................................................................................ 31
6.5.1 Charging ............................................................................................. 31
6.5.2 Presence Test ...................................................................................... 31
6.5.3 Quality Test ........................................................................................ 32
6.5.4 Replacement ....................................................................................... 32
6.6 Battery Mode........................................................................................... 32
6.6.1 Switch-On Threshold for Battery Mode............................................. 33
6.6.2 Timed Battery Mode........................................................................... 33
6.6.3 Battery Mode in the IPC Mode ("PC Mode") .................................... 33
6.6.3.1 Delay Time .................................................................................... 34
6.6.3.2 Shut Down PC ............................................................................... 35
6.6.3.3 PC Idle (Off) Time......................................................................... 35
6.6.4 Deactivating the Battery Mode........................................................... 36
6.6.5 Deep Discharge Protection during Battery Mode .............................. 36
6.6.6 Recommended Battery Modules ........................................................ 37
List of Figures ...................................................................................................... 38
List of Tables........................................................................................................ 39
=== En de der Lis te für T extmar ke Verz eich nis_vor ne == =

EPSITRON® Notes about this Documentation 5
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 7/ All e S eri en (A llg em eine M od ule) /Üb ers chr ifte n für all e S eri en/H i nweis zur Dok um entat i on/H in weis e z ur D o kum enta ti on - Ü b ers chr if t 1 @ 4\mod_1237987661750_21.doc @ 29029@ 1@ 1
1 Notes about this Documentation
Pos: 8 /A lle Ser ien (All gemei ne Mod ule)/ Hinw eise zur D okum entati on/Hi nweis: Dok umen tatio n aufbe wahr en @ 4\mod_1237987339812_21.doc@ 29026@ @ 1
Keep this documentation!
The operating instructions are part of the product and shall be kept for the entire
lifetime of the device. They shall be transferred to each subsequent owner or user
of the device. Care must also be taken to ensure that any supplement to these
instructions are included, if applicable.
Pos: 9/ Ser i e 78 7 ( EP SITR ON )/H in wei se z ur Doku men ta tio n/ Gülti g kei t D ok ume nt atio n U nt erbr ec hu ngsf rei e Strom vers or gung 7 87-1675@ 13\mod_1346059075423_21.doc@ 101963@ @ 1
This documentation applies to the switched-mode power supply with integrated
ups charger and controller 787-1675.
Pos: 10.1 / All e Serie n ( A llg e mei ne M o dul e)/H i n weis e z ur Do ku ment ati on/ Ur h eber sc hu tz ausfü hrl ic h @ 4\mod_1235565145234_21.doc @ 276 91 @ 2@ 1
1.1 Copyright
This Manual, including all figures and illustrations, is copyright-protected. Any
further use of this Manual by third parties that violate pertinent copyright
provisions is prohibited. Reproduction, translation, electronic and phototechnical
filing/archiving (e.g., photocopying) as well as any amendments require the
written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden, Germany.
Non-observance will involve the right to assert damage claims.
Pos:10.2/Dokumentationallgemein/Gliederungselemente/---Seite n wec hs el--- @ 3\mod_1221108045078_0.doc @ 21810@ @ 1

6 Notes about this Documentation EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 10.3 / All e Serie n ( All ge mei ne M od ule) /Ü bers chr ift e n f ür alle S er ien /Hin wei s z ur Do kume nt atio n/ Sym bol e - Ü berschrift2 @ 13\mod_1351068042408_21.doc@ 105270@2 @ 1
1.2 Symbols
Pos: 10 .4.1 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- und so ns tig e Hi n wei s e/G ef a hr /G ef ahr : _War nu ng vor P er so n ens ch äd e n allge mei n_ - Erläuterung@ 13\mod_1343309450020_21.doc @ 101029@ @ 1
Personal Injury!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Pos: 10 .4.2 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- und so ns tig e Hi n wei s e/G ef a hr /G ef ahr : _War nu ng vor P er so n ens ch äd e n durch elek tri sc he n S tr o m_ - Erläuterung@ 13\mod_1343309694914_21.doc@ 101030@ @ 1
Personal Injury Caused by Electric Current!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Pos: 10 .4.3 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- und so nst ig e H in wei s e/ War nung / W arn ung : _ W arn ung vor Perso ne nsc hä d en al lg em ein _ - Erläuterung @ 13\mod_1343309877041_21.doc@ 101035@ @ 1
Personal Injury!
Indicates a moderate-risk, potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Pos: 10 .4.4 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- und so ns tig e Hi n wei s e/ Vor si c ht/ V or si cht : _War nu ng vor P ers on ens ch ä de n al lg e mei n _ - Er l äuter ung @ 13\mod_1343310028762_21.doc@ 101038@ @ 1
Personal Injury!
Indicates a low-risk, potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Pos: 10 .4.5 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- undsonstige Hinweise/Achtung/Achtung:_WarnungvorSachschädenallgemein_- Erläuterung@ 13\mod_1343310134623_21.doc@ 101041@ @ 1
Damage to Property!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Pos: 10 .4.6 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- und so nst ig e H in wei s e/ Ach tu ng/A ch tu ng : _ War nu ng vor S ac hsc hä d en d urc h el e ktr ost ati sc h e A ufl ad u ng_ - Erläuterung@ 13\mod_1343310227702_21.doc @ 101044@ @ 1
Damage to Property Caused by Electrostatic Discharge (ESD)!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Pos: 10 .4.7 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- undsonstige Hin weise/Hinweis/Hinweis:_Wichtiger Hinweis allgemein_ - Eräuterung@ 13\mod_1343310326906_21.doc@101047@ @ 1
Important Note!
Indicates a potential malfunction which, if not avoided, however, will not result in
damage to property.
Pos: 10 .4.8 /Al le Seri en (All gemei ne Mod ule)/ Wichti ge Erl äuter unge n/Sich erheit s- und so ns tig e Hi n wei s e/I nf or ma tio n/I nf or ma tio n: _Wei ter e I nf or mati o n allg emei n_ -Erläuterung @ 13\mod_1343310439814_21.doc@ 101051@ @ 1

EPSITRON® Notes about this Documentation 7
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Additional Information:
Refers to additional information which is not an integral part of this
documentation (e.g., the Internet).
Pos:10.5/Dokumentationallgemein/Gliederungselemente/---Seite n wec hs el--- @ 3\mod_1221108045078_0.doc@ 21810@ @ 1

8 Notes about this Documentation EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 10.6 / All e Serie n ( A llg e mei ne M o dul e)/H i n weis e z ur Do ku ment ati on/ Za hle ns ys te me @ 3\mod_1221059454015_21.doc@21711 @ 2@ 1
1.3 Number Notation
Table 1: Number notation
Number code
Example
Note
Decimal
100
Normal notation
Hexadecimal
0x64
C notation
Binary
'100'
'0110.0100'
In quotation marks, nibble separated with
dots (.)
Pos: 10.7 / All e Serie n ( All ge mei ne M od ule) /Hi n weis e z ur D o ku ment ati on/ Sc hri ft kon venti on e n @ 3 \mod_1221059521437_21.doc @ 21714@ 2@ 1
1.4 Font Conventions
Table 2: Font conventions
Font type
Indicates
italic
Names of paths and data files are marked in italic-type.
e.g.: C:\Programme\WAGO-I/O-CHECK
Menu
Menu items are marked in bold letters.
e.g.: Save
>
A greater-than sign between two names means the selection of a
menu item from a menu.
e.g.: File > New
Input
Designation of input or optional fields are marked in bold letters,
e.g.: Start of measurement range
“Value”
Input or selective values are marked in inverted commas.
e.g.: Enter the value “4 mA” under Start of measurement range.
[Button]
Pushbuttons in dialog boxes are marked with bold letters in square
brackets.
e.g.: [Input]
[Key]
Keys are marked with bold letters in square brackets.
e.g.: [F5]
Pos: 11 /D o kum e nta tio n al lg e mei n/ Gli eder ung s ele men te /---Sei te n wec hs el--- @ 3\mod_1221108045078_0.doc @ 21810@ @ 1

EPSITRON® Important Notes 9
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 12 /Al l e S eri en ( Al lg emei ne Mod ule) /Ü bers chr ift e n f ür alle S erien /Wich tige Er läuter ungen /Wic htig e Erläuter ung en - Über sc hri ft 1 @ 4\mod_1241428899156_21.doc@ 32170@ 1 @ 1
2 Important Notes
Pos: 13 .1 /All e Serie n( Allg emeine M odul e)/Wic htig e Erläut erung en/ Einlei tung Wic htig e Erläut erung en @ 3\mod_1221059818031_21.doc @ 21717@ @ 1
This section includes an overall summary of the most important safety
requirements and notes that are mentioned in each individual section. To protect
your health and prevent damage to devices as well, it is imperative to read and
carefully follow the safety guidelines.
Pos: 13 .2 /All e Serie n( Allg emeine M odul e)/Ü berschr ifte nf ür alle S erien /Wich tige Er läuter ung en/Rec htlic he Grun dlag en -Ü ber sc hr ift 2 @ 3\mod_1221060626343_21.doc @ 21726@ 2 @ 1
2.1 Legal Bases
Pos: 13 .3 /All e Serie n( Allg emeine M odul e)/Wic htig e Erläut erung en/ Änderu ngs vorbehal t -Ü bersc hrift 3 und I nhalt @ 3\mod_1221060036484_21.doc @ 21 720 @ 3 @ 1
2.1.1 Subject to Changes
WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any
alterations or modifications that serve to increase the efficiency of technical
progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from
the granting of patents or from the legal protection of utility patents. Third-party
products are always mentioned without any reference to patent rights. Thus, the
existence of such rights cannot be excluded.
Pos: 13 .4 /Ser ie 787 (E PSITR ON)/ Wichti ge Erlä uteru ngen/ Pers onalqu alifi katio n 787-xxxx @ 11\mod_1317113061338_21.doc@ 79692@ 3 @ 1
2.1.2 Personnel Qualifications
All sequences implemented on 787 Series devices may only be carried out by
electrical specialists with sufficient knowledge in automation. The specialists
must be familiar with the current norms and guidelines for the devices and
automated environments.
Pos:13.5/Serie787(EPSITRON)/WichtigeErläuterungen/BestimmungsgemäßeVerwendung787-xxxx @ 11\mod_1317113060572_21.doc @ 79688@ 3 @ 1
2.1.3 Use of the 787 Series in Compliance with Underlying
Provisions
The EPSITRON®787 Series power supply system provides direct current to
electric or electronic devices, such as industrial control systems or display,
communication and measuring devices.
The devices have been developed for use in an environment that meets the IP20
protection class criteria. Protection against finger injury and solid impurities up to
12.5 mm diameter is assured; protection against water damage is not ensured.
Unless otherwise specified, operation of the components in wet and dusty
environments is prohibited.
The devices are designed for installation in an enclosure. Under no circumstances
may they be used in control systems for planes or nuclear facilities, as any
malfunction in these applications could result in severe injuries or risk of death.
Pos:13.6/Dokumentationallgemein/Gliederungselemente/---Seite n wec hs el--- @ 3\mod_1221108045078_0.doc @ 21810@ @ 1

10 Important Notes EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 13.7 / All e S eri e n ( All g e mei ne M o d ule) / Wic htig e Erlä ut er ung e n/T ec hnis c h er Z u st an d der G erät e - Ü b er sc hri f t 3 un d I n hal t @ 3\mod_1221060446109_21.doc@ 21723@ 3 @ 1
2.1.4 Technical Condition of Specified Devices
The components to be supplied Ex Works, are equipped with hardware and
software configurations, which meet the individual application requirements.
WAGO Kontakttechnik GmbH & Co. KG will be exempted from any liability in
case of changes in hardware or software as well as to non-compliant usage of
components.
Please send your request for modified and new hardware or software
configurations directly to WAGO Kontakttechnik GmbH & Co. KG.
Pos:13.8/Dokumentationallgemei n/ Gl ie der ung s ele m en te /---Sei te n wec hs el--- @ 3\mod_1221108045078_0.doc @ 21810@ @ 1

EPSITRON® Important Notes 11
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 13 .9 /All e Serie n( Allg emeine M odul e)/Ü berschr ifte nf ür alle S erien /Wich tige Er läuter ung en/Sic herh eitshi nweis e -Ü ber sc hr ift 2 @ 6\mod_1260180299987_21.doc@ 46724 @ 2@ 1
2.2 Safety Advice (Precautions)
Pos: 13.1 0 /Al le S eri en ( Allg em ein e Mo dul e)/ Wich tig e Er läu ter ung en/Si ch erh eits- un d s o nstig e H in wei se/ Ei nleit u ng Si c her hei tshi n weis e H ar dwar e @ 6\mod_1260180170493_21.doc @ 46720@ @ 1
For installing and operating purposes of the relevant device to your system the
following safety precautions shall be observed:
Pos: 13.1 1 /Al le S eri en ( Allg em ein e Mo dul e)/ Wich tig e Er läu ter ung en/Si ch erh eits- un d s o nsti g e H in w eis e /G ef ahr/ G ef ahr : Nich t a n G er ät e n u nt er Spann u ng arbei t en! @ 6\mod_1260180365327_21.doc@46727 @ @ 1
Do not work on components while energized!
All power sources to the device shall be switched off prior to performing any
installation, repair or maintenance work.
Pos: 13.1 2 / S er ie 787 ( EP SIT R ON )/ Wi ch ti g e Er l äut er u ng en/ Sic h er h eits - un d s o ns tig e Hin wei se /G ef ahr /G ef ahr : E i nb a u 78 7-xx xx nur in Geh äus en, Schr änke n oder ele ktris chen Bet riebsr äum en! @ 11 \mod_1317113246230_21.doc@ 79696@ @ 1
Installation only in appropriate housings, cabinets or in electrical operation
rooms!
Always install devices of the 787 Series in enclosures, cabinets or electrical
equipment rooms which can be closed and locked. Ensure that access to this
equipment/these rooms is possible only by authorized specialists with the
appropriate key or tools.
Pos: 13.1 3 / S er ie 787 ( EP SIT R ON )/ Wi ch ti g e Er l äut er u ng en/ Sic h er h eits - un ds onstig e Hin weise /Gefahr /G efahr: S pannu ng an den A usgäng en auc h bei Aus fall d erN etzs pannu ng! @ 14\mod_1363599131481_21.doc@ 114650@ @ 1
Voltage present at the load terminals, even on loss of power supply!
Voltage continues to be present at the load terminals even when there is a loss of
power supply and the device switches to the buffer mode! Therefore, never touch
the load terminals! In this case, always remove the jumper between R0 and R1 to
de-energize the load terminals!
Pos: 13.1 4 /Al le S eri en ( Allg em ein e Mo dul e)/ Wich tig e Er läu ter ung en/Si ch erh eits- un d s o nsti g e H in w eis e /G ef ahr/ G ef ahr : Unfal l v erh üt ung s vor sc hri fte n beac ht e n! @ 6\mod_1260180657000_21.doc @ 46735 @ @ 1
Pos: 13.1 5 / S er ie 787 ( EP SIT R ON )/ Wi ch ti g e Er l äut er u ng en/ Sic h er h eits - un d s o ns tig e Hin wei se /G ef ahr /G ef ahr : G er ä te nicht i n Steuer ung sa nl ag en verwe nde n! @ 13\mod_1346400862576_21.doc @ 102180@ @ 1
Do not use these devices in control systems for planes, trains or nuclear
facilities!
Never use these devices in control systems for planes, trains or nuclear facilities,
as any malfunction in these applications can result in severe injuries or risk of
death!
Pos: 13.1 6 /Al le S eri en ( Allg em ein e Mo dul e)/ Wich tig e Er läu ter ung en/Si ch erh eits- un d s o ns tig e Hin wei se /G ef ahr / G ef ahr: Auf normg erec ht en A ns c hlu s s achte n! @ 6\mod_1260180753479_21.doc@ 46739@ @ 1
Pos: 13.1 7 / S eri e 787 ( EP SITR ON )/ Wich t ig e Erlä ut eru ng en /Si c h erh ei ts- un d s o nsti g e H i nw ei se /A cht u ng /Ac ht u ng : V ers org ung ss p annu ng bei def ekt e m Ger ät absch al t en! @ 13\mod_1346401405605_21.doc@ 102187@ @ 1
Switch off power supply to defective device!
Switch off power supply to the device immediately if the device malfunctions or
is damaged! Control systems connected to the device may also be damaged!
Return the defective device directly to WAGO.
Pos: 13.1 8 /Al le S eri en ( Allg em ein e Mo dul e)/ Wich ti ge Erläu ter ung en /Sic h er hei ts- un d s o nsti g e H in wei se /Ac ht ung /Ac ht ung : Gerä te vor kri ec he nde n und is ol ier en den Stof fe n s ch ütz e n! @ 6\mod_1260181036216_21.doc@46747 @ @ 1

12 Important Notes EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Protect the components against materials having seeping and insulating
properties!
The components are not resistant to materials having seeping and insulating
properties such as: aerosols, silicones and triglycerides (found in some hand
creams). If you cannot exclude that such materials will appear in the component
environment, then install the components in an enclosure being resistant to the
above-mentioned materials. Clean tools and materials are imperative for handling
devices/modules.
Pos: 13.1 9 /Al le S eri en ( Allg em ein e Mo dul e)/ Wich tig e Er läu ter ung en/Si ch erh eits- un d s o nsti g e H in w eis e /Ac ht u ng /Ac ht ung : Rei nig u ng n ur mit zuläs si ge n M at er i ali e n! @ 6\mod_1260181203293_21.doc @ 46751 @ @ 1
Cleaning only with permitted materials!
Clean soiled contacts using oil-free compressed air or with ethyl alcohol and
leather cloths.
Pos: 13.20 / All e S erie n (Al lg emei ne M o dul e)/ Wich tig e Erl äuter ung en /Sic h erhei ts- un d s o nsti ge Hin wei se /Ac ht ung /Ac ht ung : Kein Kont a kts pra y verwe nd en! @ 6\mod_1260181290808_21.doc@ 46755@ @ 1
Do not use any contact spray!
Do not use any contact spray. The spray may impair contact area functionality in
connection with contamination.
Pos: 13.21 / All e S eri en (A llg em eine M o dul e)/ Wich tig e Er läut erung en /Sic h erh eits- un d s o nsti ge Hin wei se /Ac ht u ng/Ac ht ung : Verp olu ng ver mei de n! @ 6\mod_1260184045744_21.doc @ 46767@ @ 1
Do not reverse the polarity of connection lines!
Avoid reverse polarity of data and power supply lines, as this may damage the
devices involved.
Pos: 13.2 2 /Al le S eri en ( Allg em ein e Mo dul e)/ Wich tig e Er läu ter ung en/Si ch erh eits- un d s o nsti g e H in wei se /Ac ht ung /Ac ht ung : Ele ktr ost ati sc h e E ntl a dung ver mei de n! @ 6\mod_1260181364729_21.doc@ 46759@ @ 1
Avoid electrostatic discharge!
The devices are equipped with electronic components that you may destroy by
electrostatic discharge when you touch. Pay attention while handling the devices
to good grounding of the environment (persons, job and packing).
Pos: 14 /D o kum e nta tio n al lg e mei n/ Gli eder ung s ele men te /---Sei te n wec hs el--- @ 3\mod_1221108045078_0.doc @ 21810@ @ 1

EPSITRON® Device Description 13
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 15 /A ll e Seri en ( Al l ge mei ne Mod ul e)/ Ü ber s chr ift e n f ür alle Seri en /G er ät eb es chr eib u ng /G er ät ebes chr ei bung -Ü b ers chr if t 1 @ 3\mod_1233756084656_21.doc@ 27096@ 1 @ 1
3 Device Description
Pos: 16.1 / S eri e 787 ( E PS ITR ON ) / Ger ät ebes c hr ei bu ng / Bes chr eib ung / A n we nd ung / A nw en du ng 787-1675 @ 13\mod_1342439897257_21.doc@ 100336@ @ 1
The switched-mode power supply with integrated ups charger and controller 787-
1675, in the following named as uninterruptible power supply system (UPS),
ensures that power is always supplied. If the mains power is lost, all of the
electrical loads connected to the system will continue to operate reliably.
Pos: 16 .2 /Ser ie 787 (E PSITR ON)/ Gerät ebesc hreibu ng/ Beschr eibung /Fu nktion /Fun ktion 78 7-1675: Funktionseinheiten@ 13\mod_1342599274535_21.doc@ 100540@ @ 1
The system consists of two function units:
•an AC/DC power supply unit with an integrated charger and controller and
•a 24V DC battery module for buffering (not included in the scope of
supply).
Pos: 16 .3 /Ser ie 787 (E PSITR ON)/ Gerät ebesc hreibu ng/ Beschr eibung /Fu nktion /Fun ktion 78 7-1675: Wir ku ng s wei s e der K o mponenten @ 13\mod_1342600188912_21.doc@ 100544@ @ 1
All of the components that can be used to set up an uninterruptible power supply
system are optimally matched to and compatible with one another. These
components can be quickly installed and are immediately ready for operation.
Any 787-87x Series battery modules that are connected to the system are detected
automatically by the UPS.
Battery module not included in the scope of supply!
The scope of supply for this device does not include the battery module. The
device will only continue to operate properly when at least one battery module is
connected. The WAGO range of products includes compatible EPSITRON®787-
87x Series battery modules.
The system can also be integrated into an existing topology via several signaling
contacts and a serial interface.
Critical operating states are signaled at an early stage, before the 24 V system
power collapses and the device shuts down.
Pos: 17 /D o kum e nta tio n al lg e mei n/ Gli eder ung s ele men te /---Sei te n wec hs el--- @ 3\mod_1221108045078_0.doc @ 21810@ @ 1

14 Device Description EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 18 /Al l e S eri en ( Al lg emei ne Mod ule) /Ü bers chr ift e n f ür alle S eri en/ Ger ät eb eschr ei bu ng /Ans ic ht - Ü b er sc hri f t 2@ 4\mod_1240984217343_21.doc@ 31958@ 2 @ 1
3.1 View
Pos: 19 / S eri e 787 ( E PS ITR ON )/ Ger ät eb es c hr ei b ung / Ansi cht /A ns ic ht 787-1675@ 13\mod_1345791639239_21.doc @ 101944@ @ 1
Figure 1: View of device
Table 3: Legend for "View" figure
No.
Designation
Reference
1
CAGE CLAMP®connections
for 24 VDC output voltage
"Device description" >
"Connections" > "Load"
2
Rotary switch for setting the output
voltage
"Device Description" > "Operating
Elements" > "Rotary Switch for
Output Voltage"
3
CAGE CLAMP®connections
for 100 … 240 VAC input voltage
"Device Description" >
"Connections" > "Power Supply"
4
RS-232 serial interface
"Device Description" >
"Connections" > "RS-232
Interface"
5
LEDs
"Device Description" > "Display
Elements"
6
Rotary switch for setting the timed
buffer mode
"Device Description" > "Operating
Elements" > "Rotary Switch for
Timed Buffer Mode"
7
CAGE CLAMP®connections for
battery, control and signaling contacts
"Device Description" > "Operating
Elements" > "Battery, Control and
Signaling Contacts"
Pos: 20 /D o kum e nta tio n al lg e mei n/ Gli eder ung s ele men te /---Sei te n wec hs el--- @ 3\mod_1221108045078_0.doc @ 21810@ @ 1

EPSITRON® Device Description 15
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 21 /Al l e Seri en ( Al lg e mei ne M od ule) /Ü ber s chr ift e n f ür alle Seri en /G erä te bes chr ei bu ng /A nsc hlüs s e - Über sc hr ift 2 @ 4\mod_1240984262656_21.doc@ 31961 @ 2@ 1
3.2 Connectors
Pos: 22.1 / Ser ie 787 ( E PS ITR ON) / Ger ät ebes c hrei bu ng / Ans chl üs s e/Ans c hl üss e 787-167 5 - Versorgung@ 13\mod_1347952219203_21.doc @ 102916@ 3@ 1
3.2.1 Supply
Table 4: Power supply connections
Figure 2: Supply connection
No.
Designatio
n
Function
1
L
Input voltage: 100 … 240 VAC
2
N
N-conductor
3
PE
Ground conductor
Pos: 22.2 / Ser ie 787 ( E PS ITR ON) / Ger ät ebes c hrei bu ng / Ans chl üs s e/Ans c hl üss e 787-167 5 - Last@ 13\mod_1347884939616_21.doc@ 102884@ 3 @ 1
3.2.2 Load
Table 5: Terminals – Load
Figure 3: Load terminals
No.
Designatio
n
Function
1
+
Output voltage: 24 VDC
2
+
Output voltage: 24 VDC
3
-
Reference potential 0 V
4
-
Reference potential 0 V
Pos: 22.3 / Ser ie 787 ( E PS ITR ON) / Ger ät ebes c hrei bu ng / Ans chl üs s e/Ans c hl üss e 787-167 5 - Bat t eri e-, Steuer - undSignalkontakte@ 13\mod_1347958740665_21.doc@ 102950@ 3 @ 1

16 Device Description EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
3.2.3 Battery, Control and Signaling Contacts
Table 6: Connections – Battery, control and signaling contacts
Figure 4: Battery, control and
signaling contacts
No.
Designatio
n
Function
1
B)
Battery connection 0 V
2
B)
Battery connection 24 V
3
°C
Signal line for "Bat. Control"
4
°C
Signal line for "Bat. Control"
5
R0
Remote shutdown in Buffer mode
6
R1
Remote shutdown in Buffer mode
7
34
Signal output "Bat.Charge"
8
24
Signal output "Bat.Mode"
9
14
Signal output "Alarm"
10
13
External supply voltage 24 VDC
for signal outputs 7, 8 and 9.
Pos: 22.4 / Ser ie 787 ( E PS ITR ON) / Ger ät ebes c hrei bu ng / Ans chl üs s e/Ans c hl üss e 787-167 5 - RS-232-Sc hni tts telle @ 1 3\mod_1347962772871_21.doc @ 102970@ 3 @ 1
3.2.4 RS-232 Interface
Table 7: Connections – RS-232 interface
Figure 5: RS-232 interface
No.
Designation
Function
1
1
Transmitter (Tx)
2
2
Receiver (Rx)
3
3
Reference potential 0V
4
4
Output voltage: 24 VDC
Pos: 23 /Al l e S eri en ( Al lg emei ne Mod ule) /Ü bers chr ift e n f ür alle S eri en/ Ger ät eb eschr ei bu ng /Anz ei geel e ment e - Ü b er sc hri f t 2@ 4\mod_1240984390875_21.doc@ 31964@ 2 @ 1

EPSITRON® Device Description 17
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
3.3 Display Elements
Pos: 24 / S eri e 787 ( E PS ITR ON )/ Ger ät eb es c hr ei b ung / Anz eig e el em e nt e/A nz eig e el e men te 787-1675@ 13\mod_1346060933352_21.doc @ 10196 7 @ @ 1
The unit is equipped with three LEDs, which indicate the following statuses:
Figure 6: Display elements
Table 8: Legend for "Indicators" figure
No.
LED
Designation
Explanation:
1
red
Alarm
The unit is faulted, or the Battery mode is
being terminated.
2
yellow
Charge/
Bat. Mode
The unit is charging the batteries, or is
operating in the Battery mode.
3
green
DC OK
The unit is ready for use.
Further signaling possible!
Other statuses can also be indicated if an error occurs. For information about this,
refer to the "Operating Statuses" table given in this manual.
Pos:25/Dokumentationallg emei n/ Gli e der ung s el e men te /---Sei t en wec hs el--- @ 3\mod_1221108045078_0.doc@ 21810@ @ 1

18 Device Description EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 26 /Al l e S eri en ( Al lg emei ne Mod ule) /Ü bers chr ift e n f ür alle S eri en/ Ger ät eb eschr ei bu ng /Bedi e nel e ment e - Ü ber s chri ft 2 @ 4\mod_1239191655456_21.doc@ 30439@ 2 @ 1
3.4 Operating Elements
Pos: 27 / S eri e 787 ( E PS ITR ON )/ Ger ät eb es c hr ei b ung / Be di e n ele m en te /B edi e nel e ment e 78 7-1675 @ 13\mod_1346060971825_21.doc@ 101981@ 33 @ 1
3.4.1 Rotary Switch for Output Voltage
The unit is set at the factory for an output voltage of 24 VDC. You can change
this value using the rotary switch. The output voltage can be set to any value
between 23 … 28.5 VDC.
Figure 7: Rotary switch for output voltage
3.4.2 Rotary Switch for Timed Buffer Mode
The unit is set at the factory for battery operation for an indefinite period of time.
You can change this value using the rotary switch. Besides set time periods from
1 ... 20 minutes, the following settings can also be made:
•PC Mode: The unit operates based on a time sequence, which shuts down
an IPC, a control system or display and operator panel in a controlled
manner when battery operation is ended. All default values can be set
individually using the "759-870 V2" configuration software (starting from
Version 2.5).
•Indefinite mode ("∞"): Power supply is maintained until the deep
discharge threshold is reached.
•Custom mode: The timed Battery mode can be set individually using the
"759-870 V2" configuration software (starting from Version 2.5).
Figure 8: Rotary switch for battery operation
Pos:28/Dokumentationallgemein/Glie der ung s el e men te /---Sei t en wec hs el--- @ 3\mod_1221108045078_0.doc@ 21810@ @ 1

EPSITRON® Device Description 19
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
Pos: 29 /A lle Ser ien (Al lge meine Mo dule)/ Übers chrif ten für alle S erien /Gerä tebes chrei bung /Tech nisc he Date n- Ü ber s chri ft 2 @ 3\mod_1232967587687_21.doc@ 26924@ 2 @ 1
3.5 Technical Data
Pos: 30 /S er ie 787 ( EPS IT RON )/ Ger ät eb esc hrei b ung/ T ec hnisc h e D at en /Tec h nis c he D at en 787-1675@ 13\mod_1342438358691_21.doc@ 100320@ 333443333@ 1
3.5.1 Device Data
Table 9: Device data
Width
60 mm/2.36 in.
Height
127 mm
Height from upper-edge of DIN 35 rail
135.5 mm
Weight
800 g
3.5.2 Technical Data "Input"
Table 10: Technical data - "Input"
Nominal input voltage
100 ... 240 VAC
Input voltage range AC
85 ... 264 VAC
Input voltage derating AC
-1.5 %/VAC < 110 VAC
Input voltage range DC
120 ... 372 VDC
Input voltage derating DC
-1 %/VDC < 150 VDC
Frequency range
47 … 63 Hz/
0 Hz
Input current I
e
1.1 A for 230 VAC;
2.2 A for 100 VAC
Inrush current
less than 30 A
Turn-on time
less than 100 ms
Transient overvoltage protection:
Varistor
Discharge current to PE
1 mA
Input fuse (internal)
4 A, slow
Recommended backup fusing:
6 A, 10 A or 16 A
(Characteristic B or C)
Input modules
CAGE CLAMP®, 721 Series;
0.08 mm
2
… 2.5 mm
2
; AWG 28 … 12

20 Device Description EPSITRON®
787-1675 Switched-Mode Power Supply with Integrated UPS Charger and Controller
Manual
Version 1.0.0
3.5.3 Technical Data "Output"
Table 11: Technical data - "Output"
Recovery stability
maximum 35 VDC
Overvoltage Protection
38 VDC
Parallel connection of several modules
yes, with a maximum of two modules
decoupled from one another
Series connection of several modules
yes, without any restrictions
Output nominal current
5 A
Tripping of fuses
Maximum B4 power circuit breakers
Output terminals
CAGE CLAMP®, 721 Series;
0.08 mm
2
… 2.5 mm
2
; AWG 28 … 12
Line length
≤ 3 m
3.5.3.1 Technical Data for the Output during Operation with Mains System
Table 12: Technical data for the output during operation with the mains system
Nominal output voltage
24 VDC, SELV
Output voltage range
23 ... 28.5 VDC
Output current limit
starting at approx. 1.1 x nominal
current, constant current
Adjustment accuracy
less than 1 %
Static load change 10 … 90 %
Maximum power loss at nominal load, -
100VAC input voltage and fully
charged battery
22 W
Maximum power loss at nominal load, -
230VAC input voltage and fully
charged battery
17 W
Maximum power loss at nominal load, -
90VAC input voltage, battery being
charged
30 W
Efficiency
typically 88 %
Residual ripple
typically 50 mVSS
3.5.3.2 Technical Data for the Output during Battery Mode
Table 13: Technical data for the output during Battery mode
Output voltage
24 VDC, SELV
Output voltage range
UBAT -0.5 V (27.5 … 19 VDC)
Output current limit
starting at approx. 1.1 x nominal current
Maximum power loss at nominal load
5.2 W
Maximum power loss during open-
circuit operation
3.2 W
Remote shutdown
yes
