Walgreens DELUXE WRIST WGNBPW-210 User manual

• 5-Year
Limited Warranty
El manual en español
empieza en la página 40
WGNBPW210
WIC 900371
DELUXE WRIST
Blood Pressure
Monitor

1
TABLE OF CONTENTS
INTRODUCTORY INFORMATION:
Important Product Notices and
Safety Instructions .......................................... 3
About Blood Pressure..................................... 5
Blood Pressure Standard................................ 6
How This Blood Pressure
Monitor Works.................................................. 7
USAGE INFORMATION:
Name/Function of Each Part........................... 8
Display Explanations....................................... 9
Installing Batteries ........................................ 12
Date & Time Set Procedure........................... 14
Applying the Cuff........................................... 15
Correct Measurement Posture ..................... 16
Wrist Positioning Guide ................................ 17

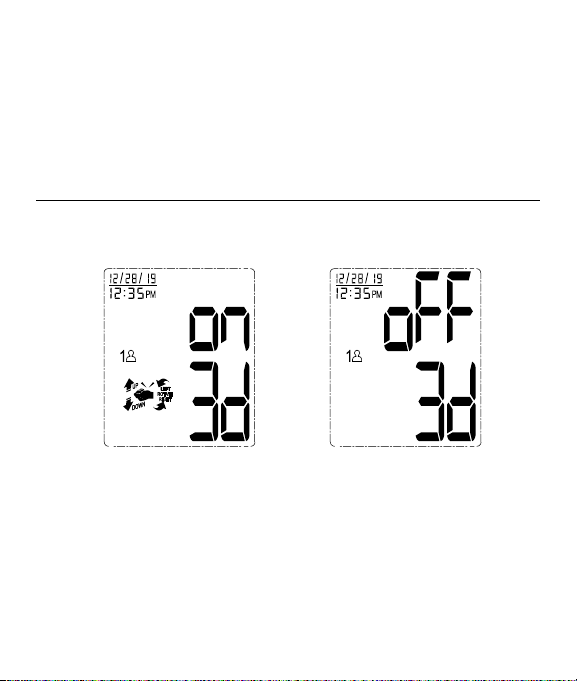

Wrist Positioning Guide Settings ................. 18

2
Measurement Procedure............................... 19
Risk Category Index...................................... 21
Irregular Heartbeat Detector ........................ 22
Excessive Body Motion Detector ................ 23
Recalling Values from Memory..................... 23
Clearing Values from Memory ...................... 25
Important Notes Regarding Your
Blood Pressure Measurement...................... 26
Care, Maintenance, & Cleaning .................... 27
Potential for Electromagnetic
Interference.................................................... 29
Electromagnetic Compatibility (EMC).......... 30
Troubleshooting............................................. 34
Specifications ................................................ 36
5-Year Limited Warranty ................................ 38

3
IMPORTANT PRODUCT NOTICES AND
SAFETY INSTRUCTIONS
When using your blood pressure monitor, basic precautions should
always be followed. Please read and follow all instructions and warnings
before using this product. Save these instructions for future reference.
• This device uses the oscillometric method to measure systolic and
diastolic blood pressure, as well as heart rate.
• Please note that this is a home healthcare product only and it is not
intended to serve as a substitute for the advice of a physician or
medical professional.
• Not for use by or on persons under the age of 18.
• This device is only intended for use by those individuals with a wrist
circumference ranging from 5.3"-8.4" (13.5cm-21.5cm).
• DO NOT use this device for diagnosis or treatment of any health
problem or disease. Measurement results are for reference only.
Consult a healthcare professional for interpretation of blood pressure
measurements. Contact your physician if you have or suspect any
medical problem. Do not change your medications without the advice
of your physician or healthcare professional.
• This product is not suitable for people with arrhythmias.
• This device may have difficulty determining the proper blood pressure
for pregnant women and for individuals with irregular heartbeat,
diabetes, poor circulation of blood, kidney problems or for users who
have suffered from a stroke.
• Not suitable for people undergoing intravenous injection on any
limb, women who may be pregnant and those with preeclampsia.
• Those who have had mastectomy surgery (especially when
lymph nodes have been removed), it is recommended to take
measurements on the unaffected side.
• Excessive use may result in blood flow interference, which is likely
to cause uncomfortable sensations, such as partial subcutaneous

4
hemorrhage, or temporary numbness to your wrist. In general,
these symptoms should not last long. However, if symptoms persist,
please seek advice from a medical professional.
• When used along with other medical electronic equipment on the
same arm, pressurization of the cuff may cause the other devices
to temporarily malfunction.
• Consult your physician before measuring blood pressure at the wrist if
you have any of the following conditions: Severe hypertension, severe
diabetes, severe arteriosclerosis, severe kidney disease, or vascular
disease that may compromise circulation.
• The pulse display is not suitable for checking the frequency of
heart pacemakers.
• Not suitable for use on patients with implanted electrical devices,
such as a cardiac pacemakers or defibrillators.
• Electromagnetic interference: The device contains sensitive
electronic components. Avoid strong electrical or electromagnetic
fields in the direct vicinity of the device (e.g. mobile telephones,
microwave ovens). These may lead to temporary impairment of
measurement accuracy.
• Consider the electromagnetic compatibility of the device
(ex. power disturbance, radio frequency interference, etc.)
• Please use this device in a home health care environment only.
• Use blood pressure monitor only for its intended use.
• DO NOT wrap the cuff around body parts other than your wrist.
• DO NOT use this device on infants, children, or those who cannot
express their own intention.
• Use only 1.5V “AAA” alkaline batteries for power supply.
Blood pressure measurements determined with this device are
equivalent to those obtained by a trained observer using the cuff/
stethoscope auscultatory method, within the accuracy limits prescribed
by the American National Standard, manual, electronic, or automated
sphygmomanometers. The sphygmomanometer was clinically
investigated according to the requirement of ISO 81060-2:2013.

5
ABOUT BLOOD PRESSURE
What is Blood Pressure?
Blood pressure is the pressure exerted on the artery walls while blood
flows through the arteries. The pressure measured when the heart
contracts and sends blood out of the heart is systolic (highest) blood
pressure. The pressure measured when the heart dilates with blood
flowing back into the heart is called diastolic (lowest) blood pressure.
Why Measure Your Blood Pressure?
Among today’s various health problems, those associated with high
blood pressure are very common. High blood pressure dangerously
correlates with cardiovascular diseases. Therefore, blood pressure
monitoring is important for identifying those at risk.
Why Do My Readings Vary?
Blood pressure is a body parameter that is subject to normal variations
throughout the day. A single reading that is different from yours or your
doctor’s readings are not necessarily inaccurate. The average of several
readings, taken under similar conditions, using the same arm is preferred
for accurate blood pressure readings.
Why Are My Readings Different Than Those Taken at My
Doctor’s Office?
Many experience a phenomenon called “White Coat Hypertension” when
measured by a doctor. White Coat Hypertension refers to blood pressure
that rises above its usual level when measured in a clinical setting, such
as a doctor’s office.

6
BLOOD PRESSURE STANDARD
This table contains defined levels for hypertension that are publicly
available from the American Heart Association®(AHA 2017). Users
can compare their own blood pressure readings against these defined
levels to determine if they may potentially be at an increased risk.
This table is applicable to most adults aged 18 and older.
Blood pressure tends to go up and down, even in people who
normally don’t have high readings. If your numbers stay above the
normal range most of the time, you may be at increased risk and
should consult your physician.
Although one can easily find where their own blood pressure readings
fall on this table, this monitor comes equipped with a Risk Category
Index that automatically compares each reading to the defined levels
and provides a helpful cue if your reading falls into one of the stages
that could potentially indicate increased risk. See page 21 for more
information on this feature.
Blood Pressure Category
Systolic
mmHg (upper
number)
Diastolic
mmHg (lower
number)
Indicator
Color
Normal <120 and <80 Green
Elevated 120–129 and <80 Yellow
High Blood Pressure
(hypertension) Stage 1 130–139 or 80–89
Red
High Blood Pressure
(hypertension) Stage 2 140–180 or 90–120
Hypertensive Crisis
(consult your doctor immediately) >180 and/or >120
*Source: AHA 2017

7
Please note that cues provided by this monitor are only intended to
assist you in using the table on the previous page. The table and
cues are only provided for convenience to help you understand your
noninvasive blood pressure reading as it relates to the American
Heart Association®information. They are not a substitute for a medical
examination by your physician. It is important for you to consult with
your physician regularly. Your physician will tell you your normal
blood pressure range as well as the point at which you may actually
be considered to be at risk.
HOW THIS BLOOD PRESSURE
MONITOR WORKS
This monitor uses innovative GentleInflate™ technology to detect
your blood pressure. With one touch of a button, the monitor
automatically takes the reading during inflation, then deflates,
delivering a quick, comfortable and quiet measurement every time.
To help guide your wrist into the ideal position, this blood pressure
monitor comes equipped with an optional wrist positioning guide to
help you take an accurate blood pressure reading. Please see page
17 for more information on this feature.
Please note that any muscle movement during inflation will cause a
measurement error. When measurement is complete, the monitor will
display your systolic pressure, diastolic pressure, and pulse readings.
The monitor automatically finds where your measurement results fall on
the American Heart Association (AHA 2017) table and provides a cue if
your reading falls into one of the stages that could potentially indicate
increased risk. See page 21 for more information on this feature.
The appearance of the icon indicates that a pulse irregularity
consistent with an irregular heartbeat was detected during measurement
Refer to page 22 for more information on the Irregular Heartbeat Detector.

8
NAME/FUNCTION OF EACH PART
Accessories for unit:
2 “AAA” 1.5V alkaline
batteries and a carrying case
are included with the unit.
Memory Recall/
Date & Time Select
Wrist Cuff
Battery Cover
(located on
side of unit)
User-Select
START/STOP
LCD Display
Date & Time Set

9
DISPLAY EXPLANATIONS
Systolic
Pressure
Diastolic
Pressure
Date/Time
Indicator
Heart Rate
Wrist
Positioning
Guide
Irregular
Heartbeat
Detector

10
Display Symbols:
User 1: Appears when the monitor is operated by User 1.
User 2: Appears when the monitor is operated by User 2.
Low Battery Symbol: Appears when batteries should be
replaced, or +/- polarities have been positioned incorrectly.
Pulse Symbol: Shows heart rate in beats per minute.
Wrist Positioning Guide: See page 17 for more information.
Irregular Heartbeat Detector: Irregular heartbeat detected
during measurement. See page 22 for more information.
Risk Category Index: Indicates the blood pressure level.
See page 21 for more information.
Memory Average: Displays average of last 3 readings.
AM Averaging: Indicates the reading being displayed is an
average from the last 3 mornings measurements, within the
last 7 days. AM is defined as 4:00 AM – 12:00 PM.
PM Averaging: Indicates the reading being displayed is an
average from the last 3 evening measurements, within the
last 7 days. PM is defined as 6:00 PM – 2:00 AM.
Excessive Body Motion Detector: Appears when excessive
body movement, especially of the wrist the cuff is worn, is
detected during the measurement. See page 23 for more
information. NOTE: The measured blood pressure reading
may not be accurate if the icon is displayed.

Incorrect cuff placement: Correct and measure again.
Error Determining Measurement Data: Relax, do not
move, and measure again.
Pulse signal not detected: Measure again.
Error Determining Measurement Data: Relax for 3
minutes, measure again.
System Error: Turn off monitor and measure again. If EE
still appears on the display followed by any other character
(ex: EE4, EEA, etc.), please contact Consumer Relations.
Pressure Measurement Out of Range: Switch the unit
off to clear, then measure again.
11
If any of the following letters and numbers appear in the area that systolic
pressure should be displayed or the wrist icon appears, an error has occurred
with your reading. See Troubleshooting section of this manual for more
information.

12
INSTALLING BATTERIES
1. Slide off the battery cover to
open the battery compartment.
2. Install or replace the 2 “AAA”
alkaline batteries according to
the indications inside the
battery compartment.
NOTE:
When removing batteries, pull black ribbon forward.
3. Replace the battery cover.
Replace the batteries if:
• The low battery symbol appears on the display.
• When any button is pressed and nothing is displayed on the screen.
NOTE:
• Date and time will need to be reset if batteries are removed or
replaced.
• Replace all batteries at one time (as simultaneous set). Do not mix
old and new batteries.
• Use only 1.5V “AAA” alkaline batteries. Do not mix alkaline, standard
(carbon-zinc) or rechargeable (Ni-Cad, Ni-MH, etc.) batteries.
• When installing batteries, observe proper +/- polarities. Incorrect
installation of batteries may cause damage to the unit.

13
• Remove batteries when unit is not in use for extended periods
of time.
• When the batteries are removed, the measurement values stored in
memory are retained. However, the date and time must be reset.
• Clean contacts on battery and in battery compartment with a soft
dry cloth each time you install batteries.
• Keep batteries away from children as they could pose a
choking hazard.
• Recycle or dispose of properly in accordance with all local, state,
province, and country regulations.
• Batteries are hazardous waste. DO NOT dispose of them
together with the household garbage.
• DO NOT dispose of batteries in fire. Batteries may explode
or leak.

14
DATE & TIME SET PROCEDURE
It is important to set the Date & Time before using your blood
pressure monitor, so that a time stamp can be assigned to each
record that is stored in the memory.
1. To set the date and time, press the
“Date & Time Set” button.
2. The display will show a blinking number representing the MONTH.
Change the MONTH by pressing the “MEM” button. Each press
will increase the number by one in a cycling manner. Press the
button again to confirm the entry. The screen will then show
a blinking number representing the DAY.
3. Change the DAY, YEAR, HOUR, & MINUTE as described in step
2 above, using the “MEM” to change the numbers and the
button to confirm the entries.
SYS
DIA
mmHg
mmHg
Repeat process to set DAY, YEAR, HOUR and MINUTE.
IMPORTANT: IF YOU ARE USING THIS BLOOD PRESSURE MONITOR FOR THE FIRST
TIME, PLEASE REMOVE THE PROTECTIVE FILM FROM THE DISPLAY SCREEN.
Press the button
“MEM”
Blinking Month
Increase Month
Confirm Entry

APPLYING THE CUFF
1. Remove all watches, wrist jewelry, etc.
prior to attaching the wrist monitor.
Clothing sleeves should be rolled up and
the cuff should be wrapped around bare
skin for correct measurements.
2. Apply cuff to left wrist with palm facing up
as shown in Fig. A.
3. Make sure the edge of the cuff is about
1/4"–1/2" (1cm–1.5cm) from the palm as
shown in Fig. B.
4. In order to ensure accurate
measurements, fasten the hook and loop
strap securely around your wrist so there
is no extra space between the cuff and
the wrist. If the cuff is not wrapped tight
enough, the measurement values will not
be accurate.
5. If your physician has diagnosed you with
poor circulation in your left arm, place the
cuff around your right wrist as shown in
Fig. C.
NOTE:
• This device should not be used when
your wrist is wounded or injured.
• If it is not possible to use the cuff on your
left wrist, it can also be used on your
right wrist. However, all measurements
should be made using the same wrist.
15
SYS
DIA
mmHg
mmHg
SYS
DIA
mmHg
mmHg
SYS
DIA
mmHg
mmHg
Fig. A
SYS
DIA
mmHg
mmHg
SYS
DIA
mmHg
mmHg
SYS
DIA
mmHg
mmHg
Fig. B
SYS
DIA
mmHg
mmHg
SYS
DIA
mmHg
mmHg
SYS
DIA
mmHg
mmHg
Fig. C

16
CORRECT MEASUREMENT POSTURE
1. Place your elbow on a table so that the cuff
is at the same level as your heart as shown
in Fig. A. Relax your entire body, especially
between your elbow and fingers.
NOTE:
Your heart is located slightly below your armpit.
2. If the cuff is not at the same level as your
heart or if you cannot keep your arm
completely still throughout the reading, use
a soft object, such as a folded towel, to
support your wrist as shown in Fig. B.
3. Turn your palm upwards.
4. Sit upright in a chair with feet flat on the floor
and take 5-6 deep breaths. Avoid leaning
back while the measurement is being taken
as shown in Fig. C.
Fig. A
Fig. B
Fig. C
(X)

17
WRIST POSITIONING GUIDE
• When using wrist blood pressure monitors, it is important to take
the measurement while relaxing your wrist at heart level. This will
help ensure an accurate reading will be taken. Because it is difficult
to find the ideal location for a wrist measurement, we have included
an optional Wrist Positioning Sensor that will assist in directing your
wrist to the ideal location for a blood pressure measurement.
• After you press “START/STOP” button, the display will illuminate
with different icons that are designed to help you move your wrist.
Once the ideal location is found, the wrist symbol will flash twice
and measurement will begin. Keep your arm still until measurement
is completed.
SYMBOL ACTION
Move your wrist up.
Move your wrist down.
Rotate your wrist to your left.
Rotate your wrist to your right.
Wrist is in ideal position, do not move.
Wrist was NOT in ideal position, this symbol will be
saved in the measurement memory if this occurs.
• Even if the monitor is not in the ideal position after 10 seconds, the
measurement will still begin. If this occurs, the wrist symbol will
appear and be stored in the memory with the measurement.

18
NOTE:
• Due to differences in individual sizes and physique, this feature may
not be helpful in all cases and you may wish to turn this feature OFF.
If you feel the suggested wrist position does not match your heart
level, please turn this feature OFF and follow your judgment.
WRIST POSITIONING GUIDE SETTINGS
1. When the monitor is off, to turn the Wrist Positioning Guide OFF or
ON, press and hold the “START/STOP” button for 3 seconds.
NOTE:
• By default, the Wrist Positioning Guide is ON.
• When the Wrist Positioning Guide is OFF, the instruction will not
appear at the start of the measurement.
Wrist Positioning
Guide is ON Wrist Positioning Guide is OFF

19
MEASUREMENT PROCEDURE
IMPORTANT NOTES:
• Blood pressure changes with every heartbeat and is in constant
fluctuation throughout the day.
• Blood pressure measurement can be affected by the position of the
user, his or her physiologic condition, and other factors.
Before Measurement:
To help ensure an accurate reading, follow these instructions before
taking a measurement:
• Wait 1 hour after exercising, bathing, eating, drinking beverages
with alcohol or caffeine, or smoking to measure blood pressure.
• Sit quietly and rest for 15 minutes.
• Stress raises blood pressure. Avoid taking measurements during
stressful times.
• Take your reading in a comfortable environment as measurements
can be affected by hot or cold temperatures. Take your blood
pressure at normal body temperature.
During Measurement:
• DO NOT talk or move your arm or hand muscles.
• DO NOT cross your legs. Sit with feet flat on the floor.
• DO NOT touch cuff or monitor during measurement.
