Wansview X SERIES User manual

User manual
1/23
X Series
User Manual
Jan, 2015
V1.0
Please read and understand this manual
before attempting installation of the product.

User manual
2/23
Statement
If the user manual doesn’t help you to solve the problem, please call our technology center for
technical support.
Notice
1. Installation Environment
Keep away from the places for high-temperature, heat source and direct sunlight;
Keep away from water and if wet, power off immediately.
Avoid using in the damp environment; the reference range for operation humidity is below
85%RH.
Avoid using in too hot or too cold environment, the reference range for operation
temperature is -10℃~ +40℃
Please install it horizontally or wall mount, avoid strenuous vibration and do not place
other items on top of the unit.
2. Transport and Handling
Please handle the item carefully.
Do not move the item between too hot and too cold areas.
Please disconnect the item from the mains before moving.
Notice:
1. Do not fall down the camera or beat it strongly.
2. Do not touch the optical components for the image sensor, such as the lens, if necessary,
please place a clean and moistened cloth with alcohol and wipe the dirt gently; When not
in use, please place the dust cover onto the item to protect the image sensor.
3. Do not aim the camera directly into the sun or at other intense light sources that could
affect the image quality, this will also shorten the service life for the image sensor.
4. Keep away from laser when it is working, otherwise the image sensor can be damaged.
5. If the equipment is not working properly, please contact the store or the service centre, do
not disassemble or modify the equipment in any way.

User manual
3/23
Index
1 Product Introduction.................................................................................................................4
1.1. Product Overview......................................................................................................... 4
1.2. Product Exposition....................................................................................................... 4
2 Device Connection................................................................................................................... 6
2.1. Connection Diagram.................................................................................................... 6
2.2. Wi-Fi Setting..................................................................................................................6
2.2.1. configure via network cable connection....................................................... 6
2.2.2. WPS/QSS One key configure Wi-Fi............................................................. 6
2.2.3. Mobile Phone Setting...................................................................................... 7
3 View Video by Browser............................................................................................................8
3.1. Access to camera webpage and install Plug-in...................................................... 8
3.2. Browse Video................................................................................................................ 8
4 Query and Playback SD Record by Browser...................................................................... 9
4.1. Playback Video............................................................................................................. 9
5 Device Configuration and Local Setting............................................................................. 10
5.1. Device Configuration................................................................................................. 10
5.1.1. System............................................................................................................. 10
5.1.2. Network............................................................................................................ 12
5.1.3. Audio and Video............................................................................................. 16
5.1.4. Safety............................................................................................................... 18
5.1.5. Alarm................................................................................................................ 18
5.1.6. Storage.............................................................................................................20
5.1.7. Log.................................................................................................................... 21
5.2. Local Setting............................................................................................................... 22

User manual
4/23
1 Product Introduction
1.1.Product Overview
Thank you for choosing X series high definition SmartP2P IP Camera, the IP Camera combines a
high definition digital video camera with network connectivity and a powerful web server to bring
high definition video to your desktop from anywhere on your local network or over the Internet. It
includes indoor HD PTZ camera, indoor HD cube camera, outdoor HD waterproof camera etc. It is
very suitable for home, shops, offices and so on.
Product features：
Support High profile H.264 encoding, 3 kinds of resolution video stream simultaneously, suitable for
Local, Internet and Cross-platform view;
Support Wi-Fi protocol 802.11b/g/n；
Support WPS/QSS one key Wi-Fi configuration;
Support one touch Wi-Fi configuration on mobile phone before connect to the network;
Support max. 64G SD/TF card storage for the alarm video and pictures, timing snapshot and
recording, support MP4 format；
Built-in web server, use one port to send all the data, users can facilitates network setting；
Support IE/Firefox/Chrome/Safari browser to view video and configure deice;
Support P2P private network through transmission via manufacturer cloud platform;
Provide IOS/Android mobile phone Apps;
Provide Windows/Mac OS PC client software.
1.2.Product Exposition
Please check carefully if all listed items are included in the package, it includes camera, power
adapter, network cable, installation bracket. If anything missing, please contact vendor in time.
The camera functions maybe different due to different product model, the main functions as below:
Main chip and sensor: Due to main control chip and sensor is different, so the camera support
different resolution:720P, 1080P and above;
Power input port：Check power supply if 5V or 12V. Plug right power supply, or it will damage the
camera or cannot run. We suggest to use the default power adapter.
RJ45 Port：Network port；
Wi-Fi function: The device features Wi-Fi function, built-in Wi-Fi module and antenna. The Wi-Fi
antenna includes built-in Wi-Fi antenna, integration antenna, separated antenna and so on. The
separated antenna would be packed with the camera in the gift box, users should install it to camera
before it works.
IR-CUT：A filter switching device, from day and night to switch to a different filter, then forbid or allow
the infrared light in, which make the picture more true;
Lens: Due to focus length of lens is different, so vision angle of lens is different. Please twist the

User manual
5/23
lens for best effect if the video is fuzzy;
PTZ: Control PTZ remotely, view video from several vision angle. Some device have PTZ function
and some device have not PTZ due to the product cover is different, and PTZ moving angle maybe
different;
SD socket：Some product use SD socket and some use MicroSD socket due to the products cover
are different, Max support 64GB memory card；
MIC inside：Can collect the sound from camera workplace;
Speaker inside：can play sound from device start, talking and alarm;
Audio in port：If the camera without MIC in it, you can connect extra MIC to collect sound;
Audio out port：If the camera without speaker in it, you can connect extra sound systems;
Alarm in port：Connect with switchable sensor, check sensor signal if high or low to judge if detect
any event;
Alarm out Port: Connect with external alarm device, control device alarm action when detect any
event;
Reset button: After the camera started, press and hold the reset button for at least 10 seconds, it
restores default settings and reboot; press and hold the reset button for 3 seconds to set up the
Wi-Fi by using WPS/QSS; press the reset button briefly, the Wi-Fi indicator will flashes for a few
seconds while the camera was connecting with Wi-Fi connection, you can assess Wi-Fi signal
intensity by the flash frequency, the faster flash, the stronger signal;
Wi-Fi indicator：Blue LED for Wi-Fi indicator that be used to display Wi-Fi work state, such as off,
slow flash, fast flash, steady work etc;
Work status
indicator:Red LED is operation indicator that displays the state of equipment,there are off, slow
flash and flashlights flash, when someone access video,otherwise slow flash;
POE function：The function that supply power to camera through network cable. But you need the
camera with POE module. the device connect to POE switcher by a network cable and POE
switcher supply power for device through the network cable;
PIR function：The device with PIR sensor, used for detect the human movement, it trigger alarm if
detect any abnormal.

User manual
6/23
2 Device Connection
2.1.Connection Diagram
Figure1
Power on the camera by attaching the power adapter, and then connect the camera and router by
network cable, so you can visit the camera via computer in LAN and view camera video as <<3. View
video by browser>>
You can also connect camera and router by Wi-Fi, you need to configure Wi-Fi of the camera
as<<2.2 Wi-Fi Setting>>.
2.2.Wi-Fi Setting
You can setting up the Wi-Fi as the following three way.
2.2.1. Configuration via network cable connection
Connect the camera and router by network cable as Figure1, please login the camera as <<3.View
video by browser>>, access to system configuration interface to finish the setting as<<5.1.2.3 Wi-Fi
setting>>.Pull up the network cable, then you can connect the router by Wi-Fi.
2.2.2. WPS/QSS One key configure Wi-Fi
Power on the camera and wait for 1 minute, the camera started, hold on reset button 3 seconds,
and then click “WPS/QSS” button of the router ，the camera and router will be configured Wi-Fi as
WPS/QSS protocol, after configuration successfully, the blue Wi-Fi indicator of the camera will quickly
flash several times, and then it will be connected to router automatically and the blue indicator will be
always on.
Notice: Due to some router do not support WPS/QSS function, so you can not use the configuration
way.
IP Camera
Router
Computer
IP Camera
Smartphone
Internet
Local Network

User manual
7/23
Figure2
2.2.3. Mobile Phone Setting
Install the iSmartViewPro App in android phone or iPhone at first，Open the App, access to More
interface, select “One key configure Wi-Fi” and fill in Wi-Fi SSID and password, and then click configure
to finish the setting as Figure3.
Figure3
Tips:
Before configuration, please power on the camera, after 5 minutes, you can configure the camera
(blue Wi-Fi indicator flash slowly),otherwise you can’t configure, and must power on the camera
again;
Move mobile phone speaker to camera MIC, click Configure;（please confirm if the camera have
MIC, otherwise the configuration will be unsuccessfully)
After configuring successfully, the blue Wi-Fi indicator will flash several times quickly, and then
connect to router automatically and the blue indicator is always on. You can click Configure several
times when the configuration is unsuccessfully.

User manual
8/23
3 View Video by Browser
3.1.Access to camera webpage and install Plug-in

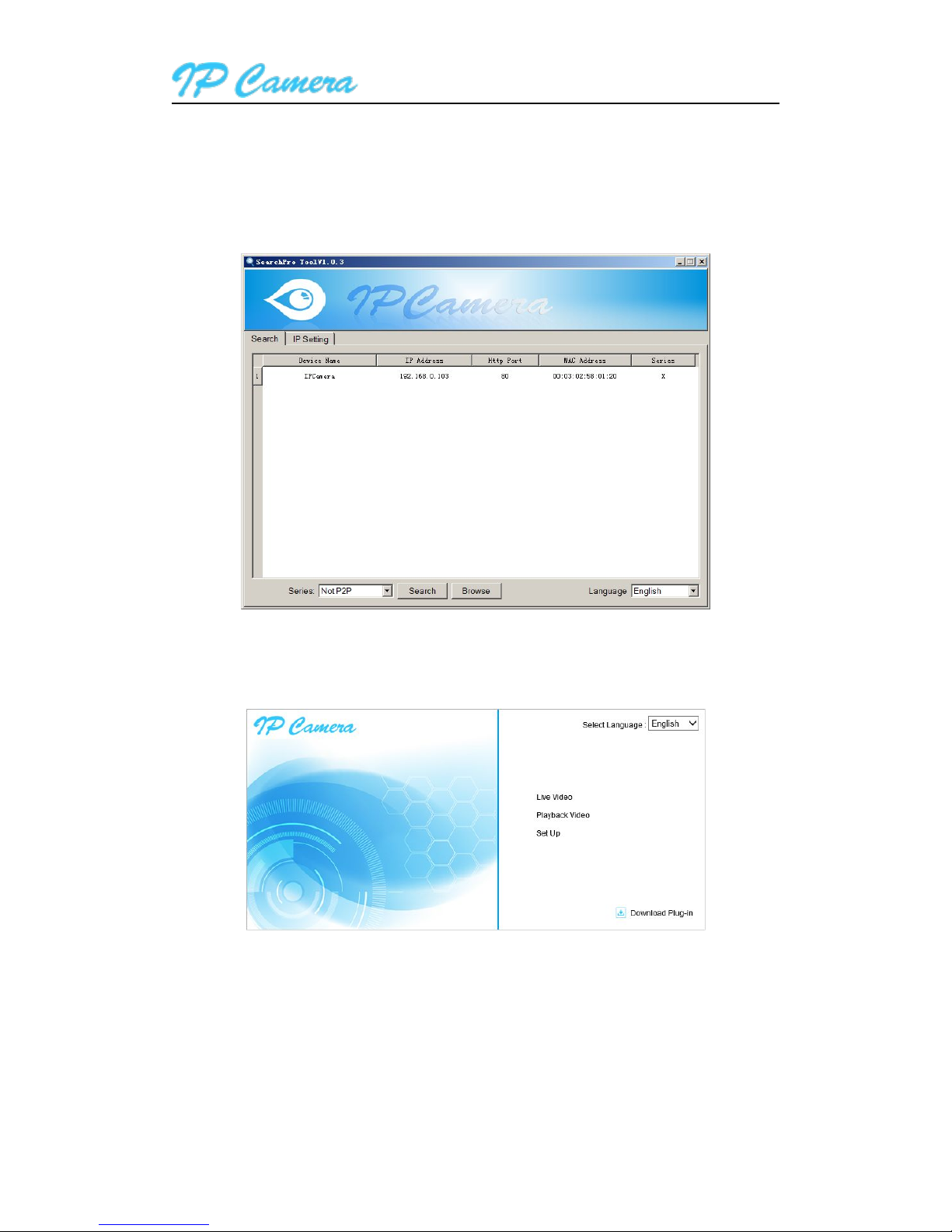

Double click to Open the “SearchPro” in the attached CD and click Search as Figure4.
Figure4
Select the founded device and double click it to open to view in the browser, enter user name and
password at popup dialog to login camera webpage as Figure5.
Tips: default username/password:admin/12345, please modify the password for safety.
Figure5
Need to download plug-in when first use, click “download plug-in” as figure 6, click Run to install it.

User manual
9/23
Figure6
3.2.View Live Video
Access to Live Video interface, it plays video automatically as Figure7.
Figure7
Close video Open video Open monitor open talking Snapshot Record
Hide PTZ control panel First Stream Second Stream Third Stream
Horizon Cruise Vertical Cruise Stop Cruise Preset setting Call Preset Empty

User manual
10 /23
4 Query and Playback SD Record by Browser
4.1.Playback Video

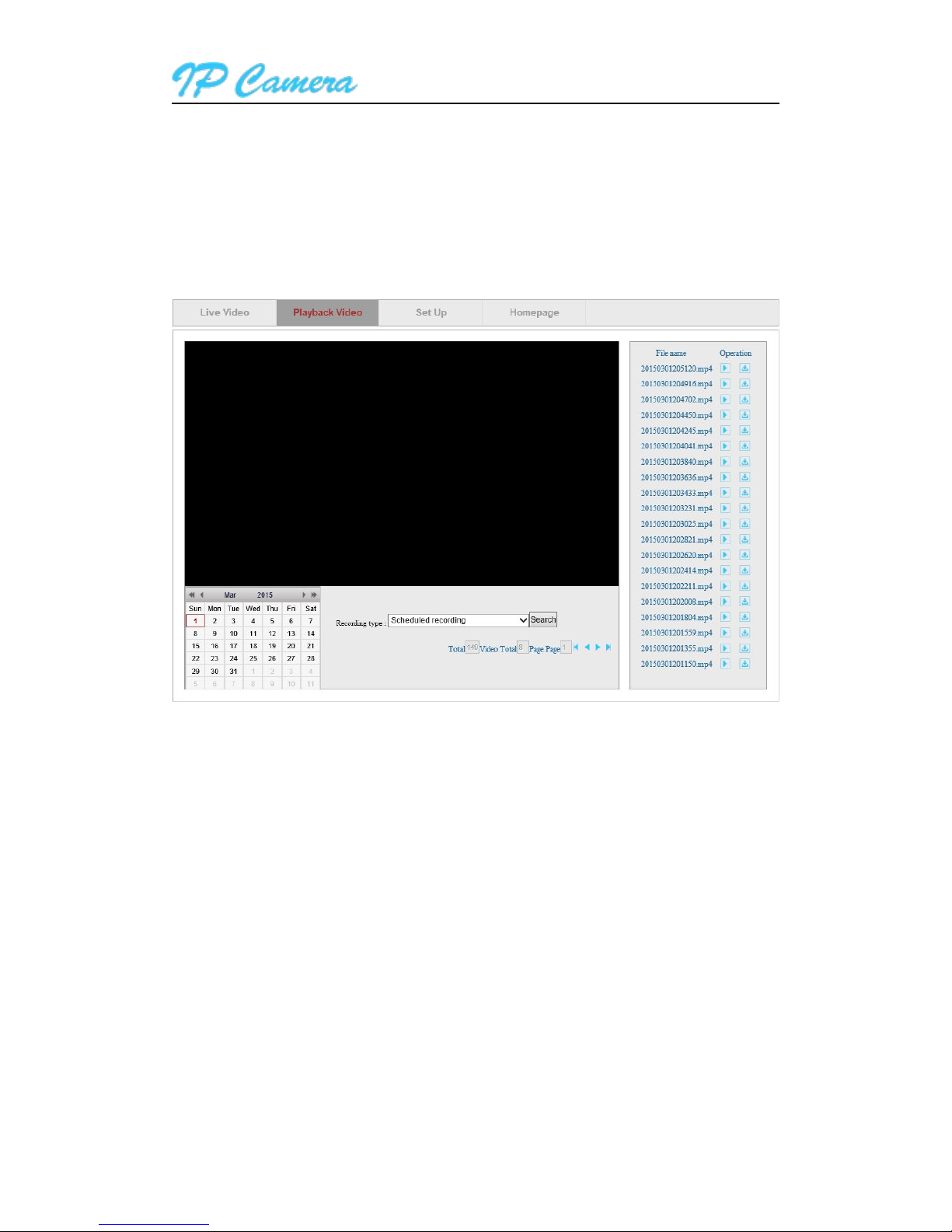

Click Playback Video to access to SD record playback interface, click record date which you want to
query ,click Search to list recording file, select one to playback it, also can click download button to
download the file as Figure8.
Figure8
5 Device Configuration and Local Setting
5.1.Device Configuration
5.1.1. System
5.1.1.1. Device Status
You can view current user, network connection way, Mac address, SD status and internet ip address
of the camera as Figure9.
